UY5364X

型号：

UY5364X

描述：

单一颜色的超高亮度ヵ5型[ Single Color Ultra High Brightness ヵ5 Type ]

品牌：

STANLEY[ STANLEY ELECTRIC CO.,LTD. ]

页数：

24 页

PDF大小：

333 K

下载PDF手册

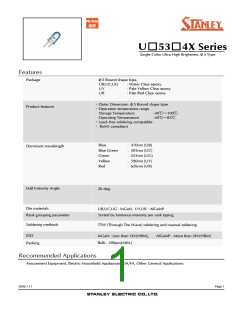

U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Features
Package
φ5 Round shape type,
UB,UC,UG
UY
UR
: Water Clear epoxy
: Pale Yellow Clear epoxy
: Pale Red Clear epoxy
・Outer Dimension φ5 Round shape type
・Operation temperature range.
Product features
Storage Temperature
Operating Temperature
・Lead–free soldering compatible
・ RoHS compliant
:-40℃～100℃
:-40℃～85℃
Blue
: 470nm (UB)
: 505nm (UC)
: 525nm (UG)
: 590nm (UY)
: 626nm (UR)
Dominant wavelength
Blue Green
Green
Yellow
Red
Half Intensity Angle
26 deg.
Die materials
UB,UC,UG : InGaN, UY,UR : AlGaInP
Rank grouping parameter
Sorted by luminous intensity per rank taping
Soldering methods
TTW (Through The Wave) soldering and manual soldering
ESD
InGaN : Less than 1kV(HBM),
Bulk : 200pcs(MIN.)
AlGaInP : More than 2kV(HBM)
Packing
Recommended Applications
Amusement Equipment, Electric Household Appliances, OA/FA, Other General Applications
Page 1
2006.7.31
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Color and Luminous Intensity
(Ta=25℃)
Dominant
Wavelength
Luminous Intens ity
Iv (mc d)
Emitted
Color
Lens
Color
Part No.
Material
d (nm)
λ
TYP.
IF
MIN.
TYP.
IF
UB5304X
UC5304X
UG5304X
UY5364X
UR5364X
InGaN
InGaN
470
505
525
590
630
20
20
20
20
20
600
1,680
20
Blue
Blue Green
Green
Water
Clear
2,000
2,000
640
5,600
5,600
1,280
1,160
20
20
20
20
InGaN
Clear
Pale
Yellow
Pale
AlGaInP
AlGaInP
Yellow
Red
580
Red
Page 2
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Absolute Maximum Ratings
(Ta=25℃)
Absolute Maximum Ratings
Item
S ymbol
Unit
UB
UC
UG
UY
UR
Power Dissipation
Pd
IF
105
105
105
150
150
mW
mA
Forward Current
Pulse Forward
25
60
25
60
25
60
50
50
IF R M
100
100
mA
1
※
Current
De ra ting
I
F
0.33
5
0.33
5
0.33
5
0.67
5
0.67 mA/
℃
⊿
(Ta=25 or higher)
℃
Reverse Voltage
VR
Topr
Tstg
5
V
Ope ra ting
Temperature
S torage
-40~+85
-40~+100
℃
℃
Temperature
※1 IFRM Measurement condition : Pulse Width≦1ms., Duty≦1/20.
Page 3
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Electro-Optical Characteristics
(Ta=25℃)
Characteristics
Item
Symbol
VF
Unit
Conditions
IF=20mA
UB
3.7
UC
3.7
UG
3.7
UY
UR
2.2
TYP.
MAX.
MAX.
TYP.
2.2
2.8
100
592
590
18
Forward Voltage
V
4.2
100
465
470
26
4.2
100
502
505
30
4.2
100
517
525
35
2.8
100
641
630
18
Reverse Current
Peak Wavelength
VR=5V
IR
A
μ
IF=20mA
IF=20mA
IF=20mA
nm
nm
λp
λd
⊿λ
Dominant
Wavelength
Spectral Line Half
Width
TYP.
TYP.
nm
Half Intensity Angle IF=20mA
2
θ
1/2
TYP.
26
26
26
26
26
deg.
Page 4
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
(Ta=25℃)
Luminous Intensity Rank
IV（mcd）
Rank
Condition
UR
UB
UC
UG
UY
MIN.
MAX .
MIN.
MAX .
MIN.
MAX .
MIN.
MAX .
MIN.
MAX .
580 1,160
820 1,640
2,000 4,000
2,800 5,600
640 1,280
900 1,800
A
B
600 1,200 4,000 8,000 2,000 4,000 1,280 2,560 1,160 2,320
840 1,680 5,600 11,200 2,800 5,600 1,800 3,600 1,640 3,280
1,200 2,400 8,000 16,000 4,000 8,000 2,560 5,120 2,320 4,640
C
D
E
IF = 20mA
1,680 3,360 11,200
2,400 4,800
-
5,600 11,200 3,600
8,000 16,000
-
3,280
-
F
G
H
3,360
-
11,200
-
※Please contact our sales staff concerning rank designation of UY and UR.
Page 5
2004.12.27
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UB)
Spectral Distribution
Relative Intensity vs. Wavelength
Spatial Distribution Example
Condition : Ta = 25℃, IF = 20mA
Condition : Ta = 25℃
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 6
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UB)
Derating
Ambient Temperature vs. Relative Intensity
Ambient Temperature vs. Maximum Forward Current
Condition : IF=20mA
Repetition Frequency : f ≧ 50Hz
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Power Dissipation vs. Ambient Temperature
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Page 7
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UB)
Dynamic Drive Rating
Duty cycle vs. Maximum Forward Current
Pulse Width vs. Maximum Tolerable Peak Current
Condition : Ta = 25℃
Condition : Ta = 25℃
Duty (%)
Pulse Width : tw (μs)
Page 8
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UC)
Spectral Distribution
Relative Intensity vs. Wavelength
Spatial Distribution Example
Condition : Ta = 25℃, IF = 20mA
Condition : Ta = 25℃
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 9
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UC)
Derating
Ambient Temperature vs. Relative Intensity
Ambient Temperature vs. Maximum Forward Current
Repetition Frequency : f ≧ 50Hz
Condition : IF=20mA
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Power Dissipation vs. Ambient Temperature
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Page 10
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UC)
Dynamic Drive Rating
Duty cycle vs. Maximum Forward Current
Pulse Width vs. Maximum Tolerable Peak Current
Condition : Ta = 25℃
Condition : Ta = 25℃
Duty (%)
Pulse Width : tw (μs)
Page 11
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UG)
Spectral Distribution
Relative Intensity vs. Wavelength
Spatial Distribution Example
Condition : Ta = 25℃, IF = 20mA
Condition : Ta = 25℃
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 12
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UG)
Derating
Ambient Temperature vs. Relative Intensity
Ambient Temperature vs. Maximum Forward Current
Repetition Frequency : f ≧ 50Hz
Condition : IF=20mA
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Power Dissipation vs. Ambient Temperature
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Page 13
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UG)
Dynamic Drive Rating
Duty cycle vs. Maximum Forward Current
Pulse Width vs. Maximum Tolerable Peak Current
Condition : Ta = 25℃
Condition : Ta = 25℃
Duty (%)
Pulse Width : tw (μs)
Page 14
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UY)
Spectral Distribution
Relative Intensity vs. Wavelength
Spatial Distribution Example
Condition : Ta = 25℃, IF = 20mA
Condition : Ta = 25℃
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 15
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UY)
Derating
Ambient Temperature vs. Relative Intensity
Ambient Temperature vs. Maximum Forward Current
Condition : IF=20mA
Repetition Frequency : f ≧ 50Hz
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Power Dissipation vs. Ambient Temperature
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Page 16
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UY)
Dynamic Drive Rating
Duty cycle vs. Maximum Forward Current
Pulse Width vs. Maximum Tolerable Peak Current
Condition : Ta = 25℃
Condition : Ta = 25℃
Duty (%)
Pulse Width : tw (μs)
Page 17
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UR)
Spectral Distribution
Relative Intensity vs. Wavelength
Spatial Distribution Example
Condition : Ta = 25℃, IF = 20mA
Condition : Ta = 25℃
Wavelength [nm]
Forward Voltage vs. Forward Current
Forward Current vs. Relative Intensity
Condition : Ta = 25℃
Condition : Ta = 25℃
Forward Voltage VF(V)
Forward Current IF(mA)
Page 18
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UR)
Derating
Ambient Temperature vs. Relative Intensity
Ambient Temperature vs. Maximum Forward Current
Repetition Frequency : f ≧ 50Hz
Condition : IF=20mA
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Ambient Temperature vs. Forward Voltage
Power Dissipation vs. Ambient Temperature
Ambient Temperature : Ta(℃)
Ambient Temperature : Ta(℃)
Page 19
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Technical Data(UR)
Dynamic Drive Rating
Duty cycle vs. Maximum Forward Current
Pulse Width vs. Maximum Tolerable Peak Current
Condition : Ta = 25℃
Condition : Ta = 25℃
Duty (%)
Pulse Width : tw (μs)
Page 20
2004.10.28
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
(Unit: mm)
Package Dimensions
Page 21
2007.10.12
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
TTW (Through The Wave) soldering Conditions
100 ℃
(MAX.)
Pre-heating
Solder Bath Temp.
Dipping Time
(MAX.)
(MAX.)
265℃
5 s
1) The dip soldering process shall be 2 times maximum.
2) The product shall be cooled to room temp. before the second dipping process.
※The detail is described to LED and Photodetector handling precautions of home page:
"Mounting through-hole Type Devices“ and "Soldering", and use it after the confirmation, please.
Manual Soldering Conditions
Iron tip temp.
Soldering time and frequency
(MAX.)
(MAX.)
400℃
3 s
2 times (MAX.)
※The detail is described to LED and Photodetector handling precautions of home page:
"Mounting through-hole Type Devices“ and "Soldering", and use it after the confirmation, please.
Page 22
2006.3.31
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Reliability Testing Result
Reliability Testing
Applicable Standard
Testing Conditions
Duration
1,000 h
Failure
0/25
Result
Room Temp.
Operating Life
EIAJ ED-
4701/100(101)
F
Ta = 25℃, I = Maxium Rated Current
Resistance to
Soldering Heat
EIAJ ED-
4701/300(302)
260±5℃, 3mm from package base
10s
0/25
Minimum Rated Storage Temperature(30min)
～Normal Temperature(15min)
～Maximum Rated Storage Temperature(30min)
～Normal Temperature(15min)
EIAJ ED-
4701/100(105)
Temperature Cycling
5 cycles
0/25
Wet High Temp.
Storage Life
EIAJ ED-
4701/100(103)
Ta = 60±2℃, RH = 90±5%
1,000 h
1,000 h
1,000 h
10s
0/25
0/25
0/25
0/10
0/10
High Temp.
Storage Life
EIAJ ED-
4701/200(201)
Ta = Maximum Rated Storage Temperature
Ta = Minimum Rated Storage Temperature
10N,1time (□0.4 and Flat Package : 5N)
Low Temp.
Storage Life
EIAJ ED-
4701/200(202)
EIAJ ED-
4701/400(401)
Lead Tension
98.1m/s2 (10G), 100 ～ 2KHz sweep for 20min.,
XYZ each direction
Vibration,
Variable Frequency
EIAJ ED-
4701/400(403)
2 h
Failure Criteria
Items
Symbols
Conditions
Failure criteria
F
I Value of each product
Luminous Intensity
Luminous Intensity
Iv
Testing Min. Value ＜ Spec. Min. Value x 0.5
Testing Max. Value ≧ Spec. Max. Value x 1.2
Testing Max. Value ≧ Spec. Max. Value x 2.5
F
I Value of each product
F
Forward Voltage
Reverse Current
V
Forward Voltage
R
V = Maximum Rated
R
I
Reverse Voltage V
Occurrence of notable decoloration,
deformation and cracking
Cosmetic Appearance
-
-
2007.8.31
Page 23
U□53□4X Series
Single Color Ultra High Brightness φ5 Type
Special Notice to Customers Using the Products and
Technical Information Shown in This Data Sheet
1) The technical information shown in the data sheets are limited to the typical characteristics and circuit
examples of the referenced products. It does not constitute the warranting of industrial property nor the
granting of any license.
2) For the purpose of product improvement, the specifications, characteristics and technical data described in
the data sheets are subject to change without prior notice. Therefore it is recommended that the most
updated specifications be used in your design.
3) When using the products described in the data sheets, please adhere to the maximum ratings for operating
voltage, heat dissipation characteristics, and other precautions for use. We are not responsible for any
damage which may occur if these specifications are exceeded.
4) The products that have been described to this catalog are manufactured so that they will be used for the
electrical instrument of the benchmark (OA equipment, telecommunications equipment, AV machine, home
appliance and measuring instrument).
The application of aircrafts, space borne application, transportation equipment, medical equipment and
nuclear power control equipment, etc. needs a high reliability and safety, and the breakdown and the wrong
operation might influence the life or the human body. Please consult us beforehand if you plan to use our
product for the usages of aircrafts, space borne application, transportation equipment, medical equipment
and nuclear power control equipment, etc. except OA equipment, telecommunications equipment, AV
machine, home appliance and measuring instrument.
5) In order to export the products or technologies described in this data sheet which are under the
“Foreign Exchange and Foreign Trade Control Law,” it is necessary to first obtain an export permit from the
Japanese government.
6) No part of this data sheet may be reprinted or reproduced without prior written permission from Stanley
Electric Co., Ltd.
7) The most updated edition of this data sheet can be obtained from the address below:
http://www.stanley-components.com
Page 24
2007.8.31
厂商 型号 描述 页数 下载

STANLEY

 		UY5365S 单一颜色的超高亮度ヵ5型[ Single Color Ultra High Brightness ヵ5 Type ] 24 页

STANLEY

 		UY5366X 单一颜色的超高亮度ヵ5型[ Single Color Ultra High Brightness ヵ5 Type ] 24 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.192283s
