8TQ100STRRPBF

型号：

8TQ100STRRPBF

描述：

肖特基整流器8安培[ SCHOTTKY RECTIFIER 8 Amp ]

品牌：

INFINEON[ Infineon ]

页数：

7 页

PDF大小：

216 K

下载PDF手册

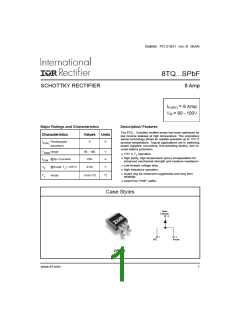

Bulletin PD-21041 rev. B 06/06
8TQ...SPbF
8 Amp
SCHOTTKY RECTIFIER
IF(AV) = 8 Amp
VR = 80 - 100V
Major Ratings and Characteristics
Description/ Features
The 8TQ .. Schottky rectifier series has been optimized for
low reverse leakage at high temperature. The proprietary
barrier technology allows for reliable operation up to 175° C
junction temperature. Typical applications are in switching
power supplies, converters, free-wheeling diodes, and re-
verse battery protection.
Characteristics
Values
Units
I
Rectangular
waveform
8
A
F(AV)
V
I
range
80 -100
850
V
A
V
RRM
175° C T operation
J
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
@tp=5μssine
FSM
Low forward voltage drop
High frequency operation
V
@8Apk, T =125°C
J
0.58
F
J
Guard ring for enhanced ruggedness and long term
reliability
T
range
-55to175
°C
Lead-Free ("PbF" suffix)
Case Styles
Base
Cathode
2
3
1
N/C
Anode
D2PAK
www.irf.com
1
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
Voltage Ratings
Part number
8TQ080SPbF
8TQ100SPbF
VR
Max. DC Reverse Voltage (V)
80
100
VRWM Max. Working Peak Reverse Voltage (V)
Absolute Maximum Ratings
Parameters
8TQ Units
Conditions
IF(AV) Max. Average Forward Current
*SeeFig.5
8
A
50%dutycycle@TC =157°C,rectangularwaveform
Following any rated
IFSM Max. Peak One Cycle Non-Repetitive
SurgeCurrent *SeeFig.7
850
230
5μs Sineor3μsRect.pulse
load condition and
A
10msSineor6msRect. pulse
with rated VRRM applied
EAS Non-Repetitive Avalanche Energy
7.50
0.50
mJ
A
TJ=25°C, IAS= 0.50Amps,L= 60mH
IAR
Repetitive Avalanche Current
Currentdecayinglinearlytozeroin1μsec
FrequencylimitedbyTJ max.VA =1.5xVR typical
Electrical Specifications
Parameters
8TQ Units
Conditions
VFM Max. Forward Voltage Drop
* See Fig. 1
(1)
0.72
0.88
0.58
0.69
V
V
V
V
@
8A
@ 16A
8A
TJ = 25 °C
TJ = 125 °C
@
@ 16A
IRM Max. Reverse Leakage Current (1)
* See Fig. 2
0.55
7
mA
mA
pF
TJ = 25 °C
TJ = 125 °C
VR = rated VR
CT
LS
Max. Junction Capacitance
Typical Series Inductance
500
8
VR = 5VDC (test signal range 100Khz to 1Mhz) 25 °C
Measured lead to lead 5mm from package body
nH
dv/dt Max. Voltage Rate of Change
(Rated VR)
10000
V/ μs
(1) Pulse Width < 300μs, Duty Cycle < 2%
Thermal-Mechanical Specifications
Parameters
8TQ Units
Conditions
TJ
Max. Junction Temperature Range -55to175 °C
Tstg Max. Storage Temperature Range
-55to175 °C
RthJC Max. Thermal Resistance Junction
toCase
2.0
°C/W DC operation *SeeFig.4
RthCS TypicalThermalResistance, Caseto
Heatsink
0.50
°C/W Mountingsurface, smoothandgreased
wt
T
Approximate Weight
Mounting Torque
2(0.07) g(oz.)
Min.
6(5)
Kg-cm
(Ibf-in)
Max.
12(10)
Marking Device
8TQ...S
CasestyleD2Pak
www.irf.com
2
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
100
10
1000
100
10
T = 175°C
J
150°C
125°C
1
100°C
75°C
50°C
0.1
0.01
0.001
0.0001
25°C
0
20
40
60
80
100
Reverse Voltage - V (V)
T = 175°C
J
R
Fig.2-Typical Values of Reverse Current
Vs. Reverse Voltage
T = 125°C
J
T = 25°C
J
1000
T = 25°C
J
1
0.1
100
0
0.2 0.4 0.6 0.8
1
1.2 1.4 1.6 1.8
2
2.2
0
10 20 30 40 50 60 70 80 90 100110
Forward Voltage Drop - V
FM
(V)
Reverse Voltage - V (V)
R
Fig. 1-Maximum Forward Voltage Drop Characteristics
10
Fig.3-Typical Junction Capacitance
Vs. Reverse Voltage
D = 0.75
D = 0.50
D = 0.33
1
D = 0.25
D = 0.20
Single Pulse
(Thermal Resistance)
0.1
1E-04
1E-03
1E-02
1E-01
1E+00
t1,RectangularPulseDuration(Seconds)
Fig.4-Maximum Thermal Impedance ZthJC Characteristics
www.irf.com
3
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
180
175
170
165
7
6
5
4
3
2
1
0
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
DC
160
RMS Lim it
DC
Square wave (D = 0.50)
155
80%Rated V applied
R
150
145
see note (2)
140
0
2
4
6
8
10
12
0
2
4
6
8
10
12
(A)
Average Forward Current - I
(A)
Average Forward Current - I
F( AV)
F(AV)
Fig. 5-Maximum Allowable Case Temperature
Vs. Average Forward Current
Fig.6-Forward Power Loss Characteristics
1000
At Any Rated Load Condition
And With Rated V
Following Surge
Applied
RRM
100
10
100
1000
10000
Square Wave Pulse Duration - t (microsec)
p
Fig. 7-Maximum Non-Repetitive Surge Current
L
HIG H-SPEED
SW ITC H
IRFP460
DUT
FREE-WHEEL
DIODE
Rg = 25 ohm
Vd = 25 Volt
+
C URRENT
MONITOR
40HFL40S02
Fig.8-Unclamped Inductive Test Circuit
(2) Formulaused:TC=TJ -(Pd+PdREV)xRthJC
;
Pd=ForwardPowerLoss=IF(AV) xVFM @(IF(AV) /D) (seeFig.6);
PdREV =InversePowerLoss=VR1 xIR(1-D); IR @VR1=80%ratedVR
www.irf.com
4
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
Outline Table
Conform to JEDEC outline D2Pak (SMD-220)
Dimensions in millimeters and (inches)
Part Marking Information
PART NUMBER
DATE CODE
INTERNATIONAL
RECTIFIER
THIS IS A 8TQ100S
LOT CODE 8024
ASSEMBLED ON WW 02, 2000
8TQ100S
LOGO
YEAR 0 = 2000
WEEK 02
ASSEMBLY
LOT CODE
P = LEAD-FREE
www.irf.com
5
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
Tape & Reel Information
Dimensionsinmillimetersand(inches)
Ordering Information Table
Device Code
8
T
Q
100
S
TRL PbF
2
4
5
6
1
7
3
1
2
3
3
4
-
-
CurrentRating(8A)
CircuitConfiguration
T=TO-220
-
-
Schottky "Q" Series
VoltageRatings
080 = 80V
100 = 100V
5
6
-
-
y S = D2Pak
y none = Tube (50 pieces)
y TRL = Tape & Reel (Left Oriented)
y TRR = Tape & Reel (Right Oriented)
y none = Standard Production
y PbF = Lead-Free
7
-
www.irf.com
6
8TQ...SPbF Series
Bulletin PD-21041 rev. B 06/06
8TQ100
********************************************
*
*
*
*
This model has been developed by
Wizard SPICE MODEL GENERATOR (1999)
(International Rectifier Corporation)
Contain Proprietary Information
*
*
*
*
********************************************
* SPICE Model Diode is composed by a
* simple diode plus paralled VCG2T
*
*
********************************************
.SUBCKT 8TQ100 ANO CAT
D1 ANO 1 DMOD (0.07089)
*Define diode model
.MODEL DMOD D(IS=1.15938021883115E-03A,N=1.95244918720315,BV=120V,
+ IBV=5.37891460505463A,RS= 0.00127602,CJO=9.9895753025115E-09,
+ VJ=2.30070034831946,XTI=2, EG=0.758916909331649)
********************************************
*Implementation of VCG2T
VX 1 2 DC 0V
R1 2 CAT TRES 1E-6
.MODEL TRES RES(R=1,TC1=-90.2420977904848)
GP1 ANO CAT VALUE={-ABS(I(VX))*(EXP((((1.635248E-02/-90.2421)*((V(2,CAT)*1E6)/(I(VX)+1E-6)-
1))+1)*4.011038E-03*ABS(V(ANO,CAT)))-1)}
********************************************
.ENDS 8TQ100
Thermal Model Subcircuit
.SUBCKT 8TQ100 5 1
CTHERM1
CTHERM2
CTHERM3
CTHERM4
5
4
3
2
4
3
2
1
1.45E+00
4.54E+00
1.09E+01
1.01E+02
RTHERM1
RTHERM2
RTHERM1
RTHERM1
5
4
3
2
4
3
2
1
2.49E+00
5.20E-04
5.43E-01
3.05E-02
.ENDS 8TQ100
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level and Lead-Free.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS: 233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 06/06
www.irf.com
7
