8NH3L

型号：

8NH3L

描述：

N沟道30V - 0.012ohm - 8A - PowerFLAT超低栅极电荷的STripFET功率MOSFET[ N-channel 30V - 0.012ohm - 8A - PowerFLAT Ultra low gate charge STripFET Power MOSFET ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

12 页

PDF大小：

286 K

下载PDF手册

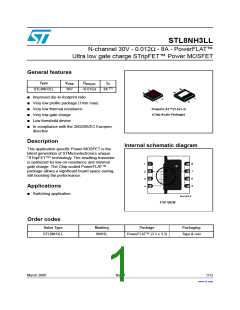

STL8NH3LL
N-channel 30V - 0.012Ω - 8A - PowerFLAT™
Ultra low gate charge STripFET™ Power MOSFET
General features
Type
V
R
I
D
DSS
DS(on)
(1)
STL8NH3LL
30V
<0.015Ω
8A
■ Improved die-to-footprint ratio
■ Very low profile package (1mm max)
■ Very low thermal resistance
■ Very low gate charge
PowerFLAT™(3.3x3.3)
(Chip Scale Package)
■ Low threshold device
■ In compliance with the 2002/95/EC Europen
directive
Description
Internal schematic diagram
This application specific Power MOSFET is the
latest generation of STMicroelectronics unique
“STripFET™” technology. The resulting transistor
is optimized for low on-resistance and minimal
gate charge. The Chip-scaled PowerFLAT™
package allows a significant board space saving,
still boosting the performance.
Applications
■ Switching application
TOP VIEW
Order codes
Sales Type
Marking
Package
Packaging
STL8NH3LL
8NH3L
PowerFLAT™ (3.3 x 3.3)
Tape & reel
March 2006
Rev 7
1/12
www.st.com
12
Contents:
STL8NH3LL
Contents:
1
2
Electrical ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Electrical characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1
Electrical characteristics (curves)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3
4
5
Test circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Package mechanical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Revision history . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2/12
STL8NH3LL
Electrical ratings
1
Electrical ratings
Table 1.
Symbol
Absolute maximum ratings
Parameter
Value
Unit
V
V
Drain-Source Voltage (V = 0)
30
± 18
8
V
V
DS
GS
Gate-Source Voltage
GS
(1)
I
Drain Current (continuous) at T = 25°C
A
D
C
(1)
I
Drain Current (continuous) at T =100°C
5
A
D
C
(2)
I
P
P
Drain Current (pulsed)
32
50
2
A
DM
(3)
(1)
Total Dissipation at T = 25°C
W
TOT
TOT
C
Total Dissipation at T = 25°C
W
C
Derating Factor
0.4
W/°C
T
Operating Junction Temperature
Storage Temperature
J
-55 to 150
°C
T
stg
1. The value is rated according Rthj-pcb
2. Pulse width limited by safe operating area.
3. The vaule is rated according Rthj-c
Table 2.
Symbol
Thermal resistance
Parameter
Value
Unit
R
Thermal resistance junction-case (Drain)
Thermal resistance junction-pcb
Thermal resistance junction-pcb
2.5
°C/W
°C/W
°C/W
thj-case
(1)
R
R
42.8
63.5
thj-pcb
thj-pcb
(2)
1. When mounted on FR-4 board of 1inch², 2oz Cu, t < 10sec
2. Steady state
3/12
Electrical characteristics
STL8NH3LL
2
Electrical characteristics
(T
=25°C unless otherwise specified)
CASE
Table 3.
Symbol
On/off states
Parameter
Test Condictions
Min.
Typ.
Max. Unit
Drain-Source Breakdown
Voltage
V
I
= 250µA, V = 0
30
V
(BR)DSS
D
GS
V
V
= Max Rating,
1
µA
µA
Zero Gate Voltage Drain
DS
I
I
DSS
GSS
Current (V = 0)
= MaxRating @125°C
10
GS
DS
GS
DS
Gate Body Leakage Current
V
V
= ±18V
±100
2.5
nA
V
(V = 0)
DS
V
= V , I = 250µA
Gate Threshold Voltage
1
GS(th)
DS(on)
GS
D
V
V
= 10V, I = 4A
D
0.012 0.015
0.0135 0.017
Ω
Ω
GS
Static Drain-Source On
Resistance
R
= 4.5V, I = 4A
GS
D
Table 4.
Symbol
Dynamic
Parameter
Test Condictions
Min. Typ.
Max. Unit
(1)
V
=15V, I = 4A
Forward Transconductance
30
S
g
DS
DS
D
fs
C
Input Capacitance
Output Capacitance
iss
965
285
38
pF
pF
pF
C
oss
V
=25V, f=1 MHz, V =0
GS
Reverse Transfer
Capacitance
C
rss
Q
V
V
=15V, I = 8A
g
Total Gate Charge
Gate-Source Charge
Gate-Drain Charge
9
3.7
3
12
nC
nC
nC
DD
D
Q
Q
=4.5V
gs
gd
GS
(see Figure 7)
f=1 MHz Gate DC Bias = 0
Test Signal Level = 20mV
Open Drain
R
Gate Input Resistance
0.5
1.5
2.5
Ω
G
1. Pulsed: pulse duration=300µs, duty cycle 1.5%
4/12
STL8NH3LL
Electrical characteristics
Table 5.
Symbol
Switching times
Parameter
Test Condictions
=15V, I = 4A,
Min.
Typ. Max. Unit
t
d(on)
Turn-on Delay Time
Rise Time
15
32
18
8.5
ns
ns
ns
ns
V
DD
D
t
r
R =4.7Ω, V =4.5V
G
GS
t
Turn-off Delay Time
Fall Time
d(off)
(see Figure 13)
t
f
Table 6.
Symbol
Source drain diode
Parameter
Test Condictions
Min Typ. Max Unit
I
Source-drain Current
8
A
A
V
SD
(1)
Source-drain Current (pulsed)
Forward on Voltage
32
1.3
I
SDM
(2)
SD
I
I
=8A, V =0
GS
V
SD
=8A,
SD
t
rr
Reverse Recovery Time
Reverse Recovery Charge
Reverse Recovery Current
24
ns
nC
A
di/dt = 100A/µs,
=20V, Tj=150°C
Q
17.4
1.45
rr
RRM
V
DD
I
(see Figure 15)
1. Pulse width limited by safe operating area
2. Pulsed: pulse duration=300µs, duty cycle 1.5%
5/12
Electrical characteristics
STL8NH3LL
2.1
Electrical characteristics (curves)
Figure 1. Safe operating area
Figure 2. Thermal impedance
Figure 3. Output characterisics
Figure 4. Transfer characteristics
Figure 5. Transconductance
Figure 6. Static drain-source on resistance
6/12
STL8NH3LL
Electrical characteristics
Figure 7. Gate charge vs gate-source voltage Figure 8. Capacitance variations
Figure 9. Normalized gate threshold voltage Figure 10. Normalized on resistance vs
vs temperature
temperature
Figure 11. Source-drain diode forward
characteristics
Figure 12. Normalized B
vs temperature
VDSS
7/12
Test circuit
STL8NH3LL
3
Test circuit
Figure 13. Switching times test circuit for
resistive load
Figure 14. Gate charge test circuit
Figure 15. Test circuit for inductive load
switching and diode recovery times
Figure 16. Unclamped inductive load test
circuit
Figure 17. Unclamped inductive waveform
Figure 18. Switching time waveform
8/12
STL8NH3LL
Package mechanical data
4
Package mechanical data
In order to meet environmental requirements, ST offers these devices in ECOPACK®
packages. These packages have a Lead-free second level interconnect . The category of
second level interconnect is marked on the package and on the inner box label, in
compliance with JEDEC Standard JESD97. The maximum ratings related to soldering
conditions are also marked on the inner box label. ECOPACK is an ST trademark.
ECOPACK specifications are available at: www.st.com
9/12
Package mechanical data
STL8NH3LL
PowerFLAT™ (3.3 x 3.3) MECHANICAL DATA
mm.
TYP
inch
DIM.
MIN.
MAX.
1.00
0.05
MIN.
TYP.
0.035
0.0007
0.0007
0.011
0.012
0.004
0.13
MAX.
0.039
A
A1
A3
b
0.80
0.90
0.031
0.02
0.0019
0.20
0.23
0.30
0.38
0.009
0.015
C
0.328
0.12
C1
D
3.30
D2
E
2.50
1.25
2.65
2.75
1.50
0.098
0.049
0.104
0.13
0.108
0.059
3.30
E2
F
1.40
0.055
0.052
0.038
0.033
0.009
1.325
0.975
0.850
0.250
F1
G
G1
10/12
STL8NH3LL
Revision history
5
Revision history
Table 7.
Date
Revision history
Revision
Changes
21-Jul-2004
05-Oct-2004
19-Oct-2004
22-Nov-2004
21-Feb-2005
18-Apr-2005
14-Mar-2006
1
2
3
4
5
6
7
First Release
Values Changed
New value inserted
Document updated
Final version
Modified Figure 3, Figure 5., Figure 8.,Figure 9.
New template
11/12
STL8NH3LL
Please Read Carefully:
Information in this document is provided solely in connection with ST products. STMicroelectronics NV and its subsidiaries (“ST”) reserve the
right to make changes, corrections, modifications or improvements, to this document, and the products and services described herein at any
time, without notice.
All ST products are sold pursuant to ST’s terms and conditions of sale.
Purchasers are solely responsible for the choice, selection and use of the ST products and services described herein, and ST assumes no
liability whatsoever relating to the choice, selection or use of the ST products and services described herein.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted under this document. If any part of this
document refers to any third party products or services it shall not be deemed a license grant by ST for the use of such third party products
or services, or any intellectual property contained therein or considered as a warranty covering the use in any manner whatsoever of such
third party products or services or any intellectual property contained therein.
UNLESS OTHERWISE SET FORTH IN ST’S TERMS AND CONDITIONS OF SALE ST DISCLAIMS ANY EXPRESS OR IMPLIED
WARRANTY WITH RESPECT TO THE USE AND/OR SALE OF ST PRODUCTS INCLUDING WITHOUT LIMITATION IMPLIED
WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE (AND THEIR EQUIVALENTS UNDER THE LAWS
OF ANY JURISDICTION), OR INFRINGEMENT OF ANY PATENT, COPYRIGHT OR OTHER INTELLECTUAL PROPERTY RIGHT.
UNLESS EXPRESSLY APPROVED IN WRITING BY AN AUTHORIZE REPRESENTATIVE OF ST, ST PRODUCTS ARE NOT DESIGNED,
AUTHORIZED OR WARRANTED FOR USE IN MILITARY, AIR CRAFT, SPACE, LIFE SAVING, OR LIFE SUSTAINING APPLICATIONS,
NOR IN PRODUCTS OR SYSTEMS, WHERE FAILURE OR MALFUNCTION MAY RESULT IN PERSONAL INJURY, DEATH, OR
SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE.
Resale of ST products with provisions different from the statements and/or technical features set forth in this document shall immediately void
any warranty granted by ST for the ST product or service described herein and shall not create or extend in any manner whatsoever, any
liability of ST.
ST and the ST logo are trademarks or registered trademarks of ST in various countries.
Information in this document supersedes and replaces all information previously supplied.
The ST logo is a registered trademark of STMicroelectronics. All other names are the property of their respective owners.
© 2006 STMicroelectronics - All rights reserved
STMicroelectronics group of companies
Australia - Belgium - Brazil - Canada - China - Czech Republic - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan -
Malaysia - Malta - Morocco - Singapore - Spain - Sweden - Switzerland - United Kingdom - United States of America
www.st.com
12/12
