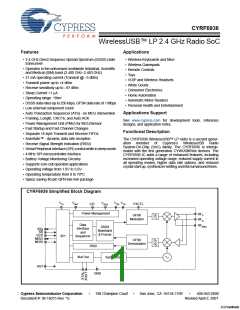

CYRF6936

WirelessUSB™ LP 2.4 GHz Radio SoC

Features

Applications

• 2.4 GHz Direct Sequence Spread Spectrum (DSSS) radio

transceiver

• Wireless Keyboards and Mice

• Wireless Gamepads

• Remote Controls

• Operates in the unlicensed worldwide Industrial, Scientific

and Medical (ISM) band (2.400 GHz–2.483 GHz)

• Toys

• 21 mA operating current (Transmit @ –5 dBm)

• Transmit power up to +4 dBm

• VOIP and Wireless Headsets

• White Goods

• Receive sensitivity up to –97 dBm

• Consumer Electronics

• Home Automation

• Sleep Current <1 μA

• Operating range: 10m+

• Automatic Meter Readers

• Personal Health and Entertainment

• DSSS data rates up to 250 kbps, GFSK data rate of 1 Mbps

• Low external component count

Applications Support

• Auto Transaction Sequencer (ATS) - no MCU intervention

• Framing, Length, CRC16, and Auto ACK

• Power Management Unit (PMU) for MCU/Sensor

• Fast Startup and Fast Channel Changes

• Separate 16-byte Transmit and Receive FIFOs

• AutoRate™ - dynamic data rate reception

• Receive Signal Strength Indication (RSSI)

• Serial Peripheral Interface (SPI) control while in sleep mode

• 4 MHz SPI microcontroller interface

See www.cypress.com for development tools, reference

designs, and application notes.

Functional Description

The CYRF6936 WirelessUSB™ LP radio is a second gener-

ation member of Cypress’s WirelessUSB Radio

System-On-Chip (SoC) family. The CYRF6936 is interop-

erable with the first generation CYWUSB69xx devices. The

CYRF6936 IC adds a range of enhanced features, including

increased operating voltage range, reduced supply current in

all operating modes, higher data rate options, and reduced

crystal start up, synthesizer settling and link turnaround times.

• Battery Voltage Monitoring Circuitry

• Supports coin-cell operated applications

• Operating voltage from 1.8V to 3.6V

• Operating temperature from 0 to 70°C

• Space saving 40-pin QFN 6x6 mm package

CYRF6936 Simplified Block Diagram

V_DDV_CC

V_IO

V_BAT

V_REG

L/D

PACTL

Power Management

RF_P

GFSK

Modulator

RF_N

Data

Interface

and

RF_BIAS

DSSS

Baseband

& Framer

IRQ

SS

SCK

MISO

MOSI

SPI

Sequencer

GFSK

Demodulator

RSSI

Xtal Osc

Synthesizer

RST

Block Diagram

GND

Cypress Semiconductor Corporation

Document #: 38-16015 Rev. *G

•

198 Champion Court

•

San Jose, CA 95134-1709

•

408-943-2600

Revised April 2, 2007

[+] Feedback

CYRF6936

Pin Descriptions

Pin #

Name Type Default

Description

Differential RF signal to/from antenna

13

11

10

30

1

RF_N

I/O

O

I

RF_P

Differential RF signal to/from antenna

RF I/O 1.8V reference voltage

RF_BIAS

O

I

PACTL I/O

Control signal for external PA, T/R switch, or GPIO

12 MHz crystal

XTAL

I

29

XOUT

I/O

O

Buffered 0.75, 1.5, 3, 6 or 12 MHz clock, PACTL, or GPIO.

Tri-states in sleep mode (configure as GPIO drive LOW)

25

28

SCK

I

SPI clock

MISO

I/O

Z

SPI data output pin (Master In Slave Out), or GPIO (in SPI 3-pin mode).

Tri-states when SPI 3PIN = 0 and SS is deasserted

27

24

26

34

MOSI

SS

I/O

I

SPI data input pin (Master Out Slave In), or SDAT

I

I/O

I

SPI enable, active LOW assertion. Enables and frames transfers

Interrupt output (configurable active HIGH or LOW), or GPIO

IRQ

RST

O

I

Device reset. Internal 10 kohm pull down resistor. Active HIGH, typically

connect through a 0.47 μF capacitor to V_BAT.Must have RST = 1 event

the first time power is applied to the radio. Otherwise the state of the radio

control registers is unknown

37

40

35

L/D

O

PMU inductor/diode connection, when used. If not used, connect to GND

PMU boosted output voltage feedback

V_REG

V_DD

Pwr

Decoupling pin for 1.8V logic regulator, connect through a 0.47 μF

capacitor to GND

6, 8, 38

3, 7, 16

33

V_BAT

V_CC

Pwr

I

V_BAT= 1.8V to 3.6V. Main supply

V_CC= 2.4V to 3.6V. Typically connected to V_REG

I/O interface voltage, 1.8–3.6V

Must be connected to GND

V_IO

19

RESV

2, 4, 5, 9, 14, 15, 18, 17, 20, NC

21, 22, 23, 32, 36, 39, 31

NC

Connect to GND

12

GND

Ground

E-PAD

Figure 1. CYRF6936, 40 QFN – Top View

CYRF6936

Top View*

XTAL

NC

1

2

3

4

5

6

7

8

9

30 PACTL / GPIO

29 XOUT / GPIO

28 MISO / GPIO

27 MOSI / SDAT

26 IRQ / GPIO

25 SCK

V_CC

NC

CYRF6936

40-lead QFN

V_BAT

V_CC

V_BAT

NC

24 SS

23 NC

22 NC

RF_BIAS10

21 NC

* E-PAD BOTTOM SIDE

Document #: 38-16015 Rev. *G

Page 2 of 40

[+] Feedback

CYRF6936

Both 64 chip and 32 chip Pseudo Noise (PN) codes are

supported. The four data transmission modes apply to the data

after the SOP. In particular the length, data, and CRC16 are all

sent in the same mode. In general, lower data rates reduce

packet error rate in any given environment.

Functional Overview

The CYRF6936 IC provides a complete WirelessUSB SPI to

antenna wireless MODEMs. The SoC is designed to

implement wireless device links operating in the worldwide

2.4 GHz ISM frequency band. It is intended for systems

compliant with worldwide regulations covered by ETSI EN 301

489-1 V1.41, ETSI EN 300 328-1 V1.3.1 (Europe), FCC CFR

47 Part 15 (USA and Industry Canada) and TELEC

ARIB_T66_March, 2003 (Japan).

Link Layer Modes

The CYRF6936 IC device supports the following data packet

framing features:

SOP – Packets begin with a two-symbol Start of Packet

marker. This is required in GFSK and 8DR modes, but is

optional in DDR mode and is not supported in SDR mode; if

framing is disabled then an SOP event is inferred whenever

The SoC contains a 2.4 GHz, 1 Mbps GFSK radio transceiver,

packet data buffering, packet framer, DSSS baseband

controller, Received Signal Strength Indication (RSSI), and

SPI interface for data transfer and device configuration.

two

successive

correlations

are

detected.

The

SOP_CODE_ADR code used for the SOP is different from that

used for the “body” of the packet, and if desired may be a

different length. SOP must be configured to be the same

length on both sides of the link.

The radio supports 98 discrete 1 MHz channels (regulations

may limit the use of some of these channels in certain jurisdic-

tions).

The baseband performs DSSS spreading/despreading, Start

of Packet (SOP), End of Packet (EOP) detection, and CRC16

generation and checking. The baseband may also be

configured to automatically transmit Acknowledge (ACK)

handshake packets whenever a valid packet is received.

Length – There are two options for detecting the end of a

packet. If SOP is enabled, then the length field should be

enabled. GFSK and 8DR must enable the length field. This is

the first eight bits after the SOP symbol, and is transmitted at

the payload data rate. When the length field is enabled, an End

of Packet condition is inferred after reception of the number of

bytes defined in the length field, plus two bytes for the CRC16

(when enabled—see the following paragraph). The alternative

to using the length field is to infer an EOP condition from a

configurable number of successive noncorrelations; this

option is not available in GFSK mode and is only recom-

mended when using SDR mode.

When in receive mode, with packet framing enabled, the

device is always ready to receive data transmitted at any of the

supported bit rates, enabling the implementation of mixed-rate

systems in which different devices use different data rates.

This also enables the implementation of dynamic data rate

systems that use high data rates at shorter distances or in a

low-moderate interference environment or both, and change

to lower data rates at longer distances or in high interference

environments or both.

CRC16 – The device may be configured to append a 16 bit

CRC16 to each packet. The CRC16 uses the USB CRC

polynomial with the added programmability of the seed. If

enabled, the receiver verifies the calculated CRC16 for the

payload data against the received value in the CRC16 field.

The seed value for the CRC16 calculation is configurable, and

the CRC16 transmitted may be calculated using either the

loaded seed value or a zero seed; the received data CRC16

is checked against both the configured and zero CRC16

seeds.

In addition, the CYRF6936 IC has a Power Management Unit

(PMU), which allows direct connection of the device to any

battery voltage in the range 1.8V to 3.6V. The PMU conditions

the battery voltage to provide the supply voltages required by

the device, and may supply external devices.

Data Transmission Modes

The SoC supports four different data transmission modes:

• In GFSK mode, data is transmitted at 1 Mbps, without any

DSSS.

CRC16 detects the following errors:

• Any one bit in error

• In 8DR mode, eight bits are encoded in each derived code

symbol transmitted.

• Any two bits in error (no matter how far apart, which column,

and so on)

• In DDR mode, two bits are encoded in each derived code

symbol transmitted. (As in the CYWUSB6934 DDR mode).

• Any odd number of bits in error (no matter where they are)

• An error burst as wide as the checksum itself

• In SDR mode, one bit is encoded in each derived code

symbol transmitted. (As in the CYWUSB6934 standard

modes.)

Figure 2 shows an example packet with SOP, CRC16 and

lengths fields enabled, and Figure 3 on page 4 shows a

standard ACK packet.

Figure 2. Example Packet Format

P ream ble

n x 16us

2nd Fram ing

S ym bol*

P

SO P 1

SO P 2

Length

C R C 16

Payload D ata

P acket

length

1 B yte

P eriod

1st Fram ing

S ym bol*

*N ote:32 or 64us

Document #: 38-16015 Rev. *G

Page 3 of 40

[+] Feedback

CYRF6936

Figure 3. Example ACK Packet Format

2 n d F ra m in g

P re a m b le

n

x

1 6 u s

S y m b o l*

P

S O P

1

S O P

2

C R C 1 6

C R C fie ld fro m

re c e iv e d p a c k e t.

1 s t F ra m in g

S y m b o l*

* N o te :3 2 o r 6 4 u s

2

B y te p e rio d s

Packet Buffers

in response to an interrupt request indicating reception of a

packet.

All data transmission and reception uses the 16 byte packet

buffers—one for transmission and one for reception.

Backward Compatibility

The transmit buffer allows a complete packet of up to 16 bytes

of payload data to be loaded in one burst SPI transaction, and

then transmitted with no further MCU intervention. Similarly,

the receive buffer allows an entire packet of payload data up

to 16 bytes to be received with no firmware intervention

required until packet reception is complete.

The CYRF6936 IC is fully interoperable with the main modes

of the first generation devices. The 62.5 kbps mode is

supported by selecting 32 chip DDR mode. Similarly, the

15.675 kbps mode is supported by selecting 64 chip SDR

mode.

In this way, a suitably configured CYRF6936 IC device may

transmit data to or receive data from a first generation device,

or both. Backwards compatibility requires disabling the SOP,

length, and CRC16 fields.

The CYRF6936 IC supports packets up to 255 bytes.

However, actual maximum packet length depends on the

accuracy of the clock on each end of the link and the data

mode; interrupts are provided to allow an MCU to use the

transmit and receive buffers as FIFOs. When transmitting a

packet longer than 16 bytes, the MCU can load 16 bytes

initially, and add further bytes to the transmit buffer as trans-

mission of data creates space in the buffer. Similarly, when

receiving packets longer than 16 bytes, the MCU must fetch

received data from the FIFO periodically during packet

reception to prevent it from overflowing.

Data Rates

By combining the PN code lengths and data transmission

modes described previously, the CYRF6936 IC supports the

following data rates:

• 1000 kbps (GFSK)

• 250 kbps (32 chip 8DR)

• 125 kbps (64 chip 8DR)

• 62.5 kbps (32 chip DDR)

• 31.25 kbps (64 chip DDR)

• 15.625 kbps (64 chip SDR)

Auto Transaction Sequencer (ATS)

The CYRF6936 IC provides automated support for trans-

mission and reception of acknowledged data packets.

When transmitting in transaction mode, the device automati-

cally:

Functional Block Overview

• Starts the crystal and synthesizer

• Enters transmit mode

2.4 GHz Radio

• Transmits the packet in the transmit buffer

• Transitions to receive mode and waits for an ACK packet

The radio transceiver is a dual conversion low IF architecture

optimized for power and range/robustness. The radio employs

channel-matched filters to achieve high performance in the

presence of interference. An integrated Power Amplifier (PA)

provides up to +4 dBm transmit power, with an output power

control range of 34 dB in seven steps. The supply current of

the device is reduced as the RF output power is reduced.

• Transitions to the transaction end state when either an ACK

packet is received, or a timeout period expires

Similarly, when receiving in transaction mode, the device

automatically:

• Waits in receive mode for a valid packet to be received

• Transitions to transmit mode, transmits an ACK packet

Table 1. Internal PA Output Power Step Table

PA Setting

Typical Output Power (dBm)

• Transitions to the transaction end state (receive mode to

await the next packet, and so on.)

7

6

5

4

3

2

1

0

+4

0

The contents of the packet buffers are not affected by the

transmission or reception of ACK packets.

–5

In each case, the entire packet transaction takes place without

any need for MCU firmware action (as long as packets of 16

bytes or less are used); to transmit data the MCU simply must

load the data packet to be transmitted, set the length, and set

the TX GO bit. Similarly, when receiving packets in transaction

mode, firmware simply must retrieve the fully received packet

–13

–18

–24

–30

–35

Document #: 38-16015 Rev. *G

Page 4 of 40

[+] Feedback

CYRF6936

• Six bits of address.

• Eight bits of data.

Table 2. Typical Range Observed Table

Environment

Outdoor

Office

Typical Range (meters)

The device receives SCK from an application MCU on the SCK

pin. Data from the application MCU is shifted in on the MOSI

pin. Data to the application MCU is shifted out on the MISO

pin. The active LOW Slave Select (SS) pin must be asserted

to initiate an SPI transfer.

30

20

15

Home

Note: Range observed with CY4636 WirelessUSB LP KBM v1.0 (Keyboard)

The application MCU can initiate SPI data transfers using a

multi-byte transaction. The first byte is the Command/Address

byte, and the following bytes are the data bytes as shown in

Figure 4 through Figure 7 on page 6.

Frequency Synthesizer

Before transmission or reception may begin, the frequency

synthesizer must settle. The settling time varies depending on

channel; 25 fast channels are provided with a maximum

settling time of 100 μs.

The SPI communications interface has a burst mechanism,

where the first byte can be followed by as many data bytes as

desired. A burst transaction is terminated by deasserting the

slave select (SS = 1).

The ‘fast channels’ (less than 100 μs settling time) are every

third channel, starting at 0 up to and including 72 (for example,

0, 3, 6, 9….69, 72).

The SPI communications interface single read and burst read

sequences are shown in Figure 5 and Figure 6, respectively.

The SPI communications interface single write and burst write

sequences are shown in Figure 7 and Figure 8, respectively.

Baseband and Framer

The baseband and framer blocks provide the DSSS encoding

and decoding, SOP generation and reception and CRC16

generation and checking, as well as EOP detection and length

field.

This interface may optionally be operated in a 3-pin mode with

the MISO and MOSI functions combined in a single bidirec-

tional data pin (SDAT). When using 3-pin mode, user firmware

should ensure that the MOSI pin on the MCU is in a high

impedance state except when MOSI is actively transmitting

data.

Packet Buffers and Radio Configuration Registers

Packet data and configuration registers are accessed through

the SPI interface. All configuration registers are directly

addressed through the address field in the SPI packet (as in

the CYWUSB6934). Configuration registers allow configu-

ration of DSSS PN codes, data rate, operating mode, interrupt

masks, interrupt status, and so on.

The device registers may be written to or read from one byte

at a time, or several sequential register locations may be

written/read in a single SPI transaction using incrementing

burst mode. In addition to single byte configuration registers,

the device includes register files; register files are FIFOs

written to and read from using nonincrementing burst SPI

transactions.

SPI Interface

The CYRF6936 IC has an SPI interface supporting communi-

cations between an application MCU and one or more slave

devices (including the CYRF6936). The SPI interface supports

single-byte and multi-byte serial transfers using either 4-pin or

3-pin interfacing. The SPI communications interface consists

of Slave Select (SS), Serial Clock (SCK), and Master

Out-Slave In (MOSI), Master In-Slave Out (MISO), or Serial

Data (SDAT).

The IRQ pin function may optionally be multiplexed onto the

MOSI pin; when this option is enabled the IRQ function is not

available while the SS pin is LOW. When using this configu-

ration, user firmware should ensure that the MOSI pin on the

MCU is in a high impedance state whenever the SS pin is

HIGH.

The SPI interface is not dependent on the internal 12 MHz

clock. Registers may therefore be read from or written to while

the device is in sleep mode, and the 12 MHz oscillator

disabled.

The SPI communications are as follows:

• Command Direction (bit 7) = ‘1’ enables SPI write trans-

action. A ‘0’ enables SPI read transactions.

The SPI interface and the IRQ and RST pins have a separate

voltage reference pin (V_IO), enabling the device to interface

directly to MCUs operating at voltages below the CYRF6936

IC supply voltage.

• Command Increment (bit 6) = ‘1’ enables SPI auto address

increment. When set, the address field automatically incre-

ments at the end of each data byte in a burst access,

otherwise the same address is accessed.

Document #: 38-16015 Rev. *G

Page 5 of 40

[+] Feedback

CYRF6936

Figure 4. SPI Transaction Format

Byte 1

Byte 1+N

[7:0]

Bit #

7

6

[5:0]

Bit Name

DIR

INC

Address

Data

Figure 5. SPI Single Read Sequence

SCK

SS

cmd

addr

DIR

0

INC

A5

A4

A3

A2

A1

A0

MOSI

MISO

data to mcu

D7

D6

D5

D4

D3

D2

D1

D0

Figure 6. SPI Incrementing Burst Read Sequence

SCK

SS

cmd

addr

DIR

0

MOSI

MISO

INC

A5

A4

A3

A2

A1

A0

data to mcu₁

data to mcu_1+N

D7

D6

D5

D4

D3

D2

D1

D0

D7

D6

D5

D4

D3

D2

D1

D0

Figure 7. SPI Single Write Sequence

SCK

SS

cmd

addr

data from mcu

DIR

1

INC

A5

A4

A3

A2

A1

A0

D7

D6

D5

D4

D3

D2

D1

D0

MOSI

MISO

Figure 8. SPI Incrementing Burst Write Sequence

SCK

SS

cmd

addr

data from mcu₁

data from mcu_1+N

DIR

1

INC

A5

A4

A3

A2

A1

A0

D7

D6

D5

D4

D3

D2

D1

D0

D7

D6

D5

D4

D3

D2

D1

D0

MOSI

MISO

Document #: 38-16015 Rev. *G

Page 6 of 40

[+] Feedback

CYRF6936

Interrupts

commanded to enter transmit or receive mode. When

resuming from sleep mode, there is a short delay while the

oscillator restarts. The device can be configured to assert the

IRQ pin when the oscillator has stabilized.

The device provides an interrupt (IRQ) output, which is config-

urable to indicate the occurrence of various different events.

The IRQ pin may be programmed to be either active HIGH or

active LOW, and be either a CMOS or open drain output. A full

description of all the available interrupts can be found in

“Register Descriptions” on page 12.

The output voltage (V_REG) of the Power Management Unit

(PMU) is configurable to several minimum values between

2.4V and 2.7V. V_REGmay be used to provide up to 15 mA

(average load) to external devices. It is possible to disable the

PMU, and to provide an externally regulated DC supply

voltage to the device’s main supply in the range 2.4V to 3.6V.

The PMU also provides a regulated 1.8V supply to the logic.

The CYRF6936 IC features three sets of interrupts: transmit,

receive, and system interrupts. These interrupts all share a

single pin (IRQ), but can be independently enabled/disabled.

The contents of the enable registers are preserved when

switching between transmit and receive modes.

The PMU is designed to provide high boost efficiency

(74–85% depending on input voltage, output voltage and load)

when using a Schottky diode and power inductor, eliminating

the need for an external boost converter in many systems

where other components require a boosted voltage. However,

reasonable efficiencies (69–82% depending on input voltage,

output voltage, and load) may be achieved when using low

cost components such as SOT23 diodes and 0805 inductors.

If more than one interrupt is enabled at any time, it is

necessary to read the relevant status register to determine

which event caused the IRQ pin to assert. Even when a given

interrupt source is disabled, the status of the condition that

would otherwise cause an interrupt can be determined by

reading the appropriate status register. It is therefore possible

to use the devices without the IRQ pin by polling the status

registers to wait for an event, rather than using the IRQ pin.

The PMU also provides a configurable low battery detection

function, which may be read over the SPI interface. One of

seven thresholds between 1.8V and 2.7V may be selected.

The interrupt pin may be configured to assert when the voltage

on the V_BATpin falls below the configured threshold. LV IRQ

is not a latched event. Battery monitoring is disabled when the

device is in sleep mode.

Clocks

A 12 MHz crystal (30 ppm or better) is directly connected

between XTAL and GND without the need for external capac-

itors. A digital clock out function is provided, with selectable

output frequencies of 0.75, 1.5, 3, 6, or 12 MHz. This output

may be used to clock an external microcontroller (MCU) or

ASIC. This output is enabled by default, but may be disabled.

Low Noise Amplifier and Received

Signal Strength Indication

Listed below are the requirements for the crystal to be directly

connected to XTAL pin and GND.

The gain of the receiver can be controlled directly by clearing

the AGC EN bit and writing to the Low Noise Amplifier (LNA)

bit of the RX_CFG_ADR register. Clearing the LNA bit reduces

the receiver gain approximately 20 dB, allowing accurate

reception of very strong received signals (for example when

operating a receiver very close to the transmitter). Approxi-

mately 30 dB of receiver attenuation can be added by setting

the Attenuation (ATT) bit; this allows data reception to be

limited to devices at very short ranges. Disabling AGC and

enabling LNA is recommended unless receiving from a device

using external PA.

• Nominal Frequency: 12 MHz

• Operating Mode: Fundamental Mode

• Resonance Mode: Parallel Resonant

• Frequency Initial Stability: ±30 ppm

• Series Resistance: <60 ohms

• Load Capacitance: 10 pF

• Drive Level: 10 µW–100 µW

Power Management

When the device is in receive mode the RSSI_ADR register

returns the relative signal strength of the on-channel signal

power.

The operating voltage of the device is 1.8V to 3.6V DC, which

is applied to the V_BATpin. The device can be shut down to a

fully static sleep mode by writing to the FRC END = 1 and END

STATE = 000 bits in the XACT_CFG_ADR register over the

SPI interface. The device enters sleep mode within 35 µs after

the last SCK positive edge at the end of this SPI transaction.

Alternatively, the device may be configured to automatically

enter sleep mode after completing packet transmission or

reception. When in sleep mode, the on-chip oscillator is

stopped, but the SPI interface remains functional. The device

wakes from sleep mode automatically when the device is

When receiving, the device automatically measures and

stores the relative strength of the signal being received as a

five bit value. An RSSI reading is taken automatically when the

SOP is detected. In addition, a new RSSI reading is taken

every time the previous reading is read from the RSSI_ADR

register, allowing the background RF energy level on any

given channel to be easily measured when RSSI is read when

no signal is being received. A new reading can occur as fast

as once every 12 µs.

Document #: 38-16015 Rev. *G

Page 7 of 40

[+] Feedback

CYRF6936

Application Examples

Figure 9. Recommended Circuit for Systems Where V_BATMay Fall Below 2.4V

2

1

0 4 0 2

V D D

0 4 0 2

3 5

0 4 0 2

V C C 3

V C C 2

V C C 1

1 6

7

3

0 4 0 2

E - P A D

4 1

0 4 0 2

V R E G

4 0

3 3

V I O

G N D 1

1 2

V B A T 0

V B A T 1

V B A T 2

3 8

6

8

V D D 1

V D D 2

V S S 1

2 4

5

2 7

V S S 2

4 4

Document #: 38-16015 Rev. *G

Page 8 of 40

[+] Feedback

CYRF6936

Table 3. Recommended Bill of Materials for Systems Where V_BATMay Fall Below 2.4V

Item Qty CY Part Number

Reference

Description

Manufacturer

Mfr Part Number

1

NA

ANT1

2.5GHZ H-STUB WIGGLE ANTEN- NA

NA FOR 63MIL PCB

NA

2

3

1

730-10012

730-11955

C1

C3

CAP 15PF 50V CERAMIC NPO 0402 Panasonic

ECJ-0EC1H150J

CAP 2.0 PF 50V CERAMIC NPO

0402

Kemet

C0402C209C5GACTU

4

1

730-11398

C4

CAP 1.5PF 50V CERAMIC NPO

0402 SMD

PANASONIC

ECJ-0EC1H1R5C

5

6

7

8

2

1

6

730R-13322

730-13037

730-13400

730-13404

C5,C17

C12,C7

C8

CAP CER 0.47UF 6.3V X5R 0402

Murata

GRM155R60J474KE19D

C0805C106K9PACTU

ECJ-0EB0J105M

CAP CERAMIC 10UF 6.3V X5R 0805 Kemet

CAP 1 uF 6.3V CERAMIC X5R 0402 Panasonic

C9,C10,C11,

C13,C15,C16

CAP 0.047 uF 50V CERAMIC X5R AVX

0402

0402YD473KAT2A

9

1

4

730-11952

710-13201

730-10794

C19

C18

CAP 0.1 uF 50V CERAMIC X5R 0402 Kemet

C0402C104K8PACTU

EEU-FC1A101S

10

11

CAP 100UF 10V ELECT FC

Panasonic - ECG

C20,C23,C24,C2 CAP 10000PF 16V CERAMIC 0402 Panasonic - ECG

5

ECJ-0EB1C103K

SMD

12

13

3

1

730-13036

800-13248

C26,C27,C28

D1

CAP CERAMIC 1.0UF 10V X5R 0603 Kemet

C0603C105K8PACTU

SS12

DIODE SCHOTTKY 20V 1A SMA

Taiwan

Semiconductor

14

15

16

17

18

1

420-11964

420-11496

800-13401

800-11651

800-13253

J1

J3

L1

L2

L3

HEADER 1 POS 0.230 HT MODII

0.100CL

AMP/Tyco

103185-1

CONNHDRBRKWAY5POSSTRAU AMP Division of TYCO 103185-5

PCB

INDUCTOR 22NH 2% FIXED 0603 Panasonic - ECG

SMD

ELJ-RE22NGF2

INDUCTOR 1.8NH +-.3NH FIXED

0402 SMD

Panasonic - ECG

ELJ-RF1N8DF

CDH53100LC

COIL 10UH 1.23A UNSHIELDED

SMD

Sumida

19

20

1

610-13402

620-10539

R1

R2

RES 47 OHM 1/16W 5% 0402 SMD Panasonic - ECG

ERJ-2GEJ470X

ERJ-3GEYJ104V

RES 100K OHM 1/16W 5% 0603

SMD

Panasonic - ECG

21

3

tmp

R6,R7,R8

RESCHIP5.11OHM1/16W1%0603 Yageo America

SMD

9C06031A5R11FGHFT

22

23

24

1

630-11356

R9

RES 1.00 OHM 1/8W 1% 0805 SMD Yageo

9C08052A1R00FKHFT

CYRF6936-40LFC U1

CY7C60323-PVXC U2

IC, LP 2.4 GHz RADIO SoC QFN-40 Cypress Semiconductor CYRF6936 Rev A5

IC WIRELESS MICROCONTROL-

LER SSOP28

Cypress Semiconductor CY7C60323-PVXC

25

26

27

28

1

800-13259

Y1

CRYSTAL 12.00MHZ HC49 SMD

PRINTED CIRCUIT BOARD

Serial Number

eCERA GF-1200008

PDC-9302-*C

920-11206

PCB

Cypress Semiconductor PDC-9302-*C

121-30200 *C

LABEL1

LABEL2

920-30200 *C

PCA #

Document #: 38-16015 Rev. *G

Page 9 of 40

[+] Feedback

CYRF6936

Figure 10. Recommended Circuit for Systems Where V_BATis 2.4V to 3.6V (PMU disabled)

2

1

0 4 0 2

V D D

3 5

V C C 3

V C C 2

V C C 1

1 6

7

3

E - P A D

4 1

V R E G

4 0

3 3

V I O

G N D 1

1 2

V B A T 0

V B A T 1

V B A T 2

3 8

6

8

0 4 0 2

V C C

V S S

8

1 1

0 4 0 2

Document #: 38-16015 Rev. *G

Page 10 of 40

[+] Feedback

CYRF6936

Table 4. Recommended Bill of Materials for Systems Where V_BATis 2.4V to 3.6V (PMU disabled)

Item Qty CY Part Number

Reference

Description

Manufacturer

Mfr Part Number

1

NA

ANT1

2.5GHZ H-STUB WIGGLE ANTEN- NA

NA FOR 32MIL PCB

NA

2

3

1

730-10012

730-11955

C1

C3

CAP 15PF 50V CERAMIC NPO 0402 Panasonic

ECJ-0EC1H150J

CAP 2.0 PF 50V CERAMIC NPO

0402

Kemet

C0402C209C5GACTU

4

1

6

1

730-11398

730-13322

730-13404

730-11953

730-13040

730-12003

800-13333

C4

C5

CAP 1.5PF 50V CERAMIC NPO

0402 SMD

PANASONIC

Murata

ECJ-0EC1H1R5C

5

CAP 0.47 uF 6.3V CERAMIC X5R

0402

GRM155R60J474KE19D

0402YD473KAT2A

6

C6,C7,C8,C9, CAP 0.047 uF 16V CERAMIC X5R AVX

C10,C11

0402

7

C12

CAP 1500PF 50V CERAMIC X7R

0402

Kemet

C0402C152K5RACTU

C0805C475K9PACTU

GRM21BR71A225KA01L

LTST-C155KGJRKT

8

C13

C14

D1

CAP CERAMIC 4.7UF 6.3V XR5

0805

9

CAP CER 2.2UF 10V 10% X7R 0805 Murata Electronics

North America

10

LED GREEN/RED BICOLOR 1210 LITEON

SMD

11

12

1

420-13046

800-13401

J1

L1

CONN USB PLUG TYPE A PCB SMT ACON

UAR72-4N5J10

ELJ-RE22NGF2

INDUCTOR 22NH 2% FIXED 0603 Panasonic - ECG

SMD

13

1

800-11651

L2

INDUCTOR 1.8NH +-.3NH FIXED

0402 SMD

Panasonic - ECG

ELJ-RF1N8DF

14

15

1

610-10343

610-13472

R1

R2

RES ZERO OHM 1/16W 0402 SMD Panasonic - ECG

ERJ-2GE0R00X

ERJ-2GEJ621X

RES CHIP 620 OHM 1/16W 5% 0402 Panasonic - ECG

SMD

16

1

200-13471

S1

SWITCH LT 3.5MMX2.9MM 160GF Panasonic - ECG

SMD

EVQ-P7J01K

17

18

1

CYRF6936-40LFC

CY7C63803-SXC

U1

U2

IC, LP 2.4 GHz RADIO SoC QFN-40 Cypress Semiconductor CYRF6936 Rev A5

IC LOW-SPEED USB ENCORE II

CONTROLLER SOIC16

Cypress Semiconductor CY7C63803-SXC

19

20

21

22

1

800-13259

Y1

CRYSTAL 12.00MHZ HC49 SMD

PRINTED CIRCUIT BOARD

Serial Number

eCERA GF-1200008

PDC-9263-*B

PCB

Cypress Semiconductor PDC-9263-*B

XXXXXX

LABEL1

LABEL2

PCA #

121-26305 **

Document #: 38-16015 Rev. *G

Page 11 of 40

[+] Feedback

CYRF6936

Register Descriptions

All registers are read and writable, except where noted. Registers may be written to or read from either individually or in sequential

groups.

Table 5. Register Map Summary

[1]

Address

0x00

Mnemonic

CHANNEL_ADR

b7

b6

b5

b4

b3

b2

b1

b0

Default

Access

Not Used

Channel

-1001000

00000000

00000011

-bbbbbbb

bbbbbbbb

0x01

TX_LENGTH_ADR

TX_CTRL_ADR

TX_CFG_ADR

TX Length

TXB15

IRQEN

TXB8

IRQEN

TXB0

IRQEN

TXBERR

IRQEN

TXC

IRQEN

TXE

IRQEN

0x02

0x03

0x04

TX GO

TX CLR

DATA CODE

LENGTH

--000101

--------

--bbbbbb

rrrrrrrr

Not Used

DATA MODE

PA SETTING

OS

IRQ

LV

IRQ

TXB15

IRQ

TXB8

IRQ

TXB0

IRQ

TXBERR

IRQ

TXC

IRQ

TXE

IRQ

TX_IRQ_STATUS_ADR

RX_CTRL_ADR

RX_CFG_ADR

RXB16

IRQEN

RXB8

IRQEN

RXB1

IRQEN

RXBERR

IRQEN

RXC

IRQEN

RXE

IRQEN

00000111

10010-10

--------

bbbbbbbb

bbbbb-bb

brrrrrrr

0x05

0x06

RX GO

RSVD

LNA

FASTTURN

EN

AGC EN

ATT

HILO

Not Used

RXOW EN

VLD EN

RXOW

IRQ

SOPDET

IRQ

RXB16

IRQ

RXB8

IRQ

RXB1

IRQ

RXBERR

IRQ

RXC

IRQ

RXE

IRQ

0x07

0x08

0x09

0x0A

0x0B

RX_IRQ_STATUS_ADR

RX_STATUS_ADR

RX_COUNT_ADR

RX_LENGTH_ADR

PWR_CTRL_ADR

RX ACK

PKT ERR

EOP ERR

CRC0

Bad CRC

RX Code

RX Data Mode

--------

rrrrrrrr

RX Count

RX Length

Not Used

00000000

10100000

rrrrrrrr

PMU EN

LVIRQ EN

PMU Mode

Force

LVI TH

PMU OUTV

FREQ

bbb-bbbb

0x0C

0x0D

0x0E

0x0F

0x10

0x11

0x12

0x13

0x14

0x15

0x16

0x17

0x18

0x19

0x1A

0x1B

0x1C

0x1D

XTAL_CTRL_ADR

XOUT FN

XSIRQ EN

MISO OD

PACTL OP

FRC END

LEN EN

Not Used

LNA

Not Used

000--100

00000000

0000----

bbb--bbb

bbbbbbbb

bbbbrrrr

b-bbbbbb

bbbbbbbb

----bbbb

---bbbbb

r-rrrrrr

IO_CFG_ADR

IRQ OD

XOUT OP

ACK EN

SOP EN

Not Used

SOP

IRQ POL

MISO OP

Not Used

SOP LEN

Not Used

XOUT OD PACTL OD PACTL GPIO

SPI 3PIN

PACTL IP

IRQ GPIO

IRQ IP

GPIO_CTRL_ADR

IRQ OP

XOUT IP

MISO IP

XACT_CFG_ADR

END STATE

ACK TO

1-000000

10100101

----0100

FRAMING_CFG_ADR

DATA32_THOLD_ADR

DATA64_THOLD_ADR

RSSI_ADR

SOP TH

TH32

Not Used

TH64

RSSI

---01010

0-100000

10100100

00000000

--------

EOP_CTRL_ADR

HEN

HINT

EOP

bbbbbbbb

rrrrrrrr

CRC_SEED_LSB_ADR

CRC_SEED_MSB_ADR

TX_CRC_LSB_ADR

TX_CRC_MSB_ADR

RX_CRC_LSB_ADR

RX_CRC_MSB_ADR

TX_OFFSET_LSB_ADR

TX_OFFSET_MSB_ADR

MODE_OVERRIDE_ADR

CRC SEED LSB

CRC SEED MSB

CRC LSB

CRC MSB

--------

rrrrrrrr

CRC LSB

11111111

00000000

----0000

rrrrrrrr

CRC MSB

rrrrrrrr

STRIM LSB

bbbbbbbb

----bbbb

wwwww--w

bbbbbbb-

Not Used

RSVD

Not Used

RSVD

Not Used

FRC SEN

Not Used

FRC AWAKE

STRIM MSB

Not Used

RST

00000--0

0000000-

FRC

RXDR

0x1E

RX_OVERRIDE_ADR

ACK RX

RXTX DLY

MAN RXACK

DIS CRC0 DIS RXCRC

OVRD ACK DIS TXCRC

ACE

Not Used

MAN

TXACK

00000000

bbbbbbbb

0x1F

0x26

TX_OVERRIDE_ADR

XTAL_CFG_ADR

ACK TX

RSVD

FRC PRE

RSVD

TX INV

RSVD

START DLY

RSVD

00000000 wwwwwww

w

0x27

0x28

0x29

0x32

0x35

0x39

CLK_OVERRIDE_ADR

CLK_EN_ADR

RSVD

RXF

RSVD

00000000 wwwwwww

w

RSVD

00000000 wwwwwww

w

RX_ABORT_ADR

ABORT EN

RSVD

00000000 wwwwwww

w

AUTO_CAL_TIME_ADR

AUTO_CAL_OFFSET_ADR

ANALOG_CTRL_ADR

AUTO_CAL_TIME

00000011 wwwwwww

w

AUTO_CAL_OFFSET

00000000 wwwwwww

w

RSVD

RX INV

ALL SLOW

00000000 wwwwwww

w

Register Files

0x20

TX_BUFFER_ADR

TX Buffer File

--------

wwwwwww

w

0x21

0x22

0x23

0x24

0x25

RX_BUFFER_ADR

SOP_CODE_ADR

DATA_CODE_ADR

PREAMBLE_ADR

MFG_ID_ADR

RX Buffer File

SOP Code File

Data Code File

Preamble File

MFG ID File

--------

Note 2

Note 3

Note 4

NA

rrrrrrrr

bbbbbbbb

rrrrrrrr

Notes

1. b = read/write; r = read only; w = write only; ‘-’ = not used, default value is undefined.

2. SOP_CODE_ADR default = 0x17FF9E213690C782.

3. DATA_CODE_ADR default = 0x02F9939702FA5CE3012BF1DB0132BE6F.

4. PREAMBLE_ADR default = 0x333302.

Document #: 38-16015 Rev. *G

Page 12 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

CHANNEL_ADR

Address

0x00

7

6

1

5

0

4

0

3

1

2

0

1

0

Default

-

Read/Write

Function

-

R/W

Channel

R/W

Not Used

Bit 7

Not Used.

Bits 6:0

This field selects the channel. 0x00 sets 2400 MHz; 0x62 sets 2498 MHz. Values above 0x62 are not valid. The default channel

is a fast channel above the frequency typically used in non-overlapping WiFi systems. Any write to this register impacts the time

it takes the synthesizer to settle.

fast (100 μs) - 0 3 6 9 12 15 18 21 24 27 30 33 36 39 42 45 48 51 54 57 60 63 66 69 72 96

medium (180 μs) - 2 4 8 10 14 16 20 22 26 28 32 34 38 40 44 46 50 52 56 58 62 64 68 70 74 76 78 80 82 84 86 88 90 92 94

slow (270 μs) - 1 5 7 11 13 17 19 23 25 29 31 35 35 37 41 43 47 49 53 55 59 61 65 67 71 73 75 77 79 81 83 85 87 89 91 93 95 97

Usable channels subject to regulation.

Do not access or modify this register during Transmit or Receive.

Mnemonic

Bit

TX_LENGTH_ADR

Address

0x01

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R/W

TX Length

Bits 7:0

This register sets the length of the packet to be transmitted. A length of zero is valid, and transmits a packet with SOP, length

and CRC16 fields (if enabled), but no data field. Packet lengths of more than 16 bytes require that some data bytes be written

after transmission of the packet has begun. Typically, length is updated prior to setting TX GO. The maximum packet length for

all packets is 40 bytes except for framed 64 chip DDR where the maximum packet length is 16 bytes.

Maximum packet length is limited by the delta between the transmitter and receiver crystals of 60 ppm or better.

Mnemonic

Bit

TX_CTRL_ADR

Address

0x02

7

0

6

0

5

0

4

0

3

0

2

0

1

0

1

Default

Read/Write

Function

R/W

TXB15

IRQEN

TXB8

IRQEN

TXB0

IRQEN

TXBERR

IRQEN

TXC

IRQEN

TXE

IRQEN

TX GO

TX CLR

Bit 7

Start Transmission. Setting this bit triggers the transmission of a packet. Writing ‘0’ to this flag has no effect. This bit is cleared

automatically at the end of packet transmission. The transmit buffer may be loaded either before or after setting this bit. If data

is loaded after setting this bit, the length of time available to load the buffer depends on the starting state (sleep, idle or synth),

the length of the SOP code, the length of preamble, and the packet data rate. For example, if starting from idle mode on a fast

channel in 8DR mode with 32 chip SOP codes the time available is 100 μs (synth start) + 32 μs (preamble) + 64 μs (SOP

length) + 32 μs (length byte) = 228 μs. If there are no bytes in the TX buffer at the end of transmission of the length field, a

TXBERR IRQ occurs.

Bit 6

Clear TX Buffer. Writing ‘1’ to this register clears the transmit buffer. Writing ‘0’ to this bit has no effect. The previous packet (16

or fewer bytes) may be retransmitted by setting TX GO and not setting this bit.

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Buffer Not Full Interrupt Enable. See TX_IRQ_STATUS_ADR for description.

Buffer Half Empty Interrupt Enable. See TX_IRQ_STATUS_ADR for description.

Buffer Empty Interrupt Enable. See TX_IRQ_STATUS_ADR for description.

Buffer Error Interrupt Enable. See TX_IRQ_STATUS_ADR for description.

Transmission Complete Interrupt Enable. TXC IRQEN and TXE IRQEN must be set together. See TX_IRQ_STATUS_ADR for

description.

Bit 0

Transmit Error Interrupt Enable. TXC IRQEN and TXE IRQEN must be set together. See TX_IRQ_STATUS_ADR for

description.

Document #: 38-16015 Rev. *G

Page 13 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

TX_CFG_ADR

Address

0x03

7

-

6

-

5

0

4

0

3

0

2

1

0

1

Default

Read/Write

Function

-

R/W

Data Code

Length

Not Used

Data Mode

PA Setting

Bit 5

Data Code Length. This bit selects the length of the DATA_CODE_ADR code for the data portion of the packet. This bit is

ignored when the data mode is set to GFSK. 1 = 64 chip codes. 0 = 32 chip codes.

Bits 4:3

Bits 2:0

Data Mode. This field sets the data transmission mode. 00 = 1-Mbps GFSK. 01 = 8DR Mode. 10 = DDR Mode. 11 = SDR Mode.

It is recommended that firmware set the ALL SLOW bit in register ANALOG_CTRL_ADR when using GFSK data rate mode.

PA Setting. This field sets the transmit signal strength. 0 = –35 dBm, 1 = –30 dBm, 2 = –24 dBm, 3 = –18 dBm, 4 = –13 dBm,

5 = –5 dBm, 6 = 0 dBm, 7 = +4 dBm.

Mnemonic

Bit

TX_IRQ_STATUS_ADR

Address

0x04

7

6

5

4

3

2

1

-

0

-

Default

-

R

-

R

-

R

-

R

-

R

-

R

Read/Write

Function

R

OS IRQ

LV IRQ

TXB15 IRQ

TXB8 IRQ

TXB0 IRQ

TXBERRIRQ

TXC IRQ

TXE IRQ

The state of all IRQ status bits is valid regardless of whether or not the IRQ is enabled. The IRQ output of the device is in its active state

whenever one or more bits in this register is set and the corresponding IRQ enable bit is also set. Status bits are non-atomic (different flags

may change value at different times in response to a single event).

Bit 7

Bit 6

Oscillator Stable IRQ Status. This bit is set when the internal crystal oscillator has settled (synthesizer sequence starts).

Low Voltage Interrupt Status. This bit is set when the voltage on V_BATis below the LVI threshold (see PWR_CTL_ADR). This

interrupt is automatically disabled whenever the PMU is disabled. When enabled, this bit reflects the voltage on V_BAT

.

Bit 5

Bit 4

Bit 3

Bit 2

Buffer Not Full Interrupt Status. This bit is set whenever there are 15 or fewer bytes remaining in the transmit buffer.

Buffer Half Empty Interrupt Status. This bit is set whenever there are eight or fewer bytes remaining in the transmit buffer.

Buffer Empty Interrupt Status. This bit is set at any time that the transmit buffer is empty.

Buffer Error Interrupt Status. This IRQ is triggered by either of two events: (1) When the transmit buffer (TX_BUFFER_ADR) is

empty and the number of bytes remaining to be transmitted is greater than zero. (2) When a byte is written to the transmit buffer

and the buffer is already full. This IRQ is cleared by setting bit TX CLR in TX_CTRL_ADR.

Bit 1

Transmission Complete Interrupt Status. This IRQ is triggered when transmission is complete. If transaction mode is not

enabled then this interrupt is triggered immediately after transmission of the last bit of the CRC16. If transaction mode is

enabled, this interrupt is triggered at the end of a transaction. Reading this register clears this bit. TXC IRQ and TXE IRQ flags

may change value at different times in response to a single event. If transaction mode is enabled and the first read of this regis-

ter returns TXC IRQ = 1 and TXE IRQ = 0 then firmware must execute a second read to this register to determine if an error

occurred by examining the status of TXE. There can be a case when this bit is not triggered when ACK EN = 1 and there is an

error in transmission. If the first read of this register returns TXC IRQ = 1 and TXE IRQ = 1, then the firmware must not execute

a second read from this register for a given transaction. If an ACK is received RXC IRQ and RXE IRQ may be asserted instead

of TXC IRQ and TXE IRQ.

Bit 0

Transmit Error Interrupt Status. This IRQ is triggered when there is an error in transmission. This interrupt is only applicable to

transaction mode. It is triggered whenever no valid ACK packet is received within the ACK timeout period. Reading this register

clears this bit. See TXC IRQ, above.

Document #: 38-16015 Rev. *G

Page 14 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

RX_CTRL_ADR

Address

0x05

7

0

6

0

5

0

4

0

3

0

2

1

0

1

Default

Read/Write

Function

R/W

RXB16

IRQEN

RXB8

IRQEN

RXB1

IRQEN

RXBERR

IRQEN

RXC

IRQEN

RXE

IRQEN

RX GO

RSVD

Bit 7

Start Receive. Setting this bit causes the device to transition to receive mode. If necessary, the crystal oscillator and synthesizer

start automatically after this bit is set. Firmware must never clear this bit. This bit must not be set again until after it clears. The

recommended method to exit receive mode when an error has occurred is to force END STATE and then dummy read all

RX_COUNT_ADR bytes from RX_BUFFER_ADR or poll RSSI_ADR.SOP (bit 7) until set. See XACT_CFG_ADR and

RX_ABORT_ADR for description.

Bit 6

Bit 5

Bit 4

Bit 3

Reserved. Must be zero.

Buffer Full Interrupt Enable. See RX_IRQ_STATUS_ADR for description.

Buffer Half Empty Interrupt Enable. See RX_IRQ_STATUS_ADR for description.

Buffer Not Empty Interrupt Enable. RXB1 IRQEN must not be set when RXB8 IRQEN is set and vice versa. See

RX_IRQ_STATUS_ADR for description.

Bit 2

Bit 1

Bit 0

Buffer Error Interrupt Enable. See RX_IRQ_STATUS_ADR for description.

Packet Reception Complete Interrupt Enable. See RX_IRQ_STATUS_ADR for description.

Receive Error Interrupt Enable. See RX_IRQ_STATUS_ADR for description.

Document #: 38-16015 Rev. *G

Page 15 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

RX_CFG_ADR

Address

0x06

7

1

6

5

4

1

3

0

2

1

0

Default

0

-

Read/Write

Function

R/W

AGC EN

R/W

LNA

R/W

ATT

R/W

HILO

R/W

-

R/W

FAST TURN

EN

Not Used

RXOW EN

VLD EN

Status bits are non-atomic (different flags may change value at different times in response to a single event).

Bit 7

Automatic Gain Control (AGC) Enable. When this bit is set, AGC is enabled, and the LNA is controlled by the AGC circuit.

When this bit is cleared the LNA is controlled manually using the LNA bit. Typical applications clear this bit during initialization.

It is recommended that this bit be cleared and bit 6 (LNA) be set unless the device is used in a system where it may receive

data from a device using an external PA to transmit signals at more than +4 dBm.

Bit 6

Bit 5

Bit 4

Low Noise Amplifier (LNA) Manual Control. When AGC EN (Bit 7) is cleared, this bit controls the state of the receiver LNA;

when AGC EN is set, this bit has no effect. Setting this bit enables the LNA; clearing this bit disables the LNA. Device current in

receive mode is slightly lower when the LNA is disabled. Typical applications set this bit during initialization.

Receive Attenuator Enable. Setting this bit enables the receiver attenuator. The receiver attenuator may be used to desensitize

the receiver so that only very strong signals may be received. This bit should only be set when the AGC EN is disabled and the

LNA is manually disabled.

HILO. When FAST TURN EN is set, this bit is used to select whether the device uses the high frequency for the channel

selected, or the low frequency. 1 = hi; 0 = lo. When FAST TURN EN is not enabled this also controls the high-low bit to the

receiver and should be left at the default value of ‘1’ for high side receive injection. Typical applications clear this bit during ini-

tialization.

Bit 3

Fast Turn Mode Enable. When this bit is set, the HILO bit determines whether the device receives data transmitted 1 MHz

above the RX Synthesizer frequency or 1 MHz below the receiver synthesizer frequency. Use of this mode allows for very fast

turnaround, because the same synthesizer frequency may be used for both transmit and receive, thus eliminating the synthe-

sizer resettling period between transmit and receive. Note that when this bit is set, and the HILO bit is cleared, received data

bits are automatically inverted to compensate for the inversion of data received on the ‘image’ frequency. Typical applications

set this bit during initialization.

Bit 1

Bit 0

Overwrite Enable. When this bit is set, if an SOP is detected while the receive buffer is not empty, then the existing contents of

receive buffer are lost, and the new packet is loaded into the receive buffer. When this bit is set, the RXOW IRQ is enabled. If

this bit is cleared, then the receive buffer may not be overwritten by a new packet, and whenever the receive buffer is not empty

SOP conditions are ignored, and it is not possible to receive data until the previously received packet has been completely read

from the receive buffer.

Valid Flag Enable. When this bit is set, the receive buffer can store up to eight bytes of data. Typically, this bit is set only when

interoperability with first generation devices is desired. See RX_BUFFER_ADR for more detail.

Document #: 38-16015 Rev. *G

Page 16 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

RX_IRQ_STATUS_ADR

Address

0x07

7

-

6

-

5

-

4

3

-

2

-

1

0

-

Default

-

R

-

R

Read/Write

Function

R/W

R

RXOW IRQ SOPDET IRQ RXB16 IRQ

RXB8 IRQ

RXB1 IRQ RXBERRIRQ

RXC IRQ

RXE IRQ

The state of all IRQ Status bits is valid regardless of whether or not the IRQ is enabled. The IRQ output of the device is in its active state

whenever one or more bits in this register is set and the corresponding IRQ enable bit is also set. Status bits are non-atomic (different flags

may change value at different times in response to a single event).

Bit 7

Receive Overwrite Interrupt Status. This IRQ is triggered when the receive buffer is overwritten by a packet being received

before the previous packet has been read from the buffer. This bit is cleared by writing any value to this register. This condition

is only possible when the RXOW EN bit in RX_CFG_ADR is set. This bit must be written ‘1’ by firmware before the new packet

may be read from the receive buffer.

Bit 6

Bit 5

Bit 4

Start of packet detect. This bit is set whenever the start of packet symbol is detected.

Receive Buffer Full Interrupt Status. This bit is set whenever the receive buffer is full, and cleared otherwise.

Receive Buffer Half Full Interrupt Status. This bit is set whenever there are eight or more bytes remaining in the receive buffer.

Firmware must read exactly eight bytes when reading RXB8 IRQ.

Bit 3

Receive Buffer Not Empty Interrupt Status. This bit is set any time that there are one or more bytes in the receive buffer, and

cleared when the receive buffer is empty. It is possible, in rare cases, that the last byte of a packet may remain in the buffer

even though the RXB1 IRQ flag has cleared. This can ONLY happen on the last byte of a packet and only if the packet data is

being read out of the buffer while the packet is still being received. The flag is trustworthy under all other conditions, and for all

bytes prior to the last. When using RXB1 IRQ and unloading the packet data during reception, the user must make sure the

RX_COUNT_ADR value, after the RXC IRQ/RXE IRQ, is set and unload the last remaining bytes if the number of bytes

unloaded is less than the reported count, even though the RXB1 IRQ is not set.

Bit 2

Bit 1

Receive Buffer Error Interrupt Status. This IRQ is triggered in one of two ways: (1) When the receive buffer is empty and there

is an attempt to read data (2) When the receive buffer is full and more data is received; this flag is cleared when RX GO is set

and a SOP is received.

Packet Receive Complete Interrupt Status. This IRQ is triggered when a packet has been received. If transaction mode is

enabled, then this bit is not set until after transmission of the ACK. If transaction mode is not enabled then this bit is set as soon

as a valid packet is received. This bit is cleared when this register is read. RXC IRQ and RXE IRQ flags may change value at

different times in response to a single event. There are cases when this bit is not triggered when ACK EN = 1 and there is an

error in reception. Therefore, firmware should examine RXC IRQ, RXE IRQ, and CRC 0 to determine receive status. If the first

read of this register returns RXC IRQ = 1 and RXE IRQ = 0 then firmware must execute a second read to this register to deter-

mine if an error occurred by examining the status of RXE IRQ. If the first read of this register returns RXC IRQ = 1 and

RXE IRQ = 1, then the firmware must not execute a second read to this register for a given transaction.

Bit 0

Receive Error Interrupt Status. This IRQ is triggered when there is an error in reception. It is triggered whenever a packet is

received with a bad CRC16, an unexpected EOP is detected, a packet type (data or ACK) mismatch, or a packet is dropped

because the receive buffer is still not empty when the next packet starts. The exact cause of the error may be determined by

reading RX_STATUS_ADR. This bit is cleared when this register is read.

Document #: 38-16015 Rev. *G

Page 17 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

RX_STATUS_ADR

Address

0x08

7

6

-

5

-

4

3

2

1

-

0

-

Default

-

R

-

R

-

R

-

R

Read/Write

Function

R

RX ACK

PKT ERR

EOP ERR

CRC0

Bad CRC

RX Code

RX Data Mode

It is expected that firmware does not read this register until after RX GO self clears. Status bits are non-atomic (different flags may change

value at different times in response to a single event).

Bit 7

Bit 6

Bit 5

RX Packet Type. This bit is set when the received packet is an ACK packet, and cleared when the received packet is a standard

packet.

Receive Packet Type Error. This bit is set when the packet type received is not what was expected and cleared when the

packet type received was as expected. For example, if a data packet is expected and an ACK is received, this bit is set.

Unexpected EOP. This bit is set when an EOP is detected before the expected data length and CRC16 fields have been

received. This bit is cleared when an SOP pattern for the next packet has been received. This includes the case where there

are invalid bits detected in the length field and the length field is forced to ‘0’.

Bit 4

Bit 3

Bit 2

Zero-seed CRC16. This bit is set whenever the CRC16 of the last received packet has a zero seed.

Bad CRC16. This bit is set when the CRC16 of the last received packet is incorrect.

Receive Code Length. This bit indicates the DATA_CODE_ADR code length used in the last correctly received packet.

1 = 64 chip code, 0 = 32 chip code.

Bits 1:0

Receive Data Mode. These bits indicate the data mode of the last correctly received packet. 00 = 1 Mbps GFSK;

01 = 8DR; 10 = DDR; 11 = Not Valid. These bits do not apply to unframed packets.

Mnemonic

Bit

RX_COUNT_ADR

Address

0x09

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R

RX Count

Count bits are non-atomic (updated at different times).

Bits 7:0

This register contains the total number of payload bytes received during reception of the current packet. After packet reception

is complete, this register matches the value in RX_LENGTH_ADR unless there was a packet error. This register is cleared

when RX_LENGTH_ADR is automatically loaded, if length is enabled, after the SOP. Count should not be read when

RX_GO = 1 during a transaction.

Mnemonic

Bit

RX_LENGTH_ADR

Address

0x0A

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R

RX Length

Length bits are non-atomic (different flags may change value at different times in response to a single event).

Bits 7:0

This register contains the length field which is updated with the reception of a new length field (shortly after start of packet

detected). If there is an error in the received length field, 0x00 is loaded instead, except when using GFSK data rate, and an

error is flagged.

Document #: 38-16015 Rev. *G

Page 18 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

PWR_CTRL_ADR

Address

0x0B

7

1

6

0

5

1

4

-

3

0

2

0

1

0

Default

Read/Write

Function

R/W

-

R/W

PMU EN

LVIRQ EN

PMU Mode PFET Disable

Force

LVI TH

PMU OUTV

Bit 7

Bit 6

Power Management Unit (PMU) Enable. Setting this bit enables the PMU only if PMU Mode Force (bit 5) is set. Otherwise it

has no effect. See PMU Mode Force (bit 5) description for more information.

Low Voltage Interrupt Enable. Setting this bit enables the LV IRQ interrupt. When this interrupt is enabled, if the V_BATvoltage

falls below the threshold set by LVI TH, a low voltage interrupt is generated. The LVI is not available when the device is in sleep

mode. The LVI event on IRQ pin is automatically disabled whenever the PMU is disabled.

Bit 5

PMU Mode Force. If this bit is set, the PMU operation is based on the state of the PMU Enable Bit (bit 7). if this bit is not set

then the PMU is disabled in Sleep mode and enabled when not in Sleep mode, if Bit 7 = 1. If Bit 7 = 1 and Bit 5 = 1, PMU is

enabled always (even during sleep). If Bit 7 = 0 and Bit 5 = 1, PMU is disabled always. If Bit 7 = 1and Bit 5 = 0, PMU is disabled

only in Sleep Mode.

Bits 3:2

Bits 1:0

Low Voltage Interrupt Threshold. This field sets the voltage on V_BATat which the LVI is triggered. 11 = 1.8V; 10 = 2.0V;

01 = 2.2V; 00 = PMU OUTV voltage.

PMU Output Voltage. This field sets the minimum output voltage of the PMU. 11 = 2.4V; 10 = 2.5V; 01 = 2.6V; 00 = 2.7V. When

the PMU is active, the voltage output by the PMU on V_REGis never less than this voltage, provided that the total load on the

V

_REGpin is less than the specified maximum value, and the voltage in V_BATis greater than the specified minimum value.

The order of writing these bits impacts the value of the Sleep current I_SB

.

Mnemonic

Bit

XTAL_CTRL_ADR

Address

0x0C

7

0

6

0

5

0

4

3

2

1

0

Default

-

Read/Write

Function

R/W

-

R/W

FREQ

R/W

XOUT FN

XSIRQ EN

Not Used

Bits 7:6

XOUT Pin Function. This field selects between the different functions of the XOUT pin. 00 = Clock frequency set by XOUT

FREQ; 01 = Active LOW PA Control; 10 = Radio data serial bit stream. If this option is selected and SPI is configured for 3-wire

mode then the MISO pin outputs a serial clock associated with this data stream; 11 = GPIO. To disable this output, set to GPIO

mode, and set the GPIO state in IO_CFG_ADR.

Bit 5

Crystal Stable Interrupt Enable. This bit enables the OS IRQ interrupt. When enabled, this interrupt generates an IRQ event

when the crystal has stabilized after the device has awaken from sleep mode. This event is cleared by writing ‘0’ to this bit.

Bits 2:0

XOUT Frequency. This field sets the frequency output on the XOUT pin when XOUT FN is set to 00. 0 = 12 MHz; 1 = 6 MHz,

2 = 3 MHz, 3 = 1.5 MHz, 4 = 0.75 MHz; other values are not defined.

Document #: 38-16015 Rev. *G

Page 19 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

IO_CFG_ADR

Address

0x0D

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R/W

IRQ OD

R/W

IRQ POL

MISO OD

XOUT OD

PACTL OD PACTL GPIO

SPI 3PIN

IRQ GPIO

To use a GPIO pin as an input, the output mode must be set to open drain, and ‘1’ written to the corresponding output register bit.

Bit 7

IRQ Pin Drive Strength. Setting this bit configures the IRQ pin as an open drain output. Clearing this bit configures the IRQ pin

as a standard CMOS output, with the output ‘1’ drive voltage being equal to the V_IOpin voltage.

Bit 6

Bit 5

IRQ Polarity. Setting this bit configures the IRQ signal polarity to be active HIGH. Clearing this bit configures the IRQ signal

polarity to be active low.

MISO Pin Drive Strength. Setting this bit configures the MISO pin as an open drain output. Clearing this bit configures the

MISO pin as a standard CMOS output, with the output ‘1’ drive voltage being equal to the V_IOpin voltage.

Bit 4

Bit 3

XOUT Pin Drive Strength. Setting this bit configures the XOUT pin as an open drain output. Clearing this bit configures the

XOUT pin as a standard CMOS output, with the output ‘1’ drive voltage being equal to the V_IOpin voltage.

PACTL Pin Drive Strength. Setting this bit configures the PACTL pin as an open drain output. Clearing this bit configures the

PACTL pin as a standard CMOS output, with the output ‘1’ drive voltage being equal to the V_IOpin voltage.

Bit 2

Bit 1

PACTL Pin Function. When this bit is set, the PACTL pin is available for use as a GPIO.

SPI Mode. When this bit is cleared, the SPI interface acts as a standard 4-wire SPI Slave interface. When this bit is set, the SPI

interface operates in “3-Wire Mode” combining MISO and MOSI on the same pin (SDAT). The MISO pin is available as a GPIO

pin.

Bit 0

IRQ Pin Function. When this bit is cleared, the IRQ pin is asserted when an IRQ is active; the polarity of this IRQ signal is con-

figurable in IRQ POL. When this bit is set, the IRQ pin is available for use as a GPIO pin, and the IRQ function is multiplexed

onto the MOSI pin. In this case the IRQ signal state is presented on the MOSI pin whenever the SS signal is inactive (HIGH).

Mnemonic

Bit

GPIO_CTRL_ADR

Address

0x0E

7

0

6

0

5

0

4

0

3

2

1

0

-

Default

-

R

-

R

-

R

Read/Write

Function

R/W

IRQ OP

R

XOUT OP

MISO OP

PACTL OP

XOUT IP

MISO IP

PACTL IP

IRQ IP

To use a GPIO pin as an input, the output mode must be set to open drain, and a ‘1’ written to the corresponding output register bit.

Bit 7

Bit 6

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

XOUT Output. When the XOUT pin is configured to be a GPIO, the state of this bit sets the output state of the XOUT pin.

MISO Output. When the MISO pin is configured to be a GPIO, the state of this bit sets the output state of the MISO pin.

PACTL Output. When the PACTL pin is configured to be a GPIO, the state of this bit sets the output state of the PACTL pin.

IRQ Output. When the IRQ pin is configured to be a GPIO, the state of this bit sets the output state of the IRQ pin.

XOUT Input. The state of this bit reflects the voltage on the XOUT pin.

MISO Input. The state of this bit reflects the voltage on the MISO pin.

PACTL Input. The state of this bit reflects the voltage on the PACTL pin.

IRQ Input. The state of this bit reflects the voltage on the IRQ pin.

Document #: 38-16015 Rev. *G

Page 20 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

XACT_CFG_ADR

Address

0x0F

7

1

6

-

5

0

4

0

3

2

0

1

0

Default

0

Read/Write

Function

R/W

ACK EN

-

R/W

Not Used

FRC END

END STATE

ACK TO

Bit 7

Acknowledge Enable. When this bit is set, an ACK packet is automatically transmitted whenever a valid packet is received; in

this case the device is considered to be in transaction mode. After transmission of the ACK packet, the device automatically

transitions to the END STATE. When this bit is cleared, the device transitions directly to the END STATE immediately after the

end of packet transmission. This bit affects both transmitting and receiving devices.

Bit 5

Force End State. Setting this bit forces a transition to the state set in END STATE. By setting the desired END STATE at the

same time as setting this bit the device may be forced to immediately transition from its current state to any other state. This bit

is automatically cleared upon completion. Firmware MUST never try to force END STATE while TX GO is set, nor when RX GO

is set and a SOP has already been received (packet reception already in progress).

Bits 4:2

Transaction End State. This field defines the mode to which the device transitions after receiving or transmitting a packet. 000

= Sleep Mode; 001 = Idle Mode; 010 = Synth Mode (TX); 011 = Synth Mode (RX); 100 = RX Mode. In normal use, this field is

typically set to ‘000’ or ‘001’ when the device is transmitting packets, and ‘100’ when the device is receiving packets. Note that

when the device transitions to receive mode as an END STATE, the receiver must still be armed by setting RX GO before the

device can begin receiving data. If the system only supports packets less than or equal to 16 bytes then firmware should exam-

ine RXC IRQ and RXE IRQ to determine the status of the packet. If the system supports packets more than 16 bytes, make

sure that END STATE is not sleep, force RXF = 1, perform receive operation, force RXF = 0, and if necessary set END STATE

back to sleep.

Bits 1:0

ACK Timeout. When the device is configured for transaction mode, this field sets the timeout period after transmission of a

packet during which an ACK must be correctly received in order to prevent a transmit error condition from being detected. This

timeout period is expressed in terms of a number of SOP_CODE_ADR code lengths; if SOP LEN is set, then the timeout period

is this value multiplied by 64 μs and if SOP LEN is cleared then the timeout is this value multiplied by 32 μs. 00 = 4x; 01 = 8x,

10 = 12x; 11 = 15x the SOP_CODE_ADR code length. ACK_TO must be set to greater than 30 + Data Code Length (only for

8DR) + Preamble Length + SOP Code Length (x2).

Mnemonic

Bit

FRAMING_CFG_ADR

Address

0x10

7

1

6

5

1

4

0

3

0

2

1

0

1

Default

0

Read/Write

Function

R/W

SOP EN

R/W

LEN EN

R/W

SOP TH

R/W

SOP LEN

Bit 7

SOP Enable. When this bit is set, each transmitted packet begins with a SOP field, and only packets beginning with a valid

SOP field are received. If this bit is cleared, no SOP field is generated when a packet is transmitted, and packet reception

begins whenever two successive correlations against the DATA_CODE_ADR code are detected.

Bit 6

Bit 5

SOP PN Code Length. When this bit is set the SOP_CODE_ADR code length is 64 chips. When this bit is cleared the

SOP_CODE_ADR code length is 32 chips.

Packet Length Enable. When this bit is set the 8 bit value contained in TX_LENGTH_ADR is transmitted immediately after the

SOP field. In receive mode, the 8 bits immediately following the SOP field are interpreted as the length of the packet. When this

bit is cleared no packet length field is transmitted. 8DR always sends the packet length field (LEN EN setting is ignored). GFSK

requires user set LEN EN = 1.

Bits 4:0

SOP Correlator Threshold. This is the receive data correlator threshold used when attempting to detect a SOP symbol. There

is a single threshold for the SOP_CODE_ADR code. This threshold is applied independently to each of SOP1 and SOP2 fields.

When SOP LEN is set, all 5 bits of this field are used. When SOP LEN is cleared, the most significant bit is disregarded. Typical

applications configure SOP TH = 04h for SOP32 and SOP TH = 0Eh for SOP64.

Document #: 38-16015 Rev. *G

Page 21 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

DATA32_THOLD_ADR

Address

0x11

7

6

5

4

3

0

2

1

0

Default

-

Read/Write

Function

-

R/W

Not Used

TH32

Bits 7:4

Bits 3:0

Not Used.

32 Chip Data PN Code Correlator Threshold. This register sets the correlator threshold used in DSSS modes when DATA

CODE LENGTH (see TX_CFG_ADR) is set to 32. Typical applications configure TH32 = 05h.

Mnemonic

Bit

DATA64_THOLD_ADR

Address

0x12

7

6

5

4

0

3

1

2

0

1

0

Default

-

Read/Write

Function

-

R/W

TH64

R/W

Not Used

Bits 7:5

Bits 4:0

Not Used.

64 Chip Data PN Code Correlator Threshold. This register sets the correlator threshold used in DSSS modes when the DATA

CODE LENGTH (see TX_CFG_ADR) is set to 64. Typical applications configure TH64 = 0Eh.

Mnemonic

Bit

RSSI_ADR

Address

0x13

7

0

6

5

1

4

0

3

0

2

0

1

0

Default

-

Read/Write

Function

R

-

R

SOP

Not Used

LNA

RSSI

A Received Signal Strength Indicator (RSSI) reading is taken automatically when an SOP symbol is detected. In addition, an RSSI reading is

taken whenever RSSI_ADR is read. The contents of this register are not valid after the device is configured for receive mode until either a SOP

symbol is detected, or the register is (re)read. The conversion can occur as often as once every 12 μs. The approximate slope of the curve is

1.9 dB/count, but is not guaranteed.

If it is desired to measure the background RF signal strength on a channel before a packet has been received then the MCU should perform

a “dummy” read of this register, the results of which should be discarded. This “dummy” read causes an RSSI measurement to be taken, and

therefore subsequent readings of the register yield valid data.

Bit 7

SOP RSSI Reading. When set, this bit indicates that the reading in the RSSI field was taken when a SOP symbol was

detected. When cleared, this bit indicates that the reading stored in the RSSI field was triggered by a previous SPI read of this

register.

Bit 5

LNA State. This bit indicates the LNA state when the RSSI reading was taken. When cleared, this bit indicates that the LNA

was disabled when the RSSI reading was taken; if set this bit indicates that the LNA was enabled when the RSSI reading was

taken.

Bits 4:0

RSSI Reading. This field indicates the instantaneous strength of the RF signal being received at the time that the RSSI reading

was taken. A larger value indicates a stronger signal. The signal strength measured is for the RF signal on the configured chan-

nel, and is measured after the LNA stage.

Document #: 38-16015 Rev. *G

Page 22 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

EOP_CTRL_ADR

Address

0x14

7

6

0

5

1

4

0

3

0

2

1

0

Default

1

Read/Write

Function

R/W

HEN

R/W

HINT

R/W

EOP

If the LEN EN bit is set, then the contents of this register have no effect. If the LEN EN bit is cleared, then this register is used to configure how

an EOP (end of packet) condition is detected.

Bit 7

EOP Hint Enable. When set, this bit causes an EOP to be detected if no correlations have been detected for the number of

symbol periods set by the HINT field and the last two received bytes match the calculated CRC16 for all previously received

bytes. Use of this mode reduces the chance of noncorrelations in the middle of a packet from being detected as an EOP condi-

tion.

Bits 6:4

Bits 4:0

EOP Hint Symbol Count. The minimum number of symbols of consecutive noncorrelations at which the last two bytes are

checked against the calculated CRC16 to detect an EOP condition.

EOP Symbol Count. An EOP condition is deemed to exist when the number of consecutive noncorrelations is detected.

Mnemonic

Bit

CRC_SEED_LSB_ADR

Address

0x15

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R/W

CRC SEED LSB

The CRC16 seed allows different devices to generate or recognize different CRC16s for the same payload data. If a transmitter and receiver

use a randomly selected CRC16 seed, the probability of correctly receiving data intended for a different receiver is 1/65535, even if the other

transmitter/receiver are using the same SOP_CODE_ADR codes and channel.

Bits 7:0

CRC16 Seed Least Significant Byte. The LSB of the starting value of the CRC16 calculation.

Mnemonic

Bit

CRC_SEED_MSB_ADR

Address

0x16

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R/W

CRC SEED MSB

Bits 7:0

CRC16 Seed Most Significant Byte. The MSB of the starting value of the CRC16 calculation.

Mnemonic

Bit

TX_CRC_LSB_ADR

Address

0x17

7

-

6

-

5

-

4

-

3

-

2

-

1

-

0

-

Default

Read/Write

Function

R

TX CRC LSB

Bits 7:0

Calculated CRC16 LSB. The LSB of the CRC16 that was calculated for the last transmitted packet. This value is only valid after

packet transmission is complete.

Document #: 38-16015 Rev. *G

Page 23 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

TX_CRC_MSB_ADR

Address

0x18

7

-

6

-

5

-

4

-

3

-

2

-

1

-

0

-

Default

Read/Write

Function

R

TX CRC MSB

Bits 7:0

Calculated CRC16 MSB. The MSB of the CRC16 that was calculated for the last transmitted packet. This value is only valid

after packet transmission is complete.

Mnemonic

Bit

RX_CRC_LSB_ADR

Address

0x19

7

1

6

1

5

1

4

1

3

1

2

1

0

1

Default

Read/Write

Function

R

RX CRC LSB

Bits 7:0

Received CRC16 LSB. The LSB of the CRC16 field extracted from the last received packet. This value is valid whether or not

the CRC16 field matched the calculated CRC16 of the received packet.

Mnemonic

Bit

RX_CRC_MSB_ADR

Address

0x1A

7

1

6

1

5

1

4

1

3

1

2

1

0

1

Default

Read/Write

Function

R

RX CRC MSB

Bits 7:0

Received CRC16 MSB. The MSB of the CRC16 field extracted from the last received packet. This value is valid whether or not

the CRC16 field matched the calculated CRC16 of the received packet.

Mnemonic

Bit

TX_OFFSET_LSB_ADR

Address

0x1B

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

R/W

R

STRIM LSB

Bits 7:0

The least significant 8 bits of the synthesizer offset value. This is a 12 bit 2’s complement signed number, which may be used to

offset the transmit frequency of the device by up to ±1.5 MHz. A positive value increases the transmit frequency, and a negative

value reduces the transmit frequency. A value of +1 increases the transmit frequency by 732.6 Hz; a value of –1 decreases the

transmit frequency by 732.6 Hz. A value of 0x0555 increases the transmit frequency by 1 MHz; a value of 0xAAB decreases

the transmit frequency by 1 MHz. Typically, this register is loaded with 0x55 during initialization. This feature is used to avoid

the need to change the synthesizer frequency when switching between TX and RX. As the IF = 1 MHz the RX frequency is off-

set 1 MHz from the synthesizer frequency; therefore, transmitting with a 1 MHz offset allows the same synthesizer frequency to

be used for both transmit and receive.

Synthesizer offset has no effect on receive frequency.

Document #: 38-16015 Rev. *G

Page 24 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

TX_OFFSET_MSB_ADR

Address

0x1C

7

6

5

4

3

0

2

0

1

0

Default

-

Read/Write

Function

-

R/W

Not Used

STRIM MSB

Bits 7:4

Bits 3:0

Not Used.

The most significant 4 bits of the synthesizer trim value. Typically, this register is loaded with 0x05 during initialization.

Mnemonic

Bit

MODE_OVERRIDE_ADR

Address

0x1D

7

0

6

0

5

4

0

3

0

2

1

0

Default

0

W

-

Read/Write

Function

W

-

W

RSVD

FRC SEN

FRC AWAKE

Not Used

RST

Bits 7:6

Bit 5

Reserved. Must be zero.

Manually Initiate Synthesizer. Setting this bit forces the synthesizer to start. Clearing this bit has no effect. For this bit to operate

correctly, the oscillator must be running before this bit is set.

Bits 4:3

Force Awake. Force the device out of sleep mode. Setting both bits of this field forces the oscillator to keep running at all times

regardless of the END STATE setting. Clearing both of these bits disables this function.

Not Used.

Bits 2:1

Bit 0

Reset. Setting this bit forces a full reset of the device. Clearing this bit has no effect.

Mnemonic

Bit

RX_OVERRIDE_ADR

Address

0x1E

7

0

6

5

0

4

0

3

0

2

1

0

-

Default

0

Read/Write

Function

R/W

ACK RX

R/W

ACE

-

RXTX DLY MAN RXACK FRC RXDR

DIS CRC0

DIS RXCRC

Not Used

This register provides the ability to override some automatic features of the device.

Bit 7

When this bit is set, the device uses the transmit synthesizer frequency rather than the receive synthesizer frequency for the

given channel when automatically entering receive mode.

Bit 6

Bit 5

When this bit is set and ACK EN is enabled, the transmission of the ACK packet is delayed by 20 μs.

Force Expected Packet Type. When this bit is set, and the device is in receive mode, the device is configured to receive an

ACK packet at the data rate defined in TX_CFG_ADR.

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Force Receive Data Rate. When this bit is set, the receiver ignores the data rate encoded in the SOP symbol, and receives

data at the data rate defined in TX_CFG_ADR.

Reject packets with a zero-seed CRC16. Setting this bit causes the receiver to reject packets with a zero-seed, and accept only

packets with a CRC16 that matches the seed in CRC_SEED_LSB_ADR and CRC_SEED_MSB_ADR.

The RX CRC16 checker is disabled. If packets with CRC16 enabled are received, the CRC16 is treated as payload data and

stored in the receive buffer.

Accept Bad CRC16. Setting this bit causes the receiver to accept packets with a CRC16 that do not match the seed in

CRC_SEED_LSB_ADR and CRC_SEED_MSB_ADR. An ACK is to be sent regardless of the condition of the received CRC16.

Not Used.

Document #: 38-16015 Rev. *G

Page 25 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

TX_OVERRIDE_ADR

Address

0x1F

7

0

6

5

0

4

0

3

0

2

1

0

Default

0

Read/Write

Function

R/W

ACK TX

R/W

RSVD

R/W

RSVD

R/W

FRC PRE

MAN TXACK OVRD ACK

DIS TXCRC

TX INV

This register provides the ability to override some automatic features of the device.

Bit 7

When this bit is set, the device uses the receive synthesizer frequency rather than the transmit synthesizer frequency for the

given channel when automatically entering transmit mode.

Bit 6

Force Preamble. When this bit is set, the device transmits a continuous repetition of the preamble pattern (see

PREAMBLE_ADR) after TX GO is set. This mode is useful for some regulatory approval procedures. Firmware should set bit

RST of MODE_OVERRIDE_ADR to exit this mode.

Bit 5

Bit 4

Bit 3

Bit 2

Bit 1

Bit 0

Reserved. Must be zero.

Transmit ACK Packet. When this bit is set, the device sends an ACK packet when TX GO is set.

ACK Override. Use TX_CFG_ADR to determine the data rate and the CRC16 used when transmitting an ACK packet.

Disable Transmit CRC16. When set, no CRC16 field is present at the end of transmitted packets.

Reserved. Must be zero.

TX Data Invert. When this bit is set the transmit bitstream is inverted.

Mnemonic

Bit

XTAL_CFG_ADR

Address

0x26

7

0

6

0

5

0

4

0

3

2

0

1

0

Default

0

W

Read/Write

Function

W

RSVD

START DLY

RSVD

This register provides the ability to override some automatic features of the device.

Bits 7:4

Bit 3

Reserved. Must be zero.

Crystal Startup Delay. Setting this bit, sets the crystal startup delay to 150 μs to handle warm restarts of the crystal. Firmware

MUST set this bit during initialization.

Bits 2:0

Reserved. Must be zero.

Mnemonic

Bit

CLK_OVERRIDE_ADR

Address

0x27

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

W

RSVD

RXF

RSVD

This register provides the ability to override some automatic features of the device.

Bits 7:2

Bit 1

Reserved. Must be zero.

Force Receive Clock. Streaming applications MUST set this bit during receive mode, otherwise this bit is cleared.

Reserved. Must be zero.

Bit 0

Document #: 38-16015 Rev. *G

Page 26 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

CLK_EN_ADR

Address

0x28

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

W

RSVD

RXF

RSVD

This register provides the ability to override some automatic features of the device.

Bits 7:2

Bit 1

Reserved. Must be zero.

Force Receive Clock Enable. Streaming applications MUST set this bit during initialization.

Reserved. Must be zero.

Bit 0

Mnemonic

Bit

RX_ABORT_ADR

Address

0x29

7

0

6

0

5

4

0

3

0

2

0

1

0

Default

0

W

Read/Write

Function

W

RSVD

ABORT EN

RSVD

This register provides the ability to override some automatic features of the device.

Bits 7:6

Bit 5

Reserved. Must be zero.

Receive Abort Enable. Typical applications disrupt any pending receive by first setting this bit, otherwise this bit is cleared.

Reserved. Must be zero.

Bits 4:0

Mnemonic

Bit

AUTO_CAL_TIME_ADR

Address

0x32

7

0

6

0

5

0

4

0

3

0

2

0

1

0

1

Default

Read/Write

Function

W

AUTO_CAL_TIME

This register provides the ability to override some automatic features of the device.

Bits 7:0

Auto Cal Time. Firmware MUST write 3Ch to this register during initialization.

Mnemonic

Bit

AUTO_CAL_OFFSET_ADR

Address

0x35

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

W

AUTO_CAL_OFFSET

This register provides the ability to override some automatic features of the device.

Bits 7:0 Auto Cal Offset. Firmware MUST write 14h to this register during initialization.

Document #: 38-16015 Rev. *G

Page 27 of 40

[+] Feedback

CYRF6936

Mnemonic

Bit

ANALOG_CTRL_ADR

Address

0x39

7

0

6

0

5

0

4

0

3

0

2

0

1

0

Default

Read/Write

Function

W

RSVD

RX INV

ALL SLOW

This register provides the ability to override some automatic features of the device.

Bits 7:2

Bit 1

Reserved. Must be zero.

Receive Invert. When set, the incoming receive data is inverted. Firmware MUST set this bit when interoperability with first gen-

eration devices is desired.

Bit 0

All Slow. When set, the synth settling time for all channels is the same as for slow channels. It is recommended that firmware

set this bit when using GFSK data rate mode.

Register Files

Files are written to or read from using nonincrementing burst read or write transactions. In most cases, accessing a file may be

destructive; the file must be completely read/written, otherwise the contents may be altered. When accessing file registers, the

bytes are presented to the bus least significant byte first.

Mnemonic

Length

TX_BUFFER_ADR

16 Bytes

Address

0x20

R/W

W

Default

0xXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

The transmit buffer is a FIFO. Writing to this file adds a byte to the packet being sent. Writing more bytes to this file than the packet length in

TX_LENGTH_ADR has no effect, and these bytes are lost. The FIFO accumulates data until it is reset using TX CLR in TX_CTRL_ADR. A

previously sent packet, of 16 bytes or less, can be transmitted if TX_GO is set without resetting the FIFO. The contents of TX_BUFFER_ADR

are not affected by the transmission of an Auto ACK.

Mnemonic

Length

RX_BUFFER_ADR

16 Bytes

Address

0x21

R/W

R

Default

0xXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX

The receive buffer is a FIFO. Received bytes may be read from this file register at any time that it is not empty, but when reading from this file

register before a packet has been completely received care must be taken to ensure that error packets (for example with bad CRC16) are

handled correctly.

When the receive buffer is configured to be overwritten by new packets (the alternative is for new packets to be discarded if the receive buffer

is not empty), similar care must be taken to verify after the packet has been read from the buffer that no part of it was overwritten by a newly

received packet while this file register is being read.

When the VLD EN bit in RX_CFG_ADR is set, the bytes in this file register alternate—the first byte read is data, the second byte is a valid flag

for each bit in the first byte, the third byte is data, the fourth byte valid flags, and so on. In SDR and DDR modes the valid flag for a bit is set if

the correlation coefficient for the bit exceeds the correlator threshold, and is cleared if it does not. In 8DR mode, the MSB of a valid flags byte

indicates whether or not the correlation coefficient of the corresponding received symbol exceeds the threshold. The seven LSBs contain the

number of erroneous chips received for the data.

Document #: 38-16015 Rev. *G

Page 28 of 40

[+] Feedback

CYRF6936

Mnemonic

Length

SOP_CODE_ADR

8 Bytes

Address

0x22

R/W

Default

0x17FF9E213690C782

When using 32 chip SOP_CODE_ADR codes, only the first four bytes of this register are used; in order to complete the file write process, these

four bytes must be followed by four bytes of “dummy” data. However, a class of codes known as “multiplicative codes” may be used; there are

64 chip codes with good auto-correlation and cross-correlation properties where the least significant 32 chips themselves have good auto-cor-

relation and cross-correlation properties when used as 32 chip codes. In this case the same eight byte value may be loaded into this file and

used for both 32 chip and 64 chip SOP symbols.

When reading this file, all eight bytes must be read; if fewer than eight bytes are read from the file, the contents of the file will have been rotated

by the number of bytes read. This applies to writes, as well.

Do not access or modify this register during Transmit or Receive.

Recommended SOP Codes:

0x91CCF8E291CC373C

0x0FA239AD0FA1C59B

0x2AB18FD22AB064EF

0x507C26DD507CCD66

0x44F616AD44F6E15C

0x46AE31B646AECC5A

0x3CDC829E3CDC78A1

0x7418656F74198EB9

0x49C1DF6249C0B1DF

0x72141A7F7214E597

Mnemonic

Length

DATA_CODE_ADR

16 Bytes

Address

0x23

R/W

Default

0x02F9939702FA5CE3012BF1DB0132BE6F

In GFSK mode, this file register is ignored.

In 64 SDR mode, only the first eight bytes are used.

In 32 DDR mode, only eight bytes are used. The format for these eight bytes: 0x00000000BBBBBBBB00000000AAAAAAAA, where ‘0’

represents unused locations. Example: 0x00000000B2BB092B00000000B86BC0DC; where “B86BC0DC” represents AAAAAAAA,

“00000000” represents unused locations, “B2BB092B” represents BBBBBBBB, and “00000000” represents unused locations.

In 64 DDR and 8DR modes, all sixteen bytes are used.

When reading this file, all sixteen bytes must be read; if fewer than sixteen bytes are read from the file, the contents of the file will have been

rotated by the number of bytes read. This applies to writes, as well.

Certain 16 byte sequences have been calculated that provide excellent auto-correlation and cross-correlation properties, and it is recommended

that such sequences be used; the default value of this register is one such sequence. In typical applications, all devices use the same

DATA_CODE_ADR codes, and devices and systems are addressed by using different SOP_CODE_ADR codes; in such cases it may never

be necessary to change the contents of this register from the default value.

Typical applications should use the default code.

Do not access or modify this register during Transmit or Receive.

Mnemonic

Length

PREAMBLE_ADR

3 Bytes

Address

0x24

R/W

Default

0x333302

1st byte – The number of repetitions of the preamble sequence that are to be transmitted. The preamble may be disabled by writing 0x00 to

this byte.

2nd byte – Least significant eight chips of the preamble sequence

3rd byte – Most significant eight chips of the preamble sequence

If using 64 SDR to communicate with CYWUSB69xx devices, set number of repetitions to four for optimum performance

When reading this file, all three bytes must be read; if fewer than three bytes are read from the file, the contents of the file will have been rotated

by the number of bytes read. This also applies to writes.

Do not access or modify this register during Transmit or Receive.

Document #: 38-16015 Rev. *G

Page 29 of 40

[+] Feedback

CYRF6936

Mnemonic

Length

MFG_ID_ADR

6 Bytes

Address

0x25

R

Default

NA

To minimize ~190 μA of current consumption (default), execute a “dummy” single-byte SPI write to this address with a zero data stage after

the contents have been read. Non-zero to enable reading of fuses. Zero to disable reading fuses.

Document #: 38-16015 Rev. *G

Page 30 of 40

[+] Feedback

CYRF6936

Static Discharge Voltage (RF)^[6]................................. 1100V

Latch Up Current .....................................+200 mA, –200 mA

Absolute Maximum Ratings

Storage Temperature ..................................–65°C to +150°C

Ambient Temperature with Power Applied..–55°C to +125°C

Operating Conditions

Supply Voltage on any power supply pin

relative to V_SS................................................ –0.3V to +3.9V

DC Voltage to Logic Inputs^[5]...................–0.3V to V_IO+0.3V

V_CC.....................................................................2.4V to 3.6V

V

_IO......................................................................1.8V to 3.6V

_BAT....................................................................1.8V to 3.6V

V

DC Voltage applied to Outputs

in High-Z State .........................................–0.3V to V_IO+0.3V

Static Discharge Voltage (Digital)^[6]............................>2000V

T_A(Ambient Temperature Under Bias)............. 0°C to +70°C

Ground Voltage.................................................................. 0V

F_OSC(Crystal Frequency)............................ 12MHz ±30 ppm

DC Characteristics

(T = 25°C, V

= 2.4V, PMU disabled, f

= 12.000000MHz)

BAT

OSC

Parameter

V_BAT

Description

Battery Voltage

Conditions

Min

1.8

Typ

Max

Unit

V

0–70°C

3.6

[7]

V_REG

PMU Output Voltage

V_IOVoltage

2.4V mode

2.7V mode

2.4

2.43

2.73

V

[7]

2.7

V

[8]

V_IO

1.8

2.4^[9]

3.6

V

V_CC

V_OH1

V_OH2

V_OL

V_IH

V_CCVoltage

0–70°C

V

Output High Voltage Condition 1

Output High Voltage Condition 2

Output Low Voltage

Input High Voltage

At I_OH= –100.0 µA

At I_OH= –2.0 mA

At I_OL= 2.0 mA

V_IO– 0.2 V_IO

V

V_IO– 0.4 V_IO

V

0

0.45

V_IO

V

0.7V_IO

0

V

V_IL

Input Low Voltage

0.3V_IO

+1

V

I_IL

Input Leakage Current

0 < V_IN< V_IO

–1

0.26

3.5

µA

pF

mA

µA

mA

%

C_IN

Pin Input Capacitance

except XTAL, RF_N, RF_P, RF_BIAS

10

I_CC(GFSK)^[10]Average TX I_CC, 1 Mbps, slow channel PA = 5, 2 way, 4 bytes/10 ms

I_CC(32-8DR)^[10]Average TX I_CC, 250 kbps, fast channel PA = 5, 2 way, 4 bytes/10 ms

0.87

1.2

[11]

I_SB

Sleep Mode I_CC

0.8

10

[11]

I_SB

Sleep Mode I_CC

PMU enabled

31.4

1.0

IDLE I_CC

I_synth

Radio off, XTAL Active

I_CCduring Synth Start

I_CCduring Transmit

I_CCduring Receive

PMU Boost Converter Efficiency

XOUT disabled

8.4

TX I_CC

RX I_CC

Boost Eff

PA = 5 (–5 dBm)

PA = 6 (0 dBm)

20.8

26.2

34.1

18.4

21.2

81

PA = 7 (+4 dBm)

LNA off, ATT on

LNA on, ATT off

V_BAT= 2.5V, V_REG= 2.73V,

I

_LOAD= 20 mA

Notes

5. It is permissible to connect voltages above V to inputs through a series resistor limiting input current to 1 mA. AC timing not guaranteed.

IO

6. Human Body Model (HBM).

7.

V

depends on battery input voltage.

REG

8. In sleep mode, the I/O interface voltage reference is V

.

BAT

9. In sleep mode, V min. can go as low as 1.8V.

CC

10. Includes current drawn while starting crystal, starting synthesizer, transmitting packet (including SOP and CRC16), changing to receive mode, and receiving

ACK handshake. Device is in sleep except during this transaction.

11. ISB is not guaranteed if any I/O pin is connected to voltages higher than V

.

IO

Document #: 38-16015 Rev. *G

Page 31 of 40

[+] Feedback

CYRF6936

DC Characteristics

(T = 25°C, V

= 2.4V, PMU disabled, f

= 12.000000MHz) (continued)

BAT

OSC

Parameter

I_{LOAD_EXT}

Description

Conditions

Min

Typ

Max

Unit

Average PMU External Load current V_BAT= 1.8V, V_REG= 2.73V,

15

mA

0–50°C, RX Mode

I_{LOAD_EXT}

Average PMU External Load current V_BAT= 1.8V, V_REG= 2.73V,

10

mA

50–70°C, RX Mode

AC Characteristics^[12]

Table 6. SPI Interface^[13]

Parameter

Description

Min

Typ

Max

Unit

t_{SCK_CYC}

t_{SCK_HI}

SPI Clock Period

238.1

100

25

ns

SPI Clock High Time

t_{SCK_LO}

t_{DAT_SU}

t_{DAT_HLD}

t_{DAT_VAL}

t_{DAT_VAL_TRI}

t_{SS_SU}

SPI Clock Low Time

SPI Input Data Setup Time

SPI Input Data Hold Time

10

SPI Output Data Valid Time

0

50

20

SPI Output Data Tri-state (MOSI from Slave Select Deassert)

SPI Slave Select Setup Time before first positive edge of SCK^[14]

SPI Slave Select Hold Time after last negative edge of SCK

SPI Slave Select Minimum Pulse Width

SPI Slave Select Setup Time

10

20

10

t_{SS_HLD}

t_{SS_PW}

t_{SCK_SU}

t_{SCK_HLD}

t_RESET

SPI SCK Hold Time

Minimum RST Pin Pulse Width

Figure 11. SPI Timing

t_{SCK_CYC}

t_{SCK_HI}

t_{SCK_LO}

SCK

nSS

t_{SCK_HLD}

t_{SCK_SU}

t_{SS_SU}

t_{SS_HLD}

t_{DAT_SU}

t_{DAT_HLD}

MOSI input

MISO

t_{DAT_VAL}

t_{DAT_VAL_TRI}

MOSI output

Notes

12. AC values are not guaranteed if voltage on any pin exceed V

.

IO

13. C

= 30 pF.

LOAD

14. SCK must start low at the time SS goes LOW, otherwise the success of SPI transactions are not guaranteed.

Document #: 38-16015 Rev. *G

Page 32 of 40

[+] Feedback

CYRF6936

RF Characteristics

Table 7. Radio Parameters

Parameter Description

Conditions

Min

Typ

Max

Unit

RF Frequency Range

Note 15

2.400

2.497

GHz

Receiver (T = 25°C, V = 3.0V, f

= 12.000000MHz, BER < 1E-3)

OSC

CC

Sensitivity 125 kbps 64-8DR

Sensitivity 250 kbps 32-8DR

Sensitivity

BER 1E-3

CER 1E-3

–97

–93

–87

–84

22.8

–31.7

–6

dBm

–80

–15

dBm

Sensitivity GFSK

LNA Gain

BER 1E-3, ALL SLOW = 1

dBm

dB

ATT Gain

dB

Maximum Received Signal

LNA On

dBm

RSSI Value for PWR_in–60 dBm

RSSI Slope

21

Count

dB/Count

1.9

Interference Performance (CER 1E-3)

Co-channel Interference rejection

Carrier-to-Interference (C/I)

C = –60 dBm

9

dB

Adjacent (±1 MHz) channel selectivity C/I 1 MHz

Adjacent (±2 MHz) channel selectivity C/I 2 MHz

Adjacent (> 3 MHz) channel selectivity C/I > 3 MHz

Out-of-Band Blocking 30 MHz–12.75 MHz^[16]

Intermodulation

C = –60 dBm

3

dB

C = –60 dBm

–30

–38

–30

–36

C = –67 dBm

dB

C = –67 dBm

dBm

C = –64 dBm, Δf = 5,10 MHz

Receive Spurious Emission

800 MHz

100 kHz ResBW

–79

–71

–65

dBm

1.6 GHz

3.2 GHz

Transmitter (T = 25°C, V = 3.0V)

CC

Maximum RF Transmit Power

RF Power Control Range

PA = 7

PA = 6

PA = 5

PA = 0

+2

–2

–7

4

+6

+2

–3

dBm

dB

0

–5

–35

39

RF Power Range Control Step Size

Frequency Deviation Min

Seven steps, monotonic

PN Code Pattern 10101010

PN Code Pattern 11110000

>0 dBm

5.6

270

323

10

dB

kHz

%rms

kHz

Frequency Deviation Max

Error Vector Magnitude (FSK error)

Occupied Bandwidth

–6 dBc, 100 kHz ResBW

500

876

Transmit Spurious Emission (PA = 7)

In-band Spurious Second Channel Power (±2 MHz)

In-band Spurious Third Channel Power (>3 MHz)

–38

–44

dBm

Notes

15. Subject to regulation.

16. Exceptions F/3 & 5C/3.

Document #: 38-16015 Rev. *G

Page 33 of 40

[+] Feedback

CYRF6936

Table 7. Radio Parameters (continued)

Parameter Description

Non-Harmonically Related Spurs (800 MHz)

Non-Harmonically Related Spurs (1.6 GHz)

Non-Harmonically Related Spurs (3.2 GHz)

Harmonic Spurs (Second Harmonic)

Harmonic Spurs (Third Harmonic)

Fourth and Greater Harmonics

Power Management (Crystal PN# eCERA GF-1200008)

Crystal Start to 10ppm

Conditions

Min

Typ

–38

–34

–47

–43

–48

–59

Max

Unit

dBm

0.7

0.6

1.3

ms

µs

Crystal Start to IRQ

XSIRQ EN = 1

Synth Settle

Slow channels

Medium channels

Fast channels

GFSK

270

180

100

30

Synth Settle

µs

Synth Settle

µs

Link Turnaround Time

µs

Link Turnaround Time

250 kbps

62

µs

Link Turnaround Time

125 kbps

94

µs

Link Turnaround Time

<125 kbps

31

µs

Max Packet Length

<60 ppm crystal-to-crystal

all modes except 64-DDR

40

bytes

Max Packet Length

<60 ppm crystal-to-crystal

64-DDR

16

bytes

Document #: 38-16015 Rev. *G

Page 34 of 40

[+] Feedback

CYRF6936

Typical Operating Characteristics^[17]

Transmit Power vs. Temperature

Transmit Power vs. Vcc

(PMU off)

Transmit Power vs. Channel

(Vcc

=

2.7v)

6

4

PA7

PA6

6

4

6

4

PA7

PA6

PA7

PA6

2

0

-2

-4

-6

-8

-10

-12

-14

-2

-4

-6

-8

-10

-12

-14

-2

-4

-6

-8

-10

-12

-14

PA5

PA4

PA5

PA4

PA5

PA4

0

20

40

Temp (deg C)

60

2.4

2.6

2.8

3

3.2

3.4

3.6

0

20

40

Channel

60

80

Vcc

Typical RSSI Count vs Input Power

Average RSSI vs. Temperature

(Rx signal -70dBm)

Average RSSI vs. Vcc

(Rx signal -70dBm)

=

32

20

19

18

17

16

15

14

13

12

11

10

19

18

17

16

15

14

13

12

24

16

8

LNA ON

LNA OFF

ATT ON

LNA OFF

0

2.4

2.6

2.8

3

3.2

3.4

3.6

0

20

40

60

-120

-100

-80

-60

-40

-20

Vcc

Temp (deg C)

Input Power (dBm)

RSSI vs. Channel

Rx Sensitivity vs. Vcc

(1Mbps CER)

Rx Sensitivity vs. Temperature

(1Mbps CER)

(Rx signal

= -70dBm)

18

16

14

12

10

8

-80

-82

-84

-86

-88

-90

-92

-94

-80

-82

-84

-86

-88

-90

-92

-94

CER

6

4

8DR32

2

0

20

40

Channel

60

80

2.4

2.6

2.8

3

3.2

3.4

3.6

0

20

40

60

Vcc

Temp (deg C)

Receiver Sensitivity vs. Frequency Offset

Receiver Sensitivity vs Channel

(3.0v, Room Temp)

Carrier to Interferer

(Narrow band, LP modulation)

-80

-81

-83

-85

-87

-89

-91

-93

-95

20.0

10.0

-82

-84

-86

-88

-90

-92

-94

-96

-98

GFSK

CER

0.0

GFSK

-10.0

-20.0

-30.0

-40.0

-50.0

-60.0

DDR32

8DR64

DDR32

8DR32

-150

-100

-50

0

50

100

150

-10

-5

0

5

10

0

20

40

60

80

Crystal Offset (ppm)

Channel Offset (MHz)

Channel

Note

17. With LNA on, ATT off, above -2dBm erroneous RSSI values may be read, cross-checking RSSI with LNA off/on is recommended for accurate readings.

Document #: 38-16015 Rev. *G

Page 35 of 40

[+] Feedback

CYRF6936

GFSK vs. BER

BER vs. Data Threshold (32-DDR)

BER vs. Data Threshold (32-8DR)

(SOP Threshold 5, C38 slow)

(SOP Threshold

=

5, C38 slow)

(SOP Threshold

=

5, C38 slow)

=

100

10

1

10

1

0

Thru 7

3

1

0

6

1

0.1

0.01

0.001

0.0001

0.00001

0.001

0.0001

0.00001

0.001

0.0001

0.00001

GFSK

-100

-80

-60

-40

-20

0

-100

-95

-90

-85

-80

-75

-70

-100

-95

-90

-85

-80

-75

-70

Input Power (dBm)

ICC RX

(LNA OFF)

ICC RX SYNTH

ICC RX

(LNA ON)

9.2

25

24.5

24

21

20.5

20

9.1

9

3.3V

3.0V

2.7V

2.4V

3.3V

3.0V

2.7V

2.4V

3.0V

2.7V

2.4V

8.9

8.8

8.7

8.6

8.5

8.4

8.3

8.2

8.1

8

23.5

23

19.5

19

22.5

22

21.5

21

18.5

18

20.5

20

17.5

17

19.5

19

7.9

7.8

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

ICC TX

@ PA1

ICC TX SYNTH

ICC TX @ PA0

9.2

9.1

9

17

17.5

17

3.3V

3.0V

2.7V

2.4V

3.3V

3.0V

2.7V

2.4V

3.3V

3.0V

2.7V

2.4V

16.5

16

8.9

8.8

8.7

8.6

8.5

8.4

8.3

8.2

8.1

8

16.5

16

15.5

15

15.5

15

14.5

14

14.5

14

7.9

7.8

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

ICC TX

@ PA4

ICC TX

@

PA2

ICC TX @ PA3

20.5

20

18

17.5

17

19

3.3V

3.0V

2.7V

2.4V

3.3V

18.5

18

3.3V

3.0V

2.7V

2.4V

3.0V

2.7V

2.4V

19.5

19

17.5

17

18.5

18

16.5

16

16.5

16

17.5

17

15.5

15

15.5

16.5

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

Document #: 38-16015 Rev. *G

Page 36 of 40

[+] Feedback

CYRF6936

ICC TX

@ PA7

ICC TX

@

PA5

ICC TX @ PA6

40.5

40

30

29.5

29

23.5

23

3.3V

3.0V

2.7V

2.4V

39.5

39

3.3V

3.0V

2.7V

2.4V

3.3V

3.0V

2.7V

2.4V

38.5

38

22.5

22

28.5

28

37.5

37

27.5

27

36.5

36

21.5

21

35.5

35

26.5

26

34.5

34

20.5

20

25.5

25

33.5

33

32.5

19.5

24.5

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

0

5

10 15 20 25 30 35 40 45 50 55 60 65 70

TEMPERATURE (C)

AC Test Loads and Waveforms for Digital Pins

Figure 12. AC Test Loads and Waveforms for Digital Pins

AC Test Loads

OUTPUT

DC Test Load

OUTPUT

R1

V

CC

5 pF

30 pF

OUTPUT

INCLUDING

JIG AND

SCOPE

INCLUDING

JIG AND

SCOPE

R2

Max

Typical

ALL INPUT PULSES

V

Parameter

R1

Unit

Ω

V

CC

90%

10%

90%

10%

1071

937

500

1.4

GND

R2

Fall time: 1 V/ns

R_TH

Rise time: 1 V/ns

V_TH

THÉVENIN EQUIVALENT

Equivalent to:

OUTPUT

V_CC

3.00

V

R

TH

V

TH

Ordering Information

Table 8. Ordering Information

Part Number

Radio

Transceiver

Package Name

Package Type

Operating Range

CYRF6936-40LFXC

40 QFN

40 Quad Flat Package No Leads Lead-Free Commercial

Document #: 38-16015 Rev. *G

Page 37 of 40

[+] Feedback

CYRF6936

Package Description

Figure 13. 40-lead Pb-Free QFN 6 x 6 MM (Subcon Punch Type with 2.8 x 2.8 EPAD) LY40

SIDE VIEW

TOP VIEW

BOTTOM VIEW

2.8

0.08[0.003]

1.00[0.039] MAX.

0.80[0.031] MAX.

5.90[0.232]

6.10[0.240]

C

A

0.05[0.002] MAX.

0.18[0.007]

0.28[0.011]

5.70[0.224]

5.80[0.228]

0.20[0.008] REF.

PIN1 ID

N

0.20[0.008] R.

1

2

1

2

0.45[0.018]

0.60[0.024]

DIA.

SOLDERABLE

EXPOSED

PAD

2.8

0.24[0.009]

0.60[0.024]

(4X)

0°-12°

0.30[0.012]

0.50[0.020]

4.45[0.175]

4.55[0.179]

C

SEATING

PLANE

NOTES:

1.

HATCH IS SOLDERABLE EXPOSED AREA

2. REFERENCE JEDEC#: MO-220

3. PACKAGE WEIGHT: 0.086g

4. ALL DIMENSIONS ARE IN MM [MIN/MAX]

5. PACKAGE CODE

PART #

DESCRIPTION

51-85190-*A

LY40

LF40

PB-FREE

STANDARD

The recommended dimension of the PCB pad size for the E-PAD underneath the QFN is 3.5 mm × 3.5 mm (width x length).

This document is subject to change, and may be found to contain errors of omission or changes in parameters. For feedback or

technical support regarding Cypress WirelessUSB products, contact Cypress at www.cypress.com. WirelessUSB, PSoC, and

enCoRe are trademarks of Cypress Semiconductor. All product and company names mentioned in this document are the trade-

marks of their respective holders.

Document #: 38-16015 Rev. *G

Page 38 of 40

of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be

used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its

products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress

products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.

[+] Feedback

CYRF6936

Document History Page

Description Title: CYRF6936 WirelessUSB™ LP 2.4 GHz Radio SoC

Document Number: 38-16015

Orig. of

Change

REV.

ECN NO. Issue Date

Description of Change

**

307437

377574

See ECN

TGE

New data sheet

*A

TGE

Preliminary release–

- updated Section 1.0 - Features

- updated Section 2.0 - Applications

- added Section 3.0 - Applications Support

- updated Section 4.0 - Functional Descriptions

- updated Section 5.0 - Pin Description

- added Figure 5-1

- updated Section 6.0 - Functional Overview

- added Section 7.0 - Functional Block Overview

- added Section 9.0 - Register Descriptions

- updated Section 10.0 - Absolute Maximum Ratings

- updated Section 11.0 - Operating Conditions

- updated Section 12.0 - DC Characteristics

- updated Section 13.0 - AC Characteristics

- updated Section 14.0 - RF Characteristics

- added Section 16.0 - Ordering Information

*B

*C

398756

412778

See ECN

TGE

ES-10 update-

- changed part no.

- updated Section 9.0 - Register Descriptions

- updated Section 12.0 - DC Characteristics

- updated Section 14.0 - RF Characteristics

ES-10 update-

- updated Section 4.0 - Functional Descriptions

- updated Section 5.0 - Pin Descriptions

- updated Section 6.0 - Functional Overview

- updated Section 7.0 - Functional Block Overview

- updated Section 9.0 - Register Descriptions

- updated Section 10.0 - Absolute Maximum Ratings

- updated Section 11.0 - Operating Conditions

- updated Section 14.0 - RF Characteristics

*D

435578

See ECN

TGE

- updated Section 1.0 - Features

- updated Section 5.0 - Pin Descriptions

- updated Section 6.0 - Functional Overview

- updated Section 7.0 - Functional Block Overview

- updated Section 9.0 - Register Descriptions

- added Section 10.0 - Recommended Radio Circuit Schematic

- updated Section 11.0 - Absolute Maximum Ratings

- updated Section 12.0 - Operating Conditions

- updated Section 13.0 - DC Characteristics

- updated Section 14.0 - AC Characteristics

- updated Section 15.0 - RF Characteristics

*E

*F

460458

487261

See ECN

BOO

TGE

Final data sheet - removed “Preliminary” notation

- updated Section 1.0 - Features

- updated Section 5.0 - Pin Descriptions

- updated Section 6.0 - Functional Overview

- updated Section 7.0 - Functional Block Overview

- updated Section 8.0 - Application Example

- updated Section 9.0 - Register Descriptions

- updated Section 12.0 - DC Characteristics

- updated Section 13.0 - AC Characteristics

- updated Section 14.0 - RF Characteristics

- added Section 15.0 - Typical Operating Characteristics

Document #: 38-16015 Rev. *G

Page 39 of 40

[+] Feedback

CYRF6936

Description Title: CYRF6936 WirelessUSB™ LP 2.4 GHz Radio SoC

Document Number: 38-16015

*G

778236

See ECN OYR/ARI -modified radio function register descriptions

-changed L/D pin description

-footnotes added

-changed RST Capacitor from 0.1uF to 0.47 uF

-updated Figure 9, Recommended Circuit for Systems

-updated Table 3, Recommended bill of materials for systems

-updated package diagram from ** to *A

Document #: 38-16015 Rev. *G

Page 40 of 40

[+] Feedback

厂商	型号	描述	页数
KYOCERA AVX	CYR10	玻璃电容器CYR10 ， 15 （可靠性指标） M23269 / 01 ， 02 （ QPL至MIL-PRF- 23269 ）[ Glass Capacitors CYR10, 15 (Established Reliability) M23269/01, 02 (QPL to MIL-PRF-23269) ]	2 页
FOXCONN	CYR2-AP03MJ04	[ Interconnection Device ]	1 页
KYOCERA AVX	CYR51	玻璃电容器CYR51 ， 52 ， 53 （可靠性指标） M23269 / 10 （ QPL至MIL-PRF- 23269 ）[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ]	2 页
KYOCERA AVX	CYR52	玻璃电容器CYR51 ， 52 ， 53 （可靠性指标） M23269 / 10 （ QPL至MIL-PRF- 23269 ）[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ]	2 页
KYOCERA AVX	CYR53	玻璃电容器CYR51 ， 52 ， 53 （可靠性指标） M23269 / 10 （ QPL至MIL-PRF- 23269 ）[ Glass Capacitors CYR51, 52, 53 (Established Reliability) M23269/10 (QPL to MIL-PRF-23269) ]	2 页
CYPRESS	CYRF69103	无线可编程片上低功耗[ Programmable Radio on Chip Low Power ]	73 页
CYPRESS	CYRF69103-40LFXC	无线可编程片上低功耗的16位自由运行定时器[ Programmable Radio on Chip Low Power 16-bit free running timer ]	68 页
CYPRESS	CYRF69103-40LTXC	无线可编程片上低功耗[ Programmable Radio on Chip Low Power ]	72 页
CYPRESS	CYRF69103A-40LFXC	无线可编程片上低功耗[ Programmable Radio on Chip Low Power ]	68 页
CYPRESS	CYRF69103_08	无线可编程片上低功耗[ Programmable Radio on Chip Low Power ]	65 页
