YWW7640I

型号：

YWW7640I

描述：

安全SerialFlash[ Secure SerialFlash ]

品牌：

ICMIC[ IC MICROSYSTEMS ]

页数：

14 页

PDF大小：

320 K

下载PDF手册

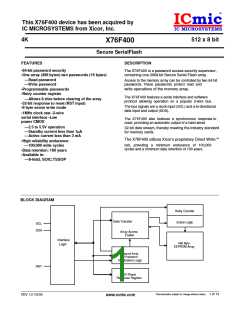

TM
ICmic
512 x 8 bit
This X76F400 device has been acquired by
IC MICROSYSTEMS from Xicor, Inc.
IC MICROSYSTEMS
4K
X76F400
Secure SerialFlash
FEATURES
DESCRIPTION
•64-bit password security
•One array (496 bytes) two passwords (16 bytes)
The X76F400 is a password access security supervisor,
containing one 3968-bit Secure Serial Flash array.
—Read password
—Write password
Access to the memory array can be controlled by two 64-bit
passwords. These passwords protect read and
write operations of the memory array.
•Programmable passwords
•Retry counter register
The X76F400 features a serial interface and software
protocol allowing operation on a popular 2-wire bus.
—Allows 8 tries before clearing of the array
•32-bit response to reset (RST input)
•8 byte sector write mode
The bus signals are a clock input (SCL) and a bi-directional
data input and output (SDA).
•1MHz clock rate •2-wire
serial interface •Low
power CMOS
The X76F400 also features a synchronous response to
reset, providing an automatic output of a hard-wired
—2.5 to 5.5V operation
—Standby current less than 1µA
—Active current less than 3 mA
32-bit data stream, thereby meeting the industry standard
for memory cards.
The X76F400 utilizes Xicor’s proprietary Direct Write™
•High reliability endurance:
—100,000 write cycles
cell, providing a minimum endurance of 100,000
cycles and a minimum data retention of 100 years.
•Data retention: 100 years
•Available in:
—8-lead, SOIC,TSSOP
BLOCK DIAGRAM
Retry Counter
Data Transfer
Erase Logic
SCL
SDA
Array Access
Enable
Interface
Logic
496 Byte
EEPROM Array
Password Array
and Password
Verification Logic
RST
ISO Reset
Response Register
Characteristics subject to change without notice. 1 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
PIN DESCRIPTIONS
Serial Clock (SCL)
If the X76F400 is in a nonvolatile write cycle a “no ACK”
(SDA = High) response will be issued in
response to loading of the command byte. If a stop is issued
prior to the nonvolatile write cycle, the write
The SCL input is used to clock all data into and out of the
device.
operation will be terminated; the part will then reset and
enter into a standby mode.
Serial Data (SDA)
(The basic sequence is illustrated in Figure 1.)
SDA is an open drain serial data input/output pin. During a
read cycle, data is shifted out on this pin. During
PIN NAMES
a write cycle, data is shifted in on this pin. In all other
cases, this pin is in a high impedance state.
Symbol
SDA
Description
Serial Data Input/Output
Serial Clock Input
Reset Input
Reset (RST)
SCL
RST is a device reset pin. When RST is pulsed high, the
X76F400 will output 32 bits of fixed data, which
RST
V
Supply Voltage
Ground
CC
conforms to the standard for “synchronous response-
to-reset.” The part must not be in a write cycle for the
V
SS
response-to-reset to occur. See Figure 7. If power is
interrupted during the response-to-reset, the response-
NC
No Connect
to-reset will be aborted and the part will return to the
standby state. The response to reset is “mask
programmable” only!
PIN CONFIGURATION
SOIC
DEVICE OPERATION
VCC
VSS
1
8
7
6
5
RST
NC
SDA
NC
2
The X76F400 memory array consists of 62 8-byte sectors.
Read or write access to the array always begins at
SCL
NC
3
4
the first address of the sector. Read operations then can
continue indefinitely. Write operations must total 8 bytes.
There are two primary modes of operation for the
X76F400; Protected READ and protected WRITE. Pro-
TSSOP
VCC
NC
NC
VSS
RST
SCL
SDA
1
2
8
7
6
5
tected operations must be performed with one of two 8- byte
passwords.
3
4
The basic method of communication for the device is
generating a start condition, then transmitting a com-
NC
mand, followed by the correct password. All parts will be
shipped from the factory with all passwords equal to ‘0.’
After each transaction is completed, the X76F400 will
reset and enter into a standby mode. This will also be
The user must perform ACK polling to determine the
validity of the password, prior to starting a data transfer
the response if an unsuccessful attempt is made to
access a protected array.
(see Acknowledge Polling). Only after the correct password
is accepted, and an ACK polling has been
performed, can the data transfer occur. See Figure 1.
To ensure the correct communication, RST must
remain LOW under all conditions except when running
a “response-to-reset sequence”.
Data is transferred in 8-bit segments, with each transfer
being followed by an ACK, generated by the receiving
device.
Characteristics subject to change without notice. 2 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
Figure 1. X76F400 Device Operation
Clock and Data Conventions
Data states on the SDA line can change only during SCL
LOW. SDA changes during SCL HIGH are
Load Command/Address Byte
reserved for indicating start and stop conditions. Refer to
Figures 2 and 3.
Load 8-Byte
Password
Start Condition
All commands are preceded by the start condition, which
is a HIGH to LOW transition of SDA when SCL is
Verify Password
HIGH. The X76F400 continuously monitors the SDA and
SCL lines for the start condition, and will not
Acceptance by
Use of ACK Polling
respond to any command until this condition is met.
A start may be issued to terminate the input of a control
byte or the input data to be written. This will reset
Read/Write
Data Bytes
the device and leave it ready to begin a new read or write
command. Because of the push/pull output, a
start cannot be generated while the part is outputting data.
Starts are inhibited while a write is in progress.
Retry Counter
The X76F400 contains a retry counter. The retry
counter allows 8 accesses with an invalid password
Stop Condition
before any action is taken. The counter will increment with
any combination of incorrect passwords. If the
All communications must be terminated by a stop con-
dition. The stop condition is a LOW to HIGH transition
retry counter overflows, the memory area and both of the
passwords are cleared to “0.” If a correct password
of SDA when SCL is HIGH. The stop condition is also used
to reset the device during a command or data
is received prior to retry counter overflow, the retry
counter is reset and access is granted.
input sequence, leaving the device in the standby
power mode. As with starts, stops are inhibited when
outputting data and while a write is in progress.
Device Protocol
The X76F400 supports a bi-directional bus oriented
protocol. The protocol defines any device that sends
Acknowledge
Acknowledge is a software convention used to indicate
successful data transfer. The transmitting device, either
data onto the bus as a transmitter and the receiving
device as a receiver. The device controlling the transfer
master or slave, will release the bus after transmitting 8 bits.
During the ninth clock cycle the receiver will pull
is a master and the device being controlled is the slave.
The master will always initiate data transfers and
the SDA line LOW to acknowledge that it received the 8
bits of data.
provide the clock for both transmit and receive operations.
Therefore, the X76F400 will be considered a
slave in all applications.
The X76F400 will respond with an acknowledge after
recognition of a start condition and its slave address. If
both the device and a write condition have been
selected, the X76F400 will respond with an acknowl-
edge after the receipt of each subsequent 8-bit word.
Figure 2. Data Validity
SCL
SDA
Data Stable
Data
Change
Characteristics subject to change without notice. 3 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
Figure 3. Definition of Start and Stop Conditions
SCL
SDA
START Condition
STOP Condition
Table 1. X76F400 Instruction Set
Command After Start
Command Description
Password Used
Write
1 S S S S S S 0
2
Sector Write
5
4
3
1
0
1 S S S S S S 1
2
Sector Read
Read
5
4
3
1
0
1 1 1 1 1 1 0 0
1 1 1 1 1 1 1 0
0 1 0 1 0 1 0 1
Change Write Password
Change Read Password
Password ACK Command
Write
Write
None
with the nonvolatile write operation, it will issue a “no-
ACK” in response. If the nonvolatile write operation is
Illegal command codes will be disregarded. The part will
respond with a “no-ACK” to the illegal byte and
completed, an “ACK” will be returned and the host can then
proceed with the rest of the protocol.
then return to the standby mode. All write/read operations
require a password.
PROGRAM OPERATIONS
Sector Write
Data ACK Polling Sequence
Write Sequence
Completed Enter ACK
The sector write mode requires issuing the 8-bit write
command followed by the password and then the data
Polling
bytes transferred as illustrated in Figure 4. The write
command byte contains the address of the sector to be
Issue START
written. Data is written starting at the first address of a
sector and 8 bytes must be transferred. After the last
byte to be transferred is acknowledged, a stop condition is
issued which starts the nonvolatile write cycle. If
Issue New
Command Code
more or less than 8 bytes are transferred, the data in the
sector remains unchanged.
ACK Polling
NO
ACK
Returned?
Once a stop condition is issued to indicate the end of the
host’s write sequence, the X76F400 initiates the
internal nonvolatile write cycle. In order to take advantage of
the typical 5ms write cycle, ACK polling can
YES
PROCEED
begin immediately. This involves issuing the start condition
followed by the new command code of 8 bits
(first byte of the protocol). If the X76F400 is still busy
Characteristics subject to change without notice. 4 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
READ OPERATIONS
After the password sequence, there is always a nonvola- tile
write cycle. This is done to discourage random
Read operations are initiated in the same manner as
write operations but with a different command code.
guesses of the password if the device is being tampered with.
In order to continue the transaction, the X76F400
requires the master to perform a password ACK polling
sequence with the specific command code of 55h. As
Sector Read
With sector read, a sector address is supplied with the read
command. Once the password has been
with regular acknowledge polling the user can either time
out for 10ms and then issue the ACK polling once,
acknowledged data may be read from the sector. An
acknowledge must follow each 8-bit data transfer. A
or continuously loop as described in the flow.
If the password inserted is correct, the nonvolatile cycle
in response to the password ACK polling
sequence is over, and an “ACK” is returned.
read operation always begins at the first byte in the
sector, but may stop at any time. Random accesses to
the array are not possible. Continuous reading from the
array will return data from successive sectors. After
If the password inserted is incorrect, a “no ACK” is
returned, even if the nonvolatile cycle is over. There-
reading the last sector in the array, the address is auto-
matically set to the first sector in the array and data can
fore, the user cannot be certain that the password is
incorrect until the 10ms write cycle time has elapsed.
continue to be read out. After the last bit has been read,
a stop condition is generated without sending a
preceding acknowledge.
Password ACK Polling Sequence
Password Load
Completed Enter ACK
Polling
Issue START
Issue Password
ACK Command
NO
ACK
Returned?
YES
PROCEED
Characteristics subject to change without notice. 5 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
Figure 4. Sector Write Sequence (Password Required)
Write
Password
7
Write
Password
0
Host
Commands
Write
Command
Wait t
WC
OR
Password
ACK
Command
SDA
S
X76F400
Response
If ACK, then
Password Matches
Host
Commands
Password ACK
Command
Wait tWC Data
ACK Polling
P
S
X76F400
Response
Figure 5. Acknowledge Polling
8th
CLK
th CLK of
8th
Pwd. Byte
SCL
‘ACK’
CLK
‘ACK’
CLK
8
8th Bit
SDA
‘ACK’
ACK or
No ACK
START
Condition
Figure 6. Sector Read Sequence (Password Required)
Read
Password
7
Read
Password
0
Host
Commands
Read
Command
Wait t
WC
OR
Password
ACK
Command
SDA
S
X76F400
Response
If ACK, then
Password Matches
Host
Commands
Password ACK
Command
P
S
Data n
Data 0
X76F400
Response
Characteristics subject to change without notice. 6 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
PASSWORDS
After initiating a nonvolatile write cycle, the RST pin must
not be pulsed until the nonvolatile write cycle is
Passwords are changed by sending the “change read
password” or “change write password” commands in a
complete. If not, the ISO response will not be activated.
If the RST is pulsed HIGH and the CLK is within
normal sector write operation. A full 8 bytes containing the
new password must be sent, following successful
the RST pulse (meet the t
NOL
spec.) in the middle of an
ISO transaction, it will output the 32 bit sequence again
(starting at bit 0). Otherwise, this aborts the ISO
transmission of the current write password and a valid
password ACK response. The user can use a repeated
operation and the part returns to standby state. If the RST
is pulsed HIGH and the CLK is outside the RST
ACK polling command to check that a new password has
been written correctly. An ACK indicates that the
pulse (in the middle of an ISO transaction), this aborts the
ISO operation and the part returns to standby
state.
new password is valid.
There is no way to read any of the passwords.
If power is interrupted during the response-to-reset, the
response-to-reset will be aborted and the part will
RESPONSE-TO-RESET (DEFAULT = 19 40 AA 55)
return to the standby state. A response-to-reset is not
available during a nonvolatile write cycle.
The ISO Response-to-reset is controlled by the RST and
CLK pins. When RST is pulsed high during a clock
pulse, the device will output 32 bits of data, one bit per
clock, and it resets to the standby state. This conforms
to the ISO standard for “synchronous response to reset.”
The part must not be in a write cycle for the
response-to-reset to occur.
Figure 7. Response to RESET (RST)
RST
SCK
0
0
1
0
1
SO
0
0
1
1
00
1
1
0
10
0
0
0
0000
0
0
1
0
11
0
1
1
MSB
LSB
MSB LSB
LSB
MSB
MSB
LSB
2
3
Byte
0
1
Characteristics subject to change without notice. 7 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
ABSOLUTE MAXIMUM RATINGS
COMMENT
Temperature under bias....................–65°C to +135°C
Storage temperature ........................–65°C to +150°C
Stresses above those listed under “Absolute Maximum
Ratings” may cause permanent damage to the device.
Voltage on any pin with
respect to V
This is a stress rating only; functional operation of the
device (at these or any other conditions above those
.........................................–1V to +7V
SS
D.C. output current............................................... 5mA
Lead temperature (soldering, 10 seconds).........300°C
listed in the operational sections of this specification) is not
implied. Exposure to absolute maximum rating conditions
for extended periods may affect device reliability.
RECOMMENDED OPERATING CONDITIONS
Temperature
Commercial
Industrial
Min.
0°C
Max.
+70°C
+85°C
Supply Voltage
X76F400
Limits
4.5V to 5.5V
2.5V to 5.5V
–40°C
X76F400 – 2.5
D.C. OPERATING CHARACTERISTICS
(Over the recommended operating conditions unless otherwise specified.)
Limits
Symbol
Parameter
Min.
Max.
Unit
Test Conditions
I
V
Supply current
CC
(Read)
1
mA
f
= V
x 0.1/V
x 0.9 Levels @ 400 kHz,
CC1
SCL
CC
CC
SDA = Open
RST = V
SS
CC
(3)
I
V
3
mA
f = V
SCL
x 0.1/V
x 0.9 Levels @ 400 kHz,
Supply current
CC2
CC
(Write)
CC
SDA = Open
RST = V
SS
(1)
I
V
1
1
µA
µA
V
f
= V
x 0.1, V = V x 0.9
CC IH CC
Supply current
SB1
CC
(Standby)
IL
= 400 kHz, f
= 400 kHz
SCL
SDA
(1)
I
V
Supply current
CC
(Standby)
V
= V
= V
SCC CC
SB2
SDA
Other = GND or VCC
–0.3V
I
V
= V to V
IN CC
Input leakage current
Output leakage current
Input LOW voltage
Input HIGH voltage
Output LOW voltage
10
10
µA
µA
V
LI
SS
= V to V
CC
I
V
OUT
LO
SS
(2)
V
V
V
x 0.1
–0.5
CC
IL
(2)
V
V
x 0.9
+ 0.5
CC
V
CC
IH
V
OL
I
= 3mA
OL
0.4
V
CAPACITANCE T = +25°C, f = 1MHz, V = 5V
A
CC
Symbol
Test
Max.
Unit
pF
Conditions
(3)
C
V
I/O
= 0V
= 0V
Output capacitance (SDA)
8
6
OUT
(3)
C
V
IN
Input capacitance (RST, SCL)
pF
IN
Notes:
(1)Must perform a stop command after a read command prior to measurement (2)V
min. and V
IL
IH
max. are for reference only and are not tested
(3)This parameter is periodically sampled and not 100% test
Characteristics subject to change without notice. 8 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
EQUIVALENT A.C. LOAD CIRCUIT
A.C. TEST CONDITIONS
V
CC
x 0.1 to V x 0.9
CC
Input pulse levels
5V
3V
Input rise and fall times
Input and output timing level
Output load
10ns
1.53KΟ
1.3KΟ
V
CC
x 0.5
Output
Output
100pF
100pF
100pF
AC CHARACTERISTICS (T = -40°C to +85°C, V = +2.5V to +5.5V, unless otherwise specified)
CC
A
Symbol
Parameter
Min.
Max.
1
Unit
MHz
µs
µs
µs
µs
µs
µs
ns
f
SCL clock frequency
0
0.1
SCL
t
SCL LOW to SDA data out valid
Time the Bus must be free before a new transmission can start
Start condition hold time
0.9
AA(2)
t
1.2
BUF
t
0.6
HD:STA
t
Clock LOW period
1.2
LOW
t
Clock HIGH period
0.6
HIGH
t
Start condition setup time (for a repeated start condition)
Data in hold time
0.6
SU:STA
t
10
HD:DAT
t
Data in setup time
100
20+0.1XC
20+0.1XC
0.6
ns
SU:DAT
(1)
(1)
t
SDA and SCL rise time
300
300
ns
R
b
b
t
SDA and SCL fall time
ns
F
t
Stop condition setup time
µs
µs
ns
SU:STO
t
Data out hold time
0
DH
t
RST to SCL non-overlap
500
0
NOL
t
RST LOW to SDA valid during response to reset
CLK LOW to SDA valid during response to reset
RST high time
450
450
ns
RDV
t
0
ns
CDV
t
1.5
µs
ns
RST
t
RST setup time
500
SU:RST
Notes: (1)C = total capacitance of one bus line in pF
b
(2)t = 1.1µs Max below V
AA
= 2.5V.
CC
RESET AC SPECIFICATIONS
Power Up Timing
Symbol
Parameter
Min.
Typ.(2)
Max.
Unit
(1)
t
Time from power up to read
Time from power up to write
1
5
ms
ms
PUR
(1)
t
PUW
Notes: (1)Delays are measured from the time VCC is stable until the specified operation can be initiated. These parameters are periodically sampled
and not 100% tested.
(2)Typical values are for TA = 25°C and VCC = 5.0V
Characteristics subject to change without notice. 9 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
Nonvolatile Write Cycle Timing
Symbol
Parameter
Min.
Typ.(1)
Max.
Unit
(1)
WC
t
Write cycle time
5
10
ms
Note:
(1)tWC is the time from a valid stop condition at the end of a write sequence to the end of the self-timed internal nonvolatile write cycle. It is the
minimum cycle time to be allowed for any nonvolatile write by the user, unless Acknowledge Polling is used.
Bus Timing
tHIGH
tLOW
tR
tF
SCL
tSU:STA
tHD:STA
tHD:DAT
tSU:DAT
tSU:STO
SDA IN
tAA
tDH
tBUF
SDA OUT
Write Cycle Timing
SCL
SDA
8th Bit of Last Byte
ACK
tWC
STOP
Condition
START
Condition
RST Timing Diagram—Response to a Synchronous Reset
RST
tRST
t
HIGH_RST
tNOL
tNOL
st
nd
2
CLK
Pulse
rd
3
1
CLK
CLK
I/O
CLK
Pulse
t
LOW_RST
Pulse
tSU:RST
tCDV
tRDV
Data Bit (2)
Data Bit (1)
Characteristics subject to change without notice. 10 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
GUIDELINES FOR CALCULATING TYPICAL VALUES OF BUS PULL UP RESISTORS
100
V
CCMAX
------------------------=-- 1.8KΟ
OLMIN
80
R
=
MIN
I
RMAX
60
40
20
t
R
------------------
R
=
MAX
C
RMIN
BUS
40 60 80 100
Bus Capacitance in pF
tR = maximum allowable SDA rise time
20
Characteristics subject to change without notice. 11 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
PACKAGING INFORMATION
8-Lead Plastic Small Outline Gull Wing Package Type S
0.150 (3.80) 0.228 (5.80)
0.158 (4.00) 0.244 (6.20)
Pin 1 Index
Pin 1
0.014 (0.35)
0.019 (0.49)
0.188 (4.78)
0.197 (5.00)
(4X) 7°
0.053 (1.35)
0.069 (1.75)
0.004 (0.19)
0.010 (0.25)
0.050 (1.27)
0.050" Typical
0.010 (0.25)
0.020 (0.50)
X 45°
0.050"
Typical
0°- 8°
0.0075 (0.19)
0.010 (0.25)
0.250"
0.016 (0.410)
0.037 (0.937)
0.030"
Typical
8 Places
FOOTPRINT
NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)
Characteristics subject to change without notice. 12 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
PACKAGING INFORMATION
8-Lead Plastic, TSSOP, Package Type V
.025 (.65) BSC
.169
(4.3) .177
(4.5)
.252 (6.4) BSC
.114
(2.9) .122
(3.1)
.047 (1.20)
.002
(.05) .006
(.15)
.0075
(.19) .0118
(.30)
.010 (.25)
Gage Plane
0°– 8°
Seating Plane
.019
(.50) .029
(.75)
Detail A (20X)
(7.72)
(4.16)
(1.78)
(0.42)
.031
(.80) .041
(1.05)
(0.65)
All Measurements Are Typical
See Detail “A”
NOTE: ALL DIMENSIONS IN INCHES (IN PARENTHESES IN MILLIMETERS)
Characteristics subject to change without notice. 13 of 14
REV 1.0 7/5/00
www.icmic.com
X76F400
Ordering Information
X76F400
P
T
G –V
V
Limits
CC
Blank = 5V 10%
2.5 = 2.5V to 5.5V
Device
RoHS Compliant Lead Free package
Blank – Standard package. Non lead free
Temperature Range
Blank = Commercial = 0°C to +70°C
I = Industrial= –40°C to +85°C
Package
S8 = 8-Lead SOIC
V8 = 8-Lead TSSOP
H = Die in waffle packs (Contact Factory)
W = Die in wafer form (Contact Factory)
Part Mark Convention
8-Lead SOIC
8-Lead TSSOP
YWW
7640XX
X76F400 XG
XX
Blank = 8-Lead SOIC
G = RoHS compliant lead free
Blank = 4.5 to 5.5V, 0 to 70°C
I = 4.5 to 5.5V, -40 to +85°C
AE = 2.5 to 5.5V, 0 to 70°C
AF = 2.5 to 5.5V, -40 to +85°C
AE = 2.5 to 5.5V, 0 to +70°C
AF = 2.5 to 5.5V, -40 to +85°C
Blank = 4.5 to 5.5V, 0 to +70°C
I = 4.5 to 5.5V, -40 to +85°C
©Xicor, Inc. 2000 Patents Pending
LIMITED WARRANTY
Devices sold by Xicor, Inc. are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. Xicor, Inc. makes no warranty, express, statutory,
implied, or by description regarding the information set forth herein or regarding the freedom of the described devices from patent infringement. Xicor, Inc. makes no warranty of
merchantability or fitness for any purpose. Xicor, Inc. reserves the right to discontinue production and change specifications and prices at any time and without notice.
Xicor, Inc. assumes no responsibility for the use of any circuitry other than circuitry embodied in a Xicor, Inc. product. No other circuits, patents, or licenses are implied.
TRADEMARK DISCLAIMER:
Xicor and the Xicor logo are registered trademarks of Xicor, Inc. AutoStore, Direct Write, Block Lock, SerialFlash, MPS, and XDCP are also trademarks of Xicor, Inc. All others
belong to their respective owners.
U.S. PATENTS
Xicor products are covered by one or more of the following U.S. Patents: 4,326,134; 4,393,481; 4,404,475; 4,450,402; 4,486,769; 4,488,060; 4,520,461; 4,533,846; 4,599,706;
4,617,652; 4,668,932; 4,752,912; 4,829,482; 4,874,967; 4,883,976; 4,980,859; 5,012,132; 5,003,197; 5,023,694; 5,084,667; 5,153,880; 5,153,691; 5,161,137; 5,219,774;
5,270,927; 5,324,676; 5,434,396; 5,544,103; 5,587,573; 5,835,409; 5,977,585. Foreign patents and additional patents pending.
LIFE RELATED POLICY
In situations where semiconductor component failure may endanger life, system designers using this product should design the system with appropriate error detection and
correction, redundancy and back-up features to prevent such an occurrence.
Xicor’s products are not authorized for use in critical components in life support devices or systems.
1.Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and whose failure to
perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury to the user. 2.A critical
component is any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life
support device or system, or to affect its safety or effectiveness.
Characteristics subject to change without notice. 14 of 14
REV 1.0 7/5/00
www.icmic.com
厂商 型号 描述 页数 下载

ICMIC

 		YWW7640 安全SerialFlash[ Secure SerialFlash ] 14 页

ICMIC

 		YWW7640AE 安全SerialFlash[ Secure SerialFlash ] 14 页

ICMIC

 		YWW7640AF 安全SerialFlash[ Secure SerialFlash ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.163940s
