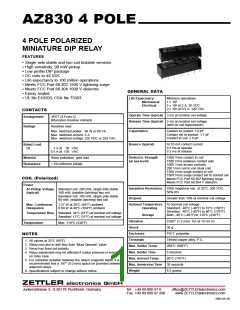

AZ830 4 POLE
4 POLE POLARIZED
MINIATURE DIP RELAY
FEATURES
• Single side stable and two coil bistable versions
• High sensitivity, 90 mW pickup
• Low profile DIP package
• DC coils to 48 VDC
• Life expectancy to 100 million operations
• Meets FCC Part 68.302 1500 V lightning surge
• Meets FCC Part 68.304 1000 V dielectric
GENERAL DATA
• Epoxy sealed
• UL file E43203; CSA file 73363
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 108
5 x 105 at 2 A, 30 VDC
2 x 105 at 0.5 A, 120 VAC
CONTACTS
Operate Time (typical) 3 ms at nominal coil voltage
Arrangement
4PDT (4 Form C)
Bifurcated crossbar contacts
Release Time (typical) 2 ms at nominal coil voltage
(with no coil suppression)
Ratings
Resistive load:
Capacitance
Contact to contact: 1.0 pF
Contact set to contact: 1.7 pF
Contact to coil: 2.0 pF
Max. switched power: 60 W or 60 VA
Max. switched current: 2 A
Max. switched voltage: 220 VDC or 250 VAC
Bounce (typical)
At 10 mA contact current
0.3 ms at operate
Rated Load
UL
1 A at 30 VDC
0.3 ms at release
0.5 A at 120 VAC
Dielectric Strength
(at sea level)
1500 Vrms contact to coil
1500 Vrms between contact sets
1000 Vrms across contacts
Material
Silver palladium, gold clad
< 50 milliohms initially
Resistance
250 Vrms coil to coil (dual coil)
1500 Vrms surge contact to coil
1500 Vrms surge contact set to contact set
Meets FCC Part 68.302 lightning surge
Meets FCC Part 68.304 V dielectric
COIL (Polarized)
Power
Insulation Resistance 1000 megohms min. at 20°C, 500 VDC,
At Pickup Voltage Standard coil: 200 mW, single side stable
50% RH
(typical)
180 mW, bistable (latching) two coil
Sensitive coil: 100 mW, single side stable
90 mW, bistable (latching) two coil
Dropout
Greater than 10% of nominal coil voltage
Ambient Temperature At nominal coil voltage
Max. Continuous
Dissipation
1.27 W at 20°C (68°F) ambient
0.99 W at 40°C (104°F) ambient
Operating
Storage
Standard: -40°C (-40°F) to 70°C (158°F)
Sensitive: -40°C (-40°F) to 80°C (176°F)
Both: -40°C (-40°F) to 110°C (230°F)
Temperature Rise Standard: 34°C (61°F) at nominal coil voltage
Sensitive: 17°C (31°F) at nominal coil voltage
Vibration
0.062" (1.5 mm) DA at 10–55 Hz
30 g
Temperature
Max. 110°C (230°F)
Shock
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
260°C (500°F)
NOTES
Terminals
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. Relay adjustment may be affected if undue pressure is exerted
on relay case.
5. For complete isolation between the relay’s magnetic fields, it is
recommended that a .197" (5.0 mm) space be provided between
adjacent relays.
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
5 seconds
80°C (176°F)
Max. Immersion Time 30 seconds
Weight
6.5 grams
6. Specifications subject to change without notice.
