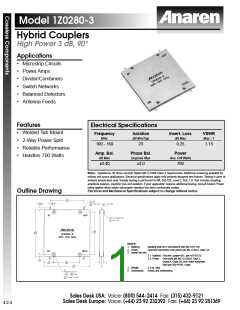

Model 1Z0280-3
Hybrid Couplers
High Power 3 dB, 90°
Applications
• Microstrip Circuits
• Power Amps
• Divider/Combiners
• Switch Networks
• Balanced Detectors
• Antenna Feeds
Features
Electrical Specifications
• Welded Tab Mount
• 2-Way Power Split
• Reliable Performance
• Handles 700 Watts
Frequency
Isolation
dB Min/Typ
Insert. Loss
VSWR
Max : 1
MHz
dB Max
100 - 160
23
0.25
1.15
Amp. Bal.
dB Max
Phase Bal.
Degrees Max
Power
Ave. CW Watts
±0.40
±2.0
700
Notes: Impedance: 50 ohms nominal. Meets MIL-E-5400 Class 3 requirements. Additional screening available for
military and space applications. Electrical specifications apply only properly designed test fixtures. Testing is done at
ambient temperature only. Sample testing is performed to MIL-Std-105, Level 2, AQL 1.0. Test includes coupling,
amplitude balance, insertion loss and isolation. If your application requires additional testing, consult Anaren Power
rating applies when solder tab/coupler interface has been conformally coated.
Electrical and Mechanical Specifications subject to change without notice.
Outline Drawing
NOTES:
1
2
3
Marking:
Finish:
Solder tab info:
Marking shall be in accordance with MIL-STD-130
Chemical conversion coat (clear) per MIL-C-5541, class 1A
3.1 Material: Flat wire, copper-061, per AST-B-272
3.2 Finish: Gold plate per MIL-G-45204, Type 3,
Grade A, Class 00, over nickel sulfamate
flash per QQ-N-290. Class.
4
5
Weight:
Dimensions:
2.3 oz. Max
Inches and (millimeters)
