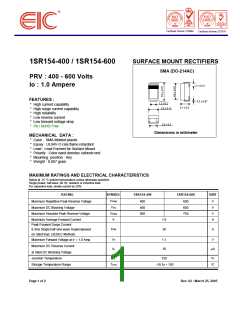

SURFACE MOUNT RECTIFIERS
1SR154-400 / 1SR154-600
SMA (DO-214AC)
PRV : 400 - 600 Volts
Io : 1.0 Ampere
1.1 ± 0.3
FEATURES :
0.2 ± 0.07
1.2 ± 0.2
* High current capability
* High surge current capability
* High reliability
2.1 ± 0.2
2.6 ± 0.15
* Low reverse current
* Low forward voltage drop
* Pb / RoHS Free
2.0 ± 0.2
Dimensions in millimeter
MECHANICAL DATA :
* Case : SMA Molded plastic
* Epoxy : UL94V-O rate flame retardant
* Lead : Lead Formed for Surface Mount
* Polarity : Color band denotes cathode end
* Mounting position : Any
* Weight : 0.067 gram
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating at 25 °C ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
RATING
SYMBOL
1SR154-400
400
1SR154-600
600
UNIT
VRRM
VDC
VRSM
IF
Maximum Repetitive Peak Reverse Voltage
Maximum DC Blocking Voltage
V
V
V
A
400
600
Maximum Absolute Peak Reverse Voltage
500
750
Maximum Average Forward Current
Peak Forward Surge Current
1.0
30
IFSM
A
8.3ms Single half sine wave Superimposed
on rated load (JEDEC Method)
Maximum Forward Voltage at IF = 1.0 Amp.
Maximum DC Reverse Current
at rated DC Blocking Voltage
Junction Temperature
VF
IR
1.1
10
V
mA
TJ
150
°C
°C
TSTG
Storage Temperature Range
- 55 to + 150
Page 1 of 2
Rev. 02 : March 25, 2005
