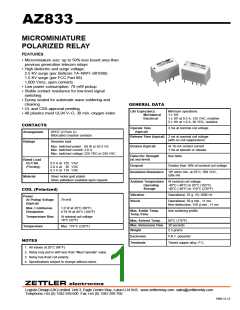

AZ833
MICROMINIATURE
POLARIZED RELAY
FEATURES
• Microminiature size: up to 50% less board area than
previous generation telecom relays
• High dielectric and surge voltage:
2.5 KV surge (per Bellcore TA–NWT–001089)
1.5 KV surge (per FCC Part 68)
1,000 Vrms, open contacts
• Low power consumption: 79 mW pickup
• Stable contact resistance for low level signal
switching
• Epoxy sealed for automatic wave soldering and
cleaning
• UL and CSA approval pending
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 108
1 x 105 at 0.5 A, 125 VAC, resistive
2 x 105 at 1.0 A, 30 VDC, resistive
• All plastics meet UL94 V–O, 30 min. oxygen index
CONTACTS
Operate Time
(typical)
3 ms at nominal coil voltage
Arrangement
DPDT (2 Form C)
Bifurcated crossbar contacts
Release Time (typical) 2 ms at nominal coil voltage
(with no coil suppression)
Ratings
Resistive load:
Bounce (typical)
At 10 mA contact current
1 ms at operate or release
Max. switched power: 60 W or 62.5 VA
Max. switched current: 2.0 A
Max. switched voltage: 220 VDC or 250 VAC
Dielectric Strength
(at sea level)
See table
Rated Load
UL/CSA
(Pending)
0.5 A at 125 VAC
2.0 A at 30 VDC
0.3 A at 110 VDC
Dropout
Greater than 10% of nominal coil voltage
Insulation Resistance 109 ohms min. at 25°C, 500 VDC,
50% RH
Material
Silver nickel gold plated
Silver palladium available upon request
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 85°C (185°F)
-40°C (-40°F) to 110°C (230°F)
COIL (Polarized)
Vibration
Operational, 35 g, 10–1000 Hz
Power
At Pickup Voltage
(typical)
79 mW
Shock
Operational, 50 g min., 11 ms
Non-destructive, 150 g min., 11 ms
Max. Continuous
Dissipation
1.0 W at 20°C (68°F)
0.78 W at 40°C (104°F)
Max. Solder Temp.
Temp./Time
See soldering profile
Temperature Rise
At nominal coil voltage
18°C (32°F)
Max. Solvent Temp.
80°C (176°F)
Max. Immersion Time 30 seconds
Temperature
Max. 110°C (230°F)
Weight
2.3 grams
Enclosure
Terminals
P.B.T. polyester
Tinned copper alloy, P.C.
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. Specifications subject to change without notice.
