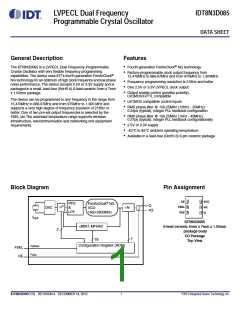

IDT8N3D085
LVPECL Dual Frequency
Programmable Crystal Oscillator
DATA SHEET
General Description
Features
The IDT8N3D085 is a LVPECL Dual Frequency-Programmable
Crystal Oscillator with very flexible frequency programming
capabilities. The device uses IDT’s fourth generation FemtoClock®
NG technology for an optimum of high clock frequency and low phase
noise performance. The device accepts 2.5V or 3.3V supply and is
packaged in a small, lead-free (RoHS 6) 6-lead ceramic 5mm x 7mm
x 1.55mm package.
• Fourth generation FemtoClock® NG technology
• Factory-programmable clock output frequency from
15.476MHz to 866.67MHz and from 975MHz to 1,300MHz
• Frequency programming resolution is 218Hz and better
• One 2.5V or 3.3V LVPECL clock output
• Output enable control (positive polarity), 
LVCMOS/LVTTL compatible
The device can be programmed to any frequency in the range from
15.476MHz to 866.67MHz and from 975MHz to 1,300 MHz and
supports a very high degree of frequency precision of 218Hz or
better. One of two pre-set output frequencies is selected by the
FSEL pin.The extended temperature range supports wireless
infrastructure, telecommunication and networking end equipment
requirements.
• LVCMOS compatible control inputs
• RMS phase jitter @ 156.25MHz (12kHz - 20MHz): 
0.24ps (typical), integer PLL feedback configuration
• RMS phase jitter @ 156.25MHz (1kHz - 40MHz):
0.27ps (typical), integer PLL feedback configurationally
• 2.5V or 3.3V supply
• -40°C to 85°C ambient operating temperature
• Available in a lead-free (RoHS 6) 6-pin ceramic package
Block Diagram
Pin Assignment
OE 1
FSEL 2
VEE 3
6 VCC
5 nQ
4 Q
FemtoClock® NG
VCO
1950-2600MHz
PFD
&
LPF
Q
nQ
÷P
OSC
÷N
fREF
IDT8N3D085
÷MINT, MFRAC
6-lead ceramic 5mm x 7mm x 1.55mm
package body
2
CD Package
Top View
7
25
Configuration Register (ROM)
Pulldown
Pullup
FSEL
OE
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
1
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Pin Description and Characteristic Tables
Table 1. Pin Descriptions
Number
Name
OE
Type
Pullup
Pulldown
Description
1
2
Input
Input
Output enable pin. See table 3A for function. LVCMOS/LVTTL interface levels.
FSEL
VEE
Frequency select pin. See table 3B for function. LVCMOS/LVTTL interface levels.
Negative supply pin.
3
Power
Output
Power
4, 5
6
Differential clock output pair. LVPECL interface levels.
Q, nQ
VCC
Power supply pin.
NOTE: Pullup and pulldown refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
5.5
Maximum
Units
pF
CIN
Input Capacitance
RPULLDOWN Input Pulldown Resistor
RPULLUP Input Pullup Resistor
50
k
50
k
Function Tables
Table 3A. OE Configuration
Input
OE
0
Output Enable
Output Q, nQ is in high-impedance state.
Output Q, nQ is enabled.
1 (default)
NOTE: OE is an asynchronous control.
Table 3B. Frequency Selection
Input
FSEL
0 (default)
1
Operation
Frequency 0
Frequency 1
NOTE: Frequency 0 and 1 are factory-programmed by IDT. Any frequency combination within the available
frequency range (see table 3C) can be ordered. For order information, see FemtoClock NG Ceramic-Package
XO and VCXO Ordering Product Information document.
Table 3C. Output Frequency Range
15.476MHz to 866.67MHz
975 MHz to 1,300MHz
NOTE: Supported output frequency range. The output frequency can be programmed to any
frequency in this range and to a precision of 218 Hz or better.
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
2
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Principles of Operation
The block diagram consists of the internal 3rd overtone crystal and
oscillator which provide the reference clock fXTAL of either
114.285MHz or 100MHz. The PLL includes the FemtoClock NG VCO
along with the Pre-divider (P), the feedback divider (M) and the post
divider (N). The P, M, and N dividers determine the output frequency
based on the fXTAL reference. The configuration of the feedback
divider to integer-only values results in an improved output phase
noise characteristics at the expense of the range of output
frequencies. Internal registers are used to hold up to two different
factory pre-set configuration settings. The configuration is selected
via the FSEL pin. Changing the FSEL control results in an immediate
change of the output frequency to the selected register values. The
P, M, and N frequency configurations support an output frequency
range from 15.476MHz to 866.67MHz and from 975MHz to
1,300MHz.
Table 3D. Frequency Selection
Input
FSEL
0 (default)
1
Selects
Frequency 0
Frequency 1
Frequency Configuration
An order code is assigned to each frequency configuration and the
VCXO pull-range programmed by the factory (default frequencies).
For more information on the available default frequencies and order
codes, please see the Ordering Information Section in this document.
For available order codes, see the FemtoClock NG Ceramic-Package
XO and VCXO Ordering Product Information document.
The devices use the fractional feedback divider with a delta-sigma
modulator for noise shaping and robust frequency synthesis
capability. The relatively high reference frequency minimizes phase
noise generated by frequency multiplication and allows more efficient
shaping of noise by the delta-sigma modulator. The output frequency
is determined by the 2-bit pre-divider (P), the feedback divider (M)
and the 7-bit post divider (N). The feedback divider (M) consists of
both a 7-bit integer portion (MINT) and an 18-bit fractional portion
(MFRAC) and provides the means for high-resolution frequency
generation. The output frequency fOUT is calculated by:
For more information on programming capabilities of the device for
custom frequency and pull-range configurations, see the FemtoClock
NG Ceramic 5x7 Module Programming Guide.
1
P N
MFRAC + 0.5
------------
f
= f
MINT + ------------------------------------- (1)
OUT
XTAL
18
2
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
3
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum
Ratings may cause permanent damage to the device. These ratings
are stress specifications only. Functional operation of product at
these conditions or any conditions beyond those listed in the DC
Characteristics or AC Characteristics is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect
product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
3.63V
-0.5V to VCC + 0.5V
Outputs, IO
Continuous Current
Surge Current
50mA
100mA
Package Thermal Impedance, JA
49.4C/W (0 mps)
-65C to 150C
Storage Temperature, TSTG
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VCC = 3.3V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
3.3
Maximum
3.465
Units
V
Power Supply Voltage
Power Supply Current
3.135
IEE
123
148
mA
Table 4B. Power Supply DC Characteristics, VCC = 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
2.5
Maximum
2.625
Units
V
Power Supply Voltage
Power Supply Current
2.375
IEE
119
143
mA
Table 4C. LVCMOS/LVTTL DC Characteristic, VCC = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
VCC = 3.3V
Minimum
2
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
VIH Input High Voltage
VCC = 2.5V
1.7
V
OE
-0.3
-0.3
-0.3
-0.3
V
VCC = 3.3V
VCC = 2.5V
FSEL
OE
0.5
V
VIL
Input Low Voltage
0.7
V
FSEL
OE
0.5
V
VCC = VIN = 3.465V or 2.625V
VCC = VIN = 3.465V or 2.625V
CC = 3.465V or 2.625V, VIN = 0V
CC = 3.465V or 2.625V, VIN = 0V
10
µA
µA
µA
µA
IIH
Input High Current
Input Low Current
FSEL
OE
150
V
V
-150
-5
IIL
FSEL
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
4
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Table 4D. LVPECL DC Characteristics, VCC = 3.3V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCC – 1.4
VCC – 2.0
0.6
Typical
Maximum
VCC – 0.8
VCC – 1.6
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Peak-to-Peak Output Voltage Swing
V
V
V
VOL
VSWING
NOTE 1: Outputs terminated with 50to VCC – 2V
Table 4E. LVPECL DC Characteristics, VCC = 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCC – 1.4
VCC – 2.0
0.4
Typical
Maximum
VCC – 0.8
VCC – 1.5
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Peak-to-Peak Output Voltage Swing
V
V
V
VOL
VSWING
NOTE 1: Outputs terminated with 50to VCC – 2V
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
5
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
AC Electrical Characteristics
Table 5. AC Characteristics, VCC = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
fOUT
fI
Parameter
Test Conditions
Minimum
15.476
975
Typical
Maximum
Units
MHz
MHz
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ppm
ps
866.67
1,300
10
Output Frequency
Initial Accuracy
Measured at 25°C
Option code = A or B
100
50
fS
fA
fT
Temperature Stability
Aging
Option code = E or F
Option code = K or L
20
Frequency drift over 10 year life
Frequency drift over 15 year life
Option code A or B (10 year life)
Option code E or F (10 year life)
Option code K or L (10 year life)
3
5
113
63
Total Stability
33
tjit(cc)
Cycle-to-Cycle Jitter; NOTE 1
RMS Period Jitter, NOTE 1
30
tjit(per)
1.9
2.8
ps
RMS Phase Jitter (Random);
Fractional PLL feedback and
fXTAL=100.000MHz (2xxx
order codes)
17MHz fOUT 1300MHz,
0.497
0.882
ps
NOTE 2, 3, 4
500MHz fOUT 1300MHz, NOTE
0.232
0.250
0.275
0.322
0.384
0.405
ps
ps
ps
2, 3, 4
125MHz fOUT 500MHz,
RMS Phase Jitter (Random);
Integer PLL feedback and
fXTAL=100.00MHz (1xxx order
codes)
NOTE 2, 3, 4
tjit(Ø)
17MHz fOUT 125MHz,
NOTE 2, 3, 4
fOUT 156.25MHz, NOTE 2, 3, 4
fOUT 156.25MHz, NOTE 2, 3, 5
0.242
0.275
0.311
0.359
ps
ps
RMS Phase Jitter (Random)
Fractional PLL feedback and
fXTAL=114.285MHz (0xxx
order codes)
17MHz fOUT 1300MHz,
0.474
0.986
ps
NOTE 2, 3, 4
Single-side band phase noise, 
100Hz from Carrier
N(100)
N(1k)
f
OUT = 156.25MHz
-92
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
Single-side band phase noise, 
1kHz from Carrier
fOUT = 156.25MHz
fOUT = 156.25MHz
fOUT = 156.25MHz
fOUT = 156.25MHz
-120
-131
-138
-139
-154
Single-side band phase noise, 
10kHz from Carrier
N(10k)
N(100k)
N(1M)
Single-side band phase noise, 
100kHz from Carrier
Single-side band phase noise, 
1MHz from Carrier
Single-side band phase noise, 
10MHz from Carrier
N(10M)
fOUT = 156.25MHz
20% to 80%
dBc/Hz
ps
tR / tF
Output Rise/Fall Time
50
450
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
6
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
AC Electrical Characteristics, continued
Table 5. AC Characteristics, VCC = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
%
odc
Output Duty Cycle
47
53
20
tSTARTUP Oscillator Start-Up Time
ms
Output Frequency Settling
tSET
1
ms
Time After FSEL Changed
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE: XTAL parameters (initial accuracy, temperature stability, aging and total stability) are guaranteed by manufacturing.
NOTE 1: This parameter is defined in accordance with JEDEC standard 65.
NOTE 2: Refer to the phase noise plots.
NOTE 3: Please see the FemtoClock NG Ceramic 5x7 Modules Programming guide for more information on PLL feedback modes and the
optimum configuration for phase noise. Integer PLL feedback is the default operation for the dddd = 1xxx order codes.
NOTE 4: Integration range: 12kHz - 20MHz.
NOTE 5: Integration range: 1kHz - 40MHz.
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
7
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Typical Phase Noise at 156.25MHz (12kHz - 20MHz)
Offset Frequency (Hz)
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
8
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
V
V
Qx
CC
CC
Qx
nQx
nQx
VEE
VEE
-1.3V 0.165V
-0.5V 0.125V
3.3V Output Load Test Circuit
2.5V Output Load Test Circuit
Phase Noise Plot
VOH
VREF
VOL
1σ contains 68.26% of all measurements
2σ contains 95.4% of all measurements
3σ contains 99.73% of all measurements
4σ contains 99.99366% of all measurements
6σ contains (100-1.973x10-7)% of all measurements
Offset Frequency
Histogram
f1
f2
Reference Point
(Trigger Edge)
RMS Phase Jitter =
Mean Period
(First edge after trigger)
1
*
Area Under Curve Defined by the Offset Frequency Markers
2 * * ƒ
RMS Phase Jitter
RMS Period Jitter
nQ
Q
nQ
80%
tF
80%
tR
VSWING
20%
➤
➤
tcycle n
tcycle n+1
➤
➤
20%
Q
tjit(cc) = tcycle n – tcycle n+1
|
|
1000 Cycles
Output Rise/Fall Time
Cycle-to-Cycle Jitter
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
9
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Parameter Measurement Information, continued
nQ
Q
tPW
tPERIOD
tPW
odc =
x 100%
tPERIOD
Output Duty Cycle/Pulse Width/Period
Applications Information
Recommendations for Unused Input Pins
Inputs:
LVCMOS Control Pins
All control pins have internal pullups or pulldowns; additional
resistance is not required but can be added for additional protection.
A 1kresistor can be used.
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 1A and 1B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
125Ω
R4
125Ω
3.3V
3.3V
3.3V
Z
o = 50Ω
3.3V
+
_
Z
Z
o = 50Ω
+
_
Input
LVPECL
Zo = 50Ω
LVPECL
Input
o = 50Ω
R1
R2
50Ω
50Ω
R1
84Ω
R2
84Ω
VCC - 2V
1
RTT =
* Zo
RTT
((VOH + VOL) / (VCC – 2)) – 2
Figure 1A. 3.3V LVPECL Output Termination
Figure 1B. 3.3V LVPECL Output Termination
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
10
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Termination for 2.5V LVPECL Outputs
Figure 2A and Figure 2B show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 2B can be eliminated and the termination is
shown in Figure 2C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
R1
R3
50Ω
250Ω
250Ω
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
R2
2.5V LVPECL Driver
50Ω
50Ω
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 2A. 2.5V LVPECL Driver Termination Example
Figure 2B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 2C. 2.5V LVPECL Driver Termination Example
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
11
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Schematic Layout
Figure 3 shows an example IDT8N3D085 application schematic.
The schematic example focuses on functional connections and is
intended as an example only and may not represent the exact user
configuration. Refer to the pin description and functional tables in
the datasheet to ensure the logic control inputs are properly set. For
example OE and FSEL can be configured from an FPGA instead of
set with pull up and pull down resistors as shown.
PCB as close to the power pins as possible. If space is limited, the
0.1uF capacitor on the VCC pin must be placed on the device side
with direct return to the ground plane though vias. The remaining
filter components can be on the opposite side of the PCB.
Power supply filter component recommendations are a general
guideline to be used for reducing external noise from coupling into
the devices. The filter performance is designed for a wide range of
noise frequencies. This low-pass filter starts to attenuate noise at
approximately 10kHz. If a specific frequency noise component is
known, such as switching power supplies frequencies, it is
recommended that component values be adjusted and if required,
additional filtering be added. Additionally, good general design
practices for power plane voltage stability suggests adding bulk
capacitance in the local area of all devices.
As with any high speed analog circuitry, the power supply pins are
vulnerable to random noise, so to achieve optimum jitter
performance isolation of the VCC pin from power supply is required.
In order to achieve the best possible filtering, it is recommended that
the placement of the filter components be on the device side of the
Logic Control Input Examples
Set Logic
Input to '1'
Set Logic
Input to '0'
VCC
VCC
RU1
1K
RU2
Not Install
To Logic
Input
pins
To Logic
Input
pins
RD1
Not Install
RD2
1K
3.3V
FB1
2
1
VCC
C4
10uF
BLM18BB221SN1
C5
0.1uF
Place 0.1uF bypass cap
directly adjacent to
the VCC pin.
U1
1
2
3
6
4
5
OE
C3
0.1uF
OE
VCC
Zo = 50 Ohm
FSEL
FSEL
VEE
Q
+
Zo = 50 Ohm
nQ
-
R2
50
R1
50
+3.3V PECL Receiver
R3
50
For other AC and DC termination options consult
the IDT Applications Note
"Termination - LVPECL"
Figure 3. IDT8N3D085 Application Schematic
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
12
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8N3D085. 
Equations and example calculations are also provided.
1. Power Dissipation
The total power dissipation for the IDT8N3D085 is the sum of the core power plus the output power dissipated due to the loading. 
The following is the power dissipation for VCC = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating output power dissipated due to the loading.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 148mA = 512.82mW
Power (outputs)MAX = 32mW/Loaded Output pair
Total Power_MAX (3.465V, with all outputs switching) = 512.82mW + 32mW = 544.82mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 49.4°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.545W * 49.4°C/W = 111.9°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance JA for 6 Lead Ceramic 5mm x 7mm Package, Forced Convection
JA by Velocity
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
49.4°C/W
44.2°C/W
42.1°C/W
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
13
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
LVPECL output driver circuit and termination are shown in Figure 4.
VCC
Q1
VOUT
RL
VCC - 2V
Figure 4. LVPECL Driver Circuit and Termination
To calculate output power dissipation due to the loading, use the following equations which assume a 50load, and a termination voltage of
VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.8V
(VCC_MAX – VOH_MAX) = 0.8V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.6V
(VCC_MAX – VOL_MAX) = 1.6V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX– VOH_MAX) =
[(2V – 0.8V)/50] * 0.8V = 19.2mW
Pd_L = [(VOL_MAX – (VCC_MAX– 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX– VOL_MAX) =
[(2V – 1.6V)/50] * 1.6V = 12.8mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 32mW
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
14
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Reliability Information
Table 7. JA vs. Air Flow Table for a 6-lead Ceramic 5mm x 7mm Package
JA vs. Air Flow
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
49.4°C/W
44.2°C/W
42.1°C/W
Transistor Count
The transistor count for IDT8N3D085 is: 47,511
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
15
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Package Outline and Package Dimensions
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
16
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Ordering Information for FemtoClock NG Ceramic-Package XO and VCXO Products
The programmable VCXO and XO devices support a variety of
devices options such as the output type, number of default frequen-
cies, internal crystal frequency, power supply voltage, ambient
temperature range and the frequency accuracy. The device options,
default frequencies and default VCXO pull range must be specified at
the time of order and are programmed by IDT before the shipment.
The table below specifies the available order codes, including the
device options and default frequency configurations. Example part
number: the order code 8N3QV01FG-0001CDI specifies a
contains a 114.285MHz internal crystal as frequency source,
industrial temperature range, a lead-free (6/6 RoHS) 6-lead ceramic
5mm x 7mm x 1.55mm package and is factory-programmed to the
default frequencies of 100, 122.88, 125 and 156.25MHz and to the
VCXO pull range of min. 100 ppm.
Other default frequencies and order codes are available from IDT on
request. For more information on available default frequencies, see
the FemtoClock NG Ceramic-Package XO and VCXO Ordering
Product Information document.
programmable, quad default-frequency VCXO with a voltage supply
of 2.5V, a LVPECL output, a 50 ppm crystal frequency accuracy,
Part/Order Numbers
8N X X XXX X X - dddd XX X X
Shipping Package
8: Tape & Reel
(no letter): Tray
FemtoClock NG
I/O Identifier
Ambient Temperature Range
“I”: Industrial: (TA = -40°C to 85°C)
(no letter) : (TA = 0°C to 70°C)
0: LVCMOS
3: LVPECL
4: LVDS
Package Code
CD: Lead-Free, 6/10-lead ceramic 5mm x 7mm x 1.55mm
Number of Default Frequencies
S: 1: Single
D: 2: Dual
Q: 4: Quad
Default-Frequency and VCXO Pull Range
See document FemtoClock NG Ceramic-Package XO and VCXO
Ordering Product Information.
dddd
fXTAL (MHz) PLL feedback
Use for
VCXO, XO
XO
Part Number
0000 to 0999
1000 to 1999
2000 to 2999
114.285
Fractional
Integer
OEfct. at
Function #pins
pin
100.000
Fractional
XO
001
003
V01
V03
V75
V76
V85
085
270
271
272
273
XO
XO
10
10
10
10
6
OE@2
OE@1
OE@2
OE@1
OE@2
nOE@2
—
Last digit = L: configuration pre-programmed and not changeable
VCXO
VCXO
VCXO
VCXO
VCXO
XO
Die Revision
C
6
6
Option Code (Supply Voltage and Frequency-Stability)
6
OE@1
OE@1
OE@2
nOE@2
nOE@1
A: VCC = 3.3V 5%, 100ppm
B: VCC = 2.5V 5%, 100ppm
XO
6
XO
6
E: VCC = 3.3V 5%,
F: VCC = 2.5V 5%,
K: VCC = 3.3V 5%,
L: VCC = 2.5V 5%,
50ppm
50ppm
20ppm
20ppm
XO
6
XO
6
NOTE: For order information, also see the FemtoClock NG Ceramic-Package XO and VCXO Ordering Product Information document.
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
17
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
Device Marking
Table 8. Device Marking
Industrial Temperature Range (TA = -40°C to 85°C)
N3D085yCddddI
Commercial Temperature Range (TA = 0°C to 70°C)
Marking
8N3D085yCdddd
y = Option Code, dddd=Default-Frequency and VCXO Pull Range
IDT8N3D085CCD REVISION A DECEMBER 14, 2012
18
©2012 Integrated Device Technology, Inc.
IDT8N3D085 Data Sheet
LVPECL DUAL FREQUENCY PROGRAMMBLE CRYSTAL OSCILLATOR
We’ve Got Your Timing Solution
6024 Silver Creek Valley Road
Sales
Technical Support
netcom@idt.com
800-345-7015 (inside USA)
San Jose, California 95138
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signifi-
cantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2012. All rights reserved.
厂商 型号 描述 页数 下载

3M

 		8N36 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.50 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-0.75 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0105-1.00 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.50 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-0.75 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0205-1.00 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

3M

 		8N36-AA0305-0.25 3M™微型串行连接SCSI （ miniSAS ）电缆组件[ 3M™ Mini Serial Attached SCSI (miniSAS) Cable Assembly ] 6 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.215279s
