8T49N203A-007NLGI

型号：

8T49N203A-007NLGI

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

40 页

PDF大小：

1204 K

下载PDF手册

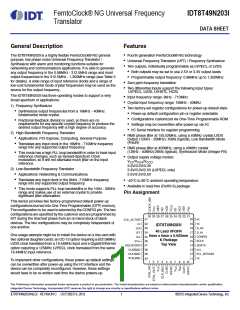

FemtoClock® NG Universal Frequency
Translator
IDT8T49N203I
DATA SHEET
General Description
Features
The IDT8T49N203I is a highly flexible FemtoClock® NG general
purpose, low phase noise Universal Frequency Translator /
Synthesizer with alarm and monitoring functions suitable for
networking and communications applications. It is able to generate
any output frequency in the 0.98MHz - 312.5MHz range and most
output frequencies in the 312.5MHz - 1,300MHz range (see Table 3
for details). A wide range of input reference clocks and a range of
low-cost fundamental mode crystal frequencies may be used as the
source for the output frequency.
• Fourth generation FemtoClock® NG technology
• Universal Frequency Translator (UFT) / Frequency Synthesizer
• Two outputs, individually programmable as LVPECL or LVDS
• Both outputs may be set to use 2.5V or 3.3V output levels
• Programmable output frequency: 0.98MHz up to 1,300MHz
• Zero ppm frequency translation
• Two differential inputs support the following input types:
LVPECL, LVDS, LVHSTL, HCSL
The IDT8T49N203I has three operating modes to support a very
broad spectrum of applications:
• Input frequency range: 8kHz - 710MHz
• Crystal input frequency range: 16MHz - 40MHz
1) •FrSeyqnutehnecsyizeSsynotuhtepsuitzefrrequencies from a 16MHz - 40MHz
• Two factory-set register configurations for power-up default state
• Power-up default configuration pin or register selectable
• Configurations customized via One-Time Programmable ROM
fundamental mode crystal.
• Fractional feedback division is used, so there are no
requirements for any specific crystal frequency to produce the
desired output frequency with a high degree of accuracy.
2
• Settings may be overwritten after power-up via I C
2
• I C Serial interface for register programming
2) •HAigphp-Blicaantdiownisd:thPCFrIeEqxupernecsys,TCraonmslpautotirng, General Purpose
• RMS phase jitter at 155.52MHz, using a 40MHz crystal LVDS
Output (12kHz - 20MHz): 439fs (typical), Low Bandwidth Mode
(FracN)
• Translates any input clock in the 16MHz - 710MHz frequency
range into any supported output frequency.
• RMS phase jitter at 400MHz, using a 40MHz crystal
(12kHz - 40MHz):285fs (typical), Synthesizer Mode (Integer FB)
• This mode has a high PLL loop bandwidth in order to track input
reference changes, such as Spread-Spectrum Clock
modulation, so it will not attenuate much jitter on the input
reference.
• Output supply voltage modes:
VCC/VCCA/VCCO
3.3V/3.3V/3.3V
3.3V/3.3V/2.5V (LVPECL only)
2.5V/2.5V/2.5V
3) •LoAwp-pBliacantdiownidst:hNFertewqoureknincgy&TrCanosmlamtournications.
• Translates any input clock in the 8kHz -710MHz frequency
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package
Pin Assignment
range into any supported output frequency.
• This mode supports PLL loop bandwidths in the 10Hz - 580Hz
range and makes use of an external crystal to provide
significant jitter attenuation.
This device provides two factory-programmed default power-up
configurations burned into One-Time Programmable (OTP) memory.
The configuration to be used is selected by the CONFIG pin. The two
configurations are specified by the customer and are programmed by
IDT during the final test phase from an on-hand stock of blank
devices. The two configurations may be completely independent of
one another.
30 29 28 27
23 22 21
26 25 24
31
20
nc
CLK_ACTIVE
nc
nc
32
33
34
35
36
37
38
39
40
19
18
17
16
15
14
13
12
11
IDT8T49N203I
S_A0
S_A1
CONFIG
SCLK
SDATA
VCC
LF0
40 Lead VFQFN
6mm x 6mm x 0.925mm
K Package
LF1
One usage example might be to install the device on a line card with
two optional daughter cards: an OC-12 option requiring a 622.08MHz
LVDS clock translated from a 19.44MHz input and a Gigabit Ethernet
option requiring a 125MHz LVPECL clock translated from the same
19.44MHz input reference.
VEE
VCCA
Top View
HOLDOVER
CLK0BAD
CLK1BAD
XTALBAD
PLL_BYPASS
nc
To implement other configurations, these power-up default settings
1
2
3
4
8
9 10
5
6 7
2
can be overwritten after power-up using the I C interface and the
device can be completely reconfigured. However, these settings
would have to be re-written next time the device powers-up.
The Preliminary Information presented herein represents a product in pre-production. The noted characteristics are based on initial product characterization and/or qualification.
Integrated Device Technology, Incorporated (IDT) reserves the right to change any circuitry or specifications without notice
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
1
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Complete Block Diagram
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
2
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Table 1. Pin Descriptions
Number
Name
Type
Description
1
2
XTAL_IN
XTAL_OUT
Crystal Oscillator interface designed for 12pF parallel resonant crystals.
XTAL_IN (pin 1) is the input and XTAL_OUT (pin 2) is the output.
Core supply pins. All must be either 3.3V or 2.5V.
Input
3, 7, 13, 29
VCC
Power
Input clock select. Selects the active differential clock input. LVCMOS/LVTTL
interface levels.
0 = CLK0, nCLK0 (default)
1 = CLK1, nCLK1
4
CLK_SEL
Input
Pulldown
5
6
CLK0
Input
Input
Pulldown
Non-inverting differential clock input.
Pullup/
Pulldown
Inverting differential clock input. VCC/2 default when left floating (set by the
internal pullup and pulldown resistors).
nCLK0
8, 21, 35
9
VEE
Power
Input
Negative supply pins.
CLK1
Pulldown
Non-inverting differential clock input.
Pullup/
Pulldown
Inverting differential clock input. VCC/2 default when left floating (set by the
internal pullup and pulldown resistors).
10
nCLK1
nc
Input
11, 19,
20, 32
Unused
No connect. These pins are to be left unconnected.
Bypasses the VCXO PLL. In bypass mode, outputs are clocked off the falling
edge of the input reference. LVCMOS/LVTTL interface levels.
0 = PLL Mode (default)
12
PLL_BYPASS
Input
Pulldown
1 = PLL Bypassed
2
14
15
SDATA
SCLK
I/O
Pullup
Pullup
I C Data Input/Output. Open drain.
2
Input
I C Clock Input. LVCMOS/LVTTL interface levels.
Configuration Pin. Selects between one of two factory programmable pre-set
power-up default configurations. The two configurations can have different
output/input frequency translation ratios, different PLL loop bandwidths, etc.
2
16
CONFIG
Input
Pulldown
These default configurations can be overwritten after power-up via I C if the
user so desires. LVCMOS/LVTTL interface levels.
0 = Configuration 0 (default)
1 = Configuration 1
2
17
18
S_A1
S_A0
Input
Input
Pulldown
Pulldown
I C Address Bit 1. LVCMOS/LVTTL interface levels.
2
I C Address Bit 0. LVCMOS/LVTTL interface levels.
Active High Output Enable for Q1, nQ1. LVCMOS/LVTTL interface levels.
0 = Output pins high-impedance
22
OE1
Input
Pullup
1 = Output switching (default)
Differential output pair. Output type is programmable to LVDS or LVPECL
interface levels.
23, 24
25
nQ1, Q1
VCCO
Output
Power
Output
Output supply pins for Q1, nQ1 and Q0, nQ0 outputs. Either 2.5V or 3.3V.
Differential output pair. Output type is programmable to LVDS or LVPECL
interface levels.
26, 27
nQ0, Q0
Active High Output Enable for Q0, nQ0. LVCMOS/LVTTL interface levels.
0 = Output pins high-impedance
1 = Output switching (default)
28
30
OE0
Input
Pullup
Lock Indicator - indicates that the PLL is in a locked condition. LVCMOS/LVTTL
interface levels.
LOCK_IND
Output
Indicates which of the two differential clock inputs is currently selected.
LVCMOS/LVTTL interface levels.
0 = CLK0, nCLK0 differential input pair
31
Output
CLK_ACTIVE
1 = CLK1, nCLK1 differential input pair
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
3
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Number
Name
Type
Description
Analog
I/O
33, 34
LF0, LF1
VCCA
Loop filter connection node pins. LF0 is the output. LF1 is the input.
Analog supply voltage. See Applications section for details on how to connect
this pin.
36
37
Power
Alarm output reflecting if the device is in a holdover state. LVCMOS/LVTTL
interface levels.
0 = Device is locked to a valid input reference
1 = Device is not locked to a valid input reference
HOLDOVER
Output
Alarm output reflecting the state of CLK0. LVCMOS/LVTTL interface levels.
0 = Input Clock 0 is switching within specifications
1 = Input Clock 0 is out of specification
38
39
40
CLK0BAD
CLK1BAD
XTALBAD
Output
Output
Output
Alarm output reflecting the state of CLK1. LVCMOS/LVTTL interface levels.
0 = Input Clock 1 is switching within specifications
1 = Input Clock 1 is out of specification
Alarm output reflecting the state of XTAL. LVCMOS/LVTTL interface levels.
0 = crystal is switching within specifications
1 = crystal is out of specification
NOTE: Pullup and Pulldown refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
3.5
Maximum
Units
pF
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
RPULLUP
RPULLDOWN
51
kΩ
51
kΩ
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
4
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Functional Description
The IDT8T49N203I is designed to provide two copies of almost any
desired output frequency within its operating range (0.98 - 1300MHz)
from any input source in the operating range (8kHz - 710MHz). It is
capable of synthesizing frequencies from a crystal or crystal
oscillator source. The output frequency is generated regardless of
the relationship to the input frequency. The output frequency will be
exactly the required frequency in most cases. In most others, it will
only differ from the desired frequency by a few ppb. IDT configuration
software will indicate the frequency error, if any. The IDT8T49N203I
can translate the desired output frequency from one of two input
clocks. Again, no relationship is required between the input and
output frequencies in order to translate to the output clock rate. In this
frequency translation mode, a low-bandwidth, jitter attenuation option
is available that makes use of an external fixed-frequency crystal or
crystal oscillator to translate from a noisy input source. If the input
clock is known to be fairly clean or if some modulation on the input
needs to be tracked, then the high-bandwidth frequency translation
mode can be used, without the need for the external crystal.
ratios within the IDT8T49N203I for the two different card
configurations. Access via I C would not be necessary for operation
using either of the internal configurations.
2
Operating Modes
The IDT8T49N203I has three operating modes which are set by the
MODE_SEL[1:0] bits. There are two frequency translator modes -
low bandwidth and high bandwidth and a frequency synthesizer
mode. The device will operate in the same mode regardless of which
configuration is active.
Please make use of IDT-provided configuration applications to
determine the best operating settings for the desired configurations
of the device.
Output Dividers & Supported Output Frequencies
In all 3 operating modes, the output stage behaves the same way, but
different operating frequencies can be specified in the two
configurations.
The input clock references and crystal input are monitored
continuously and appropriate alarm outputs are raised both as
register bits and hard-wired pins in the event of any
out-of-specification conditions arising. Clock switching is supported
in manual, revertive & non-revertive modes.
The internal VCO is capable of operating in a range anywhere from
1.995GHz - 2.6GHz. It is necessary to choose an integer multiplier of
the desired output frequency that results in a VCO operating
frequency within that range. The output divider stage N[10:0] is
limited to selection of integers from 2 to 2046. Please refer to Table 3
for the values of N applicable to the desired output frequency.
The IDT8T49N203I has two factory-programmed configurations that
may be chosen from as the default operating state after reset. This is
intended to allow the same device to be used in two different
2
applications without any need for access to the I C registers. These
Table 3. Output Divider Settings & Frequency Ranges
2
defaults may be over-written by I C register access at any time, but
Register
Setting
Frequency
Divider
Minimum
fOUT
Maximum
fOUT
those over-written settings will be lost on power-down. Please
contact IDT if a specific set of power-up default settings is desired.
Nn[10:0]
N
(MHz)
997.5
997.5
665
(MHz)
1300
1300
866.7
650
0000000000x
00000000010
00000000011
00000000100
00000000101
0000000011x
0000000100x
0000000101x
0000000110x
0000000111x
0000001000x
0000001001x
...
2
Configuration Selection
2
3
The IDT8T49N203I comes with two factory-programmed default
configurations. When the device comes out of power-up reset the
selected configuration is loaded into operating registers. The
IDT8T49N203I uses the state of the CONFIG pin or CONFIG register
bit (controlled by the CFG_PIN_REG bit) to determine which
configuration is active. When the output frequency is changed either
via the CONFIG pin or via internal registers, the output behavior may
not be predictable during the register writing and output settling
periods. Devices sensitive to glitches or runt pulses may have to be
reset once reconfiguration is complete.
4
498.75
399
5
520
6
332.5
249.4
199.5
166.3
142.5
124.7
110.8
1995 / N
0.98
433.3
325
8
10
12
14
16
18
Even N
2046
260
216.7
185.7
162.5
144.4
2600 / N
1.27
Once the device is out of reset, the contents of the operating registers
2
can be modified by write access from the I C serial port. Users that
2
have a custom configuration programmed may not require I C
access.
It is expected that the IDT8T49N203I will be used almost exclusively
in a mode where the selected configuration will be used from device
power-up without any changes during operation. For example, the
device may be designed into a communications line card that
supports different I/O modules such as a standard OC-12 module
running at 622.08MHz or a (255/237) FEC rate OC-12 module
running at 669.32MHz. The different I/O modules would result in a
different level on the CONFIG pin which would select different divider
1111111111x
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
5
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
The input reference frequency range is now extended up to 710MHz.
A pre-divider stage P is needed to keep the operating frequencies at
the phase detector within limits.
Frequency Synthesizer Mode
This mode of operation allows an arbitrary output frequency to be
generated from a fundamental mode crystal input. For improved
phase noise performance, the crystal input frequency may be
doubled. As can be seen from the block diagram in Figure 1, only the
upper feedback loop is used in this mode of operation. It is
recommended that CLK0 and CLK1 be left unused in this mode of
operation.
Low-Bandwidth Frequency Translator Mode
As can be seen from the block diagram in Figure 3, this mode
involves two PLL loops. The lower loop with the large integer dividers
is the low bandwidth loop and it sets the output-to-input frequency
translation ratio.This loop drives the upper DCXO loop (digitally
controlled crystal oscillator) via an analog-digital converter.
The upper feedback loop supports a delta-sigma fractional feedback
divider. This allows the VCO operating frequency to be a non-integer
multiple of the crystal frequency. By using an integer multiple only,
lower phase noise jitter on the output can be achieved, however the
use of the delta-sigma divider logic will provide excellent
performance on the output if a fractional divisor is used.
Figure 3. Low Bandwidth Frequency Translator Mode
Block Diagram
The pre-divider stage is used to scale down the input frequency by
an integer value to achieve a frequency in this range. By dividing
down the fed-back VCO operating frequency by the integer divider
M1[16:0] to as close as possible to the same frequency, exact output
frequency translations can be achieved. The phase detector of the
lower loop is designed to work with frequencies in the 8kHz - 16kHz
range. For improved phase noise performance, the crystal input
frequency may be doubled.
Figure 1. Frequency Synthesizer Mode Block Diagram
High-Bandwidth Frequency Translator Mode
This mode of operation is used to translate one of two input clocks of
the same nominal frequency into an output frequency with little jitter
attenuation. As can be seen from the block diagram in Figure 2,
similarly to the Frequency Synthesizer mode, only the upper
feedback loop is used.
Alarm Conditions & Status Bits
The IDT8T49N203I monitors a number of conditions and reports their
status via both output pins and register bits. All alarms will behave as
indicated below in all modes of operation, but some of the conditions
monitored have no valid meaning in some operating modes. For
example, the status of CLK0BAD, CLK1BAD and CLK_ACTIVE are
not relevant in Frequency Synthesizer mode. The outputs will still be
active and it is left to the user to determine which to monitor and how
to respond to them based on the known operating mode.
PLL_BYPASS
Output Divider
1
Q0
÷N[10:0]
FemtoClock® NG
VCO
1995 - 2600 MHz
nQ0
OE0
PD/LF
0
Feedback Divider
Q1
÷M_INT
÷M_FRAC
[17:0]
[7:0]
nQ1
OE1
CLK_ACTIVE - indicates which input clock reference is being used to
derive the output frequency.
CLK_SEL
CLK0
nCLK0
CLK1
nCLK1
0
1
÷P[16:0]
LOCK_IND - This status is asserted on the pin & register bit when the
PLL is locked to the appropriate input reference for the chosen mode
of operation. The status bit will not assert until frequency lock has
been achieved, but will de-assert once lock is lost.
Status Indicators
POR
Control Logic
Global Registers
Register Set 0
Register Set 1
CLK_ACTIVE
LOCK_IND
0
1
CLK0BAD
CLK1BAD
HOLDOVER
CONFIG
SCLK, S_A0, S_A1
SDATA
Figure 2. High Bandwidth Frequency Translator Mode
Block Diagram
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
6
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
XTALBAD - indicates if valid edges are being received on the crystal
input. Detection is performed by comparing the input to the feedback
signal at the upper loop’s Phase / Frequency Detector (PFD). If three
edges are received on the feedback without an edge on the crystal
input, the XTALBAD alarm is asserted on the pin & register bit. Once
an edge is detected on the crystal input, the alarm is immediately
deasserted.
mode) state. In either case, the HOLDOVER alarm will be raised.
This will occur even if there is a valid clock on the non-selected
reference input. The device will recover from holdover / free-run state
once a valid clock is re-established on the selected reference input.
The IDT8T49N203I will only switch input references on command
from the user. The user must either change the CLK_SEL register bit
(if in Manual via Register) or CLK_SEL input pin (if in Manual via Pin).
CLK0BAD - indicates if valid edges are being received on the CLK0
reference input. Detection is performed by comparing the input to the
feedback signal at the appropriate Phase / Frequency Detector
(PFD). When operating in high-bandwidth mode, the feedback at the
upper PFD is used. In low-bandwidth mode, the feedback at the lower
PFD is used. If three edges are received on the feedback without an
edge on the divided down (÷P) CLK0 reference input, the CLK0BAD
alarm is asserted on the pin & register bit. Once an edge is detected
on the CLK0 reference input, the alarm is deasserted.
Automatic Switching Mode
When the AUTO_MAN[1:0] field is set to either of the automatic
selection modes (Revertive or Non-Revertive), the IDT8T49N203I
determines which input reference it prefers / starts from by the state
of the CLK_SEL register bit only. The CLK_SEL input pin is not used
in either Automatic switching mode.
When starting from an unlocked condition, the device will lock to the
input reference indicated by the CLK_SEL register bit. It will not pay
attention to the non-selected input reference until a locked state has
been achieved. This is necessary to prevent ‘hunting’ behavior during
the locking phase.
CLK1BAD - indicates if valid edges are being received on the CLK1
reference input. Behavior is as indicated for the CLK0BAD alarm, but
with the CLK1 input being monitored and the CLK1BAD output pin &
register bits being affected.
Once the IDT8T49N203I has achieved a stable lock, it will remain
locked to the preferred input reference as long as there is a valid clock
on it. If at some point, that clock fails, then the device will
automatically switch to the other input reference as long as there is a
valid clock there. If there is not a valid clock on either input reference,
the IDT8T49N203I will go into holdover (Low Bandwidth Frequency
Translator mode) or free-run (High Bandwidth Frequency Translator
mode) state. In either case, the HOLDOVER alarm will be raised.
HOLDOVER - indicates that the device is not locked to a valid input
reference clock. This can occur in Manual switchover mode if the
selected reference input has gone bad, even if the other reference
input is still good. In automatic mode, this will only assert if both input
references are bad.
Input Reference Selection and Switching
When operating in Frequency Synthesizer mode, the CLK0 and
CLK1 inputs are not used and the contents of this section do not
apply. Except as noted below, when operating in either High or Low
Bandwidth Frequency Translator mode, the contents of this section
apply equally when in either of those modes.
The device will recover from holdover / free-run state once a valid
clock is re-established on either reference input. If clocks are valid on
both input references, the device will choose the reference indicated
by the CLK_SEL register bit.
If running from the non-preferred input reference and a valid clock
returns, there is a difference in behavior between Revertive and
Non-revertive modes. In Revertive mode, the device will switch back
to the reference indicated by the CLK_SEL register bit even if there
is still a valid clock on the non-preferred reference input. In
Both input references CLK0 and CLK1 must be the same nominal
frequency. These may be driven by any type of clock source,
including crystal oscillator modules. A difference in frequency may
cause the PLL to lose lock when switching between input references.
Please contact IDT for the exact limits for your situation.
Non-revertive mode, the IDT8T49N203I will not switch back as long
as the non-preferred input reference still has a valid clock on it.
The global control bits AUTO_MAN[1:0] dictate the order of priority
and switching mode to be used between the CLK0 and CLK1 inputs.
Switchover Behavior of the PLL
Even though the two input references have the same nominal
frequency, there may be minor differences in frequency and
potentially large differences in phase between them. The
IDT8T49N203I will adjust its output to the new input reference. It will
use Phase Slope Limiting to adjust the output phase at a fixed
maximum rate until the output phase and frequency are now aligned
to the new input reference. Phase will always be adjusted by
extending the clock period of the output so that no unacceptably short
clock periods are generated on the output IDT8T49N203I.
Manual Switching Mode
When the AUTO_MAN[1:0] field is set to Manual via Pin, then the
IDT8T49N203I will use the CLK_SEL input pin to determine which
input to use as a reference. Similarly, if set to Manual via Register,
then the device will use the CLK_SEL register bit to determine the
input reference. In either case, the PLL will lock to the selected
reference if there is a valid clock present on that input.
If there is not a valid clock present on the selected input, the
IDT8T49N203I will go into holdover (Low Bandwidth Frequency
Translator mode) or free-run (High Bandwidth Frequency Translator
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
7
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
The two outputs are individually selectable as LVDS or LVPECL
output types via the Q0_TYPE and Q1_TYPE register bits. These
two selection bits are provided in each configuration to allow different
output type settings under each configuration.
Holdover / Free-run Behavior
When both input references have failed (Automatic mode) or the
selected input has failed (Manual mode), the IDT8T49N203I will
enter holdover (Low Bandwidth Frequency Translator mode) or
free-run (High Bandwidth Frequency Translator mode) state . In both
cases, once the input reference is lost, the PLL will stop making
adjustments to the output phase.
The two outputs can be enabled individually also via both register
control bits and input pins. When both the OEn register bit and OEn
pin are enabled, then the appropriate output is enabled. The OEn
register bits default to enabled so that by default the outputs can be
directly controlled by the input pins. Similarly, the input pins are
provisioned with weak pull-ups so that if they are left unconnected,
the output state can be directly controlled by the register bits. When
the differential output is in the disabled state, it will show a high
impedance condition.
If operating in Low Bandwidth Frequency Translation mode, the PLL
will continue to reference itself to the local oscillator and will hold its
output phase and frequency in relation to that source. Output stability
is determined by the stability of the local oscillator in this case.
However, if operating in High Bandwidth Frequency Translation
mode, the PLL no longer has any frequency reference to use and
output stability is now determined by the stability of the internal VCO.
Serial Interface Configuration Description
If the device is programmed to perform Manual switching, once the
selected input reference recovers, the IDT8T49N203I will switch back
to that input reference. If programmed for either Automatic mode, the
device will switch back to whichever input reference has a valid clock
first.
2
The IDT8T49N203I has an I C-compatible configuration interface to
access any of the internal registers (Table 4D) for frequency and PLL
parameter programming. The IDT8T49N203I acts as a slave device
2
on the I C bus and has the address 0b11011xx, where xx is set by the
values on the S_A0 & S_A1 pins (see Table 4A for details). The
interface accepts byte-oriented block write and block read
operations. An address byte (P) specifies the register address (Table
4D) as the byte position of the first register to write or read. Data
bytes (registers) are accessed in sequential order from the lowest to
the highest byte (most significant bit first, see table 4B, 4C). Read
and write block transfers can be stopped after any complete byte
The switchover that results from returning from holdover or free-run
is handled in the same way as a switch between two valid input
references as described in the previous section.
Output Configuration
The two outputs of the IDT8T49N203I both provide the same clock
frequency. Both must operate from the same output voltage level of
3.3V or 2.5V, although this output voltage may be less than or equal
to the core voltage (3.3V or 2.5V) the rest of the device is operating
from. The output voltage level used on the two outputs is supplied on
the VCCO pin.
2
transfer. It is recommended to terminate I C the read or write transfer
after accessing byte #23.
2
For full electrical I C compliance, it is recommended to use external
pull-up resistors for SDATA and SCLK. The internal pull-up resistors
have a size of 50kΩ typical.
Note: if a different device slave address is desired, please contact
IDT.
2
Table 4A. I C Device Slave Address
1
1
0
1
1
S_A1
S_A0
R/W
Table 4B. Block Write Operation
Bit
1
2:8
9
10
11:18
19
20:27
28
29-36
37
...
...
...
Slave
Address
Address
Byte (P)
Data Byte
(P)
Data Byte
(P+1)
Data Byte
...
Description
Length (bits)
START
1
W (0)
1
ACK
1
ACK
1
ACK
1
ACK
1
ACK
1
STOP
1
7
8
8
8
8
Table 4C. Block Read Operation
Bit
1
2:8
9
10
11:18
19
20
21:27
28
29
30:37
38
39-46
47
...
...
...
A
C
K
A
C
K
A
C
K
A
C
K
A
C
K
A
C
K
Description
Length (bits)
Slave
Address
W
(0)
Address
Byte (P)
Repeate
d START Address
Slave
R
(1)
Data
Byte (P)
DataByte
(P+1)
Data Byte
...
START
1
STOP
1
7
1
1
8
1
1
7
1
1
8
1
8
1
8
1
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
8
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Register Descriptions
Please consult IDT for configuration software and/or programming guides to assist in selection of optimal register settings for the desired
configurations.
2
Table 4D. I C Register Map
Binary
Register
Reg Address
Register Bit
D4
D7
MFRAC0[17]
MFRAC1[17]
MFRAC0[9]
MFRAC1[9]
MFRAC0[1]
MFRAC1[1]
MINT0[1]
MINT1[1]
P0[10]
D6
MFRAC0[16]
MFRAC1[16]
MFRAC0[8]
MFRAC1[8]
MFRAC0[0]
MFRAC1[0]
MINT0[0]
MINT1[0]
P0[9]
D5
MFRAC0[15]
MFRAC1[15]
MFRAC0[7]
MFRAC1[7]
MINT0[7]
MINT1[7]
P0[16]
D3
MFRAC0[13]
MFRAC1[13]
MFRAC0[5]
MFRAC1[5]
MINT0[5]
MINT1[5]
P0[14]
D2
MFRAC0[12]
MFRAC1[12]
MFRAC0[4]
MFRAC1[4]
MINT0[4]
MINT1[4]
P0[13]
D1
MFRAC0[11]
MFRAC1[11]
MFRAC0[3]
MFRAC1[3]
MINT0[3]
MINT1[3]
P0[12]
D0
MFRAC0[10]
MFRAC1[10]
MFRAC0[2]
MFRAC1[2]
MINT0[2]
MINT1[2]
P0[11]
00000
00001
00010
00011
00100
00101
00110
00111
01000
01001
01010
01011
01100
01101
01110
01111
10000
10001
10010
10011
10100
10101
10110
10111
MFRAC0[14]
0
1
MFRAC1[14]
MFRAC0[6]
MFRAC1[6]
MINT0[6]
MINT1[6]
P0[15]
2
3
4
5
6
P1[16]
P1[15]
P1[14]
P1[13]
P1[12]
P1[11]
7
P0[8]
P0[7]
P0[6]
P0[5]
P0[4]
P0[3]
8
P1[10]
P1[9]
P1[8]
P1[7]
P1[6]
P1[5]
P1[4]
P1[3]
9
P0[2]
P0[1]
P0[0]
M1_0[16]
M1_1[16]
M1_0[8]
M1_1[8]
M1_0[0]
M1_1[0]
N0[3]
M1_0[15]
M1_1[15]
M1_0[7]
M1_1[7]
N0[10]
M1_0[14]
M1_1[14]
M1_0[6]
M1_1[6]
N0[9]
M1_0[13]
M1_1[13]
M1_0[5]
M1_1[5]
N0[8]
M1_0[12]
M1_1[12]
M1_0[4]
M1_1[4]
N0[7]
10
11
12
13
14
15
16
17
18
19
20
21
22
23
P1[2]
P1[1]
P1[0]
M1_0[11]
M1_1[11]
M1_0[3]
M1_1[3]
N0[6]
M1_0[10]
M1_1[10]
M1_0[2]
M1_1[2]
N0[5]
M1_0[9]
M1_1[9]
M1_0[1]
M1_1[1]
N0[4]
N1[10]
N1[9]
N1[8]
N1[7]
N0[2]
N0[1]
N0[0]
BW0[6]
N1[6]
N1[5]
N1[4]
N1[3]
N1[2]
N1[1]
N1[0]
BW1[6]
BW0[5]
BW0[4]
BW0[3]
BW1[3]
BW0[2]
BW0[1]
BW0[0]
Q1_TYPE0
Q1_TYPE1
Q0_TYPE0
Q0_TYPE1
BW1[5]
BW1[4]
BW1[2]
BW1[1]
BW1[0]
MODE_SEL[1]
CLK_SEL
1
MODE_SEL[0]
AUTO_MAN[1]
0
CONFIG
AUTO_MAN[0]
1
CFG_PIN_REG
OE1
OE0
ADC_RATE[0]
0
Rsvd
LCK_WIN[1]
0
Rsvd
LCK_WIN[0]
0
0
0
ADC_RATE[1]
DBL_XTAL
XTAL_BAD
CLK_ACTIVE
HOLDOVER
CLK1BAD
CLK0BAD
LOCK_IND
Rsvd
Rsvd
Register Bit Color Key
Configuration 0 Specific Bits
Configuration 1 Specific Bits
Global Control & Status Bits
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
9
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
The register bits described in Table 4E are duplicated, with one set
applying for Configuration 0 and the other for Configuration 1. The
functions of the bits are identical, but only apply when the
configuration they apply to is enabled. Replace the lowercase n in the
bit field description with 0 or 1 to find the field’s location in the bitmap
in Table 4D.
Table 4E. Configuration-Specific Control Bits
Register Bits
Function
Determines the output type for output pair Q0, nQ0 for Configuration n.
Q0_TYPEn
0 = LVPECL
1 = LVDS
Determines the output type for output pair Q1, nQ1 for Configuration n.
Q1_TYPEn
0 = LVPECL
1 = LVDS
Pn[16:0]
M1_n[16:0]
M_INTn[7:0]
M_FRACn[17:0]
Nn[10:0]
Reference Pre-Divider for Configuration n.
Integer Feedback Divider in Lower Feedback Loop for Configuration n.
Feedback Divider, Integer Value in Upper Feedback Loop for Configuration n.
Feedback Divider, Fractional Value in Upper Feedback Loop for Configuration n.
Output Divider for Configuration n.
Internal Operation Settings for Configuration n.
Please use IDT IDT8T49N203I Configuration Software to determine the correct settings for these bits for the
specific configuration. Alternatively, please consult with IDT directly for further information on the functions of these
bits.The function of these bits are explained in Tables 4J and 4K.
BWn[6:0]
Table 4F. Global Control Bits
Register Bits
Function
PLL Mode Select
00 = Low Bandwidth Frequency Translator
01 = Frequency Synthesizer
MODE_SEL[1:0]
10 = High Bandwidth Frequency Translator
11 = High Bandwidth Frequency Translator
Configuration Control. Selects whether the configuration selection function is under pin or register control.
CFG_PIN_REG
CONFIG
0 = Pin Control
1 = Register Control
Configuration Selection. Selects whether the device uses the register configuration set 0 or 1. This bit only has an
effect when the CONFIG_PIN_REG bit is set to 1 to enable register control.
Output Enable Control for Output 0. Both this register bit and the corresponding Output Enable pin OE0 must be
asserted to enable the Q0, nQ0 output.
0 = Output Q0, nQ0 disabled
OE0
1 = Output Q0, nQ0 under control of the OE0 pin
Output Enable Control for Output 1. Both this register bit and the corresponding Output Enable pin OE1 must be
asserted to enable the Q1, nQ1 output.
0 = Output Q1, nQ1 disabled
OE1
1 = Output Q1, nQ1 under control of the OE1 pin
Rsvd
Reserved bits - user should write a ‘0’ to these bit positions if a write to these registers is needed
Selects how input clock selection is performed.
00 = Manual Selection via pin only
01 = Automatic, non-revertive
10 = Automatic, revertive
11 = Manual Selection via register only
AUTO_MAN[1:0]
CLK_SEL
In manual clock selection via register mode, this bit will command which input clock is selected. In the automatic
modes, this indicates the primary clock input. In manual selection via pin mode, this bit has no effect.
0 = CLK0
1 = CLK1
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
10
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Sets the ADC sampling rate in Low-Bandwidth Mode as a fraction of the crystal input frequency.
00 = Crystal Frequency / 16
ADC_RATE[1:0]
01 = Crystal Frequency / 8
10 = Crystal Frequency / 4 (recommended)
11 = Crystal Frequency / 2
Sets the width of the window in which a new reference edge must fall relative to the feedback edge: 00 = 2usec
(recommended), 01 = 4usec, 10 = 8usec, 11 = 16usec
LCK_WIN[1:0]
DBL_XTAL
When set, this bit will double the frequency of the crystal input before applying it to the Phase_Frequency Detector.
Table 4G. Global Status Bits
Register Bits
Function
Status Bit for input clock 0. This function is mirrored in the CLK0BAD pin.
0 = input CLK0 is good
CLK0BAD
1 = input CLK0 is bad. Self clears when input clock returns to good status
Status Bit for input clock 1. This function is mirrored in the CLK1BAD pin.
0 = input CLK1 is good
1 = input CLK1 is bad. Self clears when input clock returns to good status
CLK1BAD
XTALBAD
LOCK_IND
Status Bit. This function is mirrored on the XTALBAD pin.
0 = crystal input good
1 = crystal input bad. Self-clears when the XTAL clock returns to good status
Status bit. This function is mirrored on the LOCK_IND pin.
0 = PLL unlocked
1 = PLL locked
Status Bit. This function is mirrored on the HOLDOVER pin.
HOLDOVER
CLK_ACTIVE
0 = Input to phase detector is within specifications and device is tracking to it
1 = Phase detector input is not within specifications and DCXO is frozen at last value
Status Bit. Indicates which input clock is active. Automatically updates during fail-over switching. Status also
indicated on CLK_ACTIVE pin.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
11
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Table 4J. BW[6:0] Bits
Mode
BW[6]
BW[5]
BW[4]
BW[3]
BW[2]
BW[1]
BW[0]
Synthesizer Mode
High-Bandwidth Mode
Low-Bandwidth Mode
PLL2_LF[1]
PLL2_LF[1]
PLL2_LF[0]
PLL2_LF[0]
DSM_ORD
DSM_ORD
DSM_EN
DSM_EN
PLL2_CP[1] PLL2_CP[0] PLL2_LOW_ICP
PLL2_CP[1] PLL2_CP[0] PLL2_LOW_ICP
ADC_GAIN[3] ADC_GAIN[2] ADC_GAIN[1] ADC_GAIN[0] PLL1_CP[1] PLL1_CP[0] PLL2_LOW_ICP
Table 4K. Functions of Fields in BW[6:0]
Register Bits
PLL2_LF[1:0]
DSM_ORD
Function
Sets loop filter values for upper loop PLL in Frequency Synthesizer & High-Bandwidth modes.
Defaults to setting of 00 when in Low Bandwidth Mode. See Table 4L for settings.
Sets Delta-Sigma Modulation to 2nd (0) or 3rd order (1) operation
Enables Delta-Sigma Modulator
DSM_EN
0 = Disabled - feedback in integer mode only
1 = Enabled - feedback in fractional mode
Upper loop PLL charge pump current settings:
00 = 173µA (defaults to this setting in Low Bandwidth Mode)
PLL2_CP[1:0]
01 = 346µA
10 = 692µA
11 = reserved
Reduces Charge Pump current by 1/3 to reduce bandwidth variations resulting from higher feedback register
settings or high VCO operating frequency (>2.4GHz).
PLL2_LOW_ICP
ADC_GAIN[3:0]
Gain setting for ADC in Low Bandwidth Mode.
Lower loop PLL charge pump current settings (lower loop is only used in Low Bandwidth Mode):
00 = 800µA
01 = 400µA
10 = 200µA
11 = 100µA
PLL1_CP[1:0]
Table 4L. High Bandwidth Frequency and Frequency Synthesizer Bandwidth Settings
Desired Bandwidth
PLL2_CP
PLL2_LOW_ICP
PLL2_LF
Frequency Synthesizer Mode
200kHz
400kHz
800kHz
2MHz
00
01
10
10
1
1
1
1
00
01
10
11
High Bandwidth Frequency Translator Mode
200kHz
400kHz
800kHz
4MHz
00
01
10
10
1
1
1
0
00
01
10
11
NOTE: To achieve 4MHz bandwidth, reference to the phase detector should be 80MHz.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
12
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
3.63V
Inputs, VI
XTAL_IN
0V to 2V
Other Inputs
-0.5V to VCC + 0.5V
Outputs, VO (LVCMOS)
-0.5V to VCCO + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Outputs, IO (LVDS)
Continuous Current
Surge Current
10mA
15mA
Package Thermal Impedance, θJA
32.4°C/W (0 mps)
-65°C to 150°C
Storage Temperature, TSTG
DC Electrical Characteristics
Table 5A. LVPECL Power Supply DC Characteristics, VCC = VCCO = 3.3V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
VCC
Units
V
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
VCCA
VCCO
IEE
VCC – 0.30
3.135
3.3
V
3.3
3.465
332
V
mA
mA
ICCA
30
Table 5B. LVPECL Power Supply DC Characteristics, VCC = 3.3V 5ꢀ, VCCO = 2.5V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
VCC
Units
V
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
VCCA
VCCO
IEE
VCC – 0.30
2.375
3.3
V
2.5
2.625
332
V
mA
mA
ICCA
30
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
13
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Table 5C. LVPECL Power Supply DC Characteristics, VCC = VCCO = 2.5V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
2.375
Typical
2.5
Maximum
2.625
VCC
Units
V
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
VCCA
VCCO
IEE
VCC – 0.26
2.375
2.5
V
2.5
2.625
319
V
mA
mA
ICCA
26
Table 5D. LVDS Power Supply DC Characteristics, VCC = VCCO = 3.3V 5ꢀ, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
VCC
Units
V
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
Output Supply Current
VCCA
VCCO
ICC
VCC – 0.30
3.135
3.3
V
3.3
3.465
284
V
mA
mA
mA
ICCA
30
ICCO
40
Table 5E. LVDS Power Supply DC Characteristics, VCC = VCCO = 2.5V 5ꢀ, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
2.375
Typical
2.5
Maximum
2.625
VCC
Units
V
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
Output Supply Current
VCCA
VCCO
ICC
VCC – 0.26
2.375
2.5
V
2.5
2.625
275
V
mA
mA
mA
ICCA
26
ICCO
40
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
14
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Table 5F. LVCMOS/LVTTL DC Characteristics, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
CC = 3.3V
VCC = 2.5V
Minimum
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
2
V
V
V
V
VIH
VIL
Input High Voltage
1.7
-0.3
-0.3
V
CC = 3.3V
CC = 2.5V
Input Low Voltage
CLK_SEL, CONFIG,
V
0.7
V
CC = VIN = 3.465V or 2.625V
150
5
µA
µA
µA
PLL_BYPASS, S_A[0:1]
Input
High Current
IIH
OE0, OE1,
SCLK, SDATA
VCC = VIN = 3.465V or 2.625V
CLK_SEL, CONFIG,
PLL_BYPASS, S_A[0:1]
VCC = 3.465V or 2.625V,
VIN = 0V
-5
Input
Low Current
IIL
OE0, OE1,
SCLK, SDATA
VCC = 3.465V or 2.625V,
VIN = 0V
-150
2.6
µA
V
HOLDOVER, SDATA
CLK_ACTIVE,
LOCK_IND, XTALBAD,
CLK0BAD, CLK1BAD
VCC = 3.3V 5ꢀ, IOH = -8mA
Output
High Voltage
VOH
V
CC = 2.5V 5ꢀ, IOH = -8mA
1.8
V
HOLDOVER, SDATA
CLK_ACTIVE,
LOCK_IND, XTALBAD,
CLK0BAD, CLK1BAD
Output
Low Voltage
VCC = 3.3V 5ꢀ or
2.5V 5ꢀ, IOL = 8mA
VOL
0.5
V
Table 5G. Differential DC Characteristics, VCC = VCCO = 3.3V 5ꢀ or 2.5V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
Parameter
Input
Test Conditions
Minimum
Typical
Maximum
Units
CLK0, nCLK0,
CLK1, nCLK1
CLK0, CLK1
IIH
VCC = VIN = 3.465V or 2.625V
150
µA
High Current
VCC = 3.465V or 2.625V, VIN = 0V
VCC = 3.465V or 2.625V, VIN = 0V
-5
µA
µA
V
Input
IIL
Low Current
nCLK0, nCLK1
-150
0.15
VPP
VCMR
Peak-to-Peak Voltage; Note 1
Common Mode Input Voltage;
NOTE 1, 2
1.3
VEE + 0.5
VCC - 1.0
V
NOTE 1: VIL should not be less than -0.3v.
NOTE 2: Common mode input voltage is defined as the crosspoint.
Table 5H. LVPECL DC Characteristics, VCC = VCCO = 3.3V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCCO – 1.1
VCCO – 2.0
0.6
Typical
Maximum
VCCO – 0.7
VCCO – 1.5
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage NOTE 1
Peak-to-Peak Output Voltage Swing
V
V
V
VOL
VSWING
NOTE 1: Outputs terminated with 50Ω to VCCO – 2V.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
15
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Table 5I. LVPECL DC Characteristics, VCC = 3.3V 5ꢀ or 2.5V 5ꢀ, VCCO = 2.5V 5ꢀ, VEE = 0V, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCCO – 1.1
VCCO – 2.0
0.6
Typical
Maximum
VCCO – 0.8
VCCO – 1.5
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage NOTE 1
Peak-to-Peak Output Voltage Swing
V
V
V
VOL
VSWING
NOTE 1: Outputs terminated with 50Ω to VCCO – 2V.
Table 5J. LVDS DC Characteristics, VCC = VCCO = 3.3V 5ꢀ, TA = -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum
454
Units
mV
mV
V
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
247
∆VOD
VOS
50
1.125
1.375
50
∆VOS
VOS Magnitude Change
mV
Table 5K. LVDS DC Characteristics, VCC = VCCO = 2.5V 5ꢀ, TA = -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum
454
Units
mV
mV
V
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
247
∆VOD
VOS
50
1.125
1.375
50
∆VOS
VOS Magnitude Change
mV
Table 6. Input Frequency Characteristics, VCC = VCCO = 3.3V 5ꢀ, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
XTAL_IN, XTAL_OUT
NOTE 1
16
40
MHz
Input
Frequency
High Bandwidth Mode
Low Bandwidth Mode
16
710
710
5
MHz
MHz
MHz
fIN
CLK0, nCLK0,
CLK1, nCLK1
0.008
SCLK
NOTE 1: For the input crystal and CLKx, nCLKx frequency range, the M value must be set for the VCO to operate within the 1995MHz to
2600MHz range.
Table 7. Crystal Characteristics
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Mode of Oscillation
Frequency
Fundamental
16
40
100
7
MHz
Ω
Equivalent Series Resistance (ESR)
Shunt Capacitance
Load Capacitance (CL)
pF
12
pF
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
16
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
AC Electrical Characteristics
Table 8. AC Characteristics, VCC = VCCO = 3.3V 5ꢀ or 2.5V 5ꢀ, or
V
CC = 3.3V 5ꢀ, VCCO = 2.5V 5ꢀ (LVPECL Only), VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
fOUT
Output Frequency
0.98
1300
MHz
Synth Mode (Integer FB),
fOUT = 400MHz, 40MHz XTAL,
Integration Range: 12kHz – 40MHz
285
363
313
446
521
490
fs
fs
fs
Synth Mode (FracN FB),
fOUT = 698.81MHz, 40MHz XTAL,
Integration Range: 12kHz – 20MHz
HBW Mode, (NOTE 1)
fIN = 133.33MHz, fOUT = 400MHz,
RMS Phase Jitter;
Integer Divide Ratio
tjit(Ø)
Integration Range: 12kHz – 20MHz
LBW Mode (FracN), 40MHz XTAL,
f
IN = 19.44MHz, fOUT = 155.52MHz,
Integration Range: 12kHz – 20MHz
(LVDS Output)
439
450
670
670
fs
fs
LBW Mode (FracN), 40MHz XTAL,
fIN = 25MHz, fOUT = 161.1328125MHz,
Integration Range: 12kHz – 20MHz
(LVDS Output)
LVPECL Outputs
LVDS Output
2.2
5.1
5.3
8.7
30
ps
ps
ps
ps
ps
ps
ps
ꢀ
tjit(per)
RMS Period Jitter NOTE 5
Frequency Synthesizer Mode
Frequency Translator Mode
tjit(cc)
tsk(o)
tR / tF
Cycle-to-Cycle Jitter; NOTE 2
Output Skew; NOTE 2, 3
40
42
LVPECL Outputs
LVDS Outputs
20ꢀ to 80ꢀ
20ꢀ to 80ꢀ
100
80
520
520
55
Output
Rise/Fall Time
fOUT < 600MHz
45
odc
Output Duty Cycle
f
OUT ≥ 600MHz
40
60
ꢀ
from falling edge of the 8th SCLK for a
register change
200
10
ns
ns
Output Re-configuration Settling
Time
tSET
from edge on CONFIG pin
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: Measured using a Rohde & Schwarz SMA100 Signal Generator, 9kHz to 6GHz as the input source.
NOTE 2: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 3: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the output differential
cross points.
NOTE 4: RMS Phase Jitter are measured with DBL_XTAL bit set to 1 and crystal CL = 12pf.
NOTE 5: This parameter is defined in accordance with Jedec Standard 65.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
17
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Typical Phase Noise at 400MHz (HBW Mode)
400MHz
RMS Phase Jitter
12kHz to 40MHz = 258fs (typical)
Offset Frequency (Hz)
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
18
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Parameter Measurement Information
2V
2V
2V
2V
SCOPE
SCOPE
V
V
CC,
V
CCO
CC,
Qx
Qx
V
CCO
V
CCA
V
CCA
nQx
nQx
VEE
VEE
-1.3V+0.165V
-0.5V 0.125V
2.5 Core/2.5V LVPECL Output Load Test Circuit
3.3 Core/3.3V LVPECL Output Load Test Circuit
2.8V 0.04V
2V
2.8V 0.04V
SCOPE
V
CC
SCOPE
Qx
V
V
Qx
CC,
V
3.3V 5ꢀ
CCO
POWER SUPPLY
V
CCO
V
CCA
CCA
+
Float GND –
nQx
nQx
VEE
-0.5V 0.125V
3.3 Core/3.3V LVDS Output Load Test Circuit
3.3 Core/2.5V LVPECL Output Load Test Circuit
V
CC
SCOPE
V
Qx
CC,
nCLKx
2.5V 5ꢀ
POWER SUPPLY
V
CCO
V
CCA
VPP
Cross Points
+
Float GND –
CLKx
nQx
VCMR
V
EE
2.5 Core/2.5V LVDS Output Load Test Circuit
Differential Input Levels
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
19
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Parameter Measurement Information, continued
Phase Noise Plot
nQx
Qx
nQy
Qy
Offset Frequency
tsk(o)
f1
f2
RMS Phase Jitter =
1
*
Area Under Curve Defined by the Offset Frequency Markers
2 * * ƒ
RMS Phase Jitter
Output Skew
nQx
Qx
nQx
tPW
Qx
tPERIOD
➤
➤
tcycle n
tcycle n+1
➤
➤
tPW
tjit(cc) = tcycle n – tcycle n+1
|
|
odc =
x 100ꢀ
1000 Cycles
tPERIOD
Cycle-to-Cycle Jitter
Differential Output Duty Cycle/Output Pulse Width/Period
nQx
nQx
80ꢀ
tF
80ꢀ
tF
80ꢀ
tR
80ꢀ
VSWING
20ꢀ
VOD
20ꢀ
20ꢀ
20ꢀ
Qx
Qx
tR
LVDS Output Rise/Fall Time
LVPECL Output Rise/Fall Time
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
20
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Parameter Measurement Information, continued
Offset Voltage Setup
VDD
VOH
out
out
VREF
DC Input
100
LVDS
VOL
1σ contains 68.26ꢀ of all measurements
2σ contains 95.4ꢀ of all measurements
3σ contains 99.73ꢀ of all measurements
4σ contains 99.99366ꢀ of all measurements
6σ contains (100-1.973x10-7)ꢀ of all measurements
Histogram
Reference Point
(Trigger Edge)
Mean Period
(First edge after trigger)
Differential Output Voltage Setup
Period Jitter
VDD
out
DC Input
LVDS
out
VOS/∆ VOS
ä
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
21
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Applications Information
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
Crystal Inputs
LVPECL Outputs
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
For applications not requiring the use of the crystal oscillator input,
both XTAL_IN and XTAL_OUT can be left floating. Though not
required, but for additional protection, a 1kΩ resistor can be tied from
XTAL_IN to ground.
LVDS Outputs
All unused LVDS output pairs can be either left floating or terminated
with 100Ω across. If they are left floating there should be no trace
attached.
CLKx/nCLKx Inputs
For applications not requiring the use of either differential input, both
CLKx and nCLKx can be left floating. Though not required, but for
additional protection, a 1kΩ resistor can be tied from CLKx to ground.
It is recommended that CLKx, nCLKx be left unconnected in
frequency synthesizer mode.
LVCMOS Outputs
All unused LVCMOS output can be left floating. There should be no
trace attached.
LVCMOS Control Pins
All control pins have internal pullups or pulldowns; additional
resistance is not required but can be added for additional protection.
A 1kΩ resistor can be used.
Recommended Values for Low-Bandwidth Mode Loop Filter
External loop filter components are not needed in Frequency
Synthesizer or High-Bandwidth modes. In Low-Bandwidth mode, the
loop filter structure and components shown in Figure 11 are
recommended. Please consult IDT if other values are needed.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
22
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Wiring the Differential Input to Accept Single-Ended Levels
Figure 4 shows how a differential input can be wired to accept single
ended levels. The reference voltage VREF = VCC/2 is generated by
the bias resistors R1 and R2. The bypass capacitor (C1) is used to
help filter noise on the DC bias. This bias circuit should be located as
close to the input pin as possible. The ratio of R1 and R2 might need
to be adjusted to position the VREF in the center of the input voltage
swing. For example, if the input clock swing is 2.5V and VCC = 3.3V,
R1 and R2 value should be adjusted to set VREF at 1.25V. The values
below are for when both the single ended swing and VCC are at the
same voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of
two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50Ω applications, R3 and R4 can be 100Ω.
The values of the resistors can be increased to reduce the loading for
slower and weaker LVCMOS driver. When using single-ended
signaling, the noise rejection benefits of differential signaling are
reduced. Even though the differential input can handle full rail
LVCMOS signaling, it is recommended that the amplitude be
reduced. The datasheet specifies a lower differential amplitude,
however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less
than -0.3V and VIH cannot be more than VCC + 0.3V. Though some
of the recommended components might not be used, the pads
should be placed in the layout. They can be utilized for debugging
purposes. The datasheet specifications are characterized and
guaranteed by using a differential signal.
Figure 4. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
23
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Overdriving the XTAL Interface
The XTAL_IN input can be overdriven by an LVCMOS driver or by one
side of a differential driver through an AC coupling capacitor. The
XTAL_OUT pin can be left floating. The amplitude of the input signal
should be between 500mV and 1.8V and the slew rate should not be
less than 0.2V/nS. For 3.3V LVCMOS inputs, the amplitude must be
reduced from full swing to at least half the swing in order to prevent
signal interference with the power rail and to reduce internal noise.
Figure 5A shows an example of the interface diagram for a high
speed 3.3V LVCMOS driver. This configuration requires that the sum
of the output impedance of the driver (Ro) and the series resistance
(Rs) equals the transmission line impedance. In addition, matched
termination at the crystal input will attenuate the signal in half. This
can be done in one of two ways. First, R1 and R2 in parallel should
equal the transmission line impedance. For most 50Ω applications,
R1 and R2 can be 100Ω. This can also be accomplished by removing
R1 and changing R2 to 50Ω. The values of the resistors can be
increased to reduce the loading for a slower and weaker LVCMOS
driver. Figure 5B shows an example of the interface diagram for an
LVPECL driver. This is a standard LVPECL termination with one side
of the driver feeding the XTAL_IN input. It is recommended that all
components in the schematics be placed in the layout. Though some
components might not be used, they can be utilized for debugging
purposes. The datasheet specifications are characterized and
guaranteed by using a quartz crystal as the input.
VCC
XTAL_OUT
R1
100
C1
Rs
Zo = 50 ohms
Ro
XTAL_IN
.1uf
R2
100
Zo = Ro + Rs
LVCMOS Driver
Figure 5A. General Diagram for LVCMOS Driver to XTAL Input Interface
XTAL_OUT
C2
Zo = 50 ohms
XTAL_I N
.1uf
Zo = 50 ohms
R1
50
R2
50
LVPECL Driver
R3
50
Figure 5B. General Diagram for LVPECL Driver to XTAL Input Interface
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
24
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL, LVHSTL, HCSL and other
differential signals. Both VSWING and VOH must meet the VPP and
VCMR input requirements. Figures 6A to 6E show interface examples
for the CLK/nCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. Please consult
with the vendor of the driver component to confirm the driver
termination requirements. For example, in Figure 6A, the input
termination applies for IDT open emitter LVHSTL drivers. If you are
using an LVHSTL driver from another vendor, use their termination
recommendation.
3.3V
3.3V
3.3V
1.8V
Zo = 50Ω
Zo = 50Ω
CLK
CLK
Zo = 50Ω
Zo = 50Ω
nCLK
Differential
Input
nCLK
LVPECL
Differential
R1
R2
LVHSTL
50Ω
50Ω
Input
R1
50Ω
R2
50Ω
IDT
LVHSTL Driver
R2
50Ω
Figure 6A. CLK/nCLK Input
Figure 6B. CLK/nCLK Input
Driven by an IDT Open Emitter LVHSTL Driver
Driven by a 3.3V LVPECL Driver
3.3V
3.3V
3.3V
3.3V
R3
R4
3.3V
125Ω
125Ω
Zo = 50Ω
Zo = 50Ω
Zo = 50Ω
CLK
CLK
R1
100Ω
nCLK
nCLK
Zo = 50Ω
Differential
Input
LVPECL
Receiver
LVDS
R1
R2
84Ω
84Ω
Figure 6C. CLK/nCLK Input
Figure 6D. CLK/nCLK Input
Driven by a 3.3V LVDS Driver
Driven by a 3.3V LVPECL Driver
3.3V
3.3V
Zo = 50Ω
*R3
*R4
33Ω
33Ω
CLK
Zo = 50Ω
nCLK
Differential
Input
HCSL
R1
50Ω
R2
50Ω
*Optional – R3 and R4 can be 0Ω
Figure 6E. CLK/nCLK Input
Driven by a 3.3V HCSL Driver
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
25
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
LVDS Driver Termination
For a general LVDS interface, the recommended value for the
termination impedance (ZT) is between 90Ω and 132Ω. The actual
value should be selected to match the differential impedance (Z0) of
your transmission line. A typical point-to-point LVDS design uses a
100Ω parallel resistor at the receiver and a 100Ω differential
transmission-line environment. In order to avoid any
transmission-line reflection issues, the components should be
surface mounted and must be placed as close to the receiver as
possible. IDT offers a full line of LVDS compliant devices with two
types of output structures: current source and voltage source. The
standard termination schematic as shown in Figure 7A can be used
with either type of output structure. Figure 7B, which can also be
used with both output types, is an optional termination with center tap
capacitance to help filter common mode noise. The capacitor value
should be approximately 50pF. If using a non-standard termination, it
is recommended to contact IDT and confirm if the output structure is
current source or voltage source type. In addition, since these
outputs are LVDS compatible, the input receiver’s amplitude and
common-mode input range should be verified for compatibility with
the output.
ZO ≈ ZT
LVDS
Receiver
LVDS
Driver
ZT
Figure 7A. Standard Termination
ZT
ZO ≈ ZT
LVDS
Driver
2
ZT
2
LVDS
Receiver
C
Figure 7B. Optional Termination
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
26
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 8A and 8B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50Ω
3.3V
R3
R4
3.3V
3.3V
125Ω
125Ω
3.3V
Z
Z
o = 50Ω
o = 50Ω
3.3V
+
_
Z
o = 50Ω
+
_
Input
LVPECL
LVPECL
Input
Z
o = 50Ω
R1
R2
50Ω
50Ω
R1
84Ω
R2
84Ω
VCC - 2V
1
RTT =
* Zo
RTT
((VOH + VOL) / (VCC – 2)) – 2
Figure 8A. 3.3V LVPECL Output Termination
Figure 8B. 3.3V LVPECL Output Termination
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
27
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Termination for 2.5V LVPECL Outputs
Figure 9A and Figure 9B show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating 50Ω
to VCCO – 2V. For VCCO = 2.5V, the VCCO – 2V is very close to ground
level. The R3 in Figure 9B can be eliminated and the termination is
shown in Figure 9C.
2.5V
VCCO = 2.5V
2.5V
2.5V
VCCO = 2.5V
R1
R3
50Ω
250
250
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
2.5V LVPECL Driver
R2
62.5
R4
62.5
R3
18
Figure 9A. 2.5V LVPECL Driver Termination Example
Figure 9B. 2.5V LVPECL Driver Termination Example
2.5V
VCCO = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
Figure 9C. 2.5V LVPECL Driver Termination Example
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
28
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 10. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Lead frame Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 10. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
29
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Schematic Layout
Figure 11 (next page), shows an example of the UFT
In order to achieve the best possible filtering, it is recommended that
the placement of the filter components be on the device side of the
PCB as close to the power pins as possible. If space is limited, the
0.1uf capacitor in each power pin filter should be placed on the device
side. The other components can be on the opposite side of the PCB.
(IDT8T49N203I) application schematic. Input and output
terminations shown are intended as examples only and may not
represent the exact user configuration. In this example, the device is
operated at VCC = 3.3V. For 2.5V option, please refer to the
“Termination for 2.5V LVPECL Outputs” for output termination
recommendation. The decoupling capacitors should be located as
close as possible to the power pin. A 12pF parallel resonant 16MHz
to 40MHz crystal is used in this example. Different crystal
frequencies may be used. The C1 = C2 = 5pF are recommended for
frequency accuracy. If different crystal types are used, please consult
IDT for recommendations. For different board layout, the C1 and C2
may be slightly adjusted for optimizing frequency accuracy. It is
recommended that the loop filter components be laid out for the
3-pole option. This will also allow either 2-pole or 3-pole filter to be
used. The 3-pole filter can be used for additional spur reduction. If a
2-pole filter construction is used, the LF0 and LF1 pins must be
tied-together to the filter.
Power supply filter recommendations are a general guideline to be
used for reducing external noise from coupling into the devices. The
filter performance is designed for a wide range of noise frequencies.
This low-pass filter starts to attenuate noise at approximately 10 kHz.
If a specific frequency noise component is known, such as switching
power supplies frequencies, it is recommended that component
values be adjusted and if required, additional filtering be added.
Additionally, good general design practices for power plane voltage
stability suggests adding bulk capacitance in the local area of all
devices.
The schematic example focuses on functional connections and is not
configuration specific. Refer to the pin description and functional
tables in the datasheet to ensure the logic control inputs are properly
set
As with any high speed analog circuitry, the power supply pins are
vulnerable to random noise. To achieve optimum jitter performance,
power supply isolation is required. The UFT (IDT8T49N203I)
provides separate power supplies to isolate any high switching noise
from coupling into the internal PLL.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
30
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
3.3V
3.3V
FB1
VDDO
muRata, BLM18BB221SN1
Output Termination Example
output shown (Note 3)
-
LVDS
VDD
C14
C15
C13
0.1uF
10uF
0.1uF
C4
C5
C6
C7
0.1uF
0.1uF
0.1uF
0.1uF
FB2
Zo = Zo_Dif f = 100-ohm
VDD
U1
muRata, BLM18BB221SN1
+
-
C9
C10
R2 10
C11
C12
R1
C8
0.1uF
10uF
0.1uF
10uF
0.1uF
100
C1
16MHz to 40 MHz
27
26
28
X1
12pF
Q0
Q0
5pF
OE0
OE1
(Note 1)
OE0
1
2
VDDO
C2
XTAL_I N
24
23
22
XTAL_OU T
Q1
Q1
5pF
(Note 1)
CLK_SEL
4
5
R17
125
R4
(Note 2)
(Note 1)
CLK_SEL
CLK0
OE1
CLK0
6
30
31
37
38
39
40
LOCK_IND
125
CLK0
LOCK_IND
9
CLK_ACTIVE
HOLDOVER
CLKBAD
CLK1BAD
XTALBAD
Zo = 50-ohm
Zo = 50-ohm
Input Termination
UFT
CLK1
CLK_ACTIVE
HOLDOVER
CLK0BAD
+
-
10
R5
Example
- LVDS input
CLK1
(Note 1)
PLL_BYPASS
12
18
17
15
14
16
shown (Note 3)
100
(Note 2)
PLL_BYPASS
S_A0
CLK1BAD
S_A0
(Note 1)
XTALBAD
nCLK0
S_A1
(Note 1)
S_A1
34
33
SCLK
R6
84
R7
84
3-pole loop filter
SCLK
LF1
LF0
SDATA
SDATA
CONFIG
VDD
CONFIG
(Note 1)
(Note 2)
C3
0.001uF
R9
R10
125
R3
Output Termination Example
output shown (Note 3)
-
LVPECL
125
R11
220K
Rs
R12
CLK1
4.7K
4.7K
470K
Input Termination
Cp
Example
- LVPECL
nCLK1
Cs
input shown (Note 3)
VDD
0.001uF
1uF
R14
84
R15
84
Logic Input Pin Examples
Notes
Note 1: CE0, OE1, CLK_SEL, PLL_BYPASS, S_A0 and S_A1 are digital control inputs. If
external pull-up/down needed, see "Logic Input Pin Examples" shown at left. Please note
that OE0 and OE1 are internally pulled up so no external pull-ups are required to enable
them.
VDD
VDD
2-pole loop filter - (optional)
Set Logic
Input to '1'
Set Logic
Input to '0'
LF1
LF0
RU1
RU2
1K
Not Installed
Note 2: CLK_SEL, PLL_BYPASS and CONFIG are internally pulled down. No external
compononents required to select default condition.
To Logic
To Logic
Input pins
Input pins
Rs
470K
Note 3: Other configurations are supported. Please contact IDT for details.
Cp
Cs
RD1
Not Installed
RD2
1K
0.001uF
1uF
Figure 11. IDT8T49N203I Application Schematic
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
31
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
LVPECL Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8T49N203I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8T49N203I is the sum of the core power plus the power dissipated in the load(s).
The following is the power dissipation for VCC = 3.3V + 5ꢀ = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 332mA = 1150.4W
Power (outputs)MAX = 33.2mW/Loaded Output pair
If all outputs are loaded, the total power is 2 * 33.2mW = 66.4mW
Total Power_MAX (3.465V, with all outputs switching) = 1150.4mW + 66.4mW = 1216.8mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = θJA * Pd_total + TA
Tj = Junction Temperature
θJA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance θJA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 32.4°C/W per Table 9 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 1.127W * 32.4°C/W = 124.4°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 9. Thermal Resistance θJA for 40 Lead VFQFN, Forced Convection
θJA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
32.4°C/W
25.7°C/W
23.4°C/W
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
32
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pairs.
LVPECL output driver circuit and termination are shown in Figure 12.
VCCO
Q1
VOUT
RL
50Ω
VCCO - 2V
Figure 12. LVPECL Driver Circuit and Termination
To calculate worst case power dissipation into the load, use the following equations which assume a 50Ω load, and a termination voltage of
VCCO – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCCO_MAX – 0.7V
(VCCO_MAX – VOH_MAX) = 0.7V
For logic low, VOUT = VOL_MAX = VCCO_MAX – 1.5V
(VCCO_MAX – VOL_MAX) = 1.5V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCCO_MAX – 2V))/RL] * (VCCO_MAX – VOH_MAX) = [(2V – (VCCO_MAX – VOH_MAX))/RL] * (VCCO_MAX – VOH_MAX) =
[(2V – 0.7V)/50Ω] * 0.7V = 18.2mW
Pd_L = [(VOL_MAX – (VCCO_MAX – 2V))/RL] * (VCCO_MAX – VOL_MAX) = [(2V – (VCCO_MAX – VOL_MAX))/RL] * (VCCO_MAX – VOL_MAX) =
[(2V – 1.5V)/50Ω] * 1.5V = 15mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 33.2mW
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
33
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
LVDS Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8T49N203I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8T49N203I is the sum of the core power plus the power dissipated in the load(s).
The following is the power dissipation for VCC = 3.3V + 5ꢀ = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (core)MAX = VCC_MAX * (ICC_MAX + ICCA_MAX) = 3.465V * (284mA + 30mA) = 1088.01mW
Power (outputs)MAX = VCCO_MAX* ICCO_MAX = 3.465V * 40mA = 138.6mW
Total Power_MAX = 1088.01mW + 138.6mW = 1226.61mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = θJA * Pd_total + TA
Tj = Junction Temperature
θJA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance θJA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 32.4°C/W per Table 10 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 1.227W * 32.4°C/W = 124.8°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 10. Thermal Resistance θJA for 40 Lead VFQFN, Forced Convection
θJA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
32.4°C/W
25.7°C/W
23.4°C/W
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
34
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Reliability Information
Table 11. θJA vs. Air Flow Table for a 40 Lead VFQFN
θJA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
32.4°C/W
25.7°C/W
23.4°C/W
Transistor Count
The transistor count for IDT8T49N203I is: 50,917
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
35
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
40 Lead VFQFN Package Outline and Package Dimensions
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
36
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
40 Lead VFQFN Package Outline and Package Dimensions, continued
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
37
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Ordering Information
Table 12. Ordering Information
Part/Order Number
Marking
Package
“Lead-Free” 40 Lead VFQFN
“Lead-Free” 40 Lead VFQFN
Shipping Packaging
Tray
Temperature
-40°C to +85°C
-40°C to +85°C
8T49N203A-dddNLGI
8T49N203A-dddNLGI8
IDT8T49N203A-dddNLGI
IDT8T49N203A-dddNLGI
Tape & Reel
NOTE: For the specific -ddd order codes, refer to FemtoClock NG Universal Frequency Translator Ordering Product Information document.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
38
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
Revision History Sheet
Rev
Table
T12
T8
Page
38
Description of Change
Date
A
5/29/2012
Ordering Information Table - deleted quantity from tape & reel.
17
Per Errata #NEN-12-02, AC Characteristics Table - corrected fourth row test condition
of RMS Phase Jitter LBW Mode from fIN - 25MHz to fIN - 19.44MHz.
B
C
8/10/2012
10/9/2012
T5A - T5E
13 - 14
34
Per Errata #NEN-12-07, Power Supply Tables - changed VCCA min. specs and ICCA
max specs.
LVDS Power Considerations - updated calculations to correspond to ICCA spec.
IDT8T49N203ANLGI REVISION C OCTOBER 9, 2012
39
©2012 Integrated Device Technology, Inc.
IDT8T49N203I Data Sheet
FemtoClock® NG Universal Frequency Translator
We’ve Got Your Timing Solution
6024 Silver Creek Valley Road Sales
Technical Support
800-345-7015 (inside USA)
netcom@idt.com
San Jose, California 95138
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditons or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signif-
icantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2012. All rights reserved.
厂商 型号 描述 页数 下载

HUTSON

 		8T44A [ TRIAC, 400V V(DRM), 4A I(T)RMS, TO-202, ] 2 页

TECCOR

 		8T44HA 晶闸管产品目录[ Thyristor Product Catalog ] 223 页

HUTSON

 		8T44HA [ TRIAC, 400V V(DRM), 4A I(T)RMS, TO-202, ] 2 页

TECCOR

 		8T44SH 晶闸管产品目录[ Thyristor Product Catalog ] 223 页

HUTSON

 		8T44SH [ 4 Quadrant Logic Level TRIAC, 400V V(DRM), 4A I(T)RMS, TO-202, ] 2 页

HUTSON

 		8T44TH [ TRIAC, 400V V(DRM), 4A I(T)RMS, TO-202, ] 2 页

HUTSON

 		8T46HA [ TRIAC, 400V V(DRM), 6A I(T)RMS, TO-202, ] 2 页

HUTSON

 		8T46SH [ 4 Quadrant Logic Level TRIAC, 400V V(DRM), 6A I(T)RMS, TO-202 ] 2 页

HUTSON

 		8T46TH [ TRIAC, 400V V(DRM), 6A I(T)RMS, TO-202, ] 2 页

VISHAY

 		8T4702A5 [ RESISTOR, TEMPERATURE DEPENDENT, NTC, 47000 ohm, CHASSIS MOUNT, RADIAL LEADED ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.241282s
