TZB4Z060BE10R01

型号：

TZB4Z060BE10R01

品牌：

MURATA[ muRata ]

页数：

5 页

PDF大小：

87 K

下载PDF手册
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.

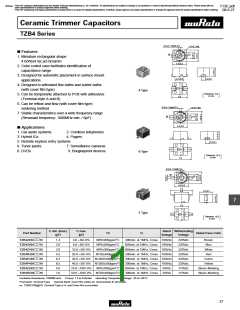

Ceramic Trimmer Capacitors
TZB4 Series
0.6±0.1 Depth 0.5
1.4±0.1 dia.
■ Features
1. Miniature rectangular shape:
4.0(W)x4.5(L)x3.0(H)mm
4.5±0.2
2. Color coded case facilitates identification of
capacitance range.
3. Designed for automatic placement in surface mount
applications.
2.7±0.3
1.2±0.1
4. Designed to withstand flux baths and solder baths
(with cover film type)
A Type
Tolerance: ±0.5
5. Can be temporarily attached to PCB with adhesives
(Terminal style A and B)
in mm
5.0
6. Can be reflow and flow (with cover film type)
soldering method
0.6±0.1 Depth 0.5
1.4±0.1 dia.
7. Stable characteristics over a wide frequency range
(Resonant frequency: 1000MHz min. / 6pF)
4.5±0.2
■ Applications
1. Car audio systems
2. Cordless telephones
4. Pagers
3. Hybrid ICs
5. Remote keyless entry systems
1.2±0.1
6. Tuner packs
8. DVDs
7. Surveillance cameras
9. Burglarproof devices
B Type
Tolerance: ±0.5
in mm
7.0
0.6±0.1 Depth 0.5
4.5±0.2
7.0
4.8
4.0±0.2
7
4.5
E Type
Tolerance: ±0.5
in mm
C min. (max.)
(pF)
C max.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZB4Z030pp10
TZB4Z060pp10
TZB4Z100pp10
TZB4R200pp10
TZB4P300pp10
TZB4P400pp10
TZB4Z250pp10
TZB4R500pp10
1.4
2.0
3.0
4.5
6.5
8.5
4.0
7.0
3.0 +50/-0%
6.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±300ppm/°C
N750±400ppm/°C
300min. at 1MHz, Cmax 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
Brown
Blue
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
40.0 +50/-0%
25.0 +100/-0%
50.0 +100/-0%
White
Red
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
Green
Yellow
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax 50Vdc
Black+Marking
Black+Marking
Insulation Resistance: 10000M ohm Torque: 1.5 to 9.8mNm Operating Temperature Range: -25 to +85°C
First blank: Terminal Type Second blank: Cover film codes (A: not provided, B: provided)
ex. TZB4Z100AB10: Terminal Type is A, and Cover film is provided.
27
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
■ Construction
Cover Film (Cover film type)
Rotor Spring
Plastic Case
−
Metal Rotor
Ceramic Plate
Stator Terminal
+
Rotor Terminal
■ Land Pattern/Mounting Holes
A Type
B Type
+0
- 0.5
+0
8.0
7.0
- 0.5
4.0±0.2
2.4±0.2
(in mm)
(in mm)
E Type
+0
- 0.5
8.0
4.2±0.2
7
3.2±0.2 dia.
(in mm)
■ Temperature Characteristics
TZB4Z060
TZB4Z100
Z060 (NP0±200ppm/°C)
Z100 (NP0±300ppm/°C)
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+55
+55
+85
Temp. (°C)
+20
+85
0
–2
0
–2
–25
Temp. (°C)
–25
0
0
–4
–6
–4
–6
–8
–8
–10
–10
Continued on the following page.
28
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Continued from the preceding page.
■ Temperature Characteristics
TZB4R200
TZB4R500
R200 (N750±400ppm/°C)
R500 (N750±300ppm/°C)
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+85
+55
+20
+55
+85
0
–2
0
–2
Temp. (°C)
Temp.(°C)
0
–25
0
–25
–4
–6
–4
–6
–8
–8
–10
–10
■ Frequency Characteristics
TZB4Z060
TZB4Z100
Z060
Z100
1000
1000
1000
1000
100
Q
100
100
100
Q
10
10
10
10
1
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
TZB4R200
TZB4R500
R500
R200
7
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
100
200
300
400
500
600
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
29
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
Continued from the preceding page.
■ Temperature Profile
Flow Soldering Profile
Soldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu), Eutectic solder (63Sn/37Pb)
T3
T2
Standard Profile
t2
Limit Profile
Pre-heating
Heating
Temp. (T2)
Cycle
T1
of reflow
Standard Profile
Temp. (T1)
Time (t1)
Time (t2)
150°C
60 to 120sec.
250°C
5sec. max.
1 time
t1
time (s)
Limit Profile
Pre-heating
Heating
• Immerse the body in solder bath, available for cover film type.
Cycle
of reflow
Temp. (T1)
Time (t1)
Temp. (T3)
Time (t2)
150°C
60 to 120sec.
265±3°C
5sec. max.
2 times
Reflow Soldering Profile
qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)
wSoldering profile for Eutectic solder (63Sn/37Pb)
(Limit profile: refer to q)
T5
T3
T4
T2
T3
T2
T1
t2
t2
t3
Limit Profile
T1
Standard Profile
Standard Profile
t1
time (s)
t1
time (s)
Standard Profile
Heating
Standard Profile
Heating
Peak
temperature
(T3)
Peak
temperature
(T3)
Pre-heating
Pre-heating
Cycle
Cycle
of reflow
of reflow
Temp. (T1) Time (t1) Temp. (T2) Time (t2)
150 to 180°C 60 to 120sec. 220°C
Temp. (T1) Time (t1) Temp. (T2) Time (t2)
30 to 60sec. 245±3°C
2 times
150°C 60 to 120sec. 183°C
30sec. 230 +5/-0°C 1 time
Limit Profile
Heating
Peak
temperature
(T5)
Pre-heating
Cycle
of reflow
Temp. (T1) Time (t1) Temp. (T4) Time (t3)
150 to 180°C 60 to 120sec. 230°C
30 to 50sec. 260 +5/-0°C 2 times
• Available for terminal shape A, B, and E..
Solder Iron
Standard Profile
Temperature of soldering iron tip
Soldering time
Soldering iron power output
Cycle of solder iron
7
350±10°C
3sec. max.
30W max.
1 time
■ Notice (Storage and Operating Condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
6. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxide gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 degrees C and 30 to
85%RH.
(2) In liquid (ex. water, oil, medical liquid,
organic solvent, etc.)
3. Do not store in or near corrosive gasses.
4. Use within 6 months of delivery.
(3) Dusty / dirty atmosphere
5. Do not store under direct sunlight.
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
(7) Other variations of the above
30
• This PDF catalog is downloaded from the website of Murata Manufacturing co., ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued without advance notice. Please check with our
!Note
T13E.pdf
sales representatives or product engineers before ordering.
08.8.27
• This PDF catalog has only typical specifications because there is no space for detailed specifications. Therefore, please approve our product specifications or transact the approval sheet for product specifications before ordering.
■ Notice (Soldering and Mounting)
1. Soldering
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
(1) Can be soldered by reflow soldering method, flow
soldering method, and soldering iron.
(2) Soldering condition
Refer to the temperature profile.
2. Mounting
If the soldering conditions are not suitable, e.g.,
excessive time and/or excessive temperature, the
trimmer capacitor may deviate from the specified
characteristics.
(1) Do not apply excessive force (preferably 5.0N
[Ref: 500gf] max.), when the trimmer capacitor
is mounted on the PCB.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) The amount of solder is critical.
(4) The thickness of solder paste should be printed
from 150 micro m to 200 micro m and the dimension
of land pattern should be Murata's standard land
pattern used at reflow soldering. Insufficient
amounts of solder can lead to insufficient
soldering strength on PCB. Excessive amounts of
solder may cause bridging between the terminals
or contact failure due to flux wicking up.
(5) When using soldering iron, the string solder
should be applied to the lower part of the
terminal only. Do not apply flux except to the
terminals. Excessive amounts of solder and/or
applying solder to the upper part of the
terminal may cause fixed rotor or contact failure
due to flux invasion into the movable part and/or
the contact point. The soldering iron should not
come in contact with the plastic case of the
trimmer capacitor. If such contact does occur,
the trimmer capacitor may be damaged.
(6) Our recommended chlorine content of solder is
as follows.
(3) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
(4) Use the suitable dimension of the pick-up nozzle.
> Without cover film type
- External dimensions of 4.5x4.0mm and
2.5mm bore diameter.
> With cover film type
- 4.0mm external diameter and 2.0mm bore
diameter.
3. Cleaning [with cover film type]
Isopropyl alcohol and Ethyl alcohol are available
material for cleaning. If you use any other types
of solvents, please evaluate performance by
your set. Moreover, please confirm no damage for
trimmer capacitor after cleaning by your conditions.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
(a) Solder paste: 0.2wt% max.
(b) String solder: 0.5wt% max.
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
driver slot.
7
(1) Recommended screwdriver for manual adjustment
MURATA: KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
4. Do not break the cover film before the completion
of PCB mounting, soldering, and cleaning.
5. Do not clean the trimmer capacitor after the cover
film has been broken.
MURATA: KMBT010
2. When adjusting with a screwdriver, do not apply
excessive force (preferably 1.0 N [Ref: 100gf] max.)
to minimize capacitance drift. If excessive force
is applied to the screwdriver slot, it may cause
deformation of the products.
6. To break the cover film, first turn the screwdriver
more than 360 deg., and set the capacitance value.
(Only inserting the screwdriver cannot break the
cover film.)
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
31
厂商 型号 描述 页数 下载

RHOMBUS-IND

 		TZB1-10 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB1-20 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB1-5 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB1-7 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB12-10 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB12-20 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB12-5 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB12-7 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB18-10 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

RHOMBUS-IND

 		TZB18-20 TZB - TYB - TUB系列10抽头高性能无源延时[ TZB-TYB-TUB Series 10-Tap High Performance Passive Delays ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.245989s
