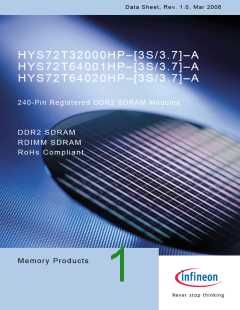

Data Sheet, Rev. 1.0, Mar 2006
HYS72T32000HP–[3S/3.7]–A
HYS72T64001HP–[3S/3.7]–A
HYS72T64020HP–[3S/3.7]–A
240-Pin Registered DDR2 SDRAM Modules
DDR2 SDRAM
RDIMM SDRAM
RoHs Compliant
Memory Products
Edition 2006-03
Published by Infineon Technologies AG,
St.-Martin-Strasse 53,
81669 München, Germany
© Infineon Technologies AG 2006.
All Rights Reserved.
Attention please!
The information herein is given to describe certain components and shall not be considered as a guarantee of
characteristics.
Terms of delivery and rights to technical change reserved.
We hereby disclaim any and all warranties, including but not limited to warranties of non-infringement, regarding
circuits, descriptions and charts stated herein.
Information
For further information on technology, delivery terms and conditions and prices please contact your nearest
Infineon Technologies Office (www.infineon.com).
Warnings
Due to technical requirements components may contain dangerous substances. For information on the types in
question please contact your nearest Infineon Technologies Office.
Infineon Technologies Components may only be used in life-support devices or systems with the express written
approval of Infineon Technologies, if a failure of such components can reasonably be expected to cause the failure
of that life-support device or system, or to affect the safety or effectiveness of that device or system. Life support
devices or systems are intended to be implanted in the human body, or to support and/or maintain and sustain
and/or protect human life. If they fail, it is reasonable to assume that the health of the user or other persons may
be endangered.
HYS72T32000HP–[3S/3.7]–A, HYS72T64001HP–[3S/3.7]–A, HYS72T64020HP–[3S/3.7]–A
Revision History: 2006-03, Rev. 1.0
Page
Subjects (major changes since last revision)
First Public Release
We Listen to Your Comments
Any information within this document that you feel is wrong, unclear or missing at all?
Your feedback will help us to continuously improve the quality of this document.
Please send us your proposal (including a reference to this document) to:
techdoc.mp@infineon.com
Template: mp_a4_s_rev321 / 3 / 2005-10-05
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Table of Contents
1
1.1
1.2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2
2.1
2.2
Pin Configuration and Block Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Pin Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3
3.1
3.2
3.3
3.3.1
3.3.2
3.3.3
3.4
3.4.1
3.4.2
Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Absolute Maximum Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
DC Operating Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
AC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Speed Grades Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
AC Timing Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
ODT AC Electrical Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Currents Specifications and Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Currents Test Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
On Die Termination (ODT) Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4
5
6
SPD Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Package Outlines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Product Type Nomenclature (DDR2 DRAMs and DIMMs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Data Sheet
4
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
240-Pin Registered DDR2 SDRAM Modules
DDR2 SDRAM
HYS72T32000HP–[3S/3.7]–A
HYS72T64001HP–[3S/3.7]–A
HYS72T64020HP–[3S/3.7]–A
1
Overview
This chapter gives an overview of the 240-pin Registered DDR2 SDRAM Modules with parity bit product family
and describes its main characteristics.
1.1
Features
•
•
240-pin PC2–5300 and PC2–4200 DDR2 SDRAM
memory modules.
One rank in 32M × 72, 64M x 72 and two rank in
64M × 72 module organization and 32M × 8,
64M × 4 chip organization
256M, 512 MByte modules are built with 256-Mbit
DDR2 SDRAMs in P-TFBGA-60 chipsize
packages.
Standard Double-Data-Rate-Two Synchronous
DRAMs (DDR2 SDRAM) with a single + 1.8 V
(± 0.1 V) power supply
•
Programmable CAS Latencies (3, 4 and 5), Burst
Length (4 & 8) and Burst Type
•
•
Auto Refresh (CBR) and Self Refresh
Average Refresh Period 7.8 µs at a TCASE lower
than 85 °C, 3.9 µs between 85 °C and 95 °C
Programmable self refresh rate via EMRS2 setting
All inputs and outputs SSTL_18 compatible
Off-Chip Driver Impedance Adjustment (OCD) and
On-Die Termination (ODT)
Serial Presence Detect with E2PROM
Based on standard reference layouts Raw Cards
“F”, “G” and “H”
•
•
•
•
•
•
•
•
•
All speed grades faster than DDR2-400 comply with
DDR2-400 timing specifications as well.
Registered DIMM with Parity bit for address and
control bus
•
•
RDIMM with parity bit Dimensions (nominal):
30.00 mm high, 133.35 mm wide
RoHS compliant products1)
Table 1
Performance for PC2–5300–555
Product Type Speed Code
Speed Grade
–3S
Unit
PC2–5300 5–5–5
—
Max. Clock Frequency
@CL5
@CL4
@CL3
fCK5
fCK4
fCK3
tRCD
tRP
333
266
200
15
MHz
MHz
MHz
ns
Min. RAS-CAS-Delay
Min. Row Precharge Time
Min. Row Active Time
Min. Row Cycle Time
15
ns
tRAS
tRC
45
ns
60
ns
1) RoHS Compliant Product: Restriction of the use of certain hazardous substances (RoHS) in electrical and electronic
equipment as defined in the directive 2002/95/EC issued by the European Parliament and of the Council of 27 January
2003. These substances include mercury, lead, cadmium, hexavalent chromium, polybrominated biphenyls and
polybrominated biphenyl ethers.
Data Sheet
5
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
OverviewFeatures
Table 2
Performance for PC2–4200–444
Product Type Speed Code
Speed Grade
–3.7
Unit
PC2–4200 4–4–4
—
Max. Clock Frequency
@CL5
@CL4
@CL3
fCK5
fCK4
fCK3
tRCD
tRP
266
266
200
15
MHz
MHz
MHz
ns
Min. RAS-CAS-Delay
Min. Row Precharge Time
Min. Row Active Time
Min. Row Cycle Time
15
ns
tRAS
tRC
45
ns
60
ns
Table 3
Performance for PC2–3200–333
Product Type Speed Code
Speed Grade
–5
Units
PC2–3200 3–3–3
200
—
Max. Clock Frequency
@CL5
@CL4
@CL3
fCK5
fCK4
fCK3
tRCD
tRP
MHz
MHz
MHz
ns
200
200
15
Min. RAS-CAS-Delay
Min. Row Precharge Time
Min. Row Active Time
Min. Row Cycle Time
15
ns
tRAS
tRC
40
ns
55
ns
Data Sheet
6
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
OverviewDescription
1.2
Description
The INFINEON HYS72T[32/64]xxxHP–[3S/3.7]–A module family are Registered DIMM (RDIMM with parity) with
30.00 mm height based on DDR2 technology. DIMMs are available as ECC modules in 32M × 72 (256 Mbyte) and
64M x 72 (512 MByte) organization and density, intended for mounting into 240-Pin connector sockets.
The memory array is designed with 256-Mbit Double-Data-Rate-Two (DDR2) Synchronous DRAMs. All control
and address signals are re-driven on the DIMM using register devices and a PLL for the clock distribution. This
reduces capacitive loading to the system bus, but adds one cycle to the SDRAM timing. Decoupling capacitors
are mounted on the PCB board. The DIMMs feature serial presence detect based on a serial E2PROM device
using the 2-pin I2C protocol. The first 128 bytes are programmed with configuration data and the second 128 bytes
are available to the customer.
Table 4
Ordering Information for RoHS Compliant Products
Product Type1)
Compliance Code2)
Description SDRAM Technology
PC2-5300
HYS72T32000HP–3S–A
HYS72T64001HP–3S–A
HYS72T64020HP–3S–A
PC2-4200
256MB 1R×8 PC2–5300P–555–12–F0
512MB 1R×4 PC2–5300P–555–12–H0
512MB 2R×8 PC2–5300P–555–12–G0
1 Rank, ECC 256 Mbit (×8)
1 Rank, ECC 256 Mbit (×4)
2 Rank, ECC 256 Mbit (×8)
HYS72T32000HP–3.7–A
HYS72T64001HP–3.7–A
HYS72T64020HP–3.7–A
256MB 1R×8 PC2–4200P–444–12–F0
512MB 1R×4 PC2–4200P–444–12–H0
512MB 2R×8 PC2–4200P–444–12–G0
1 Rank, ECC 256 Mbit (×8)
1 Rank, ECC 256 Mbit (×4)
2 Rank, ECC 256 Mbit (×8)
1) All Product Types end with a place code, designating the silicon die revision. Example: HYS72T64020HP–3.7–A, indicating
Rev. “A” dies are used for DDR2 SDRAM components. For all INFINEON DDR2 module and component nomenclature see
Chapter 6 of this data sheet.
2) The Compliance Code is printed on the module label and describes the speed grade, for example “PC2–4200P–444–
12–G0”, where 4200P means Very Low Profile Registered DIMM modules with 4.26 GB/sec Module Bandwidth and “444-
12” means Column Address Strobe (CAS) latency = 4, Row Column Delay (RCD) latency = 4 and Row Precharge (RP)
latency = 4 using the latest JEDEC SPD Revision 1.2 and produced on the Raw Card “G”
Table 5
Address Format
DIMM
Module
Memory ECC/
# of
# of row/bank/columns bits Raw Card
Density
Organization
Ranks
Non-ECC
SDRAMs
256 MB
512 MB
512 MB
32M × 72
64M × 72
64M × 72
1
1
2
ECC
ECC
ECC
9
13/2/10
13/2/11
13/2/10
F
18
18
H
G
Table 6
Components on Modules 1)
Product Type2)
DRAM Components2)
HYB18T256800AF
HYB18T256400AF
HYB18T256800AF
DRAM Density
256 Mbit
DRAM Organization
32M × 8
HYS72T32000HP
HYS72T64001HP
HYS72T64020HP
256 Mbit
64M × 4
256Mbit
32M × 8
1) For a detailed description of all available functions of the DRAM components on these modules see the component data
sheet.
2) Green Product
Data Sheet
7
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
2
Pin Configuration and Block Diagrams
2.1
Pin Configuration
The pin configuration of the Registered DDR2 SDRAM explained in Table 8 and Table 9 respectively. The pin
DIMM is listed by function in Table 7 (240 pins). The numbering is depicted in Figure 1.
abbreviations used in columns Pin and Buffer Type are
Table 7
Pin Configuration of RDIMM
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
Clock Signals
185
186
CK0
CK0
I
I
SSTL
SSTL
Clock Signal CK0, Complementary Clock Signal CK0
The system clock inputs. All address and command lines are
sampled on the cross point of the rising edge of CK and the
falling edge of CK. A Delay Locked Loop (DLL) circuit is driven
from the clock inputs and output timing for read operations is
synchronized to the input clock.
52
CKE0
CKE1
I
I
SSTL
SSTL
Clock Enables 1:0
Activates the DDR2 SDRAM CK signal when HIGH and
deactivates the CK signal when LOW. By deactivating the
clocks, CKE0 initiates the Power Down Mode or the Self
Refresh Mode.
171
Note: 2-Ranks module
Not Connected
NC
NC
—
Note: 1-Rank module
Control Signals
193
76
S0
S1
I
I
SSTL
SSTL
Chip Select Rank 1:0
Enables the associated DDR2 SDRAM command decoder
when LOW and disables the command decoder when HIGH.
When the command decoder is disabled, new commands are
ignored but previous operations continue. Rank 0 is selected by
S0; Rank 1 is selected by S1. The input signals also disable all
outputs (except CKE and ODT) of the register(s) on the DIMM
when both inputs are high. When S is HIGH, all register outputs
(except CK, ODT and Chip select) remain in the previous state.
Note: 2-Ranks module
Not Connected
NC
NC
—
Note: 1-Rank module
192
74
RAS
CAS
WE
I
I
I
SSTL
SSTL
SSTL
Row Address Strobe (RAS), Column Address Strobe
(CAS), Write Enable (WE)
When sampled at the cross point of the rising edge of CK, and
falling edge of CK, RAS, CAS and WE define the operation to
be executed by the SDRAM.
73
Data Sheet
8
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
18
RESET
I
CMOS Register Reset
The RESET pin is connected to the RST pin on the register and
to the OE pin on the PLL. When LOW, all register outputs will
be driven LOW and the PLL clocks to the DRAMs and the
register(s) will be set to low-level. The PLL will remain
synchronized with the input clock.
Address Signals
71
BA0
BA1
BA2
I
I
I
SSTL
SSTL
SSTL
Bank Address Bus 1:0
Selects internal SDRAM memory bank
190
54
Bank Address Bus 2
Greater than 512Mb DDR2 SDRAMS
NC
I
SSTL
Not Connected
Less than 1Gb DDR2 SDRAMS
188
183
63
A0
I
I
I
I
I
I
I
I
I
I
I
I
I
I
I
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Address Bus 12:0, Address Signal 10/AutoPrecharge
During a Bank Activate command cycle, defines the row
address when sampled at the crosspoint of the rising edge of
CK and falling edge of CK. During a Read or Write command
cycle, defines the column address when sampled at the cross
point of the rising edge of CK and falling edge of CK. In addition
to the column address, AP is used to invoke autoprecharge
operation at the end of the burst read or write cycle. If AP is
HIGH, autoprecharge is selected and BA[1:0] defines the bank
to be precharged. If AP is LOW, autoprecharge is disabled.
During a Precharge command cycle, AP is used in conjunction
with BA[1:0] to control which bank(s) to precharge. If AP is
HIGH, all banks will be precharged regardless of the state of
BA[1:0] inputs. If AP is LOW, then BA[1:0] are used to define
which bank to precharge.
A1
A2
182
61
A3
A4
60
A5
180
58
A6
A7
179
177
70
A8
A9
A10
AP
A11
A12
A13
57
176
196
Address Signal 13
Note: modules based on ×4, ×8
Not Connected
NC
A14
NC
NC
I
—
Note: modules based on ×16
Address Signal 14
174
SSTL
—
Note: 2 Gbit based module
Not Connected
NC
Note: 1 Gbit based module or smaller
Data Sheet
9
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
Data Signals
3
DQ0
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Bus 63:0
Data Input/Output pins
4
DQ1
9
DQ2
10
DQ3
122
123
128
129
12
DQ4
DQ5
DQ6
DQ7
DQ8
13
DQ9
21
DQ10
DQ11
DQ12
DQ13
DQ14
DQ15
DQ16
DQ17
DQ18
DQ19
DQ20
DQ21
DQ22
DQ23
DQ24
DQ25
DQ26
DQ27
DQ28
DQ29
DQ30
DQ31
DQ32
DQ33
DQ34
DQ35
DQ36
DQ37
DQ38
22
131
132
140
141
24
25
30
31
143
144
149
150
33
34
39
40
152
153
158
159
80
81
86
87
199
200
205
Data Sheet
10
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
206
89
DQ39
DQ40
DQ41
DQ42
DQ43
DQ44
DQ45
DQ46
DQ47
DQ48
DQ49
DQ50
DQ51
DQ52
DQ53
DQ54
DQ55
DQ56
DQ57
DQ58
DQ59
DQ60
DQ61
DQ62
DQ63
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Bus 63:0
90
95
96
208
209
214
215
98
99
107
108
217
218
226
227
110
111
116
117
229
230
235
236
Check Bits
42
CB0
CB1
CB2
CB3
CB4
CB5
CB6
CB7
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Check Bits 7:0
Check Bit Input / Output pins
43
Note: NC on Non-ECC module
48
49
161
162
167
168
Data Sheet
11
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
Data Strobe Bus
7
DQS0
DQS0
DQS1
DQS1
DQS2
DQS2
DQS3
DQS3
DQS4
DQS4
DQS5
DQS5
DQS6
DQS6
DQS7
DQS7
DQS8
DQS8
DQS9
DQS9
DQS10
DQS10
DQS11
DQS11
DQS12
DQS12
DQS13
DQS13
DQS14
DQS14
DQS15
DQS15
DQS16
DQS16
DQS17
DQS17
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
I/O
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Strobes 17:0
The data strobes, associated with one data byte, sourced with
data transfers. In Write mode, the data strobe is sourced by the
controller and is centered in the data window. In Read mode the
data strobe is sourced by the DDR2 SDRAM and is sent at the
leading edge of the data window. DQS signals are
complements, and timing is relative to the crosspoint of
respective DQS and DQS. If the module is to be operated in
single ended strobe mode, all DQS signals must be tied on the
system board to VSS through a 20 ohm to 10 Kohm resistor and
DDR2 SDRAM mode registers programmed appropriately.
6
16
15
28
27
37
36
84
83
Note: See block diagram for corresponding DQ signals
93
92
105
104
114
113
46
45
125
126
134
135
146
147
155
156
202
203
211
212
223
224
232
233
164
165
Data Sheet
12
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Pin or Ball No.
Name
Pin
Buffer Function
Type Type
Data Mask
125
DM0
DM1
DM2
DM3
DM4
DM5
DM6
DM7
DM8
I
I
I
I
I
I
I
I
I
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
SSTL
Data Masks 7:0
The data write masks, associated with one data byte. In Write
mode, DM operates as a byte mask by allowing input data to be
written if it is LOW but blocks the write operation if it is HIGH. In
Read mode, DM lines have no effect.
134
146
155
202
Note: ×8 based module
211
223
232
164
EEPROM
120
SCL
SDA
I
CMOS Serial Bus Clock
This signal is used to clock data into and out of the SPD
EEPROM.
119
I/O
OD
Serial Bus Data
This is a bidirectional pin used to transfer data into or out of the
SPD EEPROM. A resistor must be connected from SDA to
V
DDSPD on the motherboard to act as a pull-up.
239
240
101
Parity
55
SA0
SA1
SA2
I
I
I
CMOS Serial Address Select Bus 2:0
These signals are tied at the system planar to either VSS or
DDSPD to configure the serial SPD EEPROM address range
CMOS
CMOS
V
ERR_OUT
PAR_IN
O
I
CMOS Parity bits
CMOS
Note: Only for modules with parity bit for address and control
bus. Not connected on non-parity registered modules.
Power Supplies
1
VREF
AI
—
I/O Reference Voltage
Reference voltage for the SSTL-18 inputs.
238
VDDSPD
PWR —
EEPROM Power Supply
Serial EEPROM positive power supply, wired to a separated
power pin at the connector which supports from 1.7 Volt to 3.6
Volt.
51, 56, 62, 72, 75, VDDQ
78, 170, 175,,
181, 191, 194
PWR —
PWR —
I/O Driver Power Supply
Power and ground for the DDR SDRAM
53, 59, 64, 67, 69, VDD
172, 178, 184,,
Power Supply
Power and ground for the DDR SDRAM
187, 189, 197
Data Sheet
13
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 7
Pin Configuration of RDIMM (cont’d)
Name Pin Buffer Function
Pin or Ball No.
Type Type
2, 5, 8, 11, 14, 17, VSS
20, 23, 26, 29, 32,
35, 38, 41, 44, 47,
50, 65, 66, 79, 82,
85, 88, 91, 94, 97,
100, 103, 106,
109, 112, 115,
118, 121, 124,
127, 130, 133,
136, 139, 142,
145, 148, 151,
154, 157, 160,
163, 166, 169,
198, 201, 204,
207, 210, 213,
216, 219, 222,
225, 228, 231,
234, 237
GND —
Ground Plane
Power and ground for the DDR SDRAM
Other Pins
19, 55, 68, 102,
137, 138, 173,
220, 221
NC
NC
—
Not connected
Pins not connected on Infineon RDIMM’s
195
77
ODT0
ODT1
I
I
SSTL
SSTL
On-Die Termination Control 1:0
Asserts on-die termination for DQ, DM, DQS, and DQS signals
if enabled via the DDR2 SDRAM mode register.
Note: 2-Ranks module
NC
NC
—
Note: 1-Rank modules
Table 8
Abbreviations for Buffer Type
Description
Abbreviation
SSTL
Serial Stub Terminated Logic (SSTL_18)
CMOS Levels
CMOS
OD
Open Drain. The corresponding pin has 2 operational states, active low and
tristate, and allows multiple devices to share as a wire-OR.
Data Sheet
14
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
Table 9
Abbreviations for Pin Type
Abbreviation
Description
I
Standard input-only pin. Digital levels.
Output. Digital levels.
I/O is a bidirectional input/output signal.
Input. Analog levels.
Power
O
I/O
AI
PWR
GND
NU
NC
Ground
Not Usable
Not Connected
Data Sheet
15
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
ꢃ






HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsPin Configuration
95() ꢃ 3LQꢄꢀꢀꢁ
'4ꢀ ꢃ 3LQꢄꢀꢀꢅ
966 ꢃ 3LQꢄꢀꢀꢆ
'46ꢀ ꢃ 3LQꢄꢀꢀꢂ
'4ꢈ ꢃ 3LQꢄꢀꢀꢇ
966 ꢃ 3LQꢄꢀꢁꢁ
'4ꢇ ꢃ 3LQꢄꢀꢁꢅ
'46ꢁ ꢃ 3LQꢄꢀꢁꢆ
966 ꢃ 3LQꢄꢀꢁꢂ
1& ꢃ 3LQꢄꢀꢁꢇ
3LQꢄꢁꢈꢁ ꢃ 966
3LQꢄꢁꢈꢈ ꢃ '4ꢉ
966 ꢃ 3LQꢄꢀꢀꢈ
'4ꢁ ꢃ 3LQꢄꢀꢀꢉ
'46ꢀ ꢃ 3LQꢄꢀꢀꢊ
966 ꢃ 3LQꢄꢀꢀꢋ
'4ꢅ ꢃ 3LQꢄꢀꢁꢀ
'4ꢋ ꢃ 3LQꢄꢀꢁꢈ
966 ꢃ 3LQꢄꢀꢁꢉ
3LQꢄꢁꢈꢅ ꢃ '4ꢆ
3LQꢄꢁꢈꢉ ꢃ 966
3LQꢄꢁꢈꢆ ꢃ '0ꢀꢌ'46ꢇ
3LQꢄꢁꢈꢊ ꢃ 1&ꢌ'46ꢇ
3LQꢄꢁꢈꢂ ꢃ 966
3LQꢄꢁꢈꢋ ꢃ '4ꢊ
3LQꢄꢁꢈꢇ ꢃ '4ꢂ
3LQꢄꢁꢅꢀ ꢃ 966
3LQꢄꢁꢅꢁ ꢃ '4ꢁꢈ
3LQꢄꢁꢅꢈ ꢃ '4ꢁꢅ
3LQꢄꢁꢅꢅ ꢃ 966
3LQꢄꢁꢅꢉ ꢃ '0ꢁꢌ'46ꢁꢀ
3LQꢄꢁꢅꢆ ꢃ 1&ꢌ'46ꢁꢀ
3LQꢄꢁꢅꢊ ꢃ 966
'46ꢁ ꢃ 3LQꢄꢀꢁꢊ
5(6(7 ꢃ 3LQꢄꢀꢁꢋ
966 ꢃ 3LQꢄꢀꢈꢀ
3LQꢄꢁꢅꢂ ꢃ 1&
3LQꢄꢁꢅꢇ ꢃ 966
3LQꢄꢁꢉꢁ ꢃ '4ꢁꢆ
3LQꢄꢁꢉꢅ ꢃ '4ꢈꢀ
3LQꢄꢁꢉꢆ ꢃ 966
3ꢄLQꢄꢁꢉꢂ ꢃ 1&ꢌ'46ꢁꢁ
3LQꢄꢁꢉꢇ ꢃ '4ꢈꢈ
3LQꢄꢁꢆꢁ ꢃ 966
3LQꢄꢁꢆꢅ ꢃ '4ꢈꢇ
3LQꢄꢁꢆꢆ ꢃ '0ꢅꢌ'46ꢁꢈ
3LQꢄꢁꢆꢂ ꢃ 966
3LQꢄꢁꢆꢇ ꢃ '4ꢅꢁ
3LQꢄꢁꢊꢁ ꢃ &%ꢉ
3LQꢄꢁꢊꢅ ꢃ 966
3LQꢄꢁꢊꢆ ꢃ 1&ꢌ'46ꢁꢂ
3LQꢄꢁꢊꢂ ꢃ &%ꢊ
3LQꢄꢁꢊꢇ ꢃ 966
3LQꢄꢁꢂꢁ ꢃ 1&ꢌ&.(ꢁ
3LQꢄꢁꢂꢅ ꢃ 1&
3LQꢄꢁꢂꢆ ꢃ 9''4
3LQꢄꢁꢂꢂ ꢃ $ꢇ
3LQꢄꢁꢂꢇ ꢃ $ꢋ
3LQꢄꢁꢅꢋ ꢃ 1&
3LQꢄꢁꢉꢀ ꢃ '4ꢁꢉ
ꢃ
3LQꢄꢁꢉꢈ 966
ꢃ
ꢃ
'4ꢁꢀ
966
3LQꢄꢀꢈꢁ
3LQꢄꢀꢈꢅ
ꢃ
'4ꢁꢁ 3LQꢄꢀꢈꢈ
ꢃ
ꢃ
'4ꢁꢊ 3LQꢄꢀꢈꢉ
3LQꢄꢁꢉꢉ '4ꢈꢁ
'4ꢁꢂ ꢃ 3LQꢄꢀꢈꢆ
'46ꢈ 3ꢄLQꢄꢀꢈꢂ
ꢃ
ꢃ
3LQꢄꢁꢉꢊ '0ꢈꢌ'46ꢁꢁ
966 3LQꢄꢀꢈꢊ
)
5
2
1
7
6
,
%
$
&
.
6
,
ꢃ
ꢃ
'46ꢈ 3LQꢄꢀꢈꢋ
3LQꢄꢁꢉꢋ 966
966 ꢃ 3LQꢄꢀꢈꢇ
'4ꢁꢇ ꢃ 3LQꢄꢀꢅꢁ
'4ꢈꢉ ꢃ 3LQꢄꢀꢅꢅ
966 ꢃ 3LQꢄꢀꢅꢆ
'46ꢅ ꢃ 3LQꢄꢀꢅꢂ
'4ꢈꢊ ꢃ 3LQꢄꢀꢅꢇ
966 ꢃ 3LQꢄꢀꢉꢁ
&%ꢁ ꢃ 3LQꢄꢀꢉꢅ
'46ꢋ ꢃ 3LQꢄꢀꢉꢆ
966 ꢃ 3LQꢄꢀꢉꢂ
&%ꢅ ꢃ 3LQꢄꢀꢉꢇ
9''4 ꢃ 3LQꢄꢀꢆꢁ
9'' ꢃ 3LQꢄꢀꢆꢅ
ꢃ
ꢃ
3LQꢄꢁꢆꢀ '4ꢈꢅ
'4ꢁꢋ 3LQꢄꢀꢅꢀ
ꢃ
ꢃ
966 3LQꢄꢀꢅꢈ
3LQꢄꢁꢆꢈ '4ꢈꢋ
ꢃ
ꢃ
3LQꢄꢁꢆꢉ 966
'4ꢈꢆ 3LQꢄꢀꢅꢉ
ꢃ
ꢃ
'46ꢅ 3LQꢄꢀꢅꢊ
3LQꢄꢁꢆꢊ 1&ꢌ'46ꢁꢈ
ꢃ
ꢃ
3LQꢄꢁꢆꢋ '4ꢅꢀ
966 3LQꢄꢀꢅꢋ
'
(
'
(
ꢃ
ꢃ
'4ꢈꢂ 3LQꢄꢀꢉꢀ
3LQꢄꢁꢊꢀ 966
ꢃ
ꢃ
3LQꢄꢁꢊꢈ &%ꢆ
&%ꢀ 3LQꢄꢀꢉꢈ
ꢃ
ꢃ
966 3LQꢄꢀꢉꢉ
3LQꢄꢁꢊꢉ '0ꢋꢌ'46ꢁꢂ
ꢃ
ꢃ
3LQꢄꢁꢊꢊ 966
'46ꢋ 3LQꢄꢀꢉꢊ
ꢃ
ꢃ
&%ꢈ 3LQꢄꢀꢉꢋ
3LQꢄꢁꢊꢋ &%ꢂ
ꢃ
ꢃ
3LQꢄꢁꢂꢀ 9''4
966 3LQꢄꢀꢆꢀ
ꢃ
ꢃ
&.(ꢀ 3LQꢄꢀꢆꢈ
3LQꢄꢁꢂꢈ 9''
ꢃ
ꢃ
3LQꢄꢁꢂꢉ 1&ꢌ$ꢁꢉ
1&ꢌ%$ꢈ 3LQꢄꢀꢆꢉ
ꢃ 3LQꢄꢀꢆꢆ
1&ꢌ(55B287
ꢃ
ꢃ
9''4 3LQꢄꢀꢆꢊ
3LQꢄꢁꢂꢊ $ꢁꢈ
$ꢁꢁ ꢃ 3LQꢄꢀꢆꢂ
9'' ꢃ 3LQꢄꢀꢆꢇ
$ꢉ ꢃ 3LQꢄꢀꢊꢁ
$ꢈ ꢃ 3LQꢄꢀꢊꢅ
ꢃ
ꢃ
3LQꢄꢁꢂꢋ 9''
$ꢂ 3LQꢄꢀꢆꢋ
ꢃ
ꢃ
$ꢆ 3LQꢄꢀꢊꢀ
3LQꢄꢁꢋꢀ $ꢊ
3LQꢄꢁꢋꢁ ꢃ 9''4
3LQꢄꢁꢋꢅ ꢃ $ꢁ
ꢃ
ꢃ
3LQꢄꢁꢋꢈ $ꢅ
9''4 3LQꢄꢀꢊꢈ
ꢃ
ꢃ
9'' 3LQꢄꢀꢊꢉ
3LQꢄꢁꢋꢉ 9''
966 ꢃ 3LQꢄꢀꢊꢆ
9'' ꢃ 3LQꢄꢀꢊꢂ
9'' ꢃ 3LQꢄꢀꢊꢇ
%$ꢀ ꢃ 3LQꢄꢀꢂꢁ
:( ꢃ 3LQꢄꢀꢂꢅ
9''4 ꢃ 3LQꢄꢀꢂꢆ
3LQꢄꢁꢋꢆ ꢃ &.ꢀ
3LQꢄꢁꢋꢂ ꢃ 9''
3LQꢄꢁꢋꢇ ꢃ 9''
3LQꢄꢁꢇꢁ ꢃ 9''4
3LQꢄꢁꢇꢅ ꢃ 6ꢀ
3LQꢄꢁꢇꢆ ꢃ 2'7ꢀ
3LQꢄꢁꢇꢂ ꢃ 9''
3LQꢄꢁꢇꢇ ꢃ '4ꢅꢊ
3LQꢄꢈꢀꢁ ꢃ 966
3LQꢄꢈꢀꢅ ꢃ 1&ꢌ'46ꢁꢅ
3LQꢄꢈꢀꢆ ꢃ '4ꢅꢋ
3LQꢄꢈꢀꢂ ꢃ 966
3LQꢄꢈꢀꢇ ꢃ '4ꢉꢆ
3LQꢄꢈꢁꢁ ꢃ '0ꢆꢌ'46ꢁꢉ
3LQꢄꢈꢁꢅ ꢃ 966
3LQꢄꢈꢁꢆ ꢃ '4ꢉꢂ
3LQꢄꢈꢁꢂ ꢃ '4ꢆꢈ
3LQꢄꢈꢁꢇ ꢃ 966
3LQꢄꢈꢈꢁ ꢃ 1&
3LQꢄꢈꢈꢅ ꢃ '0ꢊꢌ'46ꢁꢆ
3LQꢄꢈꢈꢆ ꢃ 966
3LQꢄꢈꢈꢂ ꢃ '4ꢆꢆ
3LQꢄꢈꢈꢇ ꢃ '4ꢊꢀ
3LQꢄꢈꢅꢁ ꢃ 966
3LQꢄꢈꢅꢅ ꢃ 1&ꢌ'46ꢁꢊ
3LQꢄꢈꢅꢆ ꢃ '4ꢊꢈ
3LQꢄꢈꢅꢂ 966
ꢃ
ꢃ
3LQꢄꢁꢋꢊ &.ꢀ
966 3LQꢄꢀꢊꢊ
ꢃ
ꢃ
1&ꢌ3$5B,1 3LQꢄꢀꢊꢋ
3LQꢄꢁꢋꢋ $ꢀ
ꢃ
ꢃ
3LQꢄꢁꢇꢀ %$ꢁ
$ꢁꢀꢌ$3 3LQꢄꢀꢂꢀ
ꢃ
ꢃ
9''4 3LQꢄꢀꢂꢈ
3LQꢄꢁꢇꢈ 5$6
ꢃ
ꢃ
3LQꢄꢁꢇꢉ 9''4
&$6 3LQꢄꢀꢂꢉ
ꢃ
ꢃ
1&ꢌ6ꢁ 3LQꢄꢀꢂꢊ
3LQꢄꢁꢇꢊ 1&ꢌ$ꢁꢅ
ꢃ 3LQꢄꢀꢂꢂ
1&ꢌ2'7ꢁ
ꢃ
ꢃ
3LQꢄꢁꢇꢋ 966
9''4 3LQꢄꢀꢂꢋ
966 ꢃ 3LQꢄꢀꢂꢇ
'4ꢅꢅ ꢃ 3LQꢄꢀꢋꢁ
'46ꢉ ꢃ 3LQꢄꢀꢋꢅ
966 ꢃ 3LQꢄꢀꢋꢆ
ꢃ
ꢃ
'4ꢅꢈ 3LQꢄꢀꢋꢀ
3LQꢄꢈꢀꢀ '4ꢅꢂ
ꢃ
ꢃ
3LQꢄꢈꢀꢈ '0ꢉꢌ'46ꢁꢅ
966 3LQꢄꢀꢋꢈ
ꢃ
ꢃ
'46ꢉ 3LQꢄꢀꢋꢉ
3LQꢄꢈꢀꢉ 966
ꢃ
ꢃ
3LQꢄꢈꢀꢊ '4ꢅꢇ
'4ꢅꢉ 3LQꢄꢀꢋꢊ
'4ꢅꢆ ꢃ 3LQꢄꢀꢋꢂ
'4ꢉꢀ ꢃ 3LQꢄꢀꢋꢇ
966 ꢃ 3LQꢄꢀꢇꢁ
'46ꢆ ꢃ 3LQꢄꢀꢇꢅ
'4ꢉꢈ ꢃ 3LQꢄꢀꢇꢆ
966 ꢃ 3LQꢄꢀꢇꢂ
'4ꢉꢇ ꢃ 3LQꢄꢀꢇꢇ
6$ꢈ ꢃ 3LQꢄꢁꢀꢁ
966 ꢃ 3LQꢄꢁꢀꢅ
'46ꢊ ꢃ 3LQꢄꢁꢀꢆ
'4ꢆꢀ ꢃ 3LQꢄꢁꢀꢂ
966 ꢃ 3LQꢄꢁꢀꢇ
'4ꢆꢂ ꢃ 3LQꢄꢁꢁꢁ
'46ꢂ ꢃ 3LQꢄꢁꢁꢅ
966 ꢃ 3LQꢄꢁꢁꢆ
'4ꢆꢇ ꢃ 3LQꢄꢁꢁꢂ
6'$ ꢃ 3LQꢄꢁꢁꢇ
ꢃ
ꢃ
966 3LQꢄꢀꢋꢋ
3LQꢄꢈꢀꢋ '4ꢉꢉ
ꢃ
ꢃ
3LQꢄꢈꢁꢀ 966
'4ꢉꢁ 3LQꢄꢀꢇꢀ
ꢃ
ꢃ
'46ꢆ 3LQꢄꢀꢇꢈ
3LQꢄꢈꢁꢈ 1&ꢌ'46ꢁꢉ
ꢃ
ꢃ
3LQꢄꢈꢁꢉ '4ꢉꢊ
966 3LQꢄꢀꢇꢉ
ꢃ
ꢃ
'4ꢉꢅ 3LQꢄꢀꢇꢊ
3LQꢄꢈꢁꢊ 966
ꢃ
ꢃ
3LQꢄꢈꢁꢋ '4ꢆꢅ
'4ꢉꢋ 3LQꢄꢀꢇꢋ
ꢃ
ꢃ
966 3LQꢄꢁꢀꢀ
3LQꢄꢈꢈꢀ 1&
ꢃ
ꢃ
3LQꢄꢈꢈꢈ 966
1& 3LQꢄꢁꢀꢈ
ꢃ
ꢃ
'46ꢊ 3LQꢄꢁꢀꢉ
3LQꢄꢈꢈꢉ 1&ꢌ'46ꢁꢆ
ꢃ
ꢃ
3LQꢄꢈꢈꢊ '4ꢆꢉ
966 3LQꢄꢁꢀꢊ
ꢃ
ꢃ
'4ꢆꢁ 3LQꢄꢁꢀꢋ
3LQꢄꢈꢈꢋ 966
ꢃ
ꢃ
3LQꢄꢈꢅꢀ '4ꢊꢁ
'4ꢆꢊ 3LQꢄꢁꢁꢀ
ꢃ
ꢃ
966 3LQꢄꢁꢁꢈ
3LQꢄꢈꢅꢈ '0ꢂꢌ'46ꢁꢊ
ꢃ
ꢃ
3LQꢄꢈꢅꢉ 966
'46ꢂ 3LQꢄꢁꢁꢉ
ꢃ
ꢃ
'4ꢆꢋ 3LQꢄꢁꢁꢊ
3LQꢄꢈꢅꢊ '4ꢊꢅ
ꢃ
966 3LQꢄꢁꢁꢋ
3LQꢄꢈꢅꢋ 9''63'
3LQꢄꢈꢉꢀ 6$ꢁ
3LQꢄꢈꢅꢇ 6$ꢀ
ꢃ
6&/ 3LQꢄꢁꢈꢀ
0337ꢀꢁꢂꢀ
Figure 1
Pin Configuration for RDIMM (240 pins)
Data Sheet
16
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsBlock Diagram
2.2
Block Diagram
6$$ꢋ30$
6$$ꢉ6$$1
62%&
6$$ꢍ 30$ %%02/- %ꢀ
6$$ꢉ6$$1ꢍ 3$2!-S $ꢀ ꢊ $ꢂ
62%&ꢍ 3$2!-S $ꢀ ꢊ $ꢂ
633ꢍ 3$2!-S $ꢀ ꢊ $ꢂ
#+ꢀ
#+ꢀ
0,,
0#+ꢀꢊ0#+ꢅꢋ 0#+ꢂꢋ 0#+ꢌ
#+ꢍ 3$2!-S $ꢀꢊ$ꢂ
#+ꢍ 3$2!-S $ꢀꢊ$ꢂ
#+ꢍ 2EGISTER
0#+ꢀꢊ0#+ꢅꢋ 0#+ꢂꢋ 0#+ꢌ
0#+ꢆ
0#+ꢆ
2%3%4
/%
#+ꢍ 2EGISTER
633
3ꢀ
23ꢀ
#3ꢍ 3$2!-S $ꢀꢊ$ꢂ
"!ꢀꢊ"!Nꢍ 3$2!-S $ꢀꢊ$ꢂ
ꢁꢍꢁ
"!ꢀ ꢊ "!N
!ꢀ ꢊ !N
2!3
2"!ꢀꢊ2"!N
2!ꢀꢊ2!N
22!3
2
%
'
)
3
4
%
2
!ꢀꢊ!Nꢍ 3$2!-S $ꢀꢊ$ꢂ
2!3ꢍ 3$2!-S $ꢀꢊ$ꢂ
#!3ꢍ 3$2!-S $ꢀꢊ$ꢂ
7%ꢍ 3$2!-S $ꢀꢊ$ꢂ
#+%ꢍ 3$2!-S $ꢀꢊ$ꢂ
/$4ꢍ 3$2!-S $ꢀꢊ$ꢂ
#!3
7%
#+%ꢀ
/$4ꢀ
2#!3
27%
2#+%ꢀ
2/$4ꢀ
2EGISTER
%ꢀ
633
633
3#,
3$!
!ꢀ
3#,
3$!
3!ꢀ
3!ꢁ
3!ꢃ
633
#ꢀ
#ꢁ
0!2?).
0!2?).
!ꢁ
0#+ꢆ
0#+ꢆ
2%3%4
ꢁꢀꢀ+ OHMS
00/
1%22
!ꢃ
%RR?/UT
70
23ꢀ
$ꢀ
$ꢄ
$ꢇ
$ꢈ
$ꢅ
$ꢆ
$ꢂ
#3
#3
#3
$13ꢀ
$13ꢀ
$-ꢀꢉ$13ꢌ
$13ꢌ
$1ꢀ
$13
$13
$13ꢄ
$13ꢄ
$13
$13ꢅ
$13ꢅ
$13
$13
$13
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢄꢉ$13ꢁꢃ
$13ꢁꢃ
$1ꢃꢇ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢅꢉ$13ꢁꢈ
$13ꢁꢈ
$1ꢇꢂ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$1ꢁ
)ꢉ/ ꢁ
$1ꢃꢈ
)ꢉ/ ꢁ
$1ꢇꢌ
)ꢉ/ ꢁ
$1ꢃ
)ꢉ/ ꢃ
$1ꢃꢅ
)ꢉ/ ꢃ
$1ꢈꢀ
)ꢉ/ ꢃ
$1ꢄ
)ꢉ/ ꢄ
$1ꢃꢆ
)ꢉ/ ꢄ
$1ꢈꢁ
)ꢉ/ ꢄ
$1ꢇ
)ꢉ/ ꢇ
$1ꢃꢂ
)ꢉ/ ꢇ
$1ꢈꢃ
)ꢉ/ ꢇ
$1ꢈ
)ꢉ/ ꢈ
$1ꢃꢌ
)ꢉ/ ꢈ
$1ꢈꢄ
)ꢉ/ ꢈ
$1ꢅ
)ꢉ/ ꢅ
$1ꢄꢀ
)ꢉ/ ꢅ
$1ꢈꢇ
)ꢉ/ ꢅ
$1ꢆ
)ꢉ/ ꢆ
$1ꢄꢁ
)ꢉ/ ꢆ
$1ꢈꢈ
)ꢉ/ ꢆ
$ꢁ
#3
#3
$13
#3
$13
$13ꢁ
$13ꢁ
$13
$13
$13ꢇ
$13ꢇ
$13ꢆ
$13ꢆ
$13
$13
$-ꢁꢉ$13ꢁꢀ
$13ꢁꢀ
$1ꢂ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢇꢉ$13ꢁꢄ
$13ꢁꢄ
$1ꢄꢃ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢆꢉ$13ꢁꢅ
$13ꢁꢅ
$1ꢈꢅ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$1ꢌ
)ꢉ/ ꢁ
$1ꢄꢄ
)ꢉ/ ꢁ
$1ꢈꢆ
)ꢉ/ ꢁ
$1ꢁꢀ
)ꢉ/ ꢃ
$1ꢄꢇ
)ꢉ/ ꢃ
$1ꢈꢂ
)ꢉ/ ꢃ
$1ꢁꢁ
)ꢉ/ ꢄ
$1ꢄꢈ
)ꢉ/ ꢄ
$1ꢈꢌ
)ꢉ/ ꢄ
$1ꢁꢃ
)ꢉ/ ꢇ
$1ꢄꢅ
)ꢉ/ ꢇ
$1ꢅꢀ
)ꢉ/ ꢇ
$1ꢁꢄ
)ꢉ/ ꢈ
$1ꢄꢆ
)ꢉ/ ꢈ
$1ꢅꢁ
)ꢉ/ ꢈ
$1ꢁꢇ
)ꢉ/ ꢅ
$1ꢄꢂ
)ꢉ/ ꢅ
$1ꢅꢃ
)ꢉ/ ꢅ
$1ꢁꢈ
)ꢉ/ ꢆ
$1ꢄꢌ
)ꢉ/ ꢆ
$1ꢅꢄ
)ꢉ/ ꢆ
$ꢃ
#3
$13
#3
$13
#3
$13
$13ꢈ
$13ꢈ
$13ꢂ
$13ꢂ
$-ꢂꢉ$13ꢁꢆ
$13ꢁꢆ
#"ꢀ
$13ꢃ
$13ꢃ
$13
$13
$13
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢈꢉ$13ꢁꢇ
$13ꢁꢇ
$1ꢇꢀ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢉ2$13
.5ꢉ2$13
)ꢉ/ ꢀ
$-ꢃꢉ$13ꢁꢁ
$13ꢁꢁ
$1ꢁꢅ
)ꢉ/ ꢁ
$1ꢇꢁ
)ꢉ/ ꢁ
#"ꢁ
)ꢉ/ ꢁ
$1ꢁꢆ
)ꢉ/ ꢃ
$1ꢇꢃ
)ꢉ/ ꢃ
#"ꢃ
)ꢉ/ ꢃ
$1ꢁꢂ
)ꢉ/ ꢄ
$1ꢇꢄ
)ꢉ/ ꢄ
#"ꢄ
)ꢉ/ ꢄ
$1ꢁꢌ
)ꢉ/ ꢇ
$1ꢇꢇ
)ꢉ/ ꢇ
#"ꢇ
)ꢉ/ ꢇ
$1ꢃꢀ
)ꢉ/ ꢈ
$1ꢇꢈ
)ꢉ/ ꢈ
#"ꢈ
)ꢉ/ ꢈ
$1ꢃꢁ
)ꢉ/ ꢅ
$1ꢇꢅ
)ꢉ/ ꢅ
#"ꢅ
)ꢉ/ ꢅ
$1ꢃꢃ
)ꢉ/ ꢆ
$1ꢇꢆ
)ꢉ/ ꢆ
#"ꢆ
)ꢉ/ ꢆ
$1ꢃꢄ
-0"4ꢀꢁꢂꢀ
Figure 2
Notes
Block Diagram RDIMM (x72, 1Rank, x8)
1. Unless otherwise noted, resistors are 22 Ω ± 5 %
2. S0 connects to DCS and VDD connects to CSR on the register.
Data Sheet
17
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
'46ꢁꢊ
'4ꢆꢊ
'4ꢆꢂ
'4ꢆꢋ
'4ꢆꢇ
'4ꢊꢀ
'4ꢊꢁ
'4ꢊꢈ
'4ꢊꢅ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ18ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ1
8ꢌ5'46ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsBlock Diagram
9''ꢎ63'
''ꢌ9''4
95()
9
9
9
9
''ꢍꢄ63'ꢄ((3520ꢄ(ꢀ
''ꢌ9''4ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
5()ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
66ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
&.ꢀ
&.ꢀ
ꢄꢄꢄ3//ꢄ
3&.ꢀꢃ3&.ꢊꢎꢄ3&.ꢋꢎꢄ3&.ꢇ
3&.ꢀꢃ3&.ꢊꢎꢄ3&.ꢋꢎꢄ3&.ꢇ
3&.ꢂ
&.ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
&.ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
&.ꢍꢄ5HJLVWHU
9
ꢄ
5(6(7
ꢄ2(
3&.ꢂ
&.ꢍꢄ5HJLVWHU
966
6ꢀ
6ꢁ
56ꢀ
&6ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢋ
&6ꢍꢄ6'5$0Vꢄ'ꢇꢃ'ꢁꢂ
ꢁꢍꢈ
56ꢁ
%$ꢀꢄꢃꢄ%$Q
$ꢀꢄꢃꢄ$Q
5$6
5
(
*
,
5%$ꢀꢃ5%$Q
5$ꢀꢃ5$Q
55$6
%$ꢀꢃ%$Qꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
$ꢀꢃ$Qꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
5$6ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
&$6ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
:(ꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢁꢂ
&.(ꢀꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢋ
&.(ꢁꢍꢄ6'5$0Vꢄ'ꢇꢃ'ꢁꢂ
2'7ꢀꢍꢄ6'5$0Vꢄ'ꢀꢃ'ꢋ
2'7ꢁꢍꢄ6'5$0Vꢄ'ꢇꢃ'ꢁꢂ
'ꢉ
'ꢁꢅ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
'46ꢉ
'46ꢉ
ꢄ'46
&$6
5&$6
6
7
(
5
ꢄ'46ꢄ
ꢄ'46ꢄ
:(
5:(
'0ꢉꢌ'46ꢁꢅ
'46ꢁꢅ
'4ꢅꢈ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
&.(ꢀ
&.(ꢁ
2'7ꢀ
2'7ꢁ
3&.ꢂ
3&.ꢂ
5(6(7
5&.(ꢀ
5&.(ꢁ
52'7ꢀ
52'7ꢁ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
'4ꢅꢅ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
'4ꢅꢉ
'4ꢅꢆ
ꢄ,ꢌ2ꢄꢅ
'4ꢅꢊ
ꢄ,ꢌ2ꢄꢉ
'4ꢅꢂ
ꢄ,ꢌ2ꢄꢆ
'4ꢅꢋ
ꢄ,ꢌ2ꢄꢊ
56ꢀ
56ꢀ
'4ꢅꢇ
ꢄ,ꢌ2ꢄꢂ
'ꢀ
'ꢇ
'ꢆ
'ꢁꢉ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄ'46
'46ꢆ
'46ꢆ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
'0ꢆꢌ'46ꢁꢉ
'46ꢁꢉ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
'4ꢉꢀ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
'4ꢉꢁ
'4ꢉꢈ
'4ꢉꢅ
'4ꢉꢉ
'4ꢉꢆ
'4ꢉꢊ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
(ꢀ
ꢄ,ꢌ2ꢄꢈ
6&/
ꢄ6&/ꢄꢄꢄꢄꢄ
ꢄ6'$ꢄ
ꢄ$ꢀꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ$ꢁ
ꢄ,ꢌ2ꢄꢅ
6'$
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
6$ꢀ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
6$ꢁ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
6$ꢈ
ꢄ,ꢌ2ꢄꢊ
ꢄ$ꢈꢄꢄ
ꢄ,ꢌ2ꢄꢂ
ꢉꢂ
ꢄ,ꢌ2ꢄꢂ
ꢄ:3ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
966
'ꢁ
'ꢁꢀ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
'ꢊ
'ꢁꢆ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
'46ꢊ
'46ꢊ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
'0ꢊꢌ'46ꢁꢆ
'46ꢁꢆ
'4ꢉꢋ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
5HJLVWHUꢄ$
3$5B,1
966
9''
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ&ꢀꢄꢄꢄꢄꢄ
ꢄ&ꢁ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
'4ꢉꢇ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
'4ꢆꢀ
ꢄ3$5B,1
ꢄ,ꢌ2ꢄꢅ
'4ꢆꢁ
ꢄ,ꢌ2ꢄꢅ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢉ
'4ꢆꢈ
'4ꢆꢅ
'4ꢆꢉ
'4ꢆꢆ
ꢄ,ꢌ2ꢄꢉ
332
4(55
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢂ
'ꢈ
'ꢁꢁ
'ꢂ
'ꢁꢊ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
5HJLVWHUꢄ%
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
9''
9''
ꢄ&ꢀꢄꢄꢄꢄꢄ
ꢄ&ꢁ
'46ꢂ
'46ꢂ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ3$5B,1
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
'0ꢂꢌ'46ꢁꢊ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ
332
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
4(55
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
(UUB2XW
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢂ
'ꢅ
'ꢁꢈ
'ꢋ
'ꢁꢂ
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
ꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄꢄ&6ꢄꢄꢄꢄꢄ
ꢄ'46
'46ꢋ
'46ꢋ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'46ꢄ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
'0ꢋꢌ'46ꢁꢂ
'46ꢁꢂ
&%ꢀ
ꢄ'0ꢌ5'46
ꢄ'0ꢌ5'46
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
ꢄ,ꢌ2ꢄꢀ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
&%ꢁ
ꢄ,ꢌ2ꢄꢁꢄꢄꢄꢄꢄꢄꢄ
ꢄ,ꢌ2ꢄꢈ
&%ꢈ
ꢄ,ꢌ2ꢄꢅ
&%ꢅ
ꢄ,ꢌ2ꢄꢅ
ꢄ,ꢌ2ꢄꢉ
&%ꢉ
ꢄ,ꢌ2ꢄꢉ
ꢄ,ꢌ2ꢄꢆ
&%ꢆ
ꢄ,ꢌ2ꢄꢆ
ꢄ,ꢌ2ꢄꢊ
&%ꢊ
ꢄ,ꢌ2ꢄꢊ
ꢄ,ꢌ2ꢄꢂ
&%ꢂ
ꢄ,ꢌ2ꢄꢂ
03%7ꢀꢁꢇꢀ
Figure 3
Notes
Block Diagram RDIMM (x72, 2Ranks, x8)
1. Unless otherwise noted, resistors are 22 Ω ± 5 %
2. RS0 and RS1 alternate between the back and front sides of the DIMM.
Data Sheet
18
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Pin Configuration and Block DiagramsBlock Diagram
#+ꢀ
#+ꢀ
0,,
0#+ꢀꢊ0#+ꢅꢋ 0#+ꢂꢋ 0#+ꢌ
0#+ꢀꢊ0#+ꢅꢋ 0#+ꢂꢋ 0#+ꢌ
0#+ꢆ
#+ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
-0"4ꢀꢃꢀꢁ
6$$ꢍ 30$ %%02/- %ꢀ
#+ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
#+ꢍ 2EGISTER
6$$ꢋ30$
6$$ꢉ6$$1
62%&
2%3%4
/%
0#+ꢆ
#+ꢍ 2EGISTER
6$$ꢉ6$$1ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
62%&ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
633ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
%ꢀ
3ꢀ
"!ꢀ ꢊ "!N
!ꢀ ꢊ !N
2!3
23ꢀ
#3ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
"!ꢀꢊ"!Nꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
ꢁꢍꢃ
2"!ꢀꢊ2"!N
2!ꢀꢊ2!N
22!3
633
2
%
'
)
3
4
%
2
!ꢀꢊ!Nꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
2!3ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
#!3ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
7%ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
#+%ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
/$4ꢍ 3$2!-S $ꢀꢊ$ꢁꢆ
#!3
2#!3
3#,
3$!
!ꢀ
3#,
3$!
3!ꢀ
3!ꢁ
3!ꢃ
633
7%
27%
#+%ꢀ
2#+%ꢀ
2/$4ꢀ
/$4ꢀ
0#+ꢆ
!ꢁ
!ꢃ
70
0#+ꢆ
2%3%4
23ꢀ
$ꢀ
$ꢅ
$ꢁꢃ
$ꢁꢄ
$ꢁꢇ
$ꢁꢈ
$ꢁꢅ
$ꢁꢆ
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
#3
$13ꢀ
$13ꢀ
$1ꢀ
$1ꢁ
$1ꢃ
$1ꢄ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢅ
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢃ
$13ꢁꢃ
$1ꢃꢂ
$1ꢃꢌ
$1ꢄꢀ
$1ꢄꢁ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
2EGISTER !
0!2?).
633
6$$
$13ꢅ
$1ꢇꢂ
$1ꢇꢌ
$1ꢈꢀ
$1ꢈꢁ
633
#ꢀ
#ꢁ
0!2?).
00/
1%22
$ꢁ
$ꢃ
$ꢄ
$ꢇ
$ꢈ
$ꢆ
#3
#3
#3
#3
#3
$13ꢁ
$13ꢁ
$1ꢂ
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢆ
$13ꢆ
$1ꢈꢅ
$1ꢈꢆ
$1ꢈꢂ
$1ꢈꢌ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢄ
$13ꢁꢄ
$1ꢄꢅ
$1ꢄꢆ
$1ꢄꢂ
$1ꢄꢌ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
2EGISTER "
6$$
6$$
#ꢀ
#ꢁ
0!2?).
$1ꢌ
$1ꢁꢀ
$1ꢁꢁ
633
00/
1%22
$ꢂ
%RR?/UT
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢂ
$13ꢂ
#"ꢀ
#"ꢁ
#"ꢃ
#"ꢄ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢇ
$13ꢁꢇ
$1ꢇꢇ
$1ꢇꢈ
$1ꢇꢅ
$1ꢇꢆ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢃ
$13ꢃ
$1ꢁꢅ
$1ꢁꢆ
$1ꢁꢂ
$1ꢁꢌ
633
$ꢌ
$13ꢄ
$13ꢄ
$1ꢃꢇ
$1ꢃꢈ
$1ꢃꢅ
$1ꢃꢆ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢌ
$13ꢌ
$1ꢇ
$1ꢈ
$1ꢅ
$1ꢆ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢈ
$13ꢁꢈ
$1ꢈꢃ
$1ꢈꢄ
$1ꢈꢇ
$1ꢈꢈ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$ꢁꢀ
$ꢁꢁ
$13ꢇ
$13ꢇ
$1ꢄꢃ
$1ꢄꢄ
$1ꢄꢇ
$1ꢄꢈ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢀ
$13ꢁꢀ
$1ꢁꢃ
$1ꢁꢄ
$1ꢁꢇ
$1ꢁꢈ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢅ
$13ꢁꢅ
$1ꢅꢀ
$1ꢅꢁ
$1ꢅꢃ
$1ꢅꢄ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢈ
$13ꢈ
$1ꢇꢀ
$1ꢇꢁ
$1ꢇꢃ
$1ꢇꢄ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢁ
$13ꢁꢁ
$1ꢃꢀ
$1ꢃꢁ
$1ꢃꢃ
$1ꢃꢄ
633
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
$13ꢁꢆ
$13ꢁꢆ
#"ꢇ
$13
$13
)ꢉ/ ꢀ
)ꢉ/ ꢁ
)ꢉ/ ꢃ
)ꢉ/ ꢄ
$-
#"ꢈ
#"ꢅ
#"ꢆ
633
Figure 4
Block Diagram RDIMM (x72, 1Rank, x4)
Notes
1. Unless otherwise noted, resistors are 22 Ω ± 5 %
2. S0 connects to DCS of register1 and CSR of register2.
3. CSR of register1 and DCS of register2 connects to VDD.
4. RESET, PCK7 and PCK7 connect to both registers.
Data Sheet
19
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAbsolute Maximum Ratings
3
Electrical Characteristics
3.1
Absolute Maximum Ratings
Caution is needed not to exceed abolute maximum ratings of the DRAM device listed in Table 10 at any time.
Table 10
Absolute Maximum Ratings
Parameter
Symbol
Values
Min.
–0.5
–1.0
–0.5
5
Unit
Max.
2.3
2.3
2.3
95
Voltage on any pins relative to VSS
Voltage on VDD relative to VSS
VIN, VOUT
VDD
V
V
V
%
Voltage on VDDQ relative to VSS
Storage Humidity (without condensation)
VDDQ
HSTG
Attention: Stresses above the max. values listed here may cause permanent damage to the device.
Exposure to absolute maximum rating conditions for extended periods may affect device
reliability. Maximum ratings are absolute ratings; exceeding only one of these values may
cause irreversible damage to the integrated circuit.
3.2
DC Operating Conditions
Table 11
Operating Conditions
Parameter
Symbol
Values
Min.
0
Unit
Notes
Max.
+65
Operating temperature (ambient)
DRAM Case Temperature
TOPR
TCASE
TSTG
°C
°C
°C
kPa
%
1)2)3)4)
5)
0
+95
Storage Temperature
– 50
+69
10
+100
+105
90
Barometric Pressure (operating & storage)
Operating Humidity (relative)
PBar
HOPR
1) DRAM Component Case Temperature is the surface temperature in the center on the top side of any of the DRAMs.
2) Within the DRAM Component Case Temperature Range all DRAM specifications will be supported
3) Above 85 °C DRAM Case Temperature the Auto-Refresh command interval has to be reduced to tREFI = 3.9 µs
4)When operating this product in the 85 °C to 95 °C TCASE temperature range, the High Temperature Self Refresh
has to be enabled by setting EMR(2) bit A7 to 1. When the High Temperature Self Refresh is enabled there is an
increase of IDD6 by approximately 50%.
5) Up to 3000 m.
Data Sheet
20
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsDC Operating Conditions
Table 12
Supply Voltage Levels and DC Operating Conditions
Parameter
Symbol
Values
Min.
Unit
Notes
Typ.
Max.
1.9
Device Supply Voltage
Output Supply Voltage
Input Reference Voltage
SPD Supply Voltage
VDD
1.7
1.8
V
1)
2)
VDDQ
VREF
1.7
1.8
1.9
V
0.49 × VDDQ
1.7
0.5 × VDDQ
0.51 × VDDQ
3.6
V
VDDSPD
VIH(DC)
VIL (DC
IL
—
—
—
—
V
DC Input Logic High
V
REF + 0.125
V
V
5
DDQ + 0.3
V
DC Input Logic Low
)
– 0.30
– 5
REF – 0.125
V
3)
In / Output Leakage Current
µA
1) Under all conditions, VDDQ must be less than or equal to VDD
2) Peak to peak AC noise on VREF may not exceed ± 2% VREF (DC).VREF is also expected to track noise in VDDQ
3) Input voltage for any connector pin under test of 0 V ≤ VIN ≤ VDDQ + 0.3 V; all other pins at 0 V. Current is per pin
.
Data Sheet
21
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
3.3
AC Characteristics
3.3.1
Speed Grades Definitions
Table 13
Speed Grade Definition Speed Bins for DDR2–667D
Speed Grade
DDR2–667
Unit
Notes
IFX Sort Name
CAS-RCD-RP latencies
Parameter
–3S
5–5–5
Min.
5
tCK
—
ns
ns
ns
ns
ns
ns
ns
Symbol
tCK
Max.
8
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)5)
1)2)3)4)
1)2)3)4)
1)2)3)4)
Clock Frequency
@ CL = 3
@ CL = 4
@ CL = 5
tCK
3.75
3
8
tCK
8
Row Active Time
Row Cycle Time
RAS-CAS-Delay
Row Precharge Time
tRAS
tRC
tRCD
tRP
45
70000
—
60
15
—
15
—
1) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode. Timings are
further guaranteed for normal OCD drive strength (EMRS(1) A1 = 0) only.
2) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross. The DQS/DQS,
RDQS/RDQS, input reference level is the crosspoint when in differential strobe mode
3) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
4) The output timing reference voltage level is VTT.
5) tRAS.MAX is calculated from the maximum amount of time a DDR2 device can operate without a refresh command which is
equal to 9 x tREFI
.
Data Sheet
22
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 14
Speed Grade Definition Speed Bins for DDR2–533C
Speed Grade
DDR2–533
–3.7
Unit
Note
IFX Sort Name
CAS-RCD-RP latencies
Parameter
4–4–4
tCK
—
ns
ns
ns
ns
ns
ns
ns
Symbol
tCK
Min.
5
Max.
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)5)
1)2)3)4)
1)2)3)4)
1)2)3)4)
Clock Frequency
@ CL = 3
@ CL = 4
@ CL = 5
8
tCK
3.75
3.75
45
8
tCK
8
Row Active Time
Row Cycle Time
RAS-CAS-Delay
Row Precharge Time
tRAS
tRC
tRCD
tRP
70000
—
60
15
—
15
—
1) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode. Timings are
further guaranteed for normal OCD drive strength (EMRS(1) A1 = 0) only.
2) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS / RDQS, input reference level is the crosspoint when in differential strobe mode
3) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
4) The output timing reference voltage level is VTT.
5) tRAS.MAX is calculated from the maximum amount of time a DDR2 device can operate without a refresh command which is
equal to 9 x tREFI
.
Table 15
Speed Grade Definition Speed Bins for DDR2-400B
Speed Grade
DDR2–400B
–5
Unit
Note
IFX Sort Name
CAS-RCD-RP latencies
Parameter
3–3–3
tCK
—
ns
ns
ns
ns
ns
ns
ns
Symbol
tCK
Min.
5
Max.
1)2)3)4)
1)2)3)4)
1)2)3)4)
1)2)3)4)5)
1)2)3)4)
1)2)3)4)
1)2)3)4)
Clock Frequency
@ CL = 3
@ CL = 4
@ CL = 5
8
tCK
5
8
tCK
5
8
Row Active Time
Row Cycle Time
RAS-CAS-Delay
Row Precharge Time
tRAS
tRC
tRCD
tRP
40
55
15
15
70000
—
—
—
1) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode. Timings are
further guaranteed for normal OCD drive strength (EMRS(1) A1 = 0) only.
2) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS / RDQS, input reference level is the crosspoint when in differential strobe mode
3) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
4) The output timing reference voltage level is VTT.
5) tRAS.MAX is calculated from the maximum amount of time a DDR2 device can operate without a refresh command which is
equal to 9 x tREFI
.
Data Sheet
23
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
3.3.2
AC Timing Parameters
Table 16
Timing Parameter by Speed Grade - DDR2-667
Parameter
Symbol
DDR2-667
Min.
Unit Note
1)2)3)4)5)6)
Max.
7)
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
–450
2
+450
—
ps
tCK
tCK
tCK
tCK
tCK
ns
0.45
3
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
0.45
WR + tRP
0.55
—
Auto-Precharge write recovery + precharge time
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data strobe)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
tDH(base)
tDIPW
175
––
ps
tCK
ps
tCK
ps
0.35
–400
0.35
240
—
tDQSCK
tDQSL,H
tDQSQ
tDQSS
tDS(base)
tDSH
+400
—
DQS input low (high) pulse width (write cycle)
DQS-DQ skew (for DQS & associated DQ signals)
Write command to 1st DQS latching transition
DQ and DM input setup time (differential data strobe)
DQS falling edge hold time from CK (write cycle)
DQS falling edge to CK setup time (write cycle)
Clock half period
—
– 0.25
100
+ 0.25 tCK
—
—
—
ps
0.2
tCK
tCK
tDSS
0.2
tHP
MIN. (tCL, tCH)
— tAC.MAX ps
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
tIH(base)
tIPW
275
—
—
ps
Address and control input pulse width
(each input)
0.6
tCK
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
200
—
ps
2 ξ tAC.MIN
tAC.MAX ps
tAC.MAX ps
tAC.MIN
2
0
—
tCK
tOIT
12
—
ns
Data output hold time from DQS
Data hold skew factor
tQH
tHP – tQHS
tQHS
340
—
—
ps
µs
µs
ns
ns
tCK
tCK
ns
ns
8)
9)
Average periodic refresh Interval
tREFI
7.8
3.9
—
—
Auto-Refresh to Active/Auto-Refresh command period tRFC
75
Precharge-All (4 banks) command period
Read preamble
tRP
t
RP + 1tCK
—
tRPRE
tRPST
tRRD
0.9
0.40
7.5
10
1.1
0.60
—
Read postamble
10)
11)
Active bank A to Active bank B command period
—
Data Sheet
24
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 16
Timing Parameter by Speed Grade - DDR2-667
Symbol
Parameter
DDR2-667
Min.
Unit Note
1)2)3)4)5)6)
Max.
7)
Internal Read to Precharge command delay
Write preamble
tRTP
7.5
—
ns
tWPRE
tWPST
tWR
0.35
0.40
15
—
tCK
tCK
ns
Write postamble
0.60
—
Write recovery time for write without Auto-Precharge
Write recovery time for write with Auto-Precharge
Internal Write to Read command delay
WR
t
WR/tCK
tCK
ns
tWTR
tXARD
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tCK
Exit active power-down mode to Read command (slow tXARDS
exit, lower power)
7 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command (other tXP
than NOP or Deselect)
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross.
The DQS/DQS, RDQS/RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 °C < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
25
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 17
Timing Parameter by Speed Grade - DDR2-533
Symbol
Parameter
DDR2–533
Min.
Unit Note1)2)
3)4)5)6)7)
Max.
+500
—
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
–500
2
ps
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
tCK
tCK
tCK
tCK
tCK
ns
0.45
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
3
0.45
0.55
—
Auto-Precharge write recovery + precharge time
WR + tRP
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data
strobe)
tDH(base)
225
–25
––
—
ps
ps
DQ and DM input hold time (single ended data
strobe)
tDH1(base)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
DQS input low (high) pulse width (write cycle)
tDIPW
0.35
–450
0.35
—
—
tCK
ps
tCK
ps
tCK
ps
tDQSCK
tDQSL,H
+450
—
DQS-DQ skew (for DQS & associated DQ signals) tDQSQ
300
+0.25
—
Write command to 1st DQS latching transition
tDQSS
–0.25
100
DQ and DM input setup time (differential data
strobe)
tDS(base)
DQ and DM input setup time (single ended data
strobe)
t
DS1(base)
–25
—
ps
DQS falling edge hold time from CK (write cycle) tDSH
0.2
—
—
tCK
tCK
DQS falling edge to CK setup time (write cycle)
Clock half period
tDSS
0.2
tHP
MIN. (tCL, tCH)
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
—
tAC.MAX
ps
ps
tCK
tIH(base)
tIPW
375
0.6
—
Address and control input pulse width
(each input)
—
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
250
—
ps
ps
ps
tCK
ns
2 ° tAC.MIN
tAC.MAX
tAC.MAX
—
tAC.MIN
2
0
tOIT
12
Data output hold time from DQS
Data hold skew factor
tQH
t
HP – tQHS
—
tQHS
—
—
—
75
400
7.8
ps
8)
Average periodic refresh Interval
tREFI
µs
9)
3.9
µs
Auto-Refresh to Active/Auto-Refresh command
period
tRFC
tRP
—
ns
Precharge-All (4 banks) command period
t
RP + 1tCK
—
ns
Data Sheet
26
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 17
Timing Parameter by Speed Grade - DDR2-533 (cont’d)
Parameter
Symbol
DDR2–533
Min.
0.9
Unit Note1)2)
3)4)5)6)7)
Max.
1.1
0.60
—
Read preamble
Read postamble
tRPRE
tRPST
tCK
tCK
0.40
7.5
10)
Active bank A to Active bank B command period tRRD
ns
1)11)
10
—
ns
Internal Read to Precharge command delay
Write preamble
tRTP
7.5
—
ns
tCK
tCK
ns
tWPRE
tWPST
tWR
0.35xtCK
0.40
15
—
Write postamble
0.60
—
Write recovery time for write without Auto-
Precharge
Write recovery time for write with Auto-Precharge WR
t
WR/tCK
tCK
ns
Internal Write to Read command delay
tWTR
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tXARD
tCK
Exit active power-down mode to Read command tXARDS
(slow exit, lower power)
6 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command tXP
(other than NOP or Deselect)
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK / CK input reference level (for timing reference to CK / CK) is the point at which CK and CK cross. The DQS / DQS,
RDQS/ RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
27
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 18
Timing Parameter by Speed Grade - DDR2-400
Symbol
Parameter
DDR2-400
Min.
Unit Note
1)2)3)4)5)6)7)
Max.
+600
—
DQ output access time from CK / CK
CAS A to CAS B command period
CK, CK high-level width
tAC
tCCD
tCH
tCKE
tCL
tDAL
tDELAY
–600
2
ps
tCK
tCK
tCK
tCK
tCK
ns
0.45
0.55
—
CKE minimum high and low pulse width
CK, CK low-level width
3
0.45
0.55
—
Auto-Precharge write recovery + precharge time
WR + tRP
Minimum time clocks remain ON after CKE
asynchronously drops LOW
tIS + tCK + tIH ––
DQ and DM input hold time (differential data strobe)
DQ and DM input hold time (single-ended strobe)
DQ and DM input pulse width (each input)
DQS output access time from CK / CK
tDH(base)
275
––
ps
ps
tCK
ps
tCK
ps
tCK
ps
ps
tCK
tCK
t
DH1(base) 25
––
tDIPW
0.35
–500
0.35
—
—
tDQSCK
tDQSL,H
tDQSQ
tDQSS
tDS(base)
+500
—
DQS input low (high) pulse width (write cycle)
DQS-DQ skew (for DQS & associated DQ signals)
Write command to 1st DQS latching transition
DQ and DM input setup time (differential data strobe)
DQ and DM input setup time (single-ended strobe)
DQS falling edge hold time from CK (write cycle)
DQS falling edge to CK setup time (write cycle)
Clock half period
350
+0.25
—
–0.25
150
t
DS1(base) 25
—
tDSH
tDSS
tHP
0.2
—
0.2
—
MIN. (tCL, tCH)
Data-out high-impedance time from CK / CK
Address and control input hold time
tHZ
—
tAC.MAX ps
tIH(base)
tIPW
475
0.6
—
—
ps
Address and control input pulse width
(each input)
tCK
Address and control input setup time
DQ low-impedance time from CK / CK
DQS low-impedance from CK / CK
Mode register set command cycle time
OCD drive mode output delay
tIS(base)
tLZ(DQ)
tLZ(DQS)
tMRD
350
—
ps
2 ξ tAC.MIN
tAC.MAX ps
tAC.MAX ps
tAC.MIN
2
0
—
tCK
tOIT
12
—
ns
Data output hold time from DQS
Data hold skew factor
tQH
tHP – tQHS
tQHS
—
—
—
75
450
7.8
3.9
—
ps
µs
µs
ns
ns
tCK
tCK
ns
ns
ns
8)
9)
Average periodic refresh Interval
tREFI
Auto-Refresh to Active/Auto-Refresh command period tRFC
Precharge-All (4 banks) command period
Read preamble
tRP
t
RP + 1tCK
—
tRPRE
tRPST
tRRD
0.9
0.40
7.5
10
1.1
0.60
—
Read postamble
10)
11)
Active bank A to Active bank B command period
—
Internal Read to Precharge command delay
Data Sheet
tRTP
7.5
—
28
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
Table 18
Timing Parameter by Speed Grade - DDR2-400
Symbol
Parameter
DDR2-400
Min.
Unit Note
1)2)3)4)5)6)7)
Max.
—
Write preamble
tWPRE
tWPST
tWR
0.35
tCK
tCK
ns
Write postamble
0.40
0.60
—
Write recovery time for write without Auto-Precharge
Write recovery time for write with Auto-Precharge
Internal Write to Read command delay
15
WR
t
WR/tCK
tCK
ns
tWTR
tXARD
7.5
2
—
—
Exit power down to any valid command
(other than NOP or Deselect)
tCK
Exit active power-down mode to Read command (slow tXARDS
exit, lower power)
6 – AL
2
—
—
tCK
tCK
Exit precharge power-down to any valid command
(other than NOP or Deselect)
tXP
Exit Self-Refresh to non-Read command
Exit Self-Refresh to Read command
tXSNR
tXSRD
t
RFC +10
—
—
ns
200
tCK
1) For details and notes see the relevant INFINEON component data sheet
2) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V. See notes 4)5)6)7)
3) Timing that is not specified is illegal and after such an event, in order to guarantee proper operation, the DRAM must be
powered down and then restarted through the specified initialization sequence before normal operation can continue.
4) Timings are guaranteed with CK/CK differential Slew Rate of 2.0 V/ns. For DQS signals timings are guaranteed with a
differential Slew Rate of 2.0 V/ns in differential strobe mode and a Slew Rate of 1 V/ns in single ended mode.
5) The CK/CK input reference level (for timing reference to CK/CK) is the point at which CK and CK cross.
The DQS/DQS, RDQS/RDQS, input reference level is the crosspoint when in differential strobe mode
6) Inputs are not recognized as valid until VREF stabilizes. During the period before VREF stabilizes, CKE = 0.2 x VDDQ is
recognized as low.
7) The output timing reference voltage level is VTT. See Chapter 8 for the reference load for timing measurements.
8) 0 ≤ TCASE ≤ 85 °C
9) 85 °C < TCASE ≤ 95 °C
10) x4 & x8
11) x16
Data Sheet
29
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsAC Characteristics
3.3.3
ODT AC Electrical Characteristics
Table 19
ODT AC Electrical Characteristics and Operating Conditions for DDR2-667
Symbol Parameter / Condition
Values
Min.
2
Unit
Note
Max.
tAOND
tAON
ODT turn-on delay
2
tCK
ns
ns
tCK
ns
1)
ODT turn-on
tAC.MIN
t
AC.MAX + 0.7 ns
AC.MAX + 1 ns
tAONPD
tAOFD
tAOF
ODT turn-on (Power-Down Modes)
ODT turn-off delay
t
AC.MIN + 2 ns 2 tCK +
t
2.5
2.5
2)
ODT turn-off
tAC.MIN
tAC.MAX + 0.6 ns
tAOFPD
tANPD
tAXPD
ODT turn-off (Power-Down Modes)
tAC.MIN + 2 ns 2.5 tCK + tAC.MAX + 1 ns ns
ODT to Power Down Mode Entry Latency 3
ODT Power Down Exit Latency
—
—
tCK
tCK
8
1) ODT turn on time min. is when the device leaves high impedance and ODT resistance begins to turn on. ODT turn on time
max is when the ODT resistance is fully on. Both are measure from tAOND
2) ODT turn off time min. is when the device starts to turn off ODT resistance. ODT turn off time max is when the bus is in high
impedance. Both are measured from tAOFD
.
.
Table 20
ODT AC Characteristics and Operating Conditions for DDR2-533 and DDR2-400
Symbol Parameter / Condition
Values
Min.
2
Unit
Note
Max.
tAOND
tAON
ODT turn-on delay
2
tCK
ns
ns
tCK
ns
1)
ODT turn-on
tAC.MIN
t
AC.MAX + 1 ns
AC.MAX + 1 ns
tAONPD
tAOFD
tAOF
ODT turn-on (Power-Down Modes)
ODT turn-off delay
t
AC.MIN + 2 ns 2 tCK +
t
2.5
2.5
2)
ODT turn-off
tAC.MIN
tAC.MAX + 0.6 ns
tAOFPD
tANPD
tAXPD
ODT turn-off (Power-Down Modes)
tAC.MIN + 2 ns 2.5 tCK + tAC.MAX + 1 ns ns
ODT to Power Down Mode Entry Latency 3
ODT Power Down Exit Latency
—
—
tCK
tCK
8
1) ODT turn on time min. is when the device leaves high impedance and ODT resistance begins to turn on. ODT turn on time
max is when the ODT resistance is fully on. Both are measure from tAOND
2) ODT turn off time min. is when the device starts to turn off ODT resistance. ODT turn off time max is when the bus is in high
impedance. Both are measured from tAOFD
.
.
Data Sheet
30
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsCurrents Specifications and Conditions
3.4
Currents Specifications and Conditions
Table 21
I
DD Measurement Conditions 1)2)3)4)5)6)
Parameter
Symbol
Operating Current 0
IDD0
One bank Active - Precharge; tCK = tCK.MIN, tRC = tRC.MIN, tRAS = tRAS.MIN, CKE is HIGH, CS is HIGH
between valid commands. Address and control inputs are SWITCHING, Databus inputs are
SWITCHING.
Operating Current 1
IDD1
One bank Active - Read - Precharge; IOUT = 0 mA, BL = 4, tCK = tCK.MIN, tRC = tRC.MIN, tRAS = tRAS.MIN
,
t
RCD = tRCD.MIN, AL = 0, CL = CLMIN; CKE is HIGH, CS is HIGH between valid commands. Address and
control inputs are SWITCHING, Databus inputs are SWITCHING.
Precharge Standby Current
IDD2N
All banks idle; CS is HIGH; CKE is HIGH; tCK = tCK.MIN; Other control and address inputs are
SWITCHING, Data bus inputs are SWITCHING.
Precharge Power-Down Current
Other control and address inputs are STABLE, Data bus inputs are FLOATING.
IDD2P
IDD2Q
Precharge Quiet Standby Current
All banks idle; CS is HIGH; CKE is HIGH; tCK = tCK.MIN; Other control and address inputs are STABLE,
Data bus inputs are FLOATING.
Active Standby Current
IDD3N
Burst Read: All banks open; Continuous burst reads; BL = 4; AL = 0, CL = CLMIN; tCK = tCK.MIN
;
t
RAS = tRAS.MAX, tRP = tRP.MIN; CKE is HIGH, CS is HIGH between valid commands. Address inputs are
SWITCHING; Data Bus inputs are SWITCHING; IOUT = 0 mA.
Active Power-Down Current
All banks open; tCK = tCK.MIN, CKE is LOW; Other control and address inputs are STABLE, Data bus
inputs are FLOATING. MRS A12 bit is set to LOW (Fast Power-down Exit);
IDD3P(0)
IDD3P(1)
IDD4W
Active Power-Down Current
All banks open; tCK = tCK.MIN, CKE is LOW; Other control and address inputs are STABLE, Data bus
inputs are FLOATING. MRS A12 bit is set to HIGH (Slow Power-down Exit);
Operating Current
urst Write: All banks open; Continuous burst writes; BL = 4; AL = 0, CL = CLMIN; tCK = tCK.MIN
;
t
RAS = tRAS.MAX., tRP = tRP.MAX; CKE is HIGH, CS is HIGH between valid commands. Address inputs are
SWITCHING; Data Bus inputs are SWITCHING;
Burst Refresh Current
IDD5B
IDD5D
IDD6
t
CK = tCK.MIN., Refresh command every tRFC = tRFC.MIN interval, CKE is HIGH, CS is HIGH between valid
commands, Other control and address inputs are SWITCHING, Data bus inputs are SWITCHING.
Distributed Refresh Current
t
CK = tCK.MIN., Refresh command every tRFC = tREFI interval, CKE is LOW and CS is HIGH between valid
commands, Other control and address inputs are SWITCHING, Data bus inputs are SWITCHING.
Self-Refresh Current
CKE ≤ 0.2 V; external clock off, CK and CK at 0 V; Other control and address inputs are FLOATING,
Data bus inputs are FLOATING. IDD6 current values are guaranteed up to TCASE of 85 °C max.
All Bank Interleave Read Current
IDD7
All banks are being interleaved at minimum tRC without violating tRRD using a burst length of 4. Control
and address bus inputs are STABLE during DESELECTS. Iout = 0 mA.
1) VDDQ = 1.8 V ± 0.1 V; VDD = 1.8 V ± 0.1 V
Data Sheet
31
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsCurrents Specifications and Conditions
2) IDD specifications are tested after the device is properly initialized and IDD parameter are specified with ODT disabled.
3) Definitions for IDD see Table 22
4) IDD1, IDD4R and IDD7 current measurements are defined with the outputs disabled (IOUT = 0 mA). To achieve this on module
level the output buffers can be disabled using an EMRS(1) (Extended Mode Register Command) by setting A12 bit to
HIGH.
5) For two rank modules: for all active current measurements the other rank is in Precharge Power-Down Mode IDD2P
6) For details and notes see the relevant INFINEON component data sheet
Table 22
Parameter
LOW
Definitions for IDD
Description
VIN ≤ VIL(ac).MAX, HIGH is defined as VIN ≥ VIH(ac).MIN
inputs are stable at a HIGH or LOW level
inputs are VREF = VDDQ /2
STABLE
FLOATING
SWITCHING inputs are changing between HIGH and LOW every other clock (once per 2 cycles) for address
and control signals, and inputs changing between HIGH and LOW every other data transfer (once
per cycle) for DQ signals not including mask or strobes
Data Sheet
32
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsCurrents Specifications and Conditions
Table 23
I
DD Specification for HYS72T[32/64]×××HP–[3S/3.7]–A
Product Type
Unit
Note1)
Organization
256 MByte 512 MByte 512 MByte 256 MByte 512 MByte 512 MByte
1 Rank
×72
1 Rank
×72
2 Rank
×72
1 Rank
×72
1 Rank
×72
2 Rank
×72
–3S
Max.
940
–3S
–3S
–3.7
Max.
830
–3.7
Max.
1490
1580
1130
570
–3.7
Max.
860
Symbol
IDD0
Max.
1710
1870
1410
690
Max.
990
2)
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
mA
2)
IDD1
1020
790
1070
1200
480
870
910
3)
IDD2N
650
960
3)
IDD2P
430
370
400
3)
IDD2Q
660
1140
1410
940
930
560
950
780
3)
IDD3N
790
1200
730
650
1130
790
960
3)
IDD3P.MRS=0
IDD3P.MRS=1
IDD4R
560
470
620
3)
430
690
480
370
570
400
2)
1380
1420
1240
440
2580
2670
2310
700
1420
1470
1290
490
960
1760
2030
2030
610
1000
1130
1130
440
2)
IDD4W
IDD5B
1100
1100
380
2)
3)4)
3)4)
2)
IDD5D
IDD6
36
72
72
36
72
72
IDD7
1630
3080
1670
1550
2930
1580
1) Module IDD is calculated on the basis of component IDD and includes currents of Registers and PLL. ODT disabled. IDD1
DD4R and IDD7 are defined with the outputs disabled.
,
I
2) The other rank is IDD2P Precharge Power-Down Standby Current mode.
3) Both ranks are in the same IDD mode.
4) Values for 0 °C ≤ TCASE ≤ 85 °C
Data Sheet
33
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Electrical CharacteristicsCurrents Specifications and Conditions
3.4.1
Currents Test Conditions
For testing the IDD parameters, the following timing parameters are used:
Table 24
IDD Measurement Test Conditions for DDR2–667
Parameter
Symbol
–3S
Unit
DDR2–667D
CAS Latency
CL(IDD)
tCK(IDD)
tRCD(IDD)
tRC(IDD)
tRRD(IDD)
5
tCK
ns
ns
ns
ns
ns
ns
ns
µs
Clock Cycle Time
3.75
15
60
7.5
Active to Read or Write delay
Active to Active / Auto-Refresh command period
Active bank A to Active bank B command delay
Active to Precharge Command
tRAS.MIN(IDD) 45
tRAS.MAX(IDD) 70000
Precharge Command Period
tRP(IDD)
tREFI
15
Average periodic Refresh interval
7.8
Table 25
IDD Measurement Test Conditions for DDR2–533
Parameter
Symbol
–3.7
Unit
DDR2–533C
CAS Latency
CL(IDD)
4
tCK
ns
ns
ns
ns
ns
ns
ns
µs
Clock Cycle Time
tCK(IDD)
3.75
15
Active to Read or Write delay
tRCD(IDD)
tRC(IDD)
Active to Active / Auto-Refresh command period
Active bank A to Active bank B command delay
Active to Precharge Command
60
tRRD(IDD)
tRAS.MIN(IDD)
tRAS.MAX(IDD)
tRP(IDD)
7.5
45
70000
15
Precharge Command Period
Average periodic Refresh interval
tREFI
7.8
3.4.2
On Die Termination (ODT) Current
The ODT function adds additional current consumption current consumption for any terminated input pin,
to the DDR2 SDRAM when enabled by the EMRS(1). depends on the input pin is in tri-state or driving 0 or 1,
Depending on address bits A[6,2] in the EMRS(1) a as long a ODT is enabled during a given period of time.
“weak” or “strong” termination can be selected. The
Table 26
ODT current per terminated pin
Parameter
Symbol Min.
Typ.
6
Max. Unit
EMRS(1) State
Enabled ODT current per DQ
IODTO
5
7.5 mA/DQ A6 = 0, A2 = 1
ODT is HIGH; Data Bus inputs are FLOATING
2.5
7.5
10
5
3
3.75 mA/DQ A6 = 1, A2 = 0
11.25 mA/DQ A6 = 1, A2 = 1
9
Active ODT current per DQ
ODT is HIGH; worst case of Data Bus inputs are
STABLE or SWITCHING.
IODTT
12
6
15
mA/DQ A6 = 0, A2 = 1
mA/DQ A6 = 1, A2 = 0
7.5
15
18
22.5 mA/DQ A6 = 1, A2 = 0
Data Sheet
34
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
4
SPD Codes
This chapter lists all hexadecimal byte values stored in the EEPROM of the products described in this data sheet.
SPD stands for serial presence detect. All values with XX in the table are module specific bytes which are defined
during production.
Note:Self refresh rate is programmable via EMRS2 setting. The Refresh Period is 7.8 µs at a TCASE lower than 85
°C, 3.9 µs between 85 °C and 95 °C
List of SPD Code Tables
•
•
Table 27 “SPD Codes for PC2–5300” on Page 35
Table 28 “SPD Codes for PC2–4200” on Page 39
Table 27
SPD Codes for PC2–5300
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–5300R–
555
PC2–5300R–
555
PC2–5300R–
555
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
0
Programmed SPD Bytes in EEPROM
1
Total number of Bytes in EEPROM
Memory Type (DDR2)
Number of Row Addresses
Number of Column Addresses
DIMM Rank and Stacking Information
Data Width
08
08
08
2
08
08
08
3
0D
0A
60
0E
0A
60
0D
0A
61
4
5
6
48
48
48
7
Not used
00
00
00
8
Interface Voltage Level
05
05
05
9
t
t
CK @ CLMAX (Byte 18) [ns]
30
30
30
10
11
12
13
14
15
16
AC SDRAM @ CLMAX (Byte 18) [ns]
45
45
45
Error Correction Support (non-ECC, ECC)
Refresh Rate and Type
Primary SDRAM Width
Error Checking SDRAM Width
Not used
06
06
06
82
82
82
08
08
08
08
08
08
00
00
00
Burst Length Supported
0C
0C
0C
Data Sheet
35
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–5300 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–5300R–
555
PC2–5300R–
555
PC2–5300R–
555
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
04
Rev. 1.2
HEX
04
Rev. 1.2
HEX
04
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
Number of Banks on SDRAM Device
Supported CAS Latencies
DIMM Mechanical Characteristics
DIMM Type Information
DIMM Attributes
38
38
38
01
01
01
01
01
01
04
04
05
Component Attributes
03
03
03
t
t
t
t
t
t
t
t
CK @ CLMAX -1 (Byte 18) [ns]
AC SDRAM @ CLMAX -1 [ns]
CK @ CLMAX -2 (Byte 18) [ns]
AC SDRAM @ CLMAX -2 [ns]
RP.MIN [ns]
3D
50
3D
50
3D
50
50
50
50
60
60
60
3C
1E
3C
2D
40
3C
1E
3C
2D
80
3C
1E
3C
2D
40
RRD.MIN [ns]
RCD.MIN [ns]
RAS.MIN [ns]
Module Density per Rank
t
t
t
t
t
t
t
AS.MIN and tCS.MIN [ns]
AH.MIN and tCH.MIN [ns]
DS.MIN [ns]
20
20
20
27
27
27
10
10
10
DH.MIN [ns]
17
17
17
WR.MIN [ns]
3C
1E
1E
00
3C
1E
1E
00
3C
1E
1E
00
WTR.MIN [ns]
RTP.MIN [ns]
Analysis Characteristics
t
t
t
t
t
RC and tRFC Extension
RC.MIN [ns]
00
00
00
3C
4B
80
3C
69
3C
4B
80
RFC.MIN [ns]
CK.MAX [ns]
80
DQSQ.MAX [ns]
18
18
18
Data Sheet
36
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–5300 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–5300R–
555
PC2–5300R–
555
PC2–5300R–
555
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
22
Rev. 1.2
HEX
22
Rev. 1.2
HEX
22
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
t
QHS.MAX [ns]
PLL Relock Time
CASE.MAX Delta / ∆T4R4W Delta
0F
0F
53
0F
53
T
53
Psi(T-A) DRAM
78
78
78
∆T0 (DT0)
4B
4B
2E
26
4B
2E
26
∆T2N (DT2N, UDIMM) or ∆T2Q (DT2Q, RDIMM) 2E
∆T2P (DT2P)
26
26
2B
1B
4A
20
22
C4
8C
68
94
12
E8
C1
00
00
00
00
00
00
00
xx
∆T3N (DT3N)
26
26
∆T3P.fast (DT3P fast)
2B
1B
4A
20
2B
1B
4A
20
∆T3P.slow (DT3P slow)
∆T4R (DT4R) / ∆T4R4W Sign (DT4R4W)
∆T5B (DT5B)
∆T7 (DT7)
22
22
Psi(ca) PLL
C4
8C
68
C4
8C
68
Psi(ca) REG
∆TPLL (DTPLL)
∆TREG (DTREG) / Toggle Rate
SPD Revision
94
94
12
12
Checksum of Bytes 0-62
JEDEC ID Code of Infineon (1)
JEDEC ID Code of Infineon (2)
JEDEC ID Code of Infineon (3)
JEDEC ID Code of Infineon (4)
JEDEC ID Code of Infineon (5)
JEDEC ID Code of Infineon (6)
JEDEC ID Code of Infineon (7)
JEDEC ID Code of Infineon (8)
Module Manufacturer Location
47
EA
C1
00
C1
00
00
00
00
00
00
00
00
00
00
00
00
00
xx
xx
Data Sheet
37
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 27
SPD Codes for PC2–5300 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–5300R–
555
PC2–5300R–
555
PC2–5300R–
555
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
37
Rev. 1.2
HEX
37
Rev. 1.2
HEX
37
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
Product Type, Char 1
Product Type, Char 2
Product Type, Char 3
Product Type, Char 4
Product Type, Char 5
Product Type, Char 6
Product Type, Char 7
Product Type, Char 8
Product Type, Char 9
Product Type, Char 10
Product Type, Char 11
Product Type, Char 12
Product Type, Char 13
Product Type, Char 14
Product Type, Char 15
Product Type, Char 16
Product Type, Char 17
Product Type, Char 18
Module Revision Code
Test Program Revision Code
Module Manufacturing Date Year
Module Manufacturing Date Week
32
32
32
54
54
54
33
36
36
32
34
34
30
30
30
30
30
32
30
30
30
48
48
48
50
50
50
33
33
33
53
53
53
41
41
41
20
20
20
20
20
20
20
20
20
20
20
20
20
20
20
0x
0x
0x
xx
xx
xx
xx
xx
xx
xx
xx
xx
95 - 98 Module Serial Number
99 - 127 Not used
xx
xx
xx
00
00
00
Data Sheet
38
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 28
SPD Codes for PC2–4200
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–4200R–
444
PC2–4200R–
444
PC2–4200R–
444
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
Rev. 1.2
HEX
80
0
Programmed SPD Bytes in EEPROM
1
Total number of Bytes in EEPROM
Memory Type (DDR2)
Number of Row Addresses
Number of Column Addresses
DIMM Rank and Stacking Information
Data Width
08
08
08
2
08
08
08
3
0D
0A
60
0E
0A
60
0D
0A
61
4
5
6
48
48
48
7
Not used
00
00
00
8
Interface Voltage Level
05
05
05
9
t
t
CK @ CLMAX (Byte 18) [ns]
3D
50
3D
50
3D
50
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
AC SDRAM @ CLMAX (Byte 18) [ns]
Error Correction Support (non-ECC, ECC)
Refresh Rate and Type
06
06
06
82
82
82
Primary SDRAM Width
08
08
08
Error Checking SDRAM Width
Not used
08
08
08
00
00
00
Burst Length Supported
Number of Banks on SDRAM Device
Supported CAS Latencies
DIMM Mechanical Characteristics
DIMM Type Information
DIMM Attributes
0C
04
0C
04
0C
04
38
38
38
01
01
01
01
01
01
04
04
05
Component Attributes
03
03
03
t
t
t
t
CK @ CLMAX -1 (Byte 18) [ns]
AC SDRAM @ CLMAX -1 [ns]
CK @ CLMAX -2 (Byte 18) [ns]
AC SDRAM @ CLMAX -2 [ns]
3D
50
3D
50
3D
50
50
50
50
60
60
60
Data Sheet
39
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 28
SPD Codes for PC2–4200 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–4200R–
444
PC2–4200R–
444
PC2–4200R–
444
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
3C
1E
3C
2D
40
Rev. 1.2
HEX
3C
1E
3C
2D
80
Rev. 1.2
HEX
3C
1E
3C
2D
40
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
t
t
t
t
RP.MIN [ns]
RRD.MIN [ns]
RCD.MIN [ns]
RAS.MIN [ns]
Module Density per Rank
t
t
t
t
t
t
t
AS.MIN and tCS.MIN [ns]
AH.MIN and tCH.MIN [ns]
DS.MIN [ns]
25
25
25
37
37
37
10
10
10
DH.MIN [ns]
22
22
22
WR.MIN [ns]
3C
1E
1E
00
3C
1E
1E
00
3C
1E
1E
00
WTR.MIN [ns]
RTP.MIN [ns]
Analysis Characteristics
t
t
t
t
t
t
RC and tRFC Extension
RC.MIN [ns]
00
00
00
3C
4B
80
3C
69
3C
4B
80
RFC.MIN [ns]
CK.MAX [ns]
80
DQSQ.MAX [ns]
QHS.MAX [ns]
1E
28
1E
28
1E
28
PLL Relock Time
CASE.MAX Delta / ∆T4R4W Delta
0F
0F
0F
T
51
51
51
Psi(T-A) DRAM
78
78
78
∆T0 (DT0)
3F
3F
3F
∆T2N (DT2N, UDIMM) or ∆T2Q (DT2Q, RDIMM) 22
22
22
∆T2P (DT2P)
1E
1E
24
1E
1E
24
1E
1E
24
∆T3N (DT3N)
∆T3P.fast (DT3P fast)
Data Sheet
40
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 28
SPD Codes for PC2–4200 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–4200R–
444
PC2–4200R–
444
PC2–4200R–
444
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
17
Rev. 1.2
HEX
17
Rev. 1.2
HEX
17
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
∆T3P.slow (DT3P slow)
∆T4R (DT4R) / ∆T4R4W Sign (DT4R4W)
∆T5B (DT5B)
34
34
34
1E
20
1E
20
1E
20
∆T7 (DT7)
Psi(ca) PLL
C4
8C
61
C4
8C
61
C4
8C
61
Psi(ca) REG
∆TPLL (DTPLL)
∆TREG (DTREG) / Toggle Rate
SPD Revision
78
78
78
12
12
12
Checksum of Bytes 0-62
JEDEC ID Code of Infineon (1)
JEDEC ID Code of Infineon (2)
JEDEC ID Code of Infineon (3)
JEDEC ID Code of Infineon (4)
JEDEC ID Code of Infineon (5)
JEDEC ID Code of Infineon (6)
JEDEC ID Code of Infineon (7)
JEDEC ID Code of Infineon (8)
Module Manufacturer Location
Product Type, Char 1
BA
C1
00
19
BC
C1
00
C1
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
00
xx
xx
xx
37
37
37
Product Type, Char 2
32
32
32
Product Type, Char 3
54
54
54
Product Type, Char 4
33
36
36
Product Type, Char 5
32
34
34
Product Type, Char 6
30
30
30
Product Type, Char 7
30
30
32
Product Type, Char 8
30
30
30
Data Sheet
41
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
SPD Codes
Table 28
SPD Codes for PC2–4200 (cont’d)
Product Type
Organization
Label Code
256MB
×72
512MB
×72
512MB
×72
1 Rank (×8)
1 Rank (×8)
2 Ranks (×8)
PC2–4200R–
444
PC2–4200R–
444
PC2–4200R–
444
JEDEC SPD Revision
Byte# Description
Rev. 1.2
HEX
48
Rev. 1.2
HEX
48
Rev. 1.2
HEX
48
81
82
83
84
85
86
87
88
89
90
91
92
93
94
Product Type, Char 9
Product Type, Char 10
Product Type, Char 11
Product Type, Char 12
Product Type, Char 13
Product Type, Char 14
Product Type, Char 15
Product Type, Char 16
Product Type, Char 17
Product Type, Char 18
Module Revision Code
Test Program Revision Code
Module Manufacturing Date Year
Module Manufacturing Date Week
50
50
50
33
33
33
2E
37
2E
37
2E
37
41
41
41
20
20
20
20
20
20
20
20
20
20
20
20
0x
0x
0x
xx
xx
xx
xx
xx
xx
xx
xx
xx
95 - 98 Module Serial Number
99 - 127 Not used
xx
xx
xx
00
00
00
Data Sheet
42
Rev. 1.0, 2006-03
02102006-0OKM-JLO7








ꢁꢄ
ꢁꢈꢀꢄ



“ꢀꢏꢁꢄ
ꢂꢄ


ꢁꢏꢈ


ꢊ

ꢆꢆꢄ

ꢅꢄ
“
ꢁꢏꢆꢄ

ꢀꢏꢁꢄ


ꢁ


ꢈꢉꢀꢄ


ꢈ
ꢁꢄ
ꢐꢅꢑꢄ

'

H








R






WD
L
OꢄR
IꢄF
Q
WD
FWVꢄ
“
ꢀꢏꢋꢄ

ꢀꢏ

ꢀꢆꢄ


ꢀꢏꢁꢄ$ꢄ %ꢄ &ꢄ

%



ꢄ

PD



ꢀꢏꢉ

ꢄ

D






*





ꢊꢆꢆ


XUU
[ꢏꢄ
OORZHGꢄ
/'ꢀꢇ
ꢄ
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Package Outlines
5
Package Outlines
ꢁ
ꢁ

ꢅ
ꢈ

ꢅꢏꢅ
ꢋꢏꢇ


ꢆꢄ
ꢆꢄ
ꢈꢏꢂ
ꢄ
0$;ꢏꢄ
ꢉꢄ
ꢈꢏꢆꢄ
&ꢄ
ꢆꢄ
$ꢄ
%ꢄ
ꢁꢄ
Figure 5
Notes
Package Outline Raw Card F L-DIM-240-11
1. General tolerances +/- 0.15
2. Drawing according to ISO 8015
Data Sheet
43
Rev. 1.0, 2006-03
02102006-0OKM-JLO7







ꢁꢄ
ꢁ


ꢈꢀꢄ

“ꢀꢏꢁꢄ
ꢂꢄ


ꢁꢏꢈ


ꢊ

ꢆꢆꢄ

ꢅꢄ
“
ꢁꢏꢆꢄ

ꢀꢏꢁꢄ


ꢁ


ꢈꢉꢀꢄ


ꢈ
ꢁꢄ
ꢐꢅꢑꢄ

'

H





R


FR
ꢁꢄ







WD
L
Oꢄ
Iꢄ
Q
WD
FWVꢄ
“
ꢀꢏꢋꢄ

ꢀꢏꢀꢆꢄ



ꢀꢏꢁꢄ$ꢄ %ꢄ &ꢄ

%



ꢄ

PD


ꢏꢄ

ꢀꢏꢉ

ꢄ

D






*





ꢊꢆꢊ


XUU
[
OORZHGꢄ
/'ꢀꢇ
ꢄ
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Package Outlines
ꢁ
ꢁ

ꢅ
ꢈ

ꢅꢏꢅ
ꢋꢏꢇ


ꢆꢄ
ꢆꢄ
ꢉꢄ
0$;ꢏꢄ
ꢉꢄ
ꢈꢏꢆꢄ
&ꢄ
ꢆꢄ
$ꢄ
%ꢄ
Figure 6
Notes
Package Outline Raw Card G L-DIM-240-12
1. General tolerances +/- 0.15
2. Drawing according to ISO 8015
Data Sheet
44
Rev. 1.0, 2006-03
02102006-0OKM-JLO7







ꢁꢄ
ꢁꢈꢀꢄ



“
ꢂꢄ

ꢀꢏꢁꢄ

ꢁꢏ

ꢈ

ꢊ

ꢆꢆꢄ

ꢅꢄ
“ꢀꢏꢁꢄ
ꢁꢏꢆꢄ



ꢁ


ꢈꢉꢀꢄ


ꢈ
ꢁꢄ
ꢐꢅꢑꢄ

'H



D






R






W
L
OꢄR
IꢄF
Q
WDFWVꢄ
“
ꢀꢏꢋꢄ

ꢀꢏ

ꢀꢆꢄ


ꢀꢏꢁꢄ$ꢄ %ꢄ &ꢄ

%



ꢄP


D


ꢏ

ꢉꢄDOORZHG







ꢄ
*


'ꢀꢇꢊꢆ





XUU
[ꢏꢄꢀ
/
ꢂꢄ
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Package Outlines
ꢁ
ꢁ

ꢅꢅ
ꢈꢋ

ꢏ
ꢏ

ꢅ
ꢇ

ꢆꢄ
ꢆꢄ
ꢉꢄ0$;ꢏꢄ
ꢉꢄ
ꢈꢏꢆꢄ
&ꢄ
ꢆꢄ
$ꢄ
%ꢄ
ꢁꢄ
Figure 7
Notes
Package Outline Raw Card H L-DIM-240-13
1. General tolerances +/- 0.15
2. Drawing according to ISO 8015
Data Sheet
45
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
HYS72T[32/64]xxxHP–[3S/3.7]–A
Registered DDR2 SDRAM Modules
Product Type Nomenclature (DDR2 DRAMs and DIMMs)
6
Product Type Nomenclature (DDR2 DRAMs and DIMMs)
Infineon’s nomenclature uses simple coding combined description together with possible values and coding
with some propriatory coding. Table 29 provides explanation is listed for modules in Table 30 and for
examples for module and component product type components in Table 31.
number as well as the field number. The detailed field
Table 29
Nomenclature Fields and Examples
Field Number
Example for
1
2
3
T
T
4
5
6
7
0
0
8
9
10
–5
–5
11
Micro-DIMM
DDR2 DRAM
HYS
HYB
64
18
64
512
0
2
K
A
M
C
–A
16
1) Multiplying “Memory Density per I/O” with “Module Data
Width” and dividing by 8 for Non-ECC and 9 for ECC
modules gives the overall module memory density in
MBytes as listed in column “Coding”.
Table 30
DDR2 DIMM Nomenclature
Values Coding
Field Description
1
INFINEON
HYS
Constant
Modul Prefix
2
Module Data
Width [bit]
64
72
T
Non-ECC
ECC
Table 31
DDR2 DRAM Nomenclature
Values Coding
Field Description
3
4
DRAM
Technology
DDR2
1
2
3
4
INFINEON
Component Prefix
HYB
Constant
SSTL_18
DDR2
Memory Density
per I/O [Mbit];
Module Density1)
32
256 MByte
512 MByte
1 GByte
Interface Voltage 18
[V]
64
DRAM
Technology
T
128
256
512
0 .. 9
2 GByte
Component
256
512
1G
2G
40
256 Mbit
512 Mbit
1 Gbit
2 Gbit
×4
4 GByte
Density [Mbit]
5
6
Raw Card
Generation
Look up table
Number of Module 0, 2, 4 1, 2, 4
Ranks
5+6 Number of I/Os
7
8
Product Variations 0 .. 9
Look up table
80
×8
Package,
A .. Z
Look up table
16
×16
Lead-Free Status
7
8
Product Variations 0 .. 9
Look up table
First
9
Module Type
Speed Grade
Die Revision
D
SO-DIMM
Die Revision
A
B
C
M
Micro-DIMM
Registered
Second
R
9
Package,
Lead-Free Status
FBGA,
lead-containing
U
Unbuffered
F
Fully Buffered
PC2–6400 6–6–6
PC2–5300 4–4–4
PC2–5300 5–5–5
PC2–4200 4–4–4
PC2–3200 3–3–3
First
F
FBGA, lead-free
DDR2-800 6-6-6
DDR2-667 4-4-4
DDR2-667 5-5-5
DDR2-533 4-4-4
DDR2-400 3-3-3
10
11
–2.5
–3
–3S
–3.7
–5
–A
–B
10
Speed Grade
–2.5
–3
–3S
–3.7
–5
Second
Data Sheet
46
Rev. 1.0, 2006-03
02102006-0OKM-JLO7
w w w . i n f i n e o n . c o m
Published by Infineon Technologies AG
厂商 型号 描述 页数 下载

INFINEON

 		HYS64-72V2200GU-8 3.3V 2M ×64 /72- 1位BANK SDRAM模块3.3V 4M ×64 /72- 2位BANK SDRAM模块[ 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module ] 17 页

INFINEON

 		HYS64-74V8200GU 3.3 V 8M ×64 /72- 1位银行SDRAM模块3.3 V 16M ×64 /72- 2位银行SDRAM模块[ 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module ] 17 页

INFINEON

 		HYS6472V16200GU 3.3 V 16M ×64 /72-位SDRAM模块3.3 V 32M ×64 /72-位SDRAM模块3.3 V 64M ×64 /72-位SDRAM模块[ 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules ] 17 页

INFINEON

 		HYS6472V4200GU 3.3V 4M ×64 /72- 1位BANK SDRAM模块3.3V 8M ×64 /72- 2位BANK SDRAM模块[ 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module ] 15 页

INFINEON

 		HYS64D128020GBDL-6-A [ DDR DRAM Module, 128MX64, 0.7ns, CMOS, SO-DIMM-200 ] 11 页

ETC

 		HYS64D128020GBDL-7-A ？ 1GB （ 1024Mx64 ） PC2100 2银行？\n[ ?1GB (1024Mx64) PC2100 2-bank? ] 11 页

INFINEON

 		HYS64D128020GU-7-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

INFINEON

 		HYS64D128020GU-8-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

QIMONDA

 		HYS64D128020GU-8-A [ DDR DRAM Module, 128MX64, 0.8ns, CMOS, PDMA184 ] 18 页

INFINEON

 		HYS64D128021 200针的小型双列直插式内存模块[ 200-Pin Small Outline Dual-In-Line Memory Modules ] 23 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.311455s
