YTW-15-06-L-5-475-090

型号:

YTW-15-06-L-5-475-090

品牌:

SAMTEC[ SAMTEC ]

页数:

1 页

PDF大小:

631 K

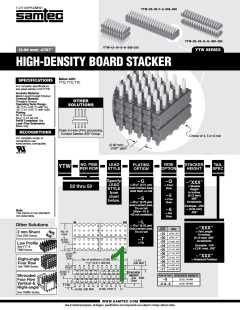

F-217 SUPPLEMENT
YTW–26–02–T–5–250–050
YTW–20–03–G–Q–400–085
YTW–12–10–S–6–300–215
(2.00 mm) .0787"
YTW SERIES
HIGH-DENSITY BOARD STACKER
Mates with:
SPECIFICATIONS
YTQ, YTS, YTE
For complete specifications
see www.samtec.com?YTW
Insulator Material:
Black Liquid Crystal Polymer
Terminal Material:
OTHER
SOLUTIONS
Phosphor Bronze
Operating Temp Range:
-55 °C to +105 °C with Tin;
-55 °C to +125 °C with Gold
Plating:
Sn or Au over
50 µ" (1.27 µm) Ni
RoHS Compliant: Yes
Lead–Free Solderable:
Wave only
Paste In Hole (PIH) processing.
Contact Samtec ASP Group.
RECOGNITIONS
Choice of 4, 5 or 6 row
For complete scope of
recognitions see
www.samtec.com/quality
(2.00 mm)
.0787" pitch
FILE NO. E111594
NO. PINS
PER ROW
LEAD
STYLE
TAIL
SPEC
PLATING
OPTION
ROW
OPTION
STACKER
HEIGHT
YTW
Specify
LEAD
STYLE
from
–G
–Q
= Four
Row
–“XXX”
= Stacker
Height
In inches
(0.13 mm)
.005"
= 20 µ" (0.51 µm)
Gold contact area,
Gold flash on tail
02 thru 50
–5
= Five
Row
chart
–S
below.
increments
= 30 µ" (0.76 µm)
Gold contact area,
Tin on tail
Example: –250
= (6.35 mm)
.250"
Note:
–6
= Six
Row
(Style –01 &
–02 not available)
This Series is non-standard,
non-returnable.
06
01
300
295
–L
Other Solutions
= 10 µ" (0.25 µm)
Gold contact area,
Tin on tail
LEAD
–“XXX”
OAL
STYLE
No. of
rows
x
= Tail Length
In inches
2 mm Shunt
(8.20) .323
–01
–02
–03
–04
–05
–06
–07
–09
–10
–11
See 2SN Series.
(9.60) .377
(0.13 mm) .005"
increments
(2.00)
.0787
–T
(13.60) .535
= Tin
Low Profile
See YTT &
TMM Series.
(14.10) .555
(15.10) .594
(17.10) .673
(19.10) .751
(11.60) .456
(15.60) .614
(10.08) .397
Example: -150
= (3.81 mm) .150"
(2.00)
.0787
TYP
–“XXX”
= Polarized Position
Right-angle
No. of positions x (2.00) .0787
(0.51) .020 SQ
(1.27)
.050 MIN
Four Row
See TMM Series.
POST
(2.00)
STACKER
HEIGHT
.0787
ROW OPTION
STACKER HEIGHT
Shrouded
Four Row
Vertical &
Right-angle
OAL
See
(3.05) .120 MIN
–Q
–5 & –6
Chart
(4.06) .160 MIN
TAIL
(2.00) .0787
(0.00) .000 MIN
See TMMS Series.
WWW.SAMTEC.COM
Due to technical progress, all designs, specifications and components are subject to change without notice.
