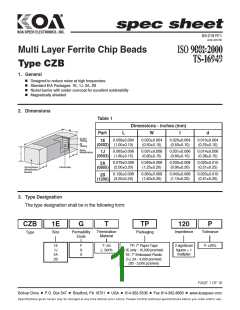

KOA SPEER ELECTRONICS, INC.
SS-219 R11
AHA 3/21/05
CERTIFIED
Multi Layer Ferrite Chip Beads
CERTIFIED
Type CZB
1. General
ꢀ
Designed to reduce noise at high frequencies
ꢀ
Standard EIA Packages: 1E, 1J, 2A, 2B
ꢀ
Nickel barrier with solder overcoat for excellent solderability
ꢀ
Magnetically shielded
2. Dimensions
Table 1
Dimensions - inches (mm)
W
Part
L
W
t
d
L
Solder
Plating
0.039 0.004
(1.00 0.10ꢀ
0.020 0.004
(0.50 0.10ꢀ
0.020 0.004
(0.50 0.10ꢀ
0.010 0.004
(0.25 0.10ꢀ
1E
(0402)
Ni
Plating
Silver
0.063 0.006
0.031 0.006
(0.80 0.15ꢀ
0.031 0.006
(0.80 0.15ꢀ
0.014 0.006
(0.36 0.15ꢀ
1J
Metallization
t
d
(0603) (1.60 0.15ꢀ
0.079 0.008
(2.00 0.20ꢀ
0.049 0.008
(1.25 0.20ꢀ
0.035 0.008
(0.90 0.20ꢀ
0.020 0.010
(0.51 0.25ꢀ
2A
(0805)
Terminations
(Metallization
Bandsꢀ
d
Electrodes
0.126 0.008
(3.20 0.20ꢀ
0.063 0.008
(1.60 0.20ꢀ
0.043 0.008
(1.10 0.20ꢀ
0.020 0.010
(0.51 0.25ꢀ
2B
(1206)
3. Type Designation
The type designation shall be in the following form:
CZB
Type
1E
Size
G
Permability
Code
T
TP
120
P
Termination
Material
Impedence
Tolerance
Packaging
1E
1J
2A
2B
F
G
S
T: Sn
L: SnPb
TP: 7" Paper Tape
(1E only - 10,000 pcs/reelꢀ
TE: 7" Embossed Plastic
(1J, 2A - 4,000 pcs/reelꢀ
(2B - 3,000 pcs/reelꢀ
2 significant
figures + 1
multiplier
P: 25ꢁ
PAGE 1 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
4. Standard Applications
Impedance
@ 100MHz †
Ω
Maximum DC
Resistance ††
Ω
Allowable
DC Current
(mA)
Ordering
Code
Operating
Temperature
CZB1EG*TP100P
CZB1EG*TP150P
CZB1EG*TP700P
CZB1EG*TP121P
CZB1EG*TP221P
CZB1EG*TP601P
CZB1EG*TP102P
CZB1JG*TE300P
CZB1JG*TE400P
CZB1JG*TE600P
CZB1JG*TE750P
CZB1JG*TE800P
CZB1JG*TE900P
CZB1JG*TE101P
CZB1JG*TE121P
CZB1JG*TE141P
CZB1JG*TE151P
CZB1JG*TE181P
CZB1JG*TE221P
CZB1JG*TE301P
CZB1JG*TE421P
CZB1JG*TE601P
CZB1JG*TE102P
CZB1JG*TE152P
CZB1JG*TE182P
CZB1JG*TE202P
CZB1JS*TE050P
10
15
0.05
0.07
0.4
0.5
0.7
1.1
1.5
0.1
0.1
0.2
0.2
0.2
0.3
0.3
0.2
0.3
0.3
0.3
0.3
0.35
0.4
0.45
0.8
0.7
0.95
0.8
0.10
500
300
200
200
100
50
70
120
220
600
1000
30
50
400
400
300
300
300
250
250
700
250
250
250
250
230
210
210
190
100
50
40
60
75
80
90
-55°C
to
125°C
100
120
140
150
180
220
300
420
600
1,000
1,500
1,800
2,000
5
50
700
*Add Termination Material Character (T, Lꢀ
† Impedance Test Method: HP4291A
†† DCR Test Method: Keithley 580
PAGE 2 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
4. Standard Applications (continuedꢀ
Impedance
Maximum DC
Resistance ††
Ω
Allowable
DC Current
(mA)
Ordering
Code
@ 100MHz †
Operating
Temperature
Ω
CZB1JS*TE180P
CZB1JS*TE750P
18
75
0.1
400
200
0.35
CZB1JS*TE121P
CZB1JS*TE421P
CZB1JS*TE601P
CZB1JS*TE102P
CZB2AF*TE110P
CZB2AF*TE170P
120
420
600
1,000
11
0.4
0.5
0.65
0.6
0.1
0.1
200
200
200
150
800
800
17
CZB2AF*TE300P
CZB2AF*TE400P
30
40
0.1
0.1
800
800
CZB2AF*TE500P
CZB2AF*TE800P
CZB2AG*TE101P
CZB2AG*TE121P
CZB2AG*TE151P
CZB2AG*TE201P
CZB2AG*TE301P
CZB2AG*TE401P
CZB2AG*TE601P
CZB2AG*TE102P
CZB2AG*TE152P
CZB2AG*TE202P
CZB2AG*TE222P
CZB2AS*TE180P
CZB2AS*TE201P
CZB2AS*TE221P
50
80
0.1
800
400
400
400
200
200
200
200
200
200
200
200
200
600
200
200
0.15
0.15
0.15
0.3
100
-55°C
to
125°C
120
150
200
0.3
300
0.3
400
0.3
600
0.3
1,000
1,500
2,000
2,200
18
0.4
0.55
0.7
0.8
0.1
200
0.4
220
0.25
*Add Termination Material Character (T, Lꢀ
† Impedance Test Method: HP4291A
†† DCR Test Method: Keithley 580
PAGE 3 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
4. Standard Applications (continuedꢀ
Impedance
Maximum DC
Resistance ††
Ω
Allowable
DC Current
(mA)
Ordering
Code
@ 100MHz †
Operating
Temperature
Ω
CZB2AS*TE601P
CZB2AS*TE102P
CZB2AS*TE272P
600
1,000
2,700
0.4
200
100
200
0.75
0.8
CZB2BF*TE190P
CZB2BF*TE260P
CZB2BF*TE300P
CZB2BF*TE500P
CZB2BF*TE600P
CZB2BF*TE700P
CZB2BF*TE800P
CZB2BF*TE900P
CZB2BF*TE101P
19
26
0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
600
600
600
600
600
600
400
400
400
30
50
60
70
80
90
100
-55°C
to
125°C
CZB2BF*TE121P
CZB2BF*TE151P
CZB2BF*TE201P
CZB2BF*TE301P
CZB2BF*TE601P
120
150
200
300
600
0.2
0.15
0.3
0.3
0.5
400
300
300
300
200
CZB2BG*TE102P
CZB2BG*TE152P
CZB2BG*TE202P
1,000
0.7
0.9
0.6
150
100
100
1,500 @ 50MHz
2,000 @ 30MHz
CZB2BG*TE222P
CZB2BS*TE190P
CZB2BS*TE300P
CZB2BS*TE601P
2,200 @ 50MHz
1.0
0.1
0.1
0.3
200
600
600
200
19
30
600
*Add Termination Material Character (T, Lꢀ
† Impedance Test Method: HP4291A
†† DCR Test Method: Keithley 580
PAGE 4 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0402 Graphs
CZB1EG121
CZB1EGTE100
CZB1EGTE102
CZB1EGTE221
CZB1EG601
CZB1EG150
CZB1EG700
5. 0603 Graphs
CZB1JG102
CZB1JG101
CZB1JG121
PAGE 5 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0603 Graphs (continuedꢀ
CZB1JG152
CZB1JG151
CZB1JG141
CZB1JG181
CZB1JG182
CZB1JG202
CZB1JG221
CZB1JG301
CZB1JG300
CZB1JG421
CZB1JG400
CZB1JG600
PAGE 6 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0603 Graphs (continuedꢀ
CZB1JG800
CZB1JG750
CZB1JG601
CZB1JS121
CZB1JS180
CZB1JS721
CZB1JS102
CZB1JG900
CZB1JS141
CZB1JS421
CZB1JS050
CZB1JS601
PAGE 7 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0805 Graphs
CZB2AFTE110P
CZB2AF400
CZB2AF750
CZB2AG102
CZB2AF050
CZB2AF100
CZB2AF300
CZB2AF600
CZB2AF170
CZB2AF500
CZB2AF800
CZB2AG101
PAGE 8 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0805 Graphs (continuedꢀ
CZB2AG121
CZB2AG151
CZB2AG152
CZB2AGTE182
CZB2AG201
CZB2AG181
CZB2AG401
CZB2AG301
CZB2AG421
CZB2AG601
CZB2AG751
CZB2AG900
PAGE 9 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 0805 Graphs (continuedꢀ
CZB2AL601
CZB2AS180
CZB2AS102
CZB2AS221
CZB2AS751
CZB2AS272
CZB2AS201
CZB2AS601
PAGE 10 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 1206 Graphs
CZB2BF190
CZB2BF121
CZB2BF260
CZB2BF310
CZB2BF601
CZB2BF101
CZB2BF201
CZB2BF301
CZB2BF600
CZB2BF300
CZB2BF500
CZB2BF700
PAGE 11 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. 1206 Graphs (continuedꢀ
CZB2BF900
CZB2BG202
CZB2BS190
CZB2BF800
CZB2BG102
CZB2BG222
CZB2BG152
CZB2BS181
CZB2BS601
PAGE 12 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. Characteristics
Item
Requirement
Conditions
Operating Temperature
Storage Temperature
-55°C ~ +125°C
40°C @ 70ꢁ Humidity
Sealed plastic bags with desiccant shall be
used to reduce the potential of oxidation on
the terminations during storage.
Resistance to Solder
Heat
Change in Impedance: Relative to value before
test 20ꢁ.
Appearance: There shall be no cracking
Solder Coverage: More than 75ꢁ of the terminal
electrode shall be covered with solder.
Flux: 5-10 sec dip
After Flux: Air dry for 15 sec
Preheat: 150°C 10°C
Preheat Time: 60 sec
Solder Temp: 260°C 5°C
Dip Time: 10 1 sec
Solderability
Solder Coverage: More than 95ꢁ of the
termination shall be covered with solder.
Flux: 5-10 sec dip
After Flux: Air dry for 15 sec
Solder Temp: 245°C 5°C
Dip Time: 5 0.5 sec
Leach Resistance
Appearance: There shall be no visible signs of
physical or mechanical damage (i.e. no cracksꢀ
Terminations: Termination must not be leached
away for more than 5ꢁ.
The bead shall be subjected to the following
5 steps for the period of time shown below.
The 5 steps constitute one (1ꢀ rotation.
4 rotations shall be carried out.
1) Flux: 5-10 sec
2) After Flux: Air dry for 15 sec
3) Solder Temp: 230°C 5°C
4) Dip Time: 5 0.5 sec
5) Cool: Air cool for 60 seconds
Insulation Resistance
Solvent Resistance
Insulation Resistance: Min 1G ohms
Change in Impedance: Relative to value before
test 10ꢁ.
Cleaning by:
Washer: Ultrasonic washer (100Wꢀ
Solvent: Isopropyl alcohol
Time: 3 minutes
Terminal Strength
(hanging testꢀ
Appearance: The terminal electrode shall not
break off, nor shall there be damage to the body.
Type
1E
W(kgf)
Time
N/A
1J
0.5
1.0
1.5
30 sec 2 sec
30 sec 2 sec
30 sec 2 sec
2A
2B
Terminal Strength
(push testꢀ
Appearance: There shall be no evidence of
mechanical degradations to terminals or body.
Type
1E
W(kgf)
Time
N/A
60 sec
60 sec
60 sec
1J
1.4
1.8
2.3
2A
2B
PAGE 13 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
5. Characteristics (continuedꢀ
Item
Requirement
Conditions
Bending Strength
Appearance: There shall be no physical or
mechanical damage
Impedance: Relative to initial value before test
10ꢁ
Board: 90x40x1.6mm
Bend: 1mm
Time: 5 sec
Mechanical Shock
Vibration
Appearance: There shall be no physical or
mechanical damage
Impedance: Relative to initial value before test
10ꢁ
Force: 50G
Time: 11 msec
There shall be 3 shocks in each of 6 directions
(18 shocks totalꢀ.
Impedance: Relative to initial value 10ꢁ
Only endurance conditioning by sweeping shall
be made. The entire frequency range from
10-2,000Hz and return to 10Hz in 20
minutes (this shall constitute one cycleꢀ.
Amplitude: 1.5mm
The test shall have a 15G peak and shall be
applied for a period of 4 hours (12 cyclesꢀ
in each of 3 mutually perpendicular directions
(a total of 36 cycles within a total of 12 hoursꢀ.
Thermal Shock
Appearance: There shall be no physical or
mechanical damage.
Impedance: Relative to initial value 20ꢁ.
DCR: The DCR shall not exceed initial specified
value.
Step
1-start
Temperature
Time
-40°C 2°C
2-hold
-40°C 2°C 30 min 5 min
0.5 min max.
+105°C 2°C 30 min 5 min
0.5 min max.
3-transfer
4-hold
5-transfer
Testing of the parts will be made at 0 hours, 250
hours and 500 hours. Before testing the parts
shall be allowed to cool to room temperature for
24 hours.
Steps 1 thru 5 constitute one complete cycle
and the test shall consist of a total of 500
cycles.
Load Humidity
Appearance: There shall be no physical or
mechanical damage
Impedance: Relative to initial value 15ꢁ
Temperature: 85°C 2°C
Relative Humidity: 85ꢁ
Time: 1,000 hours total
Apply: 100ꢁ rated current
Measurements shall be taken at 0 hours, 250
hours, 500 hours and 1,000 hours and shall meet
the conditions stated above.
Life Test
Appearance: There shall be no physical or
mechanical damage
Impedance: Relative to initial value 15ꢁ
Temperature: 85°C 2°C
Time: 1,000 hours total
Apply: 100ꢁ rated current
Measurements shall be taken at 0 hours, 250
hours, 500 hours and 1,000 hours and shall meet
the conditions stated above.
PAGE 14 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
6. Dimensions - inches (mm)
+0.1
-0
1.5
B
T1
T1
Direction of feed
T1
2.0 4.0–0.1
P1
Dimensions - inches (mm)
Tape
A
B
W
P1
T1
1E
0402
0.046 0.004
(1.17 0.1)
0.026 0.004
(0.65 0.1)
0.315 0.009
(8.0 0.22)
0.079 0.009
(2.0 0.23)
0.025 0.004
(0.63 0.1)
1J
0603
0.075 0.002
(1.9 0.1)
0.043 0.002
(1.1 0.1)
0.318 0.002
(8.1 0.1)
0.157 0.004
(4.0 0.1)
0.043 0.002
(1.1 0.1)
2A
0805
0.093 0.002
(2.4 0.1)
0.063 0.002
(1.6 0.1)
0.318 0.002
(8.1 0.1)
0.157 0.004
(4.0 0.1)
0.046 0.002
(1.2 0.1)
2B
1206
0.138 0.002
(3.5 0.1)
0.071 0.002
(1.8 0.1)
0.318 0.002
(8.1 0.1)
0.157 0.004
(4.0 0.1)
0.071 0.002
(1.8 0.1)
Dimensions - inches (mm)
(mm)
Tape
øa
ød
e
Central hole
1E
0402
1J
0603
7
0.827
(21)
0.079
(2.0)
¿13
¿d
(178)
2A
0805
e
2B
1206
PAGE 15 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
KOA SPEER ELECTRONICS, INC.
SS-219 R11
7. Recommended PC Board Land Patterns - mm (inches)
Chip Size
L
G
H
H
1.3 (0.051)
2.6 (0.102)
3.0 (0.118)
4.4 (0.173)
0.4 (0.016)
0.6 (0.023)
1.0 (0.039)
2.2 (0.087)
0.5 (0.020)
0.8 (0.031)
1.0 (0.039)
1.4 (0.055)
1E (0402)
1J (0603)
2A (0805)
2B (1206)
G
L
8. Recommended Temperature Profiles for Soldering
Recommended Temperature Profile
for Wave Soldering
Recommended Temperature Profile
for Reflow Soldering
Preheat 100
Seconds Max.
Soldering
10 Seconds Max.
Natural
Cooling
Preheat 100
Seconds Max.
Soldering
10 Seconds Max.
Natural
Cooling
250°C
150°C
250°C
150°C
200°C
20 Seconds Max.
60 Seconds Max.
60 Seconds Max.
PAGE 16 OF 16
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
Bolivar Drive
P.O. Box 547
Bradford, PA 16701
USA
814-362-5536
Fax 814-362-8883
www.koaspeer.com
Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.
厂商 型号 描述 页数 下载

LUMBERG

 		CZB03-0364 [ Tools and harnessing machines ] 3 页

LUMBERG

 		CZB03-0369 [ Tools and harnessing machines ] 3 页

KOA

 		CZB1EBLTP102P [ Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP121P [ Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP162P [ Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP241P [ Ferrite Chip, 1 Function(s), 0.1A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP331P [ Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP471P [ Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP601P [ Ferrite Chip, 1 Function(s), 0.05A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

KOA

 		CZB1EBLTP700P [ Ferrite Chip, 1 Function(s), 0.2A, EIA STD PACKAGE SIZE 0402, 2 PIN ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.175707s
