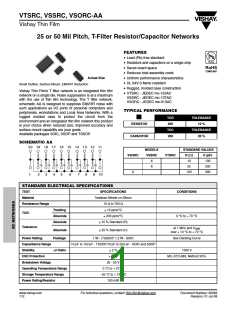

VTSRC, VSSRC, VSORC-AA
Vishay Thin Film
25 or 50 Mil Pitch, T-Filter Resistor/Capacitor Networks
FEATURES
• Lead (Pb)-free standard
• Resistors and capacitors on a single chip
• Saves board space
RoHS
COMPLIANT
• Reduces total assembly costs
Actual Size
Small Outline, Surface Mount, EMI/RFI Reduction
• Uniform performance characteristics
• UL 94V-0 flame resistant
• Rugged, molded case construction
Vishay Thin Film’s T filter network is an integrated thin film
network on a single die. Noise suppression is at a maximum
with the use of thin film technology. The T filter network,
schematic AA is designed to suppress EMI/RFI noise with
such applications as I/O ports of personal computers and
peripherals, workstations and Local Area Networks. With a
rugged molded case to protect the circuit from the
environment and an integrated thin film network this product
is your choice when reduced size, improved accuracy and
surface mount capability are your goals.
• VTSRC - JEDEC mo-153AC
VSSRC - JEDEC mo-137AD
VSORC - JEDEC ms-013AC
TYPICAL PERFORMANCE
TCR
TOLERANCE
RESISTOR
200
TCC
200
10 %
TOLERANCE
20 %
Available packages SOIC, SSOP and TSSOP.
CAPACITOR
SCHEMATIC AA
20 19 18 17 16 15 14 13 12 11
MODELS
STANDARD VALUES
VSORC
VSSRC
VTSRC
R (Ω)
10
C (pF)
100
X
X
25
200
X
100
390
1
2
3
4
5
6
7
8
9
10
STANDARD ELECTRICAL SPECIFICATIONS
TEST
SPECIFICATIONS
CONDITIONS
Material
Tantalum Nitride on Silicon
Resistance Range
10 Ω to 750 Ω
10 ppm/°C
Tracking
Absolute
Absolute
TCR:
200 ppm/°C
0 °C to + 70 °C
10 ꢀ Standard (R)
Tolerance:
at 1 MHz and VRMS
over + 10 °C to + 70 °C
Absolute
Package
20 ꢀ Standard (C)
Power Rating:
Capacitance Range
Stability:
1 W - (T)SSOP. 1.2 W - SOIC
See Derating Curve
10 pF to 150 pF - TSSOP/10 pF to 250 pF - SOIC and SSOP
ΔR Ratio
2 ꢀ
> 2 kV
1000 h
ESD Protection
Breakdown Voltage
MIL-STD-883, Method 3015
35 - 50 V
Operating Temperature Range
Storage Temperature Range
Power Rating/Resistor
0 °C to + 70 °C
- 55 °C to + 125 °C
100 mW
www.vishay.com
112
For technical questions, contact: thin-film@vishay.com
Document Number: 60083
Revision: 01-Jul-08
