HYS64V64220GU-8-C

型号：

HYS64V64220GU-8-C

品牌：

INFINEON[ Infineon ]

页数：

23 页

PDF大小：

216 K

下载PDF手册

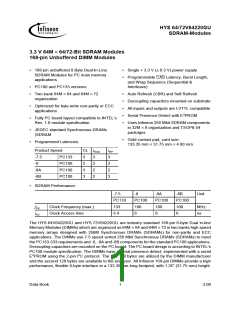

HYS 64/72V64220GU
SDRAM-Modules
3.3 V 64M × 64/72-Bit SDRAM Modules
168-pin Unbuffered DIMM Modules
• 168-pin unbuffered 8 Byte Dual-In-Line
SDRAM Modules for PC main memory
applications
• Single + 3.3 V (± 0.3 V) power supply
• Programmable CAS Latency, Burst Length,
and Wrap Sequence (Sequential &
Interleave)
• PC100 and PC133 versions
• Two bank 64M × 64 and 64M × 72
• Auto Refresh (CBR) and Self Refresh
• Decoupling capacitors mounted on substrate
• All inputs and outputs are LVTTL compatible
• Serial Presence Detect with E2PROM
organization
• Optimized for byte-write non-parity or ECC
applications
• Fully PC board layout compatible to INTEL’s
Rev. 1.0 module specification
• Uses Infineon 256 Mbit SDRAM components
in 32M × 8 organization and TSOPII-54
packages
• JEDEC standard Synchronous DRAMs
(SDRAM
• Gold contact pad, card size:
• Programmed Latencies:
133.35 mm × 31.75 mm × 4.00 mm
Product Speed
CL tRCD
tRP
3
-7.5
-8
PC133
3
2
3
3
3
2
2
2
PC100
PC100
PC100
2
-8A
-8B
2
3
• SDRAM Performance:
-7.5
-8
-8A
PC100
100
6
-8B
PC100
100
6
Unit
PC133
133
PC100
100
6
fCK
tAC
Clock Frequency (max.)
Clock Access time
MHz
ns
5.4
The HYS 64V64220GU and HYS 72V64220GU are industry standard 168-pin 8-byte Dual in-line
Memory Modules (DIMMs) which are organized as 64M × 64 and 64M × 72 in two banks high speed
memory arrays designed with 256M Synchronous DRAMs (SDRAMs) for non-parity and ECC
applications. The DIMMs use 7-5 speed sorted 256 Mbit Synchronous DRAMs (SDRAMs) to meet
the PC133-333 requirements and -8, -8A and -8B components for the standard PC100 applications.
Decoupling capacitors are mounted on the PC board. The PC board design is according to INTEL’s
PC100 module specification. The DIMMs have a serial presence detect, implemented with a serial
E2PROM using the 2-pin I2C protocol. The first 128 bytes are utilized by the DIMM manufacturer
and the second 128 bytes are available to the end user. All Infineon 168-pin DIMMs provide a high
performance, flexible 8-byte interface in a 133.35 mm long footprint, with 1.25“ (31.75 mm) height.
Data Book
1
3.00
HYS 64/72V64220GU
SDRAM-Modules
Ordering Information
Type
Code
Package
Descriptions
Module
Height
HYS 64V64220GU-7.5-A PC133-333-520 L-DIM-168-30 PC133 64M × 64 2 bank 1.25“
HYS 64V64220GU-7.5-C SDRAM module
HYS 72V64220GU-7.5-A PC133-333-520 L-DIM-168-30 PC133 64M × 72 2 bank 1.25“
HYS 72V64220GU-7.5-C
SDRAM module
HYS 64V64220GU-8-A
HYS 64V64220GU-8-C
PC100-222-620 L-DIM-168-30 PC100 64M × 64 2 bank 1.25“
SDRAM module
HYS 72V64220GU-8-A
HYS 72V64220GU-8-C
PC100-222-620 L-DIM-168-30 PC100 64M × 72 2 bank 1.25“
SDRAM module
HYS 64V64220GU-8A-A PC100-222-620 L-DIM-168-30 PC100 64M × 64 2 bank 1.25“
SDRAM module
HYS 72V64220GU-8A-A PC100-222-620 L-DIM-168-30 PC100 64M × 72 2 bank 1.25“
SDRAM module
HYS 64V64220GU-8B-A PC100-323-620 L-DIM-168-30 PC100 64M × 64 2 bank 1.25“
SDRAM module
HYS 72V64220GU-8B-A PC100-323-620 L-DIM-168-30 PC100 64M × 72 2 bank 1.25“
SDRAM module
Note: All part numbers end with a place code, designating the die revision. Consult factory for
current revision. Example: HYS 64V64220GU-8-A, indicating Rev.A dies are used for
SDRAM components.
Data Book
2
3.00
HYS 64/72V64220GU
SDRAM-Modules
Pin Definitions and Functions
A0 - A12
Address Inputs
Bank Selects
CLK0 - CLK3
Clock Input
BA0, BA1
DQMB0 - DQMB7 Data Mask
DQ0 - DQ63 Data Input/Output
CS0 - CS3
Chip Select
CB0 - CB7
RAS
Check Bits (x72 organization only) VDD
Power (+ 3.3 V)
Ground
Row Address Strobe
Column Address Strobe
Read/Write Input
VSS
CAS
SCL
SDA
Clock for Presence Detect
WE
Serial Data Out for
Presence Detect
CKE0, CKE1 Clock Enable
N.C./DU
No Connection
Address Format
Part Number
Rows Columns Bank Select Refresh Period Interval
64M × 64/72 HYS64/72V64220GU 13
10
2
8k
64 ms 7.8 µs
Pin Configuration
PIN# Symbol
PIN# Symbol
PIN# Symbol
PIN# Symbol
1
VSS
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
VSS
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
VSS
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
VSS
2
DQ0
DQ1
DQ2
DQ3
VDD
DU
DQ32
DQ33
DQ34
DQ35
VDD
CKE0
CS3
3
CS2
4
DQMB2
DQMB3
DU
DQMB6
DQMB7
N.C.
5
6
7
DQ4
DQ5
DQ6
DQ7
DQ8
VSS
VDD
DQ36
DQ37
DQ38
DQ39
DQ40
VSS
VDD
8
N.C.
N.C.
9
N.C.
N.C.
10
11
12
13
14
15
16
17
18
N.C. (CB2)
N.C. (CB3)
VSS
CB6
CB7
VSS
DQ9
DQ10
DQ11
DQ12
DQ13
VDD
DQ16
DQ17
DQ18
DQ19
VDD
DQ41
DQ42
DQ43
DQ44
DQ45
VDD
DQ48
DQ49
DQ50
DQ51
VDD
DQ20
DQ52
Data Book
3
3.00
HYS 64/72V64220GU
SDRAM-Modules
Pin Configuration (cont’d)
PIN# Symbol PIN# Symbol
PIN# Symbol
PIN# Symbol
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
DQ14
DQ15
N.C. (CB0)
N.C. (CB1)
VSS
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
N.C.
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
DQ46
DQ47
N.C. (CB4)
N.C. (CB5)
VSS
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
N.C.
DU
DU
CKE1
VSS
N.C.
VSS
DQ21
DQ22
DQ23
VSS
DQ53
DQ54
DQ55
VSS
N.C.
N.C.
VDD
N.C.
N.C.
VDD
WE
DQ24
DQ25
DQ26
DQ27
VDD
CAS
DQMB4
DQMB5
CS1
DQ56
DQ57
DQ58
DQ59
VDD
DQMB0
DQMB1
CS0
DU
RAS
VSS
VSS
DQ28
DQ29
DQ30
DQ31
VSS
DQ60
DQ61
DQ62
DQ63
VSS
A0
A1
A2
A3
A4
A5
A6
A7
A8
CLK2
N.C.
A9
CLK3
N.C.
SA0
A10
BA0
BA1
WP
A11
VDD
SDA
SCL
VDD
SA1
VDD
CLK1
A12
SA2
CLK0
VDD
VDD
Note: Pin names in paranthese are for the x72 ECC versions; example: Pin 106 = (CB5)
Data Book
4
3.00
HYS 64/72V64220GU
SDRAM-Modules
CS1
CS0
CS
CS
CS
CS
DQMB0
DQ(7:0)
DQM
DQM
DQMB4
DQM
DQM
DQ0-DQ7
DQ0-DQ7
DQ(39:32)
DQ0-DQ7
DQ0-DQ7
D0
D1
D8
D9
D4
D5
D12
D13
CS
CS
CS
CS
DQMB1
DQM
DQM
DQMB5
DQM
DQM
DQ(15:8)
DQ0-DQ7
DQ0-DQ7
DQ(47:40)
DQ0-DQ7
DQ0-DQ7
CS
CS
DQM
DQM
DQ0-DQ7
CB(7:0)
DQ0-DQ7
D16
D17
CS3
CS2
CS
CS
CS
CS
DQMB2
DQM
DQM
DQMB6
DQM
DQM
DQ(23:16)
DQ0-DQ7
DQ0-DQ7
DQ(55:48)
DQ0-DQ7
DQ0-DQ7
D2
D3
D10
D11
D6
D7
D14
D15
CS
CS
CS
CS
DQMB3
DQM
DQM
DQMB7
DQM
DQM
DQ(31:24)
DQ0-DQ7
DQ0-DQ7
DQ(63:56)
DQ0-DQ7
DQ0-DQ7
A0-A12, BA0, BA1
VDD
D0-D15, (D16, D17)
D0-D15, (D16, D17)
E2PROM (256 Word x 8 Bit)
SA0
SA0
SA1
SA2
SCL
SA1
SA2
SCL
SDA
WP
C0-C31, (C32...C35)
VSS
D0-D7, (D8)
47 k
Ω
RAS, CAS, WE
CKE0
D0-D15, (D16, D17)
Clock Wiring
64 M x 64
D0-D7, (D16)
D9-D15, (D17)
VDD
10 k
64 M x 72
5 SDRAM
5 SDRAM
4 SDRAM + 3.3 pF
4 SDRAM + 3.3 pF
Ω
CLK0
4 SDRAM + 3.3 pF
4 SDRAM + 3.3 pF
4 SDRAM + 3.3 pF
4 SDRAM + 3.3 pF
CLK1
CLK2
CLK3
CKE1
Note: D16 & D17 is only used in the x72 ECC version and all resistor values are 10 Ω except otherwise noted.
SPB03971
Block Diagram: 64M × 64/72 Two Bank SDRAM DIMM Modules
Data Book
5
3.00
HYS 64/72V64220GU
SDRAM-Modules
DC Characteristics
TA = 0 to 70 °C; VSS = 0 V; VDD,VDDQ = 3.3 V ± 0.3 V
Parameter
Symbol
Limit Values
max.
Unit
min.
2.0
Input High Voltage
VIH
VIL
V
DD + 0.3
V
Input Low Voltage
– 0.5
2.4
0.8
–
V
Output High Voltage (IOUT = – 4.0 mA)
Output Low Voltage (IOUT = 4.0 mA)
VOH
VOL
II(L)
V
–
0.4
40
V
Input Leakage Current, any input
– 40
µA
(0 V < VIN < 3.6 V, all other inputs = 0 V)
Output Leakage Current
IO(L)
– 40
40
µA
(DQ is disabled, 0 V < VOUT < VDD)
Capacitance
TA = 0 to 70 °C; VDD = 3.3 V ± 0.3 V, f = 1 MHz
Parameter
Symbol
Limit Values
max.
Unit
max.
64M × 64
64M × 72
Input Capacitance
CI1
105
144
pF
(A0 to A11, BA0, BA1, RAS, CAS, WE)
Input Capacitance (CS0 - CS3)
Input Capacitance (CLK0 - CLK3)
Input Capacitance (CKE0, CKE1)
Input Capacitance (DQMB0 - DQMB7)
CI2
CICL
CI3
CI4
CIO
32
40
65
20
17
40
43
72
25
17
pF
pF
pF
pF
pF
Input/Output Capacitance
(DQ0 - DQ63, CB0 - CB7)
Input Capacitance (SCL, SA0-2)
Input/Output Capacitance
CSC
CSD
8
8
8
8
pF
pF
Data Book
6
3.00
HYS 64/72V64220GU
SDRAM-Modules
Operating Currents per SDRAM Component 1)
TA = 0 to 70 oC, VDD = 3.3 V ± 0.3 V
(Recommended Operating Conditions unless otherwise noted)
Parameter
Test
Symbol -7.5 -8/-8A/-8B Unit Note
Condition
max.
1)
Operating current
–
ICC1
270 210
mA
tRC = tRC(MIN.), tCK = tCK(MIN.)
Outputs open, Burst Length = 4, CL = 3
All banks operated in random access,
all banks operated in ping-pong manner
to maximize gapless data access
1)
1)
Precharge stand-by current
in Power Down Mode
t
t
CK = min.
CK = min.
ICC2P
2
2
mA
mA
CS = VIH(MIN.), CKE ≤ VIL(MAX.)
Precharge Stand-by Current
in Non-Power Down Mode
ICC2N
25
19
CS = VIH (MIN.), CKE ≥ VIH(MIN.)
1)
1)
No operating current
CKE ≥ VIH(MIN.) ICC3N
CKE ≤ VIL(MAX.) ICC3P
50
10
45
10
mA
mA
tCK = min., CS = VIH(MIN.),
active state (max. 4 banks)
1), 2)
Burst operating current
–
–
ICC4
ICC5
ICC6
270 210
240 240
2.5 2.5
mA
mA
mA
tCK = min.,
Read command cycling
1)
Auto refresh current
tCK = min.,
Auto Refresh command cycling
1)
Self refresh current
Self Refresh Mode, CKE = 0.2 V
Data Book
7
3.00
HYS 64/72V64220GU
SDRAM-Modules
3), 4)
AC Characteristics
TA = 0 to 70 °C; VSS = 0 V; VDD = 3.3 V ± 0.3 V, tT = 1 ns
Parameter
Symbol
Limit Values
Unit Note
-7.5
-8
PC133-333
PC100-222
min.
max.
min.
max.
Clock
Clock Cycle Time
tCK
–
CAS Latency = 3
CAS Latency = 2
7.5
12
–
–
10
10
–
–
ns
ns
System Frequency
fCK
–
CAS Latency = 3
CAS Latency = 2
–
133
–
100
MHz
for HYS64/72V64220GU-7.5-A
for HYS64/72V64220GU-7.5-C
–
–
83
100
–
–
100
100
MHz *)
MHz *)
4), 5)
Clock Access Time
CAS Latency = 3
CAS Latency = 2
tAC
–
–
5.4
6
–
–
6
6
ns
ns
6)
Clock High Pulse Width
Clock Low Pulse Width
tCH
tCL
2.5
2.5
–
–
3
3
–
–
ns
6)
ns
Setup and Hold Times
Input Setup Time
7)
tCS
tCH
tSB
1.5
0.8
–
–
–
1
–
–
–
2
1
–
1
2
1
–
–
1
–
–
–
ns
7)
Input Hold Time
ns
8)
Power Down Mode Entry Time
CLK
9)
Power Down Mode Exit Setup Time tPDE
1
CLK
Mode Register Setup Time
Transition Time (rise and fall)
tRSC
tT
2
CLK
1
ns
–
Common Parameters
RAS to CAS Delay
Precharge Time
tRCD
tRP
tRAS
tRC
20
20
45
67.5
15
1
–
20
20
50
70
16
1
–
ns
–
–
–
–
–
–
–
–
ns
Active Command Period
Cycle Time
100k
100k
ns
–
–
–
–
–
–
ns
Bank to Bank Delay Time
tRRD
ns
CAS to CAS Delay Time (same bank) tCCD
CLK
Data Book
8
3.00
HYS 64/72V64220GU
SDRAM-Modules
AC Characteristics (cont’d) 3), 4)
TA = 0 to 70 °C; VSS = 0 V; VDD = 3.3 V ± 0.3 V, tT = 1 ns
Parameter
Symbol
Limit Values
Unit Note
-7.5
-8
PC133-333
PC100-222
min.
max.
min.
max.
Refresh Cycle
8)
Refresh Period (8192 cycles)
Self Refresh Exit Time
tREF
–
1
64
–
–
1
64
–
ms
10)
tSREX
CLK
Read Cycle
4)
Data Out Hold Time
tOH
tLZ
3
0
3
–
–
–
7
2
3
0
3
–
–
–
8
2
ns
Data Out to Low Impedance
Data Out to High Impedance
DQM Data Out Disable Latency
ns
–
11)
tHZ
ns
tDQZ
CLK
–
Write Cycle
Data Input to Precharge
(write recovery)
tWR
2
0
–
–
2
0
–
–
CLK
CLK
–
–
DQM Write Mask Latency
tDQW
Data Book
9
3.00
HYS 64/72V64220GU
SDRAM-Modules
3), 4)
AC Characteristics
TA = 0 to 70 °C; VSS = 0 V; VDD = 3.3 V ± 0.3 V, tT = 1 ns
Parameter
Symbol
Limit Values
Unit Note
-8A
-8B
PC100-322
PC100-323
min.
max.
min.
max.
Clock and Access Time
Clock Cycle Time
CAS Latency = 3
CAS Latency = 2
tCK
fCK
tAC
–
10
12
–
–
10
15
–
–
ns
ns
System Frequency
CAS Latency = 3
CAS Latency = 2
–
MHz
–
–
100
83
–
–
100
66
MHz
4), 5)
Access Time from Clock
CAS Latency = 3
–
–
6
6
–
–
6
7
ns
ns
CAS Latency = 2
6)
Clock High Pulse Width
Clock Low Pulse Width
tCH
tCL
3
3
–
–
3
3
–
–
ns
6)
ns
Setup and Hold Parameters
Input Setup Time
7)
tIS
2
1
–
1
2
1
–
–
1
–
–
–
2
1
–
1
2
1
–
–
1
–
–
–
ns
7)
Input Hold Time
tIH
tSB
ns
8)
Power Down Mode Entry Time
CLK
9)
Power Down Mode Exit Setup Time tPDE
CLK
Mode Register Setup Time
Transition Time (rise and fall)
tRSC
tT
CLK
ns
–
–
Common Parameters
Row to Column Delay Time
Row Precharge Time
Row Active Time
tRCD
tRP
tRAS
tRC
20
20
50
70
16
–
20
30
60
80
20
–
ns
ns
ns
ns
ns
–
–
–
–
–
–
–
100k
100k
Row Cycle Time
–
–
–
–
Activate (a) to Activate (b) Command tRRD
Period
CAS(a) to CAS(b) Command Period tCCD
1
–
1
–
CLK
–
Data Book
10
3.00
HYS 64/72V64220GU
SDRAM-Modules
AC Characteristics (cont’d) 3), 4)
TA = 0 to 70 °C; VSS = 0 V; VDD = 3.3 V ± 0.3 V, tT = 1 ns
Parameter
Symbol
Limit Values
Unit Note
-8A
-8B
PC100-322
PC100-323
min.
max.
min.
max.
Refresh Cycle
Refresh Period (8192 cycles)
Self Refresh Exit Time
tREF
–
1
64
–
–
1
64
–
ms
–
10)
tSREX
CLK
Read Cycle
4)
Data Out Hold Time
tOH
tLZ
3
0
3
–
–
–
8
2
3
0
3
–
–
ns
Data Out to Low Impedance Time
Data Out to High Impedance Time
DQM Data Out Disable Latency
–
ns
–
11)
tHZ
10
2
ns
tDQZ
CLK
–
Write Cycle
Data Input to Precharge
(write recovery)
tWR
2
0
–
–
2
0
–
–
CLK
CLK
–
–
DQM Write Mask Latency
tDQW
Notes
1. These parameters depend on the cycle rate. These values are measured at 133 MHz for -7.5
modules and at 100 Mhz for -8 modules. Input signals are changed once during tCK, except for
I
CC6 and for standby currents when tCK = infinity. All values are shown per memory component.
2. These parameters are measured with continuous data stream during read access and all DQ
toggling. CL = 3 and BL = 4 assumed and the VDDQ current is excluded.
3. All AC characteristics are shown on SDRAM component level.
An initial pause of 100 µs is required after power-up, then a Precharge All Banks command must
be given followed by eight Auto-Refresh (CBR) cycles before the Mode Register Set Operation
can begin.
4. AC timing tests have VIL = 0.4 V and VIH = 2.4 V with the timing referenced to the 1.4 V crossover
point. The transition time is measured between VIH and VIL. All AC measurements assume
tT = 1 ns with the AC output load circuit show. Specified tAC and tOH parameters are measured
with a 50 pF only, without any resistive termination and with a input signal of 1 V/ns edge rate
between 0.8 V and 2.0 V.
5. If clock rising time is longer than 1 ns, a time (tT/2 – 0.5) ns must be added to this parameter.
6. Rated at 1.4 V
Data Book
11
3.00
HYS 64/72V64220GU
SDRAM-Modules
7. If tT is longer than 1 ns, a time (tT – 1) ns has to be added to this parameter.
8. Anytime the Refresh Period has been exceeded, a minimum of two Auto-Refresh (CBR)
commands must be given to “wake-up” the device.
9. Timing is asynchronous. If setup time is not met by rising edge of the clock then the CKE signal
is assumed latched on the next cycle.
10.Self-Refresh Exit is a synchronous operation and begins on the second positive clock edge after
CKE returns high. Self-Refresh Exit is not complete until a time period equal to tRC is satisfied
after the Self Refresh Exit command is registered.
11.This is referenced to the time at which the output achieves the open circuit condition, not to
output voltage levels.
tCH
2.4 V
0.4 V
CLOCK
tT
tCL
tHOLD
tSETUP
INPUT
1.4 V
tAC
tAC
I/O
tLZ
tOH
50 pF
OUTPUT
1.4 V
Measurement conditions for
AC and tOH
tHZ
t
SPT03404
Note: *) 256MByte PC133 modules with place code “-C” indicating Rev. C dies are used as memory
components are fully PC100 2-2-2 backwards compatible, where PC133 modules with place code
“-A” operates as PC100 3-2-2 on a 100 Mhz memory bus.
A serial presence detect storage device - E2PROM - is assembled onto the module. Information
about the module configuration, speed, etc. is written into the E2PROM device during module
production using a serial presence detect protocol (I2C synchronous 2-wire bus).
Data Book
12
3.00
HYS 64/72V64220GU
SDRAM-Modules
SPD-Table for PC133 Modules
Byte# Description
SPD Entry Value
Hex
64M × 64 64M × 72
-7.5
80
-7.5
80
0
1
2
3
Number of SPD Bytes
Total Bytes in Serial PD
Memory Type
128
256
08
08
SDRAM
13
04
04
Number of Row Addresses (without BS
bits)
0D
0D
4
Number of Column Addresses
Number of DIMM Banks
Module Data Width
10
0A
02
40
00
01
75
54
00
82
08
00
01
0A
02
48
00
01
75
54
02
82
08
08
01
5
2
6
64/72
0
7
Module Data Width (cont’d)
Module Interface Levels
SDRAM Cycle Time at CL = 3
8
LVTTL
7.5 ns
9
10
11
12
13
14
15
SDRAM Access Time from Clock at CL = 3 5.4 ns
DIMM Config
none/ECC
Refresh Rate/Type
Self-Refresh, 7.8 µs
SDRAM Width, Primary
Error Checking SDRAM Data Width
Minimum Clock Delay for Back-to-Back
Random Column Address
Burst Length Supported
Number of SDRAM Banks
Supported CAS Latencies
CS Latencies
x8
n/a/x8
tCCD = 1 CLK
16
17
18
19
20
21
22
23
1, 2, 4 & 8
4
0F
04
0F
04
06
01
01
00
0E
C0
CAS latency = 2 & 3 06
CS latency = 0
01
01
WE Latencies
Write latency = 0
SDRAM DIMM Module Attributes
SDRAM Device Attributes: General
non buffered/non reg. 00
V
DD tol +/– 10%
0E
C0
Min. Clock Cycle Time at CAS Latency = 2 12.0 ns
for HYS64//72V64220GU-7.5-A
Min. Clock Cycle Time at CAS Latency = 2 10.0 ns
for HYS64//72V64220GU-7.5-C
A0
60
A0
60
24
Max. Data Access Time from Clock for
CL = 2
6.0 ns
25
26
Minimum Clock Cycle Time at CL = 1
not supported
FF
FF
FF
FF
Maximum Data Access Time from Clock at not supported
CL = 1
27
28
Minimum Row Precharge Time
20 ns
14
0F
14
0F
Minimum Row Active to Row Active Delay 15
tRRD
29
30
Minimum RAS to CAS Delay tRCD
Minimum RAS Pulse Width tRAS
20 ns
45 ns
14
14
2D
2D
Data Book
13
3.00
HYS 64/72V64220GU
SDRAM-Modules
SPD-Table for PC133 Modules (cont’d)
Byte# Description
SPD Entry Value
Hex
64M × 64 64M × 72
-7.5
40
15
08
15
08
FF
-7.5
40
15
08
15
08
FF
31
32
33
34
35
Module Bank Density (per bank)
SDRAM Input Setup Time
256 MByte
1.5 ns
0.8 ns
1.5 ns
0.8 ns
–
SDRAM Input Hold Time
SDRAM Data Input Hold Time
SDRAM Data Input Setup Time
36-61 Superset Information (may be used in
future)
62
63
SPD Revision
Revision 1.2
–
12
57
12
69
Checksum for Bytes 0 - 62
for HYS64/72V64220GU-7.5-A
Checksum for Bytes 0 - 62
for HYS64/72V64220GU-7.5-C
–
–
37
XX
64
49
XX
64
64-125 Manufacturers Information
(FFH if not used)
126
127
Frequency Specification
100 MHz Support Details
for HYS64/72V64220GU-7.5-A
for HYS64/72V64220GU-7.5-C
Unused Storage Locations
–
–
FD
FF
FF
FD
FF
FF
128+
Data Book
14
3.00
HYS 64/72V64220GU
SDRAM-Modules
SPD-Table for PC100 Modules
Byte# Description
SPD Entry
Value
Hex
0
1
2
3
Number of SPD Bytes
Total Bytes in Serial PD
Memory Type
128
80
08
04
0D
80
08
04
0D
80
08
04
0D
80
08
04
0D
80
08
04
0D
80
08
04
0D
256
SDRAM
13
Number of Row Addresses
(without BS bits)
4
Number of Column Addresses 10
0A
02
40
00
01
A0
60
0A
02
40
00
01
A0
60
0A
02
40
00
01
A0
60
0A
02
48
00
01
A0
60
0A
02
48
00
01
A0
60
0A
02
48
00
01
A0
60
5
Number of DIMM Banks
Module Data Width
2
6
64/72
0
7
Module Data Width (cont’d)
Module Interface Levels
8
LVTTL
9
SDRAM Cycle Time at CL = 3 10.0 ns
10
SDRAM Access Time from
Clock at CL = 3
6.0 ns
11
12
DIMM Config
none/ECC
Self-Refresh,
7.8 µs
00
82
00
82
00
82
02
82
02
82
02
82
Refresh Rate/Type
13
14
SDRAM Width, Primary
x8
08
00
08
00
08
00
08
08
08
08
08
08
Error Checking SDRAM Data n/a/x8
Width
15
Minimum Clock Delay for
Back-to-Back Random
Column Address
t
CCD = 1 CLK
01
01
01
01
01
01
16
17
18
Burst Length Supported
Number of SDRAM Banks
Supported CAS Latencies
1, 2, 4 & 8
4
0F
04
0F
04
06
0F
04
06
0F
04
06
0F
04
06
0F
04
06
CAS latency = 2 06
& 3
19
20
21
CS Latencies
CS latency = 0
01
01
01
00
01
01
00
01
01
00
01
01
00
01
01
00
WE Latencies
Write latency = 0 01
nonbuffered/non 00
reg.
SDRAM DIMM Module
Attributes
22
23
24
25
SDRAM Device Attributes:
General
V
DD tol +/– 10% 0E
0E
F0
60
FF
0E
F0
70
FF
0E
A0
60
FF
0E
F0
60
FF
0E
F0
70
FF
Min. Clock Cycle Time at CAS 10.0/15.0 ns
Latency = 2
A0
60
FF
Max. Data Access Time from 6.0/7.0 ns
Clock for CL = 2
Minimum Clock Cycle Time at not supported
CL = 1
Data Book
15
3.00
HYS 64/72V64220GU
SDRAM-Modules
SPD-Table for PC100 Modules
Byte# Description
SPD Entry
Value
Hex
26
27
28
29
30
31
Maximum Data Access Time not supported
from Clock at CL = 1
FF
14
10
14
32
40
FF
14
14
14
32
40
FF
1E
14
14
3C
40
FF
14
10
14
32
40
FF
14
14
14
32
40
FF
1E
14
14
3C
40
Minimum Row Precharge
Time
20/30 ns
Minimum Row Active to Row 16/20 ns
Active Delay tRRD
Minimum RAS to CAS Delay 20 ns
tRCD
Minimum RAS Pulse Width
tRAS
50/60 ns
Module Bank Density (per
bank)
256 MByte
32
33
34
SDRAM Input Setup Time
SDRAM Input Hold Time
SDRAM Data Input Setup
Time
2 ns
1 ns
2 ns
20
10
20
20
10
20
20
10
20
20
10
20
20
10
20
20
10
20
35
SDRAM Data Input Hold Time 1 ns
10
10
10
10
10
10
36-61 Superset Information (may be –
FF
FF
FF
FF
FF
FF
used in future)
62
63
SPD Revision
Revision 1.2
12
9A
XX
64
FF
FF
12
12
12
XX
64
FD
FF
12
12
00
XX
64
FD
FF
12
24
XX
64
FD
FF
Checksum for Bytes 0 - 62
–
EE
XX
64
AC
XX
64
64-125 Manufacturers Information
–
126
Frequency Specification
100 MHz Support Details
Unused Storage Locations
100 MHz
127
–
–
FD
FF
FF
FF
128+
Data Book
16
3.00
HYS 64/72V64220GU
SDRAM-Modules
Package Outlines
L-DIM-168-30
SDRAM DIMM Module Package
HYS 64/72V64220GU
133.35
127.35
4
*)
1
10
11
6.35
40
41
6.35
84
1.27±
0.1
3
1.27
42.18
91 x 1.27 = 115.57
124 125
2
85 94
95
168
*)
R1.27+0.1
3 min.
2.26
Detail of Contacts
*) on ECC modules only
1±
0.05
1.27
GLD09159
Data Book
17
3.00
CODES FOR DIE REVISION
ON COMPONENTS AND DIMM MODULES
Introduction of Module Partnumber Extensions
and “functional label”
NEW MODULE LABELS WITH INFINEON LOGO
MP TM, May. 2000
Rev. 1.3
Weidlich, MP TM
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/2
Component Partnumber, Die Rev. Indicators, Module Partnumber Extensions
for INFINEON SDRAM COMPONENTS & MODULE PRODUCTS:
64M-SDRAM:
Generation
Die Rev. Indicator
Component Partnumber
Module Partnumber
Extension
(for new module labels)
S24
S20
S19
S17
S17N
“A”
“B”
“C”
“D
HYB39S64xxxAT-x
HYB39S64xxxBT-x
HYB39S64xxxCT-x
HYB39S64xxxDT-x
HYB39S64xxxET-x
-A
-B
-C
-D
-E
“E”
256M-SDRAM:
S20
S19
S17
S14
“A”
“B”
“C2”
“D
HYB39S256xxxT-x
HYB39S256xxxAT-x
HYB39S256xxxCT-x
HYB39S256xxxDT-x
-A
-B
-C2
-D
*)
*)
**)
*) since the Baunumbers are allready fixed, we have to live with this inconsistancy
**) starting with Step DD3D
128M-SDRAM:
S17
“C2”
HYB39S128xxxCT-x
“C2”
*)
*) starting with Step DD2B
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/3
Component Partnumber, Die Rev. Indicators, Module Partnumber Extensions
for INFINEON SDRAM COMPONENTS & MODULE PRODUCTS (cont’d):
256M-DDR-SDRAM:
D17 (ASTC)
D17 (WOS)
D14
none
“A”
“B”
HYB25D256xxxT-x
HYB25D256xxxAT-x
HYB25D256xxxBT-x
none
“A”
“B”
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/4
What is the partnumber and the partnumber extension ?
· The current partnumbers for SDRAM modules do not show any indicator for the die
revision of the SDRAM components.
· A partnumber extension has been added to indicate the die revision of the used
components on the SDRAM modules
· The partnumber extensions consists of 3 digits, beginning with a “dash” and two
alphanumerics, the “die revision indicator”.
· The nomenclature of the die shrink indicator can be seen in the next foil for all
SDRAM products.
· On all INFINEON SDRAM DIMM module datasheets the following note on page 2
has been added:
“All part numbers end with a place code (not shown), designating the die revision. Consult factory for current
revision. Example: HYS72V16220GU-7.5-B, indicating Rev.B dies are used for SDRAM components.”
Example:
HYS72V16220GU-7.5 –B
Partnumber
Extension
Partnumbe
r
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/5
NEW LABELS (starting from Nov.’99)
64M-SDRAM BASED MODULES
IDENTIFICATION OF DIE SHRINKS, PCB BOARD REVISION & MANUFACTURER
Example:
HYS72V16220GU-8-B 16Mx72 SDRAM
B22xxxxxxx
Assembled in Germany
128MB, SYNC, 100 MHz, CL2, ECC
PC100-222-620
“Functional Label
Module Manufacturer
2 = SIEMENS EWK
5 = SMART (UK)
4 = OPTOSYS
6 = SMART (USA)
7 = STATSYM
8 = EEMS
A = CELESTICA
S = DRESDEN
V = PORTO
R = Regensburg
W= White OAK
Designstep of 64M SDRAM:
A = S24
PCB board revision:
1 = first
B = S20
C = S19
D = S17
2 =second etc.
9 = KINGSTON
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/6
NEW 256Mbit based SDRAM MODULE LABELS:
EXAMPLE : 512MByte unbuffered PC100 CL 323 DIMM Module based on S20 256Mbit SDRAM
HYS72V64220GU-8B-A 64Mx72 SDRAM
New labels
A2299201222
Assembled in Germany
512MB, SYNC, 100 MHz, CL3, ECC
PC100-323-620
“Functional Label
Module Manufacturer
Designstep of 256M SDRAM:
A = S20
PCB board revision:
1 = first
2 = SIEMENS EWK
5 = SMART (UK)
4 = OPTOSYS
6 = SMART (USA)
7 = STATSYM
8 = EEMS
A = CELESTICA
S = DRESDEN
V = PORTO
R = Regensburg
W= White OAK
B = S19
C = S17
D = S15
2 =second etc.
9 = KINGSTON
Memory Products Division
Always a step ahead
Weidlich, HL MP TM
Aprl99MODULE_LABEL_generic.DOC/7
厂商 型号 描述 页数 下载

INFINEON

 		HYS64-72V2200GU-8 3.3V 2M ×64 /72- 1位BANK SDRAM模块3.3V 4M ×64 /72- 2位BANK SDRAM模块[ 3.3V 2M x 64/72-Bit 1 BANK SDRAM Module 3.3V 4M x 64/72-Bit 2 BANK SDRAM Module ] 17 页

INFINEON

 		HYS64-74V8200GU 3.3 V 8M ×64 /72- 1位银行SDRAM模块3.3 V 16M ×64 /72- 2位银行SDRAM模块[ 3.3 V 8M x 64/72-Bit 1 Bank SDRAM Module 3.3 V 16M x 64/72-Bit 2 Bank SDRAM Module ] 17 页

INFINEON

 		HYS6472V16200GU 3.3 V 16M ×64 /72-位SDRAM模块3.3 V 32M ×64 /72-位SDRAM模块3.3 V 64M ×64 /72-位SDRAM模块[ 3.3 V 16M x 64/72-Bit SDRAM Modules 3.3 V 32M x 64/72-Bit SDRAM Modules 3.3 V 64M x 64/72-Bit SDRAM Modules ] 17 页

INFINEON

 		HYS6472V4200GU 3.3V 4M ×64 /72- 1位BANK SDRAM模块3.3V 8M ×64 /72- 2位BANK SDRAM模块[ 3.3V 4M x 64/72-Bit 1 BANK SDRAM Module 3.3V 8M x 64/72-Bit 2 BANK SDRAM Module ] 15 页

INFINEON

 		HYS64D128020GBDL-6-A [ DDR DRAM Module, 128MX64, 0.7ns, CMOS, SO-DIMM-200 ] 11 页

ETC

 		HYS64D128020GBDL-7-A ？ 1GB （ 1024Mx64 ） PC2100 2银行？\n[ ?1GB (1024Mx64) PC2100 2-bank? ] 11 页

INFINEON

 		HYS64D128020GU-7-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

INFINEON

 		HYS64D128020GU-8-A 2.5 V 184针无缓冲DDR- SDRAM我模块[ 2.5 V 184-pin Unbuffered DDR-I SDRAM Modules ] 18 页

QIMONDA

 		HYS64D128020GU-8-A [ DDR DRAM Module, 128MX64, 0.8ns, CMOS, PDMA184 ] 18 页

INFINEON

 		HYS64D128021 200针的小型双列直插式内存模块[ 200-Pin Small Outline Dual-In-Line Memory Modules ] 23 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.211931s
