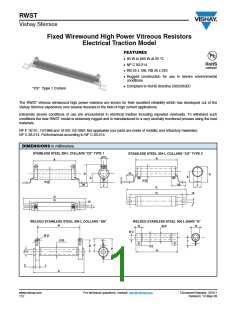

RWST
Vishay Sfernice
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
FEATURES
95 W to 800 W at 25 °C
NF C 93-214
RB 25 x 168, RB 30 x 250
Rugged construction for use in severe environmental
conditions
Compliant to RoHS directive 2002/95/EC
“CS” Type 1 Collars
The RWST vitreous wirewound high power resistors are known for their excellent reliability which has developed out of the
Vishay Sfernice experience over several decades in the field of high current applications.
Extremely severe conditions of use are encountered in electrical traction including repeated overloads. To withstand such
conditions the new RWST model is extremely rugged and is manufactured to a very carefully monitored process using the best
materials.
NF F 16101, 10/1988 and 16102, 04/1992: Not applicable (our parts are made of metallic and refractory materials).
NF C 93-214. Performances according to NF C 93-214.
DIMENSIONS in millimeters
STAINLESS STEEL 304 L COLLARS “CS” TYPE 1
STAINLESS STEEL 304 L COLLARS “CS” TYPE 2
A
Ø C
A
23
D
D
E
E
3
Ø B
Ø B
58
26
F
F
G
H
15
J
G
H
15
J
WELDED STAINLESS STEEL 304 L COLLARS “AN”
N
WELDED STAINLESS STEEL 304 L BAND “B”
Q
Ø B
R
Ø C
Ø U
Ø B
T
V
K
S
P
A
Ø C
Z
L
A
www.vishay.com
112
For technical questions, contact: sfer@vishay.com
Document Number: 50017
Revision: 12-May-09
RWST
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
Vishay Sfernice
DIMENSIONS in millimeters
Ø C
MIN.
F
G
H
- 4/+ 0
J
0.5
L + 0.5
+ 0
SERIES CONNECTIONS
A
2
Ø B MAX.
D
E
K
0.5 - 4/+ 0
RWST
AN-B CS type 1
25 x 138
138
28
28
33
45
53
12
12
50 1.5
50 1.5
60 1.5
27
1
1
1
24
199
229
317
432
432
169
199
287
405
405
6.5
28.5
1
1
9
RWST
25 x 168
RWST
30 x 250
AN-B CS type 1
168
250
370
373
27
30
24
25
30
30
6.5
9
28.5
31
9
AN-B CS type 1
17
1
13
18
18
RWST
AN CS type 2
40 x 370
22
69 max. 45 1.5
80 max. 51 1.5
9
45 1.5
51 1.5
RWST
AN CS type 2
50 x 373
27.1
9
AVERAGE UNIT
WEIGHT IN g
(CS collars)
Q
R
S
SERIES CONNECTIONS
RWST
N
2
P
T
1
Ø U
V
Z
- 0/+ 5 - 0.3/+ 0.9
MAX.
AN-B CS type 1 117
AN-B CS type 1 147
AN-B CS type 1 227
2
51.5 1.5
50 1.5
15
15
18
-
26
26
31
-
38.5
38.5
43.5
-
23.5
23.5
26
-
5.7
5.7
5.7
9.2
9.2
33.5
33.5
36
1
6
6
225
250
25 x 138
RWST
25 x 168
RWST
30 x 250
2
2
3
3
1
55 1.5
1
5
445
RWST
AN CS type 2
AN CS type 2
332
332
81.5 max.
92.5 max.
57 1.5
63 1.5
10
11.5
1400
2200
40 x 370
RWST
50 x 373
-
-
-
-
MECHANICAL SPECIFICATIONS
ELECTRICAL SPECIFICATIONS
Mechanical Protection
Resistive Element
Connections
Vitreous enamel
Ni-Cr wire
2.7 Ω to 430 kΩ
Resistance Range
(E12, E24 preferred series values)
CS supporting collars
on request
Resistance Tolerance
Standard
AN Collar or B
Average Unit Weight
225 g to 2200 g
5 ꢀ
Power Rating
Temperature Coefficient
Shelf Life
95 W to 800 W at 25 °C
75 ppm/°C (typical)
0.1 ꢀ year (typical)
ENVIRONMENTAL SPECIFICATIONS
Temperature Limits
Climatic Category
- 55 °C + 450 °C
- 55 °C/+ 200 °C/56 days
PERFORMANCE
TESTS
CONDITIONS
REQUIREMENTS
TYPICAL VALUES AND DRIFTS
10 Pr during 5 s
Short Time Overload
Climatic Sequence
2 ꢀ or 0.05 Ω
0.5 ꢀ
Voltage limited at < 5000 V
2 ꢀ or 0.05 Ω
- 55 °C + 200 °C
0.5 ꢀ
0.5 ꢀ
0.5 ꢀ
Insulation resistance 100 MΩ
Humidity
(Steady State)
56 days
95 ꢀ relative humidity
Load at 100 ꢀ Pr followed by cold
temperature exposure at - 55 °C/15'
3 ꢀ or 0.05 Ω
Insulation resistance 100 MΩ
Thermal Shock
Shock
2 ꢀ or 0.05 Ω
Severity 50 A
9 shocks/each side
Severity 55B
Traction 40 Ncm
Torque 60 Ncm
1 ꢀ or 0.05 Ω
1 ꢀ or 0.05 Ω
1 ꢀ or 0.05 Ω
0.25 ꢀ
0.25 ꢀ
0.5 ꢀ
Vibration
Terminal Strength
AN
B
1000 h
5000 h
1 ꢀ
2 ꢀ
90'/30' cycle
1000 h at Pr 25 °C
Load Life
5 ꢀ
SPECIAL FEATURES
RWST STYLE
Designation NF C 93-214
Power Rating at 25 °C
25 x 138
25 x 168
RB 25 x 168
160 W
30 x 250
RB 30 x 250
280 W
40 x 370
-
500 W
50 x 373
-
700 W
-
95 W
Maximum Power Rating
at 25 °C
110 W
180 W
320 W
600 W
800 W
Ohmic Range (E12, E24 series) 2.7 Ω
Limiting Element Voltage
Critical Resistance
82 kΩ 2.7 Ω
1400 V
18 kΩ
100 kΩ 4.7 Ω
1900 V
20 kΩ
220 kΩ 8.2 Ω
3000 V
30 kΩ
360 kΩ 12 Ω
4500 V
36 kΩ
430 kΩ
5000 V
30 kΩ
Document Number: 50017
Revision: 12-May-09
For technical questions, contact: sfer@vishay.com
www.vishay.com
113
RWST
Fixed Wirewound High Power Vitreous Resistors
Electrical Traction Model
Vishay Sfernice
NON INDUCTIVE WINDING
For high frequencies, low self induction resistors are available with special windings. RWSTNI designation.
RWSTNI
25 x 138
RWSTNI
25 x 168
RWSTNI
30 x 250
RWSTNI
40 x 370
RWSTNI
50 x 373
MODEL AND STYLE
OHMIC RANGE
(E12 SERIES)
22 Ω
22 Ω
4 kΩ
120 Ω
6.8 kΩ
120 Ω
8.2 kΩ
150 Ω
8.2 kΩ
2.5 kΩ
POWER RATING
TEMPERATURE RISE
400
100
75
50
25
0
RWST 168
RWST 25 138
RWS× 370
RWST 50 × 373
300
200
100
0
10
100
RATED POWER IN W
1000
0
65
130
195
260
325
390
455
AMBIENT TEMPERATURE IN °C
MARKING
PACKAGING
Box: Fixed quantity depending on size and connections
Vishay Sfernice trademark, model, style, nominal resistance
(in Ω), tolerance (in ꢀ), manufacturing date.
ORDERING INFORMATION
RWST 25 x 138
B
56U
5 %
B06
e
MODEL STYLE NON-INDUCTIVE SPECIAL CONNECTIONS
OHMIC VALUE
TOLERANCE PACKAGING
LEAD
(Pb)-FREE
WINDING
Optional
DESIGN
Optional
Custom items are
subject to extra-charge
and min. order. Please
see price list.
GLOBAL PART NUMBER INFORMATION
R
W
S
T
2
5
1
6
8
C
4
7
0
0
J
B
0
4
GLOBAL
MODEL
SIZE
LEADS
OPTION
OHMIC VALUE
TOLERANCE
PACKAGING
SPECIAL
RWST
25 x 138
25 x 168
30 x 250
40 x 370
50 x 373
A = AN
B = B
N = Non
inductive
winding
The first three digits are
significant figures and the
last digit specifies the
number of zeros to follow.
R designates decimal
point.
J = 5.0 ꢀ
K = 10 ꢀ
Box:
BO1
BO2
BO2NA
BO4
BO4NA
BO6
As applicable.
Example: BA7
C = CS
F = Faston
4700 = 470 Ω
48R8 = 48.7 Ω
R010 = 0.01 Ω
R470 = 0.47 Ω
BO6NA
www.vishay.com
114
For technical questions, contact: sfer@vishay.com
Document Number: 50017
Revision: 12-May-09
