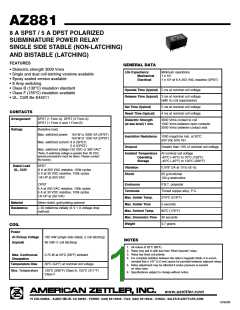

AZ881
8 A SPST / 5 A DPST POLARIZED
SUBMINIATURE POWER RELAY
SINGLE SIDE STABLE (NON-LATCHING)
AND BISTABLE (LATCHING)
FEATURES
GENERAL DATA
• Dielectric strength 3000 Vrms
• Single and dual coil latching versions available
• Epoxy sealed version available
• 8 Amp switching
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 8 A 250 VAC resistive (SPST)
• Class B (130°C) insulation standard
• Class F (155°C) insulation available
• UL, CUR file E44211
Operate Time (typical) 5 ms at nominal coil voltage
Release Time (typical) 3 ms at nominal coil voltage
(with no coil suppression)
Set Time (typical)
5 ms at nominal coil voltage
4 ms at nominal coil voltage
CONTACTS
Reset Time (typical)
Arrangement
SPST (1 Form A), DPST (2 Form A)
DPST (1 Form A and 1 Form B)
Dielectric Strength
(at sea level) 1 min.
3000 Vrms contact to coil
1000 Vrms between open contacts
2000 Vrms between contact sets
Ratings
Resistive load:
Max. switched power: 150 W or 2000 VA (SPST)
150 W or 1250 VA (DPST)
Max. switched current: 8 A (SPST)
5 A (DPST)
Max. switched voltage:150 VDC or 380 VAC*
*Note: If switching voltage is greater than 30 VDC,
special precautions must be taken. Please contact
the factory.
Insulation Resistance 1000 megohms min. at 20°C
500 Vdc 50% RH
Dropout
Greater than 10% of nominal coil voltage
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 70°C (158°F)
-40°C (-40°F) to 130°C (266°F)
Rated Load
UL, CUR
SPST
Vibration
0.078” DA at 10 to 55 Hz
8 A at 250 VAC resistive, 100k cycles
5 A at 30 VDC resistive, 100k cycles
1/6 HP at 250 VAC
Shock
20 g functional
100 g destructive
DPST
Enclosure
P.B.T. polyester
Tinned copper alloy, P.C.
270°C (518°F)
5 seconds
5 A at 250 VAC resistive, 100k cycles
5 A at 30 VDC resistive, 100k cycles
1/6 HP at 250 VAC
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Material
Silver nickel, gold plating optional
Resistance
< 50 milliohms initially (6 V 1 A voltage drop
method)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight
4.7 grams
COIL
Power
At Pickup Voltage
(typical)
192 mW (single side stable, 2 coil latching)
96 mW (1 coil latching)
NOTES
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Relay has fixed coil polarity.
4. For complete isolation between the relay’s magnetic fields, it is recom-
mended that a .197" (5.0 mm) space be provided between adjacent relays.
5. Relay adjustment may be affected if undue pressure is exerted
on relay case.
6. Specifications subject to change without notice.
Max. Continuous
Dissipation
0.75 W at 20°C (68°F) ambient
Temperature Rise
30°C (54°F) at nominal coil voltage
130°C (266°F) Class B, 155°C (311°F)
Class F
Max. Temperature
10/30/09
