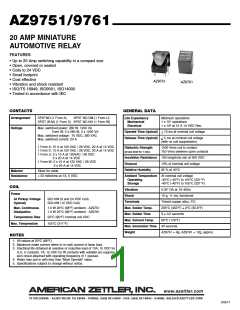

AZ9751/9761
20 AMP MINIATURE
AUTOMOTIVE RELAY
FEATURES
• Up to 20 Amp switching capability in a compact size
• Open, covered or sealed
• Coils to 24 VDC
• Small footprint
• Cost effective
AZ9751
AZ9761
• Vibration and shock resistant
• ISO/TS 16949, ISO9001, ISO14000
• Tested in accordance with IEC
CONTACTS
GENERAL DATA
Arrangement
SPSTNO (1 Form A)
SPDT (B-M) (1 Form C) SPDT NC-NO (1 Form W)
SPST NO DM (1 Form U)
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107 operations
1 x 105 at 12 A 14 VDC Res.
Ratings
Max. switched power: 280 W, 1200 VA
Form W: 2 x 280 W, 2 x 1200 VA
Max. switched voltage: 75 VDC, 380 VAC
Max. switched current: 20 A
Operate Time (typical) < 10 ms at nominal coil voltage
Release Time (typical) < 5 ms at nominal coil voltage
(with no coil suppression)
1 Form A: 10 A at 120 VAC / 28 VDC, 20 A at 14 VDC
1 Form C: 10 A at 120 VAC / 28 VDC, 20 A at 14 VDC
1 Form U: 2 x 10 A at 120VAC / 28 VDC
2 x 20 A at 14 VDC
Dielectric Strength
(at sea level for 1 min.)
1500 Vrms coil to contact
750 Vrms between open contacts
Insulation Resistance 100 megohms min at 500 VDC
1 Form W: 2 x 10 A at 120 VAC / 28 VDC
2 x 20 A at 14 VDC
Dropout
10% of nominal coil voltage
85 % at 40°C
Relative Humidity
Material
Silver tin oxide
Resistance
< 50 milliohms at 1A, 5 VDC
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 105°C (221°F)
-40°C (-40°F) to 105°C (221°F)
COIL
Vibration
0.05" DA at 10–40Hz
Power
Shock
10 g, 11 ms, functional
At Pickup Voltage
(typical)
563 mW (6 and 24 VDC Coil)
559 mW (12 VDC Coil)
Terminals
Tinned copper alloy, P.C.
235°C (455°F) 2°C (35.6°F)
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
Max. Continuous
Dissipation
1.0 W 20°C (68°F) ambient - AZ9751
1.0 W 20°C (68°F) ambient - AZ9761
3
0.5 seconds
Temperature Rise
Max. Temperature
50°C (90°F) nominal coil VDC
155°C (311°F)
80°C (176°F)
Max. Immersion Time 30 seconds
Weight AZ9751 = 9g, AZ9761 = 12g, approx.
NOTES
1. All values at 20°C (68°F).
2. Maximum make current refers to in-rush current of lamp load.
3. Electrical life obtained at resistive or inductive load of 10A, 15 VDC for
A,C, U contacts. 7A, 15 VDC for W contacts with suitable arc-suppres-
sion circuit attached with operating frequency of 1 ops/sec.
4. Relay may pull in with less than “Must Operate” value.
5. Specifications subject to change without notice.
