1SS226(T5LPEV,F)

型号:

1SS226(T5LPEV,F)

品牌:

TOSHIBA[ TOSHIBA ]

页数:

5 页

PDF大小:

172 K

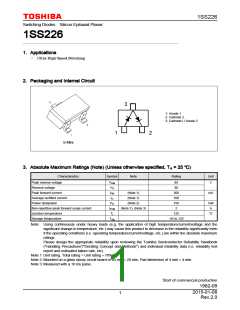

1SS226
Switching Diodes Silicon Epitaxial Planar
1SS226
1. Applications
Ultra-High-Speed Switching
2. Packaging and Internal Circuit
1: Anode 1
2: Cathode 2
3: Cathode1 / Anode 2
S-Mini
3. Absolute Maximum Ratings (Note) (Unless otherwise specified, Ta = 25 )
Characteristics
Peak reverse voltage
Symbol
Note
Rating
Unit
V
VRM
VR
85
80
Reverse voltage
Peak forward current
IFM
IO
(Note 1)
(Note 1)
300
mA
Average rectified current
Power dissipation
100
PD
(Note 2)
150
mW
A
Non-repetitive peak forward surge current
Junction temperature
Storage temperature
IFSM
Tj
(Note 1), (Note 3)
2
125
Tstg
-55 to 125
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the
significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even
if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum
ratings.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook
("Handling Precautions"/"Derating Concept and Methods") and individual reliability data (i.e. reliability test
report and estimated failure rate, etc).
Note 1: Unit rating. Total rating = Unit rating × 70%
Note 2: Mounted on a glass epoxy circuit board of 20 mm × 20 mm, Pad dimension of 4 mm × 4 mm.
Note 3: Measured with a 10 ms pulse.
Start of commercial production
1982-09
2015-01-08
Rev.2.0
1
1SS226
4. Electrical Characteristics (Unless otherwise specified, Ta = 25 )
Characteristics
Forward voltage
Symbol
Test Condition
Min
Typ.
Max
Unit
V
VF(1)
VF(2)
VF(3)
IR(1)
IR(2)
Ct
IF = 1 mA
IF = 10 mA
IF = 100 mA
VR = 30 V
VR = 80 V
0.60
0.72
0.90
1.20
0.1
0.5
3.0
4.0
Reverse current
µA
Total capacitance
VR = 0 V, f = 1 MHz
0.9
1.6
pF
ns
Reverse recovery time
trr
IF = 10 mA
See Fig. 4.1.
Fig. 4.1 Reverse recovery time (trr) Test circuit
5. Marking
Fig. 5.1 Marking
6. Land Pattern Dimensions (for reference only)
Fig. 6.1 S-Mini (Unit: mm)
2015-01-08
Rev.2.0
2
1SS226
7. Characteristics Curves (Note)
Fig. 7.1 IF - VF
Fig. 7.2 IR - VR
Fig. 7.3 Ct - VR
Fig. 7.4 PD - Ta
Note: The above characteristics curves are presented for reference only and not guaranteed by production test,
unless otherwise noted.
2015-01-08
Rev.2.0
3
1SS226
Package Dimensions
Unit: mm
Weight: 12 mg (typ.)
Package Name(s)
TOSHIBA: 2-3F1S
Nickname: S-Mini
2015-01-08
Rev.2.0
4
1SS226
RESTRICTIONS ON PRODUCT USE
Toshiba Corporation, and its subsidiaries and affiliates (collectively "TOSHIBA"), reserve the right to make changes to the information
in this document, and related hardware, software and systems (collectively "Product") without notice.
This document and any information herein may not be reproduced without prior written permission from TOSHIBA. Even with TOSHIBA's
written permission, reproduction is permissible only if reproduction is without alteration/omission.
ThoughTOSHIBAworkscontinuallytoimproveProduct'squalityandreliability,Productcanmalfunctionorfail.Customersareresponsible
for complying with safety standards and for providing adequate designs and safeguards for their hardware, software and systems which
minimize risk and avoid situations in which a malfunction or failure of Product could cause loss of human life, bodily injury or damage
to property, including data loss or corruption. Before customers use the Product, create designs including the Product, or incorporate
the Product into their own applications, customers must also refer to and comply with (a) the latest versions of all relevant TOSHIBA
information, including without limitation, this document, the specifications, the data sheets and application notes for Product and the
precautions and conditions set forth in the "TOSHIBA Semiconductor Reliability Handbook" and (b) the instructions for the application
with which the Product will be used with or for. Customers are solely responsible for all aspects of their own product design or applications,
including but not limited to (a) determining the appropriateness of the use of this Product in such design or applications; (b) evaluating
and determining the applicability of any information contained in this document, or in charts, diagrams, programs, algorithms, sample
application circuits, or any other referenced documents; and (c) validating all operating parameters for such designs and applications.
TOSHIBA ASSUMES NO LIABILITY FOR CUSTOMERS' PRODUCT DESIGN OR APPLICATIONS.
PRODUCT IS NEITHER INTENDED NOR WARRANTED FOR USE IN EQUIPMENTS OR SYSTEMS THAT REQUIRE
EXTRAORDINARILY HIGH LEVELS OF QUALITY AND/OR RELIABILITY, AND/OR A MALFUNCTION OR FAILURE OF WHICH MAY
CAUSE LOSS OF HUMAN LIFE, BODILY INJURY, SERIOUS PROPERTY DAMAGE AND/OR SERIOUS PUBLIC IMPACT
("UNINTENDEDUSE").Exceptforspecificapplicationsasexpresslystatedinthisdocument, UnintendedUseincludes, withoutlimitation,
equipment used in nuclear facilities, equipment used in the aerospace industry, medical equipment, equipment used for automobiles,
trains, ships and other transportation, traffic signaling equipment, equipment used to control combustions or explosions, safety devices,
elevators and escalators, devices related to electric power, and equipment used in finance-related fields. IF YOU USE PRODUCT FOR
UNINTENDED USE, TOSHIBA ASSUMES NO LIABILITY FOR PRODUCT. For details, please contact your TOSHIBA sales
representative.
Do not disassemble, analyze, reverse-engineer, alter, modify, translate or copy Product, whether in whole or in part.
Product shall not be used for or incorporated into any products or systems whose manufacture, use, or sale is prohibited under any
applicable laws or regulations.
The information contained herein is presented only as guidance for Product use. No responsibility is assumed by TOSHIBA for any
infringement of patents or any other intellectual property rights of third parties that may result from the use of Product. No license to any
intellectual property right is granted by this document, whether express or implied, by estoppel or otherwise.
ABSENT A WRITTEN SIGNED AGREEMENT, EXCEPT AS PROVIDED IN THE RELEVANT TERMS AND CONDITIONS OF SALE
FOR PRODUCT, AND TO THE MAXIMUM EXTENT ALLOWABLE BY LAW, TOSHIBA (1) ASSUMES NO LIABILITY WHATSOEVER,
INCLUDING WITHOUT LIMITATION, INDIRECT, CONSEQUENTIAL, SPECIAL, OR INCIDENTAL DAMAGES OR LOSS, INCLUDING
WITHOUT LIMITATION, LOSS OF PROFITS, LOSS OF OPPORTUNITIES, BUSINESS INTERRUPTION AND LOSS OF DATA, AND
(2) DISCLAIMS ANY AND ALL EXPRESS OR IMPLIED WARRANTIES AND CONDITIONS RELATED TO SALE, USE OF PRODUCT,
OR INFORMATION, INCLUDING WARRANTIES OR CONDITIONS OF MERCHANTABILITY, FITNESS FOR A PARTICULAR
PURPOSE, ACCURACY OF INFORMATION, OR NONINFRINGEMENT.
Do not use or otherwise make available Product or related software or technology for any military purposes, including without limitation,
for the design, development, use, stockpiling or manufacturing of nuclear, chemical, or biological weapons or missile technology products
(mass destruction weapons). Product and related software and technology may be controlled under the applicable export laws and
regulations including, without limitation, the Japanese Foreign Exchange and Foreign Trade Law and the U.S. Export Administration
Regulations. Export and re-export of Product or related software or technology are strictly prohibited except in compliance with all
applicable export laws and regulations.
Please contact your TOSHIBA sales representative for details as to environmental matters such as the RoHS compatibility of Product.
Please use Product in compliance with all applicable laws and regulations that regulate the inclusion or use of controlled substances,
including without limitation, the EU RoHS Directive. TOSHIBA ASSUMES NO LIABILITY FOR DAMAGES OR LOSSES OCCURRING
AS A RESULT OF NONCOMPLIANCE WITH APPLICABLE LAWS AND REGULATIONS.
2015-01-08
Rev.2.0
5
