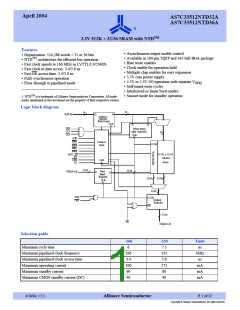

April 2004
AS7C33512NTD32A
AS7C33512NTD36A
®
3.3V 512K × 32/36 SRAM with NTDTM
Features
• Asynchronous output enable control
• Available in 100-pin TQFP and 165-ball BGA package
• Byte write enables
• Clock enable for operation hold
• Multiple chip enables for easy expansion
• 3.3V core power supply
• 2.5V or 3.3V I/O operation with separate V
• Self-timed write cycles
• Organization: 524,288 words × 32 or 36 bits
™1
• NTD architecture for efficient bus operation
• Fast clock speeds to 166 MHz in LVTTL/LVCMOS
• Fast clock to data access: 3.4/3.8 ns
• Fast OE access time: 3.4/3.8 ns
• Fully synchronous operation
• Flow-through or pipelined mode
DDQ
• Interleaved or linear burst modes
• Snooze mode for standby operation
1. NTDTM is a trademark of Alliance Semiconductor Corporation. All trade-
marks mentioned in this document are the property of their respective owners.
Logic block diagram
19
19
A[18:0]
Q
D
Address
register
Burst logic
CLK
D
Q
CE0
CE1
CE2
Write delay
addr. registers
CLK
19
R/W
BWa
Control
logic
CLK
BWb
BWc
BWd
ADV / LD
FT
512K x 32/36
SRAM
LBO
ZZ
CLK
Array
32/36
32/36
DQ[a,b,c,d]
Data
Input
Register
D
Q
32/36
32/36
CLK
32/36
CLK
CEN
CLK
Output
Register
OE
32/36
OE
DQ[a,b,c,d]
Selection guide
-166
6
-133
7.5
133
3.8
275
80
Units
ns
Minimum cycle time
Maximum pipelined clock frequency
Maximum pipelined clock access time
Maximum operating current
166
3.4
300
90
MHz
ns
mA
mA
mA
Maximum standby current
Maximum CMOS standby current (DC)
40
40
4/30/04, v 2.5
Alliance Semiconductor
P. 1 of 22
Copyright © Alliance Semiconductor. All rights reserved.
AS7C33512NTD32A/36A
®
100-pin TQFP - top view
NC/DQPc
DQc0
DQc1
1
2
3
4
5
6
7
8
9
DQPb/NC
DQb7
DQb6
V
DDQ
V
SSQ
DQb5
DQb4
DQb3
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51
V
V
DDQ
SSQ
DQc2
DQc3
DQc4
DQc5
DQb2
V
V
10
11
12
SSQ
SSQ
DDQ
V
V
DDQ
DQc6
DQc7
FT
V
DD
NC
TQFP 14 x 20mm
DQb1
DQb0
13
14
15
16
17
18
19
20
21
22
23
24
25
26
V
NC
SS
V
ZZ
DD
V
SS
DQd0
DQd1
DQa7
DQa6
V
V
V
DDQ
DDQ
SSQ
V
SSQ
DQd2
DQd3
DQd4
DQd5
DQa5
DQa4
DQa3
DQa2
V
V
V
DQa1
SSQ
DDQ
SSQ
DDQ
V
27
28
29
30
DQd6
DQd7
NC/DQPd
DQa0
DQPa/NC
Note: For pins 1, 30, 51, and 80, NC applies to the x32 configuration. DQPn applies to the x36
configuration.
4/30/04, v 2.5
Alliance Semiconductor
P. 2 of 22
AS7C33512NTD32A/36A
®
Pin and ball assignment
165-ball BGA - top view
1
2
3
4
5
6
7
8
9
10
A
11
NC
A
B
C
D
E
F
NC
A
CE0
CE1
BWc
BWd
BWb
BWa
CE2
CLK
CEN
R/W
ADV/LD
OE
A
A
NC
A
A
NC
DQPc
DQc
DQc
DQc
DQc
FT
NC
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
NC
DQb
DQb
DQb
DQb
NC
DQa
DQa
DQa
DQa
NC
A
DQPb
DQb
DQb
DQb
DQb
ZZ
DDQ
DDQ
DDQ
DDQ
DDQ
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
SS
DDQ
DDQ
DDQ
DDQ
DDQ
DQc
DQc
DQc
DQc
NC
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
DD
G
H
J
NC
NC
DQd
DQd
DQd
DQd
DQPd
NC
DQd
DQd
DQd
DQd
NC
V
V
DQa
DQa
DQa
DQa
DQPa
NC
DDQ
DDQ
DDQ
DDQ
DDQ
DDQ
DDQ
DDQ
K
L
M
N
P
V
V
V
V
V
V
V
V
V
NC
TDI
TMS
NC
NC
V
SS
DDQ
SS
DDQ
1
NC
A
A
A1
A0
TDO
TCK
A
A
1
R
LBO
NC
A
A
A
A
A
A
1 A0 and A1 are the two least significant bits (LSB) of the address field and set the internal burst counter if burst is desired.
4/30/04, v 2.5
Alliance Semiconductor
P. 3 of 22
AS7C33512NTD32A/36A
®
Functional Description
The AS7C33512NTD32A/36A family is a high performance CMOS 16 Mbit synchronous Static Random Access Memory
(SRAM) organized as 524,288 words × 32 or 36 bits and incorporates a LATE LATE Write.
™
This variation of the 16Mb+ synchronous SRAM uses the No Turnaround Delay (NTD ) architecture, featuring an enhanced
write operation that improves bandwidth over pipelined burst devices. In a normal pipelined burst device, the write data,
command, and address are all applied to the device on the same clock edge. If a read command follows this write command,
the system must wait for two 'dead' cycles for valid data to become available. These dead cycles can significantly reduce
overall bandwidth for applications requiring random access or read-modify-write operations.
™
NTD devices use the memory bus more efficiently by introducing a write latency which matches the two-cycle pipelined or
one-cycle flow-through read latency. Write data is applied two cycles after the write command and address, allowing the read
™
pipeline to clear. With NTD , write and read operations can be used in any order without producing dead bus cycles.
Assert R/W low to perform write cycles. Byte write enable controls write access to specific bytes, or can be tied low for full 18
bit writes. Write enable signals, along with the write address, are registered on a rising edge of the clock. Write data is applied
to the device two clock cycles later. Unlike some asynchronous SRAMs, output enable OE does not need to be toggled for
write operations; it can be tied low for normal operations. Outputs go to a high impedance state when the device is de-selected
by any of the three chip enable inputs. In pipelined mode, a two cycle deselect latency allows pending read or write operations
to be completed.
Use the ADV (burst advance) input to perform burst read, write and deselect operations. When ADV is high, external addresses, chip
select, R/W pins are ignored, and internal address counters increment in the count sequence specified by the LBO control. Any
device operations, including burst, can be stalled using the CEN=1, the clock enable input.
The AS7C33512NTD32A/36A operates with a 3.3V ± 5% power supply for the device core (V ). DQ circuits use a separate
DD
power supply (V
) that operates across 3.3V or 2.5V ranges. These devices are available in a 100-pin TQFP package and
DDQ
165 BGA Ball Grid Array package.
TQFP and BGA Capacitance
Parameter
Input capacitance
I/O capacitance
Symbol
Test conditions
V = 0V
Min
Max
Unit
pF
C
-
-
5
7
IN
in
C
V = V = 0V
pF
I/O
in
out
TQFP and BGA thermal resistance
Description
Conditions
Symbol
Typical
40
Units
°C/W
°C/W
1–layer
4–layer
θJA
θJA
Thermal resistance
(junction to ambient)1
Test conditions follow standard test methods and
procedures for measuring thermal impedance,
per EIA/JESD51
22
Thermal resistance
θJC
8
°C/W
(junction to top of case)1
1 This parameter is sampled
4/30/04, v 2.5
Alliance Semiconductor
P. 4 of 22
AS7C33512NTD32A/36A
®
Signal descriptions
Signal
CLK
I/O Properties
Description
I
I
I
CLOCK Clock. All inputs except OE, FT, LBO, and ZZ are synchronous to this clock.
CEN
SYNC
SYNC
SYNC
Clock enable. When de-asserted high, the clock input signal is masked.
Address. Sampled when all chip enables are active and ADV/LD is asserted.
Data. Driven as output when the chip is enabled and OE is active.
A, A0, A1
DQ[a,b,c,d] I/O
CE0, CE1,
CE2
Synchronous chip enables. Sampled at the rising edge of CLK, when ADV/LD is asserted.
Are ignored when ADV/LD is high.
I
SYNC
Advance or Load. When sampled high, the internal burst address counter will increment in
the order defined by the LBO input value. (refer to table on page 2) When low, a new
address is loaded.
ADV/LD
R/W
I
I
SYNC
A high during LOAD initiates a READ operation. A low during LOAD initiates a WRITE
operation. Is ignored when ADV/LD is high.
SYNC
SYNC
Byte write enables. Used to control write on individual bytes. Sampled along with WRITE
command and BURST WRITE.
BW[a,b,c,d]
OE
I
I
I
ASYNC Asynchronous output enable. I/O pins are not driven when OE is inactive.
Selects Burst mode. When tied to VDD or left floating, device follows interleaved Burst order. When
STATIC
LBO
driven Low, device follows linear Burst order. This signal is internally pulled High.
Selects Pipeline or Flow-through mode. When tied to VDD or left floating, enables Pipeline mode.
STATIC
FT
I
When driven Low, enables single register Flow-through mode. This signal is internally pulled High.
Serial data-out to the JTAG circuit. Delivers data on the negative edge of TCK. (BGA
TDO
TDI
O
I
SYNC
only)
SYNC
Serial data-in to the JTAG circuit. Sampled on the rising edge of TCK. (BGA only)
This pin controls the Test Access Port state machine. Sampled on the rising edge of TCK.
(BGA only)
TMS
I
SYNC
Serial data-out to the JTAG circuit. Delivers data on the negative edge of TCK. (BGA
only)
TCK
O
SYNC
ZZ
I
-
ASYNC Snooze. Places device in low power mode; data is retained. Connect to GND if unused.
No connects.
NC
-
Burst order
Interleaved burst order LBO = 1
A1 A0 A1 A0 A1 A0 A1 A0
Linear burst order LBO = 0
A1 A0 A1 A0 A1 A0 A1 A0
Starting address
First increment
Second increment
Third increment
0 0
0 1
1 0
1 1
0 1
0 0
1 1
1 0
1 0
1 1
0 0
0 1
1 1
1 0
0 1
0 0
Starting Address
First increment
Second increment
Third increment
0 0
0 1
1 0
1 1
0 1
1 0
1 1
0 0
1 0
1 1
0 0
0 1
1 1
0 0
0 1
1 0
4/30/04, v 2.5
Alliance Semiconductor
P. 5 of 22
AS7C33512NTD32A/36A
®
Synchronous truth table[5,6,7,8,9]
Address
CE0 CE1 CE2 ADV/LD R/W
BWn
X
OE CEN source
CLK
Operation
DQ
High-Z
High-Z
High-Z
High-Z
Q
Notes
H
X
X
X
L
X
X
L
X
H
X
X
L
L
L
L
H
L
H
L
H
L
H
L
X
X
X
X
H
X
H
X
L
X
X
X
X
L
L
L
L
L
L
L
L
L
L
L
L
NA
NA
NA
NA
L to H
L to H
L to H
L to H
DESELECT Cycle
X
DESELECT Cycle
X
DESELECT Cycle
X
H
X
H
X
H
X
H
X
CONTINUE DESELECT Cycle
READ Cycle (Begin Burst)
READ Cycle (Continue Burst)
1
X
External L to H
Next L to H
X
L
X
L
X
L
Q
1,10
2
X
H
H
X
X
X
External L to H NOP/DUMMY READ (Begin Burst) High-Z
X
L
X
L
X
Next L to H DUMMY READ (Continue Burst) High-Z 1,2,10
L
External L to H
WRITE CYCLE (Begin Burst)
D
D
3
X
L
X
L
X
L
L
Next L to H WRITE CYCLE (Continue Burst)
1,3,10
H
External L to H NOP/WRITE ABORT (Begin Burst) High-Z 2,3
1,2,3,
10
4
X
X
X
H
X
H
X
L
Next L to H WRITE ABORT (Continue Burst)
High-Z
-
X
X
X
X
X
X
X
H
Current L to H
INHIBIT CLOCK
Key: X = Don’t Care, H = HIGH, L = LOW. BWn = H means all byte write signals (BWa, BWb, BWc, and BWd) are HIGH. BWn = L means one or
more byte write signals are LOW.
Notes:
1 CONTINUE BURST cycles, whether READ or WRITE, use the same control inputs. The type of cycle performed (READ or WRITE) is chose in the initial
BEGIN BURST cycle. A CONINUE DESELECT cycle can only be entered if a DESELECT CYCLE is executed first.
2 DUMMY READ and WRITE ABORT cycles can be considered NOPs because the device performs no external operation. A WRITE ABORT means a
WRITE command is given, but no operation is performed.
3 OE may be wired LOW to minimize the number of control signal to the SRAM. The device will automatically turn off the output drivers during a WRITE
cycle. OE may be used when the bus turn-on and turn-off times do not meet an application’s requirements.
4 If an INHIBIT CLOCK command occurs during a READ operation, the DQ bus will remain active (Low-Z). If it occurs during a WRITE cycle, the bus will
remain in High-Z. No WRITE operations will be performed during the INHIBIT CLOCK cycle.
5 BWa enables WRITEs to byte “a” (DQa pins/balls); BWb enables WRITEs to byte “b” (DQb pins/balls); BWc enables WRITEs to byte “c” (DQc pins/
balls); BWd enables WRITEs to byte “d” (DQd pins/balls).
6 All inputs except OE and ZZ must meet setup and hold times around the rising edge (LOW to HIGH) of CLK.
7 Wait states are inserted by setting CEN HIGH.
8 This device contains circuitry that will ensure that the outputs will be in High-Z during power-up.
9 The device incorporates a 2-bit burst counter. Address wraps to the initial address every fourth BURST CYCLE.
10 The address counter is incremented for all CONTINUE BURST cycles.
4/30/04, v 2.5
Alliance Semiconductor
P. 6 of 22
AS7C33512NTD32A/36A
®
State diagram for NTD SRAM
Burst
Read
Burs
Read
Burst
Read
Dsel
Dsel
Burst
Burst
Write
Burst
Burst
Write
Writ
Absolute maximum ratings
Parameter
Power supply voltage relative to GND
Input voltage relative to GND (input pins)
Input voltage relative to GND (I/O pins)
Power dissipation
Symbol
DD, VDDQ
VIN
Min
–0.5
–0.5
–0.5
–
Max
+4.6
Unit
V
V
VDD + 0.5
VDDQ + 0.5
1.8
V
VIN
V
Pd
W
Short circuit output current
IOUT
–
20
mA
oC
oC
oC
Storage temperature (TQFP)
Storage temperature (BGA)
T
stg (TQFP)
stg (BGA)
Tbias
–65
–65
–65
+150
T
+125
Temperature under bias
+135
Stresses greater than those listed under “Absolute maximum ratings” may cause permanent damage to the device. This is a stress rating only, and functional
operation of the device at these or any other conditions outside those indicated in the operational sections of this specification is not implied. Exposure to
absolute maximum rating conditions may affect reliability.
Recommended operating conditions at 3.3V I/O
Parameter
Supply voltage for inputs
Supply voltage for I/O
Ground supply
Symbol
VDD
Min
3.135
3.135
0
Nominal
Max
3.465
3.465
0
Unit
V
3.3
3.3
0
VDDQ
Vss
V
V
Recommended operating conditions at 2.5V I/O
Parameter
Supply voltage for inputs
Supply voltage for I/O
Ground supply
Symbol
VDD
Min
3.135
2.375
0
Nominal
Max
3.465
2.625
0
Unit
V
3.3
2.5
0
VDDQ
Vss
V
V
4/30/04, v 2.5
Alliance Semiconductor
P. 7 of 22
AS7C33512NTD32A/36A
®
DC electrical characteristics for 3.3V I/O operation
Parameter
Input leakage current1
Output leakage current
Sym
Conditions
Min
-2
Max
Unit
µA
|ILI|
VDD = Max, OV < VIN < VDD
OE ≥ VIH, VDD = Max, OV < VOUT < VDDQ
Address and control pins
I/O pins
2
2
|ILO
|
-2
µA
2
VDD+0.3
Input high (logic 1) voltage
Input low (logic 0) voltage
VIH
VIL
V
V
2
V
DDQ+0.3
Address and control pins
I/O pins
-0.3
-0.5
2.4
–
0.8
0.8
–
Output high voltage
Output low voltage
VOH
VOL
IOH = –4 mA, VDDQ = 3.135V
IOL = 8 mA, VDDQ = 3.465V
V
V
0.4
1 FT, LBO, and ZZ pins and the 165 BGA JTAG pins (TMS, TDI, and TCK) have an internal pull-up or pull-down, and input leakage = ±10 µa.
DC electrical characteristics for 2.5V I/O operation
Parameter
Input leakage current
Output leakage current
Sym
Conditions
VDD = Max, OV < VIN < VDD
OE ≥ VIH, VDD = Max, OV < VOUT < VDDQ
Address and control pins
I/O pins
Min
-2
Max
Unit
µA
µA
V
|ILI|
2
2
|ILO
|
-2
1.7
1.7
-0.3*
-0.3*
1.7
–
VDD+0.3
Input high (logic 1) voltage
Input low (logic 0) voltage
VIH
VIL
V
DDQ+0.3
V
Address and control pins
I/O pins
0.7
0.7
–
V
V
Output high voltage
Output low voltage
VOH
VOL
IOH = –4 mA, VDDQ = 2.375V
IOL = 8 mA, VDDQ = 2.625V
V
0.7
V
*V min = -1.5 for pulse width less than 0.2 X t
IL
CYC
IDD operating conditions and maximum limits
Parameter
Sym
Conditions
-166
-133
Unit
Operating power supply
current1(pipelined mode)
ICC
300
275
mA
CE0 = VIL, CE1 = VIH, CE2 = VIL, f = fMax
IOUT = 0 mA
,
ICC
Operating power supply
250
230
mA
mA
current1(flow-through mode)
(FT)
ISB
Deselected, f = fMax, ZZ < VIL
90
40
80
40
Deselected, f = 0, ZZ < 0.2V,
all VIN ≤ 0.2V or ≥ VDD – 0.2V
ISB1
Standby power supply current
Deselected, f = f , ZZ
≥
V
– 0.2V,
Max
DD
ISB2
40
40
all VIN ≤ VIL or ≥ VIH
1 I given with no output loading. I increases with faster cycle times and greater output loading.
CC
CC
4/30/04, v 2.5
Alliance Semiconductor
P. 8 of 22
AS7C33512NTD32A/36A
®
Timing characteristics over operating range
166
133
1
Parameter
Clock frequency
Sym Min Max Min Max
Unit Notes
F
–
166
–
–
133
–
MHz
ns
MAX
CYC
CYCF
CD
Cycle time (pipelined mode)
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
6
7.5
12
–
Cycle time (flow-through mode)
Clock access time (pipelined mode)
Clock access time (flow-through mode)
Output enable low to data valid
Clock high to output low Z
8.5
–
–
–
ns
3.4
8.5
3.4
–
3.8
10
3.8
–
ns
–
–
ns
CDF
OE
–
–
ns
0
0
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
2,3,4
2
LZC
OH
Data output invalid from clock high (pipelined mode)
Data Output invalid from clock high (flow-through mode)
Output enable low to output low Z
Output enable high to output high Z
Clock high to output high Z
1.5
3.0
0
–
1.5
3.0
0
–
–
–
2
OHF
LZOE
HZOE
HZC
OHOE
CH
–
–
2,3,4
2,3,4
2,3,4
–
3.4
3.4
–
–
3.8
3.8
–
–
–
Output enable high to invalid output
Clock high pulse width
0
0
2.4
2.3
1.5
1.5
1.5
1.5
0.5
0.5
0.5
0.5
1.5
0.5
1.5
0.5
–
2.4
2.4
1.5
1.5
1.5
1.5
0.5
0.5
0.5
0.5
1.5
0.5
1.5
0.5
–
5
5
Clock low pulse width
–
–
CL
Address and Control setup to clock high
Data setup to clock high
–
–
6
AS
–
–
6
DS
Write setup to clock high
–
–
6, 7
6, 8
6
WS
Chip select setup to clock high
Address hold from clock high
Data hold from clock high
–
–
CSS
–
–
AH
–
–
6
DH
Write hold from clock high
–
–
6, 7
6, 8
6
WH
Chip select hold from clock high
Clock enable setup to clock high
Clock enable hold from clock high
ADV setup to clock high
–
–
CSH
CENS
CENH
ADVS
ADVH
–
–
–
–
6
–
–
6
ADV hold from clock high
–
–
6
1 See “Notes” on page 19.
4/30/04, v 2.5
Alliance Semiconductor
P. 9 of 22
AS7C33512NTD32A/36A
®
IEEE 1149.1 serial boundary scan (JTAG)
The SRAM incorporates a serial boundary scan test access port (TAP). The port operates in accordance with IEEE Standard
1149.1-1990 but does not have the set of functions required for full 1149.1 compliance. The inclusion of these functions would
place an added delay in the critical speed path of the SRAM. The TAP controller functionality does not conflict with the
operation of other devices using 1149.1 fully compliant TAPs. It uses JEDEC-standard 2.5V I/O logic levels.
The SRAM contains a TAP controller, instruction register, boundary scan register, bypass register, and ID register.
Disabling the JTAG feature
If the JTAG function is not being implemented, TCK should be tied to VSS, TMS and TDI can be left unconnected. At power-up, the device
will come up in a reset state which will not interfere with the operation of the device. TDO should be left unconnected.
TAP controller state diagram
TAP controller block diagram
TEST-LOGIC
RESET
1
0
0
1
SELECT
DR-SCAN
1
1
SELECT
IR-SCAN
RUN-TEST/
IDLE
Bypass Register
0
Selection
Circuitry
Selection
Circuitry
2
1 0
0
0
Instruction Register
TDI
TDO
1
1
.
. .
2
3130 29
Identification Register
1 0
1 0
CAPTURE-DR
0
CAPTURE-IR
0
x
. . . . .
2
1
Boundary Scan Register
SHIFT-DR
1
0
SHIFT-IR
1
0
1
1
EXIT1-IR
0
EXIT1-DR
0
TCK
TMS
TAP Controller
PAUSE-IR
1
PAUSE-DR
1
0
0
1
x = 50 for x18 configuration, x = 69 for x36 configuration.
0
0
EXIT2-DR
1
EXIT2-IR
1
UPDATE-IR
UPDATE-DR
1
0
1
0
Note: The 0 or 1 next to each state represents the value of TMS at the rising edge of TCK.
Test access port (TAP)
Test clock (TCK)
The test clock is used with only the TAP controller. All inputs are captured on the rising edge of TCK. All outputs are driven
from the falling edge of TCK.
Test mode select (TMS)
The TAP controller receives commands from TMS input. It is sampled on the rising edge of TCK. You can leave this pin/ball
unconnected if the TAP is not used. The pin/ball is pulled up internally, resulting in a logic high level.
4/30/04, v 2.5
Alliance Semiconductor
P. 10 of 22
AS7C33512NTD32A/36A
®
Test data-in (TDI)
The TDI pin/ball serially inputs information into the registers and can be connected to the input of any of the registers. The
register between TDI and TDO is chosen by the instruction that is loaded into the TAP instruction register. For information on
loading the instruction register, see the TAP Controller State Diagram. TDI is internally pulled up and can be unconnected if
the TAP is unused in an application. TDI is connected to the most significant bit (MSB) of any register.
Test data-out (TDO)
The TDO output pin/ball serially clocks data-out from the registers. The output is active depending upon the current state of
the TAP state machine. The output changes on the falling edge of TCK. TDO is connected to the least significant bit (LSB) of
any register. (See the TAP Controller State Diagram.)
Performing a TAP RESET
You can perform a RESET by forcing TMS high (V ) for five rising edges of TCK. This RESET does not affect the
DD
operation of the SRAM and can be performed while the SRAM is operating.
TAP registers
Registers are connected between the TDI and TDO pins/balls. They allow data to be scanned into and out of the SRAM test
circuitry. Only one register can be selected at a time through the instruction register. Data is serially loaded into the TDI pin/
ball on the rising edge of TCK. Data is output on the TDO pin/ball on the falling edge of TCK.
Instruction register
You can serially load three-bit instructions into the instruction register. The register is loaded when it is placed between the
TDI and TDO pins/balls as shown in the TAP Controller Block Diagram. The instruction register is loaded with the IDCODE
instruction at power up and also if the controller is placed in a reset state, as described in the previous section.
When the TAP controller is in the Capture-IR state, the two least significant bits are loaded with a binary “01” pattern to allow
for fault isolation of the board-level series test data path.
Bypass register
To save time when serially shifting data through registers, it is sometimes advantageous to skip certain chips. The bypass
register is a single-bit register that can be placed between the TDI and TDO pins/balls. This allows data to be shifted through
the SRAM with minimal delay. The bypass register is set low (Vss) when the BYPASS instruction is executed.
Boundary scan register
The boundary scan register is connected to all the input and bidirectional pins/balls on the SRAM. The x36 configuration has
a 70-bit-long register and the x18 configuration has a 51-bit-long register.
The boundary scan register is loaded with the contents of the RAM I/O ring when the TAP controller is in the Capture-DR
state and is then placed between the TDI and TDO pins/balls when the controller is moved to the Shift-DR state. The
EXTEST, SAMPLE/RELOAD, and SAMPLE Z instructions can be used to capture the contents of the I/O ring.
The boundary scan order table shows the order in which the bits are connected. Each bit corresponds to one of the bumps on
the SRAM package. The most significant bit (MSB) of the register is connected to TDI, and the least significant bit (LSB) is
connected to TDO.
Identification (ID) register
The ID register has a vendor code and other information described in the Identification register definitions table. The ID
register is loaded with a vendor-specific, 32-bit code during the Capture-DR state when the IDCODE command is loaded in
the instruction register. The IDCODE is hardwired into the SRAM and can be shifted out when the TAP controller is in the
Shift-DR state.
4/30/04, v 2.5
Alliance Semiconductor
P. 11 of 22
AS7C33512NTD32A/36A
®
TAP instruction set
Eight different instructions are possible with the 3-bit instruction register. All combinations are listed in the Instruction Codes
table. Three of these instructions are reserved and should not be used.
Note that the TAP controller used in this SRAM is not fully compliant to the 1149.1 convention because some of the
mandatory 1149.1 instructions are not fully implemented. The TAP controller cannot be used to load address, data, or control
signals into the SRAM and cannot preload the I/O buffers. The SRAM does not implement the 1149.1 commands EXTEST or
INTEST or the PRELOAD portion of SAMPLE/PRELOAD. Instead, it performs a capture of the I/O ring when these
instructions are executed.
Instructions are loaded into the TAP controller during the Shift-IR state when the instruction register is placed between TDI
and TDO. During this state, instructions are shifted through the instruction register through the TDI and TDO pins/balls. To
execute the instruction once it is shifted in, the TAP controller needs to be moved into the Update-IR state.
EXTEST
The EXTEST instruction, which executes whenever the instruction register is loaded with all 0s, is not implemented in this
SRAM TAP controller. The TAP controller, however, does recognize an all-0 instruction. When an EXTEST instruction is
loaded into the instruction register, the SRAM responds as if a SAMPLE/PRELOAD instruction has been loaded. Unlike the
SAMPLE/PRELOAD instruction, EXTEST places the SRAM outputs in a high-Z state. EXTEST is a mandatory 1149.1
instruction. this device, therefore, is not compliant with 1149.1.
IDCODE
The IDCODE instruction is loaded into the instruction register upon power-up or whenever the TAP controller is given a test
logic reset state. The IDCODE instruction causes a vendor-specific, 32-bit code to be loaded into the instruction register. It
also places the instruction register between the TDI and TDO pins/balls and allows the IDCODE to be shifted out of the device
when the TAP controller enters the Shift-DR state.
SAMPLE Z
The SAMPLE Z instruction causes the boundary scan register to be connected between the TDI and TDO pins/balls when the
TAP controller is in a Shift-DR state. It also places all SRAM outputs into a high-Z state.
SAMPLE/PRELOAD
When the SAMPLE/PRELOAD instruction is loaded into the instruction register and the TAP controller is in the Capture-DR
state, a snapshot of data on the inputs and bidirectional pins/balls is captured in the boundary scan register. Note that the
SAMPLE/PRELOAD is a 1149.1 mandatory instruction, but the PRELOAD portion of this instruction is not implemented in
this device. The TAP controller, therefore, is not fully 1149.1 compliant.
Be aware that the TAP controller clock can operate only at a frequency up to 10 Mhz, while the SRAM clock operates more
than an order of magnitude faster. Because there is a large difference in the clock frequencies, it is possible that during the
Capture-DR state, an input or output can undergo a transition. The TAP may then try to capture a signal while in transition
(metastable state). This will not harm the device, but there is no guarantee as to the value that will be captured. Repeatable
results may not be possible.
To guarantee that the boundary scan register captures the correct value of a signal, the SRAM signal must be stabilized long
enough to meet the TAP controller’s capture setup plus hold time (t plus t ). The SRAM clock input might not be captured
CS
CH
correctly if there is no way in a design to stop (or slow) the clock during a SAMPLE/PRELOAD instruction. If this is an issue,
it is possible to capture all other signals and ignore the value of the CK and CK# captured in the bounder scan register.
Once the data is captured, it is possible to shift out the data by putting the TAP into the Shift-DR state. This places the
boundary scan register between the TDI and TDO pins. Note that since the PRELOAD part of the command is not
implemented, putting the TAP to the Update-DR state while performing a SAMPLE/PRELOAD instruction will have the
same effect as the Pause-DR command.
4/30/04, v 2.5
Alliance Semiconductor
P. 12 of 22
AS7C33512NTD32A/36A
®
BYPASS
The advantage of the BYPASS instruction is that it shortens the boundary scan path when multiple devices are connected
together on a board. When the BYPASS instruction is loaded in the instruction register and the TAP is placed in a Shift-DR
state, the bypass register is placed between TDI and TDO.
Reserved
Do not use a reserved instruction.These instructions are not implemented but are reserved for future use.
TAP timing diagram
1
2
3
4
5
6
Test Clock
(TCK)
t
t
t
THTH
THTL
TLTH
Test Mode Select
(TMS)
t
t
MVTH THMX
Test Data-In
(TDI)
t
TLOV
TLOX
t
t
DVTH
THDX
t
Test Data-Out
(TDO)
Undefined
Don’t care
TAP AC electrical characteristics
o
o
For notes 1 and 2, +10 C ≤ T ≤ +110 C and +2.4V ≤ V ≤ +2.6V.
J
DD
Description
Symbol Min Max Units
Clock
Clock cycle time
Clock frequency
Clock high time
Clock low time
Output Times
t
100
ns
THTH
f
10 MHz
TF
t
t
40
40
ns
ns
THTL
TLTH
TCK low to TDO unknown
TCK low to TDO valid
TDI valid to TCK high
TCK high to TDI invalid
Setup Times
t
t
t
t
0
ns
TLOX
TLOV
DVTH
THDX
20
ns
ns
ns
10
10
TMS setup
t
t
10
10
ns
ns
MVTH
1
Capture setup
CS
Hold Times
TMS hold
t
t
10
10
ns
ns
THMX
1
Capture hold
CH
4/30/04, v 2.5
Alliance Semiconductor
P. 13 of 22
AS7C33512NTD32A/36A
®
1 tCS and tCH refer to the setup and hold time requirements of latching data
from the boundary scan register.
2 Test conditions are specified using the load in the figure TAP AC output
load equivalent.
TAP AC test conditions
TAP AC output load equivalent
1.25
Input pulse levels. . . . . . . . . . . . . . . Vss to
2.5V
50Ω
Input rise and fall times. . . . . . . . . . . . . . .
1 ns
TDO
20pF
Z =50
O
Input timing reference levels. . . . . . . . . .
3.3V VDD, TAP DC electrical characteristics and operating conditions
o
o
(+10 C < T < +110 C and +3.135V < V < +3.465V unless otherwise noted)
J
DD
Description
Conditions
Symbol
VIH
Min
2.0
Max
VDD + 0.3
0.8
Units
V
Notes
1, 2
Input high (logic 1) voltage
Input low (logic 0) voltage
Input leakage current
VIL
-0.3
-5.0
V
1, 2
0V ≤ V ≤ V
ILI
5.0
µA
IN
DD
Outputs disabled,
0V ≤ V
Output leakage current
≤
ILO
-5.0
5.0
µA
IN
V
(DQx)
DDQ
Output low voltage
Output low voltage
Output high voltage
Output high voltage
I
= 100µA
= 2mA
VOL1
VOL2
VOH1
VOH2
0.7
0.8
V
V
V
V
1
1
1
1
OLC
I
I
I
OLT
OHS
OHT
= -100µA
= -2mA
2.9
2.0
2.5V VDD, TAP DC electrical characteristics and operating conditions
o
o
(+10 C < T < +110 C and +2.4V < V < +2.6V unless otherwise noted)
J
DD
Description
Conditions
Symbol
VIH
Min
1.7
Max
VDD + 0.3
0.7
Units
V
Notes
1, 2
Input high (logic 1) voltage
Input low (logic 0) voltage
Input leakage current
VIL
-0.3
-5.0
V
1, 2
0V ≤ V ≤ V
ILI
5.0
µA
IN
DD
Outputs disabled,
0V ≤ V
Output leakage current
≤
ILO
-5.0
5.0
µA
IN
V
(DQx)
DDQ
Output low voltage
Output low voltage
Output high voltage
Output high voltage
I
= 100µA
= 2mA
VOL1
VOL2
VOH1
VOH2
0.2
0.7
V
V
V
V
1
1
1
1
OLC
I
I
I
OLT
OHS
OHT
= -100µA
= -2mA
2.1
1.7
1. All voltage referenced to V (GND).
SS
t
2. Overshoot: V (AC) ≤ V + 1.5V for t ≤ KHKH/2
IH
DD
t
Undershoot:V (AC) ≥ -0.5 for t ≤ KHKH/2
IL
4/30/04, v 2.5
Alliance Semiconductor
P. 14 of 22
AS7C33512NTD32A/36A
®
Power-up:V ≤ +2.6V and V ≤ 2.4V and V
≤ 1.4V for t ≤ 200ms
IH
DD
DDQ
During normal operation, V
must not exceed V . Control input signals (such as LD, R/W, etc.) may not have pulsed
DD
DDQ
widths less than t
(Min) or operate at frequencies exceeding f (Max).
KHKL
KF
Identification register definitions
Instruction field
Revision number (31:28)
Device depth (27:23)
512K x 32/36
Description
xxxx
Reserved for version number.
xxxxx/xxxxx Defines the depth of 512K words.
xxxxx/xxxxx Defines the width of x32 or x36 bits.
Device width (22:18)
Device ID (17:12)
xxxxxx
Reserved for future use.
JEDEC ID code (11:1)
ID register presence indicator (0)
00001010010 Allows unique identification of SRAM vendor.
1
Indicates the presence of an ID register.
Scan register sizes
Register name
Instruction
Bit size
3
1
Bypass
ID
32
Boundary scan
x18:51
x36:70
Instruction codes
Instruction
Code
Description
Captures I/O ring contents. Places the boundary scan register between TDI and TDO.
Forces all SRAM outputs to high-Z state. This instruction is not 1149.1-compliant.
EXTEST
IDCODE
000
001
Loads the ID register with the vendor ID code and places the register between TDI
and TDO. This operation does not affect SRAM operations.
Captures I/O ring contents. Places the boundary scan register between TDI and TDO.
Forces all SRAM output drivers to a high-Z state.
SAMPLE Z
Reserved
010
011
Do not use. This instruction is reserved for future use.
Captures I/O ring contents. Places the boundary scan register between TDI and TDO.
Does not affect SRAM operation. This instruction does not implement 1149.1 preload
function and is therefore not 1149.1-compliant.
SAMPLE/
PRELOAD
100
Reserved
Reserved
101
110
Do not use. This instruction is reserved for future use.
Do not use. This instruction is reserved for future use.
Places the bypass register between TDI and TDO. This operation does not affect
SRAM operations.
BYPASS
111
4/30/04, v 2.5
Alliance Semiconductor
P. 15 of 22
AS7C33512NTD32A/36A
®
165-ball BGA boundary exit order (x36)
Bit #s
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
Signal Name
R/W
CEN
OE
Ball ID
7B
Bit #s
1
Signal Name
SA0
SA1
SA
Ball ID
6R
6P
7A
2
8B
3
4R
4P
ADV/LD
SA
8A
4
SA
10B
9A
5
SA
3R
3P
SA
6
SA
SA
10A
9B
7
LBO
DQPd
DQd
DQd
DQd
DQd
DQd
DQd
DQd
DQd
FT
1R
1N
2M
2L
2K
2J
SA
8
DQPb
DQb
DQb
DQb
DQb
DQb
DQb
DQb
DQb
ZZ
10C
10D
10E
10F
10G
11D
11E
11F
11G
11H
10J
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1M
1L
1K
1J
1H
2G
2F
DQc
DQc
DQc
DQc
DQc
DQc
DQc
DQc
DQPc
SA
DQa
DQa
DQa
DQa
DQa
DQa
DQa
DQa
DQPa
SA
10K
10L
10M
11J
2E
2D
1G
1F
11K
11L
11M
11N
8R
1E
1D
1C
2B
2A
3A
3B
4B
5A
4A
5B
6A
6B
SA
SA
11R
10P
10R
9P
CE0
CE1
BWd
BWb
BWc
BWa
CE2
CLK
SA
SA
SA
SA
9R
SA
8P
4/30/04, v 2.5
Alliance Semiconductor
P. 16 of 22
AS7C33512NTD32A/36A
®
Key to switching waveforms
Rising input
Falling input
Undefined/don’t care
Timing waveform of read/write cycle
tCH tCL
tCYC
CLK
tCENS
tCENH
CEN
CE1
tCSS
tCSH
CE0, CE2
tADVS
tADVH
ADV/LD
tWS
tWH
R/W
tWS
tWH
BWn
tAS
tAH
A3
A4
A5
A6
A7
A1
A2
ADDRESS
tCD
tLZC
tDS tDH
tOH
tOE
tHZC
D/Q
pipelined
D(A5)
Q(A6)
D(A1)
D(A2)
Q(A3)
Q(A4)
Q(A4Ý01)
D(A2Ý01)
tHZOE
tLZOE
OE
D/Q
flow-through
Q(A4Ý01)
D(A5)
Q(A6)
Q(A7)
D(A1)
D(A2)
D(A2Ý01)
Q(A3)
Q(A4)
BURST
READ
Q(A4Ý01
Command
READ
Q(A3)
DSEL
WRITE WRITE BURST
D(A1) D(A2) WRITE
D(A2Ý0
WRITE READ WRITE
D(A5) Q(A6) D(A7)
READ
Q(A4)
Note: Ý = XOR when LBO = high/no connect. Ý = ADD when LBO = low. BW[a:b] is don’t care.
4/30/04, v 2.5
Alliance Semiconductor
P. 17 of 22
AS7C33512NTD32A/36A
®
NOP, stall and deselect cycles
CLK
CEN
CE1
CE0, CE2
ADV/LD
R/W
BWn
A1
A2
A3
Address
Q(A1Ý01)
Q(A1
Ý10)
D(A2)
Q(A1)
DQ
pipelined
Q(A1Ý01)
Q(A1Ý10)
Q(A1)
D(A2)
DQ
flow-through
Command
BURST
NOP
WRITE
NOP
READ
Q(A1)
STALL
DSEL
BURST
Q(A1 01
BURST
Q(A1 10
BURST WRITE
DSEL D(A2)
BURST
D(A2Ý10
Ý
Ý
D(A2Ý0
D(A3)
Note: Ý = XOR when LBO = high/no connect; Ý = ADD when LBO = low. OE is low.
4/30/04, v 2.5
Alliance Semiconductor
P. 18 of 22
AS7C33512NTD32A/36A
®
AC test conditions
• Output load: For tLZC, tLZOE, tHZOE, and tHZC, see Figure C. For all others, see Figure B.
• Input pulse level: GND to 3V. See Figure A.
Thevenin equivalent:
• Input rise and fall time (measured at 0.3V and 2.7V): 2 ns. See Figure A.
• Input and output timing reference levels: 1.5V.
+3.3V for 3.3V I/O;
/+2.5V for 2.5V I/O
319
Ω
/1667
Ω
50
Ω
DOUT
353 /1538
+3.0V
VL = 1.5V
for 3.3V I/O;
= VDDQ/2
DOUT
5 pF*
90%
10%
GND
Figure A: Input waveform
90%
Ω
Ω
30 pF*
10%
GND
*including scope
and jig capacitance
for 2.5V I/O
Figure B: Output load (A)
Figure C: Output load(B)
Notes
1) For test conditions, see “AC test conditions”, Figures A, B, and C
2) This parameter measured with output load condition in Figure C.
3) This parameter is sampled, but not 100% tested.
4) tHZOE is less than tLZOE, and tHZC is less than tLZC at any given temperature and voltage.
5) tCH is measured high above VIH, and tCL is measured low below VIL
6) This is a synchronous device. All addresses must meet the specified setup and hold times for all rising edges of CLK. All other synchronous inputs must
meet the setup and hold times with stable logic levels for all rising edges of CLK when chip is enabled.
7) Write refers to R/
W
and BW[a,b,c,d]
.
8) Chip select refers to CE0
,
CE1, and CE2.
4/30/04, v 2.5
Alliance Semiconductor
P. 19 of 22
AS7C33512NTD32A/36A
®
Package dimensions
100-pin quad flat pack (TQFP)
TQFP
Hd
D
Min
0.05
1.35
0.22
0.09
Max
0.15
1.45
0.38
0.20
A1
A2
b
b
e
c
D
13.90 14.10
19.90 20.10
0.65 nominal
15.85 16.15
21.80 22.20
He
E
E
e
Hd
He
L
0.45
0.75
L1
α
1.00 nominal
0°
7°
α
Dimensions in
millimeters
c
L1
L
A1 A2
165-ball BGA (ball grid array)
Top
Bottom
A1 corner index
1 2 3 4 5 6 7 8 9 1 1
1 109 8 7 6 5 4 3 2 1
A
B
C
A
B
C
A
B
D
D
E
E
All measurements are in mm.
F
F
G
H
G
H
Min
14.90
12.90
Typ
1.00
Max
A
B
C
D
E
F
J
J
K
L
M
N
P
K
L
M
N
P
15.00 15.10
14.00
C
13.00 13.10
10.00
R
R
0.26
1.0
A
13.00±0.1
D
G
H
I
0.30
0.40
0.35
0.40
1.20
0.50
10.0
E
13.00±0.1
D
0.45
0.20
G
H
0.12
F
/ 0.45±0.05 (165X)
Ø
Ø
Z XY
M
Z
M
Detail of Solder
Side
4/30/04, v 2.5
Alliance Semiconductor
P. 20 of 22
AS7C33512NTD32A/36A
®
Ordering information
Package & Width
–166
–133
AS7C33512NTD32A-166TQC
AS7C33512NTD32A-166TQI
AS7C33512NTD36A-166TQC
AS7C33512NTD36A-166TQI
AS7C33512NTD32A-166BC
AS7C33512NTD32A-166BI
AS7C33512NTD36A-166BC
AS7C33512NTD36A-166BI
AS7C33512NTD32A-133TQC
AS7C33512NTD32A-133TQI
AS7C33512NTD36A-133TQC
AS7C33512NTD36A-133TQI
AS7C33512NTD32A-133BC
AS7C33512NTD32A-133BI
AS7C33512NTD36A-133BC
AS7C33512NTD36A-133BI
TQFP x32
TQFP x36
BGA x32
BGA x36
Notes: Add suffix ‘N’ to the above part number for Lead Free Parts (Ex. AS7C33512NTD32A-166TQCN)
Part numbering guide
AS7C
33
512
NTD
32/36
A
–XXX
TQ or B
C/I
X
1
2
3
4
5
6
7
8
9
10
1. Alliance Semiconductor SRAM prefix
2. Operating voltage: 33 = 3.3V
3. Organization: 512 = 512k
4. NTD™ = No Turn-Around Delay. Pipelined/flow-through mode (each device works in both modes)
5. Organization: 32 = x 32, 36 = x 36
6. Production version: A = first production version
7. Clock speed (MHz)
8. Package type: TQ = TQFP; B = BGA
9. Operating temperature: C = commercial (0° C to 70° C); I = industrial (-40° C to 85° C)
10. N = Lead free part
4/30/04, v 2.5
Alliance Semiconductor
P. 21 of 22
AS7C33512NTD32A/36A
®
®
Alliance Semiconductor Corporation
2575, Augustine Drive,
Santa Clara, CA 95054
Tel: 408 - 855 - 4900
Copyright © Alliance Semiconductor
All Rights Reserved
Part Number:AS7C33512NTD32A/36A
Document Version: v 2.5
Fax: 408 - 855 - 4999
www.alsc.com
© Copyright 2003 Alliance Semiconductor Corporation. All rights reserved. Our three-point logo, our name and Intelliwatt are trademarks or registered
trademarks of Alliance. All other brand and product names may be the trademarks of their respective companies. Alliance reserves the right to make
changes to this document and its products at any time without notice. Alliance assumes no responsibility for any errors that may appear in this
document. The data contained herein represents Alliance's best data and/or estimates at the time of issuance. Alliance reserves the right to change or
correct this data at any time, without notice. If the product described herein is under development, significant changes to these specifications are
possible. The information in this product data sheet is intended to be general descriptive information for potential customers and users, and is not
intended to operate as, or provide, any guarantee or warrantee to any user or customer. Alliance does not assume any responsibility or liability arising
out of the application or use of any product described herein, and disclaims any express or implied warranties related to the sale and/or use of Alliance
products including liability or warranties related to fitness for a particular purpose, merchantability, or infringement of any intellectual property rights,
except as express agreed to in Alliance's Terms and Conditions of Sale (which are available from Alliance). All sales of Alliance products are made
exclusively according to Alliance's Terms and Conditions of Sale. The purchase of products from Alliance does not convey a license under any patent
rights, copyrights; mask works rights, trademarks, or any other intellectual property rights of Alliance or third parties. Alliance does not authorize its
products for use as critical components in life-supporting systems where a malfunction or failure may reasonably be expected to result in significant
injury to the user, and the inclusion of Alliance products in such life-supporting systems implies that the manufacturer assumes all risk of such use and
agrees to indemnify Alliance against all claims arising from such use.
厂商 型号 描述 页数 下载

MOLEX

 		A-S-122-14 [ Wire Terminal, 1mm2, ] 1 页

MOLEX

 		A-S-122-14T Krimptite ？温度-期限环形舌端子18至22 AWG电线[ Krimptite? Temp-Term Ring Tongue Terminal for 18 to 22 AWG Wire ] 2 页

MOLEX

 		A-S-132-06 [ Wire Terminal, 1mm2, ] 1 页

MOLEX

 		A-S-132-06T Krimptite ™温度，期限环形舌端子18至22 AWG电线，螺柱尺寸6 ，聚酯薄膜带载[ Krimptite™ Temp-Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 6,Mylar Tape Carrier ] 2 页

MOLEX

 		A-S-132-08 [ Wire Terminal, 1mm2, ] 1 页

MOLEX

 		A-S-132-08T Krimptite ™温度，期限环形舌端子18至22 AWG电线，螺柱尺寸8[ Krimptite™ Temp-Term Ring Tongue Terminal for 18 to 22 AWG Wire, Stud Size 8 ] 2 页

MOLEX

 		A-S-133-10 [ Wire Terminal, 1mm2, ] 1 页

MOLEX

 		A-S-133-10T Krimptite ？温度-期限环形舌端子18至22 AWG电线[ Krimptite™ Temp-Term Ring Tongue Terminal for 18 to 22 AWG Wire ] 2 页

MOLEX

 		A-S-145 [ Wire Terminal, 1mm2, ] 1 页

MICROSS

 		A-S8S512K32PECA-12/IT [ STANDARD SRAM ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.231702s
