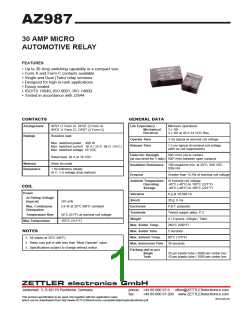

AZ987
30 AMP MICRO
AUTOMOTIVE RELAY
FEATURES
• Up to 30 Amp switching capability in a compact size
• Form A and Form C contacts available
• Single and Dual (Twin) relay versions
• Designed for high in-rush applications
• Epoxy sealed
• ISO/TS 16949, ISO 9001, ISO 14000
• Tested in accordance with J2544
GENERAL DATA
CONTACTS
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 106
3 x 105 at 20 A 14 VDC Res.
Arrangement
SPST (1 Form A) DPST (2 Form A)
SPDT (1 Form C) DPDT (2 Form C)
Ratings
Resistive load:
Operate Time
Release Time
3 ms typical at nominal coil voltage
Max. switched power: 480 W
Max. switched current: 30 A / 25 A (N.O. / N.C.)
Max. switched voltage: 16 VDC
1.5 ms typical at nominal coil voltage
(with no coil suppression)
Dielectric Strength
(at sea level for 1 min.) 500 Vrms between open contacts
500 Vrms coil to contact
Rated load: 30 A at 16 VDC
Silver tin oxide
Material
Insulation Resistance 100 megohms min. at 20°C, 500 VDC
50% RH
Resistance
< 50 milliohms initially
(6 V, 1 A voltage drop method)
Dropout
Greater than 12.5% of nominal coil voltage
Ambient Temperature At nominal coil voltage
Operating
Storage
-40°C (-40°F) to 105°C (221°F)
COIL
-40°C (-40°F) to 105°C (221°F)
6 g at 10-500 Hz
30 g, 6 ms
Power
Vibration
At Pickup Voltage
(typical)
Shock
187 mW
Max. Continuous
Dissipation
2.6 W at 20°C (68°F) ambient
Enclosure
P.B.T. polyester
Terminals
Tinned copper allloy, P.C.
4 / 8 grams (Single / Twin)
260°C (500°F)
Temperature Rise
Max Temperature
34°C (61°F) at nominal coil voltage
155°C (311°F)
Weight
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
5 seconds
NOTES
80°C (176°F)
1. All values at 20°C (68°F).
2. Relay may pull in with less than “Must Operate” value.
3. Specifications subject to change without notice.
Max. Immersion Time 30 seconds
Packing unit in pcs
Single
Twin
25 per plastic tube / 2000 per carton box
10 per plastic tube / 1000 per carton box
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
fax:
+49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
2012-05-24
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
