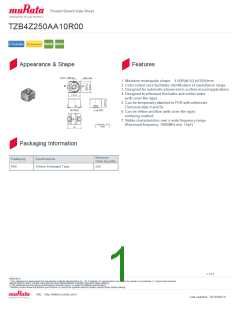

Product Search Data Sheet
TZB4Z250AA10R00
Appearance & Shape
Features
1. Miniature rectangular shape: 4.0(W)x4.5(L)x3.0(H)mm.
2. Color coded case facilitates identification of capacitance range.
3. Designed for automatic placement in surface mount applications.
4. Designed to withstand fluxbaths and solder baths
(with cover film type).
5. Can be temporarily attached to PCB with adhesives
(Terminal style A and B).
6. Can be reflow and flow (with cover film type)
soldering method.
7. Stable characteristics over a wide frequency range.
(Resonant frequency: 1000MHz min. / 6pF)
Packaging Information
Minimum
Order Quantity
Packaging
R00
Specifications
180mm Embossed Tape
500
1 of 3
Attention
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued
without advance notice. Please check with our sales representatives or product engineers before ordering.
2.This datasheet has only typical specifications because there is no space for detailed specifications.
Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.
