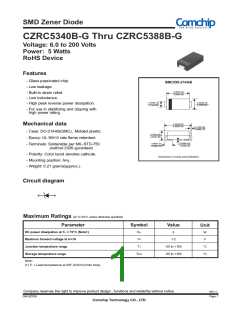

SMD Zener Diode
CZRC5340B-G Thru CZRC5388B-G
Voltage: 6.0 to 200 Volts
Power: 5 Watts
RoHS Device
Features
- Glass passivated chip.
SMC/DO-214AB
- Low leakage.
0.280(7.02)
0.260(6.52)
- Built-in strain relief.
- Low inductance.
- High peak reverse power dissipation.
0.245(6.15)
0.220(5.52)
0.126(3.16)
0.114(2.86)
- For use in stabilizing and clipping with
high power rating.
0.320(8.02)
0.305(7.64)
Mechanical data
0.012(0.30)
0.006(0.15)
- Case: DO-214AB(SMC), Molded plastic.
0.103(2.59)
0.079(1.98)
- Epoxy: UL 94V-0 rate flame retardant.
0.008(0.20)
0.000(0.00)
0.060(1.51)
0.030(0.75)
- Terminals: Solderable per MIL-STD-750
,method 2026 guranteed.
- Polarity: Color band denotes cathode.
- Mounting position: Any.
Dimensions in inches and (millimeter)
- Weight: 0.21 grams(approx.).
Circuit diagram
Maximum Ratings (at TA=25°C unless otherwise specified)
Parameter
DC power dissipation at TL = 75°C (Note1)
Maximun forward voltage at IF=1A
Symbol
Value
Unit
W
PD
5
VF
1.2
V
TJ
-55 to +150
Junction temperature range
Storage temperature range
°C
°C
TSTG
-55 to +150
Note:
(1) TL = Lead temperature at 3/8” (9.5mm) from body.
Company reserves the right to improve product design , functions and reliability without notice.
REV: C
Page 1
QW-BZ026
Comchip Technology CO., LTD.
