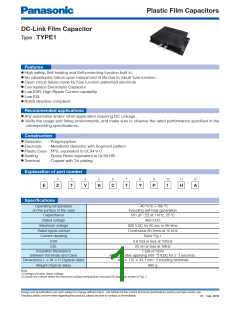

Plastic Film Capacitors
DC-Link Film Capacitor
Type : TYPE1
Features
●
High safety, Self-healing and Self-protecting function built in.
●
No catastrophic failure upon natural end of life due to inbuilt fuse function.
Open circuit failure mode by fuse function patterned electrode
Can replace Electrolytic Capacitor
Low ESR, High Ripple Current capability
Low ESL
●
●
●
●
●
RoHS directive compliant
Recommended applications
●
Any automotive and/or other application requiring DC Linkage
✽ Verify the usage and fitting environments, and make sure to observe the rated performance specified in the
corresponding specifications.
Construction
●
Dielectric
Electrode
: Polypropylene
: Metallized dielectric with Segment pattern
●
●
●
●
Plastic Case : PPS. equivalent to UL94 V-0
Sealing
Terminal
: Epoxy Resin equivalent to UL94 HB
: Copper with Tin plating
Explanation of part number
1
2
3
4
5
6
7
8
9
10
11
12
E
Z
T
V
K
C
T
Y
P
1
H
A
Specifications
Operating temperature
on the surface of the case
– 40 °C to +105 °C
including self heat generation
Capacitance
Rated voltage
Maximum voltage
Rated ripple current
Current derating
ESR
581 μF +10 % at 1 kHz, 25 ºC
−5 %
450 V.DC
600 V.DC for 60 sec in life time
Continuous 80 Arms at 10 kHz
Refer Fig.1
0.8 mΩ or less at 10KHz
20 nH or less at 1MHz
1 GΩ or more
ESL
Insulation Resistance
between Terminals and Case
Dimensions L × W × H (Typical data)
Measure after applying 500 +500 V.DC for 2 +20 seconds.
164 × 115 × 43.1 mm : Excluding terminals
980 g
Weight (Typical data)
Note:
1) Voltage includes ripple voltage
2) Derate the current when the maximum surface temperature exceeds 95 degC, as shown in Fig. 1.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2016
