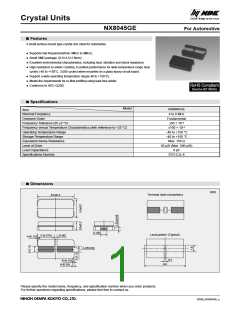

Crystal Units
NX8045GE
For Automotive
Features
■
A small surface-mount type crystal unit, ideal for Automotive.
●
●
●
●
Supports low frequencies(from 4MHz to 8MHz).
Small SMD package. (8.0×4.5×2.0mm)
Excellent environmental characteristics, including heat, vibration and shock resistance.
High resistance to solder cracking. Excellent performance for wide temperature range heat
cycles (-40 to +150°C, 3,000 cycles) when mounted on a glass epoxy circuit board.
Support a wide operating temperature range(-40 to +150°C).
●
●
Meets the requirements for re-flow profiling using lead-free solder.
● Conforms to AEC-Q200.
Specifications
■
Model
NX8045GE
4 to 8 MHz
Item
Nominal Frequency
Overtone Order
Fundamental
±50 × 10−6
Frequency Tolerance (25 ±3 °C)
Frequency versus Temperature Characteristics (with reference to +25 °C)
Operating Temperature Range
Storage Temperature Range
Equivalent Series Resistance
Level of Drive
±150 × 10−6
−40 to +150 °C
−40 to +150 °C
Max. 150 Ω
50 μW (Max. 500 μW)
8 pF
Load Capacitance
Specifications Number
STD-CJL-6
Dimensions
■
mm
Terminal land connections
8.0 0.ꢀ
(1.40)
Land pattern (Typical)
ꢀ-(3.575)
(0.60)
4-(0.10)
4-(R0.ꢀ0)
0.4
9.0
8-(0.10)
8-(0.30)
Please specify the model name, frequency, and specification number when you order products.
For further questions regarding specifications, please feel free to contact us.
