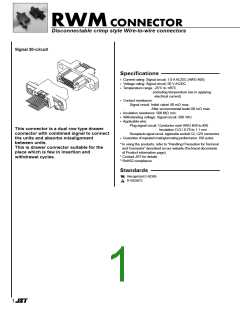

RWMCONNECTOR
Disconnectable crimp style Wire-to-wire connectors
Signal 20-circuit
Specifications
• Current rating: Signal circuit; 1.0 A AC/DC (AWG #26)
• Voltage rating: Signal circuit; 50 V AC/DC
• Temperature range: -25℃ to +85℃
(including temperature rise in applying
electrical current)
• Contact resistance:
Signal circuit Initial value/ 40 mΩ max.
After environmental tests/ 60 mΩ max.
• Insulation resistance: 500 MΩ min.
• Withstanding voltage: Signal circuit 500 VAC
• Applicable wire:
Plug signal circuit Conductor size/ AWG #28 to #26
This connector is a dual row type drawer
connector with combined signal to connect
the units and absorbs misalignment
between units.
This is drawer connector suitable for the
place which is few in insertion and
withdrawal cycles.
Insulation O.D./ 0.78 to 1.1 mm
Receptacle signal circuit Applicable socket/ CZ, CZH connectors
Guarantee of repeated mating/unmating performance: 100 cycles
•
* In using the products, refer to “Handling Precaution for Terminal
and Connector” described on our website (Technical documents
of Product information page).
* Contact JST for details.
* RoHS2 compliance
Standards
Recognized E 60389
R 5025872
1
