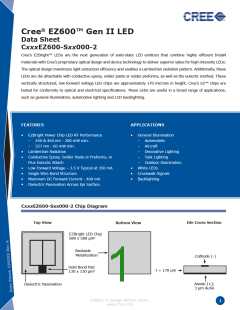

Cree® EZ600™ Gen II LED
Data Sheet
CxxxEZ600-Sxx000-2
Cree’sꢀ EZBright™ꢀ LEDsꢀ areꢀ theꢀ nextꢀ generationꢀ ofꢀ solid-stateꢀ LEDꢀ emittersꢀ thatꢀ combineꢀ highlyꢀ efficientꢀ InGaNꢀ
materialsꢀwithꢀCree’sꢀproprietaryꢀopticalꢀdesignꢀandꢀdeviceꢀtechnologyꢀtoꢀdeliverꢀsuperiorꢀvalueꢀforꢀhigh-intensityꢀLEDs.ꢀ
TheꢀopticalꢀdesignꢀmaximizesꢀlightꢀextractionꢀefficiencyꢀandꢀenablesꢀaꢀLambertianꢀradiationꢀpattern.ꢀAdditionally,ꢀtheseꢀ
LEDsꢀareꢀdieꢀattachableꢀwithꢀconductiveꢀepoxy,ꢀsolderꢀpasteꢀorꢀsolderꢀpreforms,ꢀasꢀwellꢀasꢀtheꢀeutecticꢀmethod.ꢀTheseꢀ
verticallyꢀstructured,ꢀlowꢀforwardꢀvoltageꢀLEDꢀchipsꢀareꢀapproximatelyꢀ170ꢀmicronsꢀinꢀheight.ꢀCree’sꢀEZ™ꢀchipsꢀareꢀ
testedꢀforꢀconformityꢀtoꢀopticalꢀandꢀelectricalꢀspecifications.ꢀTheseꢀLEDsꢀareꢀusefulꢀinꢀaꢀbroadꢀrangeꢀofꢀapplications,ꢀ
suchꢀasꢀgeneralꢀillumination,ꢀautomotiveꢀlightingꢀandꢀLCDꢀbacklighting.
FEATURES
APPLICATIONS
•ꢀ EZBrightꢀPowerꢀChipꢀLEDꢀRFꢀPerformance
–ꢀ 450ꢀ&ꢀ460ꢀnmꢀ-ꢀ200ꢀmWꢀmin.
–ꢀ 527ꢀnmꢀ-ꢀ60ꢀmWꢀmin.
•ꢀ GeneralꢀIllumination
–ꢀ Automobile
–ꢀ Aircraft
•ꢀ LambertianꢀRadiation
–ꢀ DecorativeꢀLighting
–ꢀ TaskꢀLighting
•ꢀ ConductiveꢀEpoxy,ꢀSolderꢀPasteꢀorꢀPreforms,ꢀorꢀ
FluxꢀEutecticꢀAttach
–ꢀ OutdoorꢀIllumination
•ꢀ WhiteꢀLEDs
•ꢀ LowꢀForwardꢀVoltageꢀ–ꢀ3.5ꢀVꢀTypicalꢀatꢀ350ꢀmA
•ꢀ SingleꢀWireꢀBondꢀStructure
•ꢀ CrosswalkꢀSignals
•ꢀ Backlighting
•ꢀ MaximumꢀDCꢀForwardꢀCurrentꢀ-ꢀ400ꢀmA
•ꢀ DielectricꢀPassivationꢀAcrossꢀEpiꢀSurface
CxxxEZ600-Sxx000-2 Chip Diagram
ꢀ
Top View
Die Cross Section
Bottom View
EZBrightꢀLEDꢀChip
580ꢀxꢀ580ꢀμm2
Backside
Metallization
Cathodeꢀ(-)
GoldꢀBondꢀPad
130ꢀxꢀ130ꢀμm2
tꢀ=ꢀ170ꢀμm
Anodeꢀ(+);
3ꢀμmꢀAuSn
DielectricꢀPassivation
Subject to change without notice.
www.cree.com
1
Maximum Ratings at TA = 25°CNote 1
DCꢀForwardꢀCurrent
CxxxEZ600-Sxx000-2
400ꢀmA
PeakꢀForwardꢀCurrent
600ꢀmAꢀNoteꢀ3
145°C
LEDꢀJunctionꢀTemperature
ReverseꢀVoltage
5ꢀV
OperatingꢀTemperatureꢀRange
StorageꢀTemperatureꢀRange
-40°Cꢀtoꢀ+100°C
-40°Cꢀtoꢀ+120°C
Note 2
Typical Electrical/Optical Characteristics at TA = 25°C, If = 350 mA
Reverse Current
[I(Vr=5 V), μA]
Full Width Half Max
Part Number
Forward Voltage (Vf, V)
(λD, nm)
Min.
Typ.
3.5
Max.
Max.
Typ.
20
C450EZ600-Sxx00-2
C460EZ600-Sxx00-2
C527EZ600-Sxx00-2
3.1
3.1
3.1
4.1
4.1
4.1
2
2
2
3.5
21
3.5
35
Mechanical Specifications
Description
CxxxEZ600-Sxx000-2
Dimension
Tolerance
±40
P-NꢀJunctionꢀAreaꢀ(μm)
ChipꢀAreaꢀ(μm)
550ꢀxꢀ550
580ꢀxꢀ580
170
±40
ChipꢀThicknessꢀ(μm)
±25
TopꢀAuꢀBondꢀPadꢀ(μm)
AuꢀBondꢀPadꢀThicknessꢀ(μm)
BackꢀContactꢀMetalꢀAreaꢀ(μm)
BackꢀContactꢀMetalꢀThicknessꢀ(μm)
130ꢀxꢀ130
3.0
±15
±1.0
±40
580ꢀxꢀ580
3.0
±1.0
Notes:
1.ꢀ Maximumꢀ ratingsꢀ areꢀ package-dependent.ꢀ Theꢀ aboveꢀ ratingsꢀ wereꢀ determinedꢀ usingꢀ aꢀ Au-platedꢀ TO39ꢀ headerꢀ withoutꢀ anꢀ
encapsulantꢀforꢀcharacterization.ꢀRatingsꢀforꢀotherꢀpackagesꢀmayꢀdiffer.ꢀTheꢀjunctionꢀtemperatureꢀshouldꢀbeꢀcharacterizedꢀinꢀaꢀ
specificꢀpackageꢀtoꢀdetermineꢀlimitations.ꢀAssemblyꢀprocessingꢀtemperatureꢀmustꢀnotꢀexceedꢀ325°Cꢀ(<ꢀ5ꢀseconds).ꢀSeeꢀCreeꢀ
EZBrightꢀApplicationsꢀNoteꢀforꢀassembly-processꢀinformation.
2.ꢀ Allꢀproductsꢀconformꢀtoꢀtheꢀlistedꢀminimumꢀandꢀmaximumꢀspecificationsꢀforꢀelectricalꢀandꢀopticalꢀcharacteristicsꢀwhenꢀassembledꢀ
andꢀ operatedꢀ atꢀ 350ꢀ mAꢀ withinꢀ theꢀ maximumꢀ ratingsꢀ shownꢀ above.ꢀ Efficiencyꢀ decreasesꢀ atꢀ higherꢀ currents.ꢀ Typicalꢀ valuesꢀ
givenꢀareꢀwithinꢀtheꢀrangeꢀofꢀaverageꢀexpectedꢀbyꢀtheꢀmanufacturerꢀinꢀlargeꢀquantitiesꢀandꢀareꢀprovidedꢀforꢀinformationꢀonly.ꢀ
AllꢀmeasurementsꢀwereꢀmadeꢀusingꢀaꢀAu-platedꢀTO39ꢀheaderꢀwithoutꢀanꢀencapsulant.ꢀOpticalꢀcharacteristicsꢀmeasuredꢀinꢀanꢀ
integratingꢀsphereꢀusingꢀIlluminanceꢀE.
3.ꢀ Thisꢀpeakꢀforwardꢀcurrentꢀspecificationꢀisꢀbasedꢀonꢀaꢀ400ꢀmsꢀpulseꢀwidthꢀatꢀaꢀ1/5-dutyꢀcycleꢀwithꢀaꢀjunctionꢀtemperatureꢀofꢀ65°C.ꢀ
4.ꢀ Specificationsꢀareꢀsubjectꢀtoꢀchangeꢀwithoutꢀnotice.
Cree,ꢀInc.
4600ꢀSiliconꢀDrive
Copyrightꢀ©ꢀ2010ꢀCree,ꢀInc.ꢀAllꢀrightsꢀreserved.ꢀTheꢀinformationꢀinꢀthisꢀdocumentꢀisꢀsubjectꢀtoꢀchangeꢀwithoutꢀnotice.ꢀCreeꢀandꢀtheꢀ
Creeꢀlogoꢀareꢀregisteredꢀtrademarks,ꢀandꢀEZBright,ꢀEZ,ꢀandꢀEZ600ꢀareꢀtrademarksꢀofꢀCree,ꢀInc.ꢀ
Durham,ꢀNCꢀ27703
USAꢀTel:ꢀ+1.919.313.5300
www.cree.com
2
CPR3EE Rev. A
Standard Bins for CxxxEZ600-Sxx000-2
LEDꢀchipsꢀareꢀsortedꢀtoꢀtheꢀradiant fluxꢀandꢀdominant wavelengthꢀbinsꢀshown.ꢀAꢀsortedꢀdieꢀsheetꢀcontainsꢀdieꢀ
fromꢀonlyꢀoneꢀbin.ꢀSortedꢀdieꢀkitꢀ(CxxxEZ600-Sxx000-2)ꢀordersꢀmayꢀbeꢀfilledꢀwithꢀanyꢀorꢀallꢀbinsꢀ(CxxxEZ600-0xxx-2)ꢀ
containedꢀinꢀtheꢀkit.ꢀAllꢀradiantꢀfluxꢀandꢀallꢀdominantꢀwavelengthꢀvaluesꢀshownꢀandꢀspecifiedꢀareꢀatꢀIfꢀ=ꢀ350ꢀmA.ꢀRadiantꢀ
fluxꢀvaluesꢀareꢀmeasuredꢀusingꢀAu-platedꢀTO39ꢀheadersꢀwithoutꢀanꢀencapsulant.
C450EZ600-S20000-2
C450EZ600-0209-2
C450EZ600-0205-2
C450EZ600-0201-2
C450EZ600-0210-2
C450EZ600-0206-2
C450EZ600-0202-2
C450EZ600-0211-2
C450EZ600-0207-2
C450EZ600-0203-2
C450EZ600-0212-2
C450EZ600-0208-2
C450EZ600-0204-2
280
240
200
445
447.5
450
452.5
455
Dominant Wavelength (nm)
C460EZ600-S20000-2
C460EZ600-0209-2
C460EZ600-0205-2
C460EZ600-0201-2
C460EZ600-0210-2
C460EZ600-0206-2
C460EZ600-0202-2
C460EZ600-0211-2
C460EZ600-0207-2
C460EZ600-0203-2
C460EZ600-0212-2
C460EZ600-0208-2
C460EZ600-0204-2
280
240
200
455
457.5
460
462.5
465
Dominant Wavelength (nm)
C527EZ600-S06000-2
C527EZ600-0017-2
C527EZ600-0018-2
C527EZ600-0015-2
C527EZ600-0012-2
C527EZ600-0009-2
C527EZ600-0006-2
C527EZ600-0019-2
C527EZ600-0016-2
C527EZ600-0013-2
C527EZ600-0010-2
C527EZ600-0007-2
140
120
100
80
C527EZ600-0014-2
C527EZ600-0011-2
C527EZ600-0008-2
C527EZ600-0005-2
60
520
525
530
535
Dominant Wavelength (nm)
Cree,ꢀInc.
4600ꢀSiliconꢀDrive
Durham,ꢀNCꢀ27703
USAꢀTel:ꢀ+1.919.313.5300
www.cree.com
Copyrightꢀ©ꢀ2010ꢀCree,ꢀInc.ꢀAllꢀrightsꢀreserved.ꢀTheꢀinformationꢀinꢀthisꢀdocumentꢀisꢀsubjectꢀtoꢀchangeꢀwithoutꢀnotice.ꢀCreeꢀandꢀtheꢀ
Creeꢀlogoꢀareꢀregisteredꢀtrademarks,ꢀandꢀEZBright,ꢀEZ,ꢀandꢀEZ600ꢀareꢀtrademarksꢀofꢀCree,ꢀInc.ꢀ
3
CPR3EE Rev. A
Characteristic Curves
TheseꢀareꢀrepresentativeꢀmeasurementsꢀforꢀtheꢀEZ600ꢀLEDꢀproduct.ꢀActualꢀcurvesꢀwillꢀvaryꢀslightlyꢀforꢀtheꢀvariousꢀ
radiantꢀfluxꢀandꢀdominantꢀwavelengthꢀbins.
Relative Light Intensity Vs Junction Temperature
Forward Current vs. Forward Voltage
110%
105%
100%
95%
90%
85%
80%
75%
70%
65%
400
350
300
250
200
150
100
50
0
25
50
75
100
125
150
0
1
2
3
4
5
Vf (V)
Junction Temperature (°C)
Dominant Wavelength Shift Vs Junction Temperature
Relative Intensity vs. Forward Current
125%
100%
75%
50%
25%
0%
6
5
4
3
2
1
0
-1
-2
25
50
75
100
125
150
0
50
100
150
200
250
300
350
400
Junction Temperature (°C)
If (mA)
Voltage Shift Vs Junction Temperature
Wavelength Shift vs. Forward Current
20
16
12
8
0.100
0.000
-0.100
-0.200
-0.300
-0.400
-0.500
-0.600
4
0
-4
-8
0
50
100
150
200
250
300
350
400
25
50
75
100
125
150
If (mA)
Junction Temperature (°C)
Cree,ꢀInc.
4600ꢀSiliconꢀDrive
Durham,ꢀNCꢀ27703
USAꢀTel:ꢀ+1.919.313.5300
www.cree.com
Copyrightꢀ©ꢀ2010ꢀCree,ꢀInc.ꢀAllꢀrightsꢀreserved.ꢀTheꢀinformationꢀinꢀthisꢀdocumentꢀisꢀsubjectꢀtoꢀchangeꢀwithoutꢀnotice.ꢀCreeꢀandꢀtheꢀ
Creeꢀlogoꢀareꢀregisteredꢀtrademarks,ꢀandꢀEZBright,ꢀEZ,ꢀandꢀEZ600ꢀareꢀtrademarksꢀofꢀCree,ꢀInc.ꢀ
4
CPR3EE Rev. A
Radiation Pattern
ThisꢀisꢀaꢀrepresentativeꢀradiationꢀpatternꢀforꢀtheꢀEZBrightꢀPowerꢀChipꢀLEDꢀproduct.ꢀActualꢀpatternsꢀwillꢀvaryꢀslightlyꢀforꢀ
eachꢀchip.
Cree,ꢀInc.
4600ꢀSiliconꢀDrive
Copyrightꢀ©ꢀ2010ꢀCree,ꢀInc.ꢀAllꢀrightsꢀreserved.ꢀTheꢀinformationꢀinꢀthisꢀdocumentꢀisꢀsubjectꢀtoꢀchangeꢀwithoutꢀnotice.ꢀCreeꢀandꢀtheꢀ
Creeꢀlogoꢀareꢀregisteredꢀtrademarks,ꢀandꢀEZBright,ꢀEZ,ꢀandꢀEZ600ꢀareꢀtrademarksꢀofꢀCree,ꢀInc.ꢀ
Durham,ꢀNCꢀ27703
USAꢀTel:ꢀ+1.919.313.5300
www.cree.com
5
CPR3EE Rev. A
