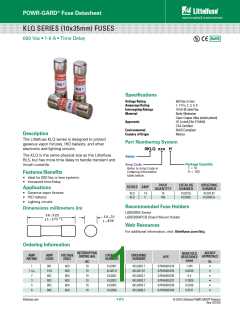

POWR-GARD® Fuse Datasheet
KLQ SERIES (10x35mm) FUSES
600 Vac • 1-6 A • Time Delay
Specifications
Voltage Rating
Amperage Rating
Interrupting Ratings
Material
600 Vac or less
1, 1 6/10, 2, 3, 5, 6
10 kA @ rated Vac
Body: Melamine
Caps: Copper Alloy (nickel plated)
(File: E10480)
Approvals
UL Listed
CSA Certified
RoHS Compliant
Mexico
Environmental
Country of Origin
Description
The Littelfuse KLQ series is designed to protect
gaseous vapor fixtures, HID ballasts, and other
electronic and lighting circuits.
Part Numbering System
0KLQ xxx H
The KLQ is the same physical size as the Littelfuse
BLS, but has more time delay to handle transient and
inrush currents.
Series
Package Quantity
T = 10
Amp Code
Refer to Amp Code in
Ordering Information
table below.
H = 100
Features/Benefits
• Ideal for 600 Vac or less systems
• Increased time-Delay
PACK
SERIES AMP
CATALOG
ORDERING
Applications
• Gaseous vapor fixtures
• HID ballasts
QUANTITY
NUMBER
KLQ01.6
NUMBER
KLQ01.6T
KLQ005.H
KLQ
KLQ
1.6
5
10
100
KLQ005
• Lighting circuits
Recommended Fuse Holders
L60030M Series
L60030MPCB Board Mount Holder
Dimensions millimeters (in)
34.925
10.31
(1.375")
(.406
Web Resources
For additional information, visit: littelfuse.com/klq
Ordering Information
INTERRUPTING
AGENCY
NOM COLD
ORDERING
AMP
AMP
VOLTAGE
(VAC)
CATALOG
NUMBER
RATING (kA)
APPROVALS
UPC
RESISTANCE
(ohm)
RATING
CODE
NUMBER
AC
10
10
10
10
10
10
UL
•
1
001.
01.6
002.
003.
005.
006.
600
600
600
600
600
600
KLQ001
KLQ01.6
KLQ002
KLQ003
KLQ005
KLQ006
0KLQ001.T
0KLQ01.6T
0KLQ002.T
0KLQ003.T
0KLQ005.T
0KLQ006.T
07945805334
07945805335
07945805336
07945805337
07945805339
07945805340
1.414
0.6536
0.4
6
1 /10
•
2
3
5
6
•
0.1829
0.0766
0.0571
•
•
•
© 2016 Littelfuse POWR-GARD® Products
Rev: 021916
1 of 2
littelfuse.com
