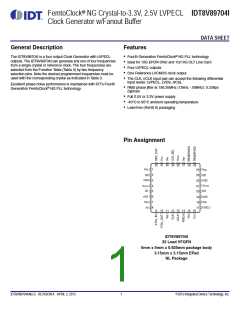

FemtoClock® NG Crystal-to-3.3V, 2.5V LVPECL IDT8V89704I
Clock Generator w/Fanout Buffer
DATA SHEET
General Description
Features
The IDT8V89704I is a four output Clock Generator with LVPECL
outputs. The IDT8V89704I can generate any one of four frequencies
from a single crystal or reference clock. The four frequencies are
selected from the Function Table (Table 3) by two frequency
selection pins. Note the desired programmed frequencies must be
used with the corresponding crystal as indicated in Table 3.
• Fourth Generation FemtoClock® NG PLL technology
• Ideal for 10G EPON ONU and 1G/10G OLT Line Card
• Four LVPECL outputs
• One Reference LVCMOS clock output
• The CLK, nCLK input pair can accept the following differential
input levels: LVPECL, LVDS, HCSL
Excellent phase noise performance is maintained with IDT’s Fourth
Generation FemtoClock® NG PLL technology.
• RMS phase jitter at 156.25MHz (12kHz - 20MHz): 0.239ps
(typical)
• Full 2.5V or 3.3V power supply
• -40°C to 85°C ambient operating temperature
• Lead-free (RoHS 6) packaging
Pin Assignment
32 31 30 29 28 27 26 25
1
2
3
4
5
6
7
8
VEE
VEE
24
23
22
21
20
Q0
Q2
nQ0
nQ2
VCCO
Q3
VCCO
Q1
nQ1
VEE
nc
nQ3
19
18
17
VEE
FSEL1
9
10 11 12 13 14 15 16
IDT8V89704I
32 Lead VFQFN
5mm x 5mm x 0.925mm package body
3.15mm x 3.15mm EPad
NL Package
IDT8V89704ANLGI REVISION A APRIL 3, 2013
1
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Block Diagram
Pulldown
REF_OUT
CLK_SEL
_
XTAL IN
Xtal
Osc.
25MHz
Q0, nQ0
Q1, nQ1
_
XTAL OUT
0
1
Phase
Detector
+
Charge
Pump
PS
Pulldown
CLK
FemtoClock® NG
÷P
÷N
VCO
nCLK
/
Pullup
Pulldown
Q2 , nQ2
Q3, nQ3
÷M
Pulldown
Pulldown
FSEL 0
FSEL1
Control
Logic
IDT8V89704ANLGI REVISION A APRIL 3, 2013
2
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Pin Description and Pin Characteristic Tables
Table 1. Pin Descriptions
Number
Name
Type
Description
1, 7, 11, 15,
18, 24, 27, 30
VEE
Power
Negative supply pins.
2, 3
4, 21
5, 6
8
Q0, nQ0
VCCO
Output
Power
Differential output pair. LVPECL interface levels.
Output supply pins.
Q1, nQ1
nc
Output
Unused
Differential output pair. LVPECL interface levels.
No connect.
9,
10
XTAL_IN
XTAL_OUT
Crystal oscillator interface. XTAL_IN is the input, XTAL_OUT is the output.
Crystal frequency is selected from Table 3A.
Input
Input
Input
12
CLK
Pulldown
Non-inverting differential clock input.
Pullup/
Pulldown
13
nCLK
Inverting differential clock input. Internal resistor bias to VCC/2.
FSEL0,
FSEL1
14, 17
Input
Pulldown
Frequency select pins. LVCMOS/LVTTL interface levels.
16, 31
19, 20
22, 23
25, 26
28
VCC
Power
Output
Output
Core supply pins.
nQ3, Q3
nQ2, Q2
RESERVED
VCCA
Differential output pair. LVPECL interface levels.
Differential output pair. LVPECL interface levels.
Reserved.
Power
Input
Analog supply pin.
29
CLK_SEL
REF_OUT
Pulldown
Input source control pin. LVCMOS/LVTTL interface levels.
Single-ended reference output. LVCMOS/LVTTL interface levels.
32
Output
NOTE: Pullup and Pulldown refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
2
CPD
Power Dissipation Capacitance
Input Pulldown Resistor
Input Pullup Resistor
10
51
51
20
pF
RPULLDOWN
RPULLUP
ROUT
k
k
Output Impedance
REF_OUT
IDT8V89704ANLGI REVISION A APRIL 3, 2013
3
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Function Table
Table 3A. Control Input Function Table
Inputs
Outputs
CLK_EN
CLK_SEL
Selected Source
Q0
nQ0
Q1:Q3
0
0
CLK
Disabled; LOW
Disabled; HIGH
Disabled; LOW
XTAL_IN,
XTAL_OUT
0
1
1
1
0
1
Disabled; LOW
Enabled
Disabled; HIGH
Enabled
Disabled; LOW
Enabled
CLK
XTAL_IN,
XTAL_OUT
Enabled
Enabled
Enabled
NOTE: After CLK_EN switches, the clock outputs are disabled or enabled following a rising and falling input clock or crystal oscillator edge as
shown in Figure 1.
NOTE: In the active mode, the state of the outputs are a function of the CLK input as described in Table 3B.
Enabled
Disabled
CLK
CLK_EN
nQ0
Q0:Q3
Frequency Configuration
Table 3B. Frequency Configuration Examples
Output
Frequency
(MHz)
InputFrequency
Input Clock
Divider (P)
Input Clock
Pre-scale (PS)
M
N
VCO Frequency
(MHz)
FSEL1
FSEL0
(MHz)
Divider Divider
0
0
125
25
1
x2
40
16
2000
(default) (default)
0
1
1
1
0
1
156.25
250
25
25
25
1
1
1
x2
x2
x2
50
40
40
16
8
2500
2000
2000
100
20
IDT8V89704ANLGI REVISION A APRIL 3, 2013
4
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
3.6V
Inputs, VI
XTAL_IN
Other Input
0V to 2V
-0.5V to VCC + 0.5V
Outputs, VO (LVCMOS)
-0.5V to VCC + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Package Thermal Impedance, JA
33.1C/W (0 mps)
-65C to 150C
Storage Temperature, TSTG
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VCC = VCCO = 3.3V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
VCC
Units
V
VCC
VCCA
VCCO
ICCA
IEE
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Analog Supply Current
Power Supply Current
VCC – 0.32
3.135
3.3
V
3.3
3.465
32
V
28
mA
mA
183
204
Table 4B. Power Supply DC Characteristics, VCC = VCCO = 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
2.375
Typical
2.5
Maximum
2.625
VCC
Units
V
VCC
VCCA
VCCO
ICCA
IEE
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Analog Supply Current
Power Supply Current
VCC – 0.15
2.375
2.5
V
2.5
2.625
30
V
26
mA
mA
173
192
IDT8V89704ANLGI REVISION A APRIL 3, 2013
5
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Table 4C. LVCMOS/LVTTL DC Characteristics, VCC = VCCO = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
VCC = 3.3V
VCC = 2.5V
VCC = 3.3V
VCC = 2.5V
Minimum
2
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
V
V
V
V
Input High
Voltage
FSEL[1:0],
CLK_SEL
VIH
1.7
CLK_SEL
CLK_SEL
FSEL[1:0]
-0.3
Input Low
Voltage
VIL
-0.3
0.7
VCC = 3.3V or 2.5V
-0.3
0.5
Input
IIH
FSEL[1:0],
CLK_SEL
V
CC = VIN = 3.465V or 2.625V
150
µA
µA
High Current
Input
IIL
FSEL[1:0],
CLK_SEL
VCC = 3.465V or 2.625V, VIN = 0V
CCO = 3.465V
-5
Low Current
Output
REF_OUT
REF_OUT
V
2.6
1.8
V
V
VOH
High Voltage;
NOTE 1
VCCO = 2.625V
Output
VOL
Low Voltage;
NOTE 1
REF_OUT
VCCO = 3.465V or 2.625V
0.5
V
NOTE 1: Outputs terminated with 50to VCCO/2. In the Parameter Measurement Information Section, see Output Load Test Circuit Diagrams.
Table 4D. Differential DC Characteristics, VCC = VCCO = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input
IIH
CLK, nCLK
V
CC = VIN = 3.465V or 2.625V
150
µA
High Current
nCLK
CLK
VCC = 3.465V or 2.625V, VIN = 0V
VCC = 3.465V or 2.625V, VIN = 0V
-150
-5
µA
µA
V
Input
IIL
Low Current
VPP
Peak-to-Peak Voltage
0.15
1.3
Common Mode Input Voltage;
NOTE 1
VCMR
VEE
VEE – 0.85
V
NOTE 1: Common mode input voltage is at the cross point.
Table 4E. LVPECL DC Characteristics, VCC = VCCO = 3.3V 5% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
VCCO – 1.1
VCCO – 2.0
0.6
Typical
Maximum
VCCO – 0.75
VCCO – 1.6
1.0
Units
VOH
Output High Voltage; NOTE 1
V
V
V
VOL
Output Low Voltage; NOTE 1
VSWING
Peak-to-Peak Output Voltage Swing
NOTE 1: Outputs termination with 50to VCCO – 2V.
IDT8V89704ANLGI REVISION A APRIL 3, 2013
6
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Table 5. Crystal Characteristics
Parameter
Test Conditions
Minimum
Typical
Fundamental
25
Maximum
Units
Mode of Oscillation
Frequency
MHz
Equivalent Series Resistance (ESR)
Shunt Capacitance
50
7
pF
NOTE: Characterized using an 12pF parallel resonant crystal.
AC Electrical Characteristics
Table 6. AC Characteristics, VCC = VCCO = 3.3V 5% or 2.5V 5% VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
fDIFF_IN
Differential Input Frequency
25
MHz
25MHz, REF_OUT, Integration
Range: 12kHz - 5MHz
0.215
0.239
0.230
0.190
0.239
0.195
0.215
0.305
0.330
0.320
0.265
0.325
0.260
0.295
35
ps
ps
ps
ps
ps
ps
ps
ps
ps
%
100MHz, Integration Range: 12kHz
– 20MHz
125MHz, Integration Range: 12kHz
– 20MHz
RMS Phase Jitter, Random;
NOTE 1
125MHz, Integration Range: 10kHz
– 1MHz
tjit(Ø)
156.25MHz, Integration Range:
12kHz – 20MHz
156.25MHz, Integration Range:
10kHz – 1MHz
250MHz, Integration Range: 12kHz
– 20MHz
Output Skew; NOTE 2, 3
Output Rise/Fall Time
Output Duty Cycle
tsk(o)
tR / tF
odc
20% - 80%
100
48
400
52
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE: Phase Noise Characterized using 25MHz, 12pF resonant crystal.
NOTE 1: Refer to Phase Noise plot.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential crosspoint.
NOTE 3: These parameters are guaranteed by characterization. Not tested in production.
IDT8V89704ANLGI REVISION A APRIL 3, 2013
7
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Typical Phase Noise at 156.25MHz (12k – 20MHz, 3.3V)
Offset Frequency (Hz)
IDT8V89704ANLGI REVISION A APRIL 3, 2013
8
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Parameter Measurement Information
2V
2V
2V
2V
5
SCOPE
SCOPE
V
DD,
V
V
Qx
Qx
DD,
V
DDO
V
DDO
DDA
V
DDA
nQx
nQx
VEE
VEE
-0.5V 0.125V
-1.3V 0.165V
3.3V LVPECL Output Load Test Circuit
2.5V LVPECL Output Load Test Circuit
1.65V 5%
1.65V 5%
1.25V 5%
1.25V 5%
5
SCOPE
SCOPE
V
V
V
V
DD,
DD,
DDO
DDO
VDDA
VDDA
Qx
Qx
GND
GND
-1.65V 5%
-1.25V 5%
3.3V LVCMOS Output Load Test Circuit
2.5V LVCMOS Output Load Test Circuit
Phase Noise Plot
V
CC
nCLK
VPP
Cross Points
CLK
VCMR
Offset Frequency
f1
f2
V
EE
RMS Phase Jitter =
1
*
Area Under Curve Defined by the Offset Frequency Markers
2 * * ƒ
Differential Input Levels
RMS Phase Jitter
IDT8V89704ANLGI REVISION A APRIL 3, 2013
9
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Parameter Measurement Information, continued
nQ[0:3]
Q[0:3]
nQx
Qx
tPW
tPERIOD
nQy
tPW
Qy
odc =
x 100%
tsk(o)
tPERIOD
Output Skew
Output Duty Cycle/Pulse Width/Period
nQ[0:3]
80%
tF
80%
tR
VSWING
20%
20%
Q[0:3]
LVPECL Output Rise/Fall Time
IDT8V89704ANLGI REVISION A APRIL 3, 2013
10
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
Figure 1 shows how a differential input can be wired to accept single
ended levels. The reference voltage V1 = VCC/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help
filter noise on the DC bias. This bias circuit should be located as close
to the input pin as possible. The ratio of R1 and R2 might need to be
adjusted to position the V1 in the center of the input voltage swing.
For example, if the input clock swing is 2.5V and VCC = 3.3V, R1 and
R2 value should be adjusted to set V1 at 1.25V. The values below are
for when both the single ended swing and VCC are at the same
voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of
two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50applications, R3 and R4 can be 100.
The values of the resistors can be increased to reduce the loading for
slower and weaker LVCMOS driver. When using single-ended
signaling, the noise rejection benefits of differential signaling are
reduced. Even though the differential input can handle full rail
LVCMOS signaling, it is recommended that the amplitude be
reduced. The datasheet specifies a lower differential amplitude,
however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less
than -0.3V and VIH cannot be more than VCC + 0.3V. Though some
of the recommended components might not be used, the pads
should be placed in the layout. They can be utilized for debugging
purposes. The datasheet specifications are characterized and
guaranteed by using a differential signal.
Figure 1. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
IDT8V89704ANLGI REVISION A APRIL 3, 2013
11
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Overdriving the XTAL Interface
The XTAL_IN input can accept a single-ended LVCMOS signal
through an AC coupling capacitor. A general interface diagram is
shown in Figure 2A. The XTAL_OUT pin can be left floating. The
maximum amplitude of the input signal should not exceed 2V and the
input edge rate can be as slow as 10ns. This configuration requires
that the output impedance of the driver (Ro) plus the series
resistance (Rs) equals the transmission line impedance. In addition,
matched termination at the crystal input will attenuate the signal in
half. This can be done in one of two ways. First, R1 and R2 in parallel
should equal the transmission line impedance. For most 50
applications, R1 and R2 can be 100. This can also be
accomplished by removing R1 and making R2 50. By overdriving
the crystal oscillator, the device will be functional, but note, the device
performance is guaranteed by using a quartz crystal.
3.3V
3.3V
R1
100
C1
Ro
~ 7 Ohm
Zo = 50 Ohm
XTAL_I N
RS
43
0.1uF
R2
Driver_LVCMOS
100
XTAL_OU T
Crystal Input Interf ace
Figure 2A. General Diagram for LVCMOS Driver to XTAL Input Interface
VCC=3.3V
C1
Zo = 50 Ohm
XTAL_IN
0.1uF
R1
50
Zo = 50 Ohm
XTAL_OUT
LVPECL
Cry stal Input Interface
R2
50
R3
50
Figure 2B. General Diagram for LVPECL Driver to XTAL Input Interface
IDT8V89704ANLGI REVISION A APRIL 3, 2013
12
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
3.3V Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL, HCSL and other differential
signals. Both VSWING and VOH must meet the VPP and VCMR input
requirements. Figures 3A to 3D show interface examples for the
CLK/nCLK input driven by the most common driver types. The input
interfaces suggested here are examples only. If the driver is from
another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
3.3V
3.3V
3.3V
3.3V
3.3V
Zo = 50Ω
CLK
CLK
Zo = 50Ω
nCLK
Differential
Input
LVPECL
nCLK
R1
50Ω
R2
50Ω
Differential
Input
LVPECL
R2
50Ω
Figure 3A. CLK/nCLK Input Driven by a
3.3V LVPECL Driver
Figure 3B. CLK/nCLK Input Driven by a
3.3V LVPECL Driver
3.3V
3.3V
3.3V
3.3V
Zo = 50Ω
*R3
*R4
CLK
CLK
R1
100Ω
nCLK
nCLK
Zo = 50Ω
Differential
Input
Receiver
HCSL
LVDS
Figure 3C. CLK/nCLK Input Driven by a
3.3V HCSL Driver
Figure 3D. CLK/nCLK Input Driven by a 3.3V LVDS Driver
IDT8V89704ANLGI REVISION A APRIL 3, 2013
13
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
2.5V Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL, HCSL and other differential
signals. Both VSWING and VOH must meet the VPP and VCMR input
requirements. Figures 4A to 4D show interface examples for the
CLK/nCLK input driven by the most common driver types. The input
interfaces suggested here are examples only. If the driver is from
another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V
2.5V
2.5V
2.5V
2.5V
R3
R4
Zo = 50
250
250
CLK
Zo = 50
Zo = 50
CLK
Zo = 50
nCLK
Differential
Input
LVPECL
nCLK
R1
50
R2
50
Differential
Input
LVPECL
R1
R2
62.5
62.5
R3
18
Figure 4A. CLK/nCLK Input Driven by a
2.5V LVPECL Driver
Figure 4B. CLK/nCLK Input Driven by a
2.5V LVPECL Driver
2.5V
2.5V
2.5V
2.5V
Zo = 50
Zo = 50
*R3
*R4
33
33
CLK
CLK
R1
100
Zo = 50
nCLK
nCLK
Zo = 50
Differential
Input
Differential
Input
HCSL
R1
50
R2
50
LVDS
*Optional R3 and R4 can be 0
Figure 4C. CLK/nCLK Input Driven by a
2.5V HCSL Driver
Figure 4D. CLK/nCLK Input Driven by a 2.5V LVDS Driver
IDT8V89704ANLGI REVISION A APRIL 3, 2013
14
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
LVCMOS Control Pins
LVPECL Outputs
All control pins have internal pulldowns; additional resistance is not
required but can be added for additional protection. A 1kresistor
can be used.
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
LVCMOS Outputs
CLK/nCLK Inputs
The unused LVCMOS output can be left floating. There should be no
trace attached.
For applications not requiring the use of the differential input, both
CLK and nCLK can be left floating. Though not required, but for
additional protection, a 1kresistor can be tied from CLK to ground.
Crystal Inputs
For applications not requiring the use of the crystal oscillator input,
both XTAL_IN and XTAL_OUT can be left floating. Though not
required, but for additional protection, a 1kresistor can be tied from
XTAL_IN to ground.
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 5A and 5B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125
125
3.3V
3.3V
Z
Z
o = 50
+
_
LVPECL
Input
o = 50
R1
84
R2
84
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
IDT8V89704ANLGI REVISION A APRIL 3, 2013
15
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6B show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating 50
to VCCO – 2V. For VCCO = 2.5V, the VCCO – 2V is very close to ground
level. The R3 in Figure 6B can be eliminated and the termination is
shown in Figure 6C.
2.5V
VCCO = 2.5V
2.5V
2.5V
VCCO = 2.5V
R1
R3
50
250
250
+
50
50
+
–
50
–
2.5V LVPECL Driver
R1
50
R2
50
2.5V LVPECL Driver
R2
62.5
R4
62.5
R3
18
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCCO = 2.5V
50
+
50
–
2.5V LVPECL Driver
R1
50
R2
50
Figure 6C. 2.5V LVPECL Driver Termination Example
IDT8V89704ANLGI REVISION A APRIL 3, 2013
16
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 7. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 7. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8V89704ANLGI REVISION A APRIL 3, 2013
17
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Schematic Example
Figure 8 (next page) is an IDT8V89704I application example
schematic. schematic focuses on functional connections and is not
configuration specific. Refer to the pin description and functional
tables in the datasheet to ensure that the logic control inputs are
properly set.
The schematic indicates components that are to be placed close to
the IDT8V89704I. Specifically the 0.1uF VCC, VCCA and VCCO
bypass capacitors, the 180 ohm Q3, nQ3 LVPECL bias resistors R11
and R12 and the REF_OUT LVCMOS source termination resistor R1.
Similarly the 25MHz crystal and its associated load capacitors should
also be close to the device.
In this example the device is operated at VCC= VCCA = VCCO = 3.3V
rather than 2.5V. The CLK, nCLK inputs are provided by a 3.3V
LVPECL driver and depicted with a Y-termination rather than the
standard four resistor VCC - 2V Thevinin termination for reasons of
minimum termination power and layout simplicity. Three examples of
LVPECL terminations are shown for the outputs to demonstrate
mixing of PECL termination design options. For further options and a
more detailed discussion of LVPECL terminations, consult the IDT
application note “Termination – LVPECL”.
In order to achieve the best possible filtering, it is recommended that
the placement of the filter components be on the device side of the
PCB as close to the power pins as possible. The 0.1uF capacitors in
each power pin filter must be placed on the device side. If space is
limited, the other components can be on the opposite side of the
PCB. Power supply filter recommendations are a general guideline to
be used for reducing external noise from coupling into the devices.
The VCC and VCCO filters start to attenuate noise at approximately
10kHz. If a specific frequency noise component is known, such as
switching power supplies frequencies, it is recommended that
component values be adjusted and if required, additional filtering be
added. Additionally, good general design practices for power plane
voltage stability suggests adding bulk capacitance in the local area of
all devices.
As with any high speed analog circuitry, the power supply pins are
vulnerable to random noise. To achieve optimum jitter performance,
power supply isolation is required. The IDT8V89704i provides
separate power supply pins to isolate any high switching noise from
coupling into the internal PLL.
IDT8V89704ANLGI REVISION A APRIL 3, 2013
18
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
U1
17
R1
33
Z o = 50
F SE L1
F SE L0
32
FSE L1
FSE L0
REF _OUT
LVCMOS Receiver
14
3. 3 V
29
C LK _SEL
CLK _SE L
8
nc
RE SE RVED
RE SE RVED
25
R7
R8
26
13 3
133
Z o = 50 Ohm
9
XT A L _I N
+
25MHz(12pf )
10
2
3
Q0_P
Q0_N
XT A L _O U T
Q0
nQ0
X1
Z o = 50 Ohm
-
C18
9pF
C23
9pF
5
6
Q1_P
Q1_N
Q1
nQ1
R9
82.5
R10
82. 5
+3. 3V PE CL Rec eiv er
Zo = 50 Ohm
Zo = 50 Ohm
R3 50
R4 50
12
13
23
22
Q2_P
Q2_N
CLK
Q2
nQ2
nC L K
20
19
Q3_P
Q3_N
Q3
nQ3
PE CL Driver
R5
50
R11
180
R12
180
16
V CC_16
VCC
C15
0. 1uF
Zo = 50 Ohm
Zo = 50 Ohm
+
31
28
VCC_38
C10
VCC
1
7
11
15
18
24
27
30
V EE
V EE
V EE
V EE
V EE
V EE
V EE
-
0. 1uF
V CCA
VCC A
R13
50
R14
50
+3.3V P ECL Receiv er
C7
0. 1uF
V EE
4
21
VCC O
VCC O
V CCO
33
R15
50
ePAD
C17
C9
0. 1uF
0.1uF
2. 5V
3. 3V
FB 1
C11 Zo = 50 Ohm
0. 1u
1
2
V CC_16
IN
50
BLM18BB 221SN1
C14
C6
0.1uF
10uF
C12 Zo = 50 Ohm
0. 1u
50
IN
3. 3V
FB 2
Optional AC Term ination
for 2. 5V CML Receiver
1
2
VCC_38
CML Receiv er
BLM18BB 221SN1
C16
C19
0.1uF
10uF
For o ther DC an d AC ter min ation option s co ns ult th e IDT A pplications No te
"Te rmination - LV PECL"
R16
10
Logic Control Input E xamples
V CCA
Set Logic
Input to '1'
Set Logic
Input to '0'
C8
10uF
V CC
VC C
3. 3V
RU1
1K
RU2
Not Inst al l
FB3
1
2
V CCO
To Logic
Input
pins
To Logic
Input
pins
B LM18B B221SN1
C21
10uF
C22
0.1uF
RD1
RD2
1K
Not Install
Figure 8. IDT8V89704I Schematic Layout
IDT8V89704ANLGI REVISION A APRIL 3, 2013
19
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8V89704I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8V89704I is the sum of the core power plus the power dissipated due to the load.
The following is the power dissipation for VCC = 3.3V + 5% = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated due to the load.
•
•
•
Power (core)MAX = VCC_ MAX * IEE_MAX = 3.465V * 204mA = 706.86mW
Power (LVPECL outputs)MAX = 31.55mW/Loaded Output pair
Power (LVPECL output) = 4 * 31.55mW = 126.2mW
LVCMOS Output
•
Output Impedance ROUT Power Dissipation due to Loading 50to VCCO/2
Output Current IOUT = VCCO_MAX / [2 * (50+ ROUT)] = 3.465V / [2 * (50+ 20)] = 24.75mA
•
Power Dissipation on the ROUT per LVCMOS output
Power (ROUT) = ROUT * (IOUT)2 = 20* (24.75mA)2 = 12.251mW
Dynamic Power Dissipation at 25MHz
Power (25MHz) = CPD * Frequency * (VCCO)2 = 10pF * 25MHz * (3.465V)2 = 3mW
•
Total Power Dissipation
•
Total Power
= Power (core) + Power (LVPECL) + Power (ROUT) + Power (25MHz)
= 706.86mW + 126.2mW + 12.251mW + 3mW = 848.31mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 65.7°C/W per Table 7 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 848W * 33.1°C/W = 113.1.°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 7. Thermal Resistance JA for 32 Lead VFQFN, Forced Convection
JA by Velocity
Meters per Second
0
1
3
Multi-Layer PCB, JEDEC Standard Test Boards
33.1°C/W
28.1°C/W
25.4°C/W
IDT8V89704ANLGI REVISION A APRIL 3, 2013
20
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
LVPECL output driver circuit and termination are shown in Figure 8.
VCCO
Q1
VOUT
RL
50Ω
VCCO - 2V
Figure 9. LVPECL Driver Circuit and Termination
To calculate power dissipation due to the load, use the following equations which assume a 50load, and a termination voltage of VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCCO_MAX – 0.75V
(VCCO_MAX – VOH_MAX) = 0.75V
For logic low, VOUT = VOL_MAX = VCCO_MAX – 1.6V
(VCCO_MAX – VOL_MAX) = 1.6V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX– (VCCO_MAX– 2V))/RL] * (VCCO_MAX– VOH_MAX) = [(2V – (VCCO_MAX – VOH_MAX))/RL] * (VCCO_MAX– VOH_MAX) =
[(2V – 0.75V)/50] * 0.75V = 18.75mW
Pd_L = [(VOL_MAX – (VCCO_MAX– 2V))/RL] * (VCCO_MAX– VOL_MAX) = [(2V – (VCCO_MAX – VOL_MAX))/RL] * (VCCO_MAX– VOL_MAX) =
[(2V – 1.6V)/50] * 1.6V = 12.80mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 31.55mW
IDT8V89704ANLGI REVISION A APRIL 3, 2013
21
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Reliability Information
Table 8. JA vs. Air Flow Table for a 32 Lead VFQFN
JA vs. Air Flow
Meters per Second
0
1
3
Multi-Layer PCB, JEDEC Standard Test Boards
33.1°C/W
28.1°C/W
25.4°C/W
Transistor Count
The transistor count for IDT8V89704I is: 26,859.
IDT8V89704ANLGI REVISION A APRIL 3, 2013
22
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
32 Lead VFQFN Package Outline and Dimensions
IDT8V89704ANLGI REVISION A APRIL 3, 2013
23
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
Ordering Information
Table 9. Ordering Information
Part/Order Number
8V89704ANLGI
8V89704ANLGI8
Marking
IDT8V89704ANLGI
IDT8V89704ANLGI
Package
“Lead-Free” 32 Lead VFQFN
“Lead-Free” 32 Lead VFQFN
Shipping Packaging
Tray
Temperature
-40C to 85C
-40C to 85C
Tape & Reel
IDT8V89704ANLGI REVISION A APRIL 3, 2013
24
©2013 Integrated Device Technology, Inc.
IDT8V89704I Data Sheet
FEMTOCLOCK® NG CRYSTAL-TO-3.3V, 2.5V LVPECL CLOCK GENERATOR
We’ve Got Your Timing Solution
6024 Silver Creek Valley Road Sales
Technical Support
netcom@idt.com
800-345-7015 (inside USA)
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
San Jose, California 95138
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signifi-
cantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2013. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		8V89308ANLGI [ Jitter Attenuator & FemtoClock Multiplier ] 23 页

IDT

 		8V89308ANLGI8 [ Jitter Attenuator & FemtoClock Multiplier ] 23 页

IDT

 		8V89704ANLGI8 [ FemtoClock NG Crystal-to-3.3V, 2.5V LVPECL Clock Generator w/Fanout Buffer ] 25 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.279338s
