AZD1600

型号：

AZD1600

品牌：

POSEICO[ POWER SEMICONDUCTORS ]

页数：

4 页

PDF大小：

141 K

下载PDF手册
POSEICO SPA
Via Pillea 42-44, 16153 Genova - ITALY
Tel. + 39 010 8599400 - Fax + 39 010 8682006
Sales Office:
Tel. + 39 010 8599400 - sales@poseico.com

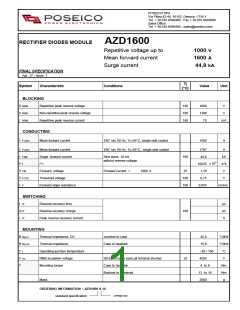

RECTIFIER DIODES MODULE
AZD1600
Repetitive voltage up to
Mean forward current
Surge current
1000 V
1600 A
44,8 kA
FINAL SPECIFICATION
Apr. 17 - Issue: 1
Tj
[°C]
Symbol
Characteristic
Conditions
Value
Unit
BLOCKING
V RRM
V RSM
Repetitive peak reverse voltage
Non-repetitive peak reverse voltage
Repetitive peak reverse current
160
160
160
1000
1100
75
V
V
I
RRM
mA
CONDUCTING
I
F (AV)
Mean forward current
180° sin, 50 Hz, Tc=95°C, single side cooled
180° sin, 50 Hz, Tc=85°C, single side cooled
1600
A
I
I
F (AV)
FSM
Mean forward current
Surge forward current
I² t
1797
44,8
A
kA
Sine wave, 10 ms
without reverse voltage
160
x 103
I² t
10035
1,16
A²s
V
V FM
V F(TO)
Forward voltage
Threshold voltage
Forward slope resistance
Forward current =
1800 A
25
160
160
0,75
V
r
F
0,055
mohm
SWITCHING
t
rr
Reverse recovery time
µs
µC
A
Q rr
rr
Reverse recovery charge
160
I
Peak reverse recovery current
MOUNTING
R th(j-c)
R th(c-h)
T j
Thermal impedance, DC
Thermal impedance
Junction to case
Case to heatsink
42,0
15,0
°C/kW
°C/kW
°C
Operating junction temperature
RMS insulation voltage
Mounting torque
-30 / 160
V ins
T
50Hz, circuit to base,all terminal shorted
Case to heatsink
25
4500
V
4 to 6
12 to 18
2800
Nm
Nm
g
Busbars to terminals
Mass
ORDERING INFORMATION : AZD1600 S 10
VRRM/100
standard specification
AZD1600 RECTIFIER DIODES MODULE
FINAL SPECIFICATION Apr. 17 - Issue: 1
DISSIPATION CHARACTERISTICS
SQUARE WAVE
Tc [°C]
180
160
140
120
100
80
60
30°
60°
90° 120°
180°
DC
40
0
500
1000
1500
2000
2500
3000
IF(AV) [A]
PF(AV) [W]
3000
DC
2500
2000
1500
1000
500
180°
120°
90°
60°
30°
0
0
500
1000
1500
2000
2500
3000
IF(AV) [A]
AZD1600 RECTIFIER DIODES MODULE
FINAL SPECIFICATION Apr. 17 - Issue: 1
DISSIPATION CHARACTERISTICS
SINE WAVE
Tc [°C]
180
160
140
120
100
80
60
30°
60°
90°
120°
180°
40
0
500
1000
1500
2000
2500
IF(AV) [A]
PF(AV) [W]
3000
180°
120°
2500
2000
1500
1000
500
90°
60°
30°
0
0
500
1000
1500
2000
2500
IF(AV) [A]
AZD1600 RECTIFIER DIODES MODULE
FINAL SPECIFICATION Apr. 17 - Issue: 1
ON-STATE CHARACTERISTIC
Tj = 150 °C
SURGE CHARACTERISTIC
Tj = 160 °C
6000
5000
4000
3000
2000
1000
0
50
45
40
35
30
25
20
15
10
5
0
0
0,5
1
1,5
1
10
100
On- State Voltage [V]
n° cycles
TRANSIENT THERMAL IMPEDANCE
177
45
40
35
30
25
20
15
10
5
136
70
146
Ø6.5
Ø13
1
2
80
104
6
124
6
0
0,001
0,01
0,1
1
10
100
t[s]
Distributed by
All the characteristics given in this data sheet are guaranteed only with uniform clamping
force, cleaned and lubricated heatsink, surfaces with flatness < .03 mm and roughness < 2
µm.
In the interest of product improvement POSEICO SpA reserves the right to change any data
given in this data sheet at any time without previous notice.
If not stated otherwise the maximum value of ratings (simbols over shaded background)
and characteristics is reported.
