RZT7-03ZRS-KU0

型号：

RZT7-03ZRS-KU0

品牌：

SICK[ SICK AG ]

页数：

6 页

PDF大小：

1375 K

下载PDF手册

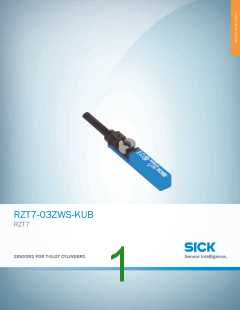

RZT7-03ZWS-KUB
RZT7
SENSORS FOR T-SLOT CYLINDERS
RZT7-03ZWS-KUB | RZT7
SENSORS FOR T-SLOT CYLINDERS
Ordering information
A
B
C
D
E
F
Type
RZT7-03ZWS-KUB
Part no.
1070870
Other models and accessories www.sick.com/RZT7
Detailed technical data
Features
T-slot
Cylinder type
Profile cylinder
Cylinder types with adapter
Tie rod cylinder
Round body cylinder
Dovetail groove cylinder
SMC rail CDQ2
H
I
SMC rail ECDQ2
32.5 mm
Reed
Housing length
Output type
± 400 Hz
NO
Switching frequency
Output function
Electrical wiring
Enclosure rating
J
AC/DC 2-wire
IP65, IP67 1)
K
L
1)
According to EN 60529.
Mechanics/electronics
5 V AC/DC ... 230 V AC/DC 1)
≤ 3.5 V
Supply voltage
M
N
O
P
Q
R
S
T
Voltage drop
≤ 100 mA 2)
≤ 6 W
II
Continuous current Ia
Switching capacity
Protection class
3 mT
Response sensitivity, typ.
Overrun distance, typ.
Reproducibility
10 mm
≤ 0.1 mT 3)
✔
Status indicator LED
–30 °C ... +80 °C
Ambient operating temperature
Shock and vibration resistance
30 g, 11 ms / 10 ... 55 Hz, 1 mm
1)
Limit values when operated in short-circuit protected network: max. 8 A.
2)
3)
AC.
Ub and Ta constant.
2
MAGNETIC CYLINDER SENSORS | SICK
Online data sheet | 2017-05-04 16:20:10
Subject to change without notice
RZT7-03ZWS-KUB | RZT7
SENSORS FOR T-SLOT CYLINDERS
According to EN 60947-5-2
Plastic
EMC
Housing material
Connection type
Cable material
Conductor cross-section
Cable, 2-wire, 5 m
PUR
0.14 mm²
1)
Limit values when operated in short-circuit protected network: max. 8 A.
2)
3)
AC.
Ub and Ta constant.
Classifications
27270104
27270104
27270104
27270104
27270104
27270104
27270104
27270104
EC002544
EC002544
39122230
ECl@ss 5.0
ECl@ss 5.1.4
ECl@ss 6.0
ECl@ss 6.2
ECl@ss 7.0
ECl@ss 8.0
ECl@ss 8.1
ECl@ss 9.0
ETIM 5.0
ETIM 6.0
UNSPSC 16.0901
Connection diagram
Cd-037
brn
+ (L+) /
blu
- (M) / N
Functional principle
2017-05-04 16:20:10 | Online data sheet
Subject to change without notice
MAGNETIC CYLINDER SENSORS | SICK
3
RZT7-03ZWS-KUB | RZT7
SENSORS FOR T-SLOT CYLINDERS
Dimensional drawing (Dimensions in mm (inch))
10 V AC/DC ... 230 V AC/DC
A
B
C
D
E
F
1
0.3
(0.01)
5.7 (0.22)
2.7
(0.11)
4.8
(0.19)
2
1
2
3
11.2 (0.44)
19.8 (0.78)
32.5 (1.28)
① Position sensor element
② Indication LED
③ Retaining ribs
H
I
Recommended accessories
Other models and accessories www.sick.com/RZT7
J
Brief description
Type
Part no.
Brackets for cylinder sensors
Mounting bracket for cylinder with dovetail slot, Aluminum, without mounting hardware
BEF-KHZ-ST1
2022703
K
L
Mounting bracket for integrated profile cylinder/tie-rod cylinder, Zinc diecast, mounting
hardware included
BEF-KHZ-PT1
2022702
M
N
O
P
Q
R
S
T
1 piece, Mounting bracket on round body cylinder with piston diameter of 12 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
BEF-KHZ-RT-12
BEF-KHZ-RT-16
BEF-KHZ-RT-20
BEF-KHZ-RT-25
BEF-KHZ-RT-32
BEF-KHZ-RT-40
BEF-KHZ-RT-50
BEF-KHZ-RT-63
2077681
2077680
2077679
2077678
2077677
2077676
2077675
2077674
1 piece, Mounting bracket on round body cylinder with piston diameter of 16 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 20 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 25 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 32 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 40 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 50 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
1 piece, Mounting bracket on round body cylinder with piston diameter of 63 mm, ambi-
ent temperature min 0 °C max 50 °C, Plastic, Aluminum
4
MAGNETIC CYLINDER SENSORS | SICK
Online data sheet | 2017-05-04 16:20:10
Subject to change without notice
RZT7-03ZWS-KUB | RZT7
SENSORS FOR T-SLOT CYLINDERS
Brief description
Type
Part no.
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
130 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
BEF-KHZ-RT1-130
2077684
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
25 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
BEF-KHZ-RT1-25
BEF-KHZ-RT1-63
BEF-KHZ-TT2
2077682
2077683
2046440
1 piece, Mounting bracket on round body cylinder with piston diameter of 8 mm ...
63 mm, ambient temperature min –30 °C max 80 °C, Stainless steel, Zinc cast
Mounting bracket for mounting on SMC rails CDQ2 (T-slot), Aluminum, without mounting
hardware
Mounting bracket for mounting on SMC rails ECDQ2 (T-slot), Aluminum, without mount-
ing hardware
BEF-KHZ-TT1
BEF-SG-MRZT
2046439
2077201
Device protection (mechanical)
Protective adapter, die-cast zinc, mounting hardware included
2017-05-04 16:20:10 | Online data sheet
Subject to change without notice
MAGNETIC CYLINDER SENSORS | SICK
5
