UZ6-11

型号：

UZ6-11

品牌：

ETC[ ETC ]

页数：

14 页

PDF大小：

1805 K

下载PDF手册
16mm A6

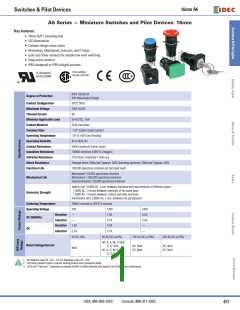

A6 Series — Miniature Switches and Pilot Devices: 16mm
Switches & Pilot Devices
Key features:
• 16mm (5/8”) mounting hole
• LED illumination
• Compact design saves space
• Momentary, Maintained, Selectors, and E-Stops
• Gold-clad Silver contacts for reliable low level switching
• Snap action contacts
• IP40 (dustproof) or IP65 (oiltight) versions
CSA Certified
UL Recognized
File No. LR21451
File No.E55996
R
IP40: Dustproof
Degree of Protection
IP65 Watertight/Oiltight
Contact Configuration
Maximum Voltage
Thermal Current
SPDT, DPDT
250V AC/DC
3A
Minimum Applicable Load
Contact Material
5V AC/DC, 1mA
Gold-clad silver
Terminal Style
.110” Solder/ Quick Connect
Operating Temperature
Operating Humidity
Contact Resistance
Insulation Resistance
Vibration Resistance
Shock Resistance
Electrical Life
-25º to +55ºC (no freezing)
45 to 85% RH
50mΩ maximum (initial value)
100MΩ minimum (500V DC megger)
10 to 55Hz, amplitude 1.5mm p-p
Damage limits: 500m/sec2 (approx. 50G) Operating extremes: 200m/sec2 (approx. 20G)
100,000 operations minimum (at full rated load)
Maintained: 100,000 operations minimum
Momentary: 1,000,000 operations minimum
Selector/Keylock: 250,000 operations minimum
Mechanical Life
Switch Unit: 2,000V AC, 1 min. between live/dead part and terminals of different poles;
1,000V AC, 1 minute between terminals of the same pole;
1,500V AC, 1 minute between contact and lamp terminals.
Dielectric Strength
Illumination Unit: 2,000V AC, 1 min. between live part/ground
Soldering Temperature
Operating Voltage
20W/5 seconds or 260ºC/3 seconds
24V
120V
1.0A
240V
Resistive
—
0.5A
AC (50/60Hz)
DC
Inductive
Resistive
Inductive
—
0.7A
0.5A
1.0A
0.7A
5V DC 5%
0.2A
—
—
0.1A
6V AC/DC ( 10%)
12V AC/DC ( 10%)
24V AC/DC ( 10%)
AC: A, R, W, Y: 8mA
G, S: 7mA
DC: A, R, W, Y: 6mA
G, S: 5mA
Rated Voltage/Current
AC: 9mA
DC: 8mA
AC: 9mA
DC: 8mA
8mA
1. AC Inductive Load, PF = 0.6 – 0.7; DC Inductive Load, L/R = 7ms.
2. LED lamp contains a built-in current limiting resistor and a protection diode.
3. LED’s don’t “burn out.” Luminance is reduced to 50% of initial intensity after being lit for 50,000 hours continuously.
USA: 800-262-IDEC
Canada: 888-317-IDEC
457
16mm A6
Switches & Pilot Devices
AB6 Non-Illuminated Pushbuttons (Assembled)
Non-Illuminated Pushbuttons
jButton Color Code
Part Number
Color
Black
Green
Red
Code
Style
Contact
Momentary
Maintained (Latching)
Dustproof (IP40) Oiltight (IP65)
B
Dustproof (IP40)
Oiltight (IP65)
G
R
Round 18mm
SPDT
DPDT
AB6M-M1-j
AB6M-M2-j
AB6M-M1P-j
AB6M-M2P-j
AB6M-A1-j
AB6M-A2-j
AB6M-A1P-j
AB6M-A2P-j
Blue
S
White
Yellow
W
Y
Square 18mm
SPDT
DPDT
AB6Q-M1-j
AB6Q-M2-j
AB6Q-M1P-j
AB6Q-M2P-j
AB6Q-A1-j
AB6Q-A2-j
AB6Q-A1P-j
AB6Q-A2P-j
Rectangular 18mm x 24mm
SPDT
DPDT
AB6H-M1-j
AB6H-M2-j
AB6H-M1P-j
AB6H-M2P-j
AB6H-A1-j
AB6H-A2-j
AB6H-A1P-j
AB6H-A2P-j
Round 23.5mm
Square 23.5mm
SPDT
DPDT
AB6M-M1P-Mj
AB6M-M2P-Mj
AB6M-A1P-Mj
AB6M-A2P-Mj
–
–
–
–
1. In place of j, specify Button Color Code
from the table at right.
2. To order as sub-assembled, see page 459.
3. For accessories, see page 466.
4. For dimensions, see page 468.
SPDT
DPDT
AB6Q-M1P-Qj
AB6Q-M2P-Qj
AB6Q-A1P-Qj
AB6Q-A2P-Qj
Rectangular 17.5 X 23.5mm
SPDT
DPDT
AB6Q-M1P-Hj
AB6Q-M2P-Hj
AB6Q-A1P-Hj
AB6Q-A2P-Hj
–
–
AB6-V Pushlock Turn Reset
Part Number
Dustproof (IP40) Oiltight (IP65)
Shape
Operation
Contact
Remarks
23.5mm Round Mushroom
SPDT
DPDT
AB6M-V1-R
AB6M-V2-R
AB6M-V1P-R
AB6M-V2P-R
1. Button available in red only.
2. Replacement button: order AB6M-V-R
Pushlock Turn Reset
Buzzer
Buzzer Ratings
Style
Shape
Voltage
Part Number
Frequency
2 khz 500 HZ
Amplitude
80db @ 0.1m (at rated voltage)
6V AC/DC or 12 - 24V AC/DC 10%
55 to 600 cycles per minute
DC: 7mA, AC: 20mA
12V DC
UZ6-11
Operating Voltage
Adjustable Cycle
Current Draw
Round (18mm)
24V DC
UZ6-12
Life
1000 hrs. minimum
Insulation Voltage
Operating Temperature
60V AC/DC
-20 to 55 C (no freezing), 45 to 85% rh
www.idec.com
458
16mm A6
Switches & Pilot Devices
AB6 Non-Illuminated Pushbuttons (Sub-Assembled)
Operator
+
Button
=
Completed Unit
Operators
Part Number
Square
Style
Contact
Operator
Round
Rectangular
Non-Illuminated Pushbuttons
Momentary
Maintained
Momentary
Maintained
AB6M-M100
AB6Q-M100
AB6Q-A100
AB6Q-M200
AB6Q-A200
AB6H-M100
SPDT
AB6M-A100
AB6M-M200
AB6M-A200
AB6H-A100
AB6H-M200
AB6H-A200
DPDT
Oversize rectangular button uses square operator.
Buttons
jButton Color Code
Part Number
Button
Color
Black
Green
Red
Code
Description
B
Dustproof (IP40) Oiltight (IP65)
G
R
Round
AB6M-BK1-j
AB6Q-BK1-j
AB6H-BK1-j
AB6M-BK2-j
AB6Q-BK2-j
AB6H-BK2-j
Blue
S
White
Yellow
W
Y
Square
Rectangular
Round Oversize
–
AB6M-BK2-Mj
Square Oversize
–
–
AB6Q-BK2-Qj
AB6Q-BK2-Hj
Rectangular Oversize
1. In place of j, specify Button Color Code from table.
2. Buttons which are rated IP65 include a waterproof rubber gasket.
3. For accessories, see page 466.
USA: 800-262-IDEC
Canada: 888-317-IDEC
459
16mm A6
Switches & Pilot Devices
AL6 Illuminated Pushbuttons (Assembled)
LED Illuminated Pushbuttons
Description Style
Part Numbers
Momentary
Maintained (Latching)
Dustproof (IP40) Oiltight (IP65)
Contact
Dustproof (IP40) Oiltight (IP65)
Round (18mm lens)
SPDT
DPDT
AL6M-M1l-k
AL6M-M2l-k
AL6M-M1lP-k
AL6M-M2lP-k
AL6M-A1l-k
AL6M-A2l-k
AL6M-A1lP-k
AL6M-A2lP-k
Square (18mm lens)
SPDT
DPDT
AL6Q-M1l-k
AL6Q-M2l-k
AL6Q-M1lP-k
AL6Q-M2lP-k
AL6Q-A1l-k
AL6Q-A2l-k
AL6Q-A1lP-k
AL6Q-A2lP-k
Standard
Lens
Rectangular (18mm x
24mm lens)
SPDT
DPDT
AL6H-M1l-k
AL6H-M2l-k
AL6H-M1lP-k
AL6H-M2lP-k
AL6H-A1l-k
AL6H-A2l-k
AL6H-A1lP-k
AL6H-A2lP-k
Round (24mm lens)
Square (24mm lens)
SPDT
DPDT
AL6M-M1lP-Mk
AL6M-M2lP-Mk
AL6M-A1lP-Mk
AL6M-A2lP-Mk
–
–
–
–
SPDT
DPDT
AL6Q-M1lP-Qk
AL6Q-M2lP-Qk
AL6Q-A1lP-Qk
AL6Q-A2lP-Qk
Oversize
Lens
Rectangular (18mm x
24mm lens)
SPDT
DPDT
AL6Q-M1lP-Hk
AL6Q-M2lP-Hk
AL6Q-A1lP-Hk
AL6Q-A2lP-Hk
–
–
1. In place of k, specify Lens/LED Color Code from table below.
2. In place of l, specify Voltage Code from table below.
3. Lamps also available in 5V DC, 6V AC/DC or 12 V AC/DC, change “4” using voltage/lamp codes (ie AL6M-M13-kuses 12V AC/DC LED).
4. LED lamp is included in unit and contains a current-limiting resistor and a protection diode. (External resistor not required.)
5. To order as sub-assembled, see page 461.
6. For accessories, see page 466.
7. For dimensions, see page 468.
8. Light independent of switch position.
lVoltage Code
kLens/LED Color Code
Voltage
Code
Color
Code
5V DC
1
2
3
4
Amber
A
6V AC/DC
12V AC/DC
24V AC/DC
Green
G
Red
R
Blue
S
Warm White
Cool White
Yellow
W
JW
Y
www.idec.com
460
16mm A6
Switches & Pilot Devices
AL6 Illuminated Pushbuttons (Sub-Assembled)
Operator
+
LED Lamp
+
Lens
=
Completed Unit
Operators
Part Number
Square
Style
Contact
Operator
Round
Rectangular
Momentary
Maintained
Momentary
Maintained
AL6M-M100
AL6Q-M100
AL6Q-A100
AL6Q-M200
AL6Q-A200
AL6H-M100
AL6 Illuminated Pushbuttons
SPDT
AL6M-A100
AL6M-M200
AL6M-A200
AL6H-A100
AL6H-M200
AL6H-A200
DPDT
Oversize rectangular button uses square operator.
Lenses
Unit
Degree of Protection
Size
Part Number
Dustproof (IP40)
Standard
Oiltight (IP65)
Standard
AL6M-LK2-k
Oversize
AL6M-LK1-k
AL6M-LK2-M k
AL6Q-LK2-Q k
AL6Q-LK2-H k
Round
AL6Q-LK1-k
AL6H-LK1-k
AL6Q-LK2-k
AL6H-LK2-k
Square
Rectangular
1. In place of k, specify Lens Color Code from table below.
2. Lenses which are rated IP65 include a waterproof rubber gasket.
3. For accessories, see page 466.
kLens/LED Color Code
LED Lamps
Color
Code
Appearance
Rated Voltage Part Number
Amber
A
5V DC
LATD-5 k
LATD-6 k
LATD-1 k
LATD-2 k
Green
G
6V AC/DC
12V AC/DC
24V AC/DC
Red
R
Blue
S
Warm White
Cool White
Yellow
W
JW
Y
1. In place of k, specify LED Color Code from table at left.
USA: 800-262-IDEC
Canada: 888-317-IDEC
461
16mm A6
Switches & Pilot Devices
AL6 Pilot Lights (Assembled)
LED Pilot Lights
Part Number
Description
Dustproof (IP40)
Oiltight (IP65)
Round (18mm Lens)
AL6M-Pl-k
AL6Q-Pl-k
AL6H-Pl-k
AL6M-PlP-k
Square (18mm Lens)
AL6Q-PlP-k
AL6H-PlP-k
Rectangular (18mm x 24mm Lens)
1. In place of k, specify Lens Color Code from table below.
2. In place of l, specify Voltage Code from table below.
3. LEDs also available in 5V DC, 6V AC/DC or 12 V AC/DC, change “4” using voltage codes (ie AL6M-P3-k uses
12V AC/DC LED).
4. LED is included and contains built-in current limiting resistor and reverse polarity protection diode. (no
external resistor required)
5. To order sub-assembled, see page 463.
6. For accessories, see page 466.
7. For dimensions, see page 468.
8. For one piece pilot lights and/or dome lens pilot lights, see AP series miniature pilot lights.
lVoltage Code
kLens/LED Color Code
Voltage
Code
Color
Code
5V DC
1
2
3
4
Amber
A
6V AC/DC
12V AC/DC
24V AC/DC
Green
G
Red
R
Blue
S
Warm White
Cool White
Yellow
W
JW
Y
www.idec.com
462
16mm A6
Switches & Pilot Devices
AL6 Pilot Lights (Sub-Assembled)
Operator
+
LED Lamp
+
Lens
=
Completed Unit
Operators
Part Number
Square
Style
Round
Rectangular
AL6 Pilot Lights
AL6M-P00
AL6Q-P00
AL6H-P00
Lenses
Part Number
Degree of Protection
Dustproof IP40
Oiltight IP65
AL6M-LK1-k
AL6M-LK3-k
AL6Q-LK3-k
AL6H-LK3-k
Round
AL6Q-LK1-k
Square
AL6H-LK1-k
Rectangular
1. In place of k, specify Lens Color Code from table below.
2. Lenses which are rated IP65 include a waterproof rubber gasket.
3. For accessories, see page 466.
kLens/LED Color Code
LED Lamps
Color
Code
Appearance
Rated Voltage
Part Number
LATD-5 k
LATD-6 k
LATD-1 k
LATD-2 k
Amber
A
5V DC
Green
G
6V AC/DC
12V AC/DC
24V AC/DC
Red
R
Blue
S
Warm White
Cool White
Yellow
W
JW
Y
1. In place of k, specify LED Color Code from table at left.
USA: 800-262-IDEC
Canada: 888-317-IDEC
463
16mm A6
Switches & Pilot Devices
AS6 Selector and Keylock Switches
AS6 Selector Switches and Keylock Switches (2 & 3 Position)
Contact Operations
(for all selectors)
Style
Function
Knob
Key
Operator Position
Contents
L
L
R
R
& Contact Operation
Maintained
AS6M-2Y2P
AS6M-2KT2Pj
Round Selector
Left
Right
Contact Contact
NO NC NO NC
Spring Return
Right
AS6M-21Y2P
AS6M-3Y2P
AS6M-31Y2P
AS6M-32Y2P
AS6M-21KT2PB
AS6M-3KT2Pj
AS6M-31KT2Pj
AS6M-32KT2Pj
Left
C
C
C
C
C
L
L
L
Maintained
R
R
R
2-pos. (DPDT)
Left
Right
Contact Contact
NO NC NO NC
Round Keylock
Spring Return
Right gCenter
Right
Left
C
C
Spring Return
Left gCenter
Left
Right
Contact Contact
NO NC NO NC
C
2-Way
ReturngCenter
L
L
AS6M-33Y2P
AS6Q-2Y2P
AS6Q-21Y2P
AS6M-33KT2PD
AS6Q-2KT2Pj
AS6Q-21KT2PB
R
R
C
C
Left
Right
Contact Contact
NO NC NO NC
Maintained
Square Selector
Square Keylock
3-pos. (DPDT)
Center
Right
Spring Return to
Right
L
C
C
R
Left
Right
Contact Contact
NO NC NO NC
C
C
C
L
L
L
Maintained
AS6Q-3Y2P
AS6Q-31Y2P
AS6Q-32Y2P
AS6Q-3KT2Pj
AS6Q-31KT2Pj
AS6Q-32KT2Pj
R
R
R
C
C
Spring Return
RightgCenter
jKey Retention Codes
Spring Return
Left gCenter
Code
Description
Key not retained in any position
(removable in all positions)
C
A
2-Way
ReturngCenter
L
L
AS6Q-33Y2P
AS6H-2Y2P
AS6H-21Y2P
AS6Q-33KT2PD
AS6H-2KT2Pj
AS6H-21KT2PB
R
R
B
C
Key retained in right position only
Key retained in left position only
Maintained
Rectangular Selector
Rectangular Keylock
Key retained in left and right
(3 position only)
D
E
Spring Return
Right
L
R
Key retained in center only
(3 position only)
C
C
C
L
L
L
Maintained
AS6H-3Y2P
AS6H-31Y2P
AS6H-32Y2P
AS6H-33Y2P
AS6H-3KT2Pj
AS6H-31KT2Pj
AS6H-32KT2Pj
AS6H-33KT2PD
R
R
R
Key retained right and center
(3 position only)
G
H
Spring Return
Right gCenter
Key retained left and center
(3 position only)
Key cannot be removed in a spring return
position.
Spring Return
LeftgCenter
C
2-Way
ReturngCenter
L
R
1. All models are IP65 and DPDT.
2. In place of j, specify Key Retention Code. See table on right.
3. Available as assembled units only.
4. For accessories, see page 466.
5. For dimensions, see page 468.
www.idec.com
464
16mm A6
Switches & Pilot Devices
Switch Engraving Order Form – A6 Series
Copy this order form and use it to specify Letter Height, Maximum Number of Lines and Text to be engraved.
To insure engraving accuracy, fax it to your IDEC representative or Distributor.
Your Company:
Name:
Telephone:
Fax:
Email:
Address:
PO:
Part Number to be Engraved:
Please check one of the boxes below to indicate your choice of engraving options:
Round
Switch
Rectangular
Switch
Square
Switch
# of
Lines
Letter
Height
Max. Characters
Per Line
Letter
Height
Max. Characters
Per Line
# of
Letter
Max. Characters
Per Line
# of Lines
Lines Height
1
2
5/32
5/32
1/8
6
1
5/32
5
5/32
3
1
6
5/32
1/8
5
1/8
3
2
6
6
6
2
3
4
5/32
1/8
Custom*
Custom*
Custom*
3
4
1/8
3
4
1/8
6
N/A
N/A
3/32
*Engraving is possible, but character size will be
smaller than standard sizes.
1. Engraving is done on the button itself for non-Illuminated pushbuttons and on marking plate for illuminated pushbuttons and pilot lights.
2. Please enter text exactly how you want it engraved, take care to emphasize capital or small letters.
Enter text to be engraved:
Sample Letter Sizes
1/8 Letters:
Line 1:
Line 2:
Line 3:
Line 4:
5/32 Letters:
For IDEC Internal Use Only:
Work Order #:
USA: 800-262-IDEC
Canada: 888-317-IDEC
465
16mm A6
Switches & Pilot Devices
Accessories
Appearance
Description
Used With
Part Number
Ø 5/8” (16mm) units
MT-001
MT-002
Locking Ring
Wrench
Made of metal. Used for tightening plastic locking ring during
installation. Tightening torque should not exceed 3kgf-cm
Ø 31/64” (12mm) AP2M units
Ø 13/32” (10mm) AP1M units
MT-003
Made of metal. Used for removing lens or button from the
housing
Lens Removal Tool
Lamp Holder Tool
All pushbuttons and pilot lights
MT-101
Made of rubber. Used for removing and replacing LED lamps
in illuminated units
All illuminated pushbuttons and pilot
lights
OR-77
Round/Square
Rectangular
Round/Square
Rectangular
AL-K6
Prevents inadvertent switch operation. IP40 dust-tight.
90 degrees opening maintained
AL-KH6
AL-K6SP
AL-KH6SP
Switch Guard
Prevents inadvertent switch operation. IP65 oiltight
180 degrees opening, spring return
Terminal Cover
Dust Cover
Made of translucent nylon. Fits over and shields the terminals All 5/8” (16mm) units
All round units
AL-V6
AL-D6
All square units
AL-DQ6
Fits over the lens or button to provide extra protection from
dust (not applicable for oversize lenses or buttons).
All rectangular units
AL-DH6
AL-C6
Plug-on terminal adaptor with solder terminals
Plug-on terminal adaptor with PCB terminals
Adaptor Socket
All 5/8” (16mm) units
AL-C6V
Fills unused panel cutouts. Made of nitrile rubber. Push-in
installation from front of panel. IP65 (oiltight).
Rubber
AL-B6
Fills unused panel cutouts. Made of aluminum. Screw-on
locking ring from inside of panel. IP65 (oiltight).
Aluminum
AL-BM6
Mounting Hole Plug
Round Mounting Hole Plug
Square Mounting Hole Plug
Rectangular Mounting Hole Plug
LA9Z-BS6
LA9Z-BS7
LA9Z-BS8
LATD-5 k
LATD-6 k
LATD-1 k
LATD-2 k
Plastic (Applicable for flush mount
switches only)
5V DC
6V AC/DC
12V AC/DC
24V AC/DC
Replacement
LED Lamps
LED with built in current limiting resistor (with all
illuminated assemblies).
Replacement
Locking Ring
Fastens operators to panel (included with
all operators).
All switches & pilot lights
All switches & pilot lights
HA9Z-LN
Prevents rotation of switches in panel
(included with all operators).
Anti-Rotation Ring
AL6-LP
Round standard
AL6M-W
AL6Q-W
Square standard
Replacement
Engraving Inserts
Engraving plates to allow legends underneath translucent
lenses (included with all lenses).
Rectangular standard
Round oversize
AL6H-W
AL6M-MW
AL6Q-QW
Square/rectangular oversize
Pair of keys (#132).
All key switches use same standard key.
Replacement Keys
All key selectors
AS6-SK
1. In place of kspecify color code. A=Amber, G=Green, Y=Yellow, R=Red, S=Blue, W=Warm White, JW=Cool White.
2. LEDs include built-in current limiting resistor and reverse polarity protection diode.
www.idec.com
466
16mm A6
Switches & Pilot Devices
Appearance
Description
Used With
Part Number
Pushbuttons, pilot lights, illuminated
pushbutton, selector switches, key
selector switches and illuminated selec-
tor switches.
ø24mm round, metal (aluminum color), panel cut-out ø20.2mm
LA9Z-SM61
ø24mm round, plastic (black), square panel cut-out ø20.2mm
24mm square, plastic (black), panel cut-out 20.2 x 20.2mm
LA9Z-S61B
LA9Z-S71B
A6 Switch
Flush Bezel
+
Flush Bezel
24 x 30mm rectangular, plastic (black), rectangular
panel cut-out ø20.2 x 26.2mm
LA9Z-S81B
LA9Z-KS8
=
Switch Guard
w/ Flush Bezel
(spring return)
Rectangular, plastic (black)
Flush Switch
Schematics — A Series: 5/8” (16mm)
Terminal Arrangement (Top View)
Non-illuminated Pushbuttons and
Selector Switches
Illuminated Pushbuttons
Pilot Lights
(TOP)
(TOP)
NC1
(TOP)
(TOP)
(TOP)
NC1
NC1 NC2
NC1 NC2
NO1
C1
NO1 NO2
NO1 NO2
NO1
C1
Lamp
Terminal (+)
Lamp
Terminal (–)
C1
C2
Lamp
Lamp
C1
C2
Lamp
Lamp
Terminal (+)
Terminal (–)
Terminal (+)
Terminal (–)
SPDT Contact
(Single-pole/Double Throw)
DPDT Contact
(Double-pole/Double Throw)
SPDT Contact
(Single-pole/Double
Throw)
DPDT Contact
(Double-pole/Double
Throw)
IDEC’s Superbright LED Internal Circuits
LATD-1,-2,-6 (GS)
LATD-5 (ARWY)
LED Chip
Protective Diode
Zener Diode
LATD-1,-2,-6 (ARWY)
LATD-5 (GS)
USA: 800-262-IDEC
Canada: 888-317-IDEC
467
16mm A6
Switches & Pilot Devices
Dimensions (mm)
Pushbuttons, Ø 5/8” (16mm)
Rubber Gasket
Anti-rotation Ring
Locking Ring
Panel Thickness 0.5 to 6
Rectangular
Terminal Width 2.8×0.5t
ø18
Round
5.7
Square
2.5
3
(
)
TOP
(
)
(
)
TOP
TOP
1
0.6
9
24
18
8
22
9
Oversize Lens
Rubber Gasket
Anti-rotation Ring
Panel Thickness 0.5 to 6
Teminal Width 2.8×0.5t
2.5
Rectangular
Round
( )
TOP
Square
Locking Ring
(
)
(
)
TOP
TOP
3
6
6
1
0.6
9
23.5
0.6
9
0.6
8
22
15.5
15.5
12.5
Selector Switches, Ø 5/8” (16mm)
Panel Thickness 0.5 to 6
Rubber Gasket
Terminal Width 2.8×0.5t
2.5
Anti-rotation Ring
Rectangular
Square
Round
3
(
)
(
)
(
)
TOP
TOP
TOP
Locking Ring
8
1
8
22
15.5
24
c18
Key Selector Switches, Ø 5/8” (16mm)
Right Contact
Left Contact
Rubber Gasket
Rectangular
Square
Round
Anti-rotation Ring
Panel Thickness 0.5 to 6
Terminal Width 2.8×0.5t
(
)
(
)
(
)
TOP
TOP
TOP
Locking Ring
2.5
3
NC
NO
C
1
8
22
26
24
18
ø18
www.idec.com
468
16mm A6
Switches & Pilot Devices
Switch Guard, Ø 5/8” (16mm)
Panel Thickness
0.5 to 5
34
Panel Thickness
0.5 to 5
32
18
24
Rubber Gasket
28
Rubber Gasket
28
14
14
(
(
180° opening type)
90°/110° opening type)
19 minimum
25 minimum
Panel Thickness
0.5 to 5
34
Waterproof Gasket
for Switch Guard
18
24
Rubber
Gasket
0.4
28
14
19 min.
25 min.
Flush Bezel
Flush Bezel with Switch
Panel Thickness 0.5 to 5
Mounting
Bracket
Flush
Bezel
Gasket
Plastic
Metal
Round
1
0.9
0.8
9.8
8
29
2
8.5
8.5
2
2
Square
Selector Switches
Illuminated &
Non-illuminated
Key
Lever
Rectangular
2
8.5
2
2
17
24
30
18.1
9.3
2
Flush Bezel Mounting Hole Layout
Round Square
Rectangular
26.2+–0.2
20.2+–0.2
0.1
0.1
30 min.∗
24 min.∗
24 min.∗
USA: 800-262-IDEC
Canada: 888-317-IDEC
469
16mm A6
Switches & Pilot Devices
Terminal Sockets
Terminal 1.5×0.3t
33.5
8-1.6+0.3
2.5
0
Holes
3
TOP
33.5
2.5
3
(
)
TOP
NC1 NC2
NO1 NO2
C1 C2
16.2
7.5
6
6
16.2
3.8
6
6
Lamp
Terminal (+)
Lamp
Terminal ( )
–
PC Board
Mounting Hole Layout
(Bottom View)
Solder Terminal Type
PC Board Terminal Type
Terminal Arrangement
(Bottom View)
(
)
(
)
AL-C6
AL-C6V
Dust Covers
Panel Cut-Outs For Units w/Dust Cover
AL-D6, Round
AL-DQ6, Square
AL-DH6, Rectangular
Round/Square
Rectangular
ø16.2 +0.2
0
ø16.2 +0.2
0
c
30
ø24
24
30 min.
24 min.
Waterproof Gasket
for Dust Cover
Waterproof Gasket
for Dust Cover
Waterproof Gasket
for Dust Cover
Marking Plates
Pushbuttons with Standard Size Lens
Pushbuttons with Oversize Lens
Style
Round—AL6M-W Square—AL6Q-W Rectangular—AL6H-W
Style
Round—AL6M-MW
Square/Rectangular—AL6Q-QW
2
OD
øa
øOD
Engraving
Area
Marking
Area
Engraving
Area
❏OD
❏a
Marking
Dimensions
øa
c
a
Dimensions
2
a
Marking
Area
Area
Ø 5/8” (16mm)
(13.8mm)
(12mm)
Outside (OD)
Ø 0.491” (12.6mm)
Ø 0.429” (11mm)
0.491” (12.6mm)
0.429” (11mm)
(OD1 x OD2)13.8 x
19.8mm
Marking Area
(a)
Outside (OD)
(13.8mm)
(12mm)
Marking Area
(a)
(a1xa2) 12 x 18mm
Engraving must be made on the engraving area within 0.02” (0.5mm) deep.
Replacing & and Marking Plate
Installation
Removal
Remove the lens holder assembly (lens, marking plate and holder) from the opera- For illuminated pushbuttons:
tor by holding the color lens recesses with the lens removal tool (Part No.MT-101) 1. Insert marking plate inside lens in correct direction
and pulling out. Remove marking plate by pushing the color lens from the rear to
disengage the latches. Marking plate must be engraved on the side as shown in
2. Press color lens on to lens holder to engage latches.
3. Insert lens holder into housing in correct direction.
Do not loosen spring on illuminated pushbutton units (except on pilot light units). The
marking plate must be engraved on the front side as shown above.
the figure on the right.
Ø 5/8” (16mm)
Fitting Grooves
Grooves
Engraving
Surface
Color Lens
Marking Plate Lens Holder
www.idec.com
470
厂商 型号 描述 页数 下载

ETC

 		UZ6-12 [ A6 Series Miniature Switches and Pilot Devices 16mm ] 14 页

ETC

 		UZ6.2BS 低反向漏电流，低阻抗齐纳[ Low reverse leakage, Low zener impedance ] 4 页

ETC

 		UZ6.8BS 低反向漏电流，低阻抗齐纳[ Low reverse leakage, Low zener impedance ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220247s
