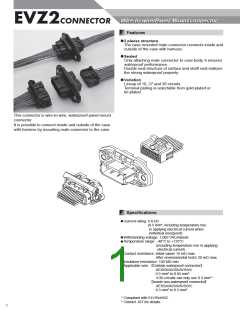

Wire-to-wire/Panel Mount connector
Wire-to-wire/Panel Mount connector
CONNECTOR
EVZ2
Features
3 pieces structure
The case mounted male connector connects inside and
outside of the case with harness.
●
Sealed
●
Only attaching male connector to case body, it ensures
waterproof performance.
Double seal structure of surface and shaft seal realizes
the strong waterproof property.
Variation
●
Lineup of 10, 27 and 36 circuits.
Terminal plating is selectable from gold-plated or
tin-plated.
This connector is wire-to-wire, waterproof panel mount
connector.
It is possible to connect inside and outside of the case
with harness by mounting male connector to the case.
Specifications
Current rating: 5 A DC
●
(0.5 mm², including temperature rise
in applying electrical current when
individual energized)
Withstanding voltage: 1,000 VAC/minute
●
Temperature range: -40°C to +125°C
●
(including temperature rise in applying
electrical current)
Contact resistance: Initial value/ 10 mΩ max.
●
After environmental tests/ 20 mΩ max.
Insulation resistance: 100 MΩ min.
Applicable wire:քOutside waterproof connectorօ
AESSX/AVSS/AVSSH;
●
●
0.5 mm² to 0.85 mm²
˥36 circuits can only use 0.3 mm²~
քInside non-waterproof connectorօ
AESSX/AVSS/AVSSH;
0.3 mm² to 0.5 mm²
* Compliant with ELV/RoHS2.
* Contact JST for details.
