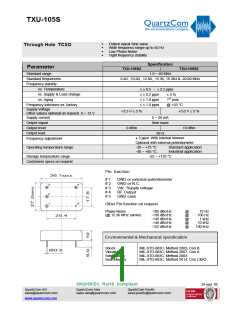

TXU-105S
ꢀ
ꢀ
ꢀ
ꢀ
Output signal Sine wave
Wide frequency range up to 40 Hz
Low Phase Noise
Through Hole TCXO
Tight frequency stability
Specification
Parameter
TXU-105S3
TXU-105S5
Standard range
1.0 ~ 40 MHz
Standard frequencies
Frequency stability:
vs. Temperature
6.40, 10.00, 12.80, 15.36, 16.384 & 20.00 MHz
≤ ± 0.5 ~ ± 2.5 ppm
vs. Supply & Load change
vs. Aging
≤ ± 0.2 ppm
≤ ± 1.0 ppm
≤ ± 1.0 ppm
± 5 %
1st year
Frequency tolerance ex. factory
@ +25 °C
Supply voltage
Other values optional on request 9 ~ 12 V
+3.3 V ± 5 %
+5.0 V ± 5 %
Supply current
Output signal
5 ~ 20 mA
Sine wave
Output level
0 dBm
10 dBm
Output load
50 Ω
± 5 ppm With internal trimmer
Frequency adjustment
Optional with external potentiometer
-20 ~ +75 °C
-40 ~ +85 °C
Standard application
Industrial application
Operating temperature range
Storage temperature range
Customers specs on request
-55 ~ +125 °C
Pin function
# 1
# 2
# 3
# 4
# 5
GND or external potentiometer
GND or N.C.
Vdc Supply voltage
RF Output
GND case
Other Pin function on request
Phase Noise
(@ 15.36 MHz carrier)
-100 dBc/Hz
@
@
@
@
@
10 Hz
100 Hz
1 kHz
10 kHz
100 kHz
-130 dBc/Hz
-145 dBc/Hz
-148 dBc/Hz
-152 dBc/Hz
Environmental & Mechanical specification
Shock
MIL-STD-883C, Method 2002, Con B
Vibration
Solderability
Seal integrity
MIL-STD-883C, Method 2007, Con A
MIL-STD-883C, Method 2003
MIL-STD-883C, Method 2014, Con C&A2
2002/95/EC RoHS compliant
29 sept. 09
