8V31012NLGI

型号：

8V31012NLGI

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

17 页

PDF大小：

455 K

下载PDF手册

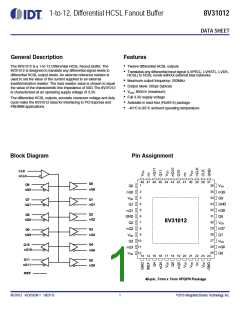

1-to-12, Differential HCSL Fanout Buffer
8V31012
DATA SHEET
General Description
Features
The 8V31012 is a 1-to-12 Differential HCSL Fanout Buffer. The
8V31012 is designed to translate any differential signal levels to
differential HCSL output levels. An external reference resistor is
used to set the value of the current supplied to an external
load/termination resistor. The load resistor value is chosen to equal
the value of the characteristic line impedance of 50. The 8V31012
is characterized at an operating supply voltage of 3.3V.
• Twelve differential HCSL outputs
• Translates any differential input signal (LVPECL, LVHSTL, LVDS,
HCSL) to HCSL levels without external bias networks
• Maximum output frequency: 250MHz
• Output skew: 265ps (typical)
• VOH: 850mV (maximum)
• Full 3.3V supply voltage
• Available in lead-free (RoHS 6) package
• -40°C to 85°C ambient operating temperature
The differential HCSL outputs, accurate crossover voltage and duty
cycle make the 8V31012 ideal for interfacing to PCI Express and
FBDIMM applications.
Block Diagram
Pin Assignment
CLK
nCLK
48 47 46 45 44 43 42 41 40 39 38 37
Q0
Q6
nQ6
36
35
34
33
32
31
30
29
28
27
26
25
1
VDD
nQ9
Q9
Q0
nQ0
VDD
Q1
nQ0
2
3
Q1
nQ1
Q7
nQ7
4
GND
nQ8
Q8
5
nQ1
GND
Q2
Q2
nQ2
Q8
nQ8
6
8V31012
7
VDD
nQ7
Q7
8
nQ2
VDD
Q3
Q3
Q9
nQ9
9
nQ3
10
11
12
VDD
nQ6
Q6
Q4
Q10
nQ10
nQ3
VDD
nQ4
13 14 15 16 17 18 19 20 21 22 23 24
Q11
Q5
nQ11
nQ5
IREF
48-pin, 7mm x 7mm VFQFN Package
8V31012 REVISION 1 10/21/15
1
©2015 Integrated Device Technology, Inc.
8V31012 DATA SHEET
Pin Description and Pin Characteristic Tables
Table 1. Pin Descriptions
Number
Name
Q0
Type
Output
Output
Power
Output
Output
Power
Output
Output
Power
Output
Output
Power
Power
Description
1
2
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
nQ0
VDD
Q1
3
4
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply ground.
5
nQ1
GND
Q2
6
7
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
8
nQ2
VDD
Q3
9
10
11
12
13
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
nQ3
VDD
GND
Power supply ground.
External fixed precision resistor (950) from this pin to ground provides a reference current
used for differential current-mode Qx, nQx clock outputs.
14
IREF
Input
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Q4
nQ4
VDD
Q5
Output
Output
Power
Output
Output
Power
Power
unused
Power
Power
Output
Output
Power
Output
Output
Power
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
nQ5
VDD
VDD
nc
Power supply pin.
No connect.
VDD
GND
Q6
Power supply pin.
Power supply ground.
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
nQ6
VDD
Q7
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
nQ7
VDD
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
2
REVISION 1 10/21/15
8V31012 DATA SHEET
Table 1. Pin Descriptions
Number
31
Name
Q8
Type
Output
Output
Power
Output
Output
Power
Power
Input
Description
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply ground.
32
nQ8
GND
Q9
33
34
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
35
nQ9
VDD
GND
CLK
nCLK
VDD
nc
36
37
Power supply ground.
38
Non-inverting differential input.
39
Input
Inverting differential clock input.
40
Power
unused
Output
Output
Power
Output
Output
unused
Power
Power supply pin.
41
No connect.
42
Q10
nQ10
VDD
Q11
nQ11
nc
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
Power supply pin.
43
44
45
Differential output pair. Differential HCSL interface levels.
Differential output pair. Differential HCSL interface levels.
No connect.
46
47
48
VDD
Power supply pin.
Output Driver Current
The 8V31012 outputs are HCSL differential current drive with
the current being set with a resistor from IREF to ground. For
a single load and a 50PC board trace, the drive current would
typically be set with a RREF of 950which products an IREF of 1.16mA.
The IREF is multiplied by a current mirror to an output drive of
12*1.16mA or 13.90mA. See Figure 1 for current mirror and output
drive details.
IREF
RREF
950Ω
RL
RL
Figure 1. HCSL Current Mirror and Output Drive
REVISION 1 10/21/15
3
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. 
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond 
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for 
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VDD
Inputs, VI
4.6V
-0.5V to VDD + 0.5V
-0.5V to VDD + 0.5V
125°C
Outputs, IO
Maximum Junction Temperature
Storage Temperature, TSTG
-65C to 150C
DC Electrical Characteristics
Table 2A. Power Supply DC Characteristics, VDD = 3.3V 5%, TA = -40°C to 85°C
Symbol Parameter
VDD Core Supply Voltage
IDD Power Supply Current
Test Conditions
Minimum
Typical
Maximum
3.465
Units
V
3.135
3.3
Output Unterminated
105
mA
Table 2B. Differential DC Characteristics, VDD = 3.3V 5%, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input
IIH
CLK, nCLK
CLK, nCLK
VDD = VIN = 3.465V
5
µA
High Current
Input
IIL
VDD = 3.465V, VIN = 0V
5
µA
Low Current
VPP
Peak-to-Peak Voltage1
0.15
1.3
V
V
VCMR
Common Mode Input Voltage1, 2
GND + 0.5
VDD – 0.85
NOTE 1. VIL should not be less than -0.3V.
NOTE 2. Common mode input voltage is defined as VIH.
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
4
REVISION 1 10/21/15
8V31012 DATA SHEET
AC Electrical Characteristics
1, 2, 3
Table 3. HCSL AC Characteristics, VDD = 3.3V 5%, TA = -40°C to 85°C
Symbol
fMAX
Parameter
Test Conditions
Minimum
Typical
Maximum
250
Units
MHz
ns
Output Frequency
Propagation Delay4
Output Skew5, 6
Part-to-Part Skew6, 7
tPD
Measured on at VOX
Measured on at VOX
2.35
265
335
2.75
tsk(o)
tsk(pp)
395
ps
ps
Buffer Additive Phase Jitter, RMS; refer
to Additive Phase Jitter Section
CLK = 200MHz, Integration
Range: 12kHz – 30MHz
tjit
0.15
ps
VMAX
Absolute Max Output Voltage8
Absolute Min Output Voltage8
Absolute Crossing Voltage9, 10, 11
ƒ 150MHz
ƒ 150MHz
500
-150
250
850
150
550
mV
mV
mV
VMIN
VCROSS
Total Variation of VCROSS over all
edges9, 10, 12
VCROSS
140
mV
Rise/Fall Edge Rate13, 14
Rise/Fall Time Matching15
Output Duty Cycle16
0.6
45
4.0
20
55
V/ns
%
odc
%
NOTE 1. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device
is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
NOTE 2. Current adjust set for VOH = 0.7V. Measurements refer to PCIEX outputs only.
NOTE 3. Characterized using an RREF value of 950resistor.
NOTE 4. Measured from the differential input cross point to the differential output crossing point.
NOTE 5. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential output
cross point.
NOTE 6. This parameter is defined in accordance with JEDEC Standard 65.
NOTE 7. Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross point.
NOTE 8. Measurement using RREF = 950, RLOAD = 50.
NOTE 9. Measurement taken from single-ended waveform.
NOTE 10. Measured at crossing point where the instantaneous voltage value of the rising edge of Qx equals the falling edge of nQx.
See Parameter Measurement Information Section.
NOTE 11. Refers to the total variation from the lowest crossing point to the highest, regardless of which edge is crossing. Refers to all crossing
points for this measurement. See Parameter Measurement Information Section.
NOTE 12. Defined as the total variation of all crossing voltage of rising Qx and falling nQx. This is the maximum allowed variance in the
VCROSS for any particular system. See Parameter Measurement Information Section.
NOTE 13. Measurement taken from differential waveform.
NOTE 14. Measurement from -150mV to +150mV on the differential waveform (derived from Qx minus nQx). The signal must be monotonic
through the measurement region for rise and fall time. The 300mV measurement window is centered on the differential zero crossing.
NOTE 15. Matching applies to rising edge rate for Qx and falling edge rate for nQx. It is measured using a 75mV window centered on the
median cross point where Qx rising meets nQx falling.
NOTE 16. Assuming 50% input duty cycle. Data taken at ƒ200MHz, unless otherwise specified.
REVISION 1 10/21/15
5
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise
floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
The additive phase jitter for this device was measured using a
Stanford Research Systems CG635 input source and an Agilent
E5052 phase noise analyzer.
REVISION 1 10/21/15
6
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
Applications Information
Recommendations for Unused Output Pins
Outputs:
Differential Outputs
All unused differential outputs can be left floating. We recommend
that there is no trace attached. Both sides of the differential output
pair should either be left floating or terminated.
Wiring the Differential Input to Accept Single-Ended Levels
Figure 2 shows how a differential input can be wired to accept single
ended levels. The reference voltage V1= VDD/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help
filter noise on the DC bias. This bias circuit should be located as close
to the input pin as possible. The ratio of R1 and R2 might need to be
adjusted to position the V1in the center of the input voltage swing. For
example, if the input clock is driven from a single-ended 2.5V
LVCMOS driver and the DC offset (or swing center) of this signal is
1.25V, the R1 and R2 values should be adjusted to set the V1 at
1.25V. The values below are for when both the single ended swing
and VDD are at the same voltage. This configuration requires that the
sum of the output impedance of the driver (Ro) and the series
resistance (Rs) equals the transmission line impedance. In addition,
matched termination at the input will attenuate the signal in half. This
can be done in one of two ways. First, R3 and R4 in parallel should
equal the transmission line impedance. For most 50applications,
R3 and R4 can be 100. The values of the resistors can be increased
to reduce the loading for slower and weaker LVCMOS driver. When
using single-ended signaling, the noise rejection benefits of
differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the
amplitude be reduced while maintaining an edge rate faster than 
1V/ns. The datasheet specifies a lower differential amplitude,
however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less
than -0.3V and VIH cannot be more than VDD + 0.3V. Though some
of the recommended components might not be used, the pads
should be placed in the layout. They can be utilized for debugging
purposes. The datasheet specifications are characterized and
guaranteed by using a differential signal.
Figure 2. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
REVISION 1 10/21/15
7
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
Differential Clock Input Interface
The CLK/nCLK accepts HCSL, LVDS, LVPECL and LVHSTL and
other differential signals. Both differential signals must meet the VPP
and VCMR input requirements. Figure 3A to Figure 3E show interface
examples for the CLK, nCLK input driven by the most common driver
types. The input interfaces suggested here are examples only.
Please consult with the vendor of the driver component to confirm the
driver termination requirements. For example in Figure 3A, the input
termination applies for IDT open emitter LVHSTL drivers. If you are
using an LVHSTL driver from another vendor, use their termination
recommendation.
3.3V
1.8V
Zo = 50Ω
CLK
Zo = 50Ω
nCLK
Differential
Input
LVHSTL
R1
50Ω
R2
50Ω
IDT
LVHSTL Driver
Figure 3A. CLK/nCLK Input Driven by an IDT
Open Emitter LVHSTL Driver
Figure 3D. CLK/nCLK Input Driven by a 
3.3V LVPECL Driver
3.3V
3.3V
3.3V
3.3V
R3
125
R4
125
3.3V
Zo = 50Ω
Zo = 50Ω
Zo = 50Ω
CLK
CLK
R1
100
nCLK
nCLK
Zo = 50Ω
Differential
Input
LVPECL
Differential
Input
LVDS
R1
84
R2
84
Figure 3B. CLK/nCLK Input Driven by a 
Figure 3E. CLK/nCLK Input Driven by a 3.3V LVDS Driver
3.3V LVPECL Driver
3.3V
3.3V
*R3
CLK
nCLK
Differential
Input
*R4
HCSL
Figure 3C. CLK/nCLK Input Driven by a
3.3V HCSL Driver
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8
REVISION 1 10/21/15
8V31012 DATA SHEET
Recommended Termination
Figure 4A is the recommended source termination for applications
where the driver and receiver will be on a separate PCBs. This
termination is the standard for PCI Express™and HCSL output types.
All traces should be 50Ω impedance single-ended or 100Ω
differential.
Rs
0.5" Max
L1
0-0.2"
L2
1-14"
L4
0.5 - 3.5"
L5
22 to 33 +/-5%
L1
L2
L4
L5
PCI Express
Connector
PCI Express
Driver
PCI Express
Add-in Card
0-0.2" L3
L3
49.9 +/- 5%
Rt
Figure 4A. Recommended Source Termination (where the driver and receiver will be on separate PCBs)
Figure 4B is the recommended termination for applications where a
point-to-point connection can be used. A point-to-point connection
contains both the driver and the receiver on the same PCB. With a
matched termination at the receiver, transmission-line reflections will
be minimized. In addition, a series resistor (Rs) at the driver offers
flexibility and can help dampen unwanted reflections. The optional
resistor can range from 0Ω to 33Ω. All traces should be 50Ω
impedance single-ended or 100Ω differential.
Rs
0.5" Max
L1
0-18"
L2
0-0.2"
L3
0 to 33
0 to 33
L1
L2
L3
PCI Express
Driver
49.9 +/- 5%
Rt
Figure 4B. Recommended Termination (where a point-to-point connection can be used)
REVISION 1 10/21/15
9
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 5. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, refer to the Application Note
on the Surface Mount Assembly of Amkor’s Thermally/Electrically
Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
SOLDER
EXPOSED HEAT SLUG
PIN
PIN
LAND PATTERN
(GROUND PAD)
PIN PAD
GROUND PLANE
PIN PAD
THERMAL VIA
Figure 5. Assembly for Exposed Pad Thermal Release Path - Side View (drawing not to scale)
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
10
REVISION 1 10/21/15
8V31012 DATA SHEET
Power Considerations
This section provides information on power dissipation and junction temperature for the 8V31012. 
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8V31012 is the sum of the core power plus the power dissipated in the load(s). 
The following is the power dissipation for VDD = 3.3V + 5% = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
Power (core)MAX = VDD_MAX * (IDD_MAX) = 3.465V *(105mA) = 363.825mW
•
Power (outputs)MAX = 44.5mW/Loaded Output pair
If all outputs are loaded, the total power is 12 * 44.5mW = 534mW
Total Power_MAX = (3.465V, with all outputs switching) = 363.825mW + 534mW = 897.825mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 29°C/W per Table 4 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.898W *29°C/W = 111°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 4. Thermal Resistance for 48Lead VFQFN, E-Pad, Forced Convection
JA
JA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
29.0°C/W
25.4°C/W
22.7°C/W
REVISION 1 10/21/15
11
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
3. Calculations and Equations.
The purpose of this section is to calculate power dissipation on the IC per HCSL output pair.
HCSL output driver circuit and termination are shown in Figure 6.
VDDO
IOUT = 17mA
VOUT
RREF
=
475Ω 1%
RL
50Ω
IC
Figure 6. HCSL Driver Circuit and Termination
HCSL is a current steering output which sources a maximum of 17mA of current per output. To calculate worst case on-chip power dissipation,
use the following equations which assume a 50load to ground.
The highest power dissipation occurs when VDDO MAX.
_
Power = (VDDO_MAX – VOUT) * IOUT
,
since VOUT – IOUT * RL
= (VDDO_MAX – IOUT * RL) * IOUT
= (3.465V – 17mA * 50) * 17mA
Total Power Dissipation per output pair = 44.5mW
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
12
REVISION 1 10/21/15
8V31012 DATA SHEET
Reliability Information
Table 5. JA vs. Air Flow Table for a 48 Lead VFQFN, E-Pad, Forced Convention
JA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
29.0°C/W
25.4°C/W
22.7°C/W
Transistor Count
The transistor count for 8V31012 is: 843
REVISION 1 10/21/15
13
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
48-Lead VFQFN (NL) Package Outline and Package Dimensions
1
Table 6. Package Dimensions for 48-Lead Package
DIMENSIONS
SYMBOL
MIN
NOM
7.00 BSC
7.00 BSC
5.65
MAX
D
E
D2
E2
L
5.50
5.50
0.35
5.80
5.80
0.45
5.65
0.40
e
0.50 BSC
48
N
A
0.80
0.00
0.85
0.90
0.05
A1
A3
b
0.02
0.2 REF
0.25
0.18
0.30
NOTE 1. The drawing and dimension data originates from IDT
Package Outline Drawing PSC-4203, Rev 04.
All dimensions are in millimeters. All angles are in
degrees.
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
14
REVISION 1 10/21/15
8V31012 DATA SHEET
Package Outline and Package Dimensions (Continued)
RECOMMENDED LAND PATTERN
NOTE:
THE RECOMMENDED LAND PATTERN ORIGINATES FROM IDT PACKAGE
OUTLINE DRAWING PSC‐4203, REV04.
1. ALL DIMENSIONS ARE IN MILLIMETERS. ANGLES ARE IN
DEGREES.
2. TOP DOWN VIEW. AS VIEWED ON PCB.
3. COMPONENT OUTLINE SHOW FOR REFERENCE IN BLACK.
4. LAND PATTERN IN BLUE. NSMD PATTERN ASSUMED.
5. LAND PATTERN RECOMMENDATION PER IPC‐7351B GENERIC
REQUIREMENT FOR SURFACE MOUNT DESIGN AND LAND
PATTERN.
REVISION 1 10/21/15
15
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
8V31012 DATA SHEET
Ordering Information
Table 7. Ordering Information
Part/Order Number
8V31012NLGI
Marking
Package
Shipping Packaging
Tray
Temperature
-40°C to 85°C
-40°C to 85°C
IDT8V31012NLGI
IDT8V31012NLGI
48 Lead VFQFN, Lead-Free
48 Lead VFQFN, Lead-Free
8V31012NLGI8
Tape & Reel
1-TO-12, DIFFERENTIAL HCSL FANOUT BUFFER
16
REVISION 1 10/21/15
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Tech Support
email: clocks@idt.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes no responsibility for either its use or for the infringement of any patents or
other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications, such as
those requiring extended temperature ranges, high reliability or other extraordinary environmental requirements are not recommended without additional processing by IDT. IDT reserves the right to change any
circuitry or specifications without notice. IDT does not authorize or warrant any IDT product for use in life support devices or critical medical instruments.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2015 Integrated Device Technology, Inc. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		8V31012 [ 1-to-12, Differential HCSL Fanout Buffer ] 17 页

IDT

 		8V31012NLGI8 [ 1-to-12, Differential HCSL Fanout Buffer ] 17 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.256778s
