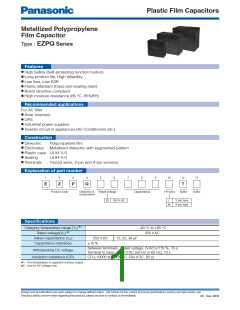

Plastic Film Capacitors
Metallized Polypropylene
Film Capacitor
Type : EZPQ Series
Features
●
High Safety (Self-protecting function built-in)
Long product life, High reliability
Low loss, Low ESR
Flame retardant (Case and sealing resin)
RoHS directive compliant
High moisture resistance (85 °C, 85%RH)
●
●
●
●
●
Recommended applications
For AC filter
●
Solar inverters
UPS
Industrial power supplies
Inverter circuit in appliances (Air Conditioners etc.)
●
●
●
Construction
●
Dielectric : Polypropylene film
Electrodes : Metallized dielectric with segmented pattern
Plastic case : UL94 V-0
●
●
●
Sealing
: UL94 V-0
●
Terminals : Tinned wires, 2-pin and 4-pin versions
Explanation of part number
1
2
3
4
5
6
7
8
9
10
11
12
E
Z
P
Q
T
Product code
Dielectric &
construction
Rated voltage
Capacitance
Pin type
Suffix
Suffix
25 250 V.AC
L
2-pin type
4-pin type
M
Specifications
✽1
Category temperature range (TC)
−40 °C to +85 °C
250 V.AC
✽2
Rated voltage(VR)
Rated capacitance (CR)
Capacitance tolerance
250 V.DC
10 %
12, 22, 36 μF
Between terminals : Rated voltage. (V.AC)×175 %, 10 s
Terminal to case : 2000 V.AC (50 Hz or 60 Hz), 10 s
CR > 10000 Ω ∙ F (20 °C, 500 V.DC, 60 s)
Withstanding DC voltage
Insulation resistance (CR)
1 : The temperature of capacitor surface (case)
2 : Use for AC voltage only
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
00 Nov. 2016
