SZNUP2242WTT3G

型号:

SZNUP2242WTT3G

品牌:

ONSEMI[ ONSEMI ]

页数:

4 页

PDF大小:

61 K

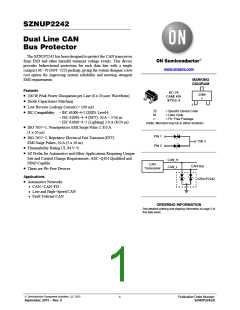

SZNUP2242
Dual Line CAN
Bus Protector
The SZNUP2242 has been designed to protect the CAN transceiver
from ESD and other harmful transient voltage events. This device
provides bidirectional protection for each data line with a single
compact SC−70 (SOT−323) package, giving the system designer a low
cost option for improving system reliability and meeting stringent
EMI requirements.
www.onsemi.com
MARKING
DIAGRAM
Features
SC−70
CASE 419
STYLE 4
25MG
200 W Peak Power Dissipation per Line (8 x 20 msec Waveform)
Diode Capacitance Matching
Low Reverse Leakage Current (< 100 nA)
IEC Compatibility: − IEC 61000−4−2 (ESD): Level 4
− IEC 61000−4−4 (EFT): 50 A – 5/50 ns
− IEC 61000−4−5 (Lighting) 3.0 A (8/20 ms)
ISO 7637−1, Nonrepetitive EMI Surge Pulse 2, 8.0 A
(1 x 50 ms)
G
1
25
M
G
= Specific Device Code
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
PIN 1
ISO 7637−3, Repetitive Electrical Fast Transient (EFT)
EMI Surge Pulses, 50 A (5 x 50 ns)
PIN 3
PIN 2
Flammability Rating UL 94 V−0
SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
CAN_H
CAN_L
CAN
Transceiver
CAN Bus
These are Pb−Free Devices
Applications
SZNUP2242
Automotive Networks
CAN / CAN−FD
Low and High−Speed CAN
Fault Tolerant CAN
ORDERING INFORMATION
See detailed ordering and shipping information on page 2 of
this data sheet.
© Semiconductor Components Industries, LLC, 2015
1
Publication Order Number:
September, 2015 − Rev. 0
SZNUP2242/D
SZNUP2242
MAXIMUM RATINGS (T = 25°C, unless otherwise specified)
J
Symbol
Rating
Value
200
Unit
W
PPK
Peak Power Dissipation, 8 x 20 ms Double Exponential Waveform (Note 1)
Operating Junction Temperature Range
Storage Temperature Range
T
J
−55 to 150
−55 to 150
260
°C
T
J
°C
T
L
Lead Solder Temperature (10 s)
°C
ESD
Human Body Model (HBM)
Machine Model (MM)
IEC 61000−4−2 Specification (Contact)
8.0
1.6
30
kV
kV
kV
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. Non−repetitive current pulse per Figure 1.
ELECTRICAL CHARACTERISTICS (T = 25°C, unless otherwise specified)
J
Symbol
Parameter
Reverse Working Voltage
Breakdown Voltage
Test Conditions
Min
24
26.2
Typ
Max
Unit
V
V
RWM
(Note 2)
I = 1 mA (Note 3)
V
BR
32
V
T
I
R
Reverse Leakage Current
Clamping Voltage
V
RWM
= 24 V
15
33.4
100
36.6
nA
V
V
C
I
PP
= 1 A (8 x 20 ms Waveform)
(Note 4)
V
C
Clamping Voltage
I
PP
= 3 A (8 x 20 ms Waveform)
44
50
V
(Note 4)
I
Maximum Peak Pulse Current
Capacitance
8 x 20 ms Waveform (Note 4)
3.0
10
2
A
pF
%
PP
C
V
R
V
R
= 0 V, f = 1 MHz (Line to GND)
= 0 V, 5 MHz (Note 5)
J
DC
Diode Capacitance Matching
0.26
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
2. TVS devices are normally selected according to the working peak reverse voltage (V
), which should be equal or greater than the DC
RWM
or continuous peak operating voltage level.
3. V is measured at pulse test current I .
BR
T
4. Pulse waveform per Figure 1.
5. DC is the percentage difference between C of lines 1 and 2 measured according to the test conditions given in the electrical characteristics
J
table.
ORDERING INFORMATION
Device
SZNUP2242WTT1G
Package
Shipping
SC−70
3000 / Tape & Reel
(Pb−Free)
SZNUP2242WTT3G
SC−70
(Pb−Free)
10000 / Tape & Reel
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
www.onsemi.com
2

SZNUP2242
TYPICAL PERFORMANCE CURVES
(T = 25°C unless otherwise noted)
J
3.5
110
100
90
WAVEFORM
PARAMETERS
3.0
2.5
2.0
1.5
1.0
t = 8 ms
r
80
t = 20 ms
d
c−t
70
60
50
t = I /2
d
PP
40
30
20
10
0
0.5
0.0
0
5
10
15
t, TIME (ms)
20
25
30
30
35
40
45
50
V , CLAMPING VOLTAGE (V)
C
Figure 1. Pulse Waveform, 8 × 20 ms
Figure 2. Clamping Voltage vs Peak Pulse Current
50
9
8
7
45
40
35
30
25
20
15
10
5
125°C
25°C
6
5
4
3
2
25°C
65°C
125°C
T = −55°C
A
0
20
22
24
26
28
30
32
34
0
5
10
15
20
25
V , REVERSE VOLTAGE (V)
R
V
BR
, VOLTAGE (V)
Figure 4. VBR versus IT Characteristics
Figure 3. Typical Junction Capacitance vs
Reverse Voltage
120
100
80
60
40
20
0
25
20
15
10
5
−55°C
+25°C
T = +150°C
A
0
−60
−30
0
30
60
90
120
150 180
0
1
2
3
4
5
I , LEAKAGE CURRENT (nA)
L
TEMPERATURE (°C)
Figure 5. IR versus Temperature Characteristics
Figure 6. Temperature Power Dissipation Derating
www.onsemi.com
3
SZNUP2242
PACKAGE DIMENSIONS
SC−70 (SOT−323)
CASE 419−04
ISSUE N
NOTES:
1. DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.
2. CONTROLLING DIMENSION: INCH.
D
e1
MILLIMETERS
INCHES
DIM
A
A1
A2
b
c
D
E
e
MIN
0.80
0.00
NOM
0.90
0.05
0.70 REF
0.35
0.18
2.10
1.24
1.30
0.65 BSC
MAX
1.00
0.10
MIN
0.032
0.000
NOM
0.035
0.002
0.028 REF
0.014
0.007
0.083
0.049
0.051
0.026 BSC
MAX
0.040
0.004
3
E
H
E
1
2
0.30
0.10
1.80
1.15
1.20
0.40
0.25
2.20
1.35
1.40
0.012
0.004
0.071
0.045
0.047
0.016
0.010
0.087
0.053
0.055
b
e
e1
L
H
E
0.38
2.10
0.015
0.083
0.20
2.00
0.56
2.40
0.008
0.079
0.022
0.095
STYLE 4:
PIN 1. CATHODE
2. CATHODE
3. ANODE
c
A
A2
0.05 (0.002)
L
A1
SOLDERING FOOTPRINT*
0.65
0.025
0.65
0.025
1.9
0.075
0.9
0.035
0.7
0.028
mm
inches
ǒ
Ǔ
SCALE 10:1
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
Honeywell and SDS are registered trademarks of Honeywell International Inc.
DeviceNet is a trademark of Rockwell Automation.
ON Semiconductor and the
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC) or its subsidiaries in the United States and/or other countries.
SCILLC owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed
at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation
or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and
specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets
and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each
customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,
or authorized for use as components in systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which
the failure of the SCILLC product could create a situation where personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or
unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim
alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable
copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
SZNUP2242/D
