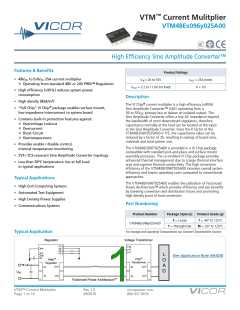

VTM™ Current Mulitplier
VTM48Ex096y025A00
S
C
NRTL US
High Efficiency Sine Amplitude Converter™
Features & Benefits
Product Ratings
• 48VDC to 9.6VDC 25A current multiplier
VIN = 26 to 55V
IOUT = 25A (nom)
K = 1/5
nꢀOperating from standard 48V or 24V PRM™ Regulators
VOUT = 5.2 to 11.0V (no load)
• High efficiency (>95%) reduces system power
consumption
Description
• High density (85A/in3)
The VI Chip® current multiplier is a high efficiency (>95%)
Sine Amplitude Converter™ (SAC) operating from a
26 to 55VDC primary bus to deliver an isolated output. The
Sine Amplitude Converter offers a low AC impedance beyond
the bandwidth of most downstream regulators; therefore
capacitance normally at the load can be located at the input
to the Sine Amplitude Converter. Since the K factor of the
VTM48EF096T025A00 is 1/5, the capacitance value can be
reduced by a factor of 25, resulting in savings of board area,
materials and total system cost.
• “Full Chip” VI Chip® package enables surface mount,
low impedance interconnect to system board
• Contains built-in protection features against:
nꢀOvervoltage Lockout
nꢀOvercurrent
nꢀShort Circuit
nꢀOvertemperature
• Provides enable / disable control,
internal temperature monitoring
The VTM48EF096T025A00 is provided in a VI Chip package
compatible with standard pick-and-place and surface mount
assembly processes. The co-molded VI Chip package provides
enhanced thermal management due to a large thermal interface
area and superior thermal conductivity. The high conversion
efficiency of the VTM48EF096T025A00 increases overall system
efficiency and lowers operating costs compared to conventional
approaches.
• ZVS / ZCS resonant Sine Amplitude Converter topology
• Less than 50ºC temperature rise at full load
in typical applications
Typical Applications
The VTM48EF096T025A00 enables the utilization of Factorized
Power Architecture™ which provides efficiency and size benefits
by lowering conversion and distribution losses and promoting
high density point of load conversion.
• High End Computing Systems
• Automated Test Equipment
• High Density Power Supplies
• Communications Systems
Part Numbering
Product Number
Package Style (x)
Product Grade (y)
F = J-Lead
T = -40° to 125°C
M = -55° to 125°C
VTM48Ex096y025A00
T = Through hole
For Storage and Operating Temperatures see General Characteristics Section
Typical Application
Regulator
Voltage Transformer
VC
TM
VC
PC
PR
SG
OS
CD
PC
TM
IL
L
(See Application Note AN:024)
™
™
VTM
PRM
Regulator
O
Transformer
A
D
+OUT
+OUT
+IN
+IN
VIN
-OUT
-OUT
-IN
-IN
Factorized Power ArchitectureTM
VTM™ Current Mulitplier
Page 1 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Absolute Maximum Ratings
The absolute maximum ratings below are stress ratings only. Operation at or beyond these maximum ratings can cause permanent damage to the device.
Parameter
Comments
Min
Max
Unit
+IN to –IN
-1.0
60
VDC
PC to –IN
TM to –IN
-0.3
20
7
VDC
VDC
-0.3
-0.3
VC to –IN
20
2550
16
VDC
VDC
VDC
+IN / –IN to +OUT / –OUT (hipot)
+OUT to –OUT
-1.0
Electrical Specifications
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature range of
-40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
Attribute
Symbol
Conditions / Notes
Min
Typ
Max
Unit
Powertrain
No external VC applied
26
0
55
55
1
Input voltage range
VIN
VDC
VC applied
VIN slew rate
dVIN / dt
VIN_UV
V / µs
V
Module latched shutdown, No external VC applied,
IOUT = 25A
VIN UV turn off
24
26
VIN = 48V
3.5
11.0
11.5
6
VIN = 26V to 55V
VIN = 48V, TC = 25ºC
VIN = 26V to 55V
No Load power dissipation
Inrush current peak
PNL
W
A
4.5
12
7.5
VC enable, VIN = 48V, COUT = 1600µF,
RLOAD = 376mΩ
IINRP
19
DC input current
IIN_DC
K
5.3
A
V / V
V
Transfer ratio
K = VOUT / VIN, IOUT = 0A
1/5
Output voltage
VOUT
VOUT = VIN • K – IOUT • ROUT
Output current (average)
Output current (peak)
Output power (average)
IOUT_AVG
IOUT_PK
POUT_AVG
25
A
TPEAK < 10ms, IOUT_AVG ≤ 25A
37.5
240
A
IOUT_AVG ≤ 25A
W
VIN = 48V, IOUT = 25A
94.5
92.0
93.0
95.0
82.0
95.8
hAMB
Efficiency (ambient)
VIN = 26V to 55V, IOUT = 25A
VIN = 48V, IOUT = 12.5A
%
94.9
95.8
hHOT
h20%
T
Efficiency (hot)
%
%
VIN = 48V, C = 100°C, IOUT = 25A
Efficiency (over load range)
5A < IOUT < 25A
VTM™ Current Mulitplier
Page 2 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Electrical Specifications (Cont.)
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature range of
-40°C < TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
Attribute
Symbol
Conditions / Notes
Powertrain (Cont.)
Min
Typ
Max
Unit
Output resistance (cold)
Output resistance (ambient)
Output resistance (hot)
ROUT_COLD
ROUT_AMB
ROUT_HOT
FSW
TC = -40°C, IOUT = 25A
3.5
5
5.4
7.8
10.0
12.0
14.0
1.60
3.20
250
mΩ
mΩ
mΩ
MHz
MHz
mV
pH
TC = 25°C, IOUT = 25A
TC = 100°C, IOUT = 25A
6.5
1.50
3.00
9.2
Switching frequency
1.55
3.10
200
600
45
Output ripple frequency
Output voltage ripple
FSW_RP
Cout = 0F, Iout = 25A, Vin = 48V, 20MHz BW,
Frequency up to 30MHz, Simulated J-lead model
VOUT_PP
LOUT_PAR
COUT_INT
COUT_EXT
Output inductance (parasitic)
Output capacitance (internal)
Output capacitance (external)
Effective Value at 9.6Vout
µF
VTM Standalone Operation. Vin pre-applied, VC enable
1600
µF
Protection
Overvoltage lockout
VIN_OVLO+
tOVLO
Module latched shutdown
55.1
58.5
8
60.0
V
Overvoltage lockout response
time constant
Effective internal RC filter
µs
Output overcurrent trip
IOCP
ISCP
30
39.2
55
A
A
Short circuit protection trip current
48
Output overcurrent response
time constant
tOCP
Effective internal RC filter (Integrative)
3.8
ms
of switching
Short circuit protection
response time
From detection to cessation
(Instantaneous)
tSCP
1
µs
Thermal shutdown setpoint
TJ_OTP
125
130
135
°C
Reverse inrush current protection
Reverse Inrush protection is enabled for this product
VTM™ Current Mulitplier
Page 3 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Signal Characteristics
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature range of
-40°C ≤ TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
VTM Control : VC
• Used to wake up powertrain circuit.
• A minimum of 11.5V must be applied indefinitely for Vin < 26V to ensure normal operation.
• VC slew rate must be within range for a successful start.
• PRM™ module VC can be used as valid wake-up signal source.
• Internal Resistance used in “Adaptive Loop” compensation.
• VC voltage may be continuously applied.
Signal Type
State
Attribute
Symbol
Conditions / notes
Min
Typ
Max Unit
Required for start up, and operation
below 26V.
External VC voltage
VVC_EXT
11.5
16.5
150
V
VC = 11.5V, VIN = 0V
VC = 11.5V, VIN > 26V
VC = 16.5V, VIN > 26V
Fault mode. VC > 11.5V
125
0
VC current draw
IVC
mA
0
Steady
60
VC internal diode rating
VC internal resistor
DVC_INT
RVC-INT
100
0.56
V
kΩ
ANALOG
INPUT
VC internal resistor
temperature coefficient
TVC_COEFF
900 ppm/°C
VC start up pulse
VC slew rate
VVC_SP
dVC/dt
IINR_VC
tPEAK < 18ms
20
V
Start Up
Required for proper start up
VC = 16.5V, dVC/dt = 0.25V/µs
0.02
0.25 V / µs
VC inrush current
1
A
VIN pre-applied, PC floating,
VC enable, CPC = 0µF
VC to VOUT turn-on delay
tON
500
µs
Transitional
VC = 11.5V to PC high, VIN = 0V,
dVC/dt = 0.25V/µs
VC to PC delay
tVC_PC
75
125
µs
µF
Internal VC capacitance
CVC_INT
VC = 0V
3.2
PRIMARY CONTROL : PC
• The PC pin enables and disables the VTM module. When held below 2V, the VTM module will be disabled.
• PC pin outputs 5V during normal operation. PC pin is equal to 2.5V during fault mode given Vin > 26V or VC > 11.5V.
• After successful start up and under no fault condition, PC can be used as a 5V regulated voltage source with a 2mA maximum current.
• Module will shutdown when pulled low with an impedance less than 400Ω.
• In an array of VTM modules, connect PC pin to synchronize start up.
• PC pin cannot sink current and will not disable other modules during fault mode.
Signal Type
State
Attribute
PC voltage
Symbol
VPC
Conditions / notes
Min
4.7
Typ
Max Unit
5.0
5.3
2
V
mA
kΩ
µA
pF
kΩ
V
PC source current
Steady
IPC_OP
PC resistance (internal)
PC source current
RPC_INT
IPC_EN
CPC_INT
RPC_S
Internal pull down resistor
50
50
150
100
400
300
1000
ANALOG
OUTPUT
PC capacitance (internal)
PC resistance (external)
PC voltage
Start Up
60
2
Enable
Disable
VPC_EN
VPC_DIS
IPC_PD
2.5
3
2
PC voltage (disable)
PC pull down current
PC disable time
V
DIGITAL
INPUT /
OUTPUT
5.1
mA
µs
tPC_DIS_T
tFR_PC
5
Transitional
PC fault response time
From fault to PC = 2V
100
µs
VTM™ Current Mulitplier
Page 4 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Signal Characteristics
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature range of
-40°C ≤ TJ < 125°C (T-Grade); All other specifications are at TJ = 25ºC unless otherwise noted.
TEMPERATURE MONITOR : TM
• The TM pin monitors the internal temperature of the VTM controller IC within an accuracy of 5°C.
• Can be used as a “Power Good” flag to verify that the VTM module is operating.
• The TM pin has a room temperature setpoint of 3V and approximate gain of 10mV/°C.
• Output drives Temperature Shutdown comparator.
Signal Type
State
Attribute
TM voltage
Symbol
VTM_AMB
ITM
Conditions / notes
TJ controller = 27°C
Min
Typ
Max Unit
2.95
3.00
3.05
V
µA
TM source current
TM gain
100
ANALOG
OUTPUT
Steady
ATM
10
120
0
mV/°C
mV
V
TM voltage ripple
TM voltage
VTM_PP
VTM_DIS
RTM_INT
CTM_EXT
tFR_TM
CTM = 0F, VIN = 48V, IOUT = 25A
Internal pull down resistor
From fault to TM = 1.5V
200
Disable
DIGITAL
OUTPUT
TM resistance (internal)
TM capacitance (external)
TM fault response time
25
40
50
50
kΩ
pF
Transitional
(FAULT FLAG)
10
µs
VTM™ Current Mulitplier
Page 5 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Timing Diagram
6
7
ISEC
ISEC
ISEC
8
d
1
2
3
4
5
VC
b
VVC-EXT
a
VOVLO
VPRI
NL
≥ 26V
c
e
f
VSEC
TM
VTM-AMB
PC
g
5V
3V
a: VC slew rate (dVC/dt)
b: Minimum VC pulse rate
c: tOVLO_PIN
1. Initiated VC pulse
2. Controller start
3. VPRI ramp up
4. VPRI = VOVLO
Notes:
– Timing and voltage is not to scale
– Error pulse width is load dependent
d: tOCP_SEC
e: Secondary turn on delay (TON
)
5. VPRI ramp down no VC pulse
6. Overcurrent, Secondary
7. Start up on short circuit
8. PC driven low
f: PC disable time (tPC_DIS_T
)
g: VC to PC delay (tVC_PC
)
VTM™ Current Mulitplier
Page 6 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Application Characteristics
The following values, typical of an application environment, are collected at TC = 25ºC unless otherwise noted. See associated figures for general trend data.
Attribute
Symbol
Conditions / Notes
Typ
Unit
Powertrain
VIN = 48V, PC enabled
VIN = 48V, IOUT = 25A
No load power dissipation
Efficiency (ambient)
PNL
4.0
96.2
96.1
6.7
W
%
hAMB
Efficiency (hot)
hHOT
VIN = 48V, IOUT = 25A, TC = 100ºC
%
Output resistance (cold)
Output resistance (ambient)
Output resistance (hot)
Output voltage ripple
VOUT transient (positive)
VOUT transient (negative)
ROUT_COLD
ROUT_AMB
ROUT_HOT
VOUT_PP
VIN = 48V, IOUT = 25A, TC = -40ºC
mΩ
mΩ
mΩ
mV
mV
mV
VIN = 48V, IOUT = 25A
8.7
VIN = 48V, IOUT = 25A, TC = 100ºC
10.0
132
200
250
COUT = 0F, IOUT = 25A, VIN = 48V, 20MHz BW
IOUT_STEP = 0A TO 25A, VIN = 48V, ISLEW = 19A/µs
IOUT_STEP = 25A to 0A, VIN = 48V, ISLEW = 85A/us
VOUT_TRAN+
VOUT_TRAN-
98
96
94
92
11
10
9
8
7
6
5
4
3
2
1
-40
-20
0
20
Case Temperature (C)
26V 48V
40
60
80
100
26
29
32
35
38
Input Voltage (V)
-40°C 25°C
41
43
46
49
52
55
VIN:
55V
TCASE
:
100°C
Figure 2 — Full load efficiency vs. temperature
Figure 1 — No load power dissipation vs. Vin
96
92
88
84
80
76
72
68
64
60
32
28
24
20
16
12
8
4
0
0
2.5
5
7.5
10 12.5 15 17.5 20 22.5 25
0
2.5
5
7.5
10 12.5 15 17.5 20 22.5 25
Load Current (A)
Load Current (A)
26V
48V
55V
26V
48V
55V
VIN:
VIN:
Figure 3 — Efficiency at –40°C
Figure 4 — Power dissipation at –40°C
VTM™ Current Mulitplier
Page 7 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
98
95
92
89
21
18
15
12
86
83
80
77
74
9
6
3
0
0
2.5
5
7.5 10 12.5 15 17.5 20 22.5 25
0
2.5
5
7.5 10 12.5 15 17.5 20 22.5 25
Load Current (A)
Load Current (A)
26V
48V
55V
26V
48V
55V
VIN:
VIN:
Figure 5 — Efficiency at 25°C
Figure 6 — Power dissipation at 25°C
98
96
94
92
90
88
86
84
82
24
21
18
15
12
9
6
3
0
0
2.5
5
7.5
10 12.5 15 17.5 20 22.5 25
0
2.5
5
7.5
10 12.5 15 17.5 20 22.5 25
Load Current (A)
Load Current (A)
26V
48V
55V
26V
48V
55V
VIN:
VIN:
Figure 7 — Efficiency at 100°C
Figure 8 — Power dissipation at 100°C
175
11.0
10.0
9.0
150
125
100
75
8.0
7.0
6.0
50
25
5.0
4.0
0
3
5
8
10
13
15
18
20
23
25
-40
-20
0
20
40
60
80
100
Load Current (A)
Case Temperature (ºC)
VIN:
26V
48V
55V
Full Load
Figure 9 — Rout vs. temperature
Figure 10 — Vripple vs. Iout ; No external Cout. Board mounted
module, scope setting : 20MHz analog BW
VTM™ Current Mulitplier
Page 8 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
60
50
40
30
20
10
0
0
1
2
3
4
5
6
7
8
9
10 11 12
Output Voltage (V)
Continuous
10ms Max
Figure 11 — Safe operating area
Figure 12 — Full load ripple, 100µF Cin; No external Cout. Board
mounted module, scope setting : 20MHz analog BW
Figure 14 — Start up from application of VC;
Figure 13 — Start up from application of Vin;
Vin pre-applied Cout = 1600µF
VC pre-applied Cout = 1600µF
Figure 15 — 0A – Full load transient response:
Figure 16 — Full load – 0A transient response:
Cin = 100µF, no external Cout
Cin = 100µF, no external Cout
VTM™ Current Mulitplier
Page 9 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
General Characteristics
Specifications apply over all line and load conditions unless otherwise noted; Boldface specifications apply over the temperature range of
-40ºC < TJ < 125 ºC (T-Grade); All Other specifications are at TJ = 25°C unless otherwise noted.
Attribute
Symbol
Conditions / Notes
Mechanical
Min
Typ
Max
Unit
Length
Width
L
W
H
32.25 / [1.270] 32.5 / [1.280] 32.75 / [1.289] mm / [in]
21.75 / [0.856] 22.0 / [0.866] 22.25 / [0.876] mm / [in]
6.48 / [0.255] 6.73 / [0.265] 6.98 / [0.275] mm / [in]
Height
Volume
Weight
Vol
W
No heat sink
4.81 / [0.294]
15.0 / [0.53]
cm3 / [in3]
g / [oz]
Nickel
0.51
0.02
2.03
0.15
Lead Finish
Palladium
Gold
µm
°C
0.003
0.051
Thermal
-40
-55
-40
-55
125
125
125
125
VTM48EF096T025A00 (T-Grade)
VTM48EF096M025A00 (M-Grade)
VTM48ET096T025A00 (T-Grade)
VTM48ET096M025A00 (M-Grade)
Operating temperature
TJ
Isothermal heatsink and isothermal
internal PCB
Thermal resistance
Thermal capacity
fJC
1
5
°C / W
Ws / °C
Assembly
6
lbs
Peak compressive force
applied to case (Z-axis)
Supported by J-Lead only
5.41
125
125
125
125
lbs / in2
-40
-65
-40
-65
VTM48EF096T025A00 (T-Grade)
VTM48EF096M025A00 (M-Grade)
VTM48ET096T027500 (T-Grade)
VTM48ET096M025A00 (M-Grade)
Storage temperature
ESD withstand
TST
°C
Human Body Model,
“JEDEC JESD 22-A114-F”
ESDHBM
ESDCDM
1000
400
VDC
Charge Device Model,
“JEDEC JESD 22-C101-D”
Soldering
Peak temperature during reflow
Peak time above 217°C
MSL 4
245
90
3
°C
s
60
1.5
1.5
Peak heating rate during reflow
Peak cooling rate post reflow
°C / s
°C / s
6
Safety
Isolation voltage (hipot)
Isolation capacitance
Isolation resistance
VHIPOT
CIN_OUT
RIN_OUT
2250
2500
10
VDC
pF
Unpowered unit
3200
3800
MΩ
MIL-HDBK-217 Plus Parts Count;
25ºC Ground Benign, Stationary,
Indoors / Computer Profile
3.5
5.5
MHrs
MHrs
MTBF
Telcordia Issue 2 - Method I Case 1;
Ground Benign, Controlled
cTUVus
Agency approvals / standards
CE Marked for Low Voltage Directive and RoHS Recast Directive, as applicable
VTM™ Current Mulitplier
Page 10 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Using the control signals VC, PC, TM, IM
Start Up Behavior
The VTM Control (VC) pin is an input pin which powers the
internal VCC circuitry when within the specified voltage range of
11.5V to 16.5V. This voltage is required for VTM current multiplier
start up and must be applied as long as the input is below 26V.
In order to ensure a proper start, the slew rate of the applied
voltage must be within the specified range.
Depending on the sequencing of the VC with respect to the input
voltage, the behavior during start up will vary as follows:
nꢀNormal operation (VC applied prior to VIN): In this case the
controller is active prior to ramping the input. When the
input voltage is applied, the VTM module output voltage will
track the input (See Figure 13). The inrush current is
determined by the input voltage rate of rise and output
capacitance. If the VC voltage is removed prior to the input
reaching 26V, the VTM may shut down.
Some additional notes on the using the VC pin:
nꢀIn most applications, the VTM module will be powered by
an upstream PRM™ regulator which provides a 10ms VC
pulse during start up. In these applications the VC pins of
the PRM regulator and VTM current multiplier should be
tied together.
nꢀStand-alone operation (VC applied after VIN): In this case the
VTM output will begin to rise upon the application of the
VC voltage (See Figure 14). The Adaptive Soft Start Circuit
may vary the output rate of rise in order to limit the
inrush current to its maximum level. When starting into high
capacitance, or a short, the output current will be limited for
a maximum of 1200µs. After this period, the Adaptive Soft
Start Circuit will time out and the VTM module may shut
down. No restart will be attempted until VC is re-applied or PC
is toggled. The maximum output capacitance is limited to
1600µF in this mode of operation to ensure a sucessful start.
nꢀThe VC voltage can be applied indefinitely allowing for
continuous operation down to 0VIN.
nꢀThe fault response of the VTM module is latching. A positive
edge on VC is required in order to restart the unit. If VC is
continuously applied the PC pin may be toggled to restart
the VTM module.
Primary Control (PC) pin can be used to accomplish the
following functions:
Thermal Considerations
nꢀDelayed start: Upon the application of VC, the PC pin will
source a constant 100µA current to the internal RC
network. Adding an external capacitor will allow further
delay in reaching the 2.5V threshold for module start.
VI Chip® products are multi-chip modules whose temperature
distribution varies greatly for each part number as well as with the
input/output conditions, thermal management and environmental
conditions. Maintaining the top of the VTM48EF096T025A00
case to less than 100ºC will keep all junctions within the VI Chip
module below 125ºC for most applications.
nꢀAuxiliary voltage source: Once enabled in regular
operational conditions (no fault), each VTM PC provides a
regulated 5V, 2mA voltage source.
The percent of total heat dissipated through the top surface
versus through the J-lead is entirely dependent on the particular
mechanical and thermal environment. The heat dissipated
through the top surface is typically 60%. The heat
nꢀOutput disable: PC pin can be actively pulled down in order
to disable the module. Pull down impedance shall be lower
than 400Ω.
dissipated through the J-lead onto the PCB board surface is
typically 40%. Use 100% top surface dissipation when designing
for a conservative cooling solution.
nꢀFault detection flag: The PC 5V voltage source is internally
turned off as soon as a fault is detected. It is important to
notice that PC doesn’t have current sink capability. Therefore,
in an array, PC line will not be capable of disabling
neighboring modules if a fault is detected.
It is not recommended to use a VI Chip module for an extended
period of time at full load without proper heat sinking.
nꢀFault reset: PC may be toggled to restart the unit if VC
is continuously applied.
Temperature Monitor (TM) pin provides a voltage proportional
to the absolute temperature of the converter control IC.
It can be used to accomplish the following functions:
nꢀMonitor the control IC temperature: The temperature in
Kelvin is equal to the voltage on the TM pin scaled
by 100. (i.e. 3.0V = 300K = 27ºC). If a heat sink is applied,
TM can be used to thermally protect the system.
nꢀFault detection flag: The TM voltage source is internally
turned off as soon as a fault is detected. For system
monitoring purposes (microcontroller interface) faults are
detected on falling edges of TM signal.
VTM™ Current Mulitplier
Page 11 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Sine Amplitude Converter™ Point of Load Conversion
The Sine Amplitude Converter (SAC) uses a high frequency
resonant tank to move energy from input to output. (The
resonant tank is formed by Cr and leakage inductance Lr in the
power transformer windings.) The resonant LC tank, operated at
high frequency, is amplitude modulated as a function of input
voltage and output current. A small amount of capacitance
embedded in the input and output stages of the module is
sufficient for full functionality and is key to achieving power
density.
The VTM48EF096T025A00 SAC can be simplified into the
following model:
943pH
ROUT
IOUT
LIN = 5.8nH
LOUT = 600pH
7.8mΩ
+
+
R
7.6µΩ
RC
R
OUT
RC
0.5Ω
IN
0.57mΩ
V•I
K
1/5 • IOUT
1/5 • VIN
CIN
2µF
COUT
+
–
+
–
45µF
IQ
VOUT
VIN
94mA
–
–
Figure 17 — VI Chip® module AC model
At no load:
The use of DC voltage transformation provides additional
interesting attributes. Assuming that ROUT = 0Ω and Iq = 0A,
Eq. (3) now becomes Eq. (1) and is essentially load independent,
resistor R is now placed in series with VIN as shown in Figure 18.
(1)
VOUT = VIN • K
K represents the “turns ratio” of the SAC.
Rearranging Eq (1):
R
SAC™
VOUT
VOUT
+
–
K = 1/32
(2)
K =
VIN
V
IN
In the presence of load, VOUT is represented by:
VOUT = VIN • K – IOUT • ROUT
and IOUT is represented by:
IIN – IQ
(3)
Figure 18 — K = 1/32 Sine Amplitude Converter™
with series input resistor
The relationship between VIN and VOUT becomes:
(4)
IOUT
=
(5)
VOUT = V – I • R • K
K
(
)
IN
IN
ROUT represents the impedance of the SAC, and is a function of
the RDSON of the input and output MOSFETs and the winding
resistance of the power transformer. IQ represents the quiescent
current of the SAC control and gate drive circuitry.
Substituting the simplified version of Eq. (4)
(IQ is assumed = 0A) into Eq. (5) yields:
2
(6)
VOUT = VIN • K – IOUT • R • K
VTM™ Current Mulitplier
Page 12 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
This is similar in form to Eq. (3), where ROUT is used to represent
the characteristic impedance of the SAC™. However, in this case
a real R on the input side of the SAC is effectively scaled by K2
with respect to the output.
Low impedance is a key requirement for powering a high-
current, low voltage load efficiently. A switching regulation stage
should have minimal impedance while simultaneously providing
appropriate filtering for any switched current. The use of a SAC
between the regulation stage and the point of load provides a
dual benefit of scaling down series impedance leading back to
the source and scaling up shunt capacitance or energy storage
as a function of its K factor squared. However, the benefits are
not useful if the series impedance of the SAC is too high. The
impedance of the SAC must be low, i.e. well beyond the crossover
frequency of the system.
Assuming that R = 1Ω, the effective R as seen from the secondary
side is 0.98mΩ, with K = 1/32 as shown in Figure 15.
A similar exercise should be performed with the additon of a
capacitor or shunt impedance at the input to the SAC. A switch in
series with VIN is added to the circuit. This is depicted in Figure 19.
A solution for keeping the impedance of the SAC low involves
switching at a high frequency. This enables small magnetic
components because magnetizing currents remain low. Small
magnetics mean small path lengths for turns. Use of low loss core
material at high frequencies also reduces core losses.
S
S
SAC™
Vout
+
–
K = 1/32
C
V
in
The two main terms of power loss in the VTM module are:
nꢀNo load power dissipation (PNL): defined as the power
used to power up the module with an enabled powertrain
at no load.
Figure 19 — Sine Amplitude Converter™ with input capacitor
nꢀResistive loss (ROUT): refers to the power loss across
the VTM modeled as pure resistive impedance.
A change in VIN with the switch closed would result in a change in
capacitor current according to the following equation:
(10)
PDISSIPATED = PNL + PR
OUT
dVIN
Therefore,
(7)
IC (t) = C
dt
(11)
POUT = PIN – PDISSIPATED = PIN – PNL – PR
OUT
Assume that with the capacitor charged to VIN, the switch is
opened and the capacitor is discharged through the idealized
SAC. In this case,
The above relations can be combined to calculate the overall
module efficiency:
(8)
IC = IOUT • K
POUT
PIN
PIN – PNL – PR
PIN
OUT
(12)
η =
=
Substituting Eq. (1) and (8) into Eq. (7) reveals:
C
dVOUT
dt
2
(9)
IOUT
=
V • I – P – I
• ROUT
•
(
)
IN
IN
NL
OUT
K2
=
=
PIN
The equation in terms of the output has yielded a K2 scaling
factor for C, specified in the denominator of the equation.
A K factor less than unity, results in an effectively larger
capacitance on the output when expressed in terms of the input.
With a K = 1/32 as shown in Figure 19, C = 1µF would appear as
C = 1024µF when viewed from the output.
2
P + I
• ROUT
(
)
NL
OUT
1 –
( )
VIN • IIN
VTM™ Current Mulitplier
Page 13 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Input and Output Filter Design
Capacitive Filtering Considerations
for a Sine Amplitude Converter™
A major advantage of a SAC system versus a conventional PWM
converter is that the former does not require large functional
filters. The resonant LC tank, operated at extreme high frequency,
is amplitude modulated as a function of input voltage and output
current and efficiently transfers charge through the isolation
transformer. A small amount of capacitance embedded in the
input and output stages of the module is sufficient for full
functionality and is key to achieving high power density.
It is important to consider the impact of adding input and output
capacitance to a Sine Amplitude Converter on the system as a
whole. Both the capacitance value and the effective impedance of
the capacitor must be considered.
A Sine Amplitude Converter has a DC ROUT value which has
already been discussed in Page 12. The AC ROUT of the
SAC contains several terms:
This paradigm shift requires system design to carefully evaluate
external filters in order to:
nꢀResonant tank impedance
nꢀInput lead inductance and internal capacitance
nꢀOutput lead inductance and internal capacitance
1. Guarantee low source impedance:
To take full advantage of the VTM module dynamic
response, the impedance presented to its input terminals
must be low from DC to approximately 5MHz. Input
capacitance may be added to improve transient
The values of these terms are shown in the behavioral model in
Page 12. It is important to note on which side of the transformer
these impedances appear and how they reflect across the
transformer given the K factor.
performance or compensate for high source impedance.
2. Further reduce input and/or output voltage ripple
The overall AC impedance varies from model to model. For most
models it is dominated by DC Rout value from DC to beyond
500KHz. The behavioral model in Page 13 should be used to
approximate the AC impedance of the specific model.
without sacrificing dynamic response:
Given the wide bandwidth of the VTM module, the source
response is generally the limiting factor in the overall
system response. Anomalies in the response of the source
will appear at the output of the VTM module multiplied
by its K factor.
Any capacitors placed at the output of the VTM module reflect
back to the input of the module by the square of the K factor
(Eq. 9) with the impedance of the module appearing in series.
It is very important to keep this in mind when using a PRM™
regulator to power the VTM module. Most PRM modules have a
limit on the maximum amount of capacitance that can be applied
to the output. This capacitance includes both the PRM output
capacitance and the VTM module output capacitance reflected
back to the input. In PRM module remote sense applications, it is
important to consider the reflected value of VTM module output
capacitance when designing and compensating the PRM module
control loop.
3. Protect the module from overvoltage transients
imposed by the system that would exceed maximum
ratings and cause failures:
The VI Chip® module input/output voltage ranges must
not be exceeded. An internal overvoltage lockout function
prevents operation outside of the normal operating input
range. Even during this condition, the powertrain is
exposed to the applied voltage and power MOSFETs must
withstand it.
Capacitance placed at the input of the VTM module appear to
the load reflected by the K factor with the impedance of the VTM
module in series. In step-down ratios, the effective capacitance
is increased by the K factor. The effective ESR of the capacitor is
decreased by the square of the K factor, but the impedance of the
module appears in series. Still, in most step-down VTM modules
an electrolytic capacitor placed at the input of the module will
have a lower effective impedance compared to an electrolytic
capacitor placed at the output. This is important to consider when
placing capacitors at the output of the module. Even though the
capacitor may be placed at the output, the majority of the AC
current will be sourced from the lower impedance, which in most
cases will be the module. This should be studied carefully in any
system design using a module. In most cases, it should be clear
that electrolytic output capacitors are not necessary to design a
stable, well-bypassed system.
VTM™ Current Mulitplier
Page 14 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Current Sharing
Reverse Operation
The VTM48EF096T025A00 is capable of reverse operation.
If a voltage is present at the output which satisfies the condition
VOUT > VIN • K at the time the VC voltage is applied, or after the
unit has started, then energy will be transferred from secondary
to primary. The input to output ratio will be maintained. The
VTM48EF096T025A00 will continue to operate in reverse as
long as the input and output are within the specified limits. The
VTM48EF096T025A00 has not been qualified for continuous
operation (>10ms) in the reverse direction.
The SAC topology bases its performance on efficient transfer
of energy through a transformer without the need of closed
loop control. For this reason, the transfer characteristic can be
approximated by an ideal transformer with some resistive drop
and positive temperature coefficient.
This type of characteristic is close to the impedance characteristic
of a DC power distribution system, both in behavior (AC dynamic)
and absolute value (DC dynamic).
When connected in an array with the same K factor, the VTM
module will inherently share the load current (typically 5%) with
parallel units according to the equivalent impedance divider
that the system implements from the power source to the
point of load.
Some general recommendations to achieve matched
array impedances:
nꢀDedicate common copper planes within the PCB
to deliver and return the current to the modules.
nꢀProvide the PCB layout as symmetric as possible.
nꢀApply same input / output filters (if present) to each unit.
For further details see AN:016 Using BCM® Bus Converters
in High Power Arrays.
ZIN_EQ1
ZOUT_EQ1
VTM™
RO_1
1
VIN
VOUT
ZIN_EQ2
ZOUT_EQ2
VTM™
RO_2
2
+
–
Load
DC
ZIN_EQn
ZOUT_EQn
VTM™
RO_n
n
Figure 20 — VTM module array
Fuse Selection
In order to provide flexibility in configuring power systems
VI Chip® products are not internally fused. Input line fusing
of VI Chip products is recommended at system level to provide
thermal protection in case of catastrophic failure.
The fuse shall be selected by closely matching system
requirements with the following characteristics:
nꢀCurrent rating
(usually greater than maximum current of VTM module)
nꢀMaximum voltage rating
(usually greater than the maximum possible input voltage)
nꢀAmbient temperature
nꢀNominal melting I2t
VTM™ Current Mulitplier
Page 15 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
J-Lead Package Mechanical Drawing
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
J-Lead Package Recommended Land Pattern
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4. PRODUCT MARKING ON TOP SURFACE
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
VTM™ Current Mulitplier
Page 16 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Through Hole Package Mechanical Drawing
mm
(inch)
NOTES:
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4
. PRODUCT MARKING ON TOP SURFACE
DXF and PDF files are available on vicorpower.com
Through Hole Package Recommended Land Pattern
3. .X / [.XX] = +/-0.25 / [.01]; .XX / [.XXX] = +/-0.13 / [.005]
4. PRODUCT MARKING ON TOP SURFACE
mm
2. DIMENSIONS ARE
.
inch
UNLESS OTHERWISE SPECIFIED, TOLERANCES ARE:
DXF and PDF files are available on vicorpower.com
VTM™ Current Mulitplier
Page 17 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Recommended Heat Sink Push Pin Location
(NO GROUNDING CLIPS)
(WITH GROUNDING CLIPS)
Notes:
5. Unless otherwise specified:
Dimensions are mm (inches)
tolerances are:
1. Maintain 3.50 (0.138) Dia. keep-out zone
free of copper, all PCB layers.
2. (A) Minimum recommended pitch is 39.50 (1.555).
This provides 7.00 (0.275) component
edge-to-edge spacing, and 0.50 (0.020)
clearance between Vicor heat sinks.
(B) Minimum recommended pitch is 41.00 (1.614).
This provides 8.50 (0.334) component
edge-to-edge spacing, and 2.00 (0.079)
clearance between Vicor heat sinks.
3. VI Chip® module land pattern shown for reference
only; actual land pattern may differ.
Dimensions from edges of land pattern
to push–pin holes will be the same for
all full-size VI Chip® products.
x.x (x.xx) = 0.3 (0.01)
x.xx (x.xxx) = 0.13 (0.005)
4. RoHS compliant per CST–0001 latest revision.
6. Plated through holes for grounding clips (33855)
shown for reference, heat sink orientation and
device pitch will dictate final grounding solution.
VTM Module Pin Configuration
4
3
2
1
A
B
C
D
A
B
C
D
E
Signal Name
Pin Number
A1-E1, A2-E2
+Out
-Out
+In
+IN
–IN
E
F
L1-T1, L2-T2
G
H
TM
VC
PC
H
J
TM
H1, H2
J
K
L
K
VC
J1, J2
+Out
-Out
L
M
N
P
R
T
M
PC
K1, K2
N
P
R
T
-In
+OUT
–OUT
A3-D3, A4-D4, J3-M3, J4-M4
E3-H3, E4-H4, N3-T3, N4-T4
Bottom View
VTM™ Current Mulitplier
Page 18 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
VTM48Ex096y025A00
Vicor’s comprehensive line of power solutions includes high density AC-DC and DC-DC modules and ac-
cessory components, fully configurable AC-DC and DC-DC power supplies, and complete custom power
systems.
Information furnished by Vicor is believed to be accurate and reliable. However, no responsibility is assumed by Vicor for its use. Vicor makes no
representations or warranties with respect to the accuracy or completeness of the contents of this publication. Vicor reserves the right to make
changes to any products, specifications, and product descriptions at any time without notice. Information published by Vicor has been checked and
is believed to be accurate at the time it was printed; however, Vicor assumes no responsibility for inaccuracies. Testing and other quality controls
are used to the extent Vicor deems necessary to support Vicor’s product warranty. Except where mandated by government requirements, testing of
all parameters of each product is not necessarily performed.
Specifications are subject to change without notice.
Vicor’s Standard Terms and Conditions
All sales are subject to Vicor’s Standard Terms and Conditions of Sale, which are available on Vicor’s webpage or upon request.
Product Warranty
In Vicor’s standard terms and conditions of sale, Vicor warrants that its products are free from non-conformity to its Standard Specifications (the
“Express Limited Warranty”). This warranty is extended only to the original Buyer for the period expiring two (2) years after the date of shipment
and is not transferable.
UNLESS OTHERWISE EXPRESSLY STATED IN A WRITTEN SALES AGREEMENT SIGNED BY A DULY AUTHORIZED VICOR SIGNATORY, VICOR DIS-
CLAIMS ALL REPRESENTATIONS, LIABILITIES, AND WARRANTIES OF ANY KIND (WHETHER ARISING BY IMPLICATION OR BY OPERATION OF LAW)
WITH RESPECT TO THE PRODUCTS, INCLUDING, WITHOUT LIMITATION, ANY WARRANTIES OR REPRESENTATIONS AS TO MERCHANTABILITY,
FITNESS FOR PARTICULAR PURPOSE, INFRINGEMENT OF ANY PATENT, COPYRIGHT, OR OTHER INTELLECTUAL PROPERTY RIGHT, OR ANY OTHER
MATTER.
This warranty does not extend to products subjected to misuse, accident, or improper application, maintenance, or storage. Vicor shall not be liable
for collateral or consequential damage. Vicor disclaims any and all liability arising out of the application or use of any product or circuit and assumes
no liability for applications assistance or buyer product design. Buyers are responsible for their products and applications using Vicor products and
components. Prior to using or distributing any products that include Vicor components, buyers should provide adequate design, testing and operat-
ing safeguards.
Vicor will repair or replace defective products in accordance with its own best judgment. For service under this warranty, the buyer must contact
Vicor to obtain a Return Material Authorization (RMA) number and shipping instructions. Products returned without prior authorization will be
returned to the buyer. The buyer will pay all charges incurred in returning the product to the factory. Vicor will pay all reshipment charges if the
product was defective within the terms of this warranty.
Life Support Policy
VICOR’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS
PRIOR WRITTEN APPROVAL OF THE CHIEF EXECUTIVE OFFICER AND GENERAL COUNSEL OF VICOR CORPORATION. As used herein, life support
devices or systems are devices which (a) are intended for surgical implant into the body, or (b) support or sustain life and whose failure to perform
when properly used in accordance with instructions for use provided in the labeling can be reasonably expected to result in a significant injury to the
user. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or system or to affect its safety or effectiveness. Per Vicor Terms and Conditions of Sale, the user of Vicor products
and components in life support applications assumes all risks of such use and indemnifies Vicor against all liability and damages.
Intellectual Property Notice
Vicor and its subsidiaries own Intellectual Property (including issued U.S. and Foreign Patents and pending patent applications) relating to the
products described in this data sheet. No license, whether express, implied, or arising by estoppel or otherwise, to any intellectual property rights is
granted by this document. Interested parties should contact Vicor’s Intellectual Property Department.
The products described on this data sheet are protected by the following U.S. Patents Numbers:
5,945,130; 6,403,009; 6,710,257; 6,911,848; 6,930,893; 6,934,166; 6,940,013; 6,969,909; 7,038,917; 7,145,186; 7,166,898; 7,187,263;
7,202,646; 7,361,844; D496,906; D505,114; D506,438; D509,472; and for use under 6,975,098 and 6,984,965.
Vicor Corporation
25 Frontage Road
Andover, MA, USA 01810
Tel: 800-735-6200
Fax: 978-475-6715
email
Customer Service: custserv@vicorpower.com
Technical Support: apps@vicorpower.com
VTM™ Current Mulitplier
Page 19 of 19
Rev 1.3
09/2016
vicorpower.com
800 927.9474
厂商 型号 描述 页数 下载

MACOM

 		VTM-1 规格等级，接通延时时序模块[ Specification Grade, On-Delay Timing Module ] 1 页

CPI

 		VTM-6096R1 12 W ， CW螺旋TWT系列[ 12 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6113R1 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6113R2D 60至80瓦， CW迷你螺旋TWT[ 60 to 80 W, CW Mini Helix TWT ] 1 页

CPI

 		VTM-6195R1 28 W， CW螺旋TWT系列[ 28 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6196R1 20 W， CW螺旋TWT系列[ 20 W, CW Helix TWT Series ] 1 页

CPI

 		VTM-6292F8 200瓦螺旋TWT系列[ 200 W Helix TWT Series ] 1 页

CPI

 		VTM-6292M4 250W的螺旋TWT系列[ 250 W Helix TWT Series ] 1 页

TE

 		VTM1 接通延时时序模块[ On-Delay Timing Module ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.302780s
