TZ03T200C001A00

型号：

TZ03T200C001A00

品牌：

MURATA[ muRata ]

页数：

46 页

PDF大小：

626 K

下载PDF手册
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26

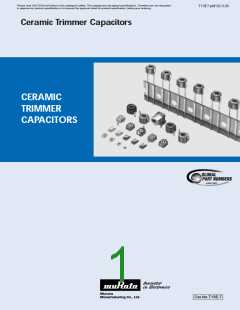

Ceramic Trimmer Capacitors
CERAMIC
TRIMMER
CAPACITORS
Mu ra ta
Ma nu fa cturin g Co., Ltd .
Cat.No.T13E-7
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
1
2
3
4
5
6
7
CONTENTS
Part Numbering
2
3
Selection Guide of CeramicTrimmer Capacitor
1
2
3
4
5
6
7
TZR1 Series
TZS2 Series
TZY2 Series
TZV2 Series
TZC3 Series
TZB4 Series
TZ03 Series
4
8
13
18
23
28
34
41
Packaging
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
The structure of the "Global Part Numbers" that have been adopted since June 2001 and the meaning of each code are described herein.
If you have any questions about details, inquire at your usual Murata sales office or distributor.
o Part Numbering
(
)
Ceramic Trimmer Capacitors
(Global Part Number)
TZ Y2
R
200
A
001 R00
q
w
e
r
t
y
u
qProduct ID
yIndividual Specification
Product ID
Code
Individual Specifications
TZ
Trimmer Capacitors
001
TZR1,TZS2,TZY2 Standard Type
110
169
310
A10
B10
TZV2,TZC3 (Minus Slot) Standard Type
TZ03 Standard Type
wSeries/Terminal
Code
03
Series/Terminal
6mm Size Lead Type
4mm Size SMD/Lead Type
3mm Size SMD Type
TZC3 (Plus Slot) Standard Type
TZB4 No-cover Film Standard Type
TZB4 with Cover Film Standard Type
B4
C3
S2
uPackaging
2mm Size SMD Type (Height 1.0mm)
2mm Size SMD Type (Height 1.25mm)
2mm Size SMD Type (Height 1.45mm)
1mm Size SMD Type (Height 0.90mm)
Y2
Code
A00
B00
M00
R00
R01
Packaging
Ammo Pack (Radial Taping)
Bulk
V2
R1
Magazine
eTemperature Characteristics
Reel (Taping ø180mm)
Reel (Taping ø330mm)
Code
Z
Temperature Characteristics
NP0 ppm/°C
N150ppm/°C
N200ppm/°C
N450ppm/°C
N750ppm/°C
N1000ppm/°C
N1200ppm/°C
S
N
T
R
K
P
Please refer to ratings for tolerance of temperature characteristics.
rMaximum Capacitance
Expressed by three figures. The unit is pico-farad(pF). The first
and second figures are significant digits, and the third figure
expresses the number of zeros which follow the two numbers.
If there is a decimal point, it is expressed by the capital letter "R".
In this case, all figures are significant digits.
tTerminal Shape
Code
Terminal Shape
Top Adjustment; TZR1,TZS2,TZY2,
A
TZV2,TZC3,TZB4 (SMD Type)
Top Adjustment; TZB4 (SMD Type),
Rear Adjustment; TZ03 (Lead Type)
B
C
D
Top Adjustment; TZB4 (Lead Type)
Rear Adjustment; TZB4 (Lead Type)
Top Adjustment; TZ03 (Lead Type),
Rear Adjustment; TZB4 (SMD Type)
E
F
N
T
Y
Top Adjustment; TZ03 (Lead Type)
Rear Adjustment; TZ03 (Lead Type)
Top Adjustment; TZ03 (Taping Type)
Side Adjustment; TZ03 (Lead Type)
Please refer to dimensions for terminals in detail.
2
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Selection Guide of CeramicTrimmer Capacitor
Start
Mounting
Method
Surface Mount
Insertion to PCB
Insertion
Method
Soldering
Method
Reflow
Flow
Manual Insertion
Autmatic Insertion
Height 0.90mm max.
Height 3.20mm max.
Height 3.20mm max.
Height 6.60mm max.
1.5(W)x1.7(L)
4.0(W)x4.5(L)
4.0(W)x4.5(L)
6.0(W)x6.0(L)
TZR1
TZB4_AB
TZB4_BB
TZB4_C
TZB4_D
Height 1.00mm max.
2.2(W)x2.7(L)
TZ03_T
TZS2
Height 1.25mm max.
Height 5.30mm max.
2.5(W)x3.2(L)
6.0(W) 6.0(L)
Bulk
TZB4_EB
TZY2
TZ03_E
Height 1.45mm max.
2.3(W)x3.2(L)
TZV2
TZ03_N
TZ03_F
TZ03_B
Height 1.70mm max.
3.2(W)x4.5(L)
TZC3
(Minus Slot)
Height 1.80mm max.
3.2(W)x4.5(L)
TZC3
(Plus Slot)
Height 7.70mm max.
7.0(W)x7.5(L)
Height 3.20mm max.
4.0(W)x4.5(L)
TZ03_Y
TZB4_AA
TZB4_BA
TZB4_EA
3
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
1
Ceramic Trimmer Capacitors
TZR1 Series
1.7
■ Features
(Depth;0.15)
0.2
1. Ultra-small and thin type with external dimensions
of 1.5(W)x1.7(L)x0.85(H)mm.
(80% less in volume from the current product.)
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
0.35
3. Harmful materials (lead etc.) are not contained in
the product.
Tolerance : ±0.1
(
)
in mm
4. Includig the fixed capacitor in parallel with
trimmer capacitor makes reduction of space and
cost of mounting in circuit. Please contact us
about the capacitance value of built-in fixed
capacitor.
■ Applications
1. Bluetooth
2. Crystal oscillators
4. Hand radios
3. Crystal filters
5. Miniature tuner pack (FM Radio, TV)
6. Remote keyless entry systems
7. Pagers
Cmin.
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
(pF)
TC
Q
TZR1Z040A001
TZR1R080A001
1.5 max.
3.0 max.
4.0 +100/-0%
8.0 +100/-0%
NP0±500ppm/°C
N750±500ppm/°C
300min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
25Vdc
25Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm min. Torque : 0.1~1.0mN.m Operating Temperature Range : -25 ~ +85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
4
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Temperature Characteristics
1
TZR1Z040
TZR1R080
R080 (N750±500 ppm/˚C)
Z040 (NP0±500 ppm/˚C)
+8
+6
+8
+6
+4
+4
+2
20
Temp.(˚C)
85
65
+2
45
85
65
0
0
−2
−25
−10
0
−25
20
−2
−4
0
45
−10
−4
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
■ Frequency Characteristics
TZR1Z040
TZR1R080
Z040
R080
1000
1000
100
1000
100
1000
100
100
Q
Q
10
1
10
10
1
10
500 1000 1500 2000 2500
Frequency(MHz)
500
1000
Frequency(MHz)
1500
2000
■ Land Pattern
■ Temperature Profile
Gradual Cooling
(in air)
Preheating (in air)
Solderring
2.2
1.2
230
183
100
Tolerance:±0.1
in mm
0
60 sec. to 120 sec.
20 sec. max.
(Solder melting zone)
Continued on the following page.
5
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Screwdriver
1
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Murata Part No. : KMDR160
80
1.5
Bit shape :
Minus(0.3×0.13)
(in mm)
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
■ Notice (Soldering)
1. Soldering
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(1) TZR1 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only and do not apply flux
except the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(b) Soldering iron:
> Temperature of tip 260+-10 C.
> Soldering time
> Diameter
3 sec. max.
0.5mm max.
20W max.
> Wattage of iron
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer capacitor
may deviate from the specified characteristics.
(3) The amount of solder is critical.
(6) Our recommendable chlorine content of solder is
as follows.
(4) The thickness of solder paste should be printed
from 100micro m to 150micro m and the dimension
of land pattern should be used Murata's
(a) Solder paste: 0.2wt% max.
(b) String solder: 0.5wt% max.
standard land pattern at reflow soldering.
(7) Do not use water-soluble flux (for water
Continued on the following page.
6
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
(3) Use the suitable dimension of the pick-up nozzle.
(1.1-1.2mm external diameter and 0.8-0.9mm bore
diameter.)
3. Cleaning
Can not be cleaned because of open construction.
4. Other
1
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
driver slot.
*Recommended screwdriver for manual adjustment
MURATA : KMDR160
2. When adjusting with a screwdriver, do not apply
excessive force(preferable 0.5N(Ref;50gf) max.) to
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
7
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZS2 Series
2.7
0.6
0.20 Depth
■ Features
2
1. Ultra-small and thin type with external dimensions
of 2.2(W)x2.7(L)x0.95(H)mm.
(30% less in volume from the current product.)
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
0.4
3. Pierced square hole allows for high resistance to
tuning force and in-process automatic adjustment.
4. Includig the fixed capacitor in parallel with
trimmer capacitor makes reduction of space and
cost of mounting in circuit. Please contact us
about the capacitance value of built-in fixed
capacitor.
Tolerance:±0.1
in mm
■ Applications
•Crystal oscillators
•Crystal filters
•Hand radios
•Cordless telephones
•Cellular telephones •Tuner packs
•Pagers
•Remote keyless entry systems
•PHS
•Radar detectors
•Compact radios
•W-LAN
•Headphone stereos
Cmin.
(pF)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZS2Z060A001
TZS2Z100A001
TZS2R200A001
3.0 max.
3.5 max.
7.0 max.
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm min. Torque : 0.5~5.0mNm Operating Temperature Range : -25~+85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
8
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Temperature Characteristics
TZS2Z060
TZS2Z100
Z100 (NP0±300 ppm/˚C)
Z060 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
+2
+2
85
2
65
Temp.(˚C)
85
0
0
−25
−25
20
65
20
−2
−4
0
0
−2
−4
45
−10
45
−10
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
TZS2R200
R200 (N750±500 ppm/˚C)
+8
+6
+4
+2
20
Temp.(˚C)
85
65
45
0
−2
−25
−10
0
−4
−6
−8
−10
−12
■ Frequency Characteristics
TZS2Z060
TZS2Z100
Z100
Z060
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
200
400
600
800
1000
500
1000
1500
2000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
9
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
TZS2R200
R200
1000
1000
2
100
100
Q
10
10
1
200
400
600
800
1000
Frequency (MHz)
■ Land Pattern
■ Temperature Profile
Gradual Cooling
(in air)
3.2
2.1
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
20 sec. max.
Tolerance:±0.1
in mm
(Solder melting zone)
■ Screwdriver and Screwdriver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMDR050
Murata Part No. : KMBT050
80
20
1.5
2
Bit shape ; Quadrangle (0.54×0.54)
Bit shape ; Quadrangle (0.54×0.54)
(in mm)
(in mm)
10
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
2
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
■ Notice (Soldering)
1. Soldering
flux except the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(1) TZS2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(b) Soldering iron:
> Temperature of tip 260+-10 C.
> Soldering time
> Diameter
3 sec. max.
1mm max.
20W max.
(6) Our recommendable chlorine content of solder is
as follows.
> Wattage of iron
(a) Solder paste : 0.2wt% max.
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer capacitor
may deviate from the specified characteristics.
(3) The amount of solder is critical.
(b) String solder : 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
(4) The thickness of solder paste should be printed
from 100micro m to 150micro m and the dimension
of land pattern should be used Murata's
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
standard land pattern at reflow soldering.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
(3) Use the suitable dimension of the pick-up nozzle.
(1.8mm external diameter and 1.3mm bore
diameter.)
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
3. Cleaning
Can not be cleaned because of open construction.
4. Other
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only and do not apply
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
11
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force(preferable 1.0N(Ref;100gf) max.) to
driver slot.
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
(1) Recommended screwdriver for manual adjustment
MURATA : KMDR050
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
MURATA : KMBT050
2
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
12
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZY2 Series
3.2±0.2
0.45
■ Features
1. Small and thin size available-just
2.5(W)x3.2(L)x1.25(H)mm.
2. New shape of cover can improve the flux invasion
compared with current products.
*1
*1
3. Improvement of the adhesion between rotor and
stator leads superior stability.
0.5
3
4. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
*1 : Only 45pF type
does not have this
shaded area.
Tolerance : ±0.1
(
)
in mm
■ Applications
•Crystal oscillators
•Crystal filters
•Cordless telephones
•Hand radios
•Pagers
•PHS
•Cellular telephones
•Watches
•Remote keyless entry systems
•W-LAN
•Radar detectors
•Compact radios
•Burglarproof devices
•DVD
•Headphone stereos
Cmin.
(pF)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZY2Z010A001
TZY2Z2R5A001
TZY2Z030A001
TZY2Z060A001
TZY2Z100A001
TZY2R200A001
TZY2R250A001
TZY2K450A001
0.5 max.
0.65 max.
1.5 max.
2.5 max.
3.0 max.
4.5 max.
5.5 max.
8.0 max.
1.0 +100/-0%
2.5 +100/-0%
3.0 +100/-0%
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
25.0 +100/-0%
45.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
N750±500ppm/°C
N1000±500ppm/°C
200min. at 200MHz, Cmax.
200min. at 200MHz, Cmax.
300min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
300min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm min. Torque : 0.5~5.0mNm Operating Temperature Range : -25~+85°C
■ Construction
Cover
Metal Rotor
Monolithic
Stator
13
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Temperature Characteristics
TZY2Z2R5
TZY2Z100
Z2R5 (NP0±300 ppm/˚C)
Z100 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
+2
Temp.(˚C)
85
+2
0
Temp.(˚C)
0
−25
65
20
−2
−4
0
−25
65
20
45
85
−10
0
−2
−4
45
−10
−6
−8
−6
−8
−10
−10
−12
−12
3
TZY2R200
TZY2K450
K450 (N1000±500ppm/°C)
R200 (N750±500 ppm/˚C)
+12
+10
+8
+6
+8
+6
+4
+2
+4
+2
20
Temp.(˚C)
85
Temp. (°C)
85
45
65
45
65
20
0
−2
−25
−10
0
0
0
25
–2
–4
–6
−4
−6
−8
–8
–10
–12
−10
−12
■ Frequency Characteristics
TZY2Z2R5
TZY2Z100
Z100
Z2R5
1000
100
10
1000
1000
1000
100
10
100
100
Q
Q
10
10
1
1
200
400
600
800
1000
500
1000
1500
2000
2500
3000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
14
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
TZY2R200
TZY2K450
R200
K450
1000
1000
1000
1000
100
10
1
100
100
100
Q
Q
10
10
10
3
1
200
400
600
800
1000
200
400
600
800
Frequency (MHz)
Frequency (MHz)
■ Land Pattern
■ Temperature Profile
4.0
2.4
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
20 sec. max.
(Solder melting zone)
Tolerance:±0.1
in mm
■ Screwdriver and Screwdriver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMDR060
Murata Part No. : KMBT060
FUTABA TOOL MFG.CO.,LTD. DA-89
25
108
0.6
18
Bit shape ; Minus (0.56 ×0.25)
Bit shape ; Minus (0.8×0.35)
(in mm)
(in mm)
15
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
3
■ Notice (Soldering)
1. Soldering
except the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(1) TZY2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(b) Soldering iron:
> Temperature of tip 260+-10 C.
> Soldering time
> Diameter
3 sec. max.
1mm max.
20W max.
(6) Our recommendable chlorine content of solder is
as follows.
> Wattage of iron
(a) Solder paste : 0.2wt% max.
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer
capacitor may deviate from the specified
characteristics.
(b) String solder : 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
(3) The amount of solder is critical.
(4) The thickness of solder paste should be printed
from 120micro m to 170micro m and the dimension
of land pattern should be used Murata's
standard land pattern at reflow soldering.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) Use the suitable dimension of the pick-up nozzle.
(1.8mm external diameter and 1.3mm bore
diameter.)
3. Cleaning
Can not be cleaned because of open construction.
4. Other
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only and do not apply flux
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
16
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force(preferable 1.0N(Ref;100gf) max.) to
driver slot.
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
(1) Recommended screwdriver for manual adjustment
FUTABA : DA-89
(Murata P/N is KMDR060)
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
(2) Recommended screwdriver bit for automatic
adjustment
MURATA : KMBT060
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
3
17
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZV2 Series
3.2±0.2
0.5 Depth 0.2
■ Features
1. Small size with external dimensions of
2.3(W)x3.2(L)x1.45(H)mm.
Marking(6pF)
2. Unique construction with no plastic material
provides superior soldering heat resistance to
maintain excellent characteristic performance
after reflow soldering.
Marking(10pF)
3. Designed for automatic placement in surface mount
applications.
Tolerance:±0.1
in mm
4. Funnel shaped metal case enable in-process
automatic adjustment.
■ Applications
•Crystal oscillator
4
•Crystal filters
•Hand radios
•Cordless telephones
•Cellular telephones •Tuner packs
•Pagers
•PHS
•Remote keyless entry systems
•Radar detectors
•Compact radios
•W-LAN
•Headphone stereos •DVD
•Burglarproof devices
Cmin.
(pF)
Cmax.
(pF)
Rated
Voltage
Withstanding
Voltage
Part Number
TC
Q
TZV2Z2R5A110
TZV2Z030A110
TZV2Z060A110
TZV2Z100A110
TZV2R200A110
0.65 max.
1.5 max.
2.5 max.
3.0 max.
4.5 max.
2.5 +100/-0%
3.0 +100/-0%
6.0 +100/-0%
10.0 +100/-0%
20.0 +100/-0%
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
NP0±300ppm/°C
N750±500ppm/°C
200min. at 200MHz, Cmax.
300min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
500min. at 1MHz, Cmax.
25Vdc
25Vdc
25Vdc
25Vdc
25Vdc
55Vdc
55Vdc
55Vdc
55Vdc
55Vdc
Insulation Resistance : 10000M ohm min. Torque : 1.0~10.0mNm Operating Temperature Range : -25~+85°C
■ Construction
Cover
Spring Washer
Metal Rotor
Monolithic Stator
18
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Temperature Characteristics
TZV2Z2R5
TZV2Z060
Z2R5 (NP0±300 ppm/˚C)
Z060 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
+2
Temp.(˚C)
85
+2
0
85
65
0
−25
65
20
−2
−25
0
20
45
−10
−2
−4
0
45
−10
−4
Temp.(˚C)
−6
−8
−6
−8
−10
−10
−12
−12
TZV2Z100
TZV2R200
R200 (N750±500 ppm/˚C)
Z100 (NP0±300 ppm/˚C)
+8
+6
+8
+6
+4
4
+4
+2
20
Temp.(˚C)
85
65
+2
45
Temp.(˚C)
85
0
0
−2
−25
−10
0
−25
65
20
0
−2
−4
45
−10
−4
−6
−8
−6
−8
−10
−10
−12
−12
■ Frequency Characteristics
TZV2Z2R5
TZV2Z060
Z060
Z2R5
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
500
1000
1500
2000
500
1000
1500
2000
2500
3000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
19
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
TZV2Z100
TZV2R200
R200
Z100
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
200
400
600
800
1000
200
400
600
800
1000
Frequency (MHz)
Frequency (MHz)
4
■ Land Pattern
■ Temperature Profile
4.0±1.0
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
2.4±0.1
100
0
60 sec. to 120 sec.
20 sec. max.
Tolerance:±0.1
in mm
(Solder melting zone)
■ Screwdriver and Screwdriver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMDR020
Murata Part No. : KMBT020
VESSEL MFG. NO.9000 0.9×30
25
125
0.6
15
9 0 0 0
0.9-30
Bit shape ; Minus (0.9×0.4)
Bit shape ; Minus (0.9×0.4)
(in mm)
(in mm)
20
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
■ Notice (Soldering)
1. Soldering
except the terminals. Excessive amounts of
solder and/or applying solder to the upper part
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
the movable part and/or the contact point. The
soldering iron should not come in contact with
the monolithic stator of the trimmer capacitor.
If such contact does occur, the trimmer
capacitor may be damaged.
(1) TZV2 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
4
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(b) Soldering iron:
>Temperature of tip 260+-10 C.
>Soldering time
>Diameter
3 sec. max.
1mm max.
20W max.
(6) Our recommendable chlorine content of solder is
as follows.
>Wattage of iron
(a) Solder paste : 0.2wt% max.
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer
capacitor may deviate from the specified
characteristics.
(b) String solder : 0.5wt% max.
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
(3) The amount of solder is critical.
(4) The thickness of solder paste should be printed
from 120micro m to 170micro m and the dimension
of land pattern should be used Murata's
standard land pattern at reflow soldering.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) Use the suitable dimension of the pick-up nozzle.
(1.8mm external diameter and 1.3mm bore
diameter.)
3. Cleaning
Can not be cleaned because of open construction.
4. Other
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only and do not apply flux
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
21
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force(preferable 1.0N(Ref;100gf) max.) to
driver slot.
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
(1) Recommended screwdriver for manual adjustment
VESSEL : No.9000-0.9x30
(Murata P/N : KMDR020)
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
(2) Recommended screwdriver bit for automatic
adjustment
MURATA : KMBT020
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
4
22
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZC3 Series
■ Features
1. Small size with external dimension of
3.2(W)x4.5(L)x1.6(H)mm (Cross slot type : 1.7(H)mm)
2. Color coded stator permits easy identification of
capacitance and reduces mounting errors.
3. Can be adjusted with conventional adjustment tools
having a thickness of 0.5mm.
0.5
2.5 dia.
4.5
4.5
4. Available for cross slot type to provide better
adjustability.
Standard Type
Tolerance:±0.1
in mm
5. Providing mechanism to prevent air leak offers
better mountability with automatic mounter.
(Cross slot type)
0.6
0.6
0.5±0.05
Depth 0.4±0.05
6. Designed for automatic placement in surface mount
applications.
7. Heat resistant resin withstands reflow soldering
temperatures.
ø2.5
4.5
■ Applications
•Compact radios
•Headphone stereos
•Portable radio equipments
•Cellular telephones
5
•Pagers
•Hybrid ICs
•Cordless telephones •Remote keyless entry systems
Cross Slot Type
Tolerance:±0.1
in mm
0.6
0.6
Cmin.
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZC3Z030Appp
TZC3Z060Appp
TZC3R100Appp
TZC3P200Appp
TZC3P300Appp
1.4 max.
2.0 max.
3.0 max.
5.0 max.
6.5 max.
3.0 +50/-0%
6.0 +50/-0%
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
NP0±300ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
Brown
Blue
White
Red
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
Green
Insulation Resistance : 10000M ohm min. Torque : 1.5~10.0mNm Operating Temperature Range : -25~+85°C
The last three digits show the slot type. 110:standard(minus) type, 310:plus type.
■ Construction
Standard Type
Cross Slot Type
Center axis
Center axis
Rotor spring terminal
Rotor spring terminal
Ceramic plate
Ceramic plate
Stator
Stator
(One molded injection
with stator terminal)
(One molded injection
with stator terminal)
Stator terminal
Stator terminal
Continued on the following page.
23
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Temperature Characteristics
TZC3Z030
TZC3Z060
Z060 (NP0±300 ppm/˚C)
Z030 (NP0±300 ppm/˚C)
+8
+6
+4
+8
+6
+4
Temp.(˚C)
Temp.(˚C)
85
+2
0
+2
0
20
20
0
45
0
45
−10
−10
−2
−4
−2
−4
65
−25
65
−25
85
−6
−8
−6
−8
−10
−10
−12
−12
TZC3R100
TZC3P200
R100 (N750±300 ppm/˚C)
P200 (N1200±500ppm/°C)
+8
+6
+4
+2
+8
+6
+4
+2
65
45
0
85
85
45
65
0
20
−2
20
–2
−25
Temp.(˚C)
−10
0
–25
–10
0
Temp.(°C)
−4
–4
−6
−8
–6
–8
–10
−10
5
–12
−12
■ Frequency Characteristics
TZC3Z030
TZC3Z060
Z030
Z060
1000
1000
1000
1000
100
100
Q
100
100
Q
10
10
10
10
1
1
100
500
1000
1500
2000
100
500
1000
1500
2000
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
24
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
TZC3R100
TZC3P200
R100
P200
1000
1000
100
10
1000
1000
Q
Q
100
100
100
10
10
10
1
1
200
400
600
800
1000
200
400
600
800
1000
Frequency (MHz)
Frequency(MHz)
■ Land Pattern
Standard Type
Cross Slot Type
+0
−0.5
+0
5.0
5.0
−0.5
3.3±0.1
3.3±0.1
5
Tolerance:±0.1
in mm
Tolerance:±0.1
in mm
■ Temperature Profile
Gradual Cooling
(in air)
Preheating (in air)
Solderring
230
183
100
0
60 sec. to 120 sec.
20 sec. max.
(Solder melting zone)
Continued on the following page.
25
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Standard Type Screwdriver and Screwdirver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMBT010
Murata Part No. : KMDR010
122
30
50
20
Bit shape ; Minus (2.2×0.4)
Bit shape ; Minus (2.2×0.4)
(in mm)
(in mm)
■ Cross Slot Type Screwdriver and Screwdirver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
5
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMDR040
Murata Part No. : KMBT040
TORAY INDUSTRIES,INC. SA-1825
TORAY INDUSTRIES,INC. JB-1825
120
25
5
13
Bit shape ; Minus (1.8×0.45)
Bit shape ; Minus (1.8×0.45)
(in mm)
(in mm)
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
(3) Dusty / dirty atmosphere
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
26
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Soldering)
1. Soldering
of the terminal may cause fixed metal rotor or
the contact failure due to flux invasion into
(1) TZC3 series can be soldered by reflow soldering
method and soldering iron. Do not use flow
soldering method (dipping).
the movable part and/or the contact point. The
soldering iron should not come in contact with
the stator of the trimmer capacitor. If such
contact does occur, the trimmer capacitor may
be damaged.
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(b) Soldering iron:
(6) Our recommendable chlorine content of solder is
as follows.
> Temperature of tip 260+-10 C.
> Soldering time
> Diameter
3 sec. max.
1mm max.
20W max.
(a) Solder paste : 0.2wt% max.
(b) String solder : 0.5wt% max.
> Wattage of iron
(7) Do not use water-soluble flux (for water
cleaning). To prevent the deterioration of
trimmer capacitor characteristics, apply flux
only to terminals.
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer capacitor
may deviate from the specified characteristics.
(3) The amount of solder is critical.
(8) When soldering the TZC3 series, the solder
should not flow into the staking part of the
substrate. If such flow does occur, driver slot
rotation will be damaged.
(4) The thickness of solder paste should be printed
from 150micro m to 200micro m and the dimension
of land pattern should be used Murata's
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
standard land pattern at reflow soldering.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
5
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(3) Use the suitable dimension of the pick-up nozzle.
(2.5mm external diameter and 1.5mm bore
diameter.)
(5) When using soldering iron, the diameter of the
string solder shall be less than 0.5mm. The
string solder shall be applied to the lower
part of the terminal only and do not apply flux
except the terminals. Excessive amounts of
solder and/or applying solder to the upper part
3. Cleaning
Can not be cleaned because of open construction.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
(Murata P/N is KMBT040)
2. When adjusting with a screwdriver, do not apply
excessive force(preferable 1.0N(Ref;100gf) max.) to
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
Standard type --> MURATA : KMDR010
Cross slot type --> TORAY : SA-1825
(Murata P/N is KMDR040)
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
Standard type --> MURATA : KMBT010
Cross slot type --> TORAY : JB-1825
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
27
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZB4 Series
0.6±0.1 Depth 0.5
1.4±0.1 dia.
■ Features
1. Miniature rectangular shape :
4.0(W)x4.5(L)x3.0(H)mm.
4.5±0.2
2.7±0.3
2. Color coded case facilitates identification of
capacitance range.
3. Designed for automatic placement in surface mount
applications.
1.2±0.1
4. Designed to withstand flux baths and solder baths.
(with cover film type)
A Type
B Type
C Type
E Type
Tolerance : ±0.5
5. Can be temporarily attached to PCB with adhesives.
(Terminal style A and B)
in mm
5.0
6. Can be reflow and flow(with cover film type)
soldering method.
0.6±0.1 Depth 0.5
1.4±0.1 dia.
7. Stable characteristics over a wide frequency range.
(Resonant frequency : 1000 MHz min. / 6pF)
4.5±0.2
■ Applications
•Car audio systems
•Cordless telephones
•Pagers
•Hybrid ICs
•Remote keyless entry systems
1.2±0.1
•Tuner packs
•DVD
•Surveillance cameras
•Burglarproof devices
Tolerance : ±0.5
in mm
7.0
0.6±0.1 Depth 0.5
1.4±0.1 dia.
6
4.5±0.2
0.8±0.1
5.0
6.2
Tolerance : ±0.5
in mm
0.6±0.1 Depth 0.5
1.4±0.1 dia.
0.6±0.1 Depth 0.5
4.5±0.2
4.5±0.2
2.0±0.2
7.0
4.8
4.0±0.2
0.8±0.1
6.2
5.0
4.5
D Type
Tolerance : ±0.5
Tolerance : ±0.5
in mm
in mm
28
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Cmin.
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZB4Z030pp10
TZB4Z060pp10
TZB4Z100pp10
TZB4R200pp10
TZB4P300pp10
TZB4P400pp10
TZB4Z250pp10
TZB4R500pp10
1.4 max.
2.0 max.
3.0 max.
4.5 max.
6.5 max.
8.5 max.
4.0 max.
7.0 max.
3.0 +50/-0%
6.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
Brown
Blue
10.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
40.0 +50/-0%
25.0 +100/-0%
50.0 +100/-0%
White
Red
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax 100Vdc
Green
Yellow
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax 50Vdc
Black+Marking
Black+Marking
Insulation Resistance : 10000M ohm min. Torque : 1.5~10.0mNm Operating Temperature Range : -25~+85°C
Two blank columns are terminal type codes and filled with cover film codes (A: not provided, B: provided).
■ Construction
Cover Film (Cover film type)
Rotor Spring
Plastic Case
−
Metal Rotor
Ceramic Plate
Stator Terminal
+
Rotor Terminal
■ Land Pattern/Mounting Holes
A Type
B Type
+0
7.0
+0
8.0
- 0.5
- 0.5
6
2.4±0.2
4.0±0.2
(in mm)
(in mm)
C Type
D Type
2.8±0.2 dia.
1.1±0.1 dia.
5.0±0.5
1.1±0.1 dia.
0.8±0.1
(in mm)
5.0±0.5
(in mm)
Continued on the following page.
29
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Land Pattern/Mounting Holes
E Type
+0
8.0
- 0.5
4.2±0.2
3.2±0.2 dia.
(in mm)
■ Temperature Characteristics
Z060 (NP0±200ppm/°C)
Z100 (NP0±300ppm/°C)
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+55
+55
+85
+20
+85
0
0
–25
–25
Temp. (°C)
0
Temp. (°C)
0
–2
–4
–6
–8
–2
–4
–6
–8
–10
–10
R200 (N750±300ppm/°C)
R500 (N750±200ppm/°C)
6
+10
+8
+6
+4
+2
+10
+8
+6
+4
+2
+20
+85
+55
+55
+85
+20
0
0
–25
0
Temp. (°C)
0
Temp.(°C)
–25
–2
–2
–4
–6
–4
–6
–8
–8
–10
–10
Continued on the following page.
30
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
Z060
Z100
1000
1000
1000
1000
100
100
100
100
Q
Q
10
10
10
10
1
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
R500
R200
1000
1000
1000
1000
100
100
100
100
Q
Q
6
10
10
10
10
1
1
100
200
300
400
500
600
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
■ Temperature Profile
Reflow
Flow
Gradual Cooling
(in air)
Preheating (in air)
Solderring
Gradual Cooling
(in air)
Solderring
Preheating (in air)
230
183
250
200
100
100
0
60 sec. to 120 sec.
20 sec. max.
0
60 sec. to 120 sec.
5 sec. max.
(Solder melting zone)
Continued on the following page.
31
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Screwdriver and Screwdriver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMBT010
Murata Part No. : KMDR010
122
30
50
20
Bit shape ; Minus (2.2×0.4)
Bit shape ; Minus (2.2×0.4)
(in mm)
(in mm)
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
6
■ Notice (Soldering)
1. Soldering
may deviate from the specified characteristics.
(3) The amount of solder is critical.
(1) Can be soldered by reflow soldering method, flow
soldering method, and soldering iron.
(2) Standard soldering condition
(a) Reflow soldering : Refer to the standard
temperature profile.
(4) The thickness of solder paste should be printed
from 200micro m to 250micro m and the dimension
of land pattern should be used Murata's standard
land pattern at reflow soldering. Insufficient
amounts of solder can lead to insufficient
soldering strength on PCB. Excessive amounts of
solder may cause the bridging between the
terminals or the contact failure due to flux
wicking up.
*Available for terminal shape A, B, and E.
(b) Flow soldering : Refer to the standard
temperature profile.
> Immerse the body in solder bath
- Available for cover film type
> Only immerse the terminal in solder bath
- Availabe for terminal shape C and D.
(c) Soldering iron:
(5) When using soldering iron, the string solder shall
be applied to the lower part of the terminal
only and do not apply flux except the terminals.
Excessive amounts of solder and/or applying
solder to the upper part of the terminal may
cause fixed rotor or the contact failure due to
flux invasion into the movable part and/or the
contact point. The soldering iron should not
come in contact with the plastic case of the
trimmer capacitor. If such contact does occur,
the trimmer capacitor may be damaged.
(6) Our recommendable chlorine content of solder is
Continued on the following page.
> Temperature of tip
> Soldering time
> Diameter
260+-10 C.
3 sec. max.
3mm max.
30W max.
> Wattage of iron
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer capacitor
32
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
as follows.
> With cover film type
(a) Solder paste : 0.2wt% max.
- 4.0mm external diameter and 2.0mm bore
diameter.
(b) String solder : 0.5wt% max.
(7) Do not use water-soluble flux (for water cleaning).
To prevent the deterioration of trimmer capacitor
characteristics, apply flux only to terminals.
2. Mounting
3. Cleaning [with cover film type]
(1) Isopropyl alcohol and Ethyl alcohol are available
material for cleaning. Water group material
like Pinealpha, Cleanthru can not be used. For
other materials, please consult with Murata
factory representative prior to using.
(2) The total cleaning time by dipping, vapor and
ultra-sonic method shall be less than 2 minutes.
For ultra-sonic cleaning, the available
condition is as follows.
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor
is mounted on the PCB.
(2) Do not warp and/or bend PCB to prevent trimmer
capacitor from breakage.
(3) Use the suitable PCB holes which are the same
pitch as the terminal of the trimmer capacitor.
If it would not fit with the terminal, the
excessive stress would be applied to the
terminal and the trimmer capacitor may deviate
from the specified characteristics.(Terminal
shape C and D.)
> Cleaning time : 1 min. max.
> Power
: 20W/liter max.
: 20 - 60kHz
> Frequency
> Temperature
: Ambient temperature
Due to the ultra-sonic cleaning equipment
peculiar self resonance point and the cleaning
compatibility usually depends on the jig
(4) Do not apply bending stress more than 10.0N
(Ref.; 1kgf) after the trimmer capacitor has
been mounted on the PCB.(Terminal shape C and D.)
(5) Mount trimmer capacitor in contact with PCB.
(Terminal shape C and D.)
construction and/or the cleaning condition such
as the depth of immersion, please check the
cleaning equipment to determine the suitable
conditions. If the trimmer capacitor is cleaned
by other conditions, the trimmer capacitor may
deviate from the specified characteristics.
(6) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
(7) Use the suitable dimension of the pick-up nozzle.
> Without cover film type
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
- External dimensions of 4.5x4.0mm and
2.5mm bore diameter.
6
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA : KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
4. Do not break the cover film before the completion
of PCB mounting, soldering, and cleaning.
5. Do not clean the trimmer capacitor after the cover
film has been broken.
MURATA : KMBT010
2. When adjusting with a screwdriver, do not apply
excessive force(preferable 1.0N(Ref;100gf) max.) to
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
6. To break the cover film, first turn the screwdriver
more than 45deg., the set the capacitance value.
(Only inserting the screwdriver cannot break the
cover film.)
■ Notice (Other)
1. Before using trimmer capacitor, please test after
assembly in your particular mass production system.
2. We have an application manual for trimmer capacitor.
(Only for chip type) If you need it, please feel
free to contact us.
33
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Ceramic Trimmer Capacitors
TZ03 Series
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
■ Features
1. Color coded case facilitates identification of
capacitance range.
2. Sealed construction prevents the penetration of
flux and dust.
6
6.6
0.25±0.05
0.2±0.05
1.2±0.1
1.0±0.1
3.1
3.5
3. Available in three adjustment styles : Top/Rear/
Side.
4. Available in both tape and reel and magazine
packaging for automatic insertion.
B Type
E Type
N Type
Y Type
Tolerance:±0.5
in mm
5. +(Cross-shaped) slot enables automatic adjustment.
■ Applications
2.5±0.2 dia.
•Car audio systems
•Car clocks
0.5±0.2 Depth 0.5 min .
•Stereos
•Radio cassette tape recorders
•Cordless telephones •Video games
•Compact radio equipments
•Remote keyless entry systems
•Burglarproof devices
6
1.0±0.1
1.0±0.1
Tolerance:±0.5
in mm
0.25±0.05
0.2±0.05
2.5±0.2 dia.
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
0.5±0.2 Depth 0.5 min.
6.0
6
7.8
6.4
1.2±0.1
1.0±0.1
3.0
3.4
7
1.0±0.1
1.0±0.1
F Type
6.6
Tolerance:±0.5
in mm
Tolerance:±0.5
in mm
2.5±0.2 dia.
Trimmer Cap. Body
2.5±0.2 dia.
0.5±0.2 Depth 0.5 min.
2.5
0.5±0.2 Depth 0.5 min.
Socket
6.0
1.2
3.7
3.5
5
7
0.3
4.5
1.2
1.2
7.5
Solder
T Type
2.5±0.3
Tolerance:±0.5
in mm
Tolerance:±0.5
in mm
34
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Cmin.
(pF)
Cmax.
(pF)
Rated Withstanding
Part Number
TC
Q
Stator/Case Color
Voltage
Voltage
TZ03Z2R3p169
TZ03Z050p169
TZ03Z070p169
TZ03N100p169
TZ03Z100p169
TZ03T110p169
TZ03R200p169
TZ03T200p169
TZ03R300p169
TZ03P450p169
TZ03P600p169
TZ03Z500p169
TZ03R900p169
TZ03R121p169
1.25 max.
1.5 max.
2.0 max.
2.1 max.
2.7 max.
3.0 max.
4.2 max.
4.2 max.
5.2 max.
6.8 max.
9.8 max.
6.0 max.
9.0 max.
10.0 max.
2.3 +50/-0%
5.0 +50/-0%
NP0±200ppm/°C
NP0±200ppm/°C
NP0±200ppm/°C
N200±200ppm/°C
NP0±200ppm/°C
N450±300ppm/°C
N750±300ppm/°C
N450±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
500min. at 1MHz, Cmax. 100Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
220Vdc
110Vdc
110Vdc
110Vdc
Black
Blue
7.0 +50/-0%
Blue
10.0 +50/-0%
10.0 +50/-0%
11.0 +50/-0%
20.0 +50/-0%
20.0 +50/-0%
30.0 +50/-0%
45.0 +50/-0%
60.0 +50/-0%
50.0 +100/-0%
90.0 +100/-0%
White
Blue
White
Red
Pink
Green
Yellow
Brown
Orange
Black+Dot
Black
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
N1200±500ppm/°C 300min. at 1MHz, Cmax. 100Vdc
NP0±300ppm/°C
N750±300ppm/°C
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
300min. at 1MHz, Cmax. 50Vdc
120.0 +100/-0% N750±300ppm/°C
Insulation Resistance : 10000M ohm min. Torque : 2.0~15.0mNm Operating Temperature Range : -25~+85°C
A blank column is filled with terminal type codes.
■ Construction
■ Mounting Holes
B Type
E Type
3 dia.
7
1±0.1
3
3.3
5
6.3
Tolerance:±0.5
in mm
Tolerance:±0.5
in mm
Continued on the following page.
35
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Mounting Holes
F Type
N Type
3 dia.
1±0.1
3
3.3
5
Tolerance:±0.5
in mm
Tolerance:±0.5
in mm
T Type
Y Type
5
5.0±0.2
Tolerance:±0.5
in mm
(in mm)
■ Temperature Characteristics
Z070 (NP0±200ppm/°C)
T110 (N450±300ppm/°C)
+6
+4
+2
+6
+4
+2
85
55
Temp. (°C)
20
55
85
20
0
0
–25
0
0
7
–25
–2
Temp. (°C)
–2
–4
–6
–4
–6
R200 (N750±300ppm/°C)
P600 (N1200±500ppm/°C)
+6
+8
+4
+2
+6
+4
+2
55
85
20
20
55
85
0
0
–25
0
Temp. (°C)
0
–25
Temp. (°C)
–2
–2
–4
–6
–8
–4
–6
–10
Continued on the following page.
36
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Temperature Characteristics
Z500 (NP0±300ppm/°C)
R121 (N750±300ppm/°C)
+8
+8
+6
+4
+6
+4
+2
20
85
+2
20
55
55
85
0
–2
–25
0
–2
–25
0
Temp. (°C)
Temp. (°C)
0
–4
–6
–8
–4
–6
–8
–10
–10
■ Frequency Characteristics
T110
Z070
1000
100
10
1000
1000
100
10
1000
100
100
Q
Q
10
10
1
100 200 300 400 500 600 700 800 900 1000
Frequency(MHz)
1
100 200 300 400 500 600 700 800 900 1000
Frequency (MHz)
R200
P450
7
1000
1000
1000
1000
100
10
100
100
100
Q
Q
10
10
10
1
100
200
300
400
500
1
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
Continued on the following page.
37
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
■ Frequency Characteristics
P600
R900
1000
1000
1000
100
10
1000
100
10
100
100
Q
Q
10
10
1
100
200
300
400
500
1
100
200
300
400
500
Frequency (MHz)
Frequency (MHz)
■ Temperature Profile
Flow
Gradual Cooling
(in air)
Solderring
Preheating (in air)
250
200
100
0
60 sec. to 120 sec.
5 sec. max.
■ Screwdriver and Screwdriver Bit
Please use the following recommended screwdriver.
You can order this driver with below part number.
Though you can also adjust the capacitance value by
commercial products, please use one which has the same
head size as the below driver.
7
Screwdriver for Manual Adjustment
Screwdriver Bit for Automatic Adjustment
Murata Part No. : KMDR010
Murata Part No. : KMBT010
122
30
50
20
Bit shape ; Minus (2.2×0.4)
Bit shape ; Minus (2.2×0.4)
(in mm)
(in mm)
38
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
■ Notice (Storage and operating condition)
1. Do not use the trimmer capacitor under atmosphere
of RTV silicone rubber (Room Temperature
Vulcanizing Silicone Rubber) except Acetone
liberating silicone sealant.
8. Do not use the trimmer capacitor under the
conditions listed below.
(1) Corrosive gasses atmosphere
(Ex. Chlorine gas, Hydrogen sulfide gas,
2. Before using trimmer capacitor, please store under
the condition of -10 to +40 C. and 30 to 85%RH.
3. Do not store in or near corrosive gasses.
4. Use within 6 months of deliverly.
Ammonia gas, Sulfuric acid gas, Nitric oxie gas,
etc.)
(2) In liquid (Ex. water, oil, medical liquid,
organic solvent, etc.)
5. Open the package just before using.
6. Prior to storing previously opened packages, the
packaging should be heat-sealed. Avoid using
rubber bands for repackage.
(3) Dusty / dirty atmosphere
(4) Direct sunlight
(5) Static voltage nor electric/magnetic fields
(6) Direct sea breeze
7. Do not store under direct sunlight.
(7) Other variations of the above
■ Notice (Soldering)
1. Soldering
capacitor characteristics, apply flux only to
terminals.
(1) TZ03 series can be soldered by flow soldering
method and soldering iron. Do not use reflow
soldering method.
2. Mounting
(1) Do not apply excessive force (preferable 5.0N
(Ref.; 500gf)max.), when the trimmer capacitor is
mounted on the PCB.
(2) Standard soldering condition
(a) Flow soldering : Refer to the standard
temperature profile.
(2) Use the suitable PCB holes which are the same
pitch as the terminal of the trimmer capacitor.
If it would not fit with the terminal, the
excessive stress would be applied to the
terminal and the trimmer capacitor may deviate
from the specified characteristics.
(b) Soldering iron :
> Temperature of tip 260+-10 C.
> Soldering time
> Diameter
3 sec. max.
3mm max.
30W max.
> Wattage of iron
Before using other soldering conditions than those
listed above, please consult with Murata factory
representative prior to using. If the soldering
conditions are not suitable, e.g., excessive time
and/or excessive temperature, the trimmer
capacitor may deviate from the specified
characteristics.
(3) Do not apply bending stress more than 10.0N
(Ref.; 1kgf) after the trimmer capacitor has
been mounted on the PCB.
(4) Mount trimmer capacitor in contact with PCB.
(5) In case of bending the terminals, do not apply
excessive force to the body of the product and
prevent the terminal fixing part from damaging.
3. Cleaning [with cover film type]
(3) The dimension of mounting hole should be used
Murata's standard mounting hole at flow
soldering. The amount of solder is critical.
Insufficient amounts of solder can lead to
insufficient soldering strength on PCB.
(1) Isopropyl alcohol and Ethyl alcohol are available
material for cleaning. Water group material like
Pinealpha, Cleanthru can not be used. For other
materials, please consult with Murata factory
representative prior to using.
7
Excessive amounts of solder may cause the
bridging between the terminals or the contact
failure due to flux wicking up.
(2) The total cleaning time by dipping, vapor and
ultra-sonic method shall be less than 2 minutes.
For ultra-sonic cleaning, the available condition
is as follows.
(4) When using soldering iron, the string solder shall
be applied to the lower part of the terminal
only and do not apply flux except the terminals.
Excessive amounts of solder and/or applying
solder to the upper part of the terminal may
cause fixed rotor or the contact failure due to
flux invasion into the movable part and/or the
contact point. The soldering iron should not
come in contact with the plastic case of the
trimmer capacitor. If such contact does occur,
the trimmer capacitor may be damaged.
(5) Our recommendable chlorine content of string
solder is 0.5wt% max.
> Cleaning time
> Power
: 30 sec. max.
: 20W/liter max.
: 20 - 60kHz
> Frequency
> Temperature
: Ambient temperature
Due to the ultra-sonic cleaning equipment
peculiar self resonance point and the cleaning
compatibility usually depends on the jig
construction and/or the cleaning condition such
as the depth of immersion, please check the
cleaning equipment to determine the suitable
conditions. If the trimmer capacitor is cleaned
by other conditions, the trimmer capacitor may
deviate from the specified characteristics.
(6) Do not use water-soluble flux (for water cleaning).
To prevent the deterioration of trimmer
Continued on the following page.
39
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Continued from the preceding page.
4. Other
Note the polarity of the trimmer capacitor to
minimize influence by stray capacitance.
(Refer to the dimensions concerning the polarity.)
■ Notice (Handling)
1. Use suitable screwdrivers that fit comfortably in
excessive force(preferable 1.0N(Ref;100gf) max.) to
minimize capacitance drift. If excessive force
applied to the screwdriver slot, it may cause
deformation of the products.
driver slot.
(1) Recommended screwdriver for manual adjustment
MURATA : KMDR010
(2) Recommended screwdriver bit for automatic
adjustment
3. Do not apply adhesive, lock paints, or any other
substances to the trimmer capacitor to secure the
rotor position. They may cause corrosion or
electrical contact problems.
MURATA : KMBT010
2. When adjusting with a screwdriver, do not apply
■ Notice (Other)
Before using trimmer capacitor, please test after
assembly in your particular mass production system.
7
40
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Packaging
■ Minimum Quantity
Minimum Quantity (pcs.)
Part Number
φ180mm Reel
φ330mm Reel
10000
10000
10000
8000
Ammo Pack
Magazine
Bulk
500
500
500
500
500
500
1000
3000
3000
2000
2000
1000
500
-
-
-
TZR1
TZS2
TZY2
TZV2
TZC3
TZB4
TZ03
-
-
-
-
-
4000
-
-
-
2500
-
-
-
1000
80
Depending on terminal shape, some products are supplied on the 500pcs./bulk basis.
■ Dimension of Tape
TZR1R Series
TZS02 Series
2.0±0.1
2.0±0.1
4.0±0.1
1.05±0.2
0.25±0.1
1.25±0.2
0.25±0.1
4.0±0.1
4.0±0.1
4.0±0.1
+0.1
1.5 -0 dia.
+0.1
-0
1.5
Dia.
1.8±0.2
2.5±0.2
(in mm)
(in mm)
TZY2/TZV2 Series
TZC3 Series
+0.1
+0.1
dia.
− 0
1.5
dia.
1.5
2.0±0.2
0.3
− 0
2.0
4.0
t
0.25
2
4
A
A
A-Across
section
A
2.7±0.2
A
A-Across
section
7
4.0
3.6±0.2
8
t=TZY2 (TZVY2) : 1.6±0.2
TZV2 (TZV02) : 1.9±0.2
Tolerance:±0.1
in mm
Tolerance:±0.1
in mm
TZB4 Series
+0.1
− 0
1.5
dia.
3.55±0.2
2.0
8.0
4 .0
0.3±0.1
A
1.8
4.3
A-Across
section
A
Direction of feed
Tolerance:±0.1
in mm
41
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Packaging
■ Dimension of dia. 180mm Reel
TZR1/TZS2/TZY2/TZV2 Series
TZC3/TZB4 Series
13±0.5 dia.
21±0.8 dia.
13±0.5 dia.
21±0.8 dia.
2±0.5
2±0.5
2±0.5
2±0.5
9±1.5
14±1.5
178±2 dia.
178±2 dia.
(in mm)
(in mm)
■ Dimension of dia. 330mm Reel
TZR1/TZS2/TZY2/TZV2 Series
TZC3/TZB4 Series
13±0.5 dia.
13±0.5 dia.
21±0.8 dia.
2±0.5
2±0.5
21±0.8 dia.
2±0.5
9.5±1.5
2±0.5
330±2 dia.
14±1.5
330±2 dia.
(in mm)
(in mm)
■ Dimension of Tape
■ Ammo Pack
TZ03 Series
TZ03 Series
1
0±1.5
12.7
6.35±1.3
1.5 max.
1.5 max.
2
+0.8
5.0
−0.2
ø0.6±0.1
7
3.85±0.7
1.7 max.
12.7±0.3
ø4.0±0.1
1 : Tolerance varies with ∆S.
2 : Except 1mm from the stand-off position.
(in mm)
42
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Recommendable Adjustment Tools
■ For Manual Adjusutment
Trimmer Capacitor Series
MURATA Model Number
KMDR160
Manufactures
MURATA MFG.
Model Number
KMDR160
Bit Shape
Minus
TZR1
TZS2
KMDR050
MURATA MFG.
KMDR050
DA-89
Quadrangle
Minus
TZY2
KMDR060
FUTABA TOOL MFG.
VESSEL MFG.
TZV2
KMDR020
NO.9000-0.9g30
SA-1825
Minus
TZC3 Cross Slot Type
KMDR040
TORAY INDUSTRIES.INC.
Minus
TZC3 Standard Type (Minus Slot)
TZB4
TZ03
KMDR010
MURATA MFG.
KMDR010
Minus
■ For Automatic Adjustment
Trimmer Capacitor Series
MURATA Model Number
KMBT050
Manufactures
MURATA MFG.
Model Number
KMBT050
Bit Shape
Quadrangle
Minus
TZS2
TZY2
KMBT060
MURATA MFG.
KMBT060
TZV2
KMBT020
MURATA MFG.
KMBT020
Minus
TZC3 Cross Slot Type
KMBT040
TORAY INDUSTRIES.INC.
JB-1825
Minus
TZC3 Standard Type (Minus Slot)
TZB4
TZ03
KMBT010
MURATA MFG.
KMBT010
Minus
43
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Qualified Standards
The products listed here has been produced by the QS9000 and ISO9002 certified factory
MURATA FACTORY
Qualified Date
Standard
Qualified Number
A5704
Sabae Murata Mfg.Co.,Ltd.
August.14.1997
UNDERWRITERS LABORATORIES INC.
No ODCs (Ozone Depleting Chemicals) are used on Murata's all trimmer potentiometers
TRIMCAPr is a registered trademark of murata Mfg. Co.,Ltd.
44
Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested
to approve our product specification or to transact the approval sheet for product specification, before your ordering.
T13E7.pdf 02.3.26
Note:
1. Export Control
For customers outside Japan
<
>
Murata products should not be used or sold for use in the development, production, stockpiling or utilization of any conventional weapons or mass-destructive
weapons (nuclear weapons, chemical or biological weapons, or missiles), or any other weapons.
For customers in Japan
<
>
For products which are controlled items subject to the “Foreign Exchange and Foreign Trade Law” of Japan, the export license specified by the law is required
for export.
2. Please contact our sales representatives or product engineers before using our products listed in this catalog for the applications listed below which require
especially high reliability for the prevention of defects which might directly cause damage to the third party's life, body or property, or when intending to use one
of our products for other applications than specified in this catalog.
q Aircraft equipment
w Aerospace equipment
e Undersea equipment
t Medical equipment
u Traffic signal equipment
o Data-processing equipment
r Power plant equipment
y Transportation equipment (vehicles, trains, ships, etc.)
i Disaster prevention / crime prevention equipment
! Application of similar complexity and/or reliability requirements to the applications listed in the above
3. Product specifications in this catalog are as of March 2002. They are subject to change or our products in it may be discontinued without advance notice. Please
check with our sales representatives or product engineers before ordering. If there are any questions, please contact our sales representatives or product
engineers.
4. Please read CAUTION and Notice in this catalog for safety. This catalog has only typical specifications. Therefore you are requested to approve our product
specification or to transact the approval sheet for product specification, before ordering.
5. Please note that unless otherwise specified, we shall assume no responsibility whatsoever for any conflict or dispute that may occur in connection with the effect
of our and/or third party's intellectual property rights and other related rights in consideration of your using our products and/or information described or
contained in our catalogs. In this connection, no representation shall be made to the effect that any third parties are authorized to use the rights mentioned
above under licenses without our consent.
6. No ozone depleting substances (ODS) under the Montreal Protocol are used in our manufacturing process.
http://www.murata.com/
He a d O ffice
In te rn a tio n a l Divisio n
2-26-10, Tenjin Nagaokakyo-shi, Kyoto 617-8555, Japan Phone: 81-75-951-9111
3-29-12, Shibuya, Shibuya-ku, Tokyo 150-0002, Japan
Phone: 81-3-5469-6123 Fax: 81-3-5469-6155 E-mail: intl@murata.co.jp
厂商 型号 描述 页数 下载

TAI-SAW

 		TZ0234D [ Your Best Partner For Frequency Devices ] 8 页

TAI-SAW

 		TZ0260A [ Your Best Partner For Frequency Devices ] 8 页

TAI-SAW

 		TZ0384C [ Your Best Partner For Frequency Devices ] 8 页

MURATA

 		TZ03K200A001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03K200B001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03K200C001A00 [ Ceramic Trimmer Capacitors ] 46 页

MURATA

 		TZ03KA001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KB001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KE001B00 [ Ceramic Trimmer Capacitors ] 1 页

MURATA

 		TZ03KF001B00 [ Ceramic Trimmer Capacitors ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.210604s
