EZPE50956MTA

型号：

EZPE50956MTA

品牌：

PANASONIC[ PANASONIC ]

页数：

3 页

PDF大小：

75 K

下载PDF手册

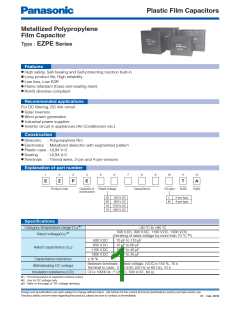

Plastic Film Capacitors
Metallized Polypropylene
Film Capacitor
Type : EZPE Series
Features
●
High safety, Self-healing and Self-protecting function built-in
Long product life, High reliability
Low loss, Low ESR
Flame retardant (Case and sealing resin)
●
●
●
●
RoHS directive compliant
Recommended applications
For DC filtering, DC link circuit
●
Solar inverters
Wind power generation
Industrial power supplies
Inverter circuit in appliances (Air Conditioners etc.)
●
●
●
Construction
●
Dielectric : Polypropylene film
Electrodes : Metallized dielectric with segmented pattern
Plastic case : UL94 V-0
●
●
●
Sealing
: UL94 V-0
●
Terminals : Tinned wires, 2-pin and 4-pin versions
Explanation of part number
1
2
3
4
5
6
7
8
9
10
11
12
E
Z
P
E
T
A
Product code
Dielectric &
construction
Rated voltage
Capacitance
Pin type
Suffix
Suffix
50
80
500 V.DC
800 V.DC
L
2-pin type
4-pin type
M
1B 1100 V.DC
1D 1300 V.DC
Specifications
✽1
Category temperature range (TC)
−40 °C to +85 °C
500 V.DC, 800 V.DC, 1100 V.DC, 1300 V.DC
(Derating of rated voltage by more than 70 °C
✽2
Rated voltage(VR)
✽3
)
500 V.DC
10 μF to 110 μF
10 μF to 60 μF
10 μF to 40 μF
10 μF to 25 μF
800 V.DC
1100 V.DC
1300 V.DC
10 ꢀ
Rated capacitance (CR)
Capacitance tolerance
Withstanding DC voltage
Insulation resistance (CR)
Between terminals : Rated voltage. (V.DC)×150 ꢀ, 10 s
Terminal to case : 2110 V.AC (50 Hz or 60 Hz), 10 s
CR > 10000 Ω ∙ F (20 °C, 500 V.DC, 60 s)
1 : The temperature of capacitor surface (case)
2 : Use for DC voltage only
3 : Refer to the page of “DC voltage derating”
✽
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2016
Plastic Film Capacitors
Dimensions
Marking
Marking
P1 1
P1 1
P2 1
0 0.2
0 0.2
Unit : mm
Marking (ex.)
Panasonic
(a)
(b)
DC
V
(c)
μF
L 0.5
L 0.5
(a) Rated voltage
(b) Capacitance
(c) Lot No.
Rating · Dimensions · Quantity
●
Rated voltage : 500 V.DC at 70 °C (450 V.DC at 85 °C)
Permissible
current
Dimensions (mm)
Cap.
Min.
✽3
✽4
dv/dt
[V/μs]
ESR typ
tan d
(ꢀ)
order
Mass
(g)
Part No.
CR
✽5
Peak
RMS
Current
(Arms)
Q'ty
(mΩ)
✽1
✽2
W
H
L
P1
P2
f
Current
(Ao-p
(ꢁF)
(pcs)
)
EZPE50106LTA
EZPE50156LTA
EZPE50206LTA
EZPE50256LTA
EZPE50306MTA
EZPE50356MTA
EZPE50406MTA
EZPE50456MTA
EZPE50506MTA
EZPE50556MTA
EZPE50606MTA
EZPE50656MTA
EZPE50706MTA
EZPE50756MTA
EZPE50806MTA
EZPE50856MTA
EZPE50906MTA
EZPE50956MTA
10 20
15 20
20 20
25 20
30 20
35 30
40 30
45 30
50 30
55 30
60 30
65 30
70 30
75 30
80 30
85 35
90 35
95 35
42 41.5 37.5
42 41.5 37.5
42 41.5 37.5
42 41.5 37.5
–
–
–
–
1.2
1.2
1.2
1.2
21
21
21
21
21
21
21
21
21
21
21
14
14
14
14
14
14
14
14
14
210
315
420
525
630
735
840
945
1050
1155
1260
910
5.0
7.5
9.5
22.0
14.8
11.0
8.8
7.0
6.2
5.4
4.9
4.4
4.1
3.9
6.8
6.5
6.0
5.7
5.4
5.1
4.9
4.7
4.4
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.28
0.44
0.44
0.44
0.44
0.44
0.44
0.44
0.44
0.44
45
45
44
43
43
83
82
81
80
600
400
11.0
12.5
13.5
14.5
15.2
16.0
16.3
16.5
15.0
15.5
16.0
16.5
16.7
17.0
17.5
18.0
18.5
42 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 20.3 1.2
51 41.5 37.5 20.3 1.2
51 41.5 37.5 20.3 1.2
51 57.5 52.5 10.2 1.2
51 57.5 52.5 10.2 1.2
51 57.5 52.5 20.3 1.2
51 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
79
77
111
109
108
106
142
141
140
139
138
980
1050
1120
1190
1260
1330
1400
1540
200
EZPE50107MTA 100 35
EZPE50117MTA 110 35
1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),
use within limit specified for temperature of capacitor surface and self heating temperature rise.
2 : Maximum RMS current @70 °C, 10 kHz
✽
✽
Use within limit for self heating temperature rise at capacitor surface.
typ
3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR
4 : Maximum dissipation factor @ 20 °C, 1 kHz
5 : Minimum order quantity consists of 4 packing units.
✽
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2016
Plastic Film Capacitors
Rating · Dimensions · Quantity
●
Rated voltage : 800 V.DC at 70 °C (700 V.DC at 85 °C)
Permissible
Dimensions (mm)
Cap.
Min.
current
✽3
✽4
dv/dt
ESR typ
tan d
order
Mass
(g)
Part No.
CR
(ꢁF)
✽5
Peak
RMS
Q'ty
[V/μs]
(mΩ)
(ꢀ)
✽1
✽2
W
H
L
P1
P2
–
f
Current
Current
(pcs)
(Ao-p
)
(Arms)
EZPE80106LTA
10
20
20
30
30
30
30
30
30
35
35
35
42 41.5 37.5
1.2
22
22
22
22
22
15
15
15
15
15
15
220
330
440
550
660
525
600
675
750
825
900
7
9
15.8
10.5
7.7
6.8
5.3
9.7
8.3
7.0
6.3
5.9
5.6
0.22
0.22
0.22
0.22
0.22
0.33
0.33
0.33
0.33
0.33
0.33
44
43
82
80
78
110
107
104
140
138
136
600
400
EZPE80156MTA 15
EZPE80206MTA 20
EZPE80256MTA 25
EZPE80306MTA 30
EZPE80356MTA 35
EZPE80406MTA 40
EZPE80456MTA 45
EZPE80506MTA 50
EZPE80556MTA 55
EZPE80606MTA 60
42 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 20.3 1.2
51 57.5 52.5 10.2 1.2
51 57.5 52.5 20.3 1.2
51 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
11
13
15
12
13
14
15
16
17
200
●
Rated voltage : 1100 V.DC at 70 °C (920 V.DC at 85 °C)
Permissible
current
Dimensions (mm)
Cap.
Min.
✽3
✽4
dv/dt
[V/μs]
ESR typ
tan d
(ꢀ)
order
Mass
(g)
Part No.
CR
✽5
Peak
RMS
Current
(Arms)
Q'ty
(mΩ)
✽1
✽2
W
H
L
P1
P2
f
Current
(Ao-p
(ꢁF)
(pcs)
)
EZPE1B106MTA 10
EZPE1B156MTA 15
EZPE1B206MTA 20
EZPE1B256MTA 25
EZPE1B306MTA 30
EZPE1B356MTA 35
EZPE1B406MTA 40
20
30
30
30
30
35
35
42 41.5 37.5 10.2 1.2
51 41.5 37.5 10.2 1.2
51 41.5 37.5 20.3 1.2
51 57.5 52.5 10.2 1.2
51 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
54
54
54
35
35
35
35
540
810
1080
875
1050
1225
1400
7.0
8.5
10.0
8.0
9.0
10.0
11.0
12.3
8.2
6.3
10.7
8.5
7.2
0.20
0.20
0.20
0.28
0.28
0.28
0.28
43
80
76
107
103
137
134
600
400
200
6.5
●
Rated voltage : 1300 V.DC at 70 °C (1100 V.DC at 85 °C)
Permissible
current
Dimensions (mm)
Cap.
Min.
✽3
✽4
dv/dt
[V/μs]
ESR typ
tan d
(ꢀ)
order
Mass
(g)
Part No.
CR
✽5
Peak
RMS
Current
(Arms)
Q'ty
(mΩ)
✽1
✽2
W
H
L
P1
P2
f
Current
(Ao-p
(ꢁF)
(pcs)
)
EZPE1D106MTA 10
EZPE1D156MTA 15
EZPE1D206MTA 20
EZPE1D256MTA 25
30
30
30
35
51 41.5 37.5 10.2 1.2
51 57.5 52.5 10.2 1.2
51 57.5 52.5 20.3 1.2
56 57.5 52.5 20.3 1.2
73
50
50
50
730
750
1000
1250
12.0
10.0
14.0
17.0
10.0
14.5
11.1
8.5
0.17
0.22
0.22
0.22
80
109
103
136
400
200
1 : When rising temperature of capacitor surface by continuous peak current (included pulse current),
use within limit specified for temperature of capacitor surface and self heating temperature rise.
2 : Maximum RMS current @70 °C, 10 kHz
✽
✽
Use within limit for self heating temperature rise at capacitor surface.
typ
3 : Typical values @ 20 °C, 10 kHz ESR : less than 2.5×ESR
4 : Maximum dissipation factor @ 20 °C, 1 kHz
5 : Minimum order quantity consists of 4 packing units.
✽
✽
✽
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2016
