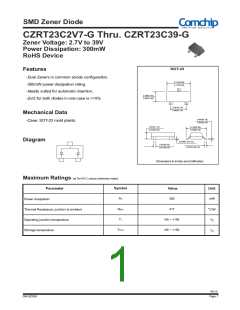

SMD Zener Diode
CZRT23C2V7-G Thru. CZRT23C39-G
Zener Voltage: 2.7V to 39V
Power Dissipation: 300mW
RoHS Device
SOT-23
Features
-Dual Zeners in common anode configuration.
0.119(3.00)
-300mW power dissipation rating.
0.110(2.80)
3
-Ideally suited for automatic insertion.
0.056(1.40)
0.047(1.20)
-ΔVZ for both diodes in one case is <=5%.
1
2
0.083(2.10)
0.066(1.70)
Mechanical Data
-Case: SOT-23 mold plastic
0.006(0.15)
0.002(0.05)
0.044(1.10)
0.035(0.90)
0.103(2.60)
0.086(2.20)
Diagram
0.006(0.15) max
0.007(0.20) min
0.020(0.50)
0.013(0.35)
Dimensions in inches and (millimeter)
Maximum Ratings (at Ta=25°C unless otherwise noted)
Symbol
Parameter
Value
300
Unit
PD
RθJA
TJ
mW
Power dissipation
OC/W
OC
417
Thermal Resistance, junction to ambient
Operating junction temperature
Storage temperature
-65 ~ +150
-65 ~ +150
OC
TSTG
REV:A
Page 1
QW-BZ009
