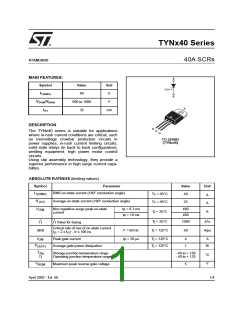

TYNx40 Series
®
STANDARD
40A SCRs
MAIN FEATURES:
Symbol
A
Value
40
Unit
A
G
I
T(RMS)
K
V
/V
600 to 1000
35
V
DRM RRM
A
I
mA
GT
DESCRIPTION
K
The TYNx40 series is suitable for applications
where in-rush current conditions are critical, such
as overvoltage crowbar protection circuits in
power supplies, in-rush current limiting circuits,
solid state relays (in back to back configuration),
welding equipment, high power motor control
circuits.
A
G
TO-220AB
(TYNx40)
Using clip assembly technology, they provide a
superior performance in high surge current capa-
bilites.
ABSOLUTE RATINGS (limiting values)
Symbol
Parameter
Value
40
Unit
I
RMS on-state current (180° conduction angle)
T(RMS)
Tc = 95°C
Tc = 95°C
A
A
IT
Average on-state current (180° conduction angle)
(AV)
TSM
25
I
Non repetitive surge peak on-state
current
tp = 8.3 ms
480
460
Tj = 25°C
A
tp = 10 ms
2
²
²
Tj = 25°C
1060
50
A S
I t
I t Value for fusing
Critical rate of rise of on-state current
dI/dt
F = 60 Hz
tp = 20 µs
Tj = 125°C
A/µs
I
= 2 x I , tr ≤ 100 ns
G
GT
I
Peak gate current
Tj = 125°C
Tj = 125°C
4
1
A
GM
P
Average gate power dissipation
W
G(AV)
T
Storage junction temperature range
Operating junction temperature range
- 40 to + 150
- 40 to + 125
stg
°C
V
Tj
V
Maximum peak reverse gate voltage
5
RGM
April 2002 - Ed: 4A
1/4
