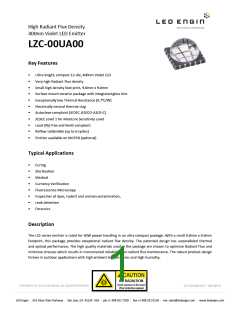

High Radiant Flux Density
400nm Violet LED Emitter
LZC-00UA00
Key Features
.
.
.
.
.
.
.
.
.
.
.
Ultra-bright, compact 12-die, 400nm Violet LED
Very high Radiant Flux density
Small high density foot print, 9.0mm x 9.0mm
Surface mount ceramic package with integrated glass lens
Exceptionally low Thermal Resistance (0.7°C/W)
Electrically neutral thermal slug
Autoclave complaint (JEDEC JESD22-A102-C)
JEDEC Level 1 for Moisture Sensitivity Level
Lead (Pb) free and RoHS compliant
Reflow solderable (up to 6 cycles)
Emitter available on MCPCB (optional)
Typical Applications
.
.
.
.
.
.
.
.
Curing
Sterilization
Medical
Currency Verification
Fluorescence Microscopy
Inspection of dyes, rodent and animal contamination,
Leak detection
Forensics
Description
The LZC-series emitter is rated for 40W power handling in an ultra compact package. With a small 9.0mm x 9.0mm
footprint, this package provides exceptional radiant flux density. The patented design has unparalleled thermal
and optical performance. The high quality materials used in the package are chosen to optimize Radiant Flux and
minimize stresses which results in monumental reliability and radiant flux maintenance. The robust product design
thrives in outdoor applications with high ambient temperatures and high humidity.
UV RADIATION
Avoid exposure to the beam
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
Wear protective eyewear
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Part number options
Base part number
Part number
Description
LZC-00UA00-xxxx
LZC-70UA00-xxxx
LZC-C0UA00-xxxx
LZC emitter
LZC emitter on 1 channel 1x12 Star MCPCB
LZC emitter on 2 channel 2x6 Star MCPCB
Bin kit option codes
Single wavelength bin (5nm range)
Kit number suffix Min flux Bin Color Bin Range Description
00U4
00U5
00U6
00U7
00U8
W
X
U4
U5
U6
U7
U8
W minimum flux; wavelength U4 bin only
X minimum flux; wavelength U5 bin only
X minimum flux; wavelength U6 bin only
X minimum flux; wavelength U7 bin only
X minimum flux; wavelength U8 bin only
X
X
X
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
2
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Radiant Flux Bins
Table 1:
Minimum
Maximum
Radiant Flux (Φ)
@ IF = 700mA[1,2]
(W)
Radiant Flux (Φ)
Bin Code
@ IF = 700mA[1,2]
(W)
W
X
7.50
9.50
9.50
12.00
15.00
Y
12.00
Notes for Table 1:
1.
2.
Radiant flux performance guaranteed within published operating conditions. LED Engin maintains a tolerance of ± 10% on flux measurements.
Future products will have even higher levels of radiant flux performance. Contact LED Engin Sales for updated information.
Peak Wavelength Bins
Table 2:
Minimum
Peak Wavelength (λP)
@ IF = 700mA[1]
(nm)
Maximum
Peak Wavelength (λP)
@ IF = 700mA[1]
(nm)
Bin Code
U4
385
390
395
400
405
390
395
400
405
410
U5
U6
U7
U8
Notes for Table 2:
1.
LED Engin maintains a tolerance of ± 2.0nm on peak wavelength measurements.
Forward Voltage Bins
Table 3:
Minimum
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Maximum
Forward Voltage (VF)
@ IF = 700mA[1,2]
(V)
Bin Code
0
41.28
47.04
Notes for Table 3:
1.
Forward Voltage is binned with all 12 LED dice connected in series.
2.
LED Engin maintains a tolerance of ± 0.48V for forward voltage measurements (± 0.04V per die).
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
3
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Absolute Maximum Ratings
Table 4:
Parameter
DC Forward Current[1]
Peak Pulsed Forward Current[2]
Reverse Voltage
Symbol
Value
1000
1000
See Note 3
-40 ~ +150
125
Unit
mA
mA
V
°C
°C
IF
IFP
VR
Tstg
TJ
Storage Temperature
Junction Temperature
Soldering Temperature[4]
Allowable Reflow Cycles
Tsol
260
6
°C
> 2,000 V HBM
Class 2B JESD22-A114-D
ESD Sensitivity[5]
Notes for Table 4:
1.
Maximum DC forward current (per die) is determined by the overall thermal resistance and ambient temperature.
Follow the curves in Figure 10 for current derating.
2.
3.
4.
5.
Pulse forward current conditions: Pulse Width ≤ 10msec and Duty Cycle ≤ 10%.
LEDs are not designed to be reverse biased.
Solder conditions per JEDEC 020D. See Reflow Soldering Profile Figure 3.
LED Engin recommends taking reasonable precautions towards possible ESD damages and handling the LZC-00UA00
in an electrostatic protected area (EPA). An EPA may be adequately protected by ESD controls as outlined in
ANSI/ESD S6.1.
Optical Characteristics @ TC = 25°C
Table 5:
Typical
385-390nm 390-400nm 400-410nm
Parameter
Symbol
Unit
Radiant Flux (@ IF = 700mA)
Radiant Flux (@ IF = 1000mA)
Peak Wavelength[1]
Φ
Φ
8.50
11.90
385
10.10
14.10
395
11.30
15.80
405
W
W
λP
nm
Viewing Angle[2]
2Θ1/2
Θ0.9V
95
Degrees
Degrees
Total Included Angle[3]
115
Notes for Table 5:
1.
2.
3.
When operating the VIOLET LED, observe IEC 60825-1 class 3B rating. Avoid exposure to the beam.
Viewing Angle is the off axis angle from emitter centerline where the luminous intensity is ½ of the peak value.
Total Included Angle is the total angle that includes 90% of the total luminous flux.
Electrical Characteristics @ TC = 25°C
Table 6:
Parameter
Forward Voltage (@ IF = 700mA)[1]
Symbol
Typical
Unit
VF
44
V
Temperature Coefficient
ΔVF/ΔTJ
-14.2
0.7
mV/°C
of Forward Voltage[1]
Thermal Resistance
(Junction to Case)
RΘJ-C
°C/W
Notes for Table 6:
1.
Typical values for Forward Voltage and Temperature Coefficient of Forward Voltage is shown for with all 12 LED dice connected in series.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
4
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
IPC/JEDEC Moisture Sensitivity Level
Table 7 - IPC/JEDEC J-STD-20D.1 MSL Classification:
Soak Requirements
Floor Life
Conditions
Standard
Conditions
Accelerated
Level
1
Time
Time (hrs)
Time (hrs)
Conditions
≤ 30°C/
168
+5/-0
85°C/
85% RH
Unlimited
n/a
n/a
85% RH
Notes for Table 7:
1.
The standard soak time includes a default value of 24 hours for semiconductor manufacturer’s exposure time (MET) between bake and bag and
includes the maximum time allowed out of the bag at the distributor’s facility.
Average Radiant Flux Maintenance Projections
Lumen maintenance generally describes the ability of an emitter to retain its output over time. The useful lifetime
for power LEDs is also defined as Radiant Flux Maintenance, with the percentage of the original light output
remaining at a defined time period.
Based on long-term WHTOL testing, LED Engin projects that the LZ Series will deliver, on average, 70% Radiant Flux
Maintenance (RP70%) at 20,000 hours of operation at a forward current of 700 mA per die. This projection is
based on constant current operation with junction temperature maintained at or below 80°C.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
5
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Mechanical Dimensions (mm)
Pin Out
Pad
2
Series
Function
1
1
2
2
2
2
1
1
Cathode
Cathode
Cathode
Cathode
Anode
3
5
6
14
15
17
18
Anode
Anode
Anode
17
2
3
18
14
5
6
15
Figure 1: Package outline drawing.
Notes for Figure 1:
1.
2.
Unless otherwise noted, the tolerance = ± 0.20 mm.
Thermal contact, Pad is electrically neutral.
Recommended Solder Pad Layout (mm)
Figure 2a: Recommended solder pad layout for anode, cathode, and thermal pad.
Note for Figure 2a:
1. Unless otherwise noted, the tolerance = ± 0.20 mm.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
6
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Recommended Solder Mask Layout (mm)
Figure 2b: Recommended solder mask opening (hatched area) for anode, cathode, and thermal pad.
Note for Figure 2b:
1.
Unless otherwise noted, the tolerance = ± 0.20 mm.
Reflow Soldering Profile
Figure 3: Reflow soldering profile for lead free soldering.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
7
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Typical Radiation Pattern
100
90
80
70
60
50
40
30
20
10
0
-90 -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 30 40 50 60 70 80 90
Angular Displacement (Degrees)
Figure 4: Typical representative spatial radiation pattern.
Typical Relative Spectral Power Distribution
1
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
300
350
400
450
500
Wavelength (nm)
Figure 5: Relative spectral power vs. wavelength @ TC = 25°C.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
8
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Typical Relative Dominant Wavelength Shift over Temperature
5.0
4.0
3.0
2.0
1.0
0.0
0
20
40
60
80
100
120
Case Temperature (ºC)
Figure 6: Typical dominant wavelength shift vs. case temperature.
Typical Relative Radiant Flux
1.4
1.2
1
0.8
0.6
0.4
0.2
0
0
200
400
600
800
1000
IF - Forward Current (mA)
Figure 7: Typical relative Radiant Flux vs. forward current @ TC = 25°C.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
9
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Typical Normalized Radiant Flux over Temperature
1.20
1.00
0.80
0.60
0.40
0.20
0.00
0
20
40
60
80
100
120
Case Temperature (oC)
Figure 8: Typical normalized radiant flux vs. case temperature @700mA
Typical Forward Current Characteristics
1200
1000
800
600
400
200
0
39
40
41
42
43
44
45
46
Vf-Forward Voltage (V)
Figure 9: Typical forward current vs. forward voltage @ TC = 25°C.
Note for Figure 9:
1. Forward Voltage curve is assumes that all twelve LED dice are connected in series.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
10
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Current De-rating
1200
1000
800
700
(Rated)
600
400
200
RΘJ-A = 2.0°C/W
RΘJ-A = 2.5°C/W
RΘJ-A = 3.0°C/W
0
0
25
50
75
100
125
150
Maximum Ambient Temperature (°C)
Figure 10: Maximum forward current vs. ambient temperature based on TJ(MAX) = 125°C.
Notes for Figure 10:
1.
2.
3.
Maximum current assumes that all four LED dice are operating concurrently at the same current.
RΘJ-C [Junction to Case Thermal Resistance] for the LZC-series is typically 0.7°C/W.
RΘJ-A [Junction to Ambient Thermal Resistance] = RΘJ-C + RΘC-A [Case to Ambient Thermal Resistance].
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
11
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Emitter Tape and Reel Specifications (mm)
Figure 11: Emitter carrier tape specifications (mm).
Figure 12: Emitter Reel specifications (mm).
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
12
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
LZC MCPCB Family
Emitter + MCPCB
Thermal Resistance
(°C /W)
Diameter
(mm)
Typical Vf
(V)
Typical If
(mA)
Part number
Type of MCPCB
LZC-7xxxxx
LZC-Cxxxxx
1-channel
2-channel
28.3
28.3
0.7 + 0.6 = 1.3
0.7 + 0.6 = 1.3
44.0
22.0
700
2 x 700
Mechanical Mounting of MCPCB
.
MCPCB bending should be avoided as it will cause mechanical stress on the emitter, which could lead to
substrate cracking and subsequently LED dies cracking.
.
To avoid MCPCB bending:
o
o
Special attention needs to be paid to the flatness of the heat sink surface and the torque on the screws.
Care must be taken when securing the board to the heat sink. This can be done by tightening three M3
screws (or #4-40) in steps and not all the way through at once. Using fewer than three screws will
increase the likelihood of board bending.
o
o
It is recommended to always use plastics washers in combinations with the three screws.
If non-taped holes are used with self-tapping screws, it is advised to back out the screws slightly after
tightening (with controlled torque) and then re-tighten the screws again.
Thermal interface material
.
.
.
To properly transfer heat from LED emitter to heat sink, a thermally conductive material is required when
mounting the MCPCB on to the heat sink.
There are several varieties of such material: thermal paste, thermal pads, phase change materials and thermal
epoxies. An example of such material is Electrolube EHTC.
It is critical to verify the material’s thermal resistance to be sufficient for the selected emitter and its operating
conditions.
Wire soldering
.
To ease soldering wire to MCPCB process, it is advised to preheat the MCPCB on a hot plate of 125-150oC.
Subsequently, apply the solder and additional heat from the solder iron will initiate a good solder reflow. It is
recommended to use a solder iron of more than 60W.
.
It is advised to use lead-free, no-clean solder. For example: SN-96.5 AG-3.0 CU 0.5 #58/275 from Kester (pn:
24-7068-7601)
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
13
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
LZC-7xxxxx
Emitter on 1-channel MCPCB Dimensions (mm)
Tc
Pad Function
Pad
Function
+
-
Anode
Cathode
Note for Figure 1:
•
•
•
•
•
•
Unless otherwise noted, the tolerance = ± 0.2 mm.
Slots in MCPCB are for M3 or #4-40 mounting screws.
LED Engin recommends plastic washers to electrically insulate screws from solder pads and electrical traces.
Electrical connection pads on MCPCB are labeled “+” for Anode and “-” for Cathode.
LED Engin recommends using thermal interface material when attaching the MCPCB to a heatsink.
The thermal resistance of the MCPCB is: RΘC-B 0.6°C/W
Components used
MCPCB:
ESD chips:
HT04503
BZX585-C51
(Bergquist)
(NPX, for 12 LED dies in series)
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
14
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
LZC-Cxxxxx
Emitter on 2-channel MCPCB Dimensions (mm)
Tc
Pad Function
Pad
1+
1-
Function
Anode Ch1
Cathode Ch1
Anode Ch2
2+
2-
Cathode Ch2
Note for Figure 1:
•
•
•
•
•
•
Unless otherwise noted, the tolerance = ± 0.2 mm.
Slots in MCPCB are for M3 or #4-40 mounting screws.
LED Engin recommends plastic washers to electrically insulate screws from solder pads and electrical traces.
Electrical connection pads on MCPCB are labeled “+” for Anode and “-” for Cathode.
LED Engin recommends thermal interface material when attaching the MCPCB to a heatsink.
The thermal resistance of the MCPCB is: RΘC-B 0.6°C/W
Components used
MCPCB:
ESD chips:
HT04503
BZT52C36LP
(Bergquist)
(NPX, for 6 LED dies in series)
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
15
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
Company Information
LED Engin, Inc., based in California’s Silicon Valley, specializes in ultra-bright, ultra compact solid state lighting
solutions allowing lighting designers & engineers the freedom to create uncompromised yet energy efficient
lighting experiences. The LuxiGen™ Platform — an emitter and lens combination or integrated module
solution, delivers superior flexibility in light output, ranging from 3W to 90W, a wide spectrum of available colors,
including whites, multi-color and UV, and the ability to deliver upwards of 5,000 high quality lumens to a target.
The small size combined with powerful output allows for a previously unobtainable freedom of design wherever
high-flux density, directional light is required. LED Engin’s packaging technologies lead the industry with products
that feature lowest thermal resistance, highest flux density and consummate reliability, enabling compact and
efficient solid state lighting solutions.
LED Engin is committed to providing products that conserve natural resources and reduce greenhouse emissions.
LED Engin reserves the right to make changes to improve performance without notice.
Please contact sales@ledengin.com or (408) 922-7200 for more information.
COPYRIGHT © 2014 LED ENGIN. ALL RIGHTS RESERVED.
LZC-00UA00 (6.0 – 08/28/14)
16
LED Engin | 651 River Oaks Parkway | San Jose, CA 95134 USA | ph +1 408 922 7200 | fax +1 408 922 0158 | em sales@ledengin.com | www.ledengin.com
厂商 型号 描述 页数 下载

ETC

 		LZC-00CW00 [ High Luminous Efficacy Cool White LED Emitter ] 12 页

ETC

 		LZC-00CW0R-0000 [ LED COOL WHITE 4750K-7040K 24SMD ] 19 页

ETC

 		LZC-00CW0R-0055 [ LED COOL WHITE 5500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-0056 [ LED COOL WHITE 5600K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-0065 [ LED COOL WHITE 6500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C000 [ LED COOL WHITE 4750K-7040K 24SMD ] 19 页

ETC

 		LZC-00CW0R-C055 [ LED COOL WHITE 5500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C056 [ LED COOL WHITE 5600K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW0R-C065 [ LED COOL WHITE 6500K 70CRI 24SMD ] 19 页

ETC

 		LZC-00CW40 [ High Luminous Efficacy Cool White LED Emitter ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.193416s
