RY5HD01

型号：

RY5HD01

品牌：

SHARP[ SHARP ELECTRIONIC COMPONENTS ]

页数：

8 页

PDF大小：

54 K

下载PDF手册

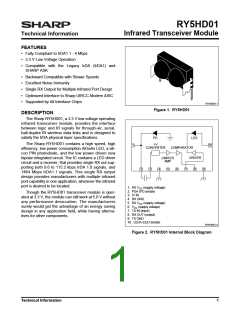

RY5HD01
Technical Information
Infrared Transceiver Module
FEATURES
• Fully Compliant to IrDA1.1 - 4 Mbps
• 3.3 V Low Voltage Operation
• Compatible with the Legacy IrDA (IrDA1) and
SHARP ASK
• Backward Compatible with Slower Speeds
• Excellent Noise Immunity
• Single RX Output for Multiple Infrared Port Design
• Optimized Interface to Sharp UIRCC Modem ASIC
• Supported by All Interface Chips
RY5HD01-1
Figure 1. RY5HD01
DESCRIPTION
The Sharp RY5HD01, a 3.3 V low voltage operating
infrared transceiver module, provides the interface
between logic and IR signals for through-air, serial,
half-duplex IR wireless data links and is designed to
satisfy the IrDA physical layer specifications.
PD
LED
COMPARATOR
The Sharp RY5HD01 contains a high speed, high
efficiency, low power consumption AlGaAs LED, a sili-
con PIN photodiode, and the low power driven new
bipolar integrated circuit. The IC contains a LED driver
circuit and a receiver, that provides single RX out sup-
porting both 9.6 to 115.2 kbps IrDA 1.0 signals, and
1M/4 Mbps IrDA1.1 signals. This single RX output
design provides manufacturers with multiple infrared
port capability in one application, wherever the infrared
port is desired to be located.
I-V
10
1
CONVERTER
DRIVER
8
LIMITER
AMP
2
3
4
5
6
7
9
1. RX VCC (supply voltage)
2. PDA (PD anode)
3. IV IN
Though the RY5HD01 transceiver module is oper-
ated at 3.3 V, the module can still work at 5.0 V without
any performance desiccation. The manufacturers
surely would get the advantage of an energy saving
design in any application field, while having alterna-
tives for other components.
4. RX GND
5. RX VCC (supply voltage)
6. VCC (supply voltage)
7. TX IN (input)
8. RX OUT (output)
9. TX GND
10. LEDA (LED anode)
RY5HD01-4
Figure 2. RY5HD01 Internal Block Diagram
Technical Information
1
RY5HD01
Infrared Transceiver Module
METAL
SHIELD CASE
15.89
11.75
5.85
3.3 ±0.3
2.7
3.6
φ5.0
φ5.0
4.89 ±0.3
0.50
0.25
7.31
1.27
0.45
1.0
0.63
0.97
NOTES:
1.20 1.71
5.05 ±0.3
1. Units are in mm
2. Unspecified tolerances are ±0.2
3. Resin burrs are not included in the outline dimensions
4. Lead pitch dimensions note that of the lead root
RY5HD01-9
Figure 3. Outline Dimensions
Table 1. PINOUTS
PIN
1
DESCRIPTION
Receiver Supply Voltage
Photodiode Output
I-V Converter Input
Receiver Ground
SYMBOL
RX VCC
PDA
2
PIN 1
PIN 10
3
IV IN
RX GND
RX VCC
VCC
4
5
Receiver Supply Voltage
Supply Voltage
2
3
4
5
6
7
8
9
6
7
Transmitter Data Input
Receiver Data Output
Transmitter Ground
IRLED anode
TX IN
8
RX OUT
TX GND
LEDA
9
10
PIN 10
PIN 1
9
8
7
6
5
4
3
2
RY5HD01-11
Figure 4. Pin Locations
2
Technical Information
Infrared Transceiver Module
RY5HD01
Table 2. Component Values
COMPONENTS RECOMMENDED VALUE
APPLICATION CIRCUIT EXAMPLES
Recommended application circuit and passives are
shown in Figure 5 as well as in Table 2.
C1
C2
C3
C4
C5
R1
R2
R3
R4
1000 pF ±10% Ceramic
2.2 µF ±10% Ceramic
2.2 µF ±10% Ceramic
82 pF ±10% Ceramic
47 µF ±10% Aluminum
10 Ω +±5% 0.125 Watt
10 Ω ±5% 0.125 Watt
300 Ω ±5% 0.125 Watt
2.2 Ω ±5% 0.5 Watt
NOTE: V = 3.3 V.
CC
2
3
4
5
6
7
8
9
C1
C4
10
1
R3
C2
C3
R4
R1
R2
VCC
+
C5
IRTx IRRx
RY5HD01-10
Figure 5. Application Circuit Example
Technical Information
3
RY5HD01
Infrared Transceiver Module
Table 3. Truth Table
INPUT OUTPUT
Infrared Light
TX IN
VIH
LED
RXOUT
X
NV
High (ON)
Low (OFF)
Low (OFF)
VIL
High (ON)
Low (OFF)
Low
High
VIL
NOTES:
1. X = Don’t Care
2. NV = Not Valid
Table 5. Absolute Maximum Ratings
PARAMETER
SYMBOL MIN.
MAX.
+85
+70
6.0
UNIT
°C
°C
V
REMARKS
Storage Temperature
Operating Temperature
Supply Voltage
TSTG
TOPR
VCC
—
-20
0
—
—
Receiver Signal Duty Ratio
50
%
Represents period of H level transmitting
signal at TX pinouts. The frequency
should be over 1 kHz.
Input Voltage Range
—
0.2
VCC + 0.2
V
Table 4. Recommended Operating Conditions
PARAMETER
Operating Temperature
Supply Voltage
SYMBOL
TOPR
MIN.
0
MAX.
+ 70
3.6
UNIT
°C
CONDITIONS
VCC
3.0
V
Logic High Transmitter Input
Voltage (TXIN)
VIH2
2.3
3.3
V
Logic Low Transmitter Input
Voltage (TXIN)
VIL2
EIH
EIH
0.0
0.0036
0.0090
9.6
0.45
500
V
mW/cm2 Bit Rate = 9.6 kbps to 115.2 kbps (in-band signals)
Logic High Receiver Input
Irradiance
Bit Rate = 1.152 Mbps to 4 Mbps (in-band
500
mW/cm2
signals)1, Sharp ASK
Receiver Signal Rate (RXOUT)
Ambient Light
4,000
kbps
See IrDA Serial Infrared Physical Layer Link
Specification Appendix A for ambient lights.
NOTE:
1. An in-band optical signal is a pulse/sequence where the peak
wavelength, λp, is defined as 850nm < λp < 900nm, and the pulse
characteristics are compliant with the IrDA Serial Infrared Physi-
cal Layer Link Specification.
4
Technical Information
Infrared Transceiver Module
RY5HD01
ELECTRICAL AND OPTICAL
SPECIFICATIONS
Specifications hold over the Recommended Operat-
ing Conditions, unless otherwise noted herein. All typi-
cal are at 25°C and 3.3 V, ambient light on receiver
surface under 1001x, unless otherwise noted herein.
Table 6. Electrical and Optical Specifications
SYMBOL MIN. TYP. MAX. UNIT
RECEIVER SIDE
PARAMETER
REMARKS
High Level Output Voltage
Low Level Output Voltage
Viewing Angle
VOH1
VOL1
2Φ
2.1
—
2.5
—
0.6
—
V
V
0.1
—
—
—
—
—
—
4.0
20
—
—
—
30
Degrees
µs
tw1
1.0
1.0
100
85
22
Bit Rate = 9.6 kbps (pulse width 19.53 µs)
Bit Rate = 115.2 kbps (pulse width 1.63 µs)
Bit Rate = 1.152 Mbps (pulse width 217 ns)
Bit Rate = 4 Mbps (pulse width 125 ns)
ASK [f = 500 kHz] (pulse width 217 ns)
All mode, nb signal.
tw2
7.0
700
165
1.6
6.0
—
µs
Low Level Pulse Width
tw3
ns
tw4
ns
tw5
0.5
3.0
—
µs
ICC1
mA
mA
ns
Current Consumption
Maximum value for typ. consumption
Rise Time
Fall Time
tr
tf
—
30
—
30
ns
L2
>1.00
—
m
2Φ ½ < 15°, Bit Rate = 115.2 kbps, BER = 10-3
Maximum Reception
Distance
L3
L4
2Φ ½ < 15°, Bit Rate = 1.152 Mbps, BER = 10-3
>1.00
>1.00
—
—
—
—
m
m
2Φ ½ < 15°, Bit Rate = 4.0 Mbps, BER = 10-3
L1
2Φ ½ < 15°, Bit Rate = 115.2 kbps, BER = 10-3
TRANSMITTER SIDE
Radiant Intensity
IE
100
—
—
880
400
75
—
—
mW/sr
nm
VIH2 = 2.3V, ILEDA = 400 mA
Peak Emission Wavelength
Peak LED Current
λP2
ILEDA
ICC3
—
—
mA
All mode
50
112
mA
Bit Rate = 115.2 kbps (TXIN Duty 3/16)
ICC4
ICC5
Bit Rate = 1.152 Mbps (TXIN Duty 1/4)
Bit Rate = 4.0 Mbps (TXIN Duty 1/4)
Current Consumption
66
100
150
mA
ICC2
tr (IE)
tf (IE)
133
—
200
—
300
40
mA
ns
ASK, TXIN Duty 1/2 500 kHz
Rise Time
Fall Time
Bit Rate = 4 Mbps (pulse width 125 ns)
Bit Rate = 4 Mbps (pulse width 125 ns)
—
—
40
ns
Transmitter Data Input
Current (Logic High)
IIH2
IIL2
3.0
-1
—
—
5.1
1
mA
µA
VI = 3.3 V, Duty Ratio 50%, freq. > 1 kHz
VI = 0.0 V
Transmitter Data Input
Current (Logic Low)
High Level Input Voltage
Low Level Input Voltage
VIH2
VIL2
2.1
0.0
—
—
VCC
0.5
V
V
Technical Information
5
RY5HD01
Infrared Transceiver Module
OUTPUT WAVEFORM (CL ≤ 30 pF)
tF
tR
The jitter should be measured from the point of pulse
reference portion, shown in Figure 6. In this measure-
ment, the transmitter (RY5HD01) should also be
adjusted to the recommended radiant intensity shown
in Table 7.
Table 7. Title Needed
tW
BIT RATE
RADIANT INTENSITY
40 mW/sr
RY5HD01-12
9.6 kbps to 115.2 kbps
1.152 Mbps to 4 Mbps, ASK
Figure 6. Output Waveform
100 mW/sr
Figure 7 shows an example of application circuit
together with power down circuit.
APPLYING POWER SAVING CIRCUITRY
TO RY5HD01
Though the Sharp RY5HD01 IR transceiver module
is designed to be operated at 3.3 V, power saving cir-
cuit may be required depending on the applications.
By applying the circuit (marked by dot lines), the IR
port can be managed manually to shut-down the func-
tion and save the battery powers.
2
3
4
5
6
7
8
9
C4
C1
R3
10
1
C3
C2
R4
R1
R2
IRTx IRRx
VCC
+
C5
R6
R5
R8
POWER
CONTROL
SIGNAL
R7
ON
OFF
RY5HD01-13
Figure 7. Application Circuit Example
6
Technical Information
Infrared Transceiver Module
RY5HD01
The noises may be observed on the pinouts
because of the noises through the receiver and the
emitter windows, although the metal shield blocks the
electromagnetic/electrostatic noise from inside and
outside of the unit. Possible noise sources are DC/DC
converters and the LCD backlight supply. Please keep
the transceiver module mounted apart from such noise
sources.
PRECAUTION ON USE
If the surface of the IRLED and PD are dirty or dusty,
communication capabilities may be effected. In such
cases, wipe them gently with a soft cloth and avoid
scratching the surfaces. If solvent is required, use
methyl alcohol or ethyl alcohol, and be careful not to let
the solvent seep inside of the transceiver module.
Please also note that the lot numbers are stamped on
the backside of the transceiver modules.
The IR transceiver modules do not transfer signals
with 100% accuracy due to the effect of ambient light.
These IR transceiver modules are intended to be used
in the consumer electronics for home use in principle,
and must not be used for applications such as power
control, security, medical equipment, and others that
may have a threat to personal safety.
Avoid using the transceiver modules under the dew
condensed conditions.
If the electronic noise of the power supply is large,
attach an external low pass filter close to the trans-
ceiver module pinout. The electronic noise of the power
supply is particularly concerned in the IrDA-SIR com-
munication mode.
Technical Information
7
RY5HD01
Infrared Transceiver Module
LIFE SUPPORT POLICY
SHARP components should not be used in medical devices with life support functions or in safety equipment (or similiar applications where
component failure would result in loss of life or physical harm) without the written approval of an officer of the SHARP Corporation.
LIMITED WARRANTY
SHARP warrants to its Customer that the Products will be free from defects in material and workmanship under normal use and service for a
period of one year from the date of invoice. Customer's exclusive remedy for breach of this warranty is that SHARP will either (i) repair or
replace, at its option, any Product which fails during the warranty period because of such defect (if Customer promptly reported the failure to
SHARP in writing) or, (ii) if SHARP is unable to repair or replace, refund the purchase price of the Product upon its return to SHARP. This
warranty does not apply to any Product which has been subjected to misuse, abnormal service or handling, or which has been altered or
modified in design or construction, or which has been serviced or repaired by anyone other than Sharp. The warranties set forth herein are in
lieu of, and exclusive of, all other warranties, express or implied. ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE
WARRANTIES OF MERCHANTABILITY, FITNESS FOR USE AND FITNESS FOR A PARTICULAR PURPOSE, ARE SPECIFICALLY
EXCLUDED. In no event will Sharp be liable, or in any way responsible, for any incidental or consequential economic or property damage.
The above warranty is also extended to Customers of Sharp authorized distributors with the following exception: reports of failures of Products
during the warranty period and return of Products that were purchased from an authorized distributor must be made through the distributor.
In case Sharp is unable to repair or replace such Products, refunds will be issued to the distributor in the amount of distributor cost.
SHARP reserves the right to make changes in specifications at any time and without notice. SHARP does not assume any responsibility
for the use of any circuitry described; no circuit patent licenses are implied.
NORTH AMERICA
EUROPE
ASIA
SHARP Corporation
SHARP Microelectronics
of the Americas
5700 NW Pacific Rim Blvd., M/S 20
Camas, WA 98607, U.S.A.
Phone: (360) 834-2500
Telex: 49608472 (SHARPCAM)
Facsimile: (360) 834-8903
http://www.sharpsma.com
SHARP Electronics (Europe) GmbH
Microelectronics Division
Sonninstraße 3
20097 Hamburg, Germany
Phone: (49) 40 2376-2286
Facsimile: (49) 40 2376-2232
http://www.sharpmed.com
Integrated Circuits Group
2613-1 Ichinomoto-Cho
Tenri-City, Nara, 632, Japan
Phone: (07436) 5-1321
Telex: LABOMETA-B J63428
Facsimile: (07436) 5-1532
©1998 by SHARP Corporation
Reference Code SMT98166
厂商 型号 描述 页数 下载

TE

 		RY530005 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

TE

 		RY530012 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

TE

 		RY530024 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

TE

 		RY530048 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

TE

 		RY531005 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

MACOM

 		RY531005 小型电源PCB RYII ＆ RYII回流焊[ Miniature Power PCB RYII & RYII Reflow Solderable ] 4 页

MACOM

 		RY531005R 小型电源PCB RYII ＆ RYII回流焊[ Miniature Power PCB RYII & RYII Reflow Solderable ] 4 页

TE

 		RY531012 小型电源PCB RY II ＆ RY II回流焊[ Miniature Power PCB RY II & RY II reflow-solderable ] 4 页

MACOM

 		RY531012 小型电源PCB RYII ＆ RYII回流焊[ Miniature Power PCB RYII & RYII Reflow Solderable ] 4 页

MACOM

 		RY531012R 小型电源PCB RYII ＆ RYII回流焊[ Miniature Power PCB RYII & RYII Reflow Solderable ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.307309s
