CYM26KNP72AV25-10BBC

型号：

CYM26KNP72AV25-10BBC

品牌：

CYPRESS[ CYPRESS ]

页数：

25 页

PDF大小：

234 K

下载PDF手册

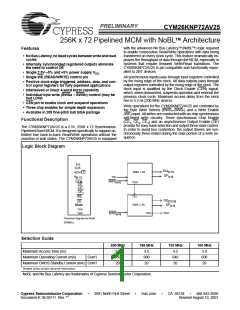

PRELIMINARY
CYM26KNP72AV25
TM
256K x 72 Pipelined MCM with NoBL Architecture
with the advanced No Bus LatencyTM (NoBLTM) logic required
to enable consecutive Read/Write operations with data being
Features
• NoBusLatency, no deadcyclesbetweenwriteandread
cycles
• Internally synchronized registered outputs eliminate
the need to control OE
• Single 2.5V –5% and +5% power supply VDD
• Single WE (READ/WRITE) control pin
• Positive clock-edge triggered, address, data, and con-
trol signal registers for fully pipelined applications
• Interleaved or linear 4-word burst capability
• Individual byte write (BWSa – BWSh) control (may be
tied LOW)
• CEN pin to enable clock and suspend operations
• Three chip enables for simple depth expansion
• Available in 209 fine-pitch ball BGA package
transferred on every clock cycle. This feature dramatically im-
proves the throughput of data through the MCM, especially in
systems that require frequent Write/Read transitions. The
CYM26KNP72AV25 is pin compatible and functionally equiv-
alent to ZBT devices.
All synchronous inputs pass through input registers controlled
by the rising edge of the clock. All data outputs pass through
output registers controlled by the rising edge of the clock. The
clock input is qualified by the Clock Enable (CEN) signal,
which, when deasserted, suspends operation and extends the
previous clock cycle. Maximum access delay from the clock
rise is 3.2 ns (200-MHz device).
Write operations for the CYM26KNP72AV25 are controlled by
the Byte Write Selects (BWSa–BWSh) and a Write Enable
(WE) input. All writes are conducted with on-chip synchronous
self-timed write circuitry. Three synchronous Chip Enable
(CE1, CE2, CE3) and an asynchronous Output Enable (OE)
provide for easy bank selection and output three-state control.
In order to avoid bus contention, the output drivers are syn-
chronously three-stated during the data portion of a write se-
quence.
Functional Description
The CYM26KNP72AV25 is a 2.5V, 256K x 72 Synchronous-
Pipelined Burst MCM. It is designed specifically to support un-
limited true back-to-back Read/Write operations without the
insertion of wait states. The CYM26KNP72AV25 is equipped
Logic Block Diagram
F/T
CLK
DQ
[0:31]
256K x 36
TDO
ADV/LD
DP
[a:d]
A
TDI
[0:17]
BWS
CEN
CE
CE
CE
[a:d]
1
2
3
WE
TDI
DQ
[32:63]
OE
Mode
256K x 36
DP
[e:h]
TCK
TMS
TDO
TDO
BWS
[e:h]
Common Signals for Both
SRAM’s
.
Selection Guide
200 MHz
3.2
166 MHz
3.5
133 MHz
4.2
100 MHz
5.0
Maximum Access Time (ns)
Maximum Operating Current (mA)
Com’l
950
900
640
600
Maximum CMOS Standby Current (mA) Com’l
20
20
20
20
Shaded areas contain advance information.
NoBL and No Bus Latency are trademarks of Cypress Semiconductor Corporation.
Cypress Semiconductor Corporation
•
3901 North First Street
•
San Jose
•
CA 95134
•
408-943-2600
Document #: 38-05111 Rev. **
Revised August 10, 2001
PRELIMINARY
CYM26KNP72AV25
Pin Configuration
209-Ball Grid Array
1
2
3
4
5
6
7
8
9
10
DQb
11
DQg
DQg
DQg
A
B
C
D
E
F
DQg
DQg
CE
CE
ADV/LD
WE
DQb
DQb
3
2
A
A
A
A
A
BWS
NC
NC
DQb
DQb
BWS
BWS
f
BWS
b
c
g
DQg
DQg
DQPc
DQc
DQc
NC
NC
BWS
NC
BWS
CE
BWS
a
BWS
e
DQb
DQb
DQPb
DQf
d
1
h
DQg
V
NC
OE
V
NC
V
SSQ
DQb
SSQ
DQPg
DQc
V
V
V
V
V
V
DD
DDQ
DDQ
DDQ
SSQ
DDQ
DDQ
DD
DD
DQPf
DQf
V
V
V
V
V
V
V
V
SSQ
SS
DD
SSQ
SS
DD
SS
SSQ
DDQ
G
H
J
DQc
DQc
V
V
V
V
V
V
V
DDQ
DDQ
DQf
DQf
DQf
DD
V
V
V
V
V
V
SS
V
DQc
DQc
NC
V
SSQ
SSQ
SS
SSQ
DDQ
SSQ
SS
DQf
DQf
NC
DQc
NC
V
V
V
V
V
V
V
DDQ
DD
DD
DDQ
DDQ
DQf
NC
DD
K
L
CLK
V
CEN
F/T
NC
V
SS
SS
NC
NC
DQh
DQh
DQh
V
V
V
V
DDQ
DD
SS
DD
SS
DDQ
DDQ
DQa0
DQa2
DQa1
DDQ
M
N
P
R
T
V
V
V
V
V
V
V
V
DQh
DQh
DQh
V
V
SSQ
SSQ
DDQ
SSQ
SS
SSQ
SSQ
DQa3
DQa5
DQa7
V
V
V
V
V
DDQ
DQh
DQh
DQPd
DQd
DQd
V
V
V
V
V
NC
DD
DD
SS
DDQ
DDQ
DQa4
DQa6
DQPa8
DQe
V
V
V
V
V
V
SS
SSQ
DDQ
SSQ
SS
SSQ
DDQ
SSQ
DQPh
DQd
DQd
DQd
DQd
V
V
DDQ
SSQ
DD
DD
DDQ
DD
DQPe
DQe
DQe
DQe
DQe
NC
V
NC
NC
NC
A
MODE
A
U
V
W
NC
NC
A
A
NC
NC
A
DQe
A
A1
DQd
DQd
A
A
A
A
DQe
DQe
TDI
TDO
TCK
A0
A
TMS
Document #: 38-05111 Rev. **
Page 2 of 25
PRELIMINARY
CYM26KNP72AV25
Pin Definitions
Name
A0
A1
I/O Type
Description
Input-
Synchronous
Address Inputs used to select one of the 256K address locations. Sampled at the
rising edge of the CLK.
A
BWSa
BWSb
BWSc
BWSd
BWSe
BWSf
BWSg
BWSh
Input-
Synchronous
Byte Write Select Inputs, active LOW. Qualified with WE to conduct writes to the
SRAM. Sampled on the rising edge of CLK. BWSa controls DQa and DPa, BWSb
controls DQb and DPb, BWSc controls DQc and DPc, BWSd controls DQd and DPd,
BWSe controls DQe and DPe, BWSf controls DQf and DPf, BWSg controls DQg and
DPg, BWSh controls DQh and DPh.
WE
Input-
Synchronous
Write Enable Input, active LOW. Sampled on the rising edge of CLK if CEN is active
LOW. This signal must be asserted LOW to initiate a write sequence.
ADV/LD
Input-
Synchronous
Advance/Load Input used to advance the on-chip address counter or load a new
address. When HIGH (and CEN is asserted LOW) the internal burst counter is ad-
vanced. When LOW, a new address can be loaded into the device for an access. After
being deselected, ADV/LD should be driven LOW in order to load a new address.
CLK
CE1
CE2
CE3
OE
Input-Clock
Clock Input. Used to capture all synchronous inputs to the device. CLK is qualified
with CEN. CLK is only recognized if CEN is active LOW.
Input-
Synchronous
Chip Enable 1 Input, active LOW. Sampled on the rising edge of CLK. Used in con-
junction with CE2 and CE3 to select/deselect the device.
Input-
Synchronous
Chip Enable 2 Input, active HIGH. Sampled on the rising edge of CLK. Used in con-
junction with CE1 and CE3 to select/deselect the device.
Input-
Synchronous
Chip Enable 3 Input, active LOW. Sampled on the rising edge of CLK. Used in con-
junction with CE1 and CE2 to select/deselect the device.
Input-
Asynchronous
Output Enable, active LOW. Combined with the synchronous logic block inside the
device to control the direction of the I/O pins. When LOW, the I/O pins are allowed to
behaveas outputs. Whendeasserted HIGH, I/O pins arethree-stated, andactas input
data pins. OE is masked during the data portion of a write sequence, during the first
clock when emerging from a deselected state and when the device has been dese-
lected.
CEN
Input-
Synchronous
Clock Enable Input, active LOW. When asserted LOW the clock signal is recognized
by the SRAM. When deasserted HIGH the clock signal is masked. Since deasserting
CEN does not deselect the device, CEN can be used to extend the previous cycle
when required.
DQa
DQb
DQc
DQd
DQe
DQf
I/O-
Synchronous
Bidirectional Data I/O lines. As inputs, they feed into an on-chip data register that is
triggered by the rising edge of CLK. As outputs, they deliver the data contained in the
memory location specified by A[18:0] during the previous clock rise of the read cycle.
The direction of the pins is controlled by OE and the internal control logic. When OE
is asserted LOW, the pins can behave as outputs. When HIGH, DQa–DQd are placed
in a three-state condition. The outputs are automatically three-stated during the data
portion of a write sequence, during the first clock when emerging from a deselected
state, and when the device is deselected, regardless of the state of OE.
DQg
DQh
DPa
DPb
DPc
DPd
DPe
DPf
I/O-
Synchronous
BidirectionalDataParity I/Olines. Functionally, thesesignals areidenticalto DQ[31:0].
During write sequences, DPa is controlled by BWSa, DPb is controlled by BWSb, DPc
is controlled by BWSc, DPd is controlled by BWSd, DPe is controlled by BWSe, DPf
is controlled by BWSf, DPg is controlled by BWSg, and DPh is controlled by BWSh.
DPg
DPh
F/T
Input
Strap pin
Flowthrough Input: Used as a control pin to select flowthrough or pipelined operation.
High for Pieplined. Connect to VDD for normal operation.
Document #: 38-05111 Rev. **
Page 3 of 25
PRELIMINARY
CYM26KNP72AV25
Pin Definitions (continued)
Name
I/O Type
Description
MODE
Input
Strap Pin
Mode Input. Selects the burst order of the device. Tied HIGH selects the interleaved
burstorder. PulledLOWselectsthelinearburstorder. MODEshouldnotchangestates
during operation. When left floating MODE will default HIGH, to an interleaved burst
order.
TDO
TDI
JTAG serial
output
Synchronous
Serial data-out to the JTAG circuit. Delivers data on the negative edge of TCK. (BGA
Only)
JTAG serial
input
Serial data-In to the JTAG circuit. Sampled on the rising edge of TCK. (BGA Only)
Synchronous
TMS
Test Mode Select
Synchronous
This pin controls the Test Access Port state machine. Sampled on the rising edge of
TCK. (BGA Only)
TCK
VDD
JTAG Clock
JTAG Clock
Power Supply
Power supply inputs to the core of the device.
Power supply for the I/O circuitry.
VDDQ
I/O Power
Supply
VSS
VSSQ
NC
Ground
Ground
-
Ground for the device. Should be connected to ground of the system.
Ground for the I/O circuitry. Should be connected to ground of the system.
No connects.
Document #: 38-05111 Rev. **
Page 4 of 25
PRELIMINARY
CYM26KNP72AV25
mode, a HIGH selects an interleaved burst sequence. Both
burst counters use A0 and A1 in the burst sequence, and will
wrap-around when incremented sufficiently. A HIGH input on
ADV/LD will increment the internal burst counter regardless of
the state of chip enables inputs or WE. WE is latched at the
beginning of a burst cycle. Therefore, the type of access (Read
or Write) is maintained throughout the burst sequence.
Introduction
Functional Overview
The CYM26KNP72AV25 is a synchronous-pipelined Burst
NoBL SRAM module designed specifically to eliminate wait
states during Write/Read transitions. All synchronous inputs
pass through input registers controlled by the rising edge of
the clock. The clock signal is qualified with the Clock Enable
input signal (CEN). If CEN is HIGH, the clock signal is not
recognized and all internal states are maintained. All synchro-
nous operations are qualified with CEN. All data outputs pass
through output registers controlled by the rising edge of the
clock. Maximum access delay from the clock rise (tCO) is
4.2 ns (133-MHz device).
Single Write Accesses
Write access are initiated when the following conditions are
satisfied at clock rise: (1) CEN is asserted LOW, (2) CE1, CE2,
and CE3 are ALL asserted active, and (3) the write signal WE
is asserted LOW. The address presented to Ax is loaded into
the Address Register. The write signals are latched into the
Control Logic block.
Accesses can be initiated by asserting all three Chip Enables
(CE1, CE2, CE3) active at the rising edge of the clock. If Clock
Enable (CEN) is active LOW and ADV/LD is asserted LOW,
the address presented to the device will be latched. The ac-
cess can either be a read or write operation, depending on the
status of the Write Enable (WE). BWS[H:a] can be used to con-
duct byte write operations.
On the subsequent clock rise the data lines are automatically
three-stated regardless of the state of the OE input signal. This
allows the external logic to present the data on DQ and DQP
(DQa-h/DPa-h for CYM26KNP72AV25). In addition, the ad-
dress for the subsequent access (Read/Write/Deselect) is
latched into the Address Register (provided the appropriate
control signals are asserted).
Write operations are qualified by the Write Enable (WE). All
writes are simplified with on-chip synchronous self-timed write
circuitry.
On the next clock rise the data presented to DQ and DP (DQa-
h/DPa-h for CYM26KNP72AV25) (or a subset for byte write
operations, see Write Cycle Description table for details) in-
puts is latched into the device and the write is complete.
Three synchronous Chip Enables (CE1, CE2, CE3) and an
asynchronous Output Enable (OE) simplify depth expansion.
All operations (Reads, Writes, and Deselects) are pipelined.
ADV/LD should be driven LOW once the device has been de-
selected in order to load a new address for the next operation.
The data written during the Write operation is controlled by
BWS (BWSa-h for CYM26KNP72AV25)
signals. The
CYM26KNP72AV25 provides byte write capability that is de-
scribed in the Write Cycle Description table. Asserting the
Write Enable input (WE) with the selected Byte Write Select
(BWS) input will selectively write to only the desired bytes.
Bytes not selected during a byte write operation will remain
unaltered. A Synchronous self-timed write mechanism has
been provided to simplify the write operations. Byte write ca-
pability has been included in order to greatly simplify
Read/Modify/Write sequences, which can be reduced to sim-
ple byte write operations.
Single Read Accesses
A read access is initiated when the following conditions are
satisfied at clock rise: (1) CEN is asserted LOW, (2) CE1, CE2,
and CE3 are ALL asserted active, (3) the Write Enable input
signal WE is deasserted HIGH, and (4) ADV/LD is asserted
LOW. The address presented to the address inputs is latched
into the Address Register and presented to the memory core
and control logic. The control logic determines that a read ac-
cess is in progress and allows the requested data to propagate
to the input of the output register. At the rising edge of the next
clock the requested data is allowed to propagate through the
output register and onto the data bus within 3.8 ns (150-MHz
device) provided OE is active LOW. After the first clock of the
read access the output buffers are controlled by OE and the
internal control logic. OE must be driven LOW in order for the
device to drive out the requested data. During the second
clock, a subsequent operation (Read/Write/Deselect) can be
initiated. Deselecting the device is also pipelined. Therefore,
when the SRAM is deselected at clock rise by one of the chip
enable signals, its output will three-state following the next
clock rise.
Because the CYM26KNP72AV25 is a common I/O device,
data should not be driven into the device while the outputs are
active. The Output Enable (OE) can be deasserted HIGH be-
fore presenting data to the DQ and DP (DQa-h/DPa-h for
CYM26KNP72AV25 ) inputs. Doing so will three-state the out-
put drivers. As a safety precaution, DQ and DP (DQa-h/DPa-h
for CYM26KNP72AV25 are automatically three-stated during
the data portion of a write cycle, regardless of the state of OE.
Burst Write Accesses
The CYM26KNP72AV25 has an on-chip burst counter that
allows the user the ability to supply a single address and con-
duct up to four WRITE operations without reasserting the ad-
dress inputs. ADV/LD must be driven LOW in order to load the
initial address, as described in the Single Write Access section
above. When ADV/LD is driven HIGH on the subsequent clock
rise, the chip enables (CE1, CE2, and CE3) and WE inputs are
ignored and the burst counter is incremented. The correct
BWS (BWSa-h for CYM26KNP72AV25 ) inputs must be driven
in each cycle of the burst write in order to write the correct
bytes of data.
Burst Read Accesses
The CYM26KNP72AV25 has an on-chip burst counter that
allows the user to supply a single address and conduct up to
four Reads without reasserting the address inputs. ADV/LD
must be driven LOW in order to load a new address into the
SRAM, as described in the Single Read Access section above.
The sequence of the burst counter is determined by the MODE
input signal. A LOW input on MODE selects a linear burst
Document #: 38-05111 Rev. **
Page 5 of 25
PRELIMINARY
CYM26KNP72AV25
Cycle Description Truth Table[1, 2, 3, 4, 5, 6]
Address
ADV/
Operation
Used
CE
CEN
LD/
WE
BWSx
CLK
L-H
Comments
Deselected
External
1
0
L
X
X
I/Os three-state following next
recognized clock.
Suspend
-
X
1
X
X
X
L-H
Clock ignored, all operations
suspended.
Begin Read
Begin Write
External
External
0
0
0
0
0
0
1
0
X
L-H
L-H
Address latched.
Valid
Address latched, data presented
two valid clocks later.
Burst Read
Operation
Internal
X
0
1
X
X
L-H
Burst Read operation. Previous ac-
cess was a Read operation. Ad-
dresses incremented internally in
conjunction with the state of Mode.
Burst Write
Operation
Internal
X
0
1
X
Valid
L-H
Burst Write operation. Previous ac-
cess was a Write operation. Ad-
dresses incremented internally in
conjunction with the state of
MODE. Bytes written are deter-
mined by BWS[H:a]
.
Interleaved Burst Sequence
Linear Burst Sequence
First
Address
Second
Address
Third
Address
Fourth
Address
First
Address
Second
Address
Third
Address
Fourth
Address
A[1:0]
A[1:0]
A[1:0]
A[1:0]
A[1:0]
A[1:0]
A[1:0]
A[1:0]
00
01
10
11
01
00
11
10
10
11
00
01
11
10
01
00
00
01
10
11
01
10
11
00
10
11
00
01
11
00
01
10
Notes:
1. X = “Don't Care,” 1 = Logic HIGH, 0 = Logic LOW, CE stands for ALL Chip Enables active. BWS = 0 signifies at least one Byte Write Select is active, BWS
=
x
x
Valid signifies that the desired byte write selects are asserted, see Write Cycle Description table for details.
2. Write is defined by WE and BWS . See Write Cycle Description table for details.
x
3. The DQ and DP pins are controlled by the current cycle and the OE signal.
4. CEN = 1 inserts wait states.
5. Device will power-up deselected and the I/Os in a three-state condition, regardless of OE.
6. OE assumed LOW.
Document #: 38-05111 Rev. **
Page 6 of 25
PRELIMINARY
CYM26KNP72AV25
Write Cycle Description[1]
Function
(CYM26KNP72AV25)
WE
1
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
BWSh
X
1
BWSg
X
1
BWSf
X
1
BWSe
X
1
BWSd
X
1
BWSc
X
1
BWSb
X
1
BWSa
X
1
Read
Write - No bytes written
Write Byte 0 - (DQa andDPa)
Write Byte 1 - (DQb andDPb)
Write Bytes 1, 0
1
1
1
1
1
1
1
0
1
1
1
1
1
1
0
1
1
1
1
1
1
1
0
0
Write Byte 2 - (DQc and DPc)
Write Bytes 2, 0
1
1
1
1
1
0
1
1
1
1
1
1
1
0
1
0
Write Bytes 2, 1
1
1
1
1
1
0
0
1
Write Bytes 2, 1, 0
Write Byte 3 - (DQd andDPd)
Write Bytes 3, 0
1
1
1
1
1
0
0
0
1
1
1
1
0
1
1
1
1
1
1
1
0
1
1
0
Write Bytes 3, 1
1
1
1
1
0
1
0
1
Write Bytes 3, 1, 0
Write Bytes 3, 2
1
1
1
1
0
1
0
0
1
1
1
1
0
0
1
1
Write Bytes 3, 2, 0
Write Bytes 3, 2, 1
Write Bytes 3,2,1,0
Write Byte 4 (DQe and DPe)
Write Bytes 4,0
1
1
1
1
0
0
1
0
1
1
1
1
0
0
0
1
1
1
1
1
0
0
0
0
1
1
1
0
1
1
1
1
1
1
1
0
1
1
1
0
Write Bytes 4,1
1
1
1
0
1
1
0
1
Write Bytes 4,1,0
1
1
1
0
1
1
0
0
Write Bytes 4,2
1
1
1
0
1
0
1
1
Write Bytes 4,2,0
1
1
1
0
1
0
1
0
Write Bytes 4,2,1
1
1
1
0
1
0
0
1
Write Bytes 4,2,1,0
Write Bytes 4,3
1
1
1
0
1
0
0
0
1
1
1
0
0
1
1
1
Write Bytes 4,3,0
1
1
1
0
0
1
1
0
Write Bytes 4,3,1
1
1
1
0
0
1
0
1
Write Bytes 4,3,1,0
Write Bytes 4,3,2
1
1
1
0
0
1
0
0
1
1
1
0
0
0
1
1
Write Bytes 4,3,2,0
Write Bytes 4,3,2,1
Write Bytes 4,3,2,1,0
Write Bytes 5-DQf and DPf
Write Bytes 5,0
1
1
1
0
0
0
1
0
1
1
1
0
0
0
0
1
1
1
1
0
0
0
0
0
1
1
0
1
1
1
1
1
1
1
0
1
1
1
1
0
Document #: 38-05111 Rev. **
Page 7 of 25
PRELIMINARY
CYM26KNP72AV25
Write Cycle Description[1] (continued)
Function
(CYM26KNP72AV25)
WE
0
BWSh
BWSg
BWSf
BWSe
BWSd
BWSc
BWSb
BWSa
Write Bytes 5,1
1
1
1
1
““
0
0
1
1
1
1
““
0
0
0
0
0
0
““
0
0
1
1
1
1
““
0
0
1
1
1
1
““
0
0
1
1
0
0
““
0
0
0
0
1
1
““
0
0
1
0
1
0
““
1
0
Write Bytes 5,1,0
0
Write Bytes 5,2
0
Write Bytes 5,2,0
0
*Write Bytes””
““
0
Write Bytes 7,6,5,4,3,2,1
Write All Bytes
0
*Not all Combos are specified
Document #: 38-05111 Rev. **
Page 8 of 25
PRELIMINARY
CYM26KNP72AV25
the rising edge of TCK. Data is output on the TDO pin on the
falling edge of TCK.
IEEE 1149.1 Serial Boundary Scan (JTAG)
The CYM26KNP72AV25 incorporates a serial boundary scan
Test Access Port (TAP). This port operates in accordance with
IEEE Standard 1149.1-1900, but does not have the set of func-
tions required for full 1149.1 compliance. These functions from
the IEEE specification are excluded because their inclusion
places an added delay in the critical speed path of the SRAM.
Note that the TAP controller functions in a manner that does
not conflict with the operation of other devices using 1149.1
fully compliant TAPs. The TAP operates using JEDEC stan-
dard 3.3V I/O logic levels.
Instruction Register
Three-bit instructions can be serially loaded into the instruction
register. This register is loaded when it is placed between the
TDI and TDO pins as shown in the TAP Controller Block Dia-
gram. Upon power-up, the instruction register is loaded with
the IDCODE instruction. It is also loaded with the IDCODE
instruction if the controller is placed in a reset state as de-
scribed in the previous section.
When the TAP controller is in the CaptureIR state, the two
least significant bits are loaded with a binary “01” pattern to
allow for fault isolation of the board level serial test path.
Disabling the JTAG Feature
It is possible to operate the SRAM without using the JTAG
feature. To disable the TAP controller, TCK must be tied LOW
(VSS) to prevent clocking of the device. TDI and TMS are in-
ternally pulled up and may be unconnected. They may alter-
nately be connected to VDD through a pull-up resistor. TDO
should be left unconnected. Upon power-up, the device will
come up in a reset state which will not interfere with the oper-
ation of the device.
Bypass Register
To save time when serially shifting data through registers, it is
sometimes advantageous to skip certain states. The bypass
register is a single-bit register that can be placed between TDI
and TDO pins. This allows data to be shifted through the
SRAM with minimal delay. The bypass register is set LOW
(VSS) when the BYPASS instruction is executed.
Test Access Port (TAP) - Test Clock
Boundary Scan Register
The test clock is used only with the TAP controller. All inputs
are captured on the rising edge of TCK. All outputs are driven
from the falling edge of TCK.
The boundary scan register is connected to all the input and
output pins on the SRAM. Several no connect (NC) pins are
also included in the scan register to reserve pins for higher
density devices. The x36 configuration has a 69-bit-long reg-
ister.
Test Mode Select
The TMS input is used to give commands to the TAP controller
and is sampled on the rising edge of TCK. It is allowable to
leave this pin unconnected if the TAP is not used. The pin is
pulled up internally, resulting in a logic HIGH level.
The boundary scan register is loaded with the contents of the
RAM Input and Output ring when the TAP controller is in the
Capture-DR state and is then placed between the TDI and
TDO pins when the controller is moved to the Shift-DR state.
The EXTEST, SAMPLE/PRELOAD and SAMPLE Z instruc-
tions can be used to capture the contents of the Input and
Output ring.
Test Data-In (TDI)
The TDI pin is used to serially input information into the regis-
ters and can be connected to the input of any of the registers.
The register between TDI and TDO is chosen by the instruc-
tion that is loaded into the TAP instruction register. For infor-
mation on loading the instruction register, see the TAP Con-
troller State Diagram. TDI is internally pulled up and can be
unconnected if the TAP is unused in an application. TDI is
connected to the Most Significant Bit (MSB) on any register.
The Boundary Scan Order tables show the order in which the
bits are connected. Each bit corresponds to one of the bumps
on the SRAM package. The MSB of the register is connected
to TDI, and the LSB is connected to TDO.
Identification (ID) Register
The ID register is loaded with a vendor-specific, 32-bit code
during the Capture-DR state when the IDCODE command is
loaded in the instruction register. The IDCODE is hardwired
into the SRAM and can be shifted out when the TAP controller
is in the Shift-DR state. The ID register has a vendor code and
other information described in the Identification Register Defi-
nitions table.
Test Data Out (TDO)
The TDO output pin is used to serially clock data-out from the
registers. The output is active depending upon the current
state of the TAP state machine (see TAP Controller State Dia-
gram). The output changes on the falling edge of TCK. TDO is
connected to the Least Significant Bit (LSB) of any register.
Performing a TAP Reset
TAP Instruction Set
A Reset is performed by forcing TMS HIGH (VDD) for five rising
edges of TCK. This RESET does not affect the operation of
the SRAM and may be performed while the SRAM is operat-
ing. At power-up, the TAP is reset internally to ensure that TDO
comes up in a High-Z state.
Eight different instructions are possible with the three-bit in-
struction register. All combinations are listed in the Instruction
Code table. Three of these instructions are listed as
RESERVED and should not be used. The other five instruc-
tions are described in detail below.
The TAP controller used in this SRAM is not fully compliant to
the 1149.1 convention because some of the mandatory 1149.1
instructions are not fully implemented. The TAP controller can-
not be used to load address, data, or control signals into the
SRAM and cannot preload the Input or Output buffers. The
SRAM does not implement the 1149.1 commands EXTEST or
TAP Registers
Registers are connected between the TDI and TDO pins and
allow data to be scanned into and out of the SRAM test circuit-
ry. Only one register can be selected at a time through the
instruction registers. Data is serially loaded into the TDI pin on
Document #: 38-05111 Rev. **
Page 9 of 25
PRELIMINARY
CYM26KNP72AV25
INTEST or the PRELOAD portion of SAMPLE / PRELOAD;
rather it performs a capture of the Inputs and Output ring when
these instructions are executed.
When the SAMPLE / PRELOAD instructions are loaded into
the instruction register and the TAP controller is in the Capture-
DR state, a snapshot of data on the inputs and output pins is
captured in the boundary scan register.
Instructions are loaded into the TAP controller during the Shift-
IR state when the instruction register is placed between TDI
and TDO. During this state, instructions are shifted through the
instruction register through the TDI and TDO pins. To execute
the instruction once it is shifted in, the TAP controller needs to
be moved into the Update-IR state.
The user must be aware that the TAP controller clock can only
operate at a frequency up to 10 MHz, while the SRAM clock
operates more than an order of magnitude faster. Because
there is a large difference in the clock frequencies, it is possi-
ble that during the Capture-DR state, an input or output will
undergo a transition. The TAP may then try to capture a signal
while in transition (metastable state). This will not harm the
device, but there is no guarantee as to the value that will be
captured. Repeatable results may not be possible.
EXTEST
EXTEST is a mandatory 1149.1 instruction which is to be ex-
ecuted whenever the instruction register is loaded with all 0s.
EXTEST is not implemented in the TAP controller, and there-
fore this device is not compliant to the 1149.1 standard.
To guarantee that the boundary scan register will capture the
correct value of a signal, the SRAM signal must be stabilized
long enough to meet the TAP controller’s capture set-up plus
hold times (tCS and tCH). The SRAM clock input might not be
captured correctly if there is no way in a design to stop (or
slow) the clock during a SAMPLE / PRELOAD instruction. If
this is an issue, it is still possible to capture all other signals
and simply ignore the value of the CK and CK# captured in the
boundary scan register.
The TAP controller does recognize an all-0 instruction. When
an EXTEST instruction is loaded into the instruction register,
the SRAM responds as if a SAMPLE / PRELOAD instruction
has been loaded. There is one difference between the two
instructions. Unlike the SAMPLE / PRELOAD instruction,
EXTEST places the SRAM outputs in a High-Z state.
IDCODE
Once the data is captured, it is possible to shift out the data by
putting the TAP into the Shift-DR state. This places the bound-
ary scan register between the TDI and TDO pins.
The IDCODE instruction causes a vendor-specific, 32-bit code
to be loaded into the instruction register. It also places the
instruction register between the TDI and TDO pins and allows
the IDCODE to be shifted out of the device when the TAP
controller enters the Shift-DR state. The IDCODE instruction
is loaded into the instruction register upon power-up or when-
ever the TAP controller is given a test logic reset state.
Note that since the PRELOAD part of the command is not
implemented, putting the TAP into the Update to the Update-
DR state while performing a SAMPLE / PRELOAD instruction
will have the same effect as the Pause-DR command.
Bypass
SAMPLE Z
When the BYPASS instruction is loaded in the instruction reg-
ister and the TAP is placed in a Shift-DR state, the bypass
register is placed between the TDI and TDO pins. The advan-
tage of the BYPASS instruction is that it shortens the boundary
scan path when multiple devices are connected together on a
board.
The SAMPLE Z instruction causes the boundary scan register
to be connected between the TDI and TDO pins when the TAP
controller is in a Shift-DR state. It also places all SRAM outputs
into a High-Z state.
SAMPLE / PRELOAD
SAMPLE / PRELOAD is a 1149.1 mandatory instruction. The
PRELOAD portion of this instruction is not implemented, so
the TAP controller is not fully 1149.1 compliant.
Reserved
These instructions are not implemented but are reserved for
future use. Do not use these instructions.
Document #: 38-05111 Rev. **
Page 10 of 25
PRELIMINARY
CYM26KNP72AV25
TAP Controller State Diagram
TEST-LOGIC
1
RESET
1
1
1
TEST-LOGIC/
IDLE
SELECT
DR-SCAN
SELECT
IR-SCAN
0
0
0
1
1
CAPTURE-DR
CAPTURE-DR
0
0
SHIFT-DR
0
SHIFT-IR
0
1
1
EXIT1-DR
0
1
EXIT1-IR
0
1
0
0
PAUSE-DR
1
PAUSE-IR
1
0
0
EXIT2-DR
1
EXIT2-IR
1
UPDATE-DR
UPDATE-IR
1
1
0
0
Note: The 0/1 next to each state represents the value at TMS at the rising edge of TCK.
Document #: 38-05111 Rev. **
Page 11 of 25
PRELIMINARY
CYM26KNP72AV25
TAP Controller Block Diagram
0
Bypass Register
Selection
Circuitry
Selection
Circuitry
TDO
2
1
0
TDI
Instruction Register
29
Identification Register
31 30
.
.
2
1
1
0
0
.
.
.
.
.
2
Boundary Scan Register
TCK
TMS
TAP Controller
TAP Electrical Characteristics Over the Operating Range[7, 8]
Parameter
VOH1
VOH2
VOL1
VOL2
VIH
Description
Test Conditions
Min.
1.7
Max.
Unit
V
Output HIGH Voltage
Output HIGH Voltage
Output LOW Voltage
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
Input Load Current
IOH = −2.0 mA
IOH = −100 µA
IOL = 2.0 mA
IOL = 100 µA
2.1
V
0.7
0.2
V
V
1.7
−0.3
−5
V
DD + 0.3
V
VIL
0.7
V
IX
GND ≤ VI ≤ VDDQ
5
µA
Notes:
7. All Voltage referenced to Ground
8. Overshoot: VIH(AC) < VDD+1.5V for t < tTCYC/2. Undershoot: VIL(AC) < 0.5V for t < tTCYC/2. Power-up: VIH < 2.6V and VDD < 2.4V and VDDQ< 1.4V for t < 200 ms.
Document #: 38-05111 Rev. **
Page 12 of 25
PRELIMINARY
CYM26KNP72AV25
TAP AC Switching Characteristics Over the Operating Range[9, 10]
Parameter
tTCYC
tTF
Description
Min.
Max
Unit
ns
TCK Clock Cycle Time
TCK Clock Frequency
TCK Clock HIGH
100
10
MHz
ns
tTH
40
40
tTL
TCK Clock LOW
ns
Set-up Times
tTMSS
tTDIS
TMS Set-up to TCK Clock Rise
TDI Set-up to TCK Clock Rise
Capture Set-up to TCK Rise
10
10
10
ns
ns
ns
tCS
Hold Times
tTMSH
tTDIH
TMS Hold after TCK Clock Rise
TDI Hold after Clock Rise
10
10
10
ns
ns
ns
tCH
Capture Hold after Clock Rise
Output Times
tTDOV
TCK Clock LOW to TDO Valid
TCK Clock LOW to TDO Invalid
20
ns
ns
tTDOX
0
Notes:
9. tCS and tCH refer to the set-up and hold time requirements of latching data from the boundary scan register.
10. Test conditions are specified using the load in TAP AC test conditions. tR/tF = 1 ns.
Document #: 38-05111 Rev. **
Page 13 of 25
PRELIMINARY
CYM26KNP72AV25
TAP Timing and Test Conditions
1.25V
50Ω
ALL INPUT PULSES
TDO
2.5V
Z =50Ω
0
1.25V
C =20 pF
L
0V
GND
(a)
tTL
tTH
Test Clock
TCK
tTCYC
tTMSS
tTMSH
Test Mode Select
TMS
tTDIS
tTDIH
Test Data-In
TDI
Test Data-Out
TDO
tTDOX
tTDOV
Document #: 38-05111 Rev. **
Page 14 of 25
PRELIMINARY
CYM26KNP72AV25
Identification Register Definitions
Instruction Field
Value
Description
Revision Number
TBD
Version number.
(31:29)
Cypress Device ID
(28:12)
TBD
TBD
TBD
Defines the type of SRAM.
Cypress JEDEC ID
(11:1)
Allows unique identification of SRAM vendor.
Indicate the presence of an ID register.
ID Register Presence
(0)
Scan Register sizes
Register Name
Instruction
Bit Size
3
Bypass
1
ID
32
TBD
Boundary Scan
Identification Codes
Instruction
Code
Description
EXTEST
000
Captures the Input/Output ring contents. Places the boundary scan register
between the TDI and TDO. Forces all SRAM outputs to High-Z state. This
instruction is not 1149.1 compliant.
IDCODE
001
010
Loads the ID register with the vendor ID code and places the register be-
tween TDI and TDO. This operation does not affect SRAM operation.
SAMPLE Z
Captures the Input/Output contents. Places the boundary scan register be-
tween TDI and TDO. Forces all SRAM output drivers to a High-Z state.
RESERVED
011
100
Do Not Use: This instruction is reserved for future use.
SAMPLE/PRELOAD
Captures the Input/Output ring contents. Places the boundary scan register
between TDI and TDO. Does not affect the SRAM operation. This instruction
does not implement 1149.1 preload function and is therefore not 1149.1
compliant.
RESERVED
RESERVED
BYPASS
101
110
111
Do Not Use: This instruction is reserved for future use.
Do Not Use: This instruction is reserved for future use.
Places the bypass register between TDI and TDO. This operation does not
affect SRAM operation.
Document #: 38-05111 Rev. **
Page 15 of 25
PRELIMINARY
CYM26KNP72AV25
Boundary Scan Order (To Be Determined)
Document #: 38-05111 Rev. **
Page 16 of 25
PRELIMINARY
CYM26KNP72AV25
Current into Outputs (LOW) ........................................ 20 mA
Maximum Ratings
Static Discharge Voltage .......................................... >2001V
(per MIL-STD-883, Method 3015)
(Above which the useful life may be impaired. For user guide-
lines, not tested.)
Latch-Up Current.................................................... >200 mA
+
Storage Temperature .................................–65°C to +150°C
Ambient Temperature with
Power Applied.............................................–55°C to +125°C
Operating Range
Ambient
Supply Voltage on VDD Relative to GND ....... –0.5V to +2.6V
Range
Com’l
Temperature[11]
VDD/VDDQ
DC Voltage Applied to Outputs
in High Z State[12] ............................... –0.5V to VDDQ + 0.5V
0°C to +70°C
2.5V ± 5%
DC Input Voltage[12]............................ –0.5V to VDDQ + 0.5V
Electrical Characteristics Over the Operating Range
Parameter
VDD
Description
Test Conditions
Min.
2.375
2.375
2.0
Max.
2.625
2.625
Unit
V
Power Supply Voltage
I/O Supply Voltage
Output HIGH Voltage
Output LOW Voltage
Input HIGH Voltage
Input LOW Voltage
Input Load Current
Input Current of MODE
VDDQ
VOH
VOL
VIH
VIL
V
VDD = Min., IOH = –1.0 mA
V
VDD = Min., IOL = 1.0 mA
0.2
V
1.7 VDD + 0.3V
V
–0.3
–10
–60
–5
0.7
10
60
5
V
IX
GND < VI < VDDQ
µA
µA
µA
IOZ
IDD
Output Leakage
Current
GND < VI < VDDQ, Output Disabled
VDD Operating Supply VDD = MAX., IOUT = 0 mA,
f = fMAX = 1/tCYC
5-ns cycle, 200 MHz
6-ns cycle, 166 MHz
7.5-ns cycle, 133MHz
10-ns cycle, 100 MHz
5-ns cycle, 200 MHz
6-ns cycle, 166 MHz
7.5-ns cycle, 133 MHz
10-ns cycle, 100 MHz
950
900
640
600
180
160
140
130
20
mA
mA
mA
mA
mA
ISB1
Automatic CE
Power-Down
Current—TTL Inputs
Max. VDD, Device Deselected,
IN ≥ VIH or VIN ≤ VIL
f = fMAX = 1/tCYC
V
ISB2
Automatic CE
Power-Down
Current—CMOS Inputs f = 0
Max. VDD, DeviceDeselected, VIN All speed grades
< 0.3V or VIN > VDDQ – 0.3V,
mA
mA
ISB3
Automatic CE
Power-Down
Current—CMOS Inputs f = fMAX = 1/tCYC
Max. VDD, Device Deselected, or 5-ns cycle, 200 MHz
90
80
70
60
50
VIN < 0.3V or VIN > VDDQ – 0.3V
6-ns cycle, 166 MHz
7.5-ns cycle, 133 MHz
10-ns cycle, 100MHz
All Speeds
mA
mA
mA
ISB4
Automatic CS
Power-Down
Max. VDD, Device Deselected,
VIN > VIH or VIN < VIL, f = 0
Current—TTL Inputs
Notes:
11. TA is the case temperature.
12. Minimum voltage equals –2.0V for pulse durations of less than 20 ns.
13. The load used for VOH and VOL testing is shown in figure (b) of the AC Test Conditions.
Document #: 38-05111 Rev. **
Page 17 of 25
PRELIMINARY
CYM26KNP72AV25
Capacitance[15]
Parameter
Description
Input Capacitance
Test Conditions
Max.
Unit
pF
CIN
TA = 25°C, f = 1 MHz,
VDD = VDDQ = 3.3V
4
4
6
CCLK
CI/O
Clock Input Capacitance
pF
Input/Output Capacitance
pF
AC Test Loads and Waveforms
R=317Ω
3.3V
[14]
OUTPUT
ALL INPUT PULSES
90%
OUTPUT
V
CC
90%
10%
Z =50Ω
0
R =50Ω
10%
L
5 pF
GND
R=351Ω
< 1V/ns
< 1V/ns
V = 1.5V
L
INCLUDING
JIG AND
SCOPE
(c)
(a)
(b)
Thermal Resistance[15]
Description
Test Conditions
Symbol
BGATyp.
Units
Thermal Resistance
(Junction to Ambient)
Still Air, soldered on a 4.25 x 1.125 inch, 4-layer
printed circuit board
QJA
xx
°C/W
Thermal Resistance
(Junction to Case)
QJC
xx
°C/W
Notes:
14. Input waveform should have a slew rate of > 1 V/ns.
15. Tested initially and after any design or process change that may affect these parameters.
Document #: 38-05111 Rev. **
Page 18 of 25
PRELIMINARY
CYM26KNP72AV25
Switching Characteristics Over the Operating Range[16]
-200
Max.
-166
Max.
-133
Max.
-100
Max.
Parameter
Clock
tCYC
Description
Min.
Min.
Min.
Min.
Unit
Clock Cycle Time
5
6
7.5
10.0
ns
MHz
ns
FMAX
tCH
Maximum Operating Frequency
Clock HIGH
200
166
133
100
1.4
1.4
1.7
1.7
2.0
2.0
4.0
4.0
tCL
Clock LOW
ns
Output Times
tCO
Data Output Valid After CLK Rise
OE LOW to Output Valid[15, 17, 19]
Data Output Hold After CLK Rise
Clock to High-Z[15, 16, 17, 18, 19]
Clock to Low-Z[15, 16, 17, 18, 19]
OE HIGH to Output High-Z[16, 17, 19]
OE LOW to Output Low-Z[16, 17, 19]
3.2
3.2
3.5
3.5
4.2
4.2
5.0
5.0
ns
ns
ns
ns
ns
ns
ns
tEOV
tDOH
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
tCHZ
3.2
3.0
3.5
3.3
3.5
4.0
3.5
4.8
tCLZ
tEOHZ
tEOLZ
Set-Up Times
tAS
0
0
0
0
Address Set-Up Before CLK Rise
Data Input Set-Up Before CLK Rise
CEN Set-Up Before CLK Rise
WE, BWSx Set-Up Before CLK Rise
ADV/LD Set-Up Before CLK Rise
Chip Select Set-Up
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
1.5
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
ns
ns
ns
ns
ns
ns
tDS
tCENS
tWES
tALS
tCES
Hold Times
tAH
Address Hold After CLK Rise
Data Input Hold After CLK Rise
CEN Hold After CLK Rise
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
ns
ns
ns
ns
ns
ns
tDH
tCENH
tWEH
WE, BWx Hold After CLK Rise
ADV/LD Hold after CLK Rise
Chip Select Hold After CLK Rise
tALH
tCEH
Shaded areas contain advance information.
Notes:
16. Unless otherwise noted, test conditions assume signal transition time of 2.5 ns or less, timing reference levels of 1.25V, input pulse levels of 0 to 2.5V, and output
loading of the specified IOL/IOH and load capacitance. Shown in (a), (b) and (c) of AC Test Loads.
17. tCHZ, tCLZ, tOEV, tEOLZ, and tEOHZ are specified with AC test conditions shown in part (a) of AC Test Loads. Transition is measured ± 200 mV from steady-state voltage.
18. At any given voltage and temperature, tEOHZ is less than tEOLZ and tCHZ is less than tCLZ to eliminate bus contention between SRAMs when sharing the same data
bus. These specifications do not imply a bus contention condition, but reflect parameters guaranteed over worst case user conditions. Device is designed to achieve
High-Z prior to Low-Z under the same system conditions.
19. This parameter is sampled and not 100% tested.
Document #: 38-05111 Rev. **
Page 19 of 25
PRELIMINARY
CYM26KNP72AV25
Switching Waveforms
READ/WRITE/DESELECT Sequence
CLK
CEN
tCENH
tCENS
tCL
tCH
tCYC
tAH
tAS
CEN HIGH blocks
all synchronous inputs
WA2
WA5
RA1
RA3
RA4
RA6
ADDRESS
RA7
WE &
BWSx
tWS
tWH
tCEH
tCES
CE
tDH
tDS
tCHZ
tCHZ
tDOH
tCLZ
tDOH
Q1
Out
D2
In
Data
In/Out
Q4
Out
D5
In
Q3
Out
Q6
Out
Q7
Out
Device
originally
tCO
deselected
The combination of WE & BWSx (x = a, b, c, d, e, f, g, h) define a write cycle
(see Write Cycle Description table) CE is the combination of CE1, CE2, and CE3. All chip enables need to be active
in order to select the device. Any chip enable can deselect the device. RAx stands for Read Address X, WAx
Write Address X, Dx stands for Data-in for location X, Qx stands for Data-out for location X. ADV/LD held LOW.
OE held LOW.
= UNDEFINED
Document #: 38-05111 Rev. **
Page 20 of 25
PRELIMINARY
CYM26KNP72AV25
Switching Waveforms (continued)
Burst Sequences
CLK
tCYC
tALH
tALS
ADV/LD
tCL
tCH
tAH
tAS
RA1
WA2
ADDRESS
WE
RA3
tWS
tWH
tWS
tWH
BWSx
tCES
tCEH
CE
tCLZ
tCHZ
tDH
tDOH
tCLZ
Q3
Out
Data
In/Out
Q1
Q1+2
Out
Q1+3
Out
D2
In
D2+2
In
D2+3
In
Q1+1
Out
D2+1
In
Out
Device
originally
deselected
tCO
tCO
tDS
The combination of WE & BWSx(x = a, b c, d, e, f, g, h) define a write cycle (see Write Cycle Description table).
CE is the combination of CE1, CE2, and CE3. All chip enables need to be active in order to select
the device. Any chip enable can deselect the device. RAx stands for Read Address X, WA stands for
Write Address X, Dx stands for Data-in for location X, Qx stands for Data-out for location X. CEN held
LOW. During burst writes, byte writes can be conducted by asserting the appropriate BWSx input signals.
Burst order determined by the state of the MODE input. CEN held LOW. OE held LOW.
= UNDEFINED
Document #: 38-05111 Rev. **
Page 21 of 25
PRELIMINARY
CYM26KNP72AV25
Switching Waveforms (continued)
OE Timing
OE
tEOV
tEOHZ
Three-State
I/Os
tEOLZ
Ordering Information
Speed
(MHz)
Package
Name
Operating
Range
Ordering Code
Package Type
200
CYM26KNP72AV25-20BBC
CYM26KNP72AV25-16BBC
CYM26KNP72AV25-13BBC
CYM26KNP72AV25-10BBC
BB209
BB209
BB209
BB209
209-Lead FBGA (14 x 22 x 2.2mm)
209-Lead FBGA (14 x 22 x 2.2mm)
209-Lead FBGA (14 x 22 x 2.2mm)
209-Lead FBGA (14 x 22 x 2.2mm)
Commercial
Commercial
Commercial
Commercial
166
133
100
Document #: 38-05111 Rev. **
Page 22 of 25
PRELIMINARY
CYM26KNP72AV25
Package Drawing:
209-Ball FBGA (14 x 22 x 2.20 mm) BB209
Document #: 38-05111 Rev. **
Page 23 of 25
PRELIMINARY
CYM26KNP72AV25
Part Numbering Scheme
CY
M
Depth
Architecture Width Revision Voltage
Speed
Package Temperature
C - Commercial
BB - 209FBGA
Frequency(100-200Mhz)
Core Voltage (V25 = 2.5V)
Module Revision Level
Bus Width(72 - 72Bits)
Architecture (NP - NoBL Pipelined)
Module Depth(26K = 256K)
Module
Cypress
Document #: 38-05111 Rev. **
Page 24 of 25
© Cypress Semiconductor Corporation, 2001. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress Semiconductor product. Nor does it convey or imply any license under patent or other rights. Cypress Semiconductor does not authorize
its products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
Semiconductor products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress Semiconductor against all charges.
PRELIMINARY
CYM26KNP72AV25
Document Title: CYM26KNP72AV25 256K x 72 Pipelined MCM with NoBL™ Architecture
Document Number: 38-05111
ORIG. OF
REV.
ECN NO.
ISSUE DATE
CHANGE
DESCRIPTION OF CHANGE
New Data Sheet
**
107703
08/13/01
MEG
Document #: 38-05111 Rev. **
Page 25 of 25
厂商 型号 描述 页数 下载

MERRIMAC

 		CYM-13R-9G 定向耦合器[ DIRECTIONAL COUPLER ] 2 页

SUMIDA

 		CYM-2B 滤波线圈\u003c SMD型： CYM系列\u003e[ Filter Coils < SMD Type: CYM Series> ] 2 页

ETC

 		CYM1220HD-10C X4 SRAM模块\n[ x4 SRAM Module ] 5 页

ETC

 		CYM1220HD-12C X4 SRAM模块\n[ x4 SRAM Module ] 5 页

ETC

 		CYM1220HD-12MB X4 SRAM模块\n[ x4 SRAM Module ] 5 页

ETC

 		CYM1220HD-15C X4 SRAM模块\n[ x4 SRAM Module ] 5 页

ETC

 		CYM1220HD-15MB X4 SRAM模块\n[ x4 SRAM Module ] 5 页

ETC

 		CYM1220HD-20MB X4 SRAM模块\n[ x4 SRAM Module ] 5 页

CYPRESS

 		CYM1240HD-25C [ SRAM Module, 256KX4, 25ns, CMOS, CDIP28, HERMETIC SEALED, MODULE, DIP-28 ] 1 页

CYPRESS

 		CYM1240HD-25MB [ SRAM Module, 256KX4, 25ns, CMOS, CDIP28, HERMETIC SEALED, MODULE, DIP-28 ] 1 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.267961s
