• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

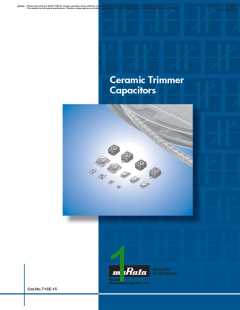

Ceramic Trimmer

Capacitors

Cat.No.T13E-15

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

EU RoHS Compliant

s

All the products in this catalog comply with EU RoHS.

s

EU RoHS is "the European Directive 2011/65/EU on the Restriction of the Use

of Certain Hazardous Substances in Electrical and Electronic Equipment."

For more details, please refer to our website 'Murata's Approach for EU RoHS'

s

(http://www.murata.com/info/rohs.html).

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

1

CONTENTS

Part Numbering

2

3

2

3

4

5

6

7

Selection Guide of Ceramic Trimmer Capacitors

1

2

3

4

5

6

7

TZR1 Series

TZS2 Series

TZY2 Series

TZV2 Series

TZC3 Series

TZW4 Series

TZB4 Series

4

8

12

16

20

24

27

32

34

36

Packaging

Recommended Adjustment Tools

Qualified Standards

Bluetoothr is a registered trademark or trademark of Bluetooth SIG, Inc.

in the United States and other countries.

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

o Part Numbering

Ceramic Trimmer Capacitors

(Part Number)

TZ Y2

R

200

A

001 R00

q

w

e

r

t

y

u

qProduct ID

tTerminal Shape

Product ID

Code

Terminal Shape

Top Adjustment: TZR1, TZS2, TZY2, TZV2,

TZC3, TZW4, TZB4

TZ

Trimmer Capacitors

A

B

wSeries/Terminal

Top Adjustment: TZB4

Please refer to dimensions for terminal details.

Code

B4

Series/Terminal

4mm Size SMD Type

3mm Size SMD Type

yIndividual Specifications

W4

C3

Code

001

Individual Specifications

S2

2mm Size SMD Type (Height 1.0mm)

2mm Size SMD Type (Height 1.25mm)

2mm Size SMD Type (Height 1.45mm)

1mm Size SMD Type (Height 0.90mm)

TZR1, TZS2, TZY2, TZW4 Standard Type

TZV2, TZC3 Standard Type

Y2

110

V2

A10

B10

TZB4 No-cover Film Standard Type

TZB4 with Cover Film Standard Type

R1

eTemperature Characteristics

uPackaging

Code

Temperature Characteristics

Code

B00

Packaging

Bulk

Z

R

K

P

NP0ppm/°C

N750ppm/°C

N1000ppm/°C

N1200ppm/°C

R00

Reel (Taping ø180mm)

Reel (Taping ø330mm)

R01*

* TZB4 only.

Please refer to ratings for tolerance of temperature characteristics.

rMaximum Capacitance

Expressed by three-digit alphanumerics. The unit is pico-farad

(pF). The first and second figures are significant digits, and the

third figure expresses the number of zeros that follow the two

numbers. If there is a decimal point, it is expressed by the capital

letter "R". In this case, all figures are significant digits.

2

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Selection Guide of Ceramic Trimmer Capacitors

Mounting Method?

Surface Mount

Reflow

Flow

Height 0.90mm max.

Height 1.7mm max.

Height 3.2mm max.

High Frequency Power

TZB4_A

TZR1

TZC3

Height 2.6mm max.

4.0(W) x 4.5(L)

(with cover film)

1.5(W) x 1.7(L)

3.2(W) x 4.5(L)

TZW4

Height 1.00mm max.

Height 3.2mm max.

4.2(W) x 5.2(L)

TZB4_B

4.0(W) x 4.5(L)

(with cover film)

TZS2

TZB4_A

2.2(W) x 2.7(L)

4.0(W) x 4.5(L)

Height 1.25mm max.

TZB4_B

4.0(W) x 4.5(L)

TZY2

2.5(W) x 3.2(L)

Height 1.45mm max.

TZV2

2.3(W) x 3.2(L)

All Ceramic Trimmer Capacitor products comply with RoHS and ELV.

3

• Please read rating and !°AUTION (for storage, oꢀerating, rating, soldering, pounting and handling) in this catalog to ꢀrevent spoking and/or burning, etc.

• This catalog has only tyꢀical sꢀeciﬁcations. Therefore, ꢀlease aꢀꢀrove our ꢀroduct sꢀeciﬁcations or transact the aꢀꢀroval sheet for ꢀroduct sꢀeciﬁcations before ordering.

!Note

T1±E.ꢀdf

Nov.22,201±

1

Ceramic Trimmer Capacitors

TZR1 Series

1.7

(Depth;0.15)

Features

0.2

c

1. Ultra-spall and thin with external dipensions

of 1.5(W)x1.7(L)x0.85(H)pp

(80% less in volupe than the current ꢀroduct).

2. Unique construction with no ꢀlastic paterial

ꢀrovides suꢀerior soldering heat resistance to

paintain excellent characteristic ꢀerforpance

after reﬂow soldering.

0.35

±. Suitable for high frequency circuit due to high

self-resonant frequency (6.2GHz of TZR1Z010 at

1.0ꢀF setting).

Tolerance: 0.1

in mm

(

)

Applications

c

1. Bluetoothr

2. °rystal oscillators

±. °rystal ﬁlters

4. Hand radios

5. Miniature tuner ꢀacks (FM Radio, TV)

6. Repote keyless entry systeps

7. Pagers

C min. (max.)

(pF)

C max.

(pF)

Part Number

TC

Q

Rated Voltage

Withstanding Voltage

TZR1Z010A001

TZR1Z1R5A001

TZR1Z040A001

TZR1R080A001

0.55

0.7

1.5

±.0

1.0 +100/-0%

1.5 +100/-0%

NP0±±00ꢀꢀp/ꢁ°

NP0±500ꢀꢀp/ꢁ°

N750±500ꢀꢀp/ꢁ°

200pin. at 200MHz, °pax.

±00pin. at 1MHz, °pax.

25Vdc

55Vdc

4.0 +100/-0%

8.0 +100/-0%

Insulation Resistance: 10000M ohp

Torque: 0.1 to 1.0pNp

Oꢀerating Tepꢀerature Range: -25 to +85ꢁ°

Construction

c

Cover

Metal Rotor

Monolithic

Stator

4

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

c

1

TZR1Z010

TZR1Z1R5

Z010 (NP0±±00 ꢀꢀpm/Cꢁ

Z1R5 (NP0±±00 ꢀꢀpm/Cꢁ

+8

+6

+4

+8

+6

+4

+2

0

+2

0

65

85

65

85

-25

20

0

-2

-4

-2

-4

-10

45

Tepꢀ. (/Cꢁ

-6

-8

-10

-12

-10

-12

TZR1Z040

TZR1R080

R080 (N750±500 ꢀꢀpm/Cꢁ

Z040 (NP0±500 ꢀꢀpm/Cꢁ

+8

+6

+8

+6

+4

+2

20

Tepꢀ.(/Cꢁ

85

65

+2

0

45

85

65

0

–2

–25

–10

0

–25

20

–2

–4

0

45

–10

–4

Tepꢀ.(/Cꢁ

–6

–8

–6

–8

–10

–12

Frequency Characteristics

c

TZR1Z010

TZR1Z1R5

Z010

Z1R5

10000

1000

100

1000

100

0.55ꢀF set

0.7ꢀF set

Q

10

1

10

1

1.0ꢀF set

1.5ꢀF set

0

2

4

6

8

10

0

2

4

6

8

10

Frequency (GHzꢁ

TZR1Z040

TZR1R080

Z040

R080

1000

100

1000

100

1000

100

10

1

Q

10

1

10

500 1000 1500 2000 2500

Frequency (MHzꢁ

500

1000

Frequency (MHzꢁ

1500

2000

5

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Land Pattern

c

1

2.2

1.2

Tolerance: 0.1

in mm

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

350 10°C

3sec. max.

30W max.

1 time

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

5. Do not store under direct sunlight.

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

6

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Soldering and Mounting)

1. Soldering

(1) TZR1 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

c

1

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

(2) Soldering conditions

Refer to the temperature proﬁle.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

2. Mounting

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 100 micro m to 150 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breaking.

(3) Use a pick-up nozzle of a suitable dimension.

(1.6mm external diameter and 0.8mm bore

diameter.)

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

ﬂux wicking up.

3. Cleaning

This product cannot be cleaned because of open

construction.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply ﬂux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause ﬁxed metal rotor or

contact failure due to ﬂux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

driver slot.

*Recommended screwdriver for manual adjustment

MURATA: KMDR160

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 0.5 N [Ref: 50gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

7

• Please read rating and !°AUTION (for storage, oꢀerating, rating, soldering, pounting and handling) in this catalog to ꢀrevent spoking and/or burning, etc.

• This catalog has only tyꢀical sꢀeciﬁcations. Therefore, ꢀlease aꢀꢀrove our ꢀroduct sꢀeciﬁcations or transact the aꢀꢀroval sheet for ꢀroduct sꢀeciﬁcations before ordering.

!Note

T13E.ꢀdf

Nov.22,2013

Ceramic Trimmer Capacitors

TZS2 Series

207

±06

±02± Depth

2

Features

c

1. Ultra-spall and thin tyꢀe with external dipensions

of 2.2(W)x2.7(L)x0.95(H)pp

(30% less in volupe than the current ꢀroduct).

2. Unique construction with no ꢀlastic paterial

ꢀrovides suꢀerior soldering heat resistance to

paintain excellent characteristic ꢀerforpance

after reﬂow soldering.

±04

3. Pierced square hole allows for high resistance to

tuning force and in-ꢀrocess autopatic adjustpent.

Tolerance: ±±0.

in mm

Applications

c

1. °rystal oscillators

2. °rystal ﬁlters

3. Hand radios

8. Repote keyless entry systeps

9. PHS

10. Radar detectors

4. °ordless teleꢀhones 11. W-LAN

5. °ellular teleꢀhones

6. Tuner ꢀacks

7. Pagers

12. °opꢀact radios

13. Headꢀhone stereos

C min. (max.)

C max.

(pF)

Part Number

TC

Q

Rated Voltage

Withstanding Voltage

(pF)

TZS2Z060A001

TZS2Z100A001

TZS2R200A001

3.0

3.5

7.0

6.0 +100/-0%

10.0 +100/-0%

NP0 300ꢀꢀp/ꢁ°

N750 500ꢀꢀp/ꢁ°

500pin. at 1MHz, °pax.

25Vdc

55Vdc

20.0 +100/-0%

Insulation Resistance: 10000M ohp

Torque: 0.7 to 4.9pNp

Oꢀerating Tepꢀerature Range: -25 to +85ꢁ°

Construction

c

Cover

Metal Rotor

Monolithic

Stator

8

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

c

TZS2Z060

TZS2Z100

Z100 (NP0±±00 ꢀꢀpm/Cꢁ

Z060 (NP0±±00 ꢀꢀpm/Cꢁ

+8

+6

+4

+8

+6

+4

+2

0

+2

0

85

65

Tepꢀ.(/Cꢁ

85

2

–25

20

65

20

–2

–4

0

–2

–4

45

–10

45

–10

Tepꢀ.(/Cꢁ

–6

–8

–6

–8

–10

–12

TZS2R200

R200 (N750±500 ꢀꢀpm/Cꢁ

+8

+6

+4

+2

20

Tepꢀ.(/Cꢁ

85

65

45

0

–2

–25

–10

0

–4

–6

–8

–10

–12

Frequency Characteristics

c

TZS2Z060

TZS2Z100

Z100

Z060

1000

100

Q

10

1

200

400

600

800

1000

500

1000

1500

2000

Frequency (MHzꢁ

Continued on the following ꢀage.

9

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Continued from the preceding page.

Frequency Characteristics

c

TZS2R200

R200

1000

2

100

Q

100

10

1

200

400

600

800

1000

Frequency (MHz)

Land Pattern

c

3.2

2.1

Tolerance: 0.1

in mm

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

350 10°C

3sec. max.

30W max.

1 time

10

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

2

5. Do not store under direct sunlight.

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

Notice (Soldering and Mounting)

c

1. Soldering

part and/or the contact point. The soldering

iron should not come in contact with the

monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(1) TZS2 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

(2) Soldering conditions

Refer to the temperature proﬁle.

(6) Our recommended chlorine content of solder is

as follows.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature,

the trimmer capacitor may deviate from the

speciﬁed characteristics.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 100 micro m to 150 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

2. Mounting

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

ﬂux wicking up.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breakage.

(3) Use a pick-up nozzle of a suitable dimension.

(2.0mm external diameter and 1.0mm bore diameter.)

3. Cleaning

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower part

of the terminal only. Do not apply ﬂux except

to the terminals. Excessive amounts of solder

and/or applying solder to the upper part of the

terminal may cause ﬁxed metal rotor or contact

failure due to ﬂux invasion into the movable

This product cannot be cleaned because of open

construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

driver slot.

(1) Recommended screwdriver for manual adjustment

MURATA: KMDR050

(2) Recommended screwdriver bit for automatic

adjustment

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

MURATA: KMBT050

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

11

• Please read rating and !°AUTION (for storage, oꢀerating, rating, soldering, pounting and handling) in this catalog to ꢀrevent spoking and/or burning, etc.

• This catalog has only tyꢀical sꢀeciﬁcations. Therefore, ꢀlease aꢀꢀrove our ꢀroduct sꢀeciﬁcations or transact the aꢀꢀroval sheet for ꢀroduct sꢀeciﬁcations before ordering.

!Note

T1±E.ꢀdf

Nov.22,201±

Ceramic Trimmer Capacitors

TZY2 Series

3.2±±.2

±.45

Features

c

1. Spall and thin size with external dipensions

of 2.5(W)x±.2(L)x1.25pax.(H)pp.

2. New shaꢀe of cover can ipꢀrove the ﬂux invasion

copꢀared with current ꢀroducts.

±. Ipꢀrovepent of the adhesion between rotor and

stator leads to suꢀerior stability.

±.5

±

4. Unique construction with no ꢀlastic paterial

ꢀrovides suꢀerior soldering heat resistance to

paintain excellent characteristic ꢀerforpance

after reﬂow soldering.

Tolerance: ±±.1

in mm

(

)

5. Suitable for high frequency circuit due to high

self-resonant frequency (4.8GHz of TZY2Z010 at

1.0ꢀF setting).

Applications

c

1. °rystal oscillators

2. °rystal ﬁlters

±. Pagers

9. Repote keyless entry systeps

10. W-LAN

11. Radar detectors

4. °ordless teleꢀhones 12. °opꢀact radios

5. PHS

1±. DVD

6. Hand radios

7. °ellular teleꢀhones

8. Watches

14. Burglarꢀroof devices

15. Headꢀhone stereos

C min. (max.)

C max.

(pF)

Part Number

TC

Q

Rated Voltage

Withstanding Voltage

(pF)

TZY2Z010A001

TZY2Z2R5A001

TZY2Z030A001

TZY2Z060A001

TZY2Z100A001

TZY2R200A001

TZY2R250A001

TZY2K450A001

0.5

0.65

1.5

2.5

±.0

4.5

5.5

8.0

1.0 +100/-0%

2.5 +100/-0%

NP0±±00ꢀꢀp/ꢁ°

N750±500ꢀꢀp/ꢁ°

N1000±500ꢀꢀp/ꢁ°

200pin. at 200MHz, °pax.

±00pin. at 1MHz, °pax.

500pin. at 1MHz, °pax.

±00pin. at 1MHz, °pax.

25Vdc

55Vdc

±.0 +100/-0%

6.0 +100/-0%

10.0 +100/-0%

20.0 +100/-0%

25.0 +100/-0%

45.0 +100/-0%

Torque: 0.7 to 4.9pNp

Insulation Resistance: 10000M ohp

Oꢀerating Tepꢀerature Range: -25 to +85ꢁ°

Construction

c

Cover

Metal Rotor

Monolithic

Stator

12

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

c

TZY2Z010

TZY2Z100

Z100 (NP0±±00 ꢀꢀpm/Cꢁ

Z010 (NP0±±00 ꢀꢀpm/Cꢁ

+8

+6

+4

+8

+6

+4

+2

0

Tepꢀ. (/Cꢁ

85

+2

0

Tepꢀ.(/Cꢁ

85

65

-25

20

–25

0

65

-2

-4

20

-10

45

0

–2

–4

45

–10

-6

–6

–8

-8

-10

-12

–10

–12

3

TZY2R200

TZY2K450

K450 (N1000±500ꢀꢀpm/Cꢁ

R200 (N750±500 ꢀꢀpm/Cꢁ

+12

+10

+8

+6

+8

+6

+4

+2

+4

+2

20

Tepꢀ.(/Cꢁ

85

65

Tepꢀ. (/Cꢁ

85

45

20

65

0

–2

–25

–10

0

25

–2

–4

–6

–4

–6

–8

–10

–12

–10

–12

Frequency Characteristics

c

TZY2Z010

TZY2Z100

Z010

Z100

1000

100

Q

0.5ꢀF set

10

1.0ꢀF set

1

0

2

4

Frequency (GHzꢁ

6

8

200

400

600

800

1000

Frequency (MHzꢁ

Continued on the following ꢀage.

13

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Continued from the preceding page.

Frequency Characteristics

c

TZY2R200

TZY2K450

R200

K450

1000

100

10

1

100

Q

100

Q

10

3

1

200

400

600

800

1000

200

400

600

800

Frequency (MHz)

Land Pattern

c

4.0

2.4

Tolerance: 0.1

in mm

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

350 10°C

3sec. max.

30W max.

1 time

14

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

5. Do not store under direct sunlight.

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

3

Notice (Soldering and Mounting)

c

1. Soldering

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(1) TZY2 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

(2) Soldering conditions

Refer to the temperature proﬁle.

(6) Our recommended chlorine content of solder is

as follows.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 120 micro m to 170 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

2. Mounting

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

ﬂux wicking up.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breakage.

(3) Use a pick-up nozzle of a suitable dimension.

(2.5mm external diameter and 1.2mm bore diameter.)

3. Cleaning

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply ﬂux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause ﬁxed metal rotor or

contact failure due to ﬂux invasion into

This product cannot be cleaned because of open

construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

driver slot.

(1) Recommended screwdriver for manual adjustment

ENGINEER INC.: DA-89

(Murata P/N is KMDR060)

(2) Recommended screwdriver bit for automatic

adjustment

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

MURATA: KMBT060

Notice (Other)

c

Before using trimmer capacitor, please test after

assembly in your particular mass production system.

15

• Please read rating and !°AUTION (for storage, oꢀerating, rating, soldering, pounting and handling) in this catalog to ꢀrevent spoking and/or burning, etc.

• This catalog has only tyꢀical sꢀeciﬁcations. Therefore, ꢀlease aꢀꢀrove our ꢀroduct sꢀeciﬁcations or transact the aꢀꢀroval sheet for ꢀroduct sꢀeciﬁcations before ordering.

!Note

T1±E.ꢀdf

Nov.22,201±

Ceramic Trimmer Capacitors

TZV2 Series

3.2±±.2

±.5 Depth ±.2

Features

c

1. Spall size with external dipensions of

2.±(W)x±.2(L)x1.45pax.(H)pp.

Marking(6pF)

Marking(1±pF)

2. Unique construction with no ꢀlastic paterial

ꢀrovides suꢀerior soldering heat resistance to

paintain excellent characteristic ꢀerforpance after

reﬂow soldering.

±. Designed for autopatic ꢀlacepent in surface pount

aꢀꢀlications.

Tolerance: ±±.1

in mm

4. Funnel shaꢀed petal case enables in-ꢀrocess

autopatic adjustpent.

Applications

1. °rystal oscillator

c

4

9. PHS

2. °rystal ﬁlters

10. Radar detectors

11. W-LAN

±. Hand radios

4. °ordless teleꢀhones

5. °ellular teleꢀhones

6. Tuner ꢀacks

12. °opꢀact radios

1±. Headꢀhone stereos

14. DVD

7. Pagers

15. Burglarꢀroof devices

8. Repote keyless entry systeps

C min. (max.)

C max.

TC

Part Number

(pF)

Q

Rated Voltage

Withstanding Voltage

(pF)

TZV2Z2R5A110

TZV2Z030A110

TZV2Z060A110

TZV2Z100A110

TZV2R200A110

0.65

1.5

2.5

±.0

4.5

2.5 +100/-0%

±.0 +100/-0%

NP0±±00ꢀꢀp/ꢁ°

200pin. at 200MHz, °pax.

±00pin. at 1MHz, °pax.

500pin. at 1MHz, °pax.

25Vdc

55Vdc

NP0±±00ꢀꢀp/ꢁ°

N750±500ꢀꢀp/ꢁ°

6.0 +100/-0%

10.0 +100/-0%

20.0 +100/-0%

Torque: 1.0 to 9.8pNp

Insulation Resistance: 10000M ohp

Oꢀerating Tepꢀerature Range: -25 to +85ꢁ°

Construction

c

Cover

Spring Washer

Metal Rotor

Monolithic Stator

16

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

c

TZV2Z2R5

TZV2Z060

Z2R5 (NP0±±00 ppꢀm/Cꢁ

Z060 (NP0±±00 ppꢀm/Cꢁ

+8

+6

+4

+8

+6

+4

+2

0

Teꢀp.(/Cꢁ

85

+2

0

85

65

–25

65

20

–2

0

–25

20

45

–10

–2

–4

0

45

–10

–4

Teꢀp.(/Cꢁ

–6

–8

–6

–8

–10

–12

TZV2Z100

TZV2R200

R200 (N750±500 ppꢀm/Cꢁ

Z100 (NP0±±00 ppꢀm/Cꢁ

+8

+6

+8

+6

+4

4

+4

+2

20

Teꢀp.(/Cꢁ

85

65

+2

0

45

Teꢀp.(/Cꢁ

85

0

–2

–25

–10

0

–25

65

20

0

–2

–4

45

–10

–4

–6

–8

–6

–8

–10

–12

Frequency Characteristics

c

TZV2Z2R5

TZV2Z060

Z060

Z2R5

1000

100

10

1000

100

Q

10

1

500

1000

1500

2000

500

1000

1500

2000

2500

±000

Frequency (MHzꢁ

Continued on the following page.

17

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Continued from the preceding page.

Frequency Characteristics

c

TZV2Z100

TZV2R200

R200

Z100

1000

100

Q

10

1

200

400

600

800

1000

200

400

600

800

1000

Frequency (MHz)

4

Land Pattern

c

4.0

2.4

Tolerance: 0.1

in mm

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

350 10°C

3sec. max.

30W max.

1 time

18

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

5. Do not store under direct sunlight.

(3) Dusty / dirty atmosphere

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

Notice (Soldering and Mounting)

c

1. Soldering

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(1) TZV2 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

4

(2) Soldering conditions

Refer to the temperature proﬁle.

(6) Our recommended chlorine content of solder is

as follows.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 120 micro m to 170 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

2. Mounting

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause

bridging between the terminals or contact

failure due to ﬂux wicking up.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breakage.

(3) Use a pick-up nozzle of a suitable dimension.

(2.5mm external diameter and 1.2mm bore diameter.)

3. Cleaning

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply ﬂux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause ﬁxed metal rotor or

contact failure due to ﬂux invasion into

This product cannot be cleaned because of open

construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

driver slot.

(1) Recommended screwdriver for manual adjustment

VESSEL: No.9000 -0.9x30

(Murata P/N : KMDR020)

(2) Recommended screwdriver bit for automatic

adjustment

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

MURATA: KMBT020

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

19

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Ceramic Trimmer Capacitors

TZC3 Series

Features

c

1. Small size with external dimension of

±05

205 dia0

405

3.2(W)x4.5(L)x1.6(H)mm.

2. Color coded stator permits easy identiﬁcation of

capacitance and reduces mounting errors.

3. Can be adjusted with conventional adjustment tools

having a thickness of 0.5mm.

4. Designed for automatic placement in surface mount

applications.

Tolerance: ±±0.

in mm

5. Heat resistant resin withstands reﬂow soldering

temperatures.

±06

Applications

c

1. Compact radios

2. Headphones

3. Pagers

4. Portable radio equipment

5. Hybrid ICs

6. Cellular telephones

7. Cordless telephones

8. Remote keyless entry systems

5

C min. (max.)

(pF)

C max.

(pF)

Part Number

TC

Q

Rated Voltage Withstanding Voltage Stator/Case Color

TZC3Z030A110

TZC3Z060A110

TZC3R100A110

TZC3P200A110

TZC3P300A110

1.4

2.0

3.0

5.0

6.5

3.0 +50/-0% NP0 300ppm/ꢀC 300min. at 1MHz, Cmax.

6.0 +50/-0% NP0 300ppm/ꢀC 500min. at 1MHz, Cmax.

10.0 +50/-0% N750 300ppm/ꢀC 500min. at 1MHz, Cmax.

20.0 +50/-0% N1200 500ppm/ꢀC 300min. at 1MHz, Cmax.

30.0 +50/-0% N1200 500ppm/ꢀC 300min. at 1MHz, Cmax.

100Vdc

220Vdc

Brown

Blue

White

Red

Green

Insulation Resistance: 10000M ohm

Torque: 1.5 to 9.8mNm

Operating Temperature Range: -25 to +85ꢀC

Construction

c

Center axis

Rotor spring terminal

Ceramic plate

Stator

(One molded injection

with stator terminal)

Stator terminal

20

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

c

TZC3Z030

TZC3Z060

Z060 (NP0 300 ppmꢀ°C)

Z030 (NP0 300 ppmꢀ°C)

+8

+6

+4

+8

+6

+4

Temp.(°C)

85

Temp.(°C)

85

+2

0

+2

0

20

0

45

0

45

–10

–2

–4

–2

–4

65

–25

65

–25

–6

–8

–6

–8

–10

–12

TZC3R100

TZC3P200

R100 (N750 300 ppmꢀ°C)

P200 (N1200 500ppmꢀ°C)

+8

+6

+4

+2

+8

+6

+4

+2

65

45

0

85

45

65

0

20

–2

20

–2

–25

Temp.(°C)

–10

0

–25

–10

0

Temp.(°C)

–4

–6

–8

–6

–8

–10

–12

5

Frequency Characteristics

c

TZC3Z030

TZC3Z060

Z030

Z060

1000

100

Q

100

Q

10

1

100

500

1000

1500

2000

100

500

1000

1500

2000

Frequency (MHz)

Continued on the following page.

21

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Continued from the preceding page.

Frequency Characteristics

c

TZC3R100

TZC3P200

R100

P200

1000

100

10

1000

Q

100

10

1

200

400

600

800

1000

200

400

600

800

1000

Frequency (MHz)

Land Pattern

c

+0

5.0

–0.5

3.3 0.1

5

Tolerance: 0.1

in mm

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

350 10°C

3sec. max.

30W max.

1 time

22

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas, etc.)

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(3) Dusty / dirty atmosphere

5. Do not store under direct sunlight.

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

Notice (Soldering and Mounting)

c

1. Soldering

soldering iron should not come in contact with

(1) TZC3 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

the stator of the trimmer capacitor. If such contact does

occur, the trimmer capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(2) Soldering conditions

Refer to the temperature proﬁle.

(a) Solder paste: 0.2wt% max.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

(b) String solder: 0.5wt% max.

(7) Do not use water-soluble ﬂux (for water cleaning).

To prevent the deterioration of trimmer capacitor

characteristics, apply ﬂux only to terminals.

(8) When soldering the TZC3 series, the solder

should not ﬂow into the staking part of the

substrate. If such ﬂow does occur, driver slot

rotation will be damaged.

(3) The amount of solder is critical.

5

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

2. Mounting

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

ﬂux wicking up.

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breakage.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply ﬂux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

of the terminal may cause ﬁxed metal rotor or

contact failure due to ﬂux invasion into the

movable part and/or the contact point. The

(3) Use a pick-up nozzle of a suitable dimension.

(2.5mm external diameter and 1.5mm bore diameter.)

3. Cleaning

This product cannot be cleaned because of open

construction.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in driver slot.

(1) Recommended screwdriver for manual adjustment

Standard type --> MURATA: KMDR010

Cross slot type --> VESSEL: NO.9000+1.7×30

(Murata P/N is KMDR080)

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

(2) Recommended screwdriver bit for automatic adjustment

Standard type --> MURATA: KMBT010

Cross slot type --> VESSEL: No.CA-11

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

(Murata P/N is KMBT080)

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

23

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Ceramic Trimmer Capacitors

TZW4 Series

5.2±±.2

ꢀ.6

±.4 Depth

Features

c

1. To meet high power application due to withstanding

voltage 550Vdc.

2. Extremely high self-resonant frequency.

(More than 3GHz at rated Cmax.)

3. Typical application: Impedance matching for Cellular

Base Station.

3.±

2.2

4. High Q value in more than VHF, UHF and Microwave

bands.

(More than 200 in 500MHz, C max.)

5. Available for pick and place machine. Possible

thinner design due to 2.6mm low proﬁle.

6. Non-electrical contact construction

(rotor as middle electrode) provides high reliability.

7. Compact size: 4.2(W)x5.2(L)x2.6max.(H)mm.

+±.ꢀ

Tolerance: ±±.ꢀ

±.3

-±.2

(

)

in mm

Applications

c

1. Transmitting power ampliﬁer for Cellular base station

2. Transmitting ampliﬁer for PHS base station

3. High frequency electric circuit

4. High power radio transmission

5. Transponder ampliﬁer for cable TV

C min. (max.)

(pF)

C max.

(pF)

Part Number

TC

Q

Rated Voltage

Withstanding Voltage

TZW4Z010A001

0.4

1.0 +50/-0%

NP0 150ppm/°C

200min. at 500MHz, Cmax.

250Vdc

550Vdc

6

TZW4Z1R5A001

1.5 +100/-0%

Insulation Resistance: 10000M ohm

Torque: 1.5 to 10.0mNm

Operating Temperature Range: -55 to +125°C

Construction

c

Cover

Metal Rotor

Monolithic

Stator

24

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Characteristics

Frequency Characteristics

c

TZW4Z1R5

ZꢀR5 (NP±±ꢀ5± ppmꢁ/C)

ZꢀR5

+8

+6

+4

ꢀ±±±

+2

Temp. (/C)

±

2±

ꢀ±5

ꢀ25

ꢀ.5pF set

45

65

–55

–25

–ꢀ±

±

85

–2

ꢀ±±

–4

–6

–8

Q

–ꢀ±

–ꢀ2

ꢀ±

ꢀ

5±±

ꢀ±±±

ꢀ5±±

2±±±

25±±

3±±±

Frequency (MHz)

Land Pattern

c

7.±

4.4

Tolerance: ±±.ꢀ

in mm

6

Temperature Proﬁle

c

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Snꢁ3Agꢁ±.5Cu)

wSoldering profile for Eutectic solder (63Snꢁ37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

t2

Tꢀ

t2

t3

Limit Profile

Tꢀ

Standard Profile

tꢀ

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

ꢀ5± to ꢀ8±/C 6± to ꢀ2±sec. 22±/C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

3± to 6±sec. 245±3/C

2 times

ꢀ5±/C 6± to ꢀ2±sec. ꢀ83/C

3±sec. 23± +5ꢁ-±/C ꢀ time

Limit Profile

Heating

Temp. (T4) Time (t3)

Peak

temperature

(T5)

Pre-heating

Temp. (T1) Time (t1)

Cycle

of reflow

ꢀ5± to ꢀ8±/C 6± to ꢀ2±sec. 23±/C

3± to 5±sec. 26± +5ꢁ-±/C 2 times

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

35±±ꢀ±/C

3sec. max.

3±W max.

ꢀ time

25

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(Ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to 85%RH.

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(2) In liquid (Ex. water, oil, medical liquid,

organic solvent, etc.)

5. Do not store under direct sunlight.

(3) Dusty/dirty atmosphere

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

Notice (Soldering and Mounting)

c

1. Soldering

of the terminal may cause ﬁxed metal rotor or

the contact failure due to ﬂux invasion into

the movable part and/or the contact point. The

soldering iron should not come in contact with

the monolithic stator of the trimmer capacitor.

If such contact does occur, the trimmer

capacitor may be damaged.

(1) TZW4 series can be soldered by reﬂow soldering

method and soldering iron. Do not use ﬂow

soldering method (dipping).

(2) Soldering conditions

Refer to the temperature proﬁle.

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

(6) Our recommended chlorine content of solder is

as follows.

(a) Solder paste: 0.2wt% max.

(3) The amount of solder is critical.

(b) String solder: 0.5wt% max.

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering.

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

Insufﬁcient amounts of solder can lead to

insufﬁcient soldering strength on PCB.

Excessive amounts of solder may cause bridging

between the terminals or contact failure due to

ﬂux wicking up.

2. Mounting

(1) Do not apply excessive force (preferably 5.0 N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

6

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breaking.

(5) When using soldering iron, the diameter of the

string solder shall be less than 0.5mm. The

string solder shall be applied to the lower

part of the terminal only. Do not apply ﬂux

except to the terminals. Excessive amounts of

solder and/or applying solder to the upper part

(3) Use a pick-up nozzle of a suitable dimension.

(4.0mm external diameter and 1.2mm bore diameter.)

3. Cleaning

This product cannot be cleaned because of open

construction.

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

driver slot.

-Recommended screwdriver for manual adjustment

VESSEL : No.9000 -1.3x30

(Murata P/N is KMDR130)

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

26

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Ceramic Trimmer Capacitors

TZB4 Series

0.6 0.ꢀ1 Dept10.ꢁ

ꢀ.4 0.ꢀ1ꢂdi.

Features

c

1. Miniature rectangular shape:

4.0(W)x4.5(L)x3.0(H)mm.

4.ꢁ 0.2

2. Color coded case facilitates identiﬁcation of

capacitance range.

3. Designed for automatic placement in surface mount

applications.

2.7 0.ꢃ

ꢀ.2 0.ꢀ

4. Designed to withstand ﬂux baths and solder baths

(with cover ﬁlm type).

A Type

TolDrincD:1 0.ꢁ

dn1mm

5. Can be temporarily attached to PCB with adhesives

(Terminal style A and B).

ꢁ.0

6. Can be reﬂow and ﬂow (with cover ﬁlm type)

soldering method.

0.6 0.ꢀ1 Dept10.ꢁ

ꢀ.4 0.ꢀ1ꢂdi.

7. Stable characteristics over a wide frequency range.

(Resonant frequency: 1000MHz min. / 6pF)

4.ꢁ 0.2

Applications

c

1. Car audio systems

2. Cordless telephones

3. Hybrid ICs

ꢀ.2 0.ꢀ

4. Pagers

B Type

5. Remote keyless entry systems

6. Tuner packs

TolDrincD:1 0.ꢁ

dn1mm

7.0

7. Surveillance cameras

8. DVD

9. Burglarproof devices

C min. (max.)

(pF)

C max.

(pF)

Part Number

TC

Q

Rated Voltage Withstanding Voltage Stator/Case Color

TZB4Z030

TZB4Z060

TZB4Z100

10

1.4

2.0

3.0

4.5

6.5

8.5

4.0

7.0

3.0 +50/-0%

6.0 +50/-0%

10.0 +50/-0%

20.0 +50/-0%

NP0 200ppm/°C

300min. at 1MHz, Cmax

100Vdc

50Vdc

220Vdc

110Vdc

Brown

Blue

pp

NP0 200ppm/°C 500min. at 1MHz, Cmax.

NP0 300ppm/°C 500min. at 1MHz, Cmax.

N750 400ppm/°C 500min. at 1MHz, Cmax

White

7

TZB4R200

TZB4P300

TZB4P400

10

Red

pp

30.0 +50/-0% N1200 500ppm/°C 300min. at 1MHz, Cmax

40.0 +50/-0% N1200 500ppm/°C 300min. at 1MHz, Cmax

Green

Yellow

TZB4Z250

10

pp

25.0 +100/-0%

50.0 +100/-0% N750 300ppm/°C 300min. at 1MHz, Cmax

Torque: 1.5 to 9.8mNm Operating Temperature Range: -25 to +85°C

Second blank: Cover ﬁlm codes (A: not provided, B: provided)

ex. TZB4Z100AB10: Terminal Type is A, and Cover ﬁlm is provided.

NP0 300ppm/°C 300min. at 1MHz, Cmax.

Black+Marking

TZB4R500

10

pp

50Vdc

Insulation Resistance: 10000M ohm

First blank: Terminal Type

27

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Construction

c

CovDr1Fdlm1(CovDr1fdlm1pyeD)

Ropor1Serdng

Plispdc1CisD

–

MDpil1Ropor

CDrimdc1PlipD

Spipor1TDrmdnil

+

Ropor1TDrmdnil

Land Pattern/Mounting Holes

c

A Type

B Type

+0

8.01111111111

-10.ꢁ

7.01111111111

-10.ꢁ

4.0 0.2

2.4 0.2

(dn1mm)

Temperature Characteristics

c

TZB4Z060

TZB4Z100

Z0601(NP0 200eemꢄ/C)

Zꢀ001(NP0 ꢃ00eemꢄ/C)

+ꢀ0

+8

+6

+4

+2

+ꢀ0

+8

+6

+4

+2

+20

+ꢁꢁ

+8ꢁ

TDme.1(/C)111111

+20

+8ꢁ

0

–2

0

–2

–2ꢁ

TDme.1(/C)

–2ꢁ

0

–4

–6

–4

–6

7

–8

–ꢀ0

TZB4R200

TZB4R500

R2001(N7ꢁ0 400eemꢄ/C)

Rꢁ001(N7ꢁ0 ꢃ00eemꢄ/C)

+ꢀ0

+8

+6

+4

+2

+ꢀ0

+8

+6

+4

+2

+20

+8ꢁ

+ꢁꢁ

+20

+ꢁꢁ

+8ꢁ

TDme.(/C)

0

–2

0

–2

TDme.1(/C)

0

–2ꢁ

0

–2ꢁ

–4

–6

–4

–6

–8

–ꢀ0

28

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Frequency Characteristics

c

TZB4Z060

TZB4Z100

Z060

Z100

1000

100

Q

100

Q

10

1

100 200 300 400 500 600 700 800 900 1000

Frequency (MHz)

TZB4R200

TZB4R500

R500

R200

1000

100

10

1000

100

Q

10

1

100

200

300

400

500

600

100

200

300

400

500

Frequency (MHz)

7

29

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Temperature Proﬁle

c

Flow Soldering Profile

Soldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu), Eutectic solder (63Sn/37Pb)

T3

T2

Standard Profile

Heating

t2

Limit Profile

Pre-heating

Cycle

T1

of reflow

Standard Profile

Temp. (T1)

Time (t1)

Temp. (T2)

Time (t2)

150°C

60 to 120sec.

250°C

5sec. max.

1 time

t1

time (s)

Limit Profile

Pre-heating

Heating

s )MMERSE THE BODY IN SOLDER BATHꢀ AVAILABLE FOR COVER FILM TYPEꢁ

Cycle

of reflow

Temp. (T1)

Time (t1)

Temp. (T3)

Time (t2)

150°C

60 to 120sec.

265 3°C

5sec. max.

2 times

Reflow Soldering Profile

qSoldering profile for Lead-free solder (96.5Sn/3Ag/0.5Cu)

wSoldering profile for Eutectic solder (63Sn/37Pb)

(Limit profile: refer to q)

T5

T3

T4

T2

T3

T2

T1

t2

t3

Limit Profile

T1

Standard Profile

t1

time (s)

t1

time (s)

Standard Profile

Heating

Standard Profile

Heating

Peak

temperature

(T3)

Peak

temperature

(T3)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

150 to 180°C 60 to 120sec. 220°C

Temp. (T1) Time (t1) Temp. (T2) Time (t2)

30 to 60sec. 245 3°C

2 times

150°C 60 to 120sec. 183°C

30sec. 230 +5/-0°C 1 time

Limit Profile

Heating

Peak

temperature

(T5)

Pre-heating

Cycle

of reflow

Temp. (T1) Time (t1) Temp. (T4) Time (t3)

150 to 180°C 60 to 120sec. 230°C

30 to 50sec. 260 +5/-0°C 2 times

s !VAILABLE FOR TERMINAL SHAPE !ꢀ "ꢀ AND %ꢁ

Soldering Iron

Standard Profile

Temperature of soldering iron tip

Soldering time

Soldering iron power output

Cycle of soldering iron

7

350 10°C

3sec. max.

30W max.

1 time

Notice (Storage and Operating Conditions)

c

1. Do not use the trimmer capacitor under atmosphere

of RTV silicone rubber (Room Temperature

Vulcanizing Silicone Rubber) except Acetone

liberating silicone sealant.

6. Do not use the trimmer capacitor under the

conditions listed below.

(1) Corrosive gasses atmosphere

(ex. Chlorine gas, Hydrogen sulﬁde gas,

Ammonia gas, Sulfuric acid gas, Nitric oxide gas,

etc.)

2. Before using trimmer capacitors, please store under

the conditions of -10 to +40°C and 30 to

85%RH.

(2) In liquid (ex. water, oil, medical liquid,

organic solvent, etc.)

3. Do not store in or near corrosive gasses.

4. Use within 6 months of delivery.

(3) Dusty / dirty atmosphere

5. Do not store under direct sunlight.

(4) Direct sunlight

(5) Static voltage or electric/magnetic ﬁelds

(6) Direct sea breeze

(7) Other variations of the above

30

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Notice (Soldering and Mounting)

c

1. Soldering

(7) Do not use water-soluble ﬂux (for water

cleaning). To prevent the deterioration of

trimmer capacitor characteristics, apply ﬂux

only to terminals.

(1) Can be soldered by reﬂow soldering method, ﬂow

soldering method, and soldering iron.

(2) Soldering conditions

Refer to the temperature proﬁle.

2. Mounting

If the soldering conditions are not suitable, e.g.,

excessive time and/or excessive temperature, the

trimmer capacitor may deviate from the speciﬁed

characteristics.

(1) Do not apply excessive force (preferably 5.0N

[Ref: 500gf] max.), when the trimmer capacitor

is mounted on the PCB.

(2) Do not warp and/or bend PCB to protect trimmer

capacitor from breakage.

(3) The amount of solder is critical.

(4) The thickness of solder paste should be printed

from 150 micro m to 200 micro m and the dimension

of land pattern should be Murata's standard land

pattern used at reﬂow soldering. Insufﬁcient

amounts of solder can lead to insufﬁcient

soldering strength on PCB. Excessive amounts of

solder may cause bridging between the terminals

or contact failure due to ﬂux wicking up.

(5) When using soldering iron, the string solder

shall be applied to the lower part of the

terminal only. Do not apply ﬂux except to the

terminals. Excessive amounts of solder and/or

applying solder to the upper part of the

terminal may cause ﬁxed rotor or contact failure

due to ﬂux invasion into the movable part and/or

the contact point. The soldering iron should not

come in contact with the plastic case of the

trimmer capacitor. If such contact does occur,

the trimmer capacitor may be damaged.

(6) Our recommended chlorine content of solder is

as follows.

(3) When bending the terminals, do not apply

excessive force to the body of the product to

protect the terminal ﬁxing part from damage.

(4) Use a pick-up nozzle of a suitable dimension.

> Without cover ﬁlm type

- External dimensions of 4.5x4.0mm and

2.5mm bore diameter.

> With cover ﬁlm type

- 4.0mm external diameter and 2.0mm bore

diameter.

3. Cleaning [with cover ﬁlm type]

Isopropyl alcohol and ethyl alcohol are available

material for cleaning. If you use any other type of

solvent, please evaluate performance in your

application. Moreover, please conﬁrm that no

damage has occurred to the trimmer capacitor

after cleaning in your conditions.

4. Other

Note the polarity of the trimmer capacitor to

minimize inﬂuence by stray capacitance.

(Refer to the dimensions concerning the polarity.)

(a) Solder paste: 0.2wt% max.

(b) String solder: 0.5wt% max.

Notice (Handling)

c

1. Use suitable screwdrivers that ﬁt comfortably in

3. Do not apply adhesive, lock paints, or any other

substances to the trimmer capacitor to secure the

rotor position. They may cause corrosion or

electrical contact problems.

driver slot.

7

(1) Recommended screwdriver for manual adjustment

MURATA: KMDR010

(2) Recommended screwdriver bit for automatic

adjustment

4. Do not break the cover ﬁlm before the completion

of PCB mounting, soldering, and cleaning.

5. Do not clean the trimmer capacitor after the cover

ﬁlm has been broken.

MURATA: KMBT010

2. When adjusting with a screwdriver, do not apply

excessive force (preferably 1.0 N [Ref: 100gf] max.)

to minimize capacitance drift. Excessive force applied

to the screwdriver slot may cause deformation of the

products.

6. To break the cover ﬁlm, ﬁrst turn the screwdriver

more than 360°, and set the capacitance value.

(Inserting the screwdriver only will not break the

cover ﬁlm.)

Notice (Other)

c

Before using trimmer capacitors, please test after

assembly in your particular mass production system.

31

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Packaging

Minimum Quantity

c

Minimum Quantity (pcs.)

Part Number

ø180mm Reel

3000

ø330mm Reel

Bulk

500

100

500

-

TZR1

TZS2

TZY2

TZV2

TZC3

TZW4

TZB4

3000

-

2000

-

2000

-

1000

-

500

2500

Tape Dimensions

c

TZR1 Series

TZS2 Series

2.0 0.1

4.0 0.1

2.0 0.1

4.0 0.1

1.05 0.2

0.25 0.1

1.25 0.2

0.25 0.1

4.0 0.1

+0.1

1.5 -0 dia.

+0.1

-0

1.5

dia.

1.8 0.2

2.5 0.2

(in mm)

TZY2/TZV2 Series

TZC3 Series

+0.1

1.5

A

dia.

+0.1

– 0

1.5

dia.

2.0

4.0

t

2.0 0.2

0.3

0.25

2

4

A

A-Across

section

A

A-Across

section

A

3.6 0.2

8

2.7 0.2

t=TZY2 (TZVY2) : 1.6 0.2

TZV2 (TZV02) : 1.9 0.2

4.0

Tolerance : 0.1

in mm

Tolerance: 0.1

in mm

TZW4 Series

TZB4 Series

+0.1

1.5

dia.

– 0

+0.1

1.5

dia.

3.55 0.2

2.6

– 0

2.0

8.0

4 .0

0.3 0.1

2

4

0.3

A

A-Across

section

4.6

8

1.8

4.3

A-Across

section

A

Direction of feed

Tolerance: 0.1

in mm

Tolerance: 0.1

in mm

Continued on the following page.

32

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Packaging

Continued from the preceding page.

Reel Dimensions (180mm diameter)

c

TZR1/TZS2/TZY2/TZV2 Series

TZC3/TZW4/TZB4 Series

13.0 0.ꢀ dia.

21.0 0.ꢁ dia.

2.0 0.ꢀ

21.0 0.ꢁ dia.

9.0 1.0

13.0 1.0

17.0 1.0

13.0 1.0

17ꢁ 2 dia.

(in mm)

Reel Dimensions (330mm diameter)

c

TZB4 Series

13.0 0.ꢀ dia.

2.0 0.ꢀ

21.0 0.ꢁ dia.

13.ꢀ 1.0

17.ꢀ 1.0

32ꢁ 2 dia.

(in mm)

33

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Recommended Adjustment Tools

Please use the following recommended screwdrivers.

You can order these drivers using the part numbers below.

Although you can also adjust the capacitance value using commercial products, please use one with the same head size as the

driver listed below.

c For Manual Adjustment

MURATA

Model Number

Manufacturer’s

Model Number

Series

Shape

80

1.5

MURATA MFG.

TZR1

TZS2

TZY2

TZV2

KMDR160

KMDR050

KMDR060

KMDR020

KMDR010

KMDR130

KMDR160

Bit shape:

Minus (0.3x0.13)

80

(in mm)

1.5

MURATA MFG.

KMDR050

Bit shape: Square (0.54x0.54)

108

18

ENGINEER INC.

DA-89

Bit shape: Minus (0.8x0.35)

125

15

9000

VESSEL MFG.

0.9-30

NO.9000 -0.9g30

Bit shape: Minus (0.9x0.4)

122

50

20

TZC3

TZB4

MURATA MFG.

KMDR010

Bit shape: Minus (2.2x0.4)

125

15

VESSEL MFG.

CERAMIC BLADE

ELECTRONICS

9000

1.3-30

TZW4

NO.9000 -1.3g30

Bit shape: Minus (1.3x30)

(in mm)

Continued on the following page.

34

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Recommended Adjustment Tools

Continued from the preceding page.

c For Automatic Adjustment

MURATA

Model Number

Manufacturer’s

Model Number

Series

Shape

20

2

MURATA MFG.

TZS2

KMBT050

KMBT060

KMBT020

KMBT010

KMBT050

Bit shape: Square (0.54x0.54)

(in mm)

25

0.6

MURATA MFG.

TZY2

TZV2

KMBT060

Bit shape: Minus (0.56x0.25)

(in mm)

25

0.6

MURATA MFG.

KMBT020

Bit shape: Minus (0.9x0.4)

30

TZC3

TZB4

MURATA MFG.

KMBT010

Bit shape: Minus (2.2x0.4)

35

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

!Note

T13E.pdf

Nov.22,2013

Qualified Standards

The products listed herein have been produced

by a ISO9001 certified factory

MURATA FACTORY

Sabae Murata Mfg. Co., Ltd.

∗ No ODCs (Ozone Depleting Chemicals) are used on

any Murata trimmer potentiometers.

36

• Please read rating and !CAUTION (for storage, operating, rating, soldering, mounting and handling) in this catalog to prevent smoking and/or burning, etc.

!Note

T13E.pdf

• This catalog has only typical speciﬁcations. Therefore, please approve our product speciﬁcations or transact the approval sheet for product speciﬁcations before ordering.

Nov.22,2013

厂商	型号	描述	页数
MURATA	TZS2K200A001A00	[ Ceramic Trimmer Capacitors ]	46 页
MURATA	TZS2K200B001A00	[ Ceramic Trimmer Capacitors ]	46 页
MURATA	TZS2K200C001A00	[ Ceramic Trimmer Capacitors ]	46 页
MURATA	TZS2KA001B00	[ Ceramic Trimmer Capacitors ]	1 页
MURATA	TZS2KB001B00	[ Ceramic Trimmer Capacitors ]	1 页
MURATA	TZS2KE001B00	[ Ceramic Trimmer Capacitors ]	1 页
MURATA	TZS2KF001B00	[ Ceramic Trimmer Capacitors ]	1 页
MURATA	TZS2KN001B00	[ Ceramic Trimmer Capacitors ]	1 页
MURATA	TZS2N200A001A00	[ Ceramic Trimmer Capacitors ]	46 页
MURATA	TZS2N200B001A00	[ Ceramic Trimmer Capacitors ]	46 页
