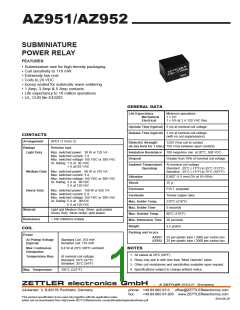

AZ951/AZ952
SUBMINIATURE
POWER RELAY
FEATURES
• Subminiature size for high density packaging
• Coil sensitivity to 116 mW
• Extremely low cost
• Coils to 24 VDC
• Epoxy sealed for automatic wave soldering
• 1 Amp, 3 Amp & 5 Amp contacts
• Life expectancy to 10 million operations
• UL, CUR file E43203
GENERAL DATA
Life Expectancy
Mechanical
Electrical
Minimum operations
1 x 107
1 x 105 at 3 A 120 VAC Res.
Operate Time (typical) 5 ms at nominal coil voltage
Release Time (typical) 1 ms at nominal coil voltage
CONTACTS
(with no coil suppressions)
Arrangement
SPDT (1 Form C)
Resistive load:
Dielectric Strength
(at sea level for 1 min.) 750 Vrms between open contacts
1250 Vrms coil to contact
Ratings
Insulation Resistance 100 megohms min. at 20°C, 500 VDC
Light Duty
Max. switched power: 30 W or 125 VA
Max. switched current: 1 A
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 1 A at 30 VDC
Dropout
Greater than 10% of nominal coil voltage
Ambient Temperature At nominal coil voltage
1 A at125 VAC
Operating Standard: -25°C (-13°F) to 55°C (131°F)
Medium Duty Max. switched power: 90 W or 375 VA
Max. switched current: 3 A
Sensitive: -25°C (-13°F) to 75°C (167°F)
Vibration
0.062" (1.5 mm) DA at 10–55Hz
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 3 A at 30VDC
Shock
15 g
3 A at 125VAC
Enclosure
P.B.T. polyester
Tinned copper alloy
270°C (518°F)
5 seconds
Heavy Duty
Max. switched power: 150 W or 625 VA
Max. switched current: 5 A
Max. switched voltage: 150 VDC or 300 VAC
UL Rating: 5 A at 30VDC
Terminals
Max. Solder Temp.
Max. Solder Time
Max. Solvent Temp.
5 A at 125VAC
Material
Light and Medium Duty: Silver, gold plated
Heavy Duty: Silver nickel, gold plated
80°C (176°F)
Resistance
< 100 milliohms initially
Max. Immersion Time 30 seconds
Weight
3.5 grams
COIL
Packing unit in pcs
Power
AZ951 25 per plastic tube / 2000 per carton box
AZ952 25 per plastic tube / 2000 per carton box
At Pickup Voltage
(typical)
Standard Coil: 253 mW
Sensitive coil: 116 mW
Max Continuous
Dissipation
0.8 W at 20°C (68°F) ambient
NOTES
1. All values at 20°C (68°F).
Temperature Rise
At nominal coil voltage:
Standard: 54°C (97°F)
Sensitive: 30°C (54°F)
2. Relay may pull in with less than “Must Operate” value.
3. Other coil resistances and sensitivities available upon request.
4. Specifications subject to change without notice.
Max. Temperature
105°C (221°F)
ZETTLER electronics GmbH
Junkersstr. 3, D-82178 Puchheim, Germany
fax:
-
A ZETTLER GROUP Company
phone: +49 89 800 97-0 office@ZETTLERelectronics.com
+49 89 800 97-200 www.ZETTLERelectronics.com
This product specification to be used only together with the application notes
which can be downloaded from http://www.ZETTLERelectronics.com/pdfs/relais/ApplicationNotes.pdf
2014-06-26
