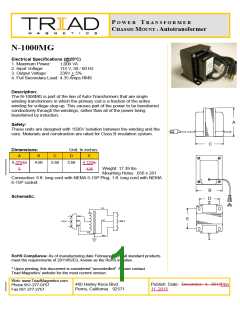

P O W E R T R A N S F O R M E R
CHASSIS MOUNT : Autotransformer
N-1000MG
Electrical Specifications (@25ºC)
1. Maximum Power:
2. Input Voltage:
3. Output Voltage:
1,000 VA
115 V, 50 / 60 Hz
230V + 5%
4. Full Secondary Load: 4.35 Amps RMS
Description:
The N-1000MG is part of the line of Auto-Transformers that are single
winding transformers in which the primary coil is a fraction of the entire
winding for voltage step-up. This causes part of the power to be transferred
conductively through the windings, rather than all of the power being
transferred by induction.
A
Safety:
These units are designed with 1500V isolation between the winding and the
core. Materials and construction are rated for Class B insulation system.
C
Dimensions:
Unit: In inches
A
5.37512
5
B
C
D
E
4.50
5.50
3.50
4.1254.
125
Weight: 17.39 lbs
Mounting Holes: .656 x 281
Connection: 6 ft. long cord with NEMA 5-15P Plug, 1 ft. long cord with NEMA
6-15P socket.
B
D
Schematic:
BLK
FN
BLK
E
WHT
WHT
GRN
230 V
115 V
ST
GRN
RoHS Compliance: As of manufacturing date February 2005, all standard products
meet the requirements of 2011/65/EU, known as the RoHS initiative.
* Upon printing, this document is considered “uncontrolled”. Please contact
Triad Magnetics’ website for the most current version.
